Product type	Car seat activity board
Brand	Chicco
Model	Safari
Recommended age	From 12 months
Board power supply	3 AA 1.5V batteries (included for demonstration)
Remote control power supply	2 AAA 1.5V batteries (included for demonstration)
Game modes	Relax (dim lights and soft melodies, auto-off after 15 min) and Fun (sound effects and melodies activated by remote control, auto-off after 20 min)
Functions	Lights, melodies, sound effects, infrared remote control, image recognition
Volume	Adjustable (low/high) by slider
Car attachment	On headrest of front seats, in the back, with loops and laces
Remote control attachment	To the car seat seatbelt via a closure strap
Textile composition	Exterior 100% polyester, filling 100% polyester
Care instructions	Surface cleaning with a soft dry or slightly damp cloth; do not wash, bleach, tumble dry, iron, or dry clean
Safety precautions	Use under adult supervision; assembly by an adult; do not use if seat is rear-facing; check attachment; remove used batteries; do not modify the product
Recommended battery type	Alkaline batteries of equivalent type; do not mix old and new; do not use lithium batteries
Auto-off	Relax mode after 15 min, Fun mode after 20 min of inactivity
Country of manufacture	China

Frequently Asked Questions - Safari CHICCO

From what age is this toy recommended?

The Chicco Safari toy is recommended from 12 months.

How to attach the board to the car seat?

Open the loops at the back of the board and close them on the headrest supports of the front seat. Then pull the laces to secure the board to the seat.

Where to attach the infrared remote control?

Hang the remote control on the car seat seatbelt using the closure strap provided.

What are the available game modes?

The toy offers two modes: Relax (dim lights and soft melodies, auto-off after 15 minutes) and Fun (sound effects and melodies activated by the remote control, auto-off after 20 minutes).

How to change the board batteries?

Loosen the screw on the cover at the back of the board with a screwdriver, remove the cover, take out the used batteries, insert 3 new AA batteries respecting polarity, then close.

How to change the remote control batteries?

Open the closure at the back of the remote control, loosen the screw of the cover, remove it, take out the used batteries, insert 2 new AAA batteries respecting polarity, then close.

Does the toy turn off automatically?

Yes, in Relax mode, the toy turns off after 15 minutes of inactivity. In Fun mode, it turns off after 20 minutes and a sound effect signals it.

How to clean the Safari board?

Clean the board with a soft cloth (fabric or microfiber), dry or slightly dampened with water. Do not use solvents or detergents. Do not wash, bleach, tumble dry, iron, or dry clean.

What batteries to use and what precautions to take?

Use alkaline batteries of equivalent type. Do not mix old and new batteries, nor different types (alkaline, carbon-zinc, rechargeable). Do not attempt to recharge non-rechargeable batteries. Remove batteries if not used for an extended period.

Can I machine wash the remote control?

No, dry cleaning, washing with water, bleaching, tumble drying, and ironing are prohibited for both the remote control and the board. Use only a soft slightly damp cloth.

USER MANUAL Safari CHICCO

Illustration of a hand pressing down on a car's seat, labeled 'A' (no text or symbols on the diagram itself)

Diagram of a device with labeled component B, showing internal components and a directional arrow (no text or symbols beyond label)

Fig. 3 F Fig. 4

Fig. 4.1 Fig. 5

Illustration of a child riding a car inside a vehicle, with monkey and baby nearby, and a close-up of hands holding a camera (no text or symbols)

Illustration of a hand holding a camera with three small face icons on its screen (no text or symbols)

Fig. 6 Fig. 7

Diagram of a device with labeled component 'G' and directional arrow (no text or symbols beyond label)

Illustration of a person holding a medical device with a vertical line and label 'H' (no text or symbols on the device itself)

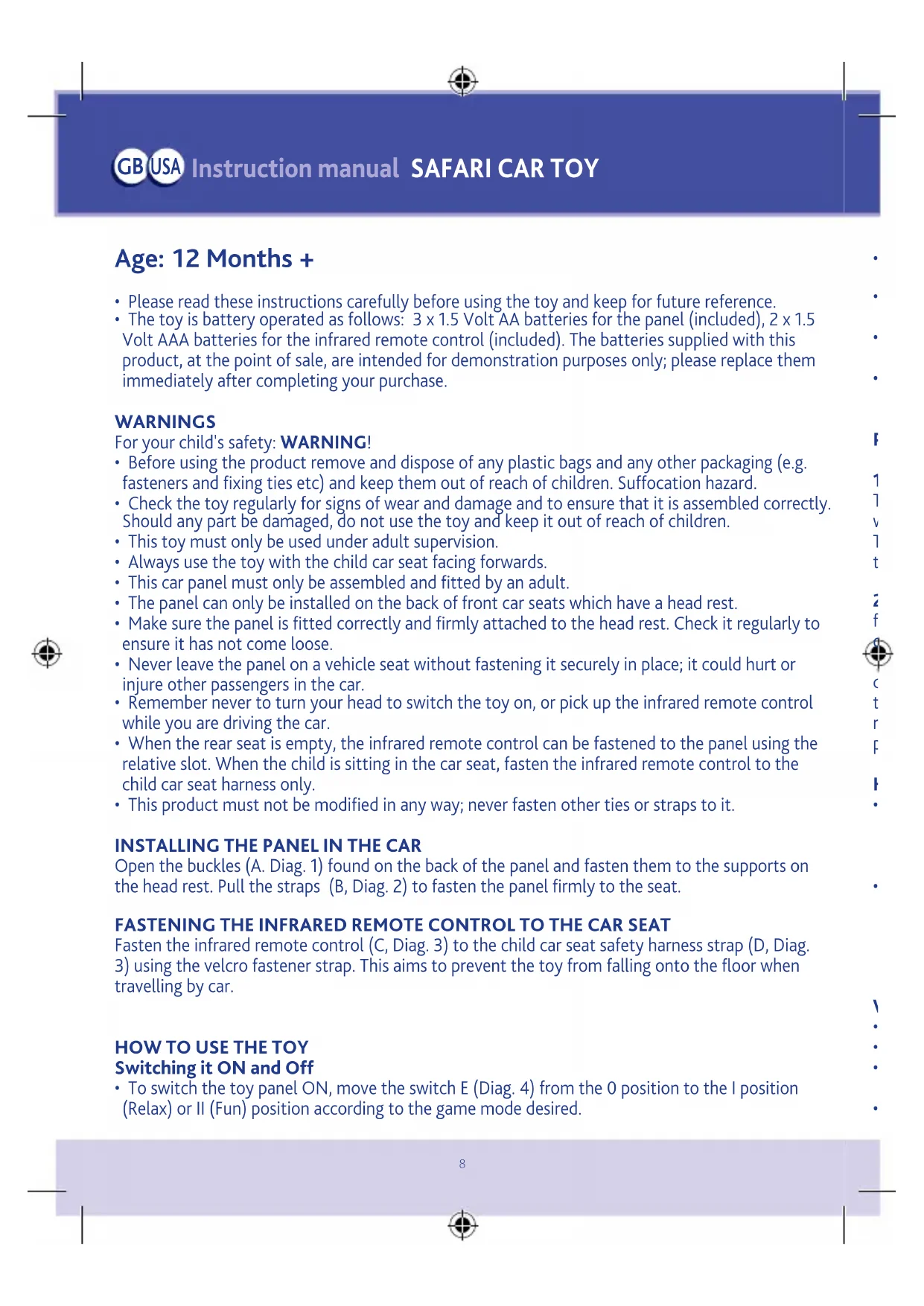

• Please read these instructions carefully before using the toy and keep for future reference.
• The toy is battery operated as follows: 3 x 1.5 Volt AA batteries for the panel (included), 2 x 1.5 Volt AAA batteries for the infrared remote control (included). The batteries supplied with this product, at the point of sale, are intended for demonstration purposes only; please replace them immediately after completing your purchase.

WARNINGS

For your child's safety: WARNING!

• Before using the product remove and dispose of any plastic bags and any other packaging (e.g. fasteners and fixing ties etc) and keep them out of reach of children. Suffocation hazard.
• Check the toy regularly for signs of wear and damage and to ensure that it is assembled correctly. Should any part be damaged, do not use the toy and keep it out of reach of children.
  • This toy must only be used under adult supervision.
  • Always use the toy with the child car seat facing forwards.
  • This car panel must only be assembled and fitted by an adult.
• The panel can only be installed on the back of front car seats which have a head rest.
• Make sure the panel is fitted correctly and firmly attached to the head rest. Check it regularly to ensure it has not come loose.
• Never leave the panel on a vehicle seat without fastening it securely in place; it could hurt or injure other passengers in the car.
• Remember never to turn your head to switch the toy on, or pick up the infrared remote control while you are driving the car.
• When the rear seat is empty, the infrared remote control can be fastened to the panel using the relative slot. When the child is sitting in the car seat, fasten the infrared remote control to the child car seat harness only.
  • This product must not be modified in any way; never fasten other ties or straps to it.

INSTALLING THE PANEL IN THE CAR

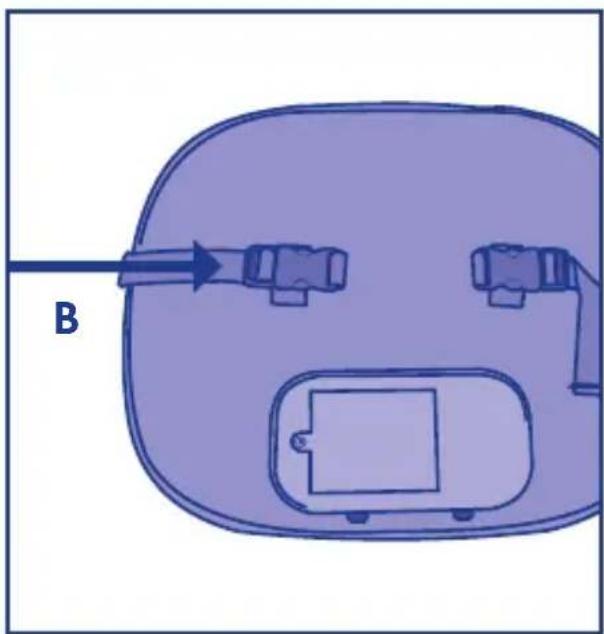

Open the buckles (A. Diag. 1) found on the back of the panel and fasten them to the supports on the head rest. Pull the straps (B, Diag. 2) to fasten the panel firmly to the seat.

FASTENING THE INFRARED REMOTE CONTROL TO THE CAR SEAT

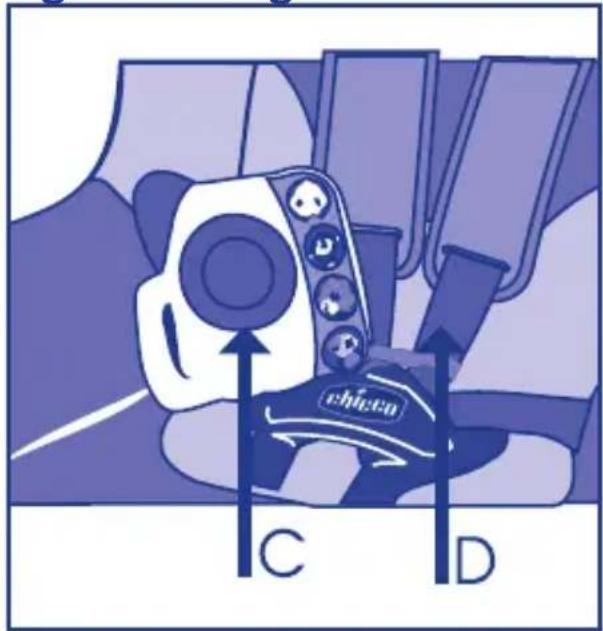

Fasten the infrared remote control (C, Diag. 3) to the child car seat safety harness strap (D, Diag. 3) using the velcro fastener strap. This aims to prevent the toy from falling onto the floor when travelling by car.

HOW TO USE THE TOY

Switching it ON and Off

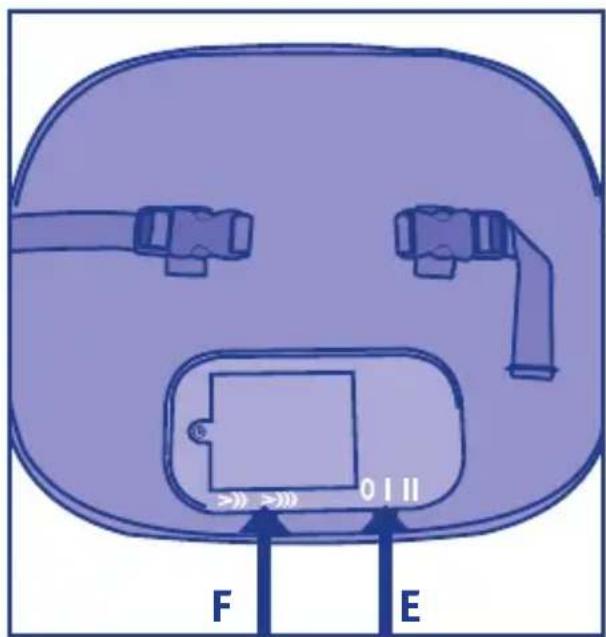

- To switch the toy panel ON, move the switch E (Diag. 4) from the 0 position to the I position (Relax) or II (Fun) position according to the game mode desired.

• To adjust the volume level, move the switch F (Diag. 4) from the <)) (low) position to the <))) (high) position.
• In order to avoid using up the batteries for no reason, it is recommended to switch off the toy by moving the switch E (Diag. 4) to the 0 position.
• Insert the batteries in the walkie-talkie style infrared remote control before using it; it only works when the toy panel is set to Fun mode.

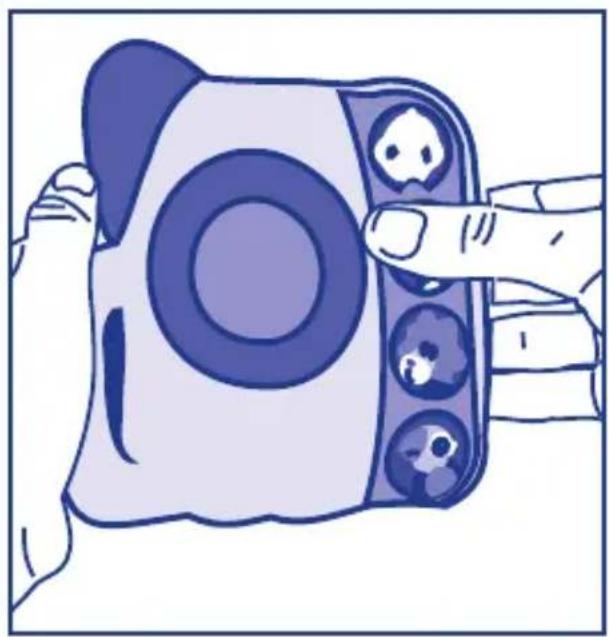

  • To start the game functions, point the sensor on the infrared remote control at the panel (Diag. 4.1).

Play modes

1. RELAX: to enable this play mode, move the switch E (Diag. 4) to the I position.

The low lights and soft music gently soothe your baby. The infrared remote control does not work when the toy is operating in this play mode. The toy will switch off automatically after 15 minutes. To restart it, switch it off by moving the switch to the 0 position. Then switch it back on and set the desired play mode.

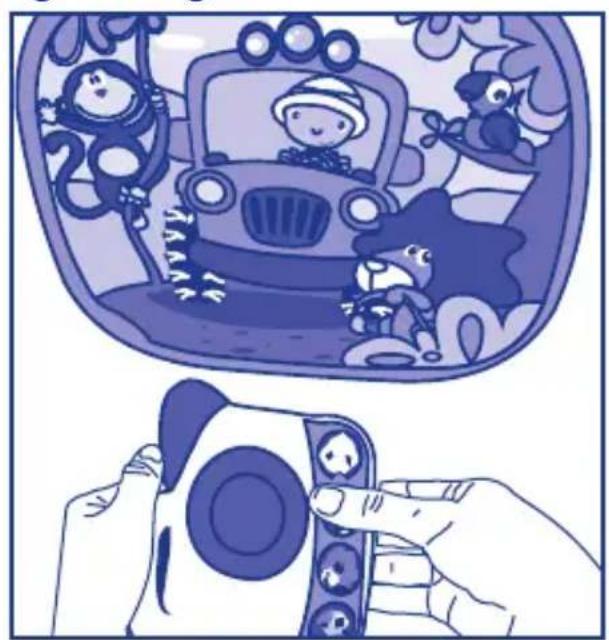

1. FUN: to enable this play mode, move the switch E (Diag. 4) to the II position. A jingle will confirm the play mode choice. When set to Fun mode, every time the child presses one of the buttons on the infrared remote control (Diag. 5) the relative sound effect will play. If the same button is pressed a number of times, a tune will play. In both cases, the images linked to the buttons will be displayed on the panel so your baby will learn to recognise them. When set to FUN mode, if the toy is not used for about 20 minutes, it will play a sound effect and switch off automatically. To restart it, switch it off by moving the switch to the 0 position. Then switch it back on and set the play mode of your choice.

HOW TO FIT AND REMOVE THE REPLACEABLE BATTERIES

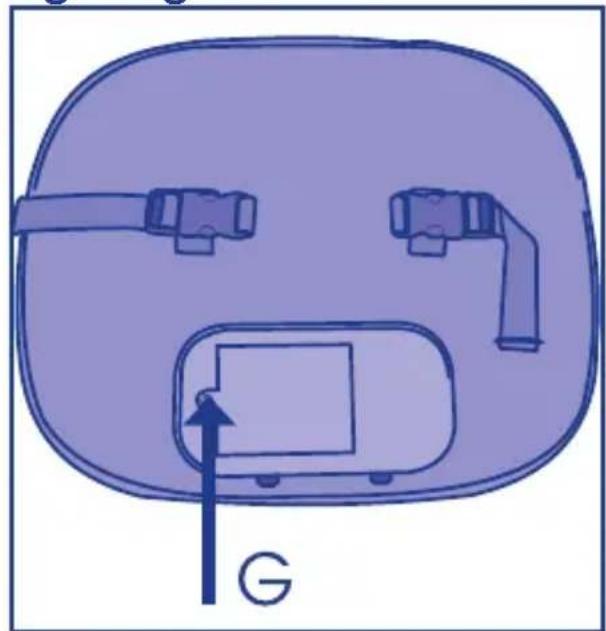

• To replace the panel batteries: loosen the screw on the battery compartment cover (G, Diag. 6) on the back with a screwdriver and remove the cover; then remove the flat batteries and fit new ones, ensuring that the battery polarity is correct (as shown on the product), close the battery compartment cover, and tighten the screw firmly.

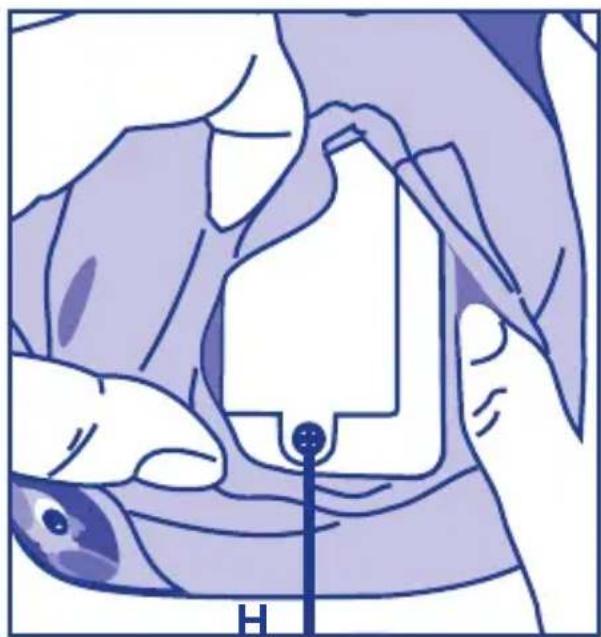

• To replace spent batteries inside the infrared remote control: open the velcro fastener on the back, loosen the screw on the battery compartment cover (H, Diag. 7) on the back with a screw-driver and remove the cover; then remove the flat batteries and fit new ones, ensuring that the battery polarity is correct (as shown on the product), close the battery compartment cover, and tighten the screw firmly. Close the velcro fastener firmly when you have finished changing the batteries.

WARNING

• Batteries must only be fitted by an adult.
  • Always keep batteries and tools out of the reach of children.
  • Always remove spent batteries from the toy to avoid the danger of leakage from the battery damaging the product.
  • Always remove the batteries if the product will not be used for a long period of time

• Only use alkaline batteries of the same type or equivalent to the type recommended for the correct function of this product.

• Never mix new and old batteries.
• If the batteries happen to leak liquid, replace them immediately, making sure you clean the compartment beforehand; wash your hands thoroughly if you come into contact with any such liquid.
• Remove the batteries from the toy before disposing of the product.
• Do not burn or dispose of old batteries into the environment. Dispose of them at an appropriate differentiated collection point.
• Never mix alkaline, standard (zinc-carbon) or rechargeable batteries.
• This product is not designed for use with lithium batteries. WARNING: Improper use could be hazardous
• Do not short-circuit the battery terminals.
• Do not attempt to recharge non-rechargeable batteries: they might explode.
  • The use of rechargeable batteries is not recommended as the toy may not work properly.
• If using rechargeable batteries, remove them from the toy before recharging them. Batteries must always be recharged under adult supervision.

This product complies to EU directive 2002/96/EC.

The crossed bin symbol on the appliance indicates that the product, at the end of its life, must be disposed of separately from domestic waste, either by taking it to a separate waste disposal site for electric and electronic appliances or by returning it to your dealer when you buy another similar appliance. The user is responsible for taking the appliance to a special waste disposal site at the end of its life. If the disused appliance is collected correctly as separate waste, it can be recycled, treated and disposed of ecologically; this avoids a negative impact on both the environment and health, and contributes towards the recycling of the product's materials. For further information regarding the waste disposal services available, contact your local waste disposal agency or the shop where you bought the appliance.

This product complies to EU directive 2002/95/EC.

This product complies with EC directive 2006/66/EC.

The crossed bin symbol on the batteries or product pack indicates that, at the end of their life, they must not be disposed of as urban refuse. They must be disposed of separately from domestic waste, either by taking them to a separate waste disposal site for batteries or by returning them to your dealer when you buy similar rechargeable or non-rechargeable batteries.

The chemical symbols Hg, Cd, Pb, printed under the crossed bin symbol, indicate the type of substance contained in the batteries: Hg=Mercury, Cd=Cadmium, Pb=Led.

The user is responsible for taking the batteries to a special waste disposal site at the end of their life, so that they can be treated and recycled. If the spent batteries are collected correctly as

separate waste, they can be recycled, treated and disposed of ecologically; this avoids a negative impact on both the environment and human health, and contributes towards the recycling of the batteries' substances. Non-compliance with the norms on battery disposal damages the environment and human health. For further information regarding the waste disposal services available, contact your local waste disposal agency or the shop where you bought the batteries.

CLEANING, CARE & MAINTENANCE OF THE TOY

• The toy should only be cleaned using a soft, dry or moistened fabric or microfibre cloth to avoid damage to its electric circuit. Do not clean the toy with detergents or solvents.
• Protect the toy against heat, dust, sand, humidity and water.

Fabric used for the toy panel and infrared remote control:

Outer cover: 100% Polyester

Padding: 100 % Polyester

Do not wash in water

Do not bleach

Do not tumble dry

Do not iron

Do not dry clean

Made in China.
