Product Type	Infrared Ear Thermometer
Brand	AEG
Model	FT 4905
Measurement Method	Tympanic Infrared
Measurement Range	34.0 °C to 42.2 °C (93.2 °F to 108.0 °F)
Accuracy	±0.2 °C (±0.4 °F) between 35.5 °C and 42.0 °C
Display	LCD Screen
Memory	Up to 9 last measurements
Fever Alarm	Yes, audible signal from 37.5 °C
Auto Power Off	After approx. 1 minute of inactivity
Celsius/Fahrenheit Conversion	Yes
Power Supply	1 lithium battery 3 V (type CR2032)
Battery Life	Approx. 3 years of normal use
Low Battery Indicator	Battery symbol on display
Thermal Shock Protection	Yes, according to EN 12470-5 standard
Standards	EN 60601-1-2, EN 12470-5, EU Directive 93/42/EEC
Warranty	24 months
Dimensions (approx.)	150 × 40 × 30 mm
Weight (with battery)	Approx. 50 g
Housing Material	ABS plastic
Color	White and grey
Supplied Accessories	Protective cap, battery, instructions for use
Care and Cleaning	Clean the lens and sensor after each use with a dry cloth. Do not immerse.
Safety	Do not use if the lens is damaged. Keep out of reach of children. Do not disassemble.

Frequently Asked Questions - FT 4905 AEG

How to replace the battery of the AEG FT 4905 thermometer?

Open the battery compartment (4) located at the back. Replace the used battery with a CR2032 lithium battery, respecting polarity (+/-). Close the compartment. The battery symbol on the display indicates when the battery needs to be changed.

How to clean the measuring lens?

Use a dry and soft cloth to gently wipe the measuring lens (6) and the sensor (5). Do not use chemicals or gases. Clean after each use to ensure accurate measurements.

What does the fever alarm mean?

The fever alarm triggers when the measured temperature exceeds 37.5 °C (99.5 °F). It emits a long audible signal followed by three short beeps. This indicates a high temperature requiring special attention.

How to switch from Celsius to Fahrenheit?

Turn off the device. Press simultaneously the measurement button (7) and the On/Mem button (3). The display shows °F. To return to °C, repeat the same operation.

Why is the measured temperature too low?

A too low temperature may be due to improper positioning of the measuring lens in the ear. Make sure to pull the ear back to align the sensor with the eardrum. Also clean the lens.

How to recall the last measurements?

Turn on the device by pressing the On/Mem button (3). Press this button again to display previous measurements. The device stores up to 9 measurements in memory. Each press displays the next measurement.

How long does the device stay on?

The device turns off automatically after approximately 1 minute of inactivity. You can also turn it off manually by long-pressing the On/Mem button.

Is the thermometer under warranty?

Yes, the AEG FT 4905 thermometer comes with a 24-month warranty from the date of purchase. Keep the receipt as proof. In case of defect, contact your retailer.

Can I use this thermometer on a baby?

Yes, it is suitable for children of all ages. For babies under 2 years, gently pull the earlobe backward. Take three measurements in the same ear and record the highest one.

How to check the accuracy of the device?

After 3 years of use, it is recommended to check the accuracy. Send the device to your retailer or an authorized service for inspection. Do not attempt to calibrate it yourself.

USER MANUAL FT 4905 AEG

White AEG medical device with digital display showing blood pressure reading (no text or symbols on device body)

CE 0197

Inhalt

D

Line drawing of two hands holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of a hand performing a finger massage on the ear area (no text or symbols)

Fehlerbehebung

Illustration of two hands holding a tool, no text or symbols present

Illustration of a baby's face with a finger pointing to the ear area, no text or symbols present

Illustration of a person's head with a finger pointing to the ear area, no text or symbols present

Illustration of two hands holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of a hand performing a finger massage on a person's ear (no text or symbols)

Alarma de fiebre

Illustration of hands holding a small object with a pointed tip, no text or symbols present

Illustration of a person's ear with a finger pointing to the ear area (no text or symbols)

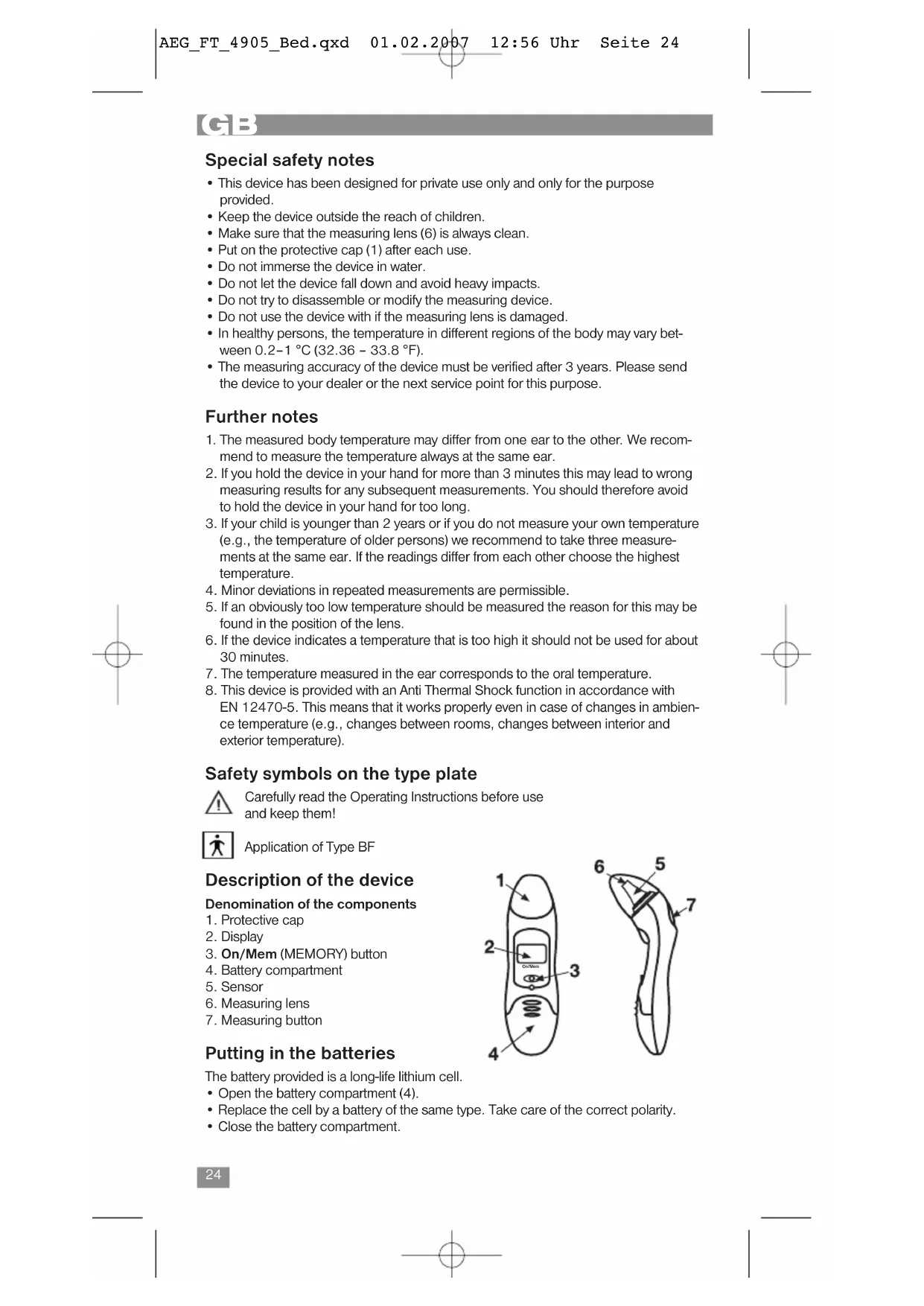

Special safety notes

• This device has been designed for private use only and only for the purpose provided.
• Keep the device outside the reach of children.
• Make sure that the measuring lens (6) is always clean.
• Put on the protective cap (1) after each use.
• Do not immerse the device in water.
• Do not let the device fall down and avoid heavy impacts.
• Do not try to disassemble or modify the measuring device.
• Do not use the device with if the measuring lens is damaged.
• In healthy persons, the temperature in different regions of the body may vary between 0.2–1 °C (32.36 – 33.8 °F).
• The measuring accuracy of the device must be verified after 3 years. Please send the device to your dealer or the next service point for this purpose.

Further notes

1. The measured body temperature may differ from one ear to the other. We recommend to measure the temperature always at the same ear.
2. If you hold the device in your hand for more than 3 minutes this may lead to wrong measuring results for any subsequent measurements. You should therefore avoid to hold the device in your hand for too long.
3. If your child is younger than 2 years or if you do not measure your own temperature (e.g., the temperature of older persons) we recommend to take three measurements at the same ear. If the readings differ from each other choose the highest temperature.
4. Minor deviations in repeated measurements are permissible.
5. If an obviously too low temperature should be measured the reason for this may be found in the position of the lens.
6. If the device indicates a temperature that is too high it should not be used for about 30 minutes.
7. The temperature measured in the ear corresponds to the oral temperature.
8. This device is provided with an Anti Thermal Shock function in accordance with EN 12470-5. This means that it works properly even in case of changes in ambience temperature (e.g., changes between rooms, changes between interior and exterior temperature).

Safety symbols on the type plate

Carefully read the Operating Instructions before use and keep them!

Application of Type BF

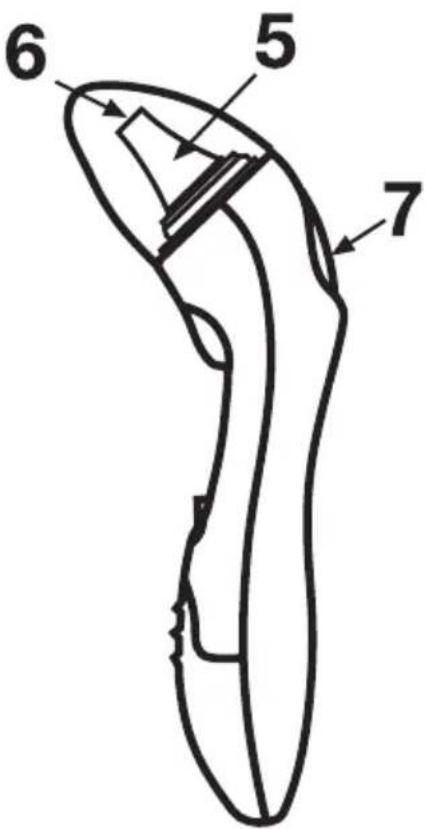

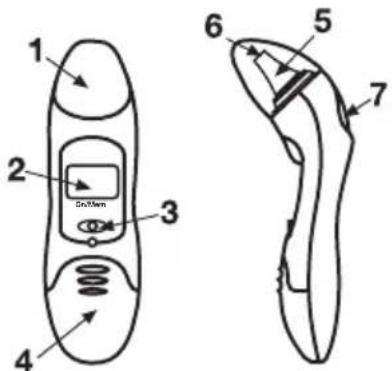

Description of the device

Denomination of the components

1. Protective cap
2. Display
3. On/Mem (MEMORY) button
4. Battery compartment
5. Sensor
6. Measuring lens
7. Measuring button

Putting in the batteries

The battery provided is a long-life lithium cell.

• Open the battery compartment (4).
• Replace the cell by a battery of the same type. Take care of the correct polarity.
• Close the battery compartment.

GB

A battery symbol on the display (2) indicates that the battery should be replaced.

Attention: Batteries do not belong in your usual household rubbish. Please dispose of old batteries at proper collecting points or at the competent dealer.

Never throw batteries into a fire.

Measuring instructions

Take off the protective cap (1).

Make sure that both the measuring lens and ear canal are clean.

Push the On/Mem button (3). The device is ready as soon as the display starts to show (Fig. 1) and two beeps can be heard.

Please stand, sit or lie still.

Start measuring. Gently pull the ear back to stretch the ear canal. To get a correct measuring result you should direct the sensor (5) to the eardrum (Fig. 2).

- For children under the age of 2 years, gently pull the outer ear back (Fig. 3).

- For adults and children older than 2 years, gently pull the ear up and then back (Fig. 4).

Push the measuring button with your index finger. When the measuring process is completed (after about 1 second) the device will beep.

The measured temperature is indicated, the 3 symbol blinks for about 5 seconds and the device beeps two times. The device is now ready for a new measurement.

If the temperature is too high 'Hi °C' will be indicated, if it is too low you will see 'Lo °C' on the display.

After 1 minute or by holding the On/Mem button pushed down, the device switches off automatically. Only the last reading will be saved.

If you push the On/Mem button again after you switched on the device or push it repeatedly, the display will show the readings of the last measurements (memory function for up to nine readings (Fig. 5)).

Conversion from Celsius (°C) to Fahrenheit (°F)

Switch the device off. Concurrently push the measuring button (7) and the On/Mem button. The display will now show "F". You can now use the device as herein described. To change the display mode back just repeat this process.

Fever alarm

The device has a 'Fever Alarm' function. If the body temperature is above 37.5 °C (99.5 °F) you will first hear one long beep and then three short beeps.

Line drawing of two hands holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of a hand performing a finger massage on the ear area (no text or symbols)

GB

Error handling

Error Possible cause

Remedy

The device is just measuring.

Wait until stops to blink.

The battery is too weak for further measurements.

Replace the battery.

The measurement was aborted before the measuring process was completed.

Wait until stops to blink.

There was a rude change in ambient temperature during the measuring process.

Let the device rest for 30 minutes at ambient temperature. The temperature should range between 10 °C and 40 °C (50 °F \~ 104 °F).

The ambient temperature does not range between 10 °C and 40 °C (50 °F \~ 104 °F).

Let the device rest for 30 minutes at ambient temperature. The temperature should range between 10 °C and 40 °C (50 °F \~ 104 °F).

Errors 5-9: The device does not work properly.

Switch the device off, wait for 1 minute and switch it on again. If the same error indication appears again, have the device replaced by your dealer.

The measured temperature is higher than 42.2 °C (108.0 °F).

Clean the measuring lens and repeat the measurement.

The measured temperature is lower than 34.0 °C (93.2 °F).

Clean the measuring lens and repeat the measurement.

The device is not ready.

Replace the battery.

Maintenance and storage

• Use a dry cloth to clean the device after each use (recommended).
• Clean the measuring lens and sensor after each use.
• Do not immerse the device in water.
• Do not use gas or strong cleaning agents.
• If the measuring device is not used for a longer time, the battery should be removed. (Leaking batteries may damage the device).
• Protect the device from direct sunlight, high temperatures, moisture (relative atmospheric humidity up to 95% (non-condensing)) and dust.
• Do not expose the device to extremely low (below -20^ (-4.0°F)) or high (above 50^ (122.0°F)) temperatures.

GB

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Applied standards

The CE marking CE 0197 of the measuring device corresponds to EU Directive 93/42/EEC (Medical Device Directive). The following standards apply for the design and/or production of the product:

EN 60601-1-2:1993: Medical electrical equipment – electromagnetic compatibility

EN 12470-5:2003: Fulfils the requirements of the standard - Clinical thermometers - Part 5 - Performance of infra-red ear thermometers (with maximum device).

Technical changes reserved.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
