USER MANUAL LX910 LANDXCAPE

Original instructions

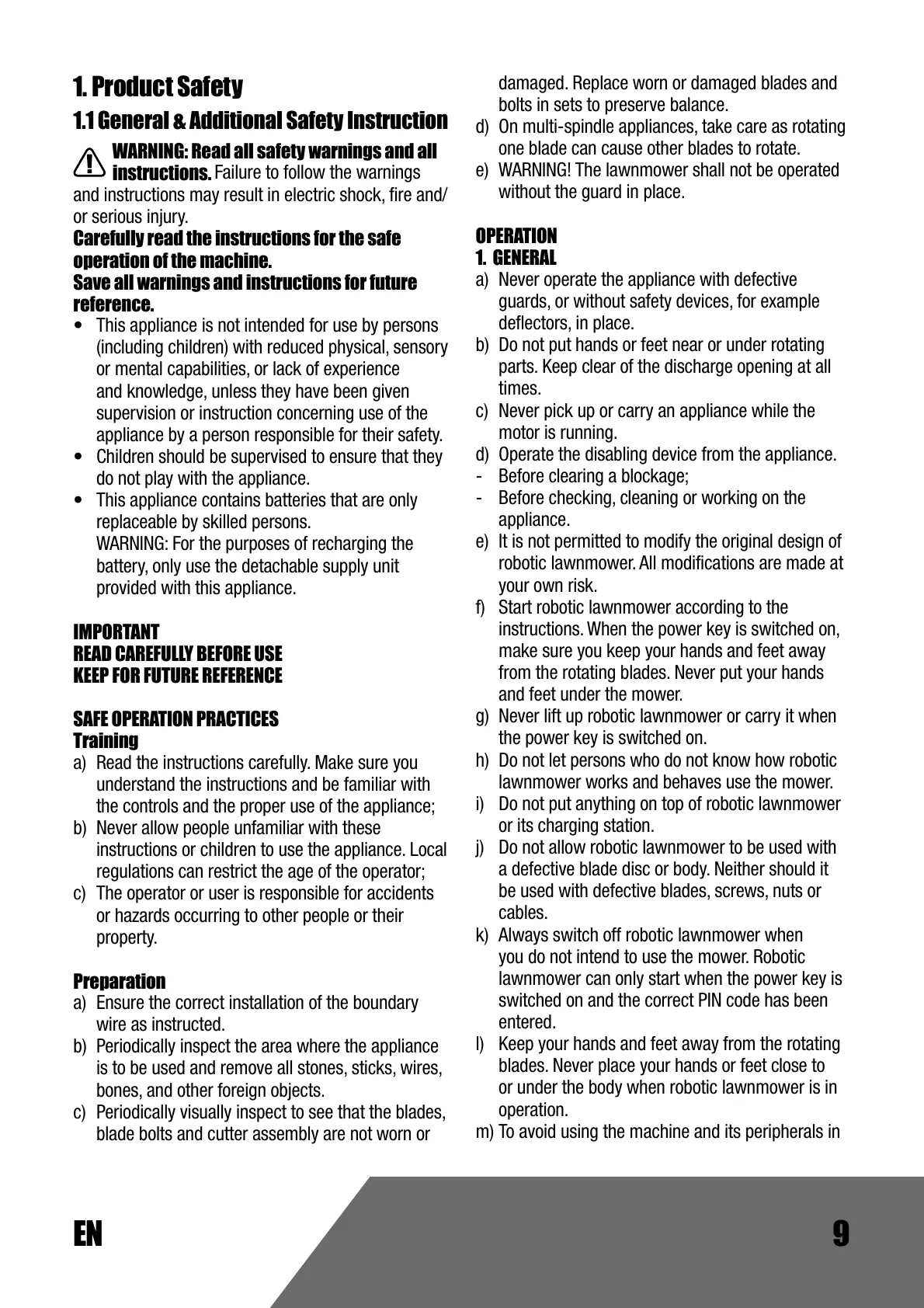

1 General & Additional Safety Instruction À WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings

and instructions may result in electric shock, fire and/ or serious injury.

GCarefully read the instructions for the safe operation of the machine.

Save all warnings and instructions for future reference.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

This appliance contains batteries that are only replaceable by skilled persons.

WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE SAFE OPERATION PRACTICES Training a) Read the instructions carefully. Make sure you

understand the instructions and be familiar with the controls and the proper use of the appliance;

b) Never allow people unfamiliar with these

instructions or children to use the appliance. Local regulations can restrict the age of the operator;

c) The operator or user is responsible for accidents

or hazards occurring to other people or their property.

Preparation a) Ensure the correct installation of the boundary

b) Periodically inspect the area where the appliance

is to be used and remove all stones, sticks, wires, bones, and other foreign objects.

c) Periodically visually inspect to see that the blades,

blade bolts and cutter assembly are not worn or

damaged. Replace worn or damaged blades and bolts in sets to preserve balance.

d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate.

e) WARNING! The lawnmower shall not be operated without the guard in place.

a) Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place.

b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.

c) Never pick up or carry an appliance while the motor is running.

d) Operate the disabling device from the appliance.

- Before clearing a blockage;

-__ Before checking, cleaning or working on the

Itis not permitted to modify the original design of

robotic lawnmower. All modifications are made at

f) Start robotic lawnmower according to the instructions. When the power key is switched on, make sure you keep your hands and feet away from the rotating blades. Never put your hands and feet under the mower.

g) Never lift up robotic lawnmower or carry it when the power key is switched on.

h) Do not let persons who do not know how robotic lawnmower works and behaves use the mower.

j) Do not put anything on top of robotic lawnmower or its charging station.

) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective blades, screws, nuts or cables.

k) Always switch off robotic lawnmower when you do not intend to use the mower. Robotic lawnmower can only start when the power key is switched on and the correct PIN code has been entered.

1) Keep your hands and feet away from the rotating blades. Never place your hands or feet close to or under the body when robotic lawnmower is in operation.

m) To avoid using the machine and its peripherals in

bad weather conditions especially when there is a risk of lightning.

n) Not to touch moving hazardous parts before these have come to a complete stop.

o) For machines used in public areas, that warning signs shall be placed around the working area of the machine. They shall show the substance of the following text:

AN WARNING! Automatic lawnmower! Keep away

from the machine! Supervise children!

2. ADDITIONALLY WHEN THE APPLIANCE IS OPERATING AUTOMATICALLY

a) Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.

MAINTENANCE AND STORAGE AN When the mower is turned upside down the

power key must always be switched off.

The power key should be switched off during all

work on the mower's underframe, such as cleaning

orreplacing the blades.

a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.

b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety.

c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if necessary so that the rotating parts are balanced.

d) Ensure that only replacement cutting means of the right type are used.

e) Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.

f) In the event of leakage of electrolyte flush with

water/neutralizing agent, seek medical help if it

comes into contact with the eyes etc.

Servicing of the appliance should be according to

manufacturers’ instructions.

To connect the machine and/or its peripherals only to a supply circuit protected by a residual current device (RCD ) with a tripping current of not more than 30 mA.

To avoid injuries, wear protective gloves when replacing the blades.

The original packaging should be used when

transporting robotic lawnmower over long distances.

To safely move from or within the working area:

a) Press the STOP button to stop the mower. You select the four digit PIN code when you start the mower for the first time.

b) Always switch off robotic lawnmower if you intend to carry the mower.

c) Carry the mower by the handle at the front under the mower. Carry the mower with the blade disc away from the body.

RFexposure requirements

To satisfy RF exposure requirements, a separation distance of 200mm or more should be maintained between this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

Safety Warnings for battery pack inside the tool

a) Do not dismantle, open or shred battery pack.

b) Do not short-circuit a battery pack. Do not Store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

€] Donotexnose battery pack to heat or fire. Avoid storage in direct sunlight.

d) Do not subject battery pack to mechanical Shock.

e] In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has heen made, wash the affected area with copious amounts of water and seek medical advice.

# Keen battery rack clean and dry.

9) Recharge only with the charger specified by Landxcape”". Do notuse any charger other

than that specifically provided for use with the equipment.

h) Do notuse any battery pack which is not designed for use with the equipment.

D Retain the original product literature for future reference.

1 Dispose of properly.

D Do not mix cells of different manufacture, capacity, size or type within a device.

m)Keep the battery away from microwaves and high pressure.

User manual requirements for wireless product

a) Operation of this device is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired

Caution: Changes or modifications to this unit

not expressly approved by the party responsible

for compliance could void the user's authority to

operate the equipment.

NOTE: This equipment generates, uses and can

radiate radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no guarantee

that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which

can be determined by turning the equipment off

and on, the user is encouraged to try to correct

the interference by one or more of the following

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment

- Connect the equipment into an outlet on a

circuit different from that to which the receiver is

- Consult the dealer or an experienced radio/TV

technician for help.

WARNING - Robotic lawnmower can be dangerous if incorrectly used.

Read through the Operator's manual carefully and understand the content before using your robotic lawnmower.

WARNING - Keep a safe distance from the machine when operating.

© WARNING — Operate the disabling device before working on or lifting the machine.

WARNING - Do not ride on the machine.

Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

Li-lon battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.

Do not wash the machine with a high pressure washer

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

Read operator's manual

Detachable supply unit

The garden product is intended for domestic lawn mowing. lt is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the size of your lawn, your Landxcape"” may be programmed to operate at any time or frequency. It is impossible for digging, sweeping or snow cleaning.

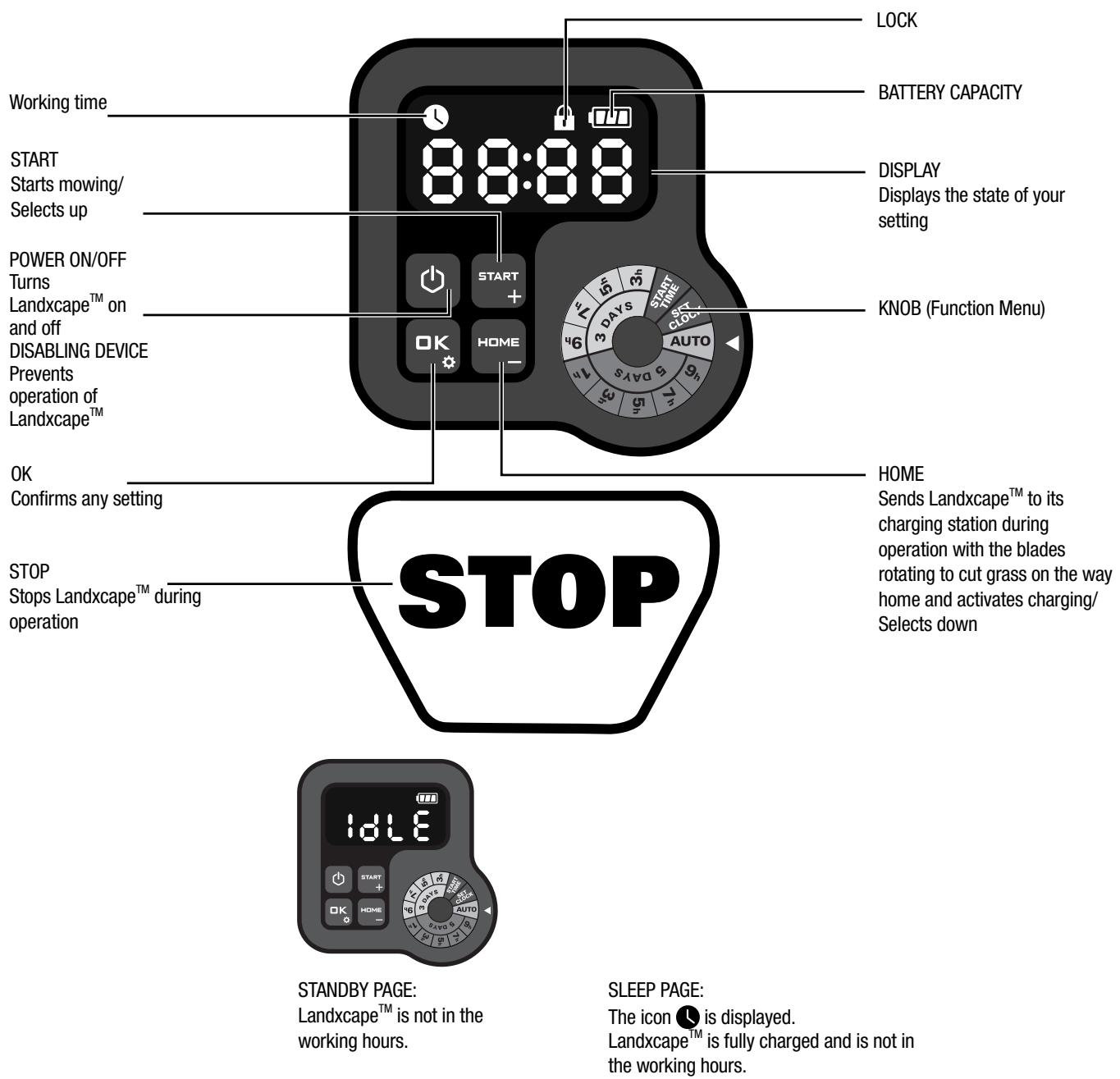

LOCK Working time BATTERY CAPACITY START | DISPLAY Ro mowing/ Displays the state of your elects up setting POWER ON/OFF Tums Landxcape"" on KNOB (Function Menu) and off DISABLING DEVICE Prevents operation of Landxcape"" ok HOME Confirms any setting Sends Landxcape"" to its charging station during operation with the blades STOP rotating to cut grass on the way Stops Landxcape"” during home and activates charging/ operation Selects down STANDBY PAGE: SLEEP PAGE: Landxcape"" is not in the The icon @ is displayed. working hours. Landxcape" is fully charged and is not in

the working hours. Start

1) After the boundary wire installation, you can start using Landxcape"" (Please refer to Installation Guide for boundary wire installation).

2) Press fJ until Landxcape"" turns on. For the first use, input the default PIN code 0000 by pressing 6e for four times when the number 0 is blinking. (The PIN code can be changed, please refer to “4.3 Setting”). NOTE: Landxcape" will turn off if it does not receive any input within 30 seconds after it is tumed on. f you enter wrong PIN code three times, Landxcape" will raise the alarm “di-di” and then tum off.

3) ; then press G to start mowing.

4) Press [| then 6e to make Landxcape"" go to the charging station, with the blades rotating to cut grass on the way home.

Landxcape” will work continuousiy until reaching low battery power level and then it will return to the charging station. Once charging is complete,

Landxcape" will automatically resume mowing or it stay in the charging station according to the mowing schedule.

NOTE: When Landxcape" tums on, all lights on the display will be illuminated and then turn off. Check if there is any light damaged. it is recommended to shield the display with your hand when the outdoor light gets too strong.

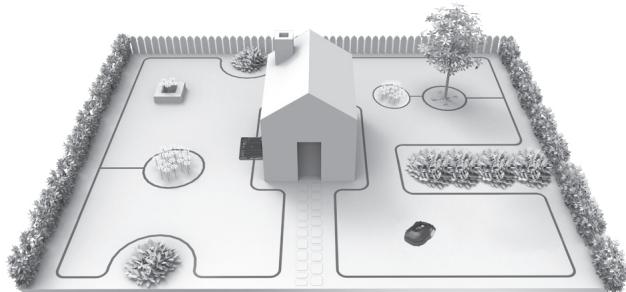

4. Understanding Your Landxcane"

Congratulations on your new purchase of Landxcape"" and welcome to the care-free life of automatic mowing. In the following, we want to help you to better understand how your Landxcape"" thinks. AIN D “ES

41How does my Landxcape"" know what to mow?

Landxcape"” chooses its direction at random. it will make sure your entire lawn is evenly mowed without leaving unattractive mowing paths (See Fig. À).

4.2 How does my Landxcape" know where to go?

Your Landxcape"" is made to work on its own. Landxcape"” knows when it needs to go to its charging station to charge, can sense when itis raining, can stop itself if it senses a problem, and knows to stop, draw back, and tum around when it bumps into something blocking its path. Landxcape" will also automatically stop its blade tuning disc from rotating if it is lifted off the ground to prevent an accident.

A. Finding the Charging station

‘When your Landxcape"" needs to recharge, it will stop mowing and follow the boundary wire in an anti-clockwise direction back to its charging station.

Landxcape" is equipped with a rain sensor which detects rain and tells Landxcape”" to stop mowing and follow the boundary wire back to its charging station (See Fig. B).

Landxcape" will resume mowing after passing the delay time. The default delay time is 180mins.

When the rain sensors are wet, Landxcape"" returns to its charging base. When the rain sensors are dry, Landxcape"" will begin the delay time countdown. If you want to exit from the rain delay, dry the sensor area, and perform a power cycle by operating the on/off key. After the power cycle has been performed, you can operate again.

€. Sensing the boundary wire Landxcape" always obeys the border set by the boundary wire and uses sensors at its front to detect it. (See Fig. C)

D. Starting and stonping while mowing (See Fig. D. El, E2)

To start mowing, press the on/off key and input the PIN code. Press , then press [=] ff you would like Landxcape" to stop mowing, simply press the STOP button on top of the mower.

If Landxcape"” senses something is wrong, it will display a fault message on the display. For information on these messages, refer to "9.Error

Messages". Landxcape"" will tum off if it does not receive any input from the user within 20 minutes.

° Pres then press C3

+ Now Landxcape"" will begin to mow!

Before starting your Landxcape" for the first time, you should cut the grass to the height 6 cm or lower with your ordinary lawn mower or trimmer .Then, set the cutting height of your Landxcape®W to its maximum setting (6 cm) for its first time mowing. And you can do the program setting manually by rotating the knob.

NOTE: When doing the program setting manually, Landxcape"! will enter the standby page if it does not receive any input from the user within several seconds.

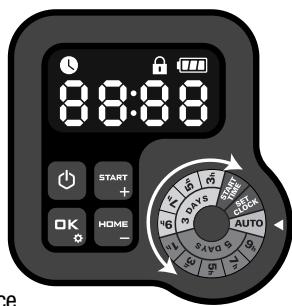

As the picture shown above ,you can clockwise and anti- clockwiserotate the knob.

Please be attention to the arrow on the right of the knob which points to the function you have chosen.

To change the PIN code, keep pressing both We and [-] buttons at the same time for 5 seconds. The icon ŒFB will be blinking, and“ Le À 1m" will be rolling flashing. After that, the first number will be blinking, use e or e to input the old PIN code and press Gr confirm. The next number wil blinking. Use the same method to complete other numbers. Then," ! will be rolling flashing , the first number will be blinking and use @R or @& to select the number you want and press Gr confirm. The next number will be blinking. Use the same method to complete other numbers. For example, the new PIN code is set to be 0326. After that, “P_! à 2” will be rolling flashing and the first number will be blinking again. Use the same method to input the new PIN code you set just now (in this example, S 3 à ©). Then “ P 1h03 25" will be rolling flashing on the display. Your PIN code has been changed successfully.

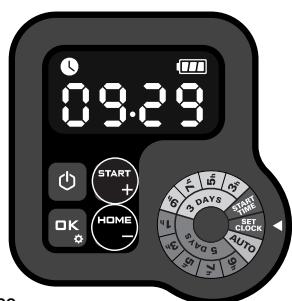

(2) Set year date and time

Set year, date and time are compulsory setting items. If you don't set these items, it will influence the schedule time in the following setting. These items should be set in the order of year, date and time.

For the year setting, rotate knob to ef. The icon @ and a number are blinking on the display, for example, 25 21. Use or Sv select the year you want. Then press Gr confirm to finish the year setting.

Meanwhile, the icon @ will be flashing again and a number will be displayed to indicate the date, for example, G 3.2 S , meaning September 29. When © Sis flashing, use [-] ot select the number and press Gt confirm. Then 2 S will be flashing. Use the same method to select the number and press Gr confirm to finish the date setting.

Meanwhile, the icon © will be flashing and the time will be displayed, for example, 4:58 . When ! 4 is blinking, use We or St to select the number and press Gr confirm. Then £ & will be blinking, use the same method to select the number and press Go confirm. Now the time setting is completed and Landxcape" will enter the standby page.

Only for reference Standby page

(31 Change default start time

The default start time of your mower is 09:00, it can be changed anytime by rotating knob to <a When start time is selected ,the display will show the default start time(09:00). The icon © and a number are blinking on the display. When © Gis blinking, use 9) or @B to to select the numberand press Gr confirm. Then © 2 will be blinking, use the same method to select the number and press Gr confirm. Now the start time setting is completed and Landxcape"" will enter the standby page.

For example, set the start time 10: 30 by using the method above, and

your Landxcape®W" will start mowing from 10: 30.

{43 Setworking schedule

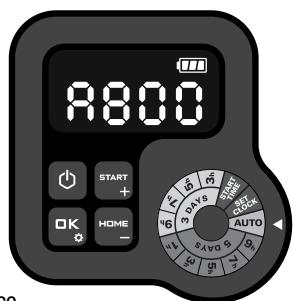

Option 1: AUTO Recommended working schedule accord setting)

Rotate knob to Caro] For example À 8 5 . The number will be blinking. Use Ke or to select the lawn area you want, and press G to confirm.

The defauit working time of Landxcape"” can be found in following table:

Schedule "5 Sunday | Monday | Tuesday | Wednesday [Thursday | Friday |Saturday 50 / 1 [work / !_[wok | 7 100 l_[wok | 7 Work l_[wow | 7 150 !_[uok | 7 work J_[wok] 7 2001 4 work | work | work | work [wonc | / 1000

* Border cut will be done on initial mowing of the day. * In this case,the work time from Monday to Friday is different according {o area you set.

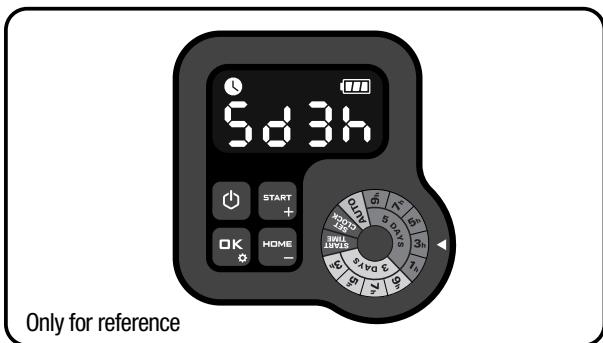

Ontion 2:Setworking schedule manually

You can adjust the work time easily by rotating the knob. Rotate knob to select the working time you want. For example“ 3 4 34 ”,which means your Landxcape"" will work on 3 days (Monday, Wednesday and Friday) and lasts for 3 hours on each day.

Note: Keep the work time you have set on the knob, your Landxcapeï" will work based on it circularly.

For example, when you set the start time at 10 am and work time on 3d3h,then your Landxcape”" will mow circulariy from 10 am to 1 pm on Monday, Wednesday and Friday. If you start your Landxcape"" at 2pm on Tuesday, your Landxcape"" will mow once only.

The following two tables are detailed information:

TABLE 1 Schedule of 3 days mu Sunday | Monday | Tuesday | Wednesday | Thursday | Friday |Saturday

3h | / [work] / work 1 [work] 7

5h] / [work] / work 1 [work | 7 7h | / [wok] / work 1 [work | 7 9h | / [work | / work 1 [work | 7 Oniy for reference

y Sunday | Monday | Tuesday | Wednesday | Thursday | Friday | Saturday 1h} 7 [work] work] work | work [work] 7 3h] / [work'] work] work | work [work] 7 5h} / [work] work] work | work [work] 7 7h] / [work] work] work | work [work] 7 9h} / [work] work | work | work [work] 7

Note: During the operation according to the working schedule, press e and G , Landxcape”" can be forced to end work of the day

4.4 How efficientiy will my Landxcape"" mow the grass?

Mowing times are different for every lawn depending on the factors mentioned below. Gradually adjust the time you allow Landxcape" to mow each day until you find the most suitable setting.

Your Landxcape”" is capable of mowing areas of different sizes, although this depends on various factors, such as:

+ Species of grass in your lawn and its growth rate

+ Sharpness of the cutting blades

+ Surrounding temperature

+ Amount of obstacles in your Lawn

Unlike most other mowers, Landxcape"" uses a side charging system,

which is able to cut the surrounding grass as much as possible. The holes

on the bottom of the charging base allow the grass to grow through the

base to help disguise it and create an elegant appearance.

Landxcape""s cutting height can be adjusted. Before starting your

Landxcape"" for the first time, you should cut the grass to the height

no more than 6 cm with your manual lawnmower. Then, set the cutting

height of your Landxcape” to its maximum setting (6 cm) for its first time

mowing. (See Fig. F)

Your Landxcape" will cut best in dry weather. is also feasible to let

your Landxcape"” work on rainy days as long as the lawn is solid.

Check and clean your mower regularly.

Your Landxcape" is afraid of lightning storms. In case of a lightning

storm, protect Landxcape"" by unplugging the charging station,

disconnecting the boundary wire, and making sure Landxcape" is not

Your Landxcape"" loves mowing grass and requires the cutting blades to be

kept in good condition to cut at its best. Landxcape"” can do most things

by itself, but will sometimes need your help to prevent damage to itself.

+ Never let Landxcape”" travel over gravel.

+ Remove or prevent access to obstacles that Landxcape" could accidentally climb on and damage its blade turning disc.

+ Remove all debris and foreign objects from your lawn.

5. App (only for specific model, please check Technical Data & Declaration of Conformity)

Your Landxcape"” is able to connect with smartphone. Using Landxcape"" App for your smartphone, you can change your Landxcape"”"s general settings, and view the machine's status and error messages.

Checklist before connecting your App to Landxcape"

Step 1: Check your smart phone

1. Make sure the Wi-Fi that your smart phone connected is 2.4GHz instead of 5GHZz.

2. Make sure the APP installed on your smart phone is the latest version.

Sten 2: Check your Landxcape""

1. Make sure your Landxcape”" is under the same router environment as your smart phone.

2. Make sure the firmware on your Landxcape"" is the latest version.

3. Make sure the distance between your Landxcape" and smart phone is as close as possible during connection (less than 3 meters).

4. Make sure the distance between your Landxcape"" and router is as close as possible during connection (less than 3 meters).

Sten 3: Check your router

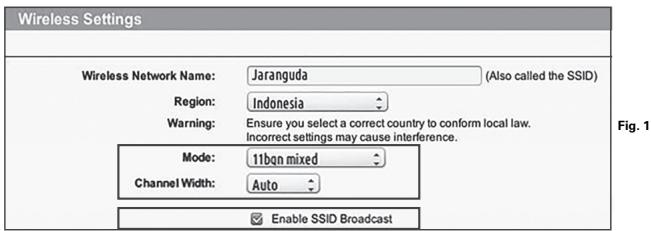

1. Make sure your router is 2.4GHz or 2.4GHz mixed 5GHz, and please enable 2.4GHz band.

2. Make sure your router 802.11 mode of wireless setting is b/g/n mixed. (See Fig. 1)

3. Make sure your router channel/ band width of wireless setting is Auto or 20M or 20M mixed 40M. (See Fig. 1)

4. Make sure your router Enable the SSID Broadcast function when you connect the machine with the APP. And you can close it after you connect successfully. (See Fig. 1)

Vérone Network Name (RUES faso cad he SSD) Region: [Indonesia sl Warning: Ensuro you slt cotcouny 0 onfomioca ln: Fat

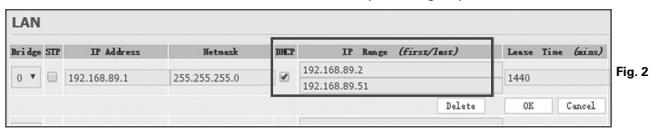

5. Make sure DHCP function is enabled. (See Fig. 2)

LAN CRETE CR Cr oops fasse |e lus sai F2

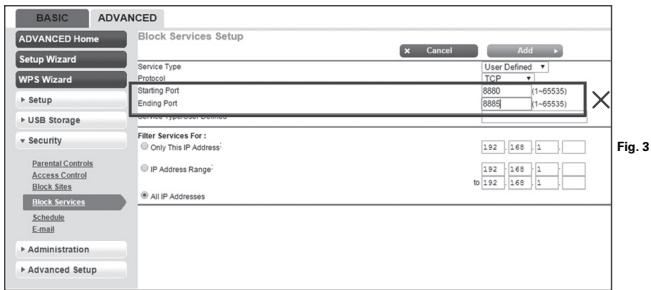

6. If you have a “Fritz!box” Router, please make sure activate “Allow communication between devices in same network” in the settings. 7. Mare sure Port 8883 TCP is open. If it's blocked (See Fig. 3), please modify the setting.

To connect smartphone to your Landxcape"":

Step 1: To download the Landxcape"" App, scan the QR code below or download it from Playstore (Google-Android), AppleStore (Apple-i0S) or our website www.landxcape-robotics.com.

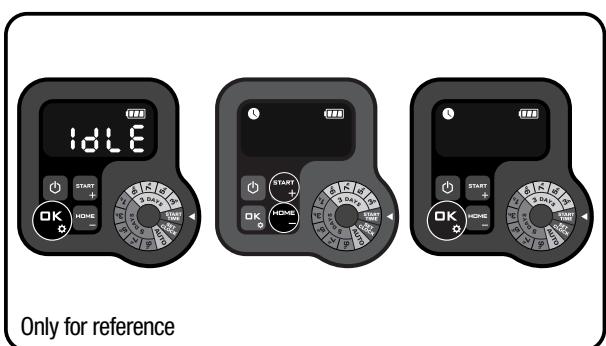

Step 2: Keep pressing Gi 3 seconds, the icon © will be blinking. or @ to choose the icons, then press A to confirm.

Step 3: Enter the Landxcape"" APP and then follow the instructions to

connect to your Wi-Fi. “The Serial No. can be found at the rear of Landxcape"" as shown. (See

Fig. 0) He El E a HU [OLES [OI] D GoogePlay NOTE:

1. your Wi-Fi information changes, Landxcape"" needs to be re-set according to Step 3.

2. When Landxcape!" is located in an area with low or no Wi-Fi signal, instructions sent from the mobile App may not be executed immediately. Landxcape"" will receive instructions when it returns to an area with good Wi-Fi signal.

3. For strong Wi-Fi signal to ensure stable connection, it is recommended to install Wi-Fi extenders to cover areas with weak or no Wi-Fi signal.

6:1 Pegging the Boundary Wire Use the boundary wire distance gauge to set the correct distance

between the wire and the border of your lawn (more than 26cm).This is the recommended distance. The provided distance gauge ensures proper installation.

If your neighbor also uses a Landxcape"”, keep a spacing of at least 1 metre between your boundary wire and your neighbor's.

The boundary wire must outline the intended mowing area exactly. Your Landxcape"" will become confused by extra bends or coils of boundary wire that are not part of its mowing area (See Fig. G). If there is excess boundary wire after the mowing area has been outlined, cut it off and store this additional wire in a separate location. Itis important to leave the necessary length where it connects to the charging station so it can be connected and still remain buried.

6:22 Burying the Boundary Wire

If you are planning to bury the boundary wire, it is recommended to first peg it down. This allows you to easily change the layout if necessary before burying the wire. When the boundary wire installation is complete, have Landxcape" follow and check the path by pressing @& and ŒA . This allows your Landxcape"" to adjust to its new environment. .

While observing Landxcape"" you can easily make alterations to the boundary wire to ensure Landxcape"""s trouble-free tracking when locating the charging station. Confirm that Landxcape" docks in the charging station successfully, and bury the wire if desired.

6:3 Joining the boundary wire If you want to extend and splice the boundary wire, use a connector. The connector is waterproof and provides optimal connection. Insert both wire ends in any two of the three holes of the connector. Insert the wires fully until both wire ends are visible on the other side of the connector. (See Fig. H) Press the connector together by using a pair of pliers. (See Fig. M, 12) WARNING! it is not recommended to simply splice the boundary wire with insulating tape or use a screw terminal block for connection. À broken circuit may occur after a period of time as soil moisture can oxidize the wire.

The software can be updated when new versions become available. The latest software can be downloaded from our website www.landxcape-robotics.com.

Update via USB. See below for download and installation instructions: (1) Locate the latest software version at: www.landxcape-robotics. com. Save the file to an empty FAT32 formatted USB (flash drive). Delete any other files on the drive and check the format. If the drive is not formatted in FAT32, please reformat the drive.

Place Landxcape"" on a secure and level surface. Press to turn

off your Landxcape".

(3) Insert the USB drive (flash drive) in the port. (See Fig. J1)

(4). Tum Landxcape”" on. The update will begin automatically. Wait until the display shows “LS L” (See Fig. J2), then remove the USB drive flash drive) and tightiy close the protective cover. When the display shows “Q - - -”,the update is complete and Landxcape" will enter the PIN page.

The manual included with your Landxcape"" is based on the default software at the time of production. Some new features/functions in the new version may not exist in the manual. ff you found some settings not in the manual, please visit www.landxcape-robotics.com to download the latest manual.

Your Landxcape"" works hard and needs to be cleaned and checked from time to time. Some parts will require replacement as they become worn. Never use your Landxcape" with defective main switch.

Switch off the machine before carrying out any service or maintenance. Here's how to take care of your Landxcape".

81 Kent : : . ARNING: Before cleaning, adjusting, or replacing the

blades, turn your Landxcape"" OFF and put on protective gloves.

WARNING: When fitting new blades, make sure you

replace ALL the blades. Always use new screws when fitting blades. Thi portant to ensure blade retention and balance the blade turning disc. Failure to use new screws could cause serious injury. Landxcape" does not cut grass like other mowers. lts cutting blades are razor sharp on 2 edges and rotate in both directions for maximum cutting capacity (See Fig. K). Each blade of your Landxcape"” has 2 cutting edges. The blade turning disc will make forward and reverse rotation at random to use both cutting edges and minimize the frequency of replacing the blades. Each cutting blade will last up to 2 months when it is programmed to mow everyday. Always check to see if the blades are chipped or damaged and replace them if they are. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Landxcape"”. Spare blades are also available at your nearest Landxcape"" retailer.

A Replace the Blades After some time, usually every season, your Landxcape""s Blades will need to be replaced. When replacing the blades, make sure to replace ALL of them at the same time. You can replace them with one of the spare blade kits and extra blade screws supplied with your Landxcape"”.

Before attempting to replace your Landxcape

power off and put on protective gloves and follow these steps:

1... Gently flip Landxcape"” over.

2. Remove the battery cover and remove the battery.

3. Take the screws off the blades with a screwdriver. (See Fig. L) 4. Firmly screw on the new blades.

5. Refit the battery and the battery cover.

IMPORTANT: After screwing the blade to the blade disc, make sure the blade is able to spin freely.

82 Keep it clean WARNING: Before cleaning, turn your Landxcape"" OFF. Put on protective gloves before cleaning the blade turning disc and do not rinse or flush with water.

A. Cleaning the body

Your Landxcape" will live a much happier and longer life if it is cleaned regulariy. Although, since your Landxcape" is an electric machine, you will need to take care when cleaning. DO NOT use a hose, high pressure washers and do not pour running water on your Landxcape". it is best to use a spray bottle filled with water. When cleaning the machine body, use a soft brush or clean cloth and avoid using solvents or polishes (See Fig. M). Lastiy, remove all build up of grass clippings and debris.

B. Cleaning the Underside

Again, it is important that you power Landxcape'" OFF and

protective gloves before touching the blade turning disc.

First, flip your Landxcape" upside down to expose its underside. Here

you will see the blade disc, the chassis, and the front wheel and driving

wheels. Clean everything thoroughiy with a soft brush or moist rag. WARNING: NEVER clean the underside of Landxcape"” with running water. Component damage can occur. (See Fig. N1,

Rotate the blade disc to ensure it rotates freely. Check the blades spin freely around the fixing screws. Remove any obstructions. IMPORTANT: Remove any lodged debris so that it does not cause a crackin the blade disc. Even the tiniest crack can decrease your Landxcape""s mowing output.

C. Clean the contact pins and the charging strips

Clean the contact pins located on the charging station and the charging strips located on Landxcape" using a cloth. Remove any built up grass clippings or debris around the contact pins and charge strips periodically to ensure Landxcape" successfully charges each time.

The heart of Landxcape"" is its 20V Li-lon battery. For proper storage of the battery, make sure it is fully charged and kept in a cool dry place. NOTE: The recommended Landxcape" operation temperature is between 0-55°C.

The life-span of Landxcape! as

js battery depends on various factors, such

+ The length of the mowing season in your region + Amount of hours Landxcape"" mows per day + Battery maintenance during storage

1. Connectthe charging station to a suitable power supply. The green light on the charging station will turn on.

2. Manually dock Landxcape”" into the charging station while

n he charged manually without the boundary

Landxcape”" is powered off. (See Fig. 0) 3. The green light on the charging station will be flashing. Landxcape"* will begin to charge.

8.4 Winter hiberation Your Landxcape”" will live longer and healthier if it is allowed to hibernate. So even though it is troublesome, we recommend storing your Landxcape" in your shed or garage during the winter. Before you prepare your Landxcape"" for winter hibernation, we recommend you: + Thoroughly clean your Landxcape" + Fully charge the battery and remove it from Landxcape" + Turn power off To maximize the battery life, fully charge the battery and remove it from Landxcape"" before storage during winter. WARNING: Protect the underside of Landxcape" from water. NEVER store Landxcape"" upside down outdoors. The boundary wire can be left in the ground but its ends should be protected, such as placed in a tin can with grease. If the charging station is left outside for the winter, leave the boundary wire connected. NOTE: When bringing Landxcape" back to work after winter hibernation, make sure the charging strips and contact pins are clean. We recommend using a fine grade emery cloth to clean the contacts.

8.5 Replacing the battery WARNING: Power off before attempting any adjustment replacement or repait. Before replacing the blades, turn our Landxcape "OFF and put on protective gloves. If you need to replace the battery, follow these steps: 4. Gently turn your Landxcape"” upside down. 2. Remove the screws on the battery cover. Remove the battery cover. (See Fig. P1) 3. Lift out the old battery carefully. Press the latch and release the connectors. (See Fig. P2) NOTE: Do not pull by the cables. Hold the connectors and release the latch. 4. Connect a new original battery by attaching the connectors until they click into position. (See Fig. P3, P4) 5. Fitthe battery as shown. (See Fig. P5) Place the cover back in its position and tighten the screws.

Display Message Action

- £ H - Rain delay activated. No action is required.

Display Cause Action

1.1f Landxcape" is actually outside its territory: tu Landxcape"" off, take Landxcape""

inside its territory. Turn Landxcape "on. Press @A then CA. 2.1f Landxcape"" is inside its territory, check if the LED on the charging station is green. If not, verify that the charging station is properly connected to the charger and that the charger is

Landxcape" is outside

né : connected to a suitable power supply. ff they are propery connected, the boundary wires are - È D [rokingara. clamped incorrectiy and must be ed pepe ” 3. Ifthe LED light on the charging station turns on red, confirm that the boundary wire is well connected to the clamps on the charging station. the problem persists, check that the boundary wire hasn't been cut. 1. Tum Landxcape" off; take Landxcape" to an area free of obstacles. Ce 2. Tum Landxcape"" on. Press A ten CR. = Ces Ce n Wheel motor blocked 3. fthe error message is still displayed, tum power off, turn Landxcape”" upside-down and

check ifthere's anything preventing the wheels from rotating. 4. Remove any obstruction, turn Landxcape"* upright, turn power on. Press Ste =]

1. Tum Landxcape" off.

2. Tum Landxcape"” upside down and check if there's anything preventing the blade disc to rotate.

3. Remove any obstruction.

4. Tum Landxcape"” upright and take it to an area with short grass or adjust the cutting

5. Tum Landxcape"" on. Press (à then CR Landxcape" is trapped.

1. Tum Landxcape" off;

2. Take Landxcape”" to an area in your lawn free of obstacles obstacles.

3. Tum Landxcape"* on. Press A ten C3.

4. Hthe error message is still displayed; tum power off; tum Landxcape"” upside-down. Check if there is anything preventing the wheels from rotating.

5. Remove any obstruction, tum Landxcape" upright, tum power on. Press Ste

Landxcape" is lifted up.

1.Tum Landxcape”" off.

2. Take Landxcape" to a lawn area clear of obstacles, turn Landxcape"" on. Press ten.

3. Ifthe error message is still displayed: tum Landxcape"” off, tum Landxcape"" upside- down and check if there's anything preventing the front wheels from rotating.

4. Remove any possible object, turn Landxcape" upright, tum Landxcape"" on. Press

Landxcape" is upside down.

1. Check the battery temperature. If the temperature is too high, wait until the temperature has cooled down. Press hen [e*] . 2. Ifthe error message is still displayed, replace a new battery. Restart Landxcape"".

3. If the error repeatedly occurs, try to change the working schedule.

It takes too long for Landxcape" to go back to the charging station.

Manually dock Landxcape”" in the charging station for charging. After Landxcape"" is fully charged, Press à then G . Refer to the installation manual.

This could be because your router lost its power or because you changed your Wi-Fi router or network provider.

Please reconnect Landxcape"" to the Wi-Fi network it has been originally paired with If this is not possible, contact Customer Service.

- De £ Error unknown Restart Landxcape"". Press [-] then ÉS . ff the error message is still displayed, Le contact a service agent for help. NOTES + Before turning power on, always return Landxcape"" to its territory. If not, “- €: -" will be displayed. This message is also displayed when

Landxcape"" is sitting over the boundary wire when turned on.

+ ffor any reason—i.e. a party, children playing..—you want to park your Landxcape" in the charging station: Press e then Lex] . Landxcape"” will go to its charging station and stay there. Or press Lo] to turn Landxcape" off.

+ lfan error repeatedly occurs in the same area of your lawn, you might have a problem with the boundary wire. Please refer to the Installation Guide and check your set up with its help.

+ lfyour lanis divided in two separate areas connected by a corridor less than 1m, one of which is not provided with the charging station: when Landxcape"" runs out of charge, take it manually to the charging station, the charge process will start.

+ Landxcape"” runs abnormally once in a while, please try to restart it. If the problem is not resolved, try to removing and reinstalling the battery . the problem is still not resolved, please contact a Landxcape"” service agent for help.

+ Do not wash your Landxcape"" with a high pressure washer. This could cause damage to the battery or the machine.

If your Landxcape”"” does not work correctly, follow the troubleshooting guide below. I the issue persists, contact your Dealer.

The LED light on the charging station does not turn on.

Check the charging station is connected properly to the charger and the charger is connected to a suitable power supply.

Red light turns on the charging station.

The boundary wire isn't connected.

Check that the boundary wire has been connected correctly to the charging station.

Check there are no breaks in the boundary wire, especially in the wire ends.

Landxcape" turns on, but the blade disc does not move.

Landxcape"" is searching for the charging station (unless you press @ then ff button to make it go to the charging base)

This is normal. Landxcape " needs to recharge, the blade disc does not rotate while it is searching for the charging station automatically.

Landxcape"” vibrates.

Blades may be damaged. Check condition of the blade disc.

Check the blades, and replace them if damaged. Remove debris and foreign objects from the blades and blade disc.

Grass is being cut unevenly.

Landxcape"" does not work enough hours per day.

Add more hours to the scheduled mowing time.

Mowing area is to0 big.

Try decreasing the size of the mowing area or adding more hours to the mowing time.

Change all the blades and screws in order to balance the blade disc.

The cutting height is too low for the length of the grass.

Raise the cutting height and then gradually lower.

Grass or other object has wrapped around the blade disc.

Check the blade disc and remove the grass or other object.

There is a build-up of grass in the blade disc or motor frame box.

Make sure the blade disc rotates easily. If need be, you may take off the blade disc and remove the debris.

Your Landxcape"" is inside its territory and the boundary wire is connected. And“-£ !:-“is displayed.

The boundary wire ends are clamped incorrectly.

Reverse the boundary wire ends.

The boundary wire is broken.

Repair damaged boundary wire with connectors.

The charging time is far more than the rated charging time

Poor connection caused by debris on the charging strip.

Clean the contact pins located on the charging station and the charging strip on Landxcape"” using a cloth.

The charging protection program has activated due to high temperature.

Place the charging station in a shady area or wait until the temperature has cooled down.

The mower does not charge.

Check the power cord is connected properly to the charger and the charger is connected to a suitable power supply.

Landxcape"" does not operate correctly while manually charging.

Refer to manual charging in Section 7.3.

Landxcape" is starting to have shorter run-times between charges.

Something is clogging in the blade disc.

Take off the blade disc and clean it.

Landxcape"" is shaking heavily.

Check the blade disc and blades, remove debris and foreign objects from the blades and blade disc.

The battery may be exhausted or old.

Landxcape" is not operating at the correct time.

The clock is not set to the correct time.

Set the clock to the correct time, refer to Section 4.3.

Programmed cutting times for Landxcape’" are not correct.

Change the time settings for the mower to start and

Landxcape!" is manually docked in the charging station.

The battery does not charge as its temperature rises above 55°C in hot weather.

Wait until the battery has cooled down

Landxcape"” cannot correctiy dock with the charging station

Environmental influences.

Restart Landxcape'".

Poor connection caused by debris on the charging strip.

Clean the contact pins located on the charging station and the charging strip on Landxcape"” using a cloth.

The green light on the charging station turns on before charging is complete.

The charging station is overheated

Place the charging station in a shady area or wait until the temperature has cooled down.

Landxcape"" runs outside the boundary wire.

The boundary wire has been installed with tight corners.

Check the boundary wire to ensure the corners are smooth.

Landxcape"" does not mow an area within a boundary wire zone.

The cutting area is larger than the allowable cutting area for Landxcape".

Reduce the cutting area or use Landxcape"” with a larger allowable cutting area.

Landxcape" reverses or rotates erratically near the boundary wire.

The boundary wire of another Landxcape"" or another robotic mower is positioned too closely.

Ensure your Landxcape"" boundary wire has at least 1m of space between the neighboring boundary wire.

In wet conditions, the boundary wire electric signal may leak were wire has been joined or repaired.

Check boundary wire joints. Insulate to provide a fully waterproof connection.

There is boundary wire electric signal leakage due to broken insulation.

Repair damaged boundary wire insulation with connectors.

Landxcape"” wheels skid or damage lawn.

Foreign obstacles, such as twigs and branches may be lodged under Landxcape”.

Remove foreign objects from underside of Landxcape"”.

The lawn is too wet.

Wait until lawn has dried.

Landxcape" exits the boundary wire due to high speed when going down a hill.

The boundary wire is placed on a slope Steeper than 17% (10°).

Reposition the boundary wire away from slopes that are steeper than 17% (10°). Please refer Installation Guide for details.

Software update failure occurs.

Try again according to section “Software update”

Landxcape"" runs in circles; turns right or left even there is no obstacle in front ofit.

The boundary wire of another Landxcape"" or another robotic mower is positioned too closely.

check and ensure your Landxcape"” boundary wire has at least 1m of spacing between the neighboring boundary wire. If the problem cannot be solved, please contact Landxcape"" service agent for help.

Keyboard of the mower fails to work.

Keyboard is damaged.

Poor connection for the cable between the control panel and the mainboard or the cable is damaged.

Keyboard needs to be reset.

Restart Landxcape". If the problem persists, keep pressing the on/off key for 10 seconds and then restart Landxcape"”. If the problem cannot be solved, please contact Landxcape" service agent for help.

Mower fails to avoid obstacles.

The boundary wire of another Landxcape"" or another robotic mower is positioned too closely.

check and ensure your Landxcape"” boundary wire has at least 1m of spacing between the neighboring boundary wire. If the problem cannot be solved, please contact Landxcape" service agent for help.

The obstacle is lower than 10cm.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. =

Type 1X835 LX835i LX910 (8/9 - designation of machinery, representative of Robotic Lawn Mower)

1X835 1X8351 1910 Rated voltage 20V === Max. * No load speed (/min) 2800 Cutting area (m°) 800 1000 Cutting diameter (cm) 18 Cutting height (mm) 30-60 Cutting height positions 4 Max. slope 35% (20°) Battery type Lithium-ion Battery model LA0007 Charging time approx. (min) 105 Charger model LA8001 / LA8002 Charger rating Input: 100-240V-50/60Hz, 38W, Output: 20V=—=, 1.5A Machinery weight (kg) 83 APP N Y N Rain sensor Y Protection degree ll sd band of inductive loop] 77Hz ae à can Frequency bands for WIFI / 2400-2483.5 MHz / paru Transmitted Power / 20 d&m / “Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts. Noise data

Aweighted sound pressure Li = 40.6 dB (A) Ky= 3.0 dB(A)

L,,= 40.6 dB (A) K, = 3.0 dB(A)

L,,= 40.6 dB (A) K, = 3.0 dB(A)

Aweighted sound power

La = 60.6 dB (A) K,4= 3.0 dB(A)

Wear ear protection when sound pressure is over

A degree of noise from the machine is not avoidable. Route noisy work is to be licensed and limits for certain periods. Keep rest periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people working nearby, an appropriate hearing

protection shall be worn.

(835 1K910 Screw 9 9 9 Charging station 1 1 1 Charging base fixing nails 8 8 8 Boundary wire 180m 180m 180m Wire pegs 250 250 250 Hex key 1 1 1 Boundary wire distance gauge 2 2 2 Blade 9 9 9 Connector 2 2 2 Battery pack (LAOO07) 1 1 1 Charger (LA8001 / LA8002) 1 1 1

We recommend that you purchase genuine accessories listed in the above li

ist from the same store that sold you the tool. Refer to the accessory

packaging for further details. Store personnel can assist you and offer advice.

We, Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product

Description Robotic Lawn mower

Type LK835 LK8351 LA910 (8/9 - designation of machinery, representative of Robotic Lawnmower) (Serial number is placed onthe back page) with battery charger LA8001 / LA8002 and charging station LA3001

Function Cutting grass

Complies with the following Directives, 2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU8{EU)2015/863, 2000/14/EC amended by 2005/88/EC, 2014/53/EU

2000/14/EC amended by 2005/88/EC

- Conformity Assessment Procedure as per Annex VW

- Measured Sound Power Level 60.6 dB CA) - Declared Guaranteed Sound Power Level 63 dB (A)

The notified body involved

Name: MiCOM Labs Inc., Notified Body Number 2280

Address: MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California

The person authorized to compile the technical file, Name MarcelFilz

Deputy Chief Engineer, Testing & Certification Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Stellvertretender Chefingenieur, Prüfung und Zertifizierung Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

1. Sécurité du produit

Mode: (ibanmied D Chanel (Auto 2) ab SSD Brosses

Address: MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019 +A15:2021, EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021,

ENIEC 62311:2020, EN IEC 55014-1 :2021, EN IEC 55014-2 :2021,

Ingénieur en chef adjoint, Essais & Certification Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

1. Sicurezza del prodotto

Mode: (ibanmied D Channel (Auto 2) ab SSD Brosses

ENIEC 62311:2020, EN IEC 55014-1 :2021, EN IEC 55014-2 :2021,

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

STOP (DETENER) S I O P *

Mode: (ibanmied D Channel (Auto 2) ab SSD Brosses

Your Landxcape”" will live longer and healthier if it is allowed to

hibernate. So even though it is troublesome, we recommend storing

your Landxcape"" in your shed or garage during the winter.

Before you prepare your Landxcape"" for winter hibernation, we

Ingeniero Jefe Adjunto. Pruebas y Certificaciôn Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Deputy Chief Engineer, Testing & Certification Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Mode: (ibanmied D Channel (Auto 2)

Zastepca gléwnego inzyniera, testowanie i certyfkacja Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

1. Biztonsägi évintézkedések

Mode: (ibanmied D Chanel (Auto 2)

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

Mode: (ibanmied D Channel (Auto 2)

Adjunct Inginer Sef, Testare si certificare Positec Technology (China) Co. Ltd. 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

Mode: (ibanmied D Chanel (Auto 2)

ENIEC 62311:2020, EN IEC 55014-1 :2021, EN IEC 55014-2 :2021,

Zästupce vrchni konstrukëni kancelâïe, Testoväni & Certifkace Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

1. Bezneënost vÿrobku

LA = 60.6 dB (A) K,,= 3.0 dB(A)

Zästupca vrchnej konStrukënej kancelärie, Testovanie & Certifikäcia Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

1 Segurança do Produto

Passo 3: Check your router

Engenheiro-chefe adjunto, Teste e Certificaçäo Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

1. Sigurnost proizvoda 110pée i dodatne sigurnosne upute

Mode: (ibanmied D Chanel (Auto 2)

Zamjenik glavnog inzenjera,Testiranje & potvrda Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Namestnik glavnega inZenirja za testiranje in certificiranje Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

1. Sikkerhedsveiledninger

ea on the App Store HUOMAR: 1.

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

Inca sing may cause marron. Mode: (ibanmied s

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

Inca sing may cause marron. Mode: (ibanmied s

landxcape-robotics.com.

Adress: MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019 +A15:2021, EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021,

ENIEC 62311:2020, EN IEC 55014-1 :2021, EN IEC 55014-2 :2021,

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

LANDXCAPE Copyright © 2023, Positec. AIl Rights Reserved. AR01562406
