USER MANUAL LX799 LANDXCAPE

1.1 General & Additional Safety Instruction

WARNING: Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Carefully read the instructions for the safe operation of the machine. Save all warnings and instructions for future reference.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• The appliance is only to be used with the power supply unit provided with the appliance. IMPORTANT

READ CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

SAFE OPERATION PRACTICES

Training a) Read the instructions carefully. Make sure you understand the instructions and be familiar with the controls and the proper use of the appliance; b) Never allow people unfamiliar with these instructions or children to use the appliance. Local regulations can restrict the age of the operator; c) The operator or user is responsible for accidents or hazards occurring to other people or their property. Preparation a) Ensure the correct installation of the boundary wire as instructed. b) Periodically inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other foreign objects. c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate. e) WARNING! The lawnmower shall not be operated without the guard in place. OPERATION

a) Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place. b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. c) Never pick up or carry an appliance while the motor is running. d) Operate the disabling device from the appliance. - Before clearing a blockage; - Before checking, cleaning or working on the appliance. e) It is not permitted to modify the original design of robotic lawnmower. All modifications are made at your own risk. f) Start robotic lawnmower according to the instructions. When the power key is switched on, make sure you keep your hands and feet away from the rotating blades. Never put your hands and feet under the mower. g) Never lift up robotic lawnmower or carry it when the power key is switched on. h) Do not let persons who do not know how robotic lawnmower works and behaves use the mower.

i) Do not put anything on top of robotic lawnmower or its charging

station. j) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective blades, screws, nuts or cables. k) Always switch off robotic lawnmower when you do not intend to use the mower. Robotic lawnmower can only start when the power key is switched on and the correct PIN code has been entered. l) Keep your hands and feet away from the rotating blades. Never place your hands or feet close to or under the body when robotic lawnmower is in operation. m) To avoid using the machine and its peripherals in bad weather conditions especially when there is a risk of lightning. n) Not to touch moving hazardous parts before these have come to a complete stop. o) For machines used in public areas, that warning signs shall be placed around the working area of the machine. They shall show the substance of the following text: WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!

2. ADDITIONALLY WHEN THE APPLIANCE IS OPERATING

AUTOMATICALLY a) Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.

MAINTENANCE AND STORAGE

When the mower is turned upside down the power key must always be switched off. The power key should be switched off during all work on the mower’s underframe, such as cleaning or replacing the blades. a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition. b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety. c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if necessary so that the rotating parts are balanced. d) Ensure that only replacement cutting means of the right type are used. e) Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery. f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes etc. g) Servicing of the appliance should be according to manufacturers’ instructions. Recommendation To connect the machine and/or its peripherals only to a supply circuit protected by a residual current device (RCD ) with a tripping current of not more than 30 mA.EN10 Residual risks To avoid injuries, wear protective gloves when replacing the blades. Transport The original packaging should be used when transporting robotic lawnmower over long distances. To safely move from or within the working area: a) Press the STOP button to stop the mower. You select the four digit PIN code when you start the mower for the first time. b) Always switch off robotic lawnmower if you intend to carry the mower. c) Carry the mower by the handle at the front under the mower. Carry the mower with the blade disc away from the body. Safety Warnings for battery pack inside the tool a) Do not dismantle, open or shred battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short- circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. c) Do not expose battery pack to heat or re. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Seek medical advice immediately if a cell or battery pack has been swallowed. g) Keep battery pack clean and dry. h) Battery pack gives its best performance when it is operated at normal room temperature (20 °C ± 5 °C).

i) When disposing of battery packs, keep battery packs of

different electrochemical systems separate from each other. j) Recharge only with the charger specied by Landxcape

Do not use any charger other than that specically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack. k) Do not use any battery pack which is not designed for use with the equipment. l) Keep battery pack out of the reach of children. m) Retain the original product literature for future reference. n) Dispose of properly.

WARNING - Robotic lawnmower can be dangerous if incorrectly used. Read through the Operator’s manual carefully and understand the content before using your robotic lawnmower. WARNING - Keep a safe distance from the machine when operating. WARNING – Operate the disabling device before working on or lifting the machine. WARNING - Do not ride on the machine. Do not burn Do not expose to rain or water. Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point. Do not wash the machine with a high pressure washer Class III appliance Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.EN 11

Not all the accessories illustrated or described are included in standard delivery.

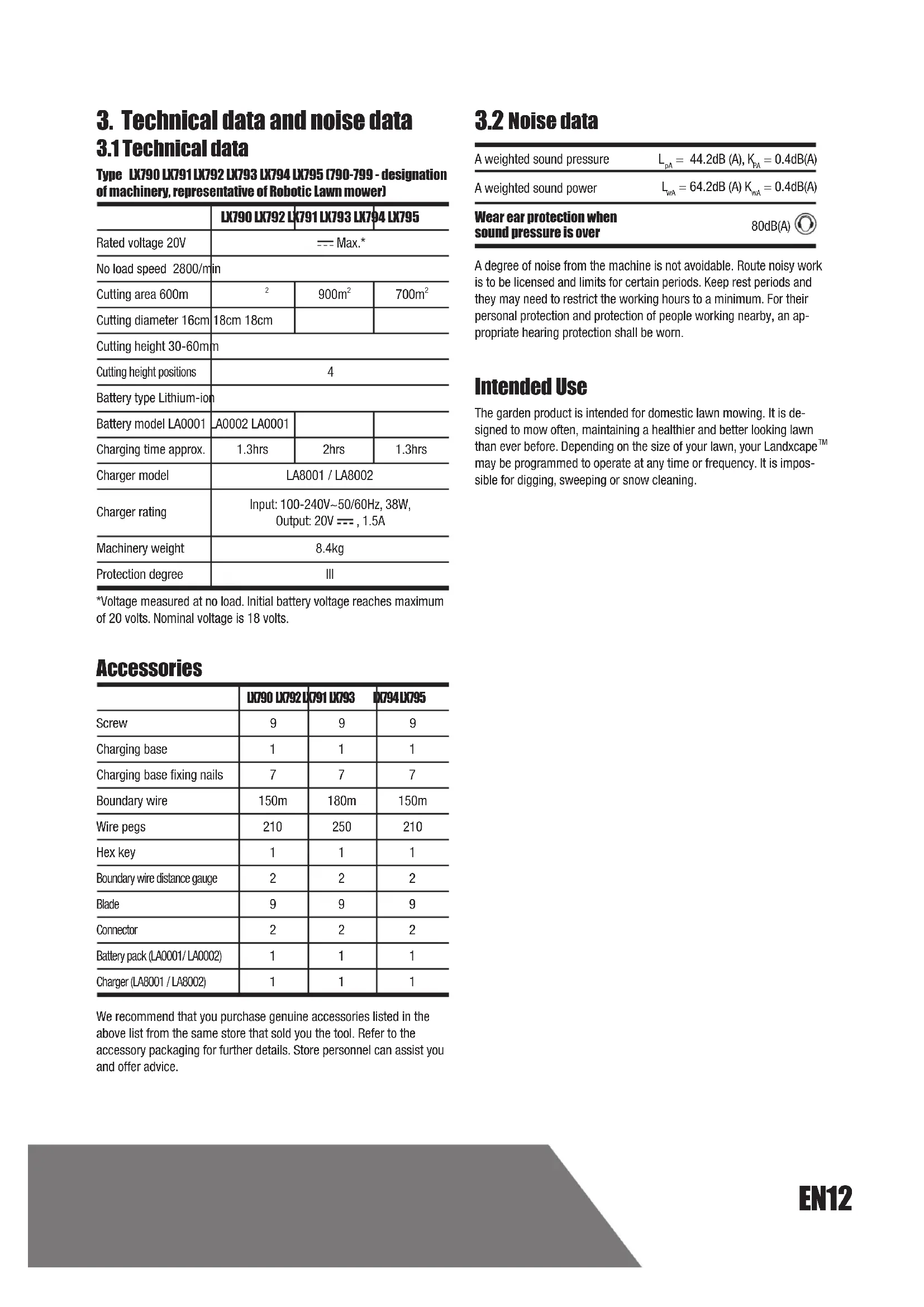

Type LX790 LX791 LX792 LX793 LX794 LX795 (790-799 - designation of machinery, representative of Robotic Lawn mower) LX790 LX792 LX791 LX793 LX794 LX795 Rated voltage 20V Max.* No load speed 2800/min Cutting area 600m

Battery type Lithium-ion Battery model LA0001 LA0002 LA0001 Charging time approx. 1.3hrs 2hrs 1.3hrs Charger model LA8001 / LA8002 Charger rating Input: 100-240V~50/60Hz, 38W, Output: 20V , 1.5A Machinery weight 8.4kg Protection degree III *Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts. Accessories LX790 LX792 LX791 LX793 LX794 LX795 Screw 9 9 9 Charging base 1 1 1 Charging base fixing nails 7 7 7 Boundary wire 150m 180m 150m Wire pegs 210 250 210 Hex key 1 1 1 Boundary wire distance gauge

We recommend that you purchase genuine accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

Noise data A weighted sound pressure L

= 0.4dB(A) A weighted sound power

= 0.4dB(A) Wear ear protection when sound pressure is over 80dB(A) A degree of noise from the machine is not avoidable. Route noisy work is to be licensed and limits for certain periods. Keep rest periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people working nearby, an ap- propriate hearing protection shall be worn. Intended Use The garden product is intended for domestic lawn mowing. It is de- signed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the size of your lawn, your Landxcape

may be programmed to operate at any time or frequency. It is impos- sible for digging, sweeping or snow cleaning.EN 13

1) After the boundary wire installation, you can start using Landxcape

(Please refer to Installation Guide for boundary wire installation).

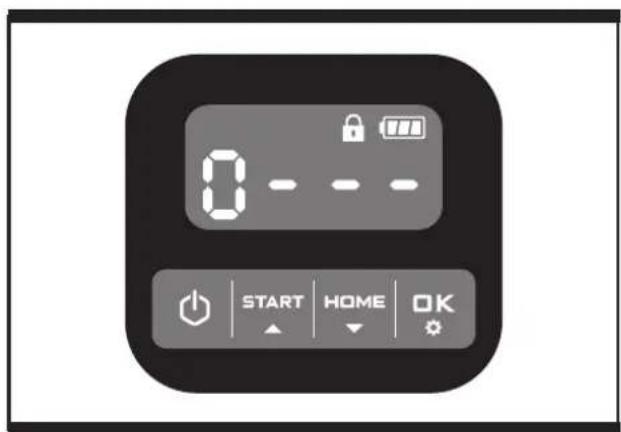

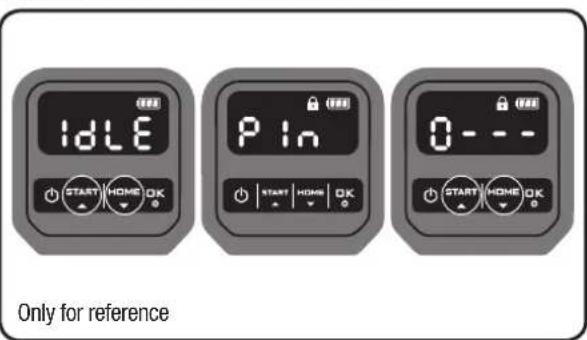

turns on. For the first use, input the default PIN code 0000 by pressing for four times when the number 0 is blinking. (The PIN code can be changed, please refer to “Setting” in the Installation Guide). NOTE: Landxcape

will turn off if it does not receive any input within 30 seconds after it is turned on. If you enter wrong PIN code three times, Landxcape

will raise the alarm “di-di” and then turn off.

, then press to start mowing.

then to make Landxcape

go to the charging base, with the blades rotating to cut grass on the way home. Landxcape

will work continuously until reaching low battery power level and then it will return to the charging base. Once charging is complete, Landxcape

will automatically resume mowing or it stay in the charging base according to the mowing schedule. NOTE: When Landxcape

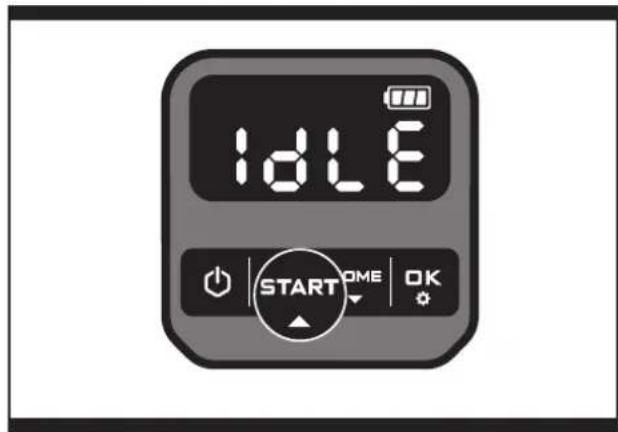

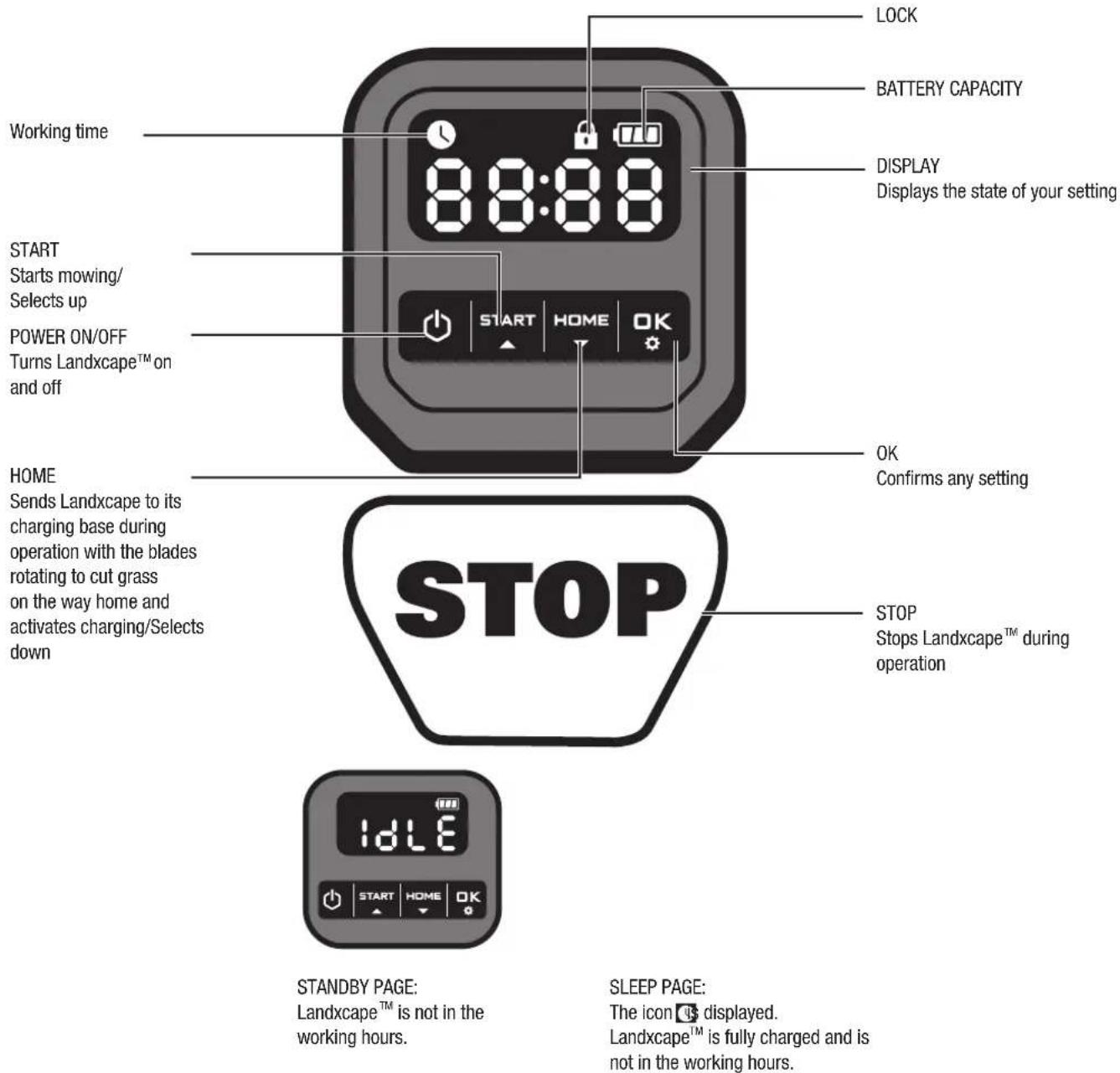

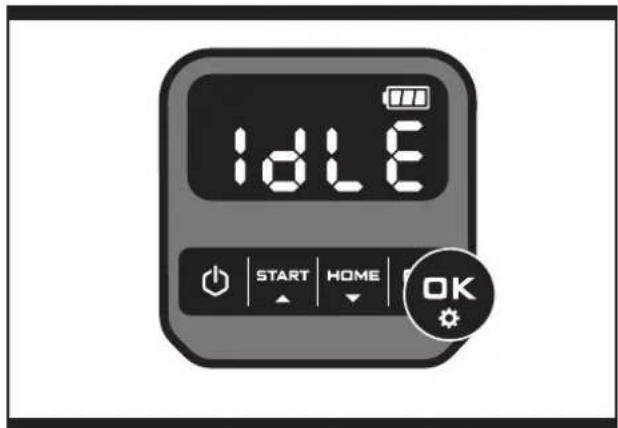

turns on, all lights on the display will be illuminated and then turn off. Check if there is any light damaged. It is recommended to shield the display with your hand when the outdoor light gets too strong.

is not in the working hours. SLEEP PAGE: The icon is displayed. Landxcape

is fully charged and is not in the working hours. DISPLAY Displays the state of your setting STOP Stops Landxcape

during operation HOME Sends Landxcape to its charging base during operation with the blades rotating to cut grass on the way home and activates charging/Selects down

Congratulations on your new purchase of Landxcape

and welcome to the care-free life of automatic mowing. In the following, we want to help you to better understand how your Landxcape

5.1 How does my Landxcape

know what to mow? Landxcape

chooses its direction at random. It will make sure your entire lawn is evenly mowed without leaving unattractive mowing paths (See Fig. A).

5.2 How does my Landxcape

know where to go? Your Landxcape

is made to work on its own. Landxcape

knows when it needs to go to its charging base to charge, can sense when it is raining, can stop itself if it senses a problem, and knows to stop, draw back, and turn around when it bumps into something blocking its path. Landxcape

will also automatically stop its blade turning disc from rotating if it is lifted off the ground to prevent an accident. A. Finding the Charging Base When your Landxcape

needs to recharge, it will stop mowing and follow the boundary wire in an anti-clockwise direction back to its charging base. Landxcape

is pre-programmed to mow the grass near the boundary wire twice a week. By default, Landxcape

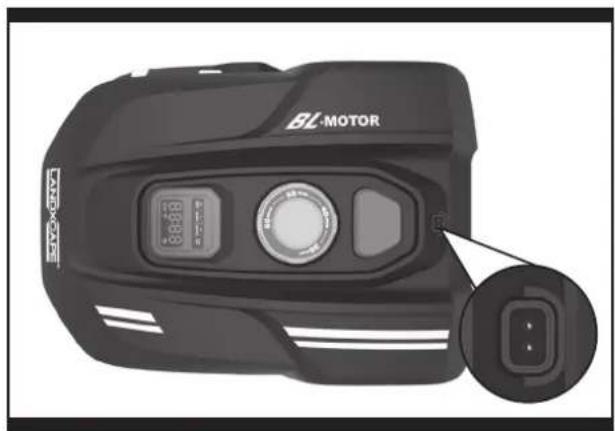

will mow near the boundary wire every Monday and Friday after it is powered on. B. Rain sensors Landxcape

is equipped with a rain sensor which detects rain and tells Landxcape

to stop mowing and follow the boundary wire back to its charging base (See Fig. B). Landxcape

will resume mowing after passing the delay time. The default delay time is 180mins. When the rain sensors are wet, Landxcape

returns to its charging base. When the rain sensors are dry, Landxcape

will begin the delay time countdown. If you want to exit from the rain delay, dry the sensor area, and perform a power cycle by operating the on/off key. After the power cycle has been performed, you can operate again. C. Sensing the boundary wire Landxcape

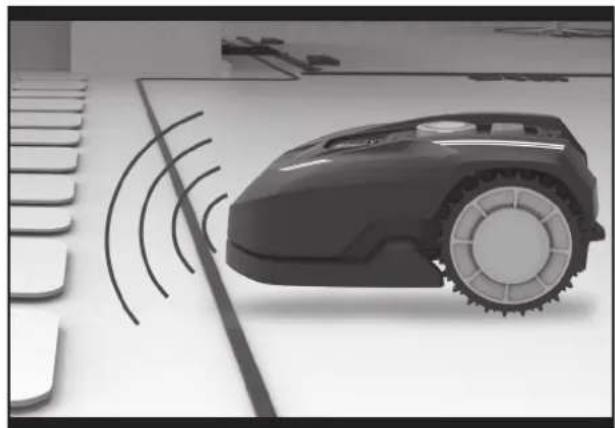

always obeys the border set by the boundary wire and uses sensors at its front to detect it. (See Fig. C) D. Starting and stopping while mowing (See Fig. D, E1, E2) To start mowing, press the on/off key and input the PIN code. Press , then press . If you would like Landxcape

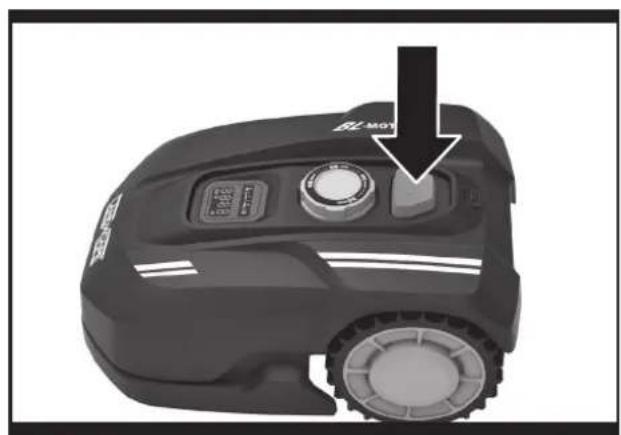

to stop mowing, simply press the STOP button on top of the mower.

senses something is wrong, it will display a fault message on the display. For information on these messages, refer to the Error Messages. Landxcape

will turn off if it does not receive any input from the user within 20 minutes. To resume:

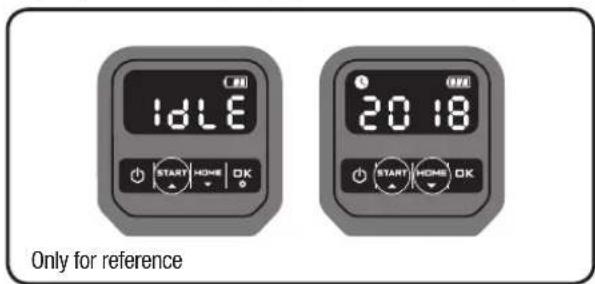

First please set the height to a desired grass level after cut and you can do the program setting manually. NOTE: When doing the program setting manually, Landxcape

will enter the standby page if it does not receive any input from the user within 30 seconds. (1) Change PIN code To change the PIN code, keep pressing both and buttons at the same time for 5 seconds. The icon will be blinking, and “ ” will be rolling flashing. After that, the first number will be blinking, use

to select the number you want and press to confirm. The next number will be blinking. Use the same method to complete other numbers. For example, the new PIN code is set to be 0326. After that, “

will be rolling flashing and the first number will be blinking again. Use the same method to input the new PIN code you set just now (in this example, ). Then “ ” will be rolling flashing on the display. Your PIN code has been changed successfully. Only for reference (2) Set year, date and time Set year, date and time are compulsory setting items. If you don’t set these items, it will influence the schedule time in the following setting. These items should be set in the order of year, date and time. For the year setting, keep pressing for 3 seconds until the icon and a number are blinking on the display, for example, . Use or to select the year you want. Then press to confirm to finish the year setting. Only for referenceEN 15 Meanwhile, the icon will be flashing again and a number will be displayed to indicate the date, for example, , meaning September

is flashing, use or to select the number and press to confirm. Then will be flashing. Use the same method to select the number and press to confirm to finish the date setting. Only for reference Meanwhile, the icon will be flashing and the time will be displayed, for example, . When is blinking, use or to to select the number and press to confirm. Then will be blinking, use the same method to select the number and press to confirm. Now the time setting is completed and Landxcape

will enter the standby page. Only for reference (3) Set work area Keep pressing for 3 seconds. When the icon is blinking, press . A number will be blinking on the display, for example, , which is the lawn area. The working time will be automatically set according to the size of your garden. Use or to set the lawn area, and press to confirm. Then Landxcape

will enter the standby page. NOTE: When the number displayed is less than 200, the area will be adjusted in increments / decrements of 50m

each time the / is pressed. If the number displayed reaches 200 or bigger, the area will be adjusted in increments / decrements of 100m

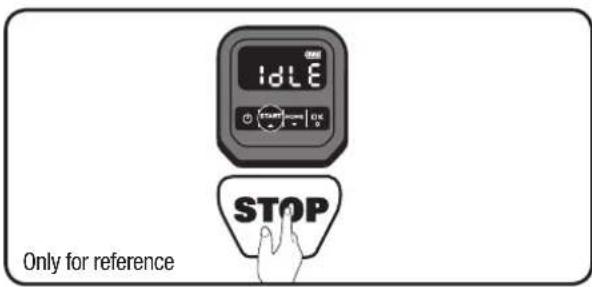

each time the / is pressed. Only for reference (4) Change default start time The default start time of 9:00 can be changed to anytime by keep pressing both and buttons at the same time until a ding sound is heard. For example, keep pressing both and buttons at 14:05, and your Landxcape

will start mowing from 14:05. Only for reference

5.4 How efficiently will my Landxcape

mow the grass? Mowing times are different for every lawn depending on the factors mentioned below. Gradually adjust the time you allow Landxcape

mow each day until you find the most suitable setting. Your Landxcape

is capable of mowing areas of different sizes, although this depends on various factors, such as:

• Species of grass in your lawn and its growth rate

• Sharpness of the cutting blades

• Surrounding temperature

• Amount of obstacles in your Lawn Unlike most other mowers, Landxcape

uses a side charging system, which is able to cut the surrounding grass as much as possible. The holes on the bottom of the charging base allow the grass to grow through the base to help disguise it and create an elegant appearance. Landxcape

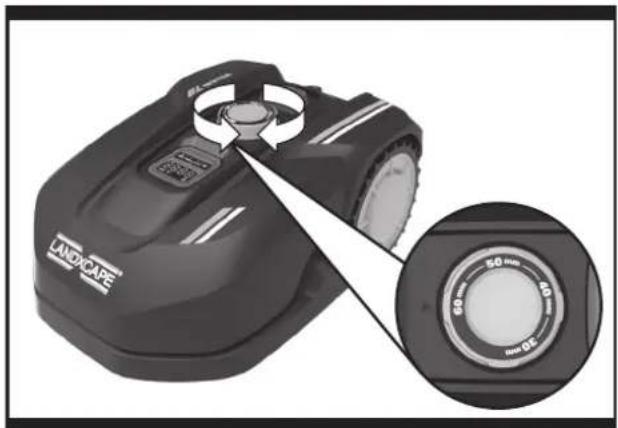

’s cutting height can be adjusted between 3cm-6cm. Before starting your Landxcape

for the first time, you should cut the grass to the height no more than 9 cm with your manual lawnmower. Then, set the cutting height of your Landxcape

to its maximum setting (6cm) for its first time mowing. (See Fig. F) Your Landxcape

will cut best in dry weather. Wet grass can build up on the blade turning disc and within the motor, and can also cause loose traction and slippage while working.Your Landxcape

is afraid of lightning storms. In case of a lightning storm, protect Landxcape

unplugging the charging base, disconnecting the boundary wire, and making sure Landxcape

is not allowed to charge. Your Landxcape

loves mowing grass and requires the cutting blades to be kept in good condition to cut at its best. Landxcape

can do most things by itself, but will sometimes need your help to prevent damage to itself.

• Remove or prevent access to obstacles that Landxcape

could accidentally climb on and damage its blade turning disc.

• Remove all debris and foreign objects from your lawn.

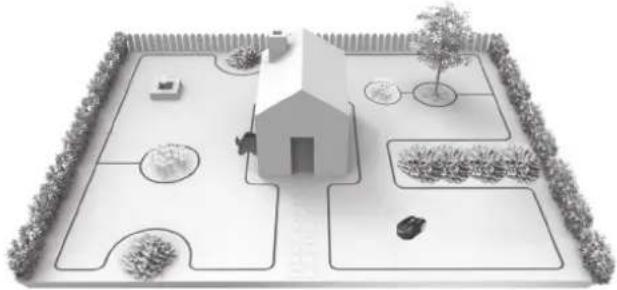

6. Boundary Wire Basics

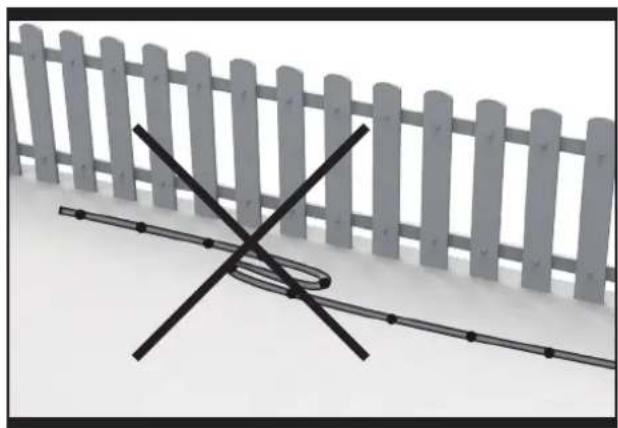

6.1. Pegging the Boundary Wire Use the boundary wire distance gauge to set the correct distance between the wire and the border of your lawn (more than 26cm).ThisEN16 is the recommended distance. The provided distance gauge ensures proper installation. If your neighbor also uses a Landxcape

, keep a spacing of at least 1 metre between your boundary wire and your neighbor’s. The boundary wire must outline the intended mowing area exactly. Your Landxcape

will become confused by extra bends or coils of boundary wire that are not part of its mowing area (See Fig. G). If there is excess boundary wire after the mowing area has been outlined, cut it off and store this additional wire in a separate location. It is important to leave the necessary length where it connects to the charging base so it can be connected and still remain buried.

6.2 Burying the Boundary Wire

If you are planning to bury the boundary wire, it is recommended to first peg it down. This allows you to easily change the layout if necessary before burying the wire. When the boundary wire installation is complete, have Landxcape

follow and check the path by pressing and . This allows your Landxcape

to adjust to its new environment. . While observing Landxcape

you can easily make alterations to the boundary wire to ensure Landxcape

's trouble-free tracking when locating the charging station. Confirm that Landxcape

docks in the charging station successfully, and bury the wire if desired.

6.3 Joining the boundary wire

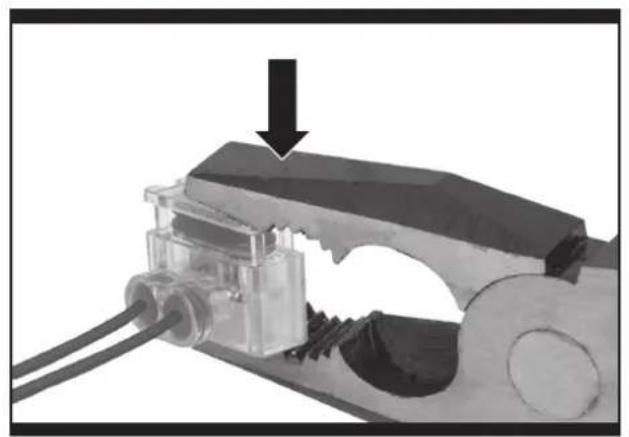

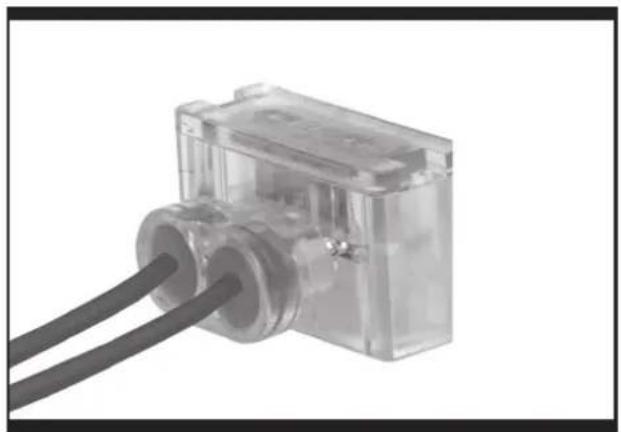

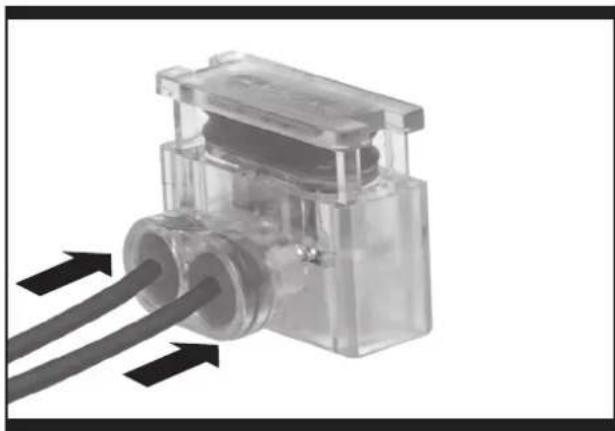

If you want to extend and splice the boundary wire, use a connector. The connector is waterproof and provides optimal connection. Insert both wire ends in any two of the three holes of the connector. Insert the wires fully until both wire ends are visible on the other side of the connector. (See Fig. H) Press the connector together by using a pair of pliers. (See Fig. I, J) WARNING! It is not recommended to simply splice the boundary wire with insulating tape or use a screw terminal block for connection. A broken circuit may occur after a period of time as soil moisture can oxidize the wire.

The software can be updated when new versions become available. The latest software can be downloaded from our website www.landxcape-robotics.com. Update via USB. See below for download and installation instructions: (1) Locate the latest software version at: www.landxcape-robotics. com. Save the file to an empty FAT32 formatted USB (flash drive). Delete any other files on the drive and check the format. If the drive is not formatted in FAT32 , please reformat the drive. NOTE: the software update is downloaded as a zipped file. You will need to unzip or extract it before proceeding. (2) Place Landxcape

on a secure and level surface. Press to turn off your Landxcape

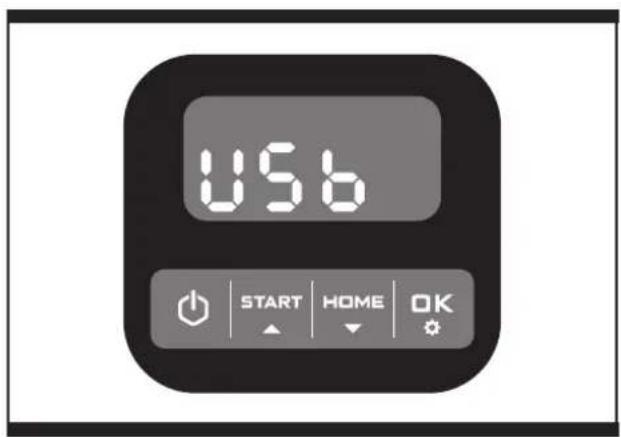

(3) Insert the USB drive (flash drive) in the port. (See Fig. K1) (4) Turn Landxcape

on. The update will begin automatically. Wait until the display shows “ ” (See Fig. K2), then remove the USB drive (flash drive) and tightly close the protective cover. When the display shows “ ”, the update is complete and Landxcape

will enter the PIN page. The manual included with your Landxcape

is based on the default software at the time of production. Some new features/functions in the new version may not exist in the manual. If you found some settings not in the manual, please visit www.landxcape-robotics.com to download the latest manual.

works hard and needs to be cleaned and checked from time to time. Some parts will require replacement as they become worn. Never use your Landxcape

with defective main switch. Switch off the machine before carrying out any service or maintenance. Here's how to take care of your Landxcape

WARNING: Before cleaning, adjusting, or replacing the

OFF and put on protective gloves.

WARNING: When fitting new blades, make sure you

replace ALL the blades. Always use new screws when fitting blades. This is important to ensure blade retention and balance the blade turning disc. Failure to use new screws could cause serious injury. Landxcape

does not cut grass like other mowers. Its cutting blades are razor sharp on 2 edges and rotate in both directions for maximum cutting capacity (See Fig. L). Each blade of your Landxcape

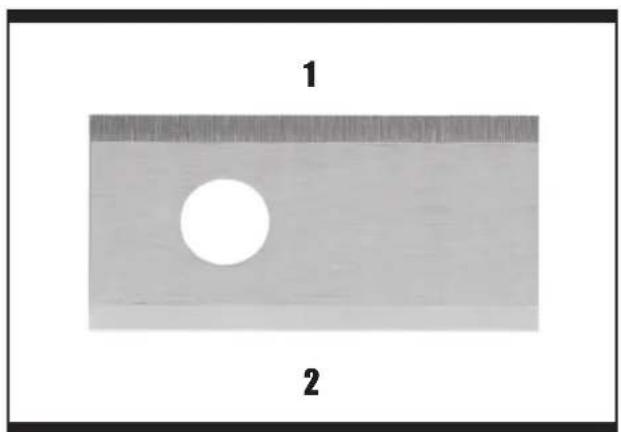

has 2 cutting edges. The blade turning disc will make forward and reverse rotation at random to use both cutting edges and minimize the frequency of replacing the blades. Each cutting blade will last up to 2 months when it is programmed to mow everyday. Always check to see if the blades are chipped or damaged and replace them if they are. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Landxcape

. Spare blades are also available at your nearest Landxcape

retailer. A. Replace the Blades After some time, usually every season, your Landxcape

’s Blades will need to be replaced. When replacing the blades, make sure to replace ALL of them at the same time. You can replace them with one of the spare blade kits and extra blade screws supplied with your Landxcape

Before attempting to replace your Landxcape

’s blades, turn the power off and put on protective gloves and follow these steps:

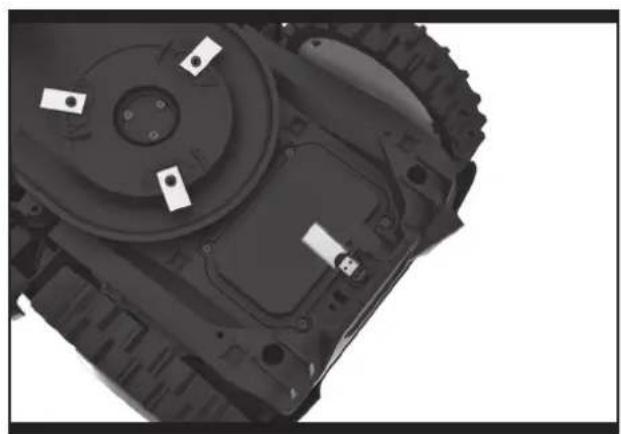

1. Gently flip Landxcape

2. Remove the battery cover and remove the battery.

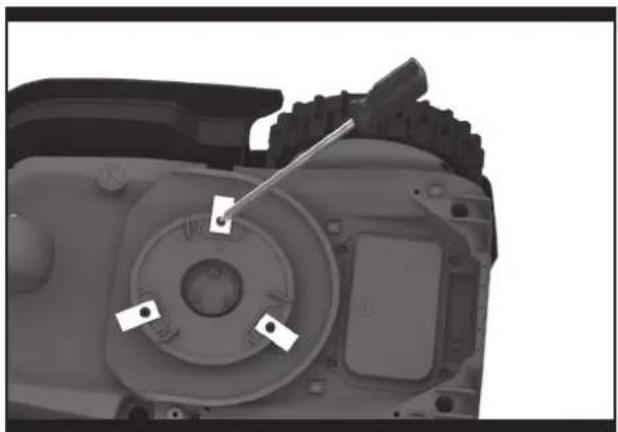

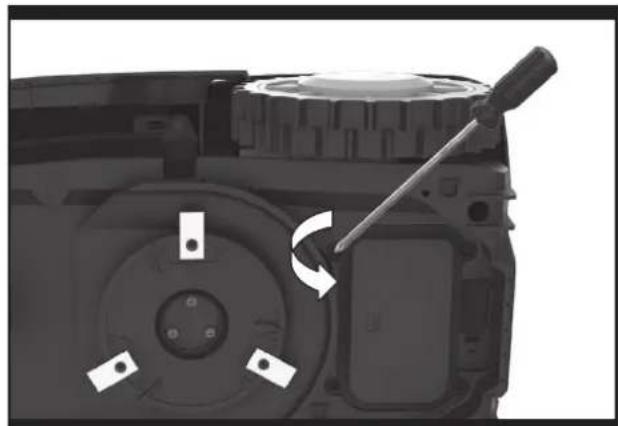

3. Take the screws off the blades with a screwdriver. (See Fig. M)

4. Firmly screw on the new blades.

5. Refit the battery and the battery cover.

IMPORTANT: After screwing the blade to the blade disc, make sure the blade is able to spin freely.

Before cleaning, turn your Landxcape

OFF. Put on protective gloves before cleaning the blade turning disc and do not rinse or flush with water. A. Cleaning the body Your Landxcape

will live a much happier and longer life if it is cleaned regularly. Although, since your Landxcape

is an electric machine, you will need to take care when cleaning. DO NOT use a hose, high pressure washers and do not pour running water on your Landxcape

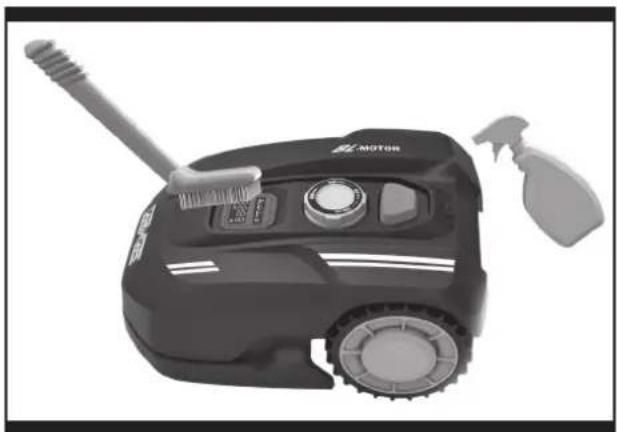

It is best to use a spray bottle filled with water. When cleaning the machine body, use a soft brush or clean cloth and avoid using solvents or polishes (See Fig. N). Lastly, remove all buildEN 17 up of grass clippings and debris. B. Cleaning the Underside Again, it is important that you power Landxcape

OFF and wear protective gloves before touching the blade turning disc

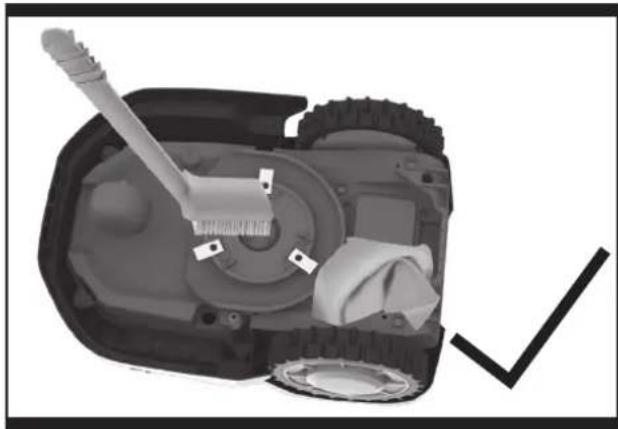

First, flip your Landxcape

upside down to expose its underside. Here you will see the blade disc, the chassis, and the front wheel and driving wheels. Clean everything thoroughly with a soft brush or moist rag.

NEVER clean the underside of Landxcape

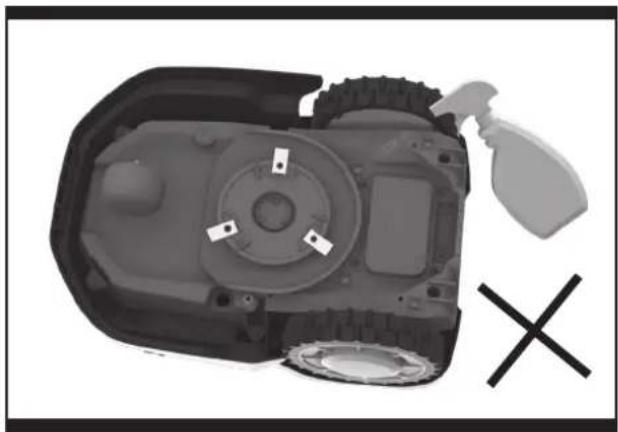

with running water. Component damage can occur. (See Fig. O1, O2) Rotate the blade disc to ensure it rotates freely. Check the blades spin freely around the fixing screws. Remove any obstructions. IMPORTANT: Remove any lodged debris so that it does not cause a crack in the blade disc. Even the tiniest crack can decrease your Landxcape

's mowing output. C. Clean the contact pins and the charging strips Clean the contact pins located on the charging base and the charging strips located on Landxcape

using a cloth. Remove any built up grass clippings or debris around the contact pins and charge strips periodically to ensure Landxcape

successfully charges each time.

is its 20V Li-Ion battery. For proper storage of the battery, make sure it is fully charged and kept in a cool dry place. NOTE: The recommended Landxcape

operation temperature is between 0-55

The life-span of Landxcape

’s battery depends on various factors, such as:

• The length of the mowing season in your region

• Amount of hours Landxcape

• Battery maintenance during storage Landxcape

can be charged manually without the boundary wire.

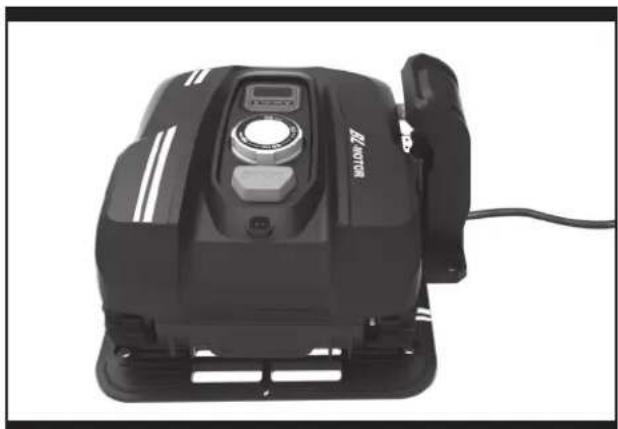

1. Connect the charging base to a suitable power supply. The

green light on the charging base will turn on.

2. Manually dock Landxcape

into the charging base while Landxcape

is powered off. (See Fig. P)

3. The green light on the charging base will be flashing.

will begin to charge.

will live longer and healthier if it is allowed to hibernate. So even though it is troublesome, we recommend storing your Landxcape

in your shed or garage during the winter. Before you prepare your Landxcape

for winter hibernation, we recommend you:

• Thoroughly clean your Landxcape

• Fully charge the battery and remove it from Landxcape

• Turn power off To maximize the battery life, fully charge the battery and remove it from Landxcape

before storage during winter.

WARNING: Protect the underside of Landxcape

from water. NEVER store Landxcape

upside down outdoors. The boundary wire can be left in the ground but its ends should be protected, such as placed in a tin can with grease. If the charging base is left outside for the winter, leave the boundary wire connected. NOTE: When bringing Landxcape

back to work after winter hibernation, make sure the charging strips and contact pins are clean. We recommend using a fine grade emery cloth to clean the contacts.

8.5 Replacing the battery

WARNING: Power off before attempting any adjustment,

replacement or repair. Before replacing the blades, turn your Landxcape

OFF and put on protective gloves. If you need to replace the battery, follow these steps:

1. Gently turn your Landxcape

2. Remove the screws on the battery cover. Remove the battery cover.

3. Lift out the old battery carefully. Press the latch and release the

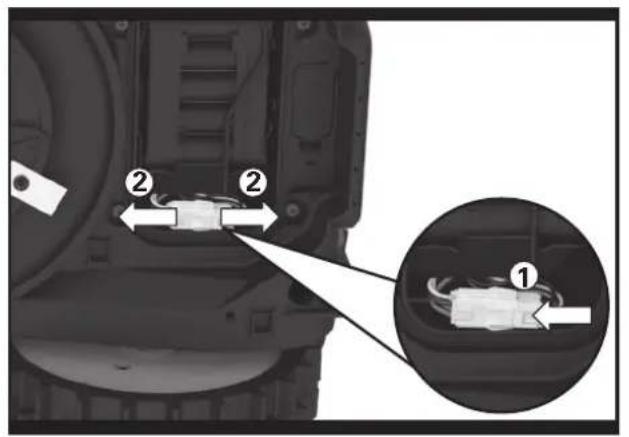

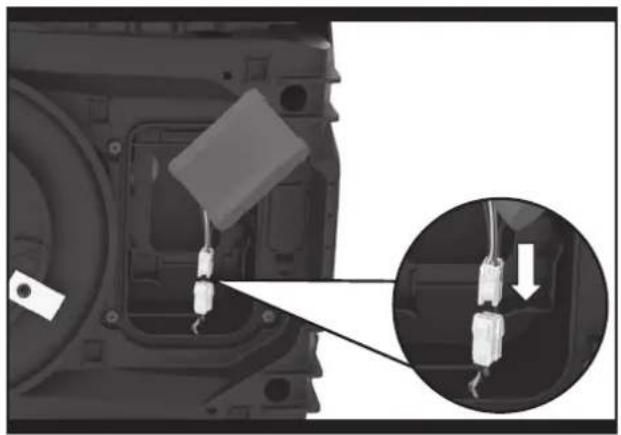

connectors. (See Fig. Q2) NOTE: Do not pull by the cables. Hold the connectors and release the latch.

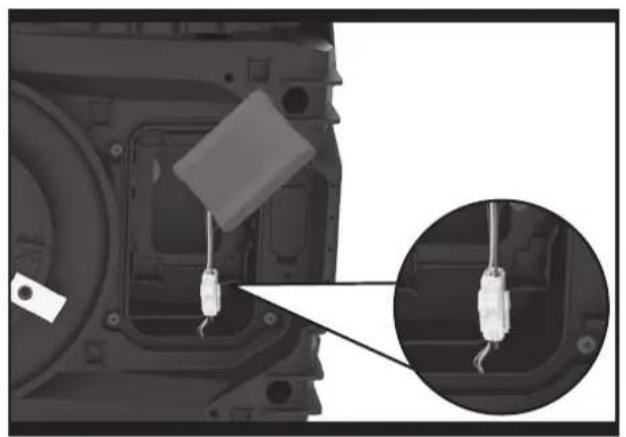

4. Connect a new original battery by attaching the connectors until

they click into position. (See Fig. Q3, Q4)

5. Fit the battery as shown. (See Fig. Q5) Place the cover back in its

position and tighten the screws.EN18

9. Function Messages

Display Message Action Rain delay activated. No action is required.

is outside working area.

is actually outside its territory: turn Landxcape

inside its territory. Turn Landxcape

is inside its territory, check if the LED on the charging base is green. If not, verify that the charging base is properly connected to the charger and that the charger is connected to a suitable power supply. If they are properly connected, the boundary wires are clamped incorrectly and must be reversed.

3. If the LED light on the charging base turns on red, confirm that the boundary wire is well

connected to the clamps on the charging base. If the problem persists, check that the boundary wire hasn’t been cut. Wheel motor blocked

to an area free of obstacles.

upside-down and check if there’s anything preventing the wheels from rotating.

4. Remove any obstruction, turn Landxcape

upright, turn power on. Press then . Blade disc blocked

upside down and check if there’s anything preventing the blade disc to rotate.

3. Remove any obstruction.

upright and take it to an area with short grass or adjust the cutting height;

to an area in your lawn free of obstacles obstacles.

upside-down. Check if there is anything preventing the wheels from rotating.

5. Remove any obstruction, turn Landxcape

upright, turn power on. Press then . Landxcape

to a lawn area clear of obstacles, turn Landxcape

upside- down and check if there’s anything preventing the front wheels from rotating.

is upside down. Turn Landxcape

upright. Press then . Battery error

1. Check the battery temperature. If the temperature is too high, wait until the

temperature has cooled down. Press then .

3. If the error repeatedly occurs, try to change the working schedule.

It takes too long for Landxcape

to go back to the charging base. Manually dock Landxcape

in the charging base for charging. After Landxcape

fully charged, Press then .EN 19 Error unknown. Restart Landxcape

. Press then . If the error message is still displayed, contact a service agent for help. NOTES

• Before turning power on, always return Landxcape

to its territory. If not, “ ” will be displayed. This message is also displayed when Landxcape

is sitting over the boundary wire when turned on.

• If for any reason—i.e. a party, children playing...—you want to park your Landxcape

in the charging base: Press then . Landxcape

will go to its charging base and stay there. Press to turn Landxcape

• If an error repeatedly occurs in the same area of your lawn, you might have a problem with the boundary wire. Please refer to the Installation Guide and check your set up with its help.

• If your lawn is divided in two separate areas connected by a corridor less than 1m, one of which is not provided with the charging base: when Landxcape

runs out of charge, take it manually to the charging base, the charge process will start.

runs abnormally once in a while, please try to restart it. If the problem is not resolved, try to removing and reinstalling the battery . If the problem is still not resolved, please contact a Landxcape

service agent for help.

• Do not wash your Landxcape

with a high pressure washer. This could cause damage to the battery or the machine.

does not work correctly, follow the troubleshooting guide below. If the issue persists, contact your Dealer. Symptom Cause Action The LED light on the charging base does not turn on. There is no power. Check the charging base is connected properly to the charger and the charger is connected to a suitable power supply. Red light turns on the charging base. The boundary wire isn’t connected. Check that the boundary wire has been connected correctly to the charging base. Check there are no breaks in the boundary wire, especially in the wire ends. Landxcape

turns on, but the blade disc does not move. Landxcape

is searching for the charging base (unless you press then button to make it go to the charging base) This is normal. Landxcape

needs to recharge, the blade disc does not rotate while it is searching for the charging base automatically. Landxcape

vibrates. Blades may be damaged. Check condition of the blade disc. Check the blades, and replace them if damaged. Remove debris and foreign objects from the blades and blade disc. Grass is being cut unevenly. Landxcape

does not work enough hours per day. Add more hours to the scheduled mowing time. Mowing area is too big. Try decreasing the size of the mowing area or adding more hours to the mowing time. Blades are dull. Change all the blades and screws in order to balance the blade disc. The cutting height is too low for the length of the grass. Raise the cutting height and then gradually lower. Grass or other object has wrapped around the blade disc. Check the blade disc and remove the grass or other object. There is a build-up of grass in the blade disc or motor frame box. Make sure the blade disc rotates easily. If need be, you may take off the blade disc and remove the debris. Your Landxcape

is inside its territory and the boundary wire is connected. And “ “ is displayed. The boundary wire ends are clamped incorrectly. Reverse the boundary wire ends. The boundary wire is broken. Repair damaged boundary wire with connectors. The charging time is far more than the rated charging time. Poor connection caused by debris on the charging strip. Clean the contact pins located on the charging base and the charging strip on Landxcape

using a cloth. The charging protection program has activated due to high temperature. Place the charging base in a shady area or wait until the temperature has cooled down.EN20 The mower does not charge. There is no power. Check the power cord is connected properly to the charger and the charger is connected to a suitable power supply. Landxcape

does not operate correctly while manually charging. Refer to manual charging in Section 8.3. Landxcape

is starting to have shorter run-times between charges. Something is clogging in the blade disc. Take off the blade disc and clean it. The grass is too high and too thick. Check the Blade Disc and blades, remove debris and foreign objects from the blades and Blade Disc. Landxcape

is shaking heavily. Check the blade disc and blades, remove debris and foreign objects from the blades and blade disc. Landxcape

is not operating at the correct time. The clock is not set to the correct time. Set the clock to the correct time, refer to Section 5.3. Programmed cutting times for Landxcape

are not correct. Change the time settings for the mower to start and stop. Landxcape

is manually docked in the charging base. Press then . The battery does not charge as its temperature rises above 55

C in hot weather. Wait until the battery has cooled down. Landxcape

cannot correctly dock with the charging base. Environmental influences. Restart Landxcape

Poor connection caused by debris on the charging strip. Clean the contact pins located on the charging base and the charging strip on Landxcape

using a cloth. The green light on the charging base turns on before charging is complete. The charging base is overheated. Place the charging base in a shady area or wait until the temperature has cooled down. Landxcape

runs outside the boundary wire. Landxcape

does not mow an area within a boundary wire zone. Landxcape

reverses or rotates erratically near the boundary wire. The boundary wire of another Landxcape

or another robotic mower is positioned too closely. Ensure your Landxcape

boundary wire has at least 1m of space between the neighboring boundary wire. The boundary wire has been installed with tight corners. Check the boundary wire to ensure the corners are smooth. In wet conditions, the boundary wire electric signal may leak were wire has been joined or repaired. Check boundary wire joints. Insulate to provide a fully waterproof connection. There is boundary wire electric signal leakage due to broken insulation. Repair damaged boundary wire insulation with connectors. The cutting area is larger than the allowable cutting area for Landxcape

Reduce the cutting area or use Landxcape

with a larger allowable cutting area. Landxcape

wheels skid or damage lawn. Foreign obstacles, such as twigs and branches may be lodged under Landxcape

Remove foreign objects from underside of Landxcape

The lawn is too wet. Wait until lawn has dried. Landxcape

exits the boundary wire due to high speed when going down a hill. The boundary wire is placed on a slope steeper than 17% (10°). Reposition the boundary wire away from slopes that are steeper than 17% (10°). Please refer Installation Guide for details. Software update failure occurs. Try again according to section “Software update”. Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.EN 21 Declaration of Conformity We, Positec Germany GmbH Grüner Weg 10, 50825 Cologne, Germany Declare that the product, Description Robotic Lawn mower Type LX790 LX791 LX792 LX793 LX794 LX795 (790-799 - designation of machinery, representative of Robotic Lawnmower) (Year, article number and month of serial number are placed on the back page. The complete serial number is clearly stated on the enclosure of lawnmower) with battery charger LA8001 / LA8002 and charging base LA3000 Function Cutting grass Complies with the following Directives, 2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU, 2000/14/EC amended by 2005/88/EC, 2014/53/EU 2000/14/EC amended by 2005/88/EC - Conformity Assessment Procedure as per Annex V - Measured Sound Power Level 64.2dB (A) - Declared Guaranteed Sound Power Level 65 dB (A) The notified body involved Name: Intertek Testing & Certification Ltd. (notified body 0359) Address: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom Certification No. : 181000479SHA-V1 Standards conform to, EN 60335-1:2012+A11+A13:2017, EN 50636-2-107:2015+A1:2018, EN 60335-2-29:2004+A2:2010, EN 62233:2008, EN ISO 3744:2005, EN 55014-1:2017, EN 55014-2:2015,EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61558-1:2005+A1:2009, EN 61558-2-16:2009+A1:2013, EN 303 447 V1.1.1 The person authorized to compile the technical file, Name Marcel Filz Address Positec Germany GmbH, Grüner Weg 10, 50825 Cologne, Germany 2019/04/22 Allen Ding Deputy Chief Engineer, Testing & Certification Positec Technology (China) Co., Ltd. 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. ChinaDE22

will live longer and healthier if it is allowed to hibernate. So even though it is troublesome, we recommend storing your Landxcape

in your shed or garage during the winter. Before you prepare your Landxcape

for winter hibernation, we recommend you:

WAARSCHUWING: Zet uw Landxcape

USCHOVAJTE PRE ĎALŠIE POUŽITIE
