USER MANUAL TASSIMO Style Vanille TAS1107 BOSCH

Table of contents 1 Safety.

1.1 General information .

1.3 Restriction on user group

3 Performing initial start-up 23 4 To prepare a drink 5 Cleaning the appliance 6 Descale the appliance 7 Cleaning the appliance and parts... 23 8 Troubleshooting.. 9 Technical specifications 25 10 Disposing of old appliance.…….….… 25 11 Warranty conditions …

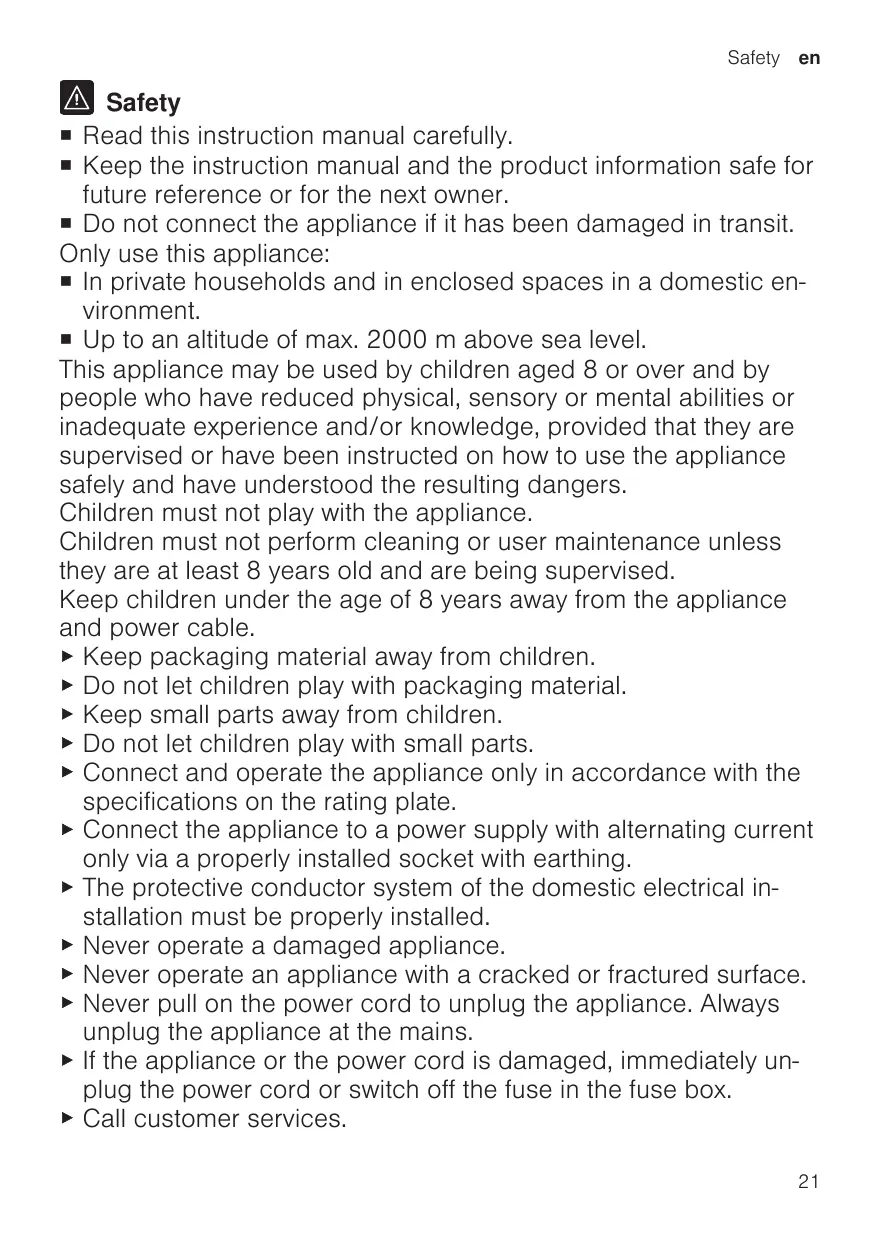

Safety en Safety # Read this instruction manual carefully. = Keep the instruction manual and the product information safe for future reference or for the next owner. # Do not connect the appliance if it has been damaged in transit. Only use this appliance: = In private households and in enclosed spaces in a domestic en- vironment. = Up to an altitude of max. 2000 m above sea level. This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised. Keep children under the age of 8 years away from the appliance and power cable. > Keep packaging material away from children. > Do not let children play with packaging material. > Keep small parts away from children. > Do not let children play with small parts. > Connect and operate the appliance only in accordance with the specifications on the rating plate. > Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing. > The protective conductor system of the domestic electrical in- stallation must be properly installed. > Never operate a damaged appliance. > Never operate an appliance with a cracked or fractured surface. > Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. > |fthe appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box. > Call customer services.

en Overall view > Repairs to the appliance should only be carried out by trained specialist staff. > Only use genuine spare parts when repairing the appliance. > Ifthe power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk. > Never immerse the appliance or the power cord in water. > Liquids must not be spilled on the appliance plug connection. > Only use the appliance in enclosed spaces. > Never expose the appliance to intense heat or humidity. > Do not use steam- or high-pressure cleaners to clean the appli- ance. > Ventilate the appliance adequately. > Never operate the appliance in a cupboard. > Never leave the appliance unattended while it is switched on. > Do not use extension cables or multiple socket strips. > Ifthe power cord is too short, contact Customer Service. > Only use adapters approved by the manufacturer. > Never open the brewing system during operation. > Never use a damaged T DISC. > Never use a drinks T DISC more than once. > Never touch hot appliance parts. > Allow hot appliance parts to cool down before touching. > Leave drinks to cool down if necessary. > Do not let escaping liquids or steam come into contact with your skin. > To avoid injuries, only use the appliance for its intended purpose. > Be careful of your fingers when inserting or cleaning the T DISC. > People with electronic implants must stand at least 10 cm away from the appliance. > This minimum distance of 10 cm must also be observed for the water tank when removed. > To ensure hygiene, follow the cleaning instructions for the appli- ance. Note: Individual details and colours may dif- fer, depending on the appliance model. - Fig. Overall view You can find an overview of the parts of your appliance here. 22 Printed on 100% recycled paper

Float Calc mark Max mark Water tank T DISC reading window T DISC piercing unit T DISC holder Lock Brewing unit Control panel Storage compartment Brief cleaning / descaling instruc- SEBECSCGSENE tions Service T DISC Bowl Cup stand Drip grate Controls You can find an overview of the symbols on your appliance here. 2 “= Activate the appliance. = Start, stop and prolong dis- pensing of drinks. = Start service programme. El Fill water tank. / Display status. calc Descale the appliance. I start-up Follow the pictorial instructions at the start of these instructions. — Fig. A- Troubleshooting Performing initial start-up en Note: You can prepare a wide range of hot beverages with the multiple hot drinks ma- chine. When you insert a T DISC, the scan- ner reads the barcode and controls the flow of hot water automatically. To prepare a drink Find out how to prepare a drink of your choice. Follow the pictorial instructions at the start of these instructions. — Fig. EH - Tips = Fillthe water tank each day with fresh, cold, non-carbonated water. Do not use chemically decalcified water. To interrupt the dispensing process, briefly press CP. To prolong dispensing, press and hold CP until the required quantity is reached. Cleaning the appliance Follow the pictorial instructions at the start of these instructions. — Fig. 3 - ES Descale the appliance If calc lights up, run the descaling pro- gramme. Follow the pictorial instructions at the start of these instructions. > Immediately perform the descaling pro- cess in accordance with the instructions. > Do not use descaling agent with phos- phoric acid. — Fig. EA - FE Cleaning the appliance and parts + Clean the individual parts as indicated in the table. — Fig. Æ You can rectify minor faults on your appliance yourself. Read the troubleshooting informa- tion before contacting after-sales service. This will avoid unnecessary costs. > Repairs to the appliance should only be carried out by trained specialist staff. > Only use genuine spare parts when re- pairing the appliance. Printed on 100% recycled paper > _lfthe power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Cus- tomer Service or a similarly qualified per- son in order to prevent any risk.

en Troubleshooting Fault Cause and troubleshooting The appliance is not working. LEDs do not light up. The appliance has no power supply. > Check to see whether the appliance is connected to the mains. Brewing process starts, drink is not dispensed. Water tank was removed during brewing and inserted again or appliance has not been used for a long time. > Start cleaning with the Service T DISC. Float is stuck in the water tank.

1. Descale the appliance.

— "Descale the appliance”, Page 23

2. Reach into the water tank and move the float up and

down. Brewing process does not start. Status display lights up red. T DISC has not been correcily inserted. > Check whether the T DISC is inserted. The T DISC bar code is not recognised. > Clean the T DISC reading window with a soft, damp cloth. » Smooth out the film of the T DISC. > Contact the TASSIMO careline if the problem persists. The appliance not connected to the power supply when the T DISC was inserted. > Connect the appliance to the power supply before insert- ing the T DISC. Brewing unit cannot be closed. T DISC piercing unit or T DISC holder is not correctly inser- ted.

1. Press the T DISC piercing unit into the holder until it

clicks audibly into place. 2 Check the position of the T DISC holder. T DISC has not been correcily inserted.

1. Insert the T DISC with the printed side facing downwards.

2. Check whether the tab of the T DISC is in the recess.

Brewing unit cannot be opened. Brewing unit is locked. > Only open the brewing unit when the status display re- mains lit continuously. > _lfthe brewing unit remains locked, contact the TASSIMO careline. Water is dripping from the brewing unit.

T DISC is damaged or not correcily inserted. > Use a new T DISC. T DISC piercing unit is not correctly inserted. Printed on 100% recycled paper

Technical specifications en Fault Cause and troubleshooting Water is dripping from the brewing unit. > Press the T DISC piercing unit into the holder until it clicks audibly into place. There is water under the cup stand. Condensation has formed due to technical reasons or valves are clogged with limescale. + Descale the appliance. — "Descale the appliance”, Page 23 No LED is lit. Appliance is in idle mode. > Press TP or open or close the brewing system. All LEDs flashing. There are problems with the power supply.

1. Pull out the mains plug, wait 5 minutes and plug it back

2. lfthe problem persists, contact the TASSIMO careline.

LED £ lights up even though there is enough water in the water tank. Float is stuck in the water tank.

1. Descale the appliance.

— "Descale the appliance”, Page 23

2. Reach into the water tank and move the float up and

down. calc LED lights up al- though softened water has been used. Decalcified water still contains small amounts of lime. + Descale the appliance. — "Descale the appliance”, Page 23 cal LED and £ LED are simultaneously lit and the brewing process is not possible. Appliance has a fault.

1. Unplug the mains plug.

Quality of beverages has deteriorated, e.g. crema or volume. Beverage outlet is soiled. > Clean the beverage outlet. > Clean the brewing unit with the T DISC. Build-up of limescale in the appliance. + Descale the appliance. — "Descale the appliance”, Page 23 Drink volume has re- duced. Drink dispensing halts. Water tank has not been sufficiently filled.

1. Fillthe water tank with fresh, cold water up to the mark

2. Keep LP pressed until the desired fill volume is reached.

Technical specifications Disposing of old appliance Voliage 220-240 V- ae materials can be reused by Frequency 50 Hz 1. Unplug the appliance from the mains. Power rating 1400 W 2. Cut through the power cord. Printed on 100% recycled paper

3. Dispose of the appliance in an environ-

mentally friendly manner. Information about current disposal meth- ods are available from your specialist dealer or local authority. This appliance is labelled in accordance with European Directive 2012/19/EU con- LL _ cerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appli- ances as applicable throughout the EU. Warranty conditions You can make warranty claims for your ap- pliance under the following conditions. The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was pur- chased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Printed on 100% recycled paper

HELLO! Looking for help? You'l find it here. Expert advice for your Bosch home appliances, help with problems 7 or a repair from Bosch experts. [2 Find out everything about the many Ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory. Visit tassimo.com for registration, accessories and more.
