USER MANUAL TASSIMO TAS102E HAPPY BOSCH

[en] Scanthe OR code or visit the website to open the Further Notices for Use. You can find additional informa- tion about your appliance or accessory here.

1 Safety. 1.1 General information . 1.2 Intended use 1.3 Restriction on user group 1.4 Safety information...

2 Overall view 2.1 Control panel.

3 Performing initial start-up... 21

4 Preparing a drink... 5 Dishwasher-safe components... 21

6 Cleaning the appliance .

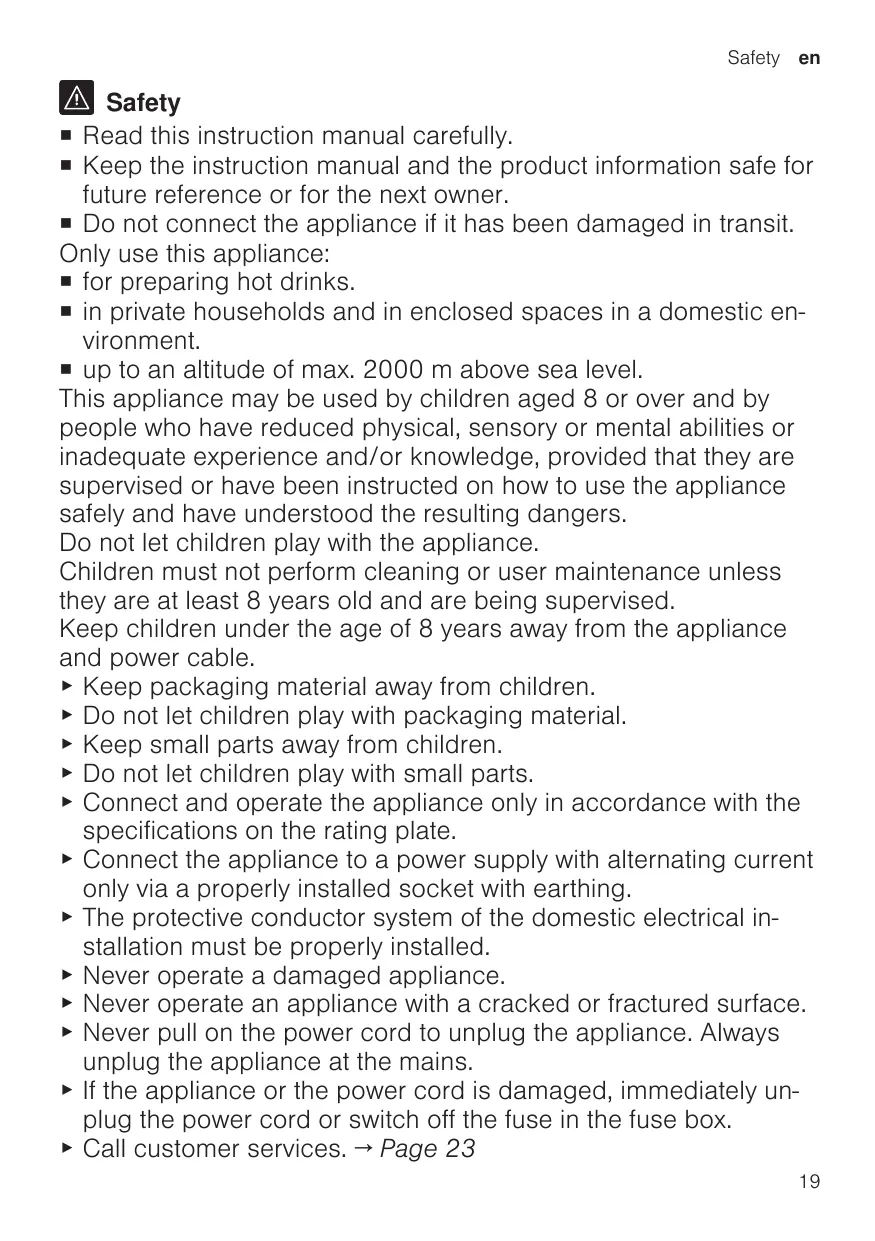

# Read this instruction manual carefully.

= Keep the instruction manual and the product information safe for future reference or for the next owner.

# Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

# for preparing hot drinks.

# in private households and in enclosed spaces in a domestic en- vironment.

= up to an altitude of max. 2000 m above sea level.

This appliance may be used by children aged 8 or over and by

people who have reduced physical, sensory or mental abilities or

inadequate experience and/or knowledge, provided that they are

supervised or have been instructed on how to use the appliance

safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless

they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance

> Keep packaging material away from children.

> Do not let children play with packaging material.

> Keep small parts away from children.

> Do not let children play with small parts.

> Connect and operate the appliance only in accordance with the specifications on the rating plate.

> Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.

> The protective conductor system of the domestic electrical in- stallation must be properly installed.

> Never operate a damaged appliance.

> Never operate an appliance with a cracked or fractured surface.

> Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.

> Ifthe appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box.

> Call customer services. — Page 23

> Repairs to the appliance should only be carried out by trained specialist staff.

> Only use genuine spare parts when repairing the appliance.

> Ifthe power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk.

> Never immerse the appliance or the power cord in water.

+ Liquids must not be spilled on the appliance plug connection.

> Only use the appliance in enclosed spaces.

> Never expose the appliance to intense heat or humidity.

> Do not use steam- or high-pressure cleaners to clean the appli- ance.

> Ventilate the appliance adequately.

> Never operate the appliance in a cabinet.

> Never leave the appliance unattended while it is switched on.

> Do not use extension cables or multiple socket strips.

> Only use adapters and power cords approved by the manufac- turer.

> Ifthe power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

> Never open the brewing system during operation.

> Only use the original Tassimo T DISCSs.

> Never use a damaged T DISC.

> Never use a drinks T DISC more than once.

> Never touch hot appliance parts.

> After use, allow hot appliance parts to cool down before touch- ing.

> Leave drinks to cool down if necessary.

> Do not let escaping liquids or steam come into contact with your skin.

> To avoid injuries, only use the appliance for its intended purpose.

> Be careful of your fingers when inserting or cleaning the T DISC.

> People with electronic implants must stand at least 10 cm away from the appliance.

> This minimum distance of 10 cm must also be observed for the water tank when removed.

> To ensure hygiene, follow the cleaning instructions for the appli-

Overall view You can find an overview of the parts of your appliance here.

Note: Individual details and colours may dif- fer, depending on the appliance model.

- Fig. EX Float Calc mark

Max mark Water tank T DISC reading window

Storage compartment Brief cleaning / descaling instruc-

tions Service T DISC Bowl Cup stand Drip grate

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

“= Activate the appliance.

= Start, stop and prolong dis- pensing of drinks.

= Start service programme.

Eæ Fill water tank. / Display status.

cal ç Descale appliance.

Performing initial start-up

Follow the pictorial instructions at the start of these instructions.

Note: You can prepare a wide range of hot beverages with the multiple hot drinks ma- chine. When you insert a T DISC, the scan- ner reads the barcode and controls the flow of hot water automatically.

Find out how to prepare a drink of your choice. Follow the pictorial instructions at the start of these instructions.

Note: Fill the water tank each day with fresh, cold, non-carbonated water.

Tips =“ Do notuse chemically decalcified water. = You can also pre-heat cups before dis- pensing using hot water.

To interrupt the dispensing process, briefly press CP.

To prolong dispensing, press and hold CP until the required quantity is reached.

Dishwasher-safe components Here you can find an overview of the com- ponents you can clean in the dishwasher.

Cleaning the appliance

Follow the pictorial instructions at the start of these instructions.

Descale the appliance

if calc lights up, run the descaling pro- gramme. Follow the illustrated instructions at the beginning of this manual.

> _Immediately perform the descaling pro- cess in accordance with the instructions.

> Do not use descaling agent with phos- phoric acid.

> Repairs to the appliance should only be carried out by trained specialist staff.

> Only use genuine spare parts when re- pairing the appliance.

> _lfthe power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Cus- tomer Service or a similarly qualified per- son in order to prevent any risk.

The appliance is not working.

LEDs do not light up.

The appliance has no power supply.

> Check to see whether the appliance is connected to the mains.

Brewing process starts, drink is not dispensed.

Water tank was removed during brewing and inserted again or appliance has not been used for a long time.

> Start cleaning with the Service T DISC. Float is stuck in the water tank.

1. Descale the appliance. — "Descale the appliance”, Page 21

2. Reach into the water tank and move the float up and down.

Brewing process does not start. Water tank has not been sufficiently filled.

1. Fill the water tank with fresh, cold water up to the mark max. 2. Insert the water tank.

Brewing process does not start, status display lights up red.

T DISC has not been correcily inserted.

> Check whether the T DISC is inserted. The T DISC bar code is not recognised.

> Clean the T DISC reading window with a soft, damp cloth.

> Smooth out the film of the T DISC. 22

> Remove the used T DISC.

> Contact the TASSIMO careline if the problem persists.

The appliance not connected to the power

supply when the T DISC was inserted.

> Connect the appliance to the power supply before inserting the T DISC.

Brewing unit cannot be closed.

T DISC piercing unit or T DISC holder is not correctly inserted.

1. Press the T DISC piercing unit into the holder until it clicks audibly into place.

2 Check the position of the T DISC holder.

T DISC has not been correctly inserted.

1. Insert the T DISC with the printed side facing downwards.

2 Check whether the tab of the T DISC is in the recess.

Brewing unit cannot be opened.

Brewing unit is locked.

+ Only open the brewing unit when the status display remains lit continuously.

»_Ifthe brewing unit remains locked, con- tact the TASSIMO careline. Water is dripping from the brewing unit.

T DISC is damaged or not correctly inserted.

T DISC piercing unit is not correctly

+ Press the T DISC piercing unit into the holder until it clicks audibly into place.

There is water under the cup stand.

Condensation has formed due to technical reasons or valves are clogged with limescale. + Descale the appliance.

— "Descale the appliance", Page 21

Appliance is in idle mode.

> Press TP or open or close the brewing system.

There are problems with the power supply.

1. Pull out the mains plug, wait 5 minutes and plug it back in.

2 lfthe problem persists, contact the TASSIMO careline.

LED lights up red even though there is

enough water in the water tank.

Float is stuck in the water tank.

1. Descale the appliance. — "Descale the appliance”, Page 21 2. Reach into the water tank and move the float up and down. calc LED lights up although softened water has been used.

Decalcified water still contains small amounts of lime.

+ Descale the appliance. — "Descale the appliance”, Page 21

LED and calc LED flash, brewing is not possible.

Appliance has a fault.

1. Unplug the mains plug.

2. Contact the TASSIMO careline. Quality of beverages has deteriorated, e.g. crema or volume.

Beverage outlet is soiled.

> Clean the beverage outlet.

> Clean the brewing unit with the T DISC. Build-up of limescale in the appliance.

+ Descale the appliance. — "Descale the appliance”, Page 21

Printed on 100% recycled paper

Technical specifications en

Drink volume has reduced.

Drink dispensing halts.

Water tank has not been sufficiently filed.

1. Fillthe water tank with fresh, cold water up to the mark max.

2 Keep LP pressed until the desired fill volume is reached.

Technical specifications

Voltage 220-240 V - Frequency 50 / 60 Hz

Power rating 1400 W Disposing of old appliance

1. Unplug the appliance from the mains.

2 Cut through the power cord.

3 Dispose of the appliance in an environ- mentally friendly manner. Information about current disposal meth- ods are available from your specialist dealer or local authority.

E This appliance is labelled in accordance with European Directive 2012/19/EU con- cerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appli- ances as applicable throughout the EU.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
