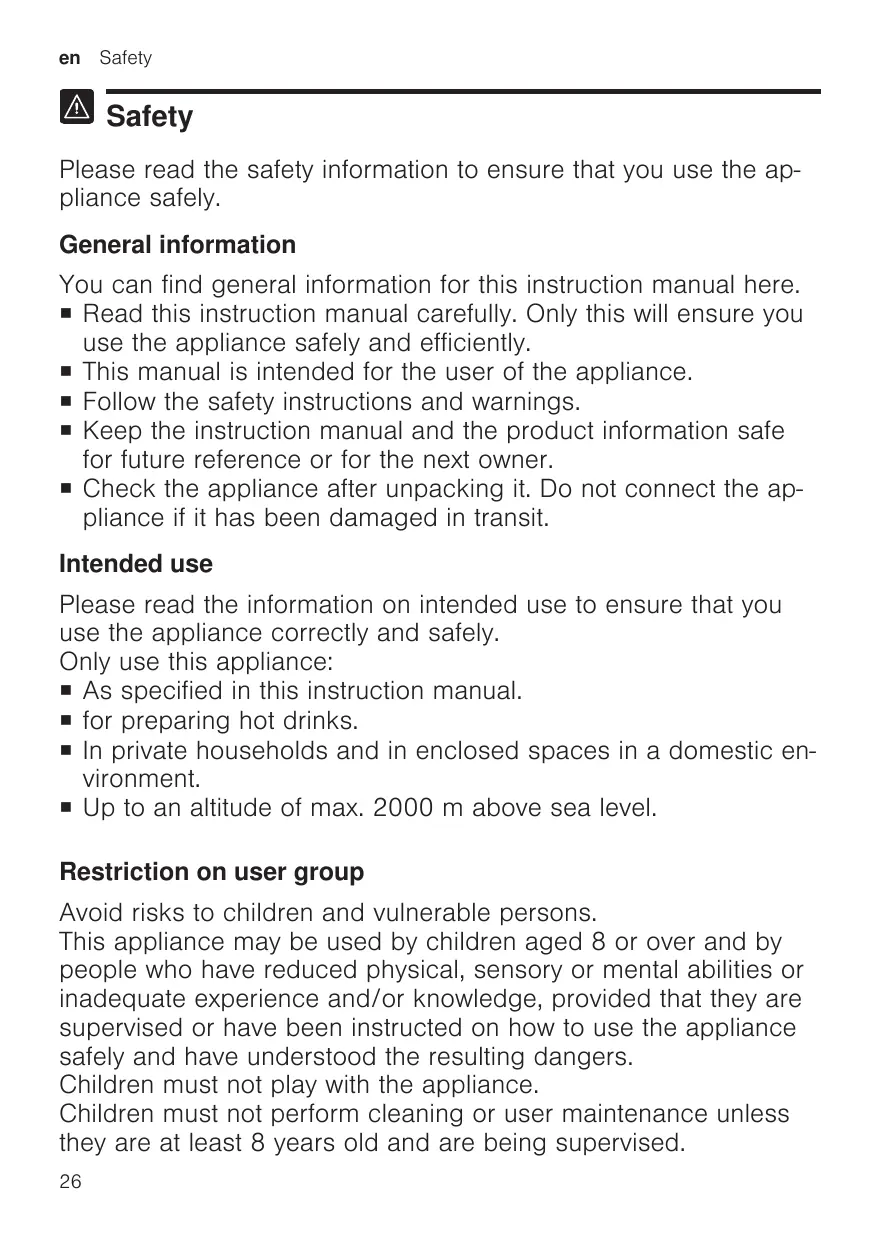

Please read the safety information to ensure that you use the ap- pliance safely.

You can find general information for this instruction manual here.

“ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently.

= This manual is intended for the user of the appliance.

= Follow the safety instructions and warnings.

= Keep the instruction manual and the product information safe for future reference or for the next owner.

= Check the appliance after unpacking it. Do not connect the ap- pliance if it has been damaged in transit.

Please read the information on intended use to ensure that you

use the appliance correctly and safely.

Only use this appliance:

= As specified in this instruction manual.

# for preparing hot drinks.

= In private households and in enclosed spaces in a domestic en- vironment.

= Up to an altitude of max. 2000 m above sea level.

Restriction on user group

Avoid risks to children and vulnerable persons.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Children must not play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

Safety information Follow these safety instructions when using the appliance.

À WARNING - Risk of suffocation!

= Children may put packaging material over their heads or wrap themselves up in it and suffocate. > Keep packaging material away from children. > Do not let children play with packaging material.

# Children may breathe in or swallow small parts, causing them to suffocate. > Keep small parts away from children. > Do not let children play with small parts.

À WARNING - Risk of electric shock! # Improper installation is dangerous.

> Connect and operate the appliance only in accordance with the specifications on the rating plate.

> Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.

> The protective conductor system of the domestic electrical installation must be properly installed.

= lfthe appliance or the power cord is damaged, this is danger-

> Never operate a damaged appliance.

> Never operate an appliance with a cracked or fractured sur- face.

> Never pull on the power cord to unplug the appliance. AI ways unplug the appliance at the mains.

> Ifthe appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

> "Call Customer Service." — Page 36

> Repairs to the appliance should only be carried out by trained specialist staff.

” Improper repairs are dangerous.

> Repairs to the appliance should only be carried out by trained specialist staff.

> Only use genuine spare parts when repairing the appliance.

> Ifthe power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

> Never immerse the appliance or the power cord in water.

> Liquids must not be spilled on the appliance plug connec- tion.

> Only use the appliance in enclosed spaces.

> Never expose the appliance to intense heat or humidity.

> Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING -— Risk of fire!

= The appliance will become hot.

> Ventilate the appliance adequately.

» Never operate the appliance in a cupboard.

> Never leave the appliance unattended while it is switched on.

It is dangerous to use an extended power cord and non-ap-

> Do not use extension cables or multiple socket strips.

» If the power cord is too short, contact Customer Service.

> Only use adapters approved by the manufacturer.

WARNING - Risk of burns!

Some parts of the appliance become very hot.

> Never open the brewing system during operation.

> Never use a damaged T DISC.

> Never use a drinks T DISC more than once.

> Never touch hot appliance parts.

> Allow hot appliance parts to cool down before touching them.

À WARNING - Risk of scalding! Freshly prepared drinks are very hot. > Leave drinks to cool down if necessary. > Do not let escaping liquids or steam come into contact with your skin.

À WARNING - Risk of injury! Improper use of the appliance may endanger the user. > Use the appliance only for its intended purpose.

À WARNING - Danger: Magnetism! The appliance contains permanent magnets. These may affect electronic implants, e.g. pacemakers or insulin pumps. > People with electronic implants must stand at least 10 cm away from the appliance. > This minimum distance of 10 cm must also be observed for the water tank when removed.

À WARNING - Risk of harm to health! Dirt on the appliance may be dangerous to health. > Follow the cleaning instructions for the appliance.

en Familiarising yourself with your appliance

Familiarising yourself With your appliance

Familiarise yourself with the parts of your appliance.

Appliance You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appli- ance model.

T DISC reading window

œ = Activate the appliance. = Start, stop and prolong dispens- ing of drinks. = Start service programme.

El Fill water tank, J Display status: calc Descale the appliance.

Before using for the first time

Clean the appliance and individual parts.

Performing initial start-up

Follow the pictorial instructions at the start of these instructions. — Fig. A-

Please bear this information in mind so that you can get the best out of your appliance.

Note: The appliance has been pro- grammed at the factory with standard settings for optimum operation.

Brief cleaning / descaling instructions

ES SSESCERCE Service T DISC Bowl Cup stand Drip grate Controls

You can find an overview of the sym- bols on your appliance here.

Only use original accessories. These have been made especially for your appliance. Here, you can find an overview of your appliance's ac- cessories.

Note: Bosch is the manufacturer of the TASSIMO appliance. Therefore

Bosch cannot provide any delivery guarantee for the TASSIMO TDISCSs.

Order number / Web shop

TCZ6004 / 00311909 www.tassimo.com wwu.bosch- home.com

Service T DISC Basic operation

You can find out everything you need to know about operating your appli- ance here.

Find out how to prepare a drink of

your choice. Follow the pictorial in-

structions at the start of these instruc-

= Fill the water tank each day with fresh, cold, non-carbonated water.

#“ Do not use chemically decalcified water.

= To interrupt the dispensing pro- cess, briefly press LP.

Cleaning and servicing

To keep your appliance working effi- ciently for a long time, it is important to clean and maintain it carefully.

Dishwasher-safe components

Find out which components can be cleaned in the dishwasher.

Some components are sensitive to

heat and may be damaged if they are

cleaned in a dishwasher.

+ Follow the operating instructions of the dishwasher.

> Only put dishwasher-safe compon- ents in the dishwasher.

> Only use programmes that do not heat the water above 60 °C.

Dishwasher-safe components: = TDISC holder

Components that are not dish- washer-safe: H = Water tank

"_Service T DISC Cleaning the appliance

Follow the pictorial instructions at the start of these instructions.

— Fig. #3 - EH Descale the appliance

If calc lights up, run the descaling programme. Follow the pictorial in- structions at the start of these instruc- tions.

Improper cleaning and descaling or a

delay in doing so may damage the

+ Immediately perform the descaling process in accordance with the in- structions.

> Do not use descaling agent with phosphoric acid.

You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces-

À WARNING Risk of electric shock!

incorrect repairs are dangerous. + Repairs to the appliance should only be carried out by trained specialist

> Only use genuine spare parts when repairing the appliance.

> lfthe power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

The appliance is not work- ing. LEDs do not light up.

The appliance has no power supply.

Check to see whether the appliance is connected to the mains,

Brewing process starts, drink is not dispensed

Water tank is wrongly inser- ted

Insert the water tank correctly. Push the water tank into the appli- ance until it clicks into place.

The water tank was re- moved during the brewing stage or there is air in the system.

Start the cleaning process with the TDISC.

— ‘Performing initial start-up”, Page 30

Float is stuck in the water tank

Remove the water tank Descale the appliance.

— "Descale the appliance”, Page 31

Reach into the water tank and move the float up and down.

Brewing process does not start.

TDISC has not been inser- ted

Check whether the T DISC is inser- ted.

Status display lights up red.

The T DISC bar code is not recognised

Clean the T DISC reading window with a soft, damp cloth

Smooth out the film of the T DISC. Use a new T DISC.

Brewing process does not start.

Status display lights up red.

»._ Contact the TASSIMO careline if the problem persists.

Brewing unit is not closed properly.

1. Clean the brewing unit with a soft, damp cloth, particularly in the area of the lock.

2 Close the brewing unit.

The appliance not connec-

> Connect the appliance to the power

ted to the power supply supply before inserting the T DISC. when the T DISC was inser- ted

Brewing unit cannot be T DISC holder or piercing 1. Press the piercing unit into the

unit has not been correctly inserted

holder using both thumbs until it clicks audibly into place.

2 Checkthe position of the T DISC holder.

T DISC has not been cor- rectly inserted

1. Insert the T DISC with the printed side facing downwards.

2 Check whether the tab ofthe T DISC is in the recess.

Brewing unit is soiled.

1. Clean the brewing unit with a soft, damp cloth, particularly in the area of the lock.

2 Close the brewing unit.

Lock does not engage.

> Press the lock down until it audibly clicks into place.

Brewing unit cannot be opened

Brewing unit is locked

> Only open the brewing unit when the status display remains lit con- tinuously.

1. Unplug the mains plug 2 Contact the TASSIMO careline if the brewing unit remains lockedi

Water is dripping from the brewing unit.

T DISC is damaged, leaking or not correctly pierced.

> Onlyuse T DISCs once.

Wait until the brewing process has

come to an end and the appliance has cooled down.

Clean the brewing unit.

— "Cleaning the appliance",

The piercing unit is not inser- ted correctly.

Press the piercing unit into the holder using both thumbs until it clicks audibly into place.

There is water under the cup stand.

Condensation has formed due to technical reasons.

Remove excess water with a soft cloth.

Information on display panel

Appliance is in idle mode

Voltage in the house system is incorrect.

Pull out the mains plug and re-insert it.

Ifthe problem persists for a longer period, have the voltage of your property checked by an electrician.

Water tank has not been suf- ficiently filed.

Fillthe water tank with fresh, cold water up to the mark” max. Insert the water tank.

LED lights up even though there is enough wa- ter in the water tank.

Float is stuck in the water tank

Descale the appliance.

— "Descale the appliance”, Page 31

Reach into the water tank and move the float up and down.

Water tank is wrongly inser- ted

Insert the water tank correctly.

2. Push the water tank into the appli-

ance until it clicks into place.

Build-up of limescale in the appliance.

calC LED flashes Heavy build-up of limescale

+ Descale the appliance. — "Descale the appliance”, Page 31

calCLED lights upeven … Decalcified water still con- though decalcified water has_ tains small amounts of lime. been used.

Descale the appliance. — "Descale the appliance”, Page 31

CalCLED and LED are simultaneously lit and the brewing process is not pos- sible:

Appliance has a fault.

1. Unplug the mains plug 2 Contact the TASSIMO careline.

CalCLED and /LED flash Descaling process is run- simultaneously. ning.

Wait until the descaling process is complete.

Problem with results

Crema has deteriorated. Beverage outlet is soiled

+ Clean the beverage outlet. — "Cleaning and servicing”, Page 31

Clean the brewing unit with the TDISC.

— "Cleaning and servicing”, Page 31

Build-up of limescale in the appliance.

Descale the appliance. — "Descale the appliance”, Page 31

Drink volume has changed. Build-up of limescale in the

Descale the appliance. — "Descale the appliance”, Page 31

Water tank has not been suf- ficiently filed.

Drink volume has reduced. Drink dispensing halts.

1. Fillthe water tank with fresh, cold water up to the mark” max.

2 Keep CP pressed until the desired fill volume is reached:

Find out here how to dispose of old appliances correctly.

Disposing of old appliance

Valuable raw materials can be re-

1. Unplug the appliance from the mains.

2. Cut through the power cord.

3 Dispose of the appliance in an en- vironmentally friendly manner.

E This appliance is labelled in ac- cordance with European Direct- ive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE) The guideline determines the framework for the return and re- cycling of used appliances as applicable throughout the EU.

If you have any queries, are unable to rectify faults on the appliance your- self or if your appliance needs to be repaired, contact Customer Service. You can solve many problems your- self by consulting the information on troubleshooting in these instructions or on our website. If this is not the case, contact our after-sales service. We always find an appropriate solu- tion.

With any warranty claims, we will make sure that your appliance is re- paired by trained after-sales techni- cians using genuine spare parts, in- cluding after the manufacturer's war- ranty has expired.

Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E- Nr.) and the production number (FD) of your appliance.

The contact details for Customer Ser- vice can be found in the Customer Service directory at the end of the manual or on our website.

Product number (E-Nr.) and production number (FD)

You can find the product number (E- Nr.) and the production number (FD) on the appliance's rating plate. Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly.

You can make warranty claims for your appliance under the following conditions.

The guarantee conditions for this ap- pliance are as defined by our repres- entative in the country in which it is sold. Details regarding these condi- tions can be obtained from the dealer from whom the appliance was pur- chased. The bill of sale or receipt must be produced when making any claim under the terms of this guaran- tee.

Technical specifications

Facts and figures for your appliance can be found here.

“ Recipiente colector

ADVARSEL - Fare for skolding!

Miga dioda LED calc.

SarpasHeHyA npÉOPA MOT APEACTABNATE ONACHOCTE ANA 3A0PO- BbA.

YcTrpaHeHye HeHCNPpaBHOCTH Mpouecc saBapyBaHua He 3anyCKaeTCA.

SarBop He HKCHpyeTCA.

YcTrpaHeHye HeHCNPpaBHOCTH Hu oauH 13 CBETOAUO10B He TOPHT.

YcTrpaHeHye HeHCNPpaBHOCTH YxyALLHnOCE Ka4eCTBO neHky Ha Kope.

Aucnencep sarpasHen.

OuncruTe AucneHcep. — "Ouncrka yxoz", CTp.181

Manon Kanpcran, 13 renecon (485) T97-3777, are (SH 137-2798,

“phone rate depends on the network used

BSH Home Appliances Ltd

Grand Union House, Old Wolverton Road, Wolverton

Mio Keynes MK12 5PT To arrange an engineer visit to order spare paris and accessories or for product advice please visit ww bosch. home.co.uk Or call Tel. 0344 892 8979* “Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GR Greece, EMäc BSH IHiakes Siskeves AB Central Branch Service 17 km E.O. Athinon-Lamias & Potamou 20 14564 Kifisia Tnhéguvo: 210 4277 500 Tnhéguvo: 210 4277 701 maitonkt CustomerSenice@bshg.com ww bosch-home gr

Republic of Ireland BSH Home Appliances Ltd.

MS0 Business Park, Ballymount Road Up per, \Valkinstoun

To arrange an engineer visit, to order spare parts and accessories ar for product achice please call Tel: 01450 2655

“Calls are charged at the basic rate, please check with your telephone service provider for exact charges

KR Republic Korea, Daehan Minguk, CHÉFRI 3

Dongsuh Foods Corporation

NZ New Zealand BSH Home Appliances Ltd. Level 3, Air NZ Building, Smales Farm, 74 Taharoto Road, Takapuna Auckland 0622 Tel: 0800 245 700* mailo:afersales nz@bshg com w.bosch-home.co.n2 “Mon: 8.30am to 5.00 pm (exclude public holidays)

For information, questions or locations of authorised Bosch service centres nearest you, please contact TASSIMO: Phone: 0800 0328833

GR TASSIMO lpapyii Enkowuiac

IE TASSIMO careline For information, questions or locations of authorised Bosch service centres nearest you, please contact TASSIMO Careline: 1800 454501 mi Tassimo ie

Looking for help? You'l find it here.

Expert advice for your Bosch home appliances, help with problems 7 or a repair from Bosch experts. [2

Find out everything about the many Ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

Visit tassimo.com for registration, accessories and more.
