USER MANUAL ROTAK 32 LI BOSCH

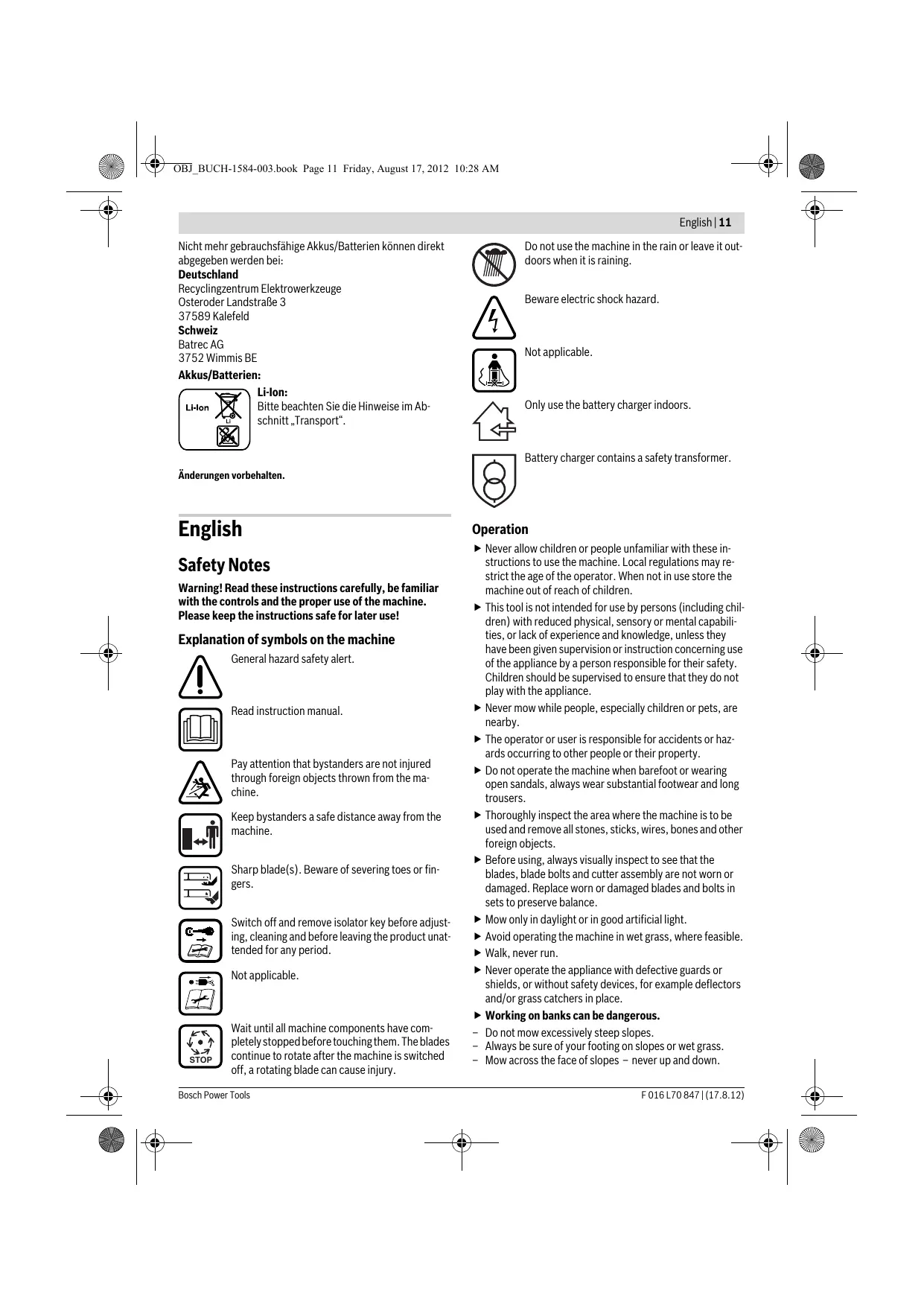

whenever you leave the machine, before clearing a blockage, before checking, cleaning or working on the machine, after striking a foreign object. Inspect the machine for damage and make repairs as necessary, – if the machine starts to vibrate abnormally (check immediately). Maintenance f Always wear gardening gloves when handling or working near the sharp blades. f Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition. f Check the grass catcher frequently for wear or deterioration. f Examine the machine and replace worn or damaged parts for safety. f Ensure replacement cutting means of the right type are used. f Ensure replacement parts fitted are Bosch approved. F 016 L70 847 | (17.8.12) Recommendations for Optimal Handling of the Battery f Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into machines that have the switch on invites accidents. f Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock. f Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. f Do not charge other batteries. The battery charger is suitable only for charging Bosch lithium ion batteries within the listed voltage range. Otherwise there is danger of fire and explosion. f Keep the battery charger clean. Contamination can lead to danger of an electric shock. f Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock. f Do not operate the battery charger on easily inflammable surfaces (e. g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard. f Use only Bosch battery packs intended specifically for the machine. Use of any other battery packs may create a risk of injury and fire. f When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. f Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns. f Do not open the battery. Danger of short-circuiting. f Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion. f Do not short-circuit the battery. There is danger of explosion. f In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. f Protect the battery against moisture and water. f Store the battery only within a temperature range between 0 °C and 50 °C. As an example, do not leave the battery in the car in summer. f Occasionally clean the venting slots of the battery using a soft, clean and dry brush. Bosch Power Tools OBJ_BUCH-1584-003.book Page 13 Friday, August 17, 2012 10:28 AM English | 13 Symbols Symbol The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner. Symbol Meaning Weight Switching On Switching Off Meaning Reaction direction Permitted action Movement direction Accessories/Spare Parts Wear protective gloves Prohibited action Intended Use The garden product is intended for domestic lawn mowing. Technical Data Cordless Lawnmower Article number Blade width Height of cut Grassbox, capacity Weight according to EPTA-Procedure 01/2003 Serial number Battery Article number Rated voltage Capacity Charging period (battery discharged)** Number of battery cells Battery Charger Article number Charging current Allowable charging temperature range Weight according to EPTA-Procedure 01/2003 Protection class Battery Charger Article number **with AL 3620 CV Professional charger

Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary. Bosch Power Tools F 016 L70 847 | (17.8.12) OBJ_BUCH-1584-003.book Page 14 Friday, August 17, 2012 10:28 AM 14 | English Cordless Lawnmower Charging current Allowable charging temperature range Weight according to EPTA-Procedure 01/2003 Protection class

**with AL 3620 CV Professional charger Rotak 32 LI 0 – 45 /II Rotak 32 High Power 0 – 45 /II Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary. Noise/Vibration Information Measured sound values determined according to 2000/14/EC (1.60 m height, 1 m distance away). Typically the A-weighted noise levels of the product are: Sound pressure level 74 dB(A); sound power level 86 dB(A). Uncertainty K =0.42 dB. Vibration total values (triax vector sum) determined according to EN 60335: Vibration emission value ah <2.5 m/s2, Uncertainty K=1.5 m/s2. Declaration of Conformity We declare under our sole responsibility that the product described under “Technical data” is in conformity with the following standards or standardization documents: EN 60335, EN 50338 (battery powered product) and EN 60335 (battery charger) according to the provisions of the directives 2011/65/EU, 2004/108/EC, 2006/42/EC, 2000/14/EC. 2000/14/EC: Measured sound power level 87 dB(A). Conformity assessment procedure according to Annex VI. Equipment category: 32 Notified body: SRL, Sudbury, England, Nr. 1088 Technical file (2000/14/EC, 2011/65/EU) at: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England Dr. Egbert Schneider Helmut Heinzelmann Senior Vice President Head of Product Engineering Certification Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Mounting and Operation Action Delivery Scope Handle Assembly Snap together the Grassbox Grassbox fitting/removing Battery Charging Inserting the Battery F 016 L70 847 | (17.8.12) Figure

Action Remove Isolator Key and fit in the Storage Position Removing the Battery Adjusting the Cutting Height Starting Stopping Working Advice Blade Maintenance Selecting accessories Figure

SRL, Sudbury, England, Nr. 1088 ﺍﻷﻭﺭﺍﻕ ﺍﻟﻔﻨﻴﺔ ﻟﺪی ):(2000/14/EG, 2011/65/EU Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England Helmut Heinzelmann Head of Product Certification Dr. Egbert Schneider Senior Vice President Engineering

4,0 4,0 ﺩﺭﺟﻪ ﺣﺮﺍﺭﺕ ﻣﺠﺎﺯ ﺑﺮﺍی ﺷﺎﺭژ

Bosch Power Tools OBJ_BUCH-1584-003.book Page 234 Friday, August 17, 2012 10:28 AM 234 |
