Coffee 66 Time - Coffee machine CECOTEC - Free user manual and instructions

USER MANUAL Coffee 66 Time CECOTEC

Safety instructions 9

1. Parts and components 70
2. Before use 70
3. Operation 71
4. Cleaning and maintenance 73
5. Disposal of old electrical and electronic appliances 74
6. Copyright 74
7. Simplified EU Declaration of Conformity 74

SOMMAIRE

EU01_123330 - Coffee 66 Time

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance must not be carried out by children unless they are over 8 years old and are under supervision. Keep this appliance and its power cord out of reach of children under the age of 8.
• This appliance can be used by people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or appropriate instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• This symbol means "Caution: hot surface". The accessible surfaces of the appliance may reach high temperatures during operation. Be careful not to burn yourself.
• WARNING: Do not remove the cover while the water is boiling.

• Warning: the filling opening must not be opened during operation.
• This appliance must be exclusively used with the provided base.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Avoid touching the hot surfaces when in operation, and let it cool down for a few minutes after use. Grab it by the handle.
• To prevent possible injury caused by steam, do not face the spout when operating.
• Do not cover the appliance during operation and do not place heavy objects on it.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is earthed.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid. Do not expose electrical connections to water. Make sure your
• hands are completely dry before handling the plug or switching on the appliance.
• Do not operate the appliance without water.
• The appliance must not be submerged.
• Place the appliance on a dry, stable, flat, heat-resistant surface.
• The coffee machine must not be placed in a cupboard when in use.
• Do not insert coffee while the machine is in operation.

• Never immerse the appliance in water. Do not touch the water!

• Check the power cord regularly for visible damage. If the cord is damaged, it must be repaired by Cecotec's Official Technical Support Service to avoid any danger.

• Do not carry or pull the appliance from the power cord. Do not use the cord as a handle. Do not push the cable against corners or sharp edges. Do not run the product
• over the power cord. Keep the cable away from hot surfaces.
• Do not operate the appliance if its cord, plug, or body show visible damage, do not operate properly, or have been dropped.
• Cleaning and maintenance tasks should not be carried out by unsupervised children.
• Always disconnect the appliance from the power supply if it is left unattended and before assembly, disassembly, or cleaning.
• Do not leave the appliance unattended while in use.
• Unplug it from the power supply when you finish using it and before leaving the room.
• Use bottled water for best results. Do not use warm water or other liquids, these may cause product damage.
• Do not try to repair the appliance by yourself. Please contact Cecotec's Official Technical Support Service.
• Always turn off and unplug the appliance when not in use, before moving it to a new location, and before assembling or disassembling it. To avoid tripping hazards, wind the cable safely.
• To ensure the correct operation of the appliance, cleaning and maintenance tasks must be carried out according to this instruction manual. Always turn off and unplug the appliance before cleaning.
• Use the appliance only for its intended purpose.

• Do not use any accessory that has not been recommended or provided by Cecotec, as they might cause injuries or damage.
• Switch off and unplug the appliance before changing accessories or nearby parts that move during use.
• The water level must be between the MAX. and MIN. marks.
• Always ensure that the cover is tightly closed.
• Remove and refit the cover carefully when hot.
• Avoid spillage on the conductor cable.
• The surface of the heating element is subject to residual heat after use.
• Strictly follow the instructions in this manual to avoid injury or damage to the appliance.
• Do not operate the drip coffee machine empty.
• The appliance is not intended to be used by children. Keep this appliance and its power cord out of their reach.
• Do not use the appliance for other purposes.
• To avoid scalding, do not open the cover during the boiling process or immediately after.
• Warning: this appliance has undergone a quality control previous to its commercialisation with the aim of ensuring its correct operation. After the quality control testing, the appliance is cleaned thoroughly, therefore, although it is unlikely to occur, there could be rests of water drops.

Glass carafe's safety instructions

• The glass carafe is designed to be used only with this product. Do not use it in any other drip-type coffee maker or in a microwave oven.
• Do not stir inside the carafe with a spoon or other utensils.

• Do not use the carafe if it is cracked or if the handle is loose.

• Never use ice cubes inside the carafe or place it inside the refrigerator

• Never drink directly from the carafe.
• Do not tilt or overturn the carafe to avoid liquids from flowing out.
• When moving the carafe, always hold it by the handle.
• Do not leave the glass carafe empty on the warming plate to avoid it from cracking.

INSTRUCTIONS DE SÉCURITÉ

1. LED display
2. Water tank lid
3. Filter
4. Funnel
5. Funnel holder
6. Glass carafe
7. Water tank
8. Water level indicator
9. Main body
10. Heating plate
11. Base
12. Tamping spoon

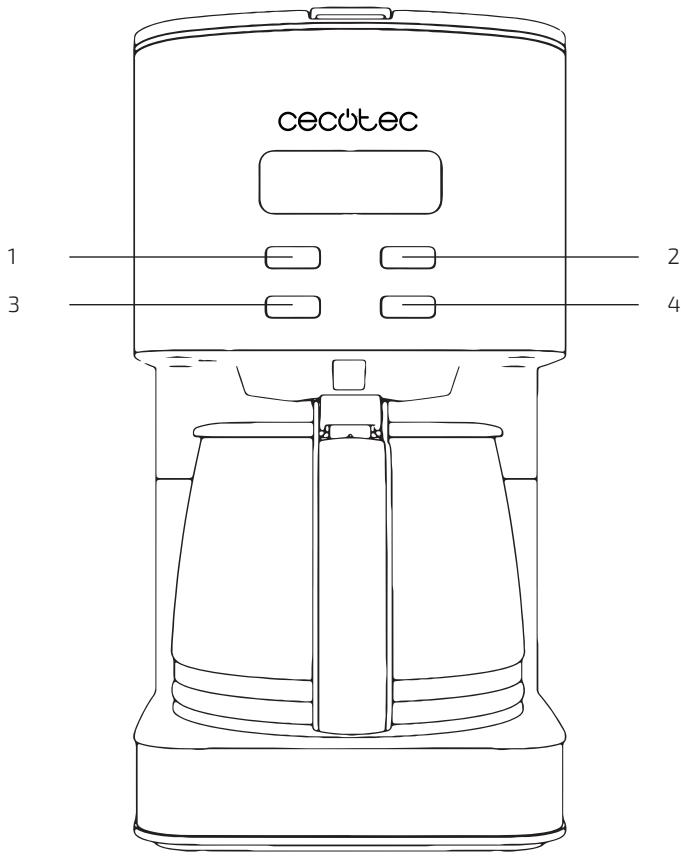

Control panel

Fig. 2

1. Power button
2. Programming button
3. Aroma button
4. Setting button

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Coffee machine
• Glass carafe

70

COFFEE 66 TIME

ENGLISH

• Measuring spoon
• Filter
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. OPERATION

Before the first coffee

1. Fill the water tank to the maximum amount of water.
2. Boil water once or twice and then dispose it.
3. The glass carafe, funnel, filter and all parts that come into contact with water and coffee should be thoroughly cleaned with warm water and soap.

Coffee brewing

1. Open the water tank lid and fill it with water.
2. Place the funnel in its holder, make sure it is positioned correctly, and then fit the filter.
3. Add the right amount of coffee powder in the filter. You can increase or decrease the amount of coffee powder to your liking.
4. Gently shake the funnel and filter to distribute the coffee evenly; then, close the water tank cover and make sure it is positioned correctly.
5. Place the glass carafe on the heating plate.
6. Connect the machine to the mains and the display will show 12:00.
7. Press the power button on the control panel twice and the red indicator light will illuminate, then the coffee machine will start operating.
8. During the brewing process, you can press the power button at any time to stop the operation.

Note: The coffee will stop dripping automatically, but the glass carafe should not be removed for more than 30 seconds to prevent coffee from overflowing the funnel's edge.

1. Do not open the water tank lid during the coffee brewing process to avoid burns from steam or damage to the coffee machine due to hot water backflow.

2. Wait until the coffee has finished dripping before removing the glass carafe, pouring the coffee and enjoying it.

Note: Since coffee powder absorbs a certain amount of water, the amount of coffee poured may be lower. The heating plate will be very hot during operation - do not touch it!

ENGLISH

1. The keep-warm function will be activated and the machine will switch off automatically after 40 minutes if no further operation is performed. If you are not going to use the coffee machine for a long time, unplug it.

Warnings:

• The water level should not exceed the maximum mark or fall below the minimum mark on the tank.
• Do not immerse the coffee machine or power cord in water or other liquids. The temperature of freshly brewed coffee is very high, please be careful when pouring it to avoid burns.

Pre-set brewing time

This coffee machine has a pre-set brewing time function. After preparing coffee according to the previously mentioned steps (1 to 6), and assuming it is 8:10, follow the steps below if you want the machine to automatically prepare coffee at 13:00.

Note: The time of the coffee machine is displayed in 24 hours.

1. Press the Programming button once and the indicator ⏻ will light up. Press the Setting button to select the hour; press the Programming button again and the Setting button to select the minutes until the current time is set (i.e., 8:10).
2. Press the programming button once, the indicator will light up.
3. Press the Setting button to select the hour and press the Programming button again to confirm the selected time.
4. Press the Setting button to select the minutes, then select the coffee brewing time at 13:00.

Note: If no action is taken within 15 seconds after setting the brewing time, the display will automatically return to the current time and the corresponding indicator will go out.

1. Press the power button and the indicator ⏻ will light up. When the ⏻ indicator is lit, the coffee machine will have entered the pre-set state. You can press the Programming button to check the current time or preset time respectively.
2. When the time reaches 13:00, the ⏻ indicator light will go out, and the ⏻ indicator light will light up, then the machine will start brewing coffee. If you do not switch off the machine after brewing coffee, the it will enter the keep-warm function.

Note: The product will automatically switch off after 40 minutes if no further operation is performed.

ENGLISH

Select coffee aroma

This machine has a coffee aroma selection function for three different levels as shown below:

- Low level: press the Aroma button once and the symbol Ⓞ will appear at the bottom of the display, then press the power button once to brew coffee.

- Medium level: press the Aroma button twice until the symbol 📋 appears at the bottom of the display. Then press the power button twice to brew coffee.

- High level: press the Aroma button three times until the symbol 📄 🔒 🔒 appears at the bottom of the display. Then press the power button twice to brew coffee.

If you need to preset the brewing for the selected aroma, adjust the corresponding level and follow the steps above. (Note: press the aroma button to adjust the coffee aroma.)

4. CLEANING AND MAINTENANCE

Warning:

Unplug the appliance before cleaning and allow the heating plate to cool down sufficiently to avoid burns. Do not immerse the machine or power cord in water or other liquids to avoid any danger.

• After each use, open the tank cover and remove the filter to empty the coffee grounds. Then, clean the filter and glass carafe with warm water and add a cleaning solution if necessary.
• Clean the product's exterior surface with a soft, slightly damp cloth to remove dirt.
• When brewing coffee, water droplets may form on the top of the funnel and fall on the heating plate. Therefore, the corresponding parts must be cleaned after each use.

Descaling

• To ensure efficient operation, depending on the quality of the water in your area and the frequency of use of the coffee machine, you should regularly remove the limescale contained in the product as indicated below:
• Pour the appropriate amount of white vinegar solution into the tank (3 parts water to 1 part vinegar), but do not add ground coffee. Boil the water with vinegar and repeat the process several times if necessary. Then, remove the vinegar water and let the machine boil with distilled water until it no longer smells of vinegar.

COFFEE 66 TIME

ENGLISH

5. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities. For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help to protect the environment.

Information regarding national packaging recycling systems and their marking can be found on our website.

6. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

7. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE

Cecotec Innovaciones hereby declares that this product complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

1. لا ت Connectivity Expiration Chancan Personal An Introduction to the Psychology, In a Language of Philosophy, in the United States, is an important language for the American People's Republic.

السachen.

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2
