Airlisse 6in1 Itwerk Champagne - Computer monitor CECOTEC - Free user manual and instructions

Product type	Computer monitor
Brand	Cecotec
Model	Airlisse 6in1 Itwerk Champagne
Screen size	27 inches
Resolution	1920 x 1080 pixels (Full HD)
Refresh rate	60 Hz
Panel type	IPS
Brightness	250 cd/m²
Connectivity	HDMI, VGA, headphone jack
Power supply	Power adapter 12 V / 3 A
Dimensions (with stand)	61.5 x 45 x 18 cm
Weight	4.5 kg
Viewing angle	178° horizontal / 178° vertical
Main features	Image display, OSD settings, blue light reduction
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture. Unplug before cleaning.
Spare parts and repairability	Available on the Cecotec website. Professional repair recommended.
General information	2-year warranty. Consumption: 30 W in use.

Frequently Asked Questions - Airlisse 6in1 Itwerk Champagne CECOTEC

How do I connect the monitor to my computer?

Use the provided HDMI or VGA cable. Connect one end to the monitor and the other to your PC's graphics card. Then turn on the monitor and select the correct source via the OSD menu.

How do I clean the monitor without damaging it?

Turn off the monitor and unplug it. Use a slightly damp microfiber cloth (no liquid directly). Do not rub too hard. Avoid any chemical products.

The screen resolution is not optimal, what should I do?

Make sure your computer is set to the native resolution (1920x1080). Go to your operating system's display settings and select this resolution.

My monitor stays black, what should I do?

Check that the monitor is powered (the indicator light should come on). Try a different cable or source. If nothing works, contact Cecotec support.

How do I adjust the brightness and contrast?

Use the physical buttons on the monitor to open the OSD menu. Navigate with the arrows to find the brightness, contrast, and color temperature settings.

The monitor has dead pixels, is this normal?

A few dead pixels may be tolerated according to ISO 9241-307. If the number is excessive, contact customer service for a warranty exchange.

Can I mount the monitor on the wall?

Yes, the monitor is compatible with VESA 100x100 mm mounts. Use a suitable wall mount and follow the mounting instructions provided with the mount.

How do I reduce eye strain?

Enable the blue light reduction mode in the OSD menu. Set the brightness to a comfortable level and take regular breaks.

The monitor makes noise (buzzing), what should I do?

A slight buzzing may be normal with switching power supplies. If the noise becomes loud or persistent, unplug the monitor and contact customer service.

What is the power consumption of the monitor?

Typical consumption is 30 W in normal use and less than 1 W in standby. This may vary depending on brightness settings.

USER MANUAL Airlisse 6in1 Itwerk Champagne CECOTEC

1. Parts and components	50
2. Before use	50
3. Operation	51
4. Cleaning and maintenance	53
5. Troubleshooting	54
6. Disposal of old electrical and electronic appliances	54
7. Copyright	55
8. Simplified EU Declaration of Conformity	55

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage specified on the product's rating label and that the plug is earthed.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices
• If the appliance is to be used in a bathroom, it must be unplugged from the wall socket after use, as the proximity to water could be a risk even with the appliance switched off.

This icon means that the appliance must not be used in bathtubs, showers, or any other water-filled tank.

• WARNING: Do not use the appliance near bathtubs, showers, sinks, or other water-filled containers.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by Cecotec's Official Technical Support Service to avoid any danger.

- This symbol means: "Caution, hot surface".

- This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

• Do not immerse the cable, plug, or any other non-removable part of the appliance in water or any other liquid. Do not expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.
• The appliance must not come into contact with flammable material. Also, it must not be used near flammable material.
• Do not use the appliance if the cable or any other part shows some kind of damage. In this case, contact Cecotec's Official Technical Support Service.
• Keep all packaging materials away from children, as they may create a risk of suffocation.
• This appliance must be checked frequently for signs of wear or damage. If the appliance shows visible signs of damage, contact Cecotec's Technical Support Service immediately. Do not try repairing this appliance by your own means.
• In case of defect or malfunction, turn off and disconnect the appliance immediately.
• Do not use accessories or parts that have not been provided by Cecotec.
• Never grasp the appliance by or near the plates when turned on. The heat of the plates may cause serious burns. Avoid contact with the skin and eyes.
• Do not carry the appliance if still hot.
• Do not leave the appliance unsupervised during operation.
• Do not use on pets or animals.
• Keep the appliance away from heat sources.
• The appliance may reach high temperatures during use. Avoid contact between the appliance and the face, neck, and scalp.
• Do not use the appliance outdoors or near aerosols.
• Do not cover the cable or the appliance when operating. The

power cable must not touch the hot parts of the appliance and must not pass through the plates of the hair straightener.

• Never wind the power cord around the appliance.
• Do not use the appliance if you have applied foam, spray, or gel to your hair beforehand.
• Do not place the appliance directly on non-heat resistant surfaces while it is connected to the mains.
• Do not unplug or carry the appliance by the power cable.
• If the appliance falls into water, unplug it immediately. Do not reach into the water.
• Ensure that the air inlets and outlets are not blocked. If they are blocked, the appliance will activate the overheat protection system.
• Turn off and unplug the appliance after use.
• Do not use the appliance to dry wigs or fake hair.
• Supervise children to ensure they do not play with the product. Strict supervision is necessary if the product is being used by or near children.
• Burn hazard. Keep the appliance out of the reach of children, particularly during use and while it is cooling down.
• Never leave the appliance unattended while connected to the mains power supply.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box contents of the references EU01\_122191 AirLisse 6in1 iTwerk Champagne and EU01\_122401 AirLisse 6in1 iTwerk Black:

• Product
• Concentrator nozzle
• Detangling brush
• Diffuser
• Volumising comb
• Styling brush
• Anti-frizz brush
• Instruction manual

Box contents of the reference EU01\_123415 AirLisse 6in1 iTwerk Platinum:

• Product
• Concentrator nozzle
• Detangling brush
• Diffuser
• Volumising comb
• Styling brush
• Anti-frizz brush
• Leather case
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. OPERATION

1. Preparation before use:
2. Wash your hair thoroughly. Comb it carefully.
3. Do not use sprays, styling agents or other flammable hair chemicals.

4. Wrap a towel around the neck to avoid skin burns.

5. First use:

6. When the device is switched on for the first time, the straightener remains in the locked position.

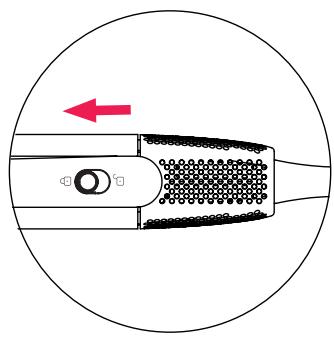

7. During use, slide the plate locking slide switch, as shown in Figure 2, to unlock.
8. The heating plates can then be locked using the switch as required.

Automatic functions

• Reactivation: when the device is lifted, it automatically resumes the previous state and selected levels.
• Closed product: operates according to the set level and does not detect whether it is moving or not.

Plate temperature setting button

• This button adjusts the temperature of the plates by pressing repeatedly, you can switch off the heating plates or select any of the four temperature modes. The indicator light will flash white while the plates are heating and will remain steady when reaching the desired temperature.
• As many white indicator lights will light up as the selected temperature mode.

Cool air button

• This button activates the cool air function, which deactivates the heating elements causing air to come out at room temperature. You can return to the hot air function by pressing the cool air button or the hot air setting button.
• When the cool air function is activated, the indicator will light up in blue and the hot air indicator lights will switch off.

Hot air setting button

This button activates the hot air function, by pressing repeatedly you can switch off the air or select any of the three air speed and temperature modes:

• Mode 1: Gentle speed and temperature
• Mode 2: Medium speed and temperature
• Mode 3: High speed and temperature

As many red indicator lights will light up as the selected mode.

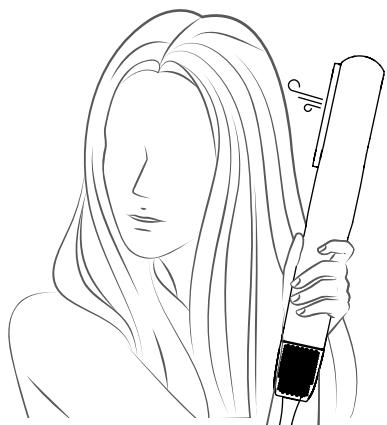

Hair dryer mode

• Hold the straightener with the plates closed and direct the airflow towards the hair roots to dry them as shown in Figure 3.
• If desired, you can attach the concentrator nozzle to the hair straightener for faster drying.
• Adjust the temperature and airflow according to your needs.
• When you finish using the device, switch it off by sliding the On/Off switch downwards and disconnect it from the mains socket.

Hair straightening mode

Fig. 4

• Comb the hair so it is smooth and tangle-free.
• Take a section of hair no more than 5 cm wide, place it between the heating plates and press the product handle firmly.
• Glide the straightener from root to tip of the hair in 5 seconds without stopping to prevent excessive heating. To shape the ends, when the straightener reaches the tips, curl inwards or outwards half a circle, hold for 2-3 seconds then release.
• Repeat after 20 seconds until achieving the desired hairstyle.
• Allow the hair to cool. Do not comb the hair before it cools, as this could damage the new hairstyle.
• After use, switch off the device, unplug and store the product only after it has cooled completely.

Initial settings description

When the device is switched on, airflow mode three and plate temperature mode three are set by default.

Standby mode

If the straightener is left on a surface without movement detection, the device will gradually reduce airflow until it switches off completely after approximately 8 seconds, entering standby mode. It will resume operation when used again.

NOTE:

• The airflow and heating plate functions can be used separately.
• The heating plate and airflow temperature are automatically adjusted in each mode.

Red light/infrared light and vibration functions

• Red/infrared light function: the device includes 4 x 650 nm LEDs and 4 x 850 nm LEDs.
• Vibration function: closing the plates will activate the vibration function to distribute hair and achieve a more uniform straightening.

Warning:

• Do not leave the device unsupervised while plugged in.
• During heating and after use, always place it on a heat-resistant surface.
• This product is a high-powered heating and styling tool. Incorrect use or improper temperature settings may overheat or even burn the hair.
• Switch off the device and unplug it after each use.
• Always follow the steps below.
• When finished, switched off the device, unplug it and store it when it has completely cool down.

4. CLEANING AND MAINTENANCE

• Unplug the straightener from the mains and allow it to cool down before cleaning it.
• Never immerse the straightener in water.
• Clean the exterior with a damp (not wet) cloth. Do not use abrasive or corrosive cleaning products.
• Clean the air inlet, use a soft toothbrush to remove dust and dirt.

Storage

• Allow the straightener to cool down completely before storing it.
• Lock the plates to prevent damage by sliding the locking switch to the locked position.
• Once cooled, fold the power cord as it came in the packaging. Do not wrap the power cord around the straightener, as excessive tension may cause damage.
• Store the straightener in a dry and safe place, out of the reach of children.

5. TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSES	POSSIBLE SOLUTIONS
The appliance does not turn on	It is not correctly connected to the power socket.	Check that the socket is live and connect the plug correctly.
	The on/off switch is in the off position	Slide the power/speed switch to the on position.
No air comes out of the hair straightener.	The appliance is not in use	After a period of inactivity, the appliance will enter standby mode. Resume use to reactivate it.
	The airflow mode is deactivated.	Press the cool air button or hot air setting button
The airflow comes out cold	The cool air mode is activated.	Press the cool air button again, or press the hot air setting button to exit cool air mode
The plates do not heat	The plates are deactivated.	Press the temperature setting button on the plates to activate them.
The cool air comes out warm.	The heating element has been activated for a long time.	Switch off the device and allow it to cool for a period of time.

WARNING:

Do not attempt to repair the device yourself. If the problem persists after performing the checks described above, please contact authorised personnel, the retailer where you purchased the product, or Cecotec's Official Technical Support Service.

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protecting the environment.

7. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

8. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1:

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

https://cecotec.es/es/information/declaration-of-conformity

Fig./Img./Abb./Afb./Rys. 1

A

B
Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

www.cecotec.es
