USER MANUAL Precisioncare Expert Ceramic CECOTEC

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the device. Cleaning and user maintenance must not be carried out by children without supervision.

- The appliance must be powered at a low safety voltage as stated on the marking.

- The appliance may only be used with the power supply unit provided with the appliance.

- Check the power cable regularly for visible damage. If the power cord is damaged, it must be replaced with a special cable or set to be supplied by Cecotec's Official Technical Support Service or by its after-sales service to avoid any hazard.

- This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.

- Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.

NOTA

EU01_122533_PrecisionCare Expert Ceramic

EN • The coding in this manual is generic and applies to all code variants of the appliance.

• Keep all packaging materials away from children. Risk of suffocation.
• This device must be checked frequently for signs of wear or damage. If such signs are present, or if the device has been used improperly, contact the official Cecotec Technical Support Service. Do not try to repair the device by yourself.
• For hygienic reasons, this appliance should only be used by one person.
• Switch off the device immediately in the event of defects or malfunctions.
• Do not use attachments or parts that have not been provided by Cecotec
• Never leave the device unattended during use.
• Keep the appliance away from heat sources.
• Do not use an extension cord with this device
• Do not use outdoors or operate it near flammable substances such as sprays.
• Cecotec accepts no liability for damage caused by improper or incorrect use.
• Do not try to open, disassemble, or repair the appliance by yourself. There are no serviceable parts inside the appliance.
• The appliance is exclusively designed for trimming natural hair. Do not use it to cut artificial or animal hair.
• Do not use the device if your skin or head skin is injured or suffers from any type of illness.
• Turn off and unplug the appliance from the power supply before assembling or disassembling attachments.

Battery instructions

• This appliance contains an irreplaceable battery.
• This appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
• Non-rechargeable batteries must not be recharged.
• Leaks from the battery or cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• When the device is stored and not used for long periods of time, ensure that the battery pack is fully charged.
• Keep batteries out of the reach of children when there is a risk of ingestion.
• Battery ingestion can cause burns, soft tissue perforation and death. Severe burns may occur within two hours of ingestion.
• In case of battery ingestion, please seek medical help immediately.

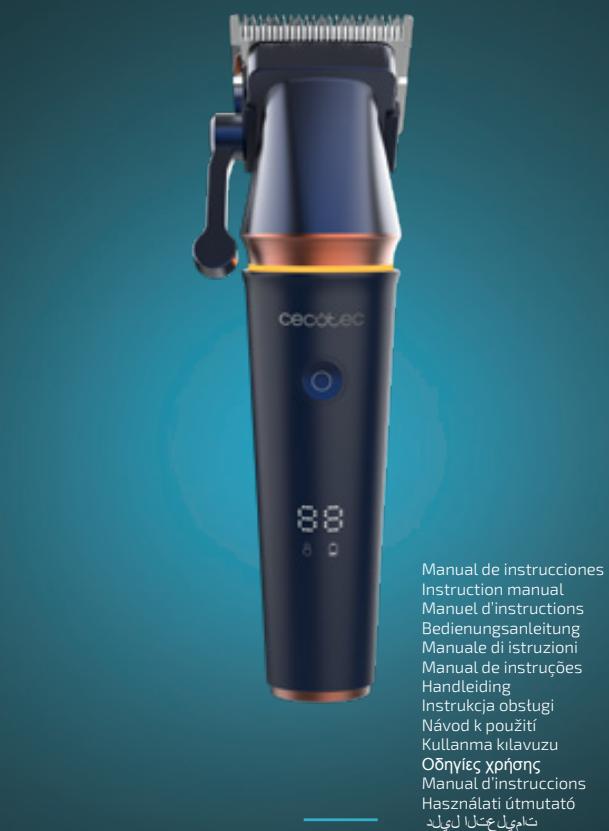

1. PARTS AND COMPONENTS

Fig. 1

1. Cutting head
2. Head adjustment lever
3. Power button
4. LED digital display
5. Charging port
6. 1/8" (3 mm) guide comb
7. 1/4" (6 mm) guide comb
8. 3/8" (9 mm) guide comb
9. 1/2" (13 mm) guide comb
10. Left ear taper comb
11. Right ear taper comb

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

- Product

- 6 guide combs

- Blade guard

- Cleaning brush

- USB charging cable

- Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. OPERATION

Charging

Fully charge the hair clipper before first use or after extended periods of non-use.

Charging, recharging, or using the hair clipper at temperatures below 5°C or above 35°C will adversely affect battery life.

If the hair clipper is subjected to significant changes in temperature, pressure, or humidity, allow it to acclimatise for 30 minutes before use. Continuous recharging of the hair clipper will reduce battery life.

Ensure the hair clipper is switched off.

Insert the USB charging connector into the appliance and connect the other end to a compatible power adapter. Then connect the adapter to the mains supply.

The digital display will show the charging indicator continuously illuminated and display the current battery level (changing from 0% to 100%). This indicates the charging status. When the battery level reaches 100%, the battery is fully charged.

After charging the hair clipper for the first time, do not recharge between trimming sessions. Continue using it until the battery is completely depleted.

Warning: During charging, a slight temperature increase may occur in the device and power adapter; this is normal.

- Do not charge for more than 3 hours

- Do not leave the cable permanently connected.

- If the hair clipper has not been used for an extended period, it should be recharged for a full 3 hours.

Display indications

• During charging, the display shows the charging icon continuously illuminated and the current battery percentage. When the battery is fully charged, the display shows 100.
• During start-up and operation at low speed, the display shows the speed unit/indicator continuously illuminated and displays the low speed value (5500), plus the remaining operating time.
• During high-speed operation, when changing from low to high, the speed indicator remains illuminated and shows the high speed value (6500), plus the remaining operating time.
• During charging and also during use, the display will show a continuous charging indicator with the percentage. When using high or low speed it will show the corresponding speed value, and the speed indicator unit will remain illuminated.
• When the battery is low, the remaining operating time shown on the display flashes as a warning.
• When the "low lubrication" indicator flashes on the display, it indicates that the cutting head should be lubricated with oil (the display will flash several times with the lubrication warning each time it is switched on. If it has not been used for a long time, the head section must be lubricated. If the intervals between lubrication are not long, then it is not necessary).
• If the battery is completely depleted, the hair clipper will not start.
• When the device is switched off and not in use, the display shows nothing.

Cutting head length adjustment

The cutting head has 5 positions to adjust the cutting length/distance, which are adjusted by moving the head adjustment lever: (0.8 mm / 1.2 mm / 1.6 mm / 2.2 mm / 2.8 mm).

You can adjust the length according to your needs, with accessory guide combs of (3 mm, 6 mm, 9 mm, 12 mm).

Using the product

1. Attach a guide comb to the hair clipper if desired.
2. Press the power button to switch on the hair clipper.
   When pressing the button for the first time to switch on, it starts by default at low speed of 5500 rpm.
   Press the button again to select high speed of 6500 rpm; an
   additional press will switch off the device.
3. Cut your hair. Move the hair clipper in the opposite direction to hair growth.
4. When finished, press the power button until the device switches off
5. Clean the hair clipper after each use.

4. CLEANING AND MAINTENANCE

• Switch off and disconnect the product from the mains supply before cleaning.
• Remove the guide comb from the blade.
• Use the cleaning brush to remove any hair accumulated on the blade and/or guide comb.
• Never immerse the hair clipper in water. Remove hair with the supplied brush.
• Rinse the guide comb under running water. Dry it afterwards.
• Clean the body of the hair clipper with a soft, dry cloth
• Store everything in a clean, dry, and dust-free location

5. RECHARGEABLE BATTERY DISPOSAL

If you wish to dispose of the product, you must remove the rechargeable battery. Before removing it, ensure that the product is disconnected from the power supply and is completely discharged. Take the necessary safety precautions when using tools to open the product and when disposing of the battery. (Fig. 2)

1. Use a prying tool to remove the lower part of the hair clipper.
2. Unscrew the two screws from the base of the hair clipper.
3. Use a prying tool to remove the power button.
4. Remove the hair clipper housing by pulling it downwards
5. Unscrew the two blade screws and remove the blades.
6. Loosen the lever screw.
7. Unscrew the two screws from the upper body section and remove it together with the orange trim ring.
8. Unscrew the two screws from the front body section.
9. Using a prying tool, separate the front and rear body sections.
10. Remove the circuit board and battery assembly
11. Cut the battery connections to the circuit board and remove it.

6. TROUBLESHOOTING

Problem	Possible cause	Possible solution
The device does not switch on.	1. The battery is discharged.	1. Charge the device for the recommended time.
	2. Device not connected properly.	2. Ensure the cable is properly connected.
	3. Faulty power button.	3. Check the button and contact Cecotec's Official Technical Support Service.
The device makes an unusual noise.	1. Incorrectly installed guide comb or attachment.	1. Remove and refit the comb or attachment correctly.
	2. Internal obstruction.	2. Switch off the device and clean the blades.
The battery does not charge.	1. Faulty charging cable.	1. Try a different charging cable.
	2. Dirty charging port.	2. Clean the charging port carefully.
The device overheats.	1. Extended continuous use.	1. Switch off the device and allow it to cool down.
	2. Internal electrical fault.	2. Switch off the device, unplug it from the mains and contact Cecotec's Official Technical Support Service.
The device cuts unevenly.	1. Damaged or worn guide combs.	1. Replace the guide combs with new ones.
	2. Blunt blades.	2. Sharpen or replace the blades.
	3. Incorrect use of the guide comb.	3. Ensure you use the appropriate comb for the cut.

NOTE: If the device still does not work properly after trying the above solutions, stop using it and contact Cecotec's Official Technical Support Service.

7. TECHNICAL SPECIFICATIONS

Product: PrecisionCare Expert Ceramic

Product reference: EU01_122533

Input 5 V=, 1 A

Battery: Li-ion 3.7 V, 2000 mAh, 7.4 Wh

Charging time: 180 min

Operating time at low speed: 120 min
Operating time at high speed: 90 min

*Time measurements have been taken under no-load operating conditions, please note that these may vary during actual use on hair. To recharge the battery, it is recommended to use an adapter with the following characteristics:

Input: 100-240 V\~, 50/60 Hz

Output: 5 V =, 1 A

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

8. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old

electrical and electronic appliances and/or their batteries. Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations. Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed,

manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

INSTRUCTIONS DE SÉCURITÉ

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,490
Costs and expenses	(1,485)	(1,490)

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,395
Costs and expenses	(1,485)	(1,395)
Net income	1,485	1,395

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,395
Costs and expenses	(1,485)	(1,395)
Net income	1,485	1,395

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,490
Costs and expenses	(1,485)	(1,490)

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,490
Costs and expenses	(1,485)	(1,490)

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	Year Ended December 31,
	2017	2016
Accrued expenses	1,485	1,394
Accrued tax benefits	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Accrued expenses	1,485	1,394
Accrued tax benefits	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Accrued expenses	1,485	1,394
Accrued tax benefits	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Accrued expenses	1,485	1,394
Accrued tax benefits	(1,000)	(1,000)
Net income	1,485	1,394

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	2017	2016
Cost of sales	3.4	3.5
Gross profit	1.8	1.9

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,394
Costs and expenses	(1,000)	(1,000)
Net income	1,485	1,394

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,490
Costs and expenses	(1,485)	(1,490)

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,490
Costs and expenses	(1,485)	(1,490)

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,490
Costs and expenses	(1,485)	(1,490)

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,490
Costs and expenses	(1,485)	(1,490)

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,490
Costs and expenses	(1,485)	(1,490)

	Year Ended December
	2018	2017	2016
Cost of products sold	3,459	3,381	$3,360

	Year Ended December
	2018	2017	2016
Cost of products sold	3,459	3,381	$3,360

	Year Ended December
	2018	2017	2016
Cost of products sold	3,459	3,381	$3,360

	Year Ended December 31,
	2018	2017
Revenues	1,465	1,395
Costs and expenses	(1,038)	(1,038)

	Year Ended December 31,
	2017	2016
Revenues	1,485	1,490
Costs and expenses	(1,485)	(1,490)

	Year Ended December 31,
	2018	2017
Revenues	1,465	1,395
Costs and expenses	(1,038)	(1,038)

	Year Ended December 31,
	2018	2017
Revenues	1,465	1,395
Costs and expenses	(1,038)	(1,038)

	Year Ended December 31,
	2018	2017
Revenues	1,465	1,395
Costs and expenses	(1,038)	(1,038)

	Year Ended December
	2018	2017	2016
Cost of products sold	3,459	3,180	$2,954

	Year Ended December
	2018	2017	2016
Cost of products sold	3,459	3,180	$2,954

	Year Ended December 31,
	2017	2016
Accrued expenses	1,485	1,394
Accrued tax benefits	(1,000)	(1,000)
Net income	1,485	1,394

declaration-of-conformity

INSTRUÇÕES DE SEGURANÇA

Fig./Img./Abb./Afb./ Rys. 1

Fig./Img./Abb./Afb./Rys.2
