Brand	CLATRONIC
Model	UM 2963 PC
Product type	Multifunction blender (Universal mixer)
Power supply	230 V ~ 50 Hz
Functions	Continuous blending (2 speeds: slow and fast), pulse function (M), ice crushing
Safety	Safety button preventing operation without container; safety switch
Material of the jug	Glass (plastic? The manual mentions "carafe" without specification, but generally glass for blenders)
Capacity of the jug	Not specified, estimated: approximately 1.5 L
Care and cleaning	Lid, jug, safety ring and screw cap dishwasher safe; knife block and seal rinse with hot water; base wipe with a damp cloth
Spare parts	Use only original accessories
Warranty	24 months from date of purchase, upon presentation of receipt
Repairability	Contact a qualified technician or after-sales service for repairs; after warranty, chargeable repairs
First use	Place on a flat surface, check the assembly of the jug (seal, knife block, safety ring, screw cap), plug into 230 V socket
Usage tips	Do not chop hard foods, nutmeg or large pieces of chocolate; do not pour liquids >60°C; do not run empty
Package contents	Appliance, jug, lid, knife block, seal, safety ring, screw cap, instruction manual
Available languages	French, German, English, Spanish, Italian, Dutch, Norwegian, Polish, Portuguese, Russian, Czech, Hungarian, etc.

Frequently Asked Questions - UM 2963 PC CLATRONIC

How to assemble the jug?

Place the seal on the knife block, then insert the knife block into the jug from below. Screw the screw cap tightly. Then place the safety ring closed side towards the jug. Finally, attach the lid.

Can I blend hot liquids?

No, never pour liquids at a temperature above 60°C into the appliance. This could cause burns or damage the appliance.

How to clean the knife block?

Rinse the knife block quickly under hot water after use. Caution, the blades are very sharp. Do not put it in the dishwasher.

What to do if the appliance does not start?

Check that the jug is correctly installed: the safety ring must press on the safety button of the motor unit. Also ensure that the rotary knob is on a position other than '0'.

Can I crush ice?

Yes, but fill the jug only to 1/3 with ice cubes and use exclusively the pulse function (M) to crush.

What is the warranty?

The appliance comes with a 24-month warranty from the date of purchase, upon presentation of the receipt. Material or manufacturing defects are repaired or replaced free of charge.

Can I use non-CLATRONIC accessories?

It is recommended to use only original accessories to ensure the safety and proper functioning of the appliance.

How does the pulse function work?

Turn the selector to the 'M' position and hold it down for short pulses. Release to stop. The selector automatically returns to the '0' position.

Is the appliance suitable for hard foods?

No, never chop hard foods like nutmeg, large pieces of chocolate or bones. This could destroy the chopping knife.

How to disassemble the jug?

Always unplug the appliance. Remove the lid, unscrew the screw cap, then remove the safety ring and the knife block. Wash and dry each part separately.

USER MANUAL UM 2963 PC CLATRONIC

D-47906 Kempen/Germany

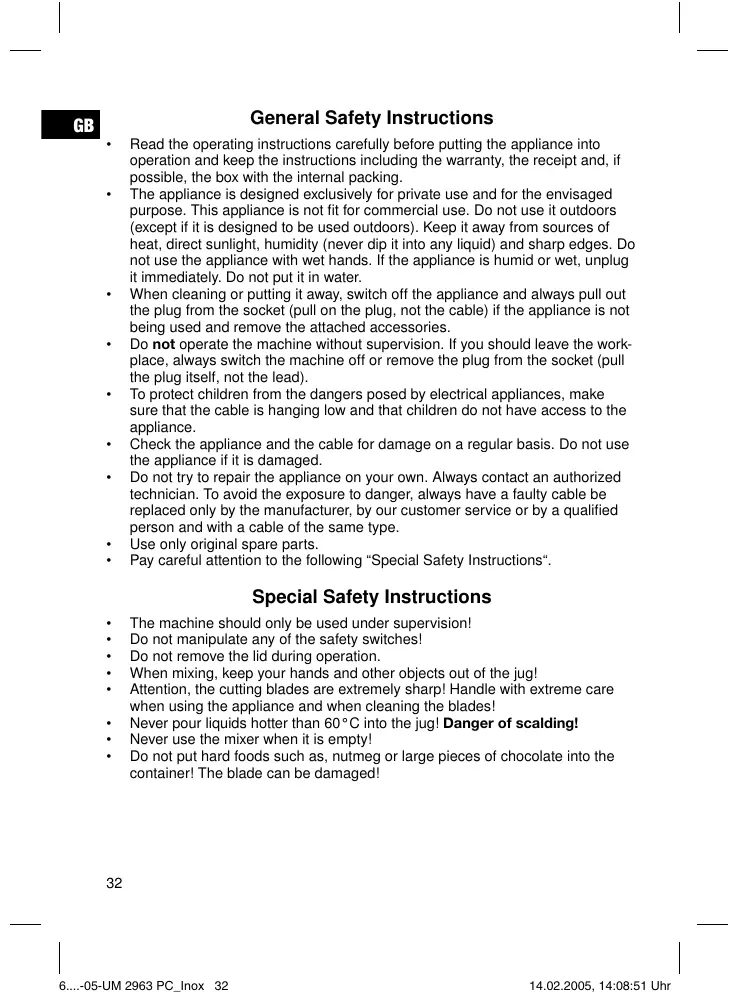

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
  Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions

• The machine should only be used under supervision!
• Do not manipulate any of the safety switches!
• Do not remove the lid during operation.
• When mixing, keep your hands and other objects out of the jug!
• Attention, the cutting blades are extremely sharp! Handle with extreme care when using the appliance and when cleaning the blades!
• Never pour liquids hotter than 60^ into the jug! Danger of scalding!
• Never use the mixer when it is empty!
• Do not put hard foods such as, nutmeg or large pieces of chocolate into the container! The blade can be damaged!

Overview of the Components

1 Filler lid
2 Lid
3 Carafe
4 Safety ring
5 Sealing ring

6 Knife block
7 Screw top
8 Safety switch
9 Motor housing
10 Rotary switch

Putting into operation

1. Place the device on a firm and flat surface. Position it is such that it cannot tip over.
2. Ensure that the rotary switch (10) is in the 0^th position and that the mains lead is not in the socket.
3. Check the decanter. The screw top (7), the knife block (6), sealing ring (5) and the safety ring (4) have to be installed in the correct order (from 7 to 4), see "Overview of Components". Please ensure that the closed side of the safety ring (4) is facing the carafe and that the screw top is tightly closed. Do not forget to insert the sealing ring as otherwise the carafe will leak.
4. Place the carafe on the motor housing (9). The carafe must be positioned in such a way that the safety ring is in contact with the safety switch (8).
5. Connect the mains lead to a properly installed 230V , 50Hz safety power socket.
6. Cut the food to be mixed into small pieces.
7. Transfer the ingredients to the carafe and put the lid in position. The lid must be positioned firmly. Please hold the carafe firmly during mixing.
8. For constant mixing (continuous mode):

When operating in levels 1 or 2 snap the selector into the desired position:

Level 1 = low rpm

Level 2 = high rpm

Shift the selector to 0 to switch off the appliance.

1. For pulse mode (mixing at brief intervals) shift the switch to 0^ position. The switch snaps into place. The appliance is off now. Turn the switch now to position M^ . The switch must be kept in this position for the desired interval. When the switch is released, it returns automatically to 0^ position.

CAUTION! Short-term operation: 1 Minute

IMPORTANT NOTE

Citrus juices and food containing acids should never be stored in metal vessels.

GB

GB

Chopping up Ice Cubes

The blade in the mixing vessel is also suitable for chopping up ice cubes. Please only fill the carafe up to 1/3 full with ice cubes. Only use pulse operation (M) for the chopping process.

Cleaning

• Always disassemble the mixer after use. Wash and dry all the parts of the decanter.
  Warning: The electric plug must be removed before the mixer is taken apart!
• The lids, carafe, safety ring and screw top can be placed in the dishwasher for cleaning. The knife block and sealing ring should only be briefly rinsed off with hot water (Caution: Beware of injury!).
  After cleaning and drying the decanter must be reassembled so that the gasket is located between the blade block and the decanter. See "Overview of Components"
• Before using each time the blade block must be screwed securely onto the decanter.
• Dry the external surface of the mixer base with a moist cloth.

Important notice on the safety switch

• The all-purpose mixer is equipped with a safety switch that avoids that the motor run without the decanter mounted on it (danger of injury!).
• When the container is replaced the safety ring presses on the safety switch of the motor housing. The universal mixer can now be switched on. If the safety ring does not press correctly on the safety switch the motor will not start.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

GB

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

PL

TapaHTnHoe 6a3aTeJIbCTBO

TapaHTHbI cPOK Ha TeppITOpIN PocnckOeepaun yctHaBnBaetcN IONHOMOHyIM NpeCTaBNTeJIaM.

Kaccobby uek yBnIeTc rapaHTnHbIM TaIOHOM. Be3 Hero HeBO3MOKeH 6ecnlaTHb peMOHT nIN 3aMeHa N3dJIInr.

B CNYaee BO3HKnHOBXHHN PnIeTH3n NO rapAHTN, NpEJbYBaHTe I3dENHe B nOIIHOKOMPJIeKTAuCn, COpRnHaJIbHOyUNaKOBKoN IN KACCObbIM YcKOM TROPOB TOUKe, IPOdaBuEe 3TO I3dENe.

*) Depekti npnaHaleKHOcte He cnyKaT npuHNOI aBOMaTHueCKO3aMeHb BCero h3dienn. B 30m Cnyae no3BOHHTe HAM, NOkanyIcTa, no Tropayi nHH! Pa36ntbte CTKeHNbHe i NONOMaHbIe nactMaCCOBBe DetAJI BO3MeuaOTcR ToNbKO 3a DonOpNHTeBHy OOnlary

DepeKbI M3HaWbAeMbIX pINHAdJeKHOCTe I IN TpyuXxCa DetaleN (HanPMep KOHTAChTBI ueTknMOTopoB, CMEcHTeNBbIe KPOKIn, PnPBODNbIE PEMHN, 3aNaChbIe NpblbY npabLeHHa, 3aNaChbIe 3yObHe ueTKn, NmblbYe NOIOTHa T.D.），a TaKHe YnCTKa, TexoCbKynBaHBe HN 3aMeHaTrePyuXxCa detaleN he NOJaADIoT ND rapaHTHo, IN No3OTomy PNOBOdTcR 3a OTdeBHyO ONLaTy!

TapaHTnI TepaETcR npB BCKpbITn N3dEINr IOCTOPOHmN IIncaAMN.

Pocne rapaHTM

Iocne OKOHuaHnCpoka rapaHTn, pemOH n3deJI npOn3BODntc 3a OOnnATy, COOTBETCTByUOuIMM MaTepckmM IINnyHKTaMn cepBnCHOr O6cLyJKBaHn.

Technische Daten

Modell: UM 2963
