USER MANUAL ICM 3784 CLATRONIC

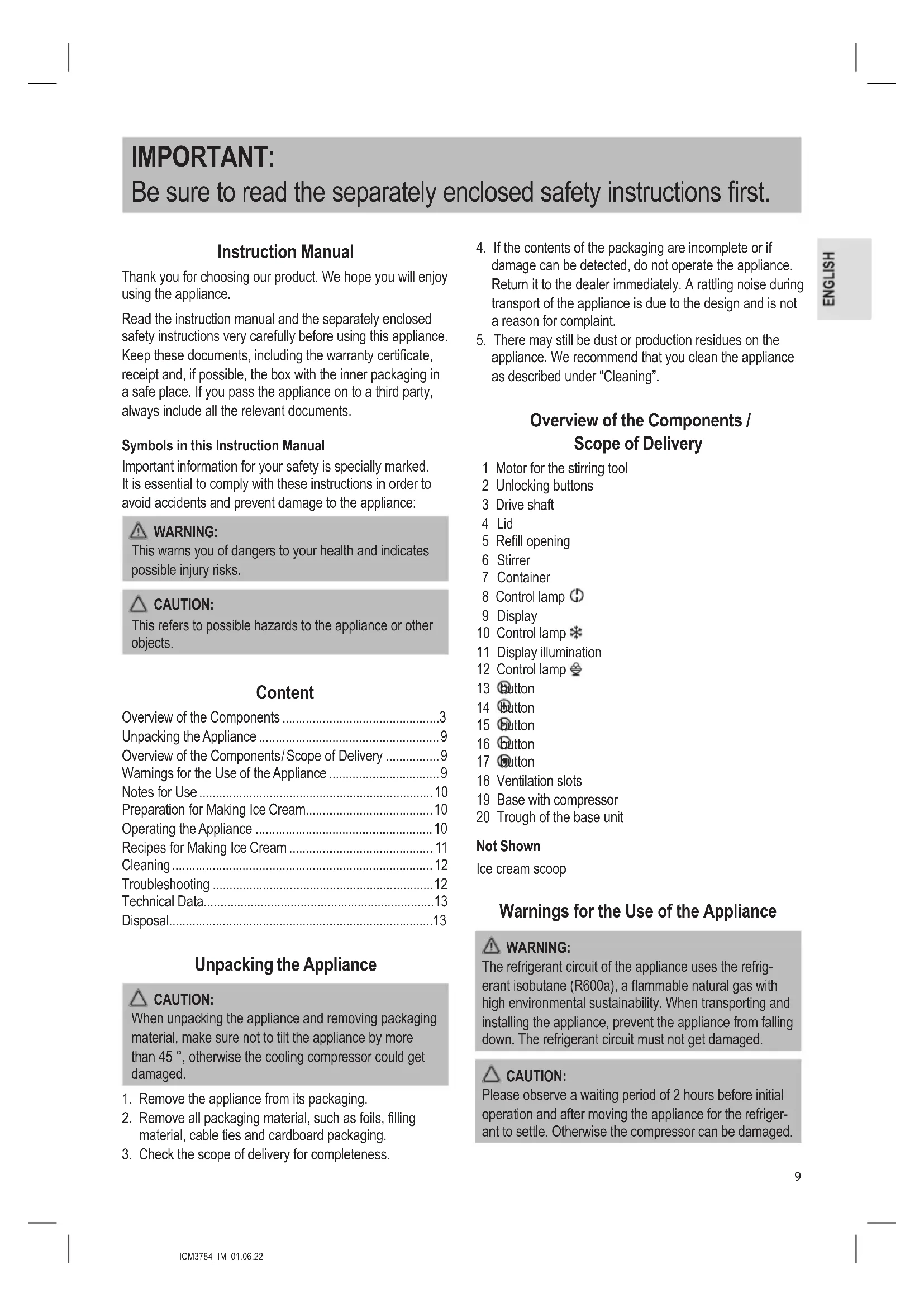

IMPORTANT: Be sure to read the separately enclosed safety instructions rst. Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certicate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents. Symbols in this Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

1. Remove the appliance from its packaging.

2. Remove all packaging material, such as foils, lling

material, cable ties and cardboard packaging.

3. Check the scope of delivery for completeness.

4. If the contents of the packaging are incomplete or if

damage can be detected, do not operate the appliance. Return it to the dealer immediately. A rattling noise during transport of the appliance is due to the design and is not a reason for complaint.

5. There may still be dust or production residues on the

appliance. We recommend that you clean the appliance as described under “Cleaning”. Overview of the Components / Scope of Delivery 1 Motor for the stirring tool 2 Unlocking buttons 3 Drive shaft 4 Lid 5 Rell opening 6 Stirrer 7 Container 8 Control lamp 9 Display 10 Control lamp 11 Display illumination 12 Control lamp 13 button 14 button 15 button 16 button 17 button 18 Ventilation slots 19 Base with compressor 20 Trough of the base unit Not Shown Ice cream scoop Warnings for the Use of the Appliance

The refrigerant circuit of the appliance uses the refrig- erant isobutane (R600a), a ammable natural gas with high environmental sustainability. When transporting and installing the appliance, prevent the appliance from falling down. The refrigerant circuit must not get damaged. CAUTION: Please observe a waiting period of 2 hours before initial operation and after moving the appliance for the refriger- ant to settle. Otherwise the compressor can be damaged.ICM3784_IM 01.06.22

If the Refrigerant Circuit is Damaged

• Open ames and ignition sources must be avoided.

• Disconnect the mains plug.

• Ventilate the room in which the appliance is installed. Notes for Use Location

• Place the appliance on a stable, horizontal, and level sur- face. Maintain a gap of at least 15 cm to walls or objects.

• Do not place the appliance on or directly next to heat sources such as ovens, radiators, etc. Electrical Connection Before inserting the plug into the socket. Make sure that the mains voltage to be used matches that of the appliance. You can nd this information on the nameplate. Standby (Standby Mode) The appliance is in standby mode when the display shows . The appliance switches to standby mode in the following situations:

• When the mains plug is plugged in.

• If no button is pressed for approx. 10 seconds.

• When the programme is nished. Three signals sound.

• When you press and hold the button for approx. 2 seconds. Button Functions The buttons on the appliance are touch buttons. Touch the buttons lightly with a nger to perform the function. Each keypress is conrmed with a beep.

• Press the button to exit standby mode. The light switches on and the appliance is preset to 1 hour with programme “Ice preparation”.

• Use the button to select a program The respective control lamp shows which programme is selected.

• Use the and buttons to set an operating time be- tween 5 – 120 minutes. If you keep the buttons pressed, a fast run starts. The operating time cannot be changed during operation.

• Use the button to start the programs.

• By using the button you can interrupt a program for a maximum of 3 minutes. When preparing the ice cream, the compressor will continue cooling for 3 minutes. Press the button again to continue the program. If you do not continue the programme within 3 minutes, you will hear 1 beep. The appliance switches to standby mode.

• If you want to cancel a programme, press and hold the button for approx. 2 seconds.

• Wait at least 5 minutes before switching the appliance on again to allow the pressure in the refrigerant circuit to relax. Operating Time

• The preparation time of the ice cream varies. It depends on: - recipe, - the temperature of the mixture, - ambient temperature, - desired consistency.

• Do not leave the appliance unattended during use. Constantly check the consistency of the mixture while preparing the ice cream.

• The ice cream mixture must not be too liquid or too viscous. Protection Features during Ice Cream Preparation

• If the stirrer stops during operation due to solidication of the ice cream, the motor will be blocked.

1. Switch off the appliance immediately and disconnect

2. Remove the ice cream.

• You can start another ice cream program immediately after the previous program has nished. For safety reasons though, the compressor will only turn on after approx. 5 minutes.

• If you have prepared several ice cream batches in sequence, the overheat protection might get triggered. In such a case, the compressor will not turn on. Let the appliance cool down for approx. 30 minutes before starting again. Preparation for Making Ice Cream

1. Make sure that the ice container is completely dry before

you insert it. Place the ice cream container in the recess of the base. Pay attention to the recesses.

2. Place the stirring tool in the ice bucket.

3. Fill the ice cream container with the desired ingredients.

- Do not ll the ice cream container with ingredients of more than 750 ml! - Use ingredients that are of 6 – 8 °C fridge temperature. - The ingredients must not be frozen; otherwise the motor could get blocked. - When making ice cream with fruits, only use soft, seedless fruits and pulp (puree) them beforehand. You can also add fruit juice. - When making ice cream with solid pieces of fruits, nuts, brittle, or with alcohol, wait towards the end of the cooling time before adding such ingredients. - Alcohol impedes the freezing operation. - Add the puréed fruits and / or alcohol through the ll opening. Operating the Appliance

1. Place the lid on the appliance. Place it so that the

symbol on the cover points to the symbol on the baseICM3784_IM 01.06.22

unit. Turn the lid towards the icon until it locks into place.

2. Put on the motor for the stirring tool. Make sure that the

drive shaft of the motor is placed in the stirring tool. This must engage audibly.

3. Make sure that the rell opening is closed.

4. Connect the mains plug to a wall socket.

5. Exit standby mode by pressing the button.

6. Select the desired program by pressing the button:

Setting Function Preparation for making ice cream Cooling only Stirring only

and buttons to set the operating time.

8. Conrm your entry by pressing the button. The

9. After the time has elapsed, the appliance will emit 3 sig-

nal sounds. appears in the display. If you have se- lected programme , the compressor cools for another 10 minutes. The control lamp also lights up. Removing the Ice Cream

1. Switch off the appliance by pressing and holding the

button for approx. 2 seconds. The appliance switches to standby mode.

2. Disconnect the mains plug from the wall socket.

3. Remove the motor for the stirring tool. To do this, press

the buttons on the motor and pull it off upwards.

4. Turn the lid towards the icon.

5. Remove the ice cream container and the stirrer.

WARNING: Risk of Cold Burns!

Protect your hands wearing gloves when touching the ice cream container. - Remove the ice cream from the container using the ice cream scoop provided or a silicone or wooden spoon. Do not use metal spoons in order not to scratch the container coating.

6. Store the ice cream in a pre-cooled container with lid.

- The ice cream tastes best when fresh. - If you do not plan to eat the ice cream immediately, we recommend keeping the prepared ice cream in the freezer. - Do not refreeze ice cream once unfrozen or thawed! Recipes for Making Ice Cream

• Please refer to the instructions in chapter “Preparation for Making Ice Cream” when preparing the ice cream mixture.

• Amounts specied in the recipes are for reference only. Adjust according to your taste.

• If you would like to increase the quantities to a maximum of 750 ml, the ingredients must be adjusted in the correct proportions. The preparation time prolongs accordingly.

• Check other cookbooks or online for more recipes. Vanilla Ice Cream (Approx. 5 servings) Vanilla extract 1 – 2 teaspoons Whole milk 250 ml Cream 375 ml Sugar 125 g

• Use a hand mixer and mix all ingredients in a bowl until the sugar has dissolved. Fill the chilled mixture into the ice cream container.

• Preparation time with the ice cream maker: approx. 30 – 40 minutes Chocolate Ice Cream (Approx. 4 servings) Vanilla extract 1 teaspoon Whole milk 200 ml Cream 200 ml Sugar 100 g Chocolate bar, bitter or dark 185 g, crushed to small pieces

• Cook the milk and cream together with the chocolate and sugar. Stir with a mixer suitable for hot foods. Let the ice cream mixture cool down and then keep in the fridge for 24 hours. Before lling the chilled ice cream mixture into the ice cream container, stir it one more time.

• Preparation time with the ice cream maker: approx. 20 – 30 minutes Strawberry Ice Cream (Approx. 4 servings) Strawberries, fresh, ripe, sliced 180 g Lemon juice, fresh, squeezed 1 tablespoon Vanilla extract 1 teaspoon Whole milk 180 ml Cream 180 ml Sugar 90 g

• Mix the strawberries with lemon juice and approx. 60 g of sugar. Leave the mixture to stand for 2 hours in order for the juice to separate.

• Use a hand mixer and mix the remaining sugar and milk at lowest setting, until the sugar has dissolved.

• Then stir the cream, strawberry juice and vanilla extract into the milk.

• Fill the chilled ice cream mixture into the ice cream container.

• Preparation time with the ice cream maker: approx. 30 – 40 minutes

• Add the strawberries during the last 10 minutes of the freezing operation.ICM3784_IM 01.06.22

Sorbet Basic Recipe Fruit juice / fruits, puréed 600 ml Sugar (depending on the fruits) 75 g Egg white 1 tablespoons

• Use a hand mixer and mix all ingredients in a bowl until the sugar has dissolved. Fill the chilled ice cream mixture into the ice cream container.

• Preparation time with the ice cream maker: approx. 30 – 40 minutes

• Rene the taste by adding 1 tablespoon of liqueur, cognac, raspberry brandy or similar at the end of the freezing operation.

• Sorbet should be eaten quite quickly to prevent it from getting liquid again. Cleaning

• Always switch off the appliance and disconnect the mains plug from the socket before cleaning.

• Do not immerse the appliance in water! Doing so may result in an electric shock or re. CAUTION:

• Do not use any wire brush or other abrasive objects.

• Do not use harsh or abrasive cleaning agents.

• Do not use chemicals, acids, petrol or oil products.

• The container, the stirring tool and the lid are not suitable for cleaning in the dishwasher. They could get deformed or discoloured by heat and aggressive cleaners.

• You can clean the container, the stirring tool and the lid in warm rinsing water with a little hand dishwashing liquid. Dry the accessories well afterwards.

• Clean the base and the recess with a damp cloth. Troubleshooting Problem Possible Cause Solution No function. No power supply. Check the wall outlet with a different appliance; connect the plug properly to the wall outlet. The appliance is in standby mode even though ice prepara- tion has not yet nished. The power supply has been discon- nected. Start the program again for the remaining time. Compressor noisy. Mains power supply too low. Turn the appliance off and check the mains power supply. The stirrer stops during operation. The ice cream is too hard and blocks the motor (Protection mechanism). Switch off the appliance and disconnect the mains plug from the socket. Remove the ice cream. The compressor does not switch on. The overheat protection has been triggered. Let the appliance cool down for approx. 30 min- utes before starting again.ICM3784_IM 01.06.22

Capacity, max.: ........................................................... 1200 ml Maximum capacity for the ice cream preparation: ...... 750 ml Protection class: ..................................................................... Net weight: ..................................................... approx. 7.15 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of elec- trical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.ICM3784_IM 01.06.22
