USER MANUAL FD 3783 CLATRONIC

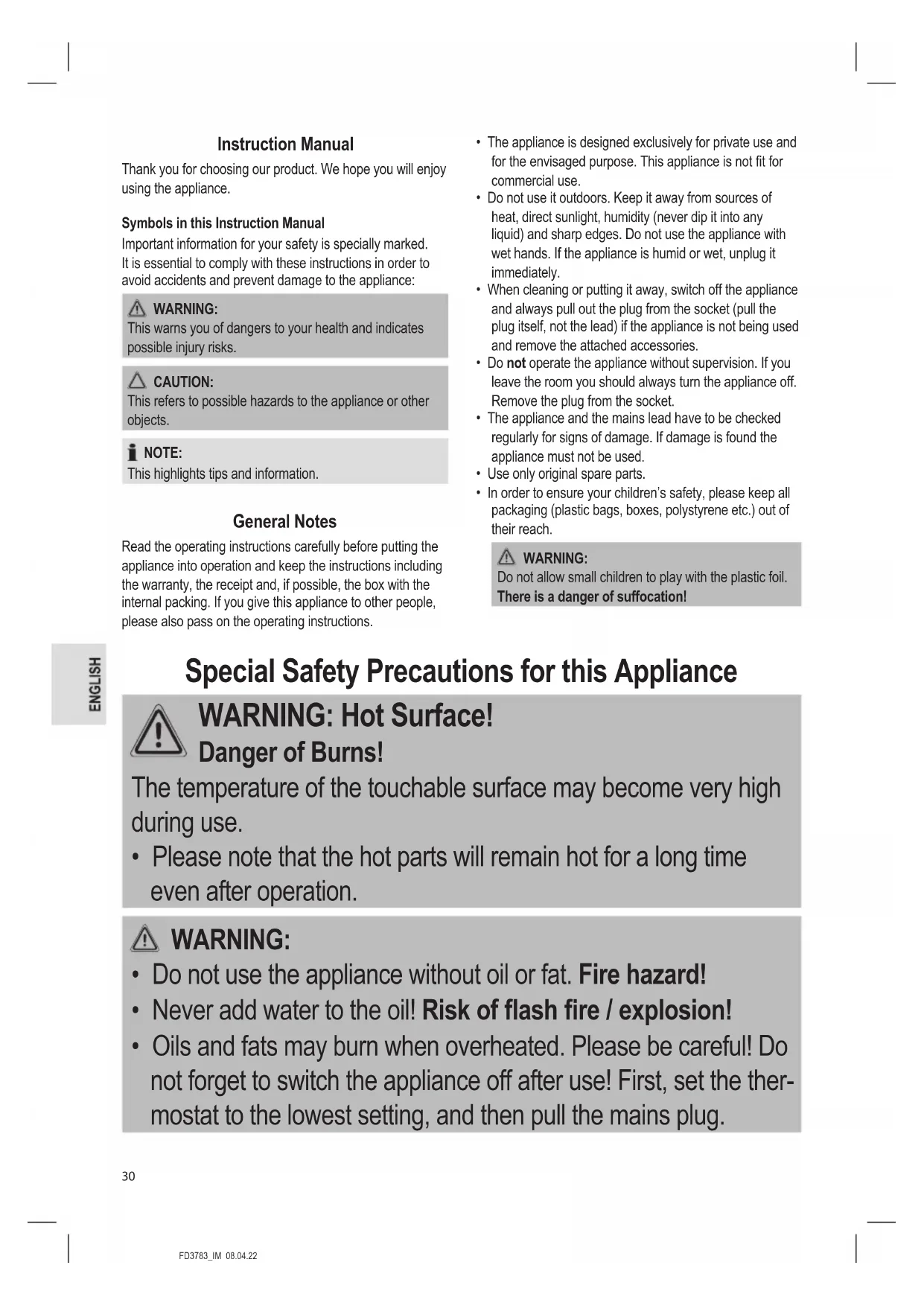

Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in this Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the appliance or other objects. NOTE: This highlights tips and information. General Notes Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for commercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.

• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Do not allow small children to play with the plastic foil. There is a danger of suffocation! Special Safety Precautions for this Appliance

WARNING: Hot Surface!

Danger of Burns! The temperature of the touchable surface may become very high during use.

• Please note that the hot parts will remain hot for a long time even after operation.

• Do not use the appliance without oil or fat. Fire hazard!

• Never add water to the oil! Risk of ash re / explosion!

• Oils and fats may burn when overheated. Please be careful! Do not forget to switch the appliance off after use! First, set the ther- mostat to the lowest setting, and then pull the mains plug.FD3783_IM 08.04.22

• Keep a sufcient safety distance (30 cm) from easily ammable objects like furniture, curtains, etc.

• If the appliance should catch re, never try to extinguish the ames with water. Smother the ames with a moist cloth.

• Do not move or carry the hot appliance while it is in operation! Hot liquids, hot steam, or oil splashes may escape.

• Do not repair the appliance by yourself. Always contact an au- thorized technician. If the supply cord is damaged, it must be re- placed by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• This appliance shall not be used by children aged between 0 and 8 years.

• This appliance can be used by children aged from 8 years and above if they are constantly supervised.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowl- edge if they have been given supervision or instruction concern- ing use of the appliance in a safe way and if they understand the hazards involved.

• Keep the appliance and its cord out of reach of children less than 8 years.

• Cleaning and user maintenance shall not be made by children.

• Children shall not play with the appliance.

• Cooking pots should be set down in a stable position using the handles (if available) in order to prevent spilling of hot liquids.FD3783_IM 08.04.22

CAUTION: This appliance is not intended to be immersed in water during cleaning.

• Different surfaces will get into contact with food and oil. Observe our instructions in this regard in the chapter “Cleaning”.

• Do not operate the appliance on a separate timer or a separate remote control system.

• This appliance is intended to be used in a household and in simi- lar applications such as: - in staff kitchen areas in shops, ofces and other working envi- ronments. It is not intended for use - by clients in hotels, motels and other residential type environ- ments; - in farm houses; - in bed and breakfast type environments. Unpacking the Appliance

1. Remove the appliance from the package.

2. Remove all packaging material such as lms, ller, cable

holders and cardboard.

3. Check the delivery contents for completeness.

4. Should the package contents be incomplete or damages

be found, do not take the appliance into operation. Take it immediately back to the dealer. NOTE: Dust or production residues can be located on the appli- ance. We recommend to clean the appliance as described under “Cleaning”. Scope of Delivery

• Fondue pot made of stainless steel with attachment holder for forks

• Separate stable heating base with robust hotplate and continuously adjustable thermostat (illuminated) Switching On / Off The appliance is operated by a thermostat. The appliance is switched off when the thermostat is in the “O” position. Before Initial Use

1. Before using the wok for the rst time, please clean it as

described under “Cleaning”.

2. To remove the protective coating on the hotplate, operate

the appliance for 5 minutes without the fondue pot. Set the thermostat to MAX. NOTE: A small amount of smoke is normal. Please ensure that there is adequate ventilation. Useful Hints for Use

• Oil and fat must be heatable to very high temperatures. Use high quality frying oil or frying grease. Do not use margarine, olive oil or butter: they are not t for frying,FD3783_IM 08.04.22

because they start to smoke already at low tempera- tures.

• We recommend the use of liquid frying oil. CAUTION: If you would like to use fat!

• If you use fat, please divide it up into small pieces.

• Turn the thermostat to a low temperature and add the pieces slowly.

• If the fat has melted and the required oil level is reached, you can set the desired temperature on the thermostat. Do not exceed the MAX mark! CAUTION: Heavy build up of foam!

• Never mix oils and fats. The liquid may overow.

• Rub wet food dry with a cloth. Damp food causes a heavy build up of foam which is serious cases may cause the oil / fat to overow.

WARNING: Contaminated oil / fat can be highly

• Always remove any food which may remain in the oil / fat.

• Replace the oil / fat regularly. Operation Please select a suitable non-slip base on which to place your fondue.

1. Place the fondue equipment on the heating stand.

2. Fill the pot with fat or oil (min. 0.7 ℓ to max. 1.2 ℓ). Place

the equipment onto the fondue pot.

3. Turn the thermostat to “O”.

4. Only connect the appliance to a properly installed safety

5. Turn the appliance to the medium temperature range

and heat up the oil for some time. NOTE: The illumination around the thermostat indicates heating of the hotplate. During use it switches on and off. This is normal and indicates that the temperature is thermostatically controlled and maintained.

6. With a wooden stick (e. g. shashlik spit or wooden cook-

ing spoon) you can test whether the correct temperature has been reached. When this is inserted into the oil, small air bubbles should rise up along the wooden stick. Alter-natively, you can place a piece of the food to be fried into the hot oil.

7. Place the pieces of meat on the fondue forks and then

dip them into the oil. Depending on the size of the meat pieces, the cooking process takes between 4 and 8 min- utes, i.e. the smaller the pieces of meat or other food are, the faster they are cooked.

8. Adjust the temperature with the regulator such that the

oil simmers. Switching Off

• If you would like to stop the cooking process, turn the temperature control to the minimum setting (O) and remove the mains plug from the socket.

• Allow the frying oil a considerable time to cool down. Before continuing to use the full frying pot, please ensure that it is no longer at a dangerous temperature. Ideas for Recipes Swiss Cheese Fondue Ingredients for 4 portions: 2 baguettes, cut into pieces 300 g Gruyère, nely grated 300 g Emmentaler, nely grated 1 garlic clove, halved 300 ml white wine 1 tbsp. starch 2 tbsp. kirsch (cherry brandy or cherry schnapps) 1 large pinch of sweet paprika powder 1 large pinch of nutmeg, grated White pepper Preparation:

1. Rub the interior of the fondue pot thoroughly with one of

the halved garlic cloves.

2. Pour the white wine into the pot and slowly warm it up

3. Once the wine is hot, add the cheese to the pot in por-

tions. Allow the cheese to melt while stirring constantly.

4. Crush the other half of the garlic clove and add this to

5. Mix the starch with the kirschwasser. Add this mixture

to the cheese and bring everything to a boil, stirring all the while.

6. Set the thermostat to a temperature to keep the mixture

warm. Season with pepper, paprika powder, and nutmeg.

7. Skewer the bread pieces on the fondue forks and dip

these in the fondue. Chocolate Fondue You can nd ideas for recipes for this on the internet.FD3783_IM 08.04.22

• Always pull out the plug from the mains socket before cleaning and wait until the appliance has cooled down.

• Never immerse the heating base in water to clean it. This could lead to re or electric shock. CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents. Heating Base Wipe the heating base with a damp cloth and dry with a dry cloth. Fondue Pot and all Accessories CAUTION: Do not clean these parts in the dishwasher. The surfaces might become dull.

• Use a little dishwashing liquid and clean these compo- nents in warm rinsing water.

• Then rinse off with clean water and dry the parts off. Storage

• Clean the appliance as described. Let the accessories dry completely.

• We recommend that you keep the appliance in the original packaging, if you do not want to use it for a longer period.

• Always store the appliance out of reach of children in a well ventilated, dry place. Winding Feature for the Power Cord You can wind up the power cord on the base section. Technical Data Model:........................................................................FD 3783 Power supply:.....................................220 – 240 V~, 50 / 60 Hz Power consumption: ........................................ 1200 – 1400 W Protection class: ..................................................................... Net weight: .......................................................... approx. 2 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and is manufactured according to the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of elec- trical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority.FD3783_IM 08.04.22
