Product type	High-pressure cleaner
Brand	Kärcher
Model	HD 5/15 C Plus
Operating pressure	150 bar
Water flow rate	500 l/h
Power supply	Electric 230 V, 50 Hz
Power consumption	3.5 kW
Motor type	Induction electric motor
Weight	28 kg
Dimensions (L x W x H)	500 x 380 x 700 mm
High-pressure hose length	15 m
Gun type	Trigger gun with automatic shut-off system
Main features	High-pressure cleaning, noise reduction system, integrated water filter
Maintenance and cleaning	Clean water inlet filter regularly, drain pump before frost
Safety	Automatic motor shut-off in case of leak, safety valve
Spare parts and repairability	Spare kit available: seals, valves, nozzles
General information	Professional use, up to 5 years warranty (subject to conditions)

Frequently Asked Questions - HD 5/15 C Plus KARCHER

What type of oil to use for the pump of the Kärcher HD 5/15 C Plus?

Use high-pressure pump special oil recommended by Kärcher (ref. 6.392-530.0).

How to bleed the air from the system before first use?

Unscrew the nozzle, squeeze the trigger without pressure until water flows without bubbles, then retighten the nozzle.

What to do if the cleaner does not start?

Check the power supply, fuse, and pressure switch. If the problem persists, contact customer service.

How to winterize my high-pressure cleaner?

Drain water from pump and hose, add antifreeze for high-pressure cleaners (ref. 6.295-605.0).

Can I use a standard garden hose for water supply?

Yes, but the hose diameter must be at least 1/2 inch and the flow rate sufficient (min. 10 l/min).

How to change the nozzle of the gun?

Unscrew the nozzle cap with a suitable wrench, replace the nozzle with a new one (ref. 2.574-032.0) and retighten.

Why is the pressure low?

Possible causes: clogged inlet filter, worn nozzle, or leak in the high-pressure circuit. Clean the filter and check the nozzle.

What is the maximum allowed pressure?

The maximum operating pressure is 150 bar, but may vary depending on the nozzle used.

How to store the high-pressure hose after use?

Coil the hose without bending, hang it on the holder provided on the device to avoid deformation.

Where to find the serial number of the device?

The serial number is on the nameplate attached to the motor housing.

USER MANUAL HD 5/15 C Plus KARCHER

Deutsch 6

English 14

Français 22

Italiano 30

Nederlands 38

Español 46

Português 54

Dansk 62

Norsk 69

Svenska 77

Suomi 84

Ελληνικά 92

Türkçe 100

Русский 108

Magyar 117

Czech 125

Slovenian 133

Polish 140

Romanian 149

Slovak 157

Croatian 165

Serbian 173

Bulgarian 181

Estonian 190

Latvian 197

Lithuanian 205

Ukrainian 213

Chinese 221

Table of Contents

Storage

▲CAUTION

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Contents

General notes.... 14

Intended use.... 14

Environmental protection.... 14

Accessories and spare parts 14

Scope of delivery.... 14

Safety instructions 14

Device description 15

Installation 15

Electrical connection 15

Water connection.... 15

Operation.... 16

Transport 17

Storage.... 17

Care and service 17

Troubleshooting guide 18

Warranty 18

Technical data 18

EU Declaration of Conformity.... 21

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

Intended use

Use this high-pressure cleaner only for the following types of work:

● Cleaning with the low-pressure jet and detergent (e.g. machines, vehicles, structures, tools)

- Cleaning with the high-pressure jet without detergent (e.g. façades, terraces, garden machines)

We recommend using a rotary nozzle as a special accessory for stubborn soiling.

A rotary nozzle is included in the scope of delivery of the "Plus" variant.

Water supply limit values

ATTENTION

Dirty water

Premature wear and tear or deposits in the device Supply the device using only clean water, or recycled water that does not exceed the specified limit values.

The following limit values apply to the water supply:

• pH value: 6.5-9.5 ● Electrical conductivity: Conductivity of fresh water + 1200 μS/cm, maximum conductivity 2000 μS/cm
• Settleable particles (sample volume 1 l, settling time 30 minutes): < 0.5 mg/l

- Filterable particles: < 50 mg/l, no abrasive substances

● Hydrocarbons: < 20 mg/l

● Chloride: < 300 mg/l

● Sulphate: < 240 mg/l

● Calcium: < 200 mg/l

● Total hardness: < 28 °dH, < 50° TH, < 500 ppm (mg CaCO3/l)

- Iron: < 0.5 mg/l

● Manganese: < 0.05 mg/l

● Copper: < 2 mg/l

● Active chloride: < 0.3 mg/l

● Free of unpleasant odours

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can

pose a potential threat to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.com/REACH

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Safety instructions

• It is essential that you read the safety instructions 5.951-949.0 before initial startup.
• Observe the national regulations for liquid jet cleaners.
• Observe the national accident prevention regulations. Liquid jet cleaners must be tested regularly. The test result must be recorded in writing.
• Do not modify the device or accessories.

Symbols on the device

The device may not be connected to the public drinking water network.

The high-pressure jet must not be directed at persons, animals, live electrical equipment or at the device itself. Protect the device from frost.

Safety devices

△CAUTION

Missing or modified safety devices

Safety devices are provided for your own protection. Never modify or bypass safety devices.

The safety devices are set and sealed by the manufacturer. Adjustments are performed only by customer service.

Pressure switch

When the trigger on the high-pressure gun is released, the pressure switch switches off the high-pressure pump and the high-pressure jet stops.

The pump switches on again when the trigger is pulled.

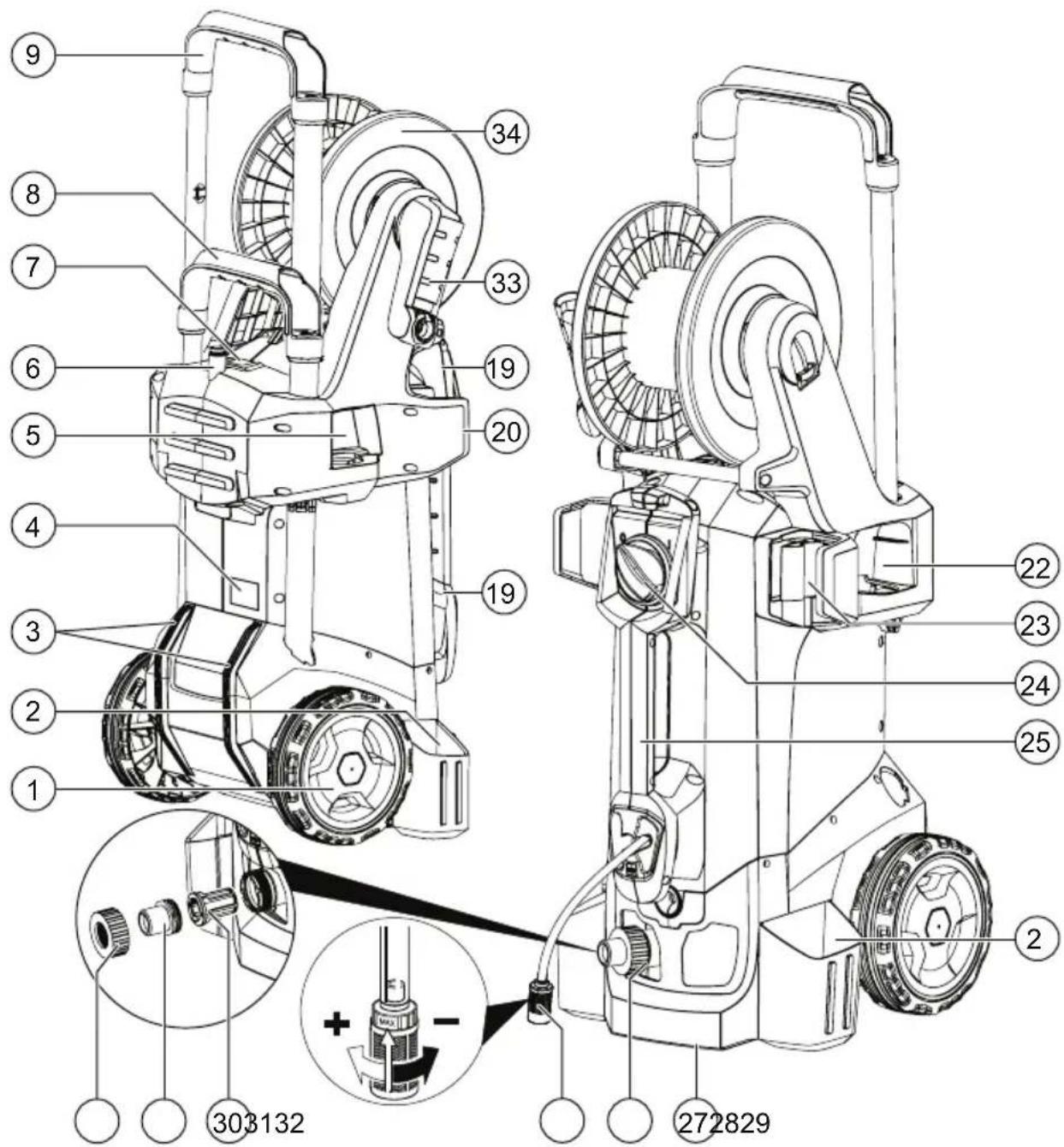

Overview of the unit

See graphics page

1 Hubcap

2 Nozzle holder

3 Skid

4 Type plate

5 Nozzle storage for triple nozzle

6 Transport retainer for surface cleaner

7 Push handle lock

8 Push handle, bottom (pushed in)

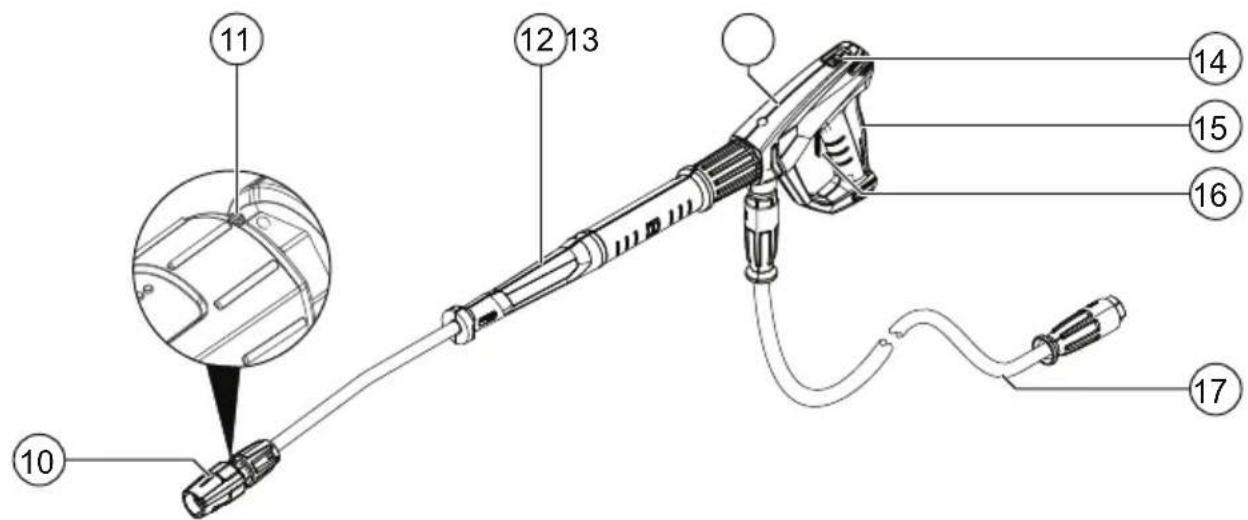

10 High-pressure nozzle

11 High-pressure nozzle marking

12 EASY!Lock spray lance

13 EASY!Force high-pressure gun

14 Safety latch

15 Trigger

16 Safety lever

17 EASY!Lock high-pressure hose

18 Hose storage compartment

19 Cable clips

20 Spray lance holder without a clamp

21 Rubber band (not in devices with a hose reel)

22 Nozzle storage compartment for rotary nozzle (rotary nozzle only included in the scope of delivery of the "Plus" variant)

23 Spray lance holder with a clamp for transport

24 Power switch

25 Handle

26 EASY!Lock high-pressure connection

27 Handle

28 Water connection

29 Detergent suction hose with filter and detergent dosing unit

30 sieve

31 Hose spout

32 Union nut

33 Crank

34 Hose reel

Colour coding

● Control elements for the cleaning process are yellow.

● Control elements for maintenance and servicing are light grey.

Fastening the hubcaps

- Fasten the hubcaps.

Installing accessories

Note

The EASY!Lock system connects components quickly and safely via a single turn of the quick-release thread.

1. Fit the high-pressure nozzle onto the spray lance with the marking facing upwards.
2. Tighten the high-pressure nozzle hand-tight (EASY!Lock).
3. Connect the spray lance to the high-pressure gun and hand-tighten (EASY!Lock).

1.

2.

1. Release the push handle lock.
2. Pull the push handle out to the end position.

For devices without a hose reel:

1. Connect the high-pressure hose to the high-pressure gun and high-pressure connection of the device and tighten hand-tight (EASY!Lock).

For devices with a hose reel:

1. Lay the high-pressure hose on the ground in a straight line.
2. Insert the crank into the hose reel shaft and latch into position.
3. Turn the crank clockwise and wind the high-pressure hose onto the hose reel in evenly distributed layers.
4. Connect the high-pressure hose to the high-pressure gun and hand-tighten (EASY!Lock).

△DANGER

Failure to disconnect the mains

Risk of injury from electric shock

Use a plug to connect the device to the mains grid. Permanent connection to the mains grid is prohibited. The plug is used for disconnection from the mains.

1. Unwind the mains cable and place on the ground.
2. Plug the mains plug into the socket.

Connection to a water line

△WARNING

Return flow of dirty water into the drinking water network

Health risk

Observe the regulations of your water supply company. According to applicable regulations, the device must never be used with the drinking water network without a system separator. Use a system separator from KÄRCHER or a system separator as per EN 12729

Type BA. Water that has flowed through a system separator is classified as undrinkable. Always connect the system separator to the water supply and never directly to the water connection on the device.

1. Check the supply pressure, supply temperature and supply volume of the water supply (see chapter Technical data).
2. Connect the system separator to the water connection of the device using a water supply hose (for the requirements placed on the water supply hose see chapter Technical data).
3. Open the water inlet.

Suck water from the container

1. Screw the suction hose with filter onto the water connection (for the order number see chapter Technical data).
2. Vent the device (see chapter Vent the device).

Vent the device

1. Unscrew the high-pressure nozzle from the spray lance.
2. Allow the device to run until the escaping water is free of air bubbles.
3. In the case of venting problems, allow the device to run for 10 seconds and then switch it off. Repeat the procedure several times.
4. Switch off the device.
5. Screw the high-pressure nozzle onto the spray lance.

Operation

⚠️DANGER

High-pressure water jet

Danger of injury

Never fasten the trigger and safety lever in the actuated position.

Do not use the high-pressure gun when the safety lever is damaged.

Push the safety latch of the high-pressure gun forwards every time before starting work with the device.

Hold the high-pressure gun and spray lance with both hands.

△WARNING

Defective device and accessories, defective supply lines and connections

Danger of injury

The device may only be operated when in a correct operating condition.

Opening/closing the high-pressure gun

1. Actuate the safety lever and trigger. The high-pressure gun opens.
2. Release the safety lever and trigger. The high-pressure gun closes.

High-pressure operation

The device can be operated in a standing or lying position.

Note

The device is equipped with a pressure switch. The motor only starts up when the high-pressure gun is open.

1. For devices with a hose reel: Completely unroll the high-pressure hose from the hose reel.
2. Set the power switch to the "I/ON" position.
3. Push the safety latch of the high-pressure gun to the rear.

The high-pressure gun is unlocked.

1. Open the high-pressure gun.

Selecting the spray type

1. Close the high-pressure gun.
2. Turn the casing of the nozzle until the desired symbol lines up with the marking.

	High-pressure round stream (0°) for especially stubborn soiling
CHEM	Low-pressure flat stream (CHEM) for operating with detergent or cleaning at low pressure
	High pressure flat stream (25°) for large soiled areas

Operation with detergent

⚠️DANGER

Residual high pressure in the device

Danger of injury

Switch off the device prior to changing nozzles.

Actuate the high-pressure gun until the device is completely depressurised.

△WARNING

Incorrect handling of detergents

Health risk

Adhere to the safety instructions stated on the detergent packaging.

ATTENTION

Unsuitable detergents

Damage to the device and the objects to be cleaned. Use only detergents approved by KÄRCHER.

Observe the dosing recommendations and notes provided with the detergent.

Use detergents sparingly to help conserve the environment.

Note

KÄRCHER detergents ensure fault-free operation. Ask us for a consultation, request our catalogue or our detergent information sheets.

1. Pull out the detergent suction hose.
2. Adjust the detergent solution suction volume at the detergent filter.
3. Hang the detergent suction hose in a container with detergent.
4. Set the nozzle to the "CHEM" position.
5. Start up the high-pressure cleaner.

Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).
2. Rinse off the loosened dirt with the high-pressure jet.

After operation with detergent

1. Adjust the suction volume at the detergent filter to the maximum volume.
2. Immerse the filter in clear water.
3. Start the device and rinse clear for one minute.

Interrupting operation

1. Close the high-pressure gun. The device switches off.
2. Push the safety latch forwards. The high-pressure gun is secured.

Continuing operation

1. Push the safety latch backwards. The high-pressure gun is unlocked.
2. Open the high-pressure gun. The device switches on.

Finishing operation

1. Close the water inlet.
2. Open the high-pressure gun.
3. Set the power switch to "I/ON" and allow the device to run for 5-10 seconds.
4. Close the high-pressure gun.
5. Set the power switch to "0/OFF".
6. Pull the mains plug out of the socket only when your hands are dry.
7. Remove the water inlet.
8. Open the high-pressure gun until the device is completely depressurised.
9. Push the safety latch forwards. The high-pressure gun is secured.

Transport

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transport and storage.

ATTENTION

Improper transportation

Risk of damage

Protect the trigger of the high-pressure gun from damage.

• Transporting the device in a vehicle: Secure the device in accordance with the respectively applicable guidelines to prevent it from slipping or overturning.
• Transporting the device over longer distances: Pull the device behind you via the push handle.
• Transporting the device over stairs: Pull the device step by step. The skids protect the casing from damage.
• Carrying the device: Carry the device by the handles only.

Transport retainer for surface cleaner

1. Plug the connection union of the surface cleaner onto the transport holder of the high-pressure cleaner.
2. Screw on the union nut by approximately 1 turn.

Crane transport

⚠️ DANGER

Improper crane transport

Risk of injury from a falling device or falling objects. Observe the local regulations for accident prevention and the safety instructions.

The device may only be transported with a crane by persons instructed in the operation of the crane.

Check the lifting gear for damage before each crane transport.

Check the handle for damage before each crane transport.

Lift the device only by the handle.

Do not use slinging chains.

Secure the lifting gear against unintentional unhooking of the load.

Remove the spray lance with high-pressure gun, nozzles, surface cleaner and other loose objects before transporting by crane.

Do not transport any objects on the device during the lifting operation.

Do not stand under the suspended load.

Ensure that no persons are in the hazard zones of the crane.

Do not leave the device hanging unattended on the crane.

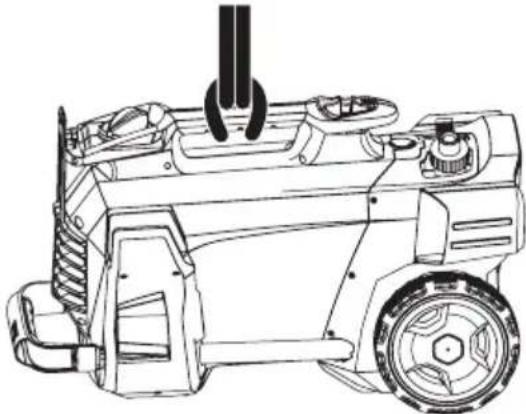

1. Attach the lifting gear to the handle on the device.

Storage

CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transport and storage.

Store the device indoors only.

Storing the device

1. Fit the spray lance with high-pressure gun into the nozzle holder and latch into position in the spray lance holder.
2. Roll up the mains cable and hang it over the cable holders.
3. Fasten the plug with the clip provided. For devices with a hose reel:
4. Wind the high-pressure hose onto the hose reel and fold over the crank handle. For devices without a hose reel:
5. Storing the high-pressure hose: a) Wind up the high-pressure hose. b) Hang the high-pressure hose over the hose storage compartment. c) Secure the high-pressure hose with the rubber band.
6. Press the push handle lock and slide in the push handle.

Frost protection

ATTENTION

Frost

Destruction of the device through freezing water. Drain all water from the device.

Store the device in a frost-free location.

If frost-free storage is not possible:

1. Drain the water.
2. Pump commonly available anti-freeze through the device.

Note

Use commonly available, glycol-based vehicle anti-freeze. Observe the handling instructions of the anti-freeze manufacturer. 3. Allow the device to run for a maximum of 1 minute until the pump and lines are empty.

Care and service

DANGER

Inadvertently starting up device

Risk of injury, electric shock

Switch off the device immediately and unplug the mains plug before performing work.

Note

Old oil may only be disposed of at designated collection points. Please dispose of any old oil at these locations. Polluting the environment with old oil is punishable by law.

Safety inspection/maintenance contract

You can agree on regular safety inspections or close a maintenance contract with your dealer. Please seek advice on this.

Maintenance intervals

Each time before use

• Check the mains cable for damage. Have a damaged cable replaced immediately by the authorized Customer Service or a qualified electrician.
• Check the high-pressure hose for damage. Immediately replace a damaged high-pressure hose.
• Check the device for leaks. 3 drops of water per minute are permissible. Contact Customer Service in the case of more serious leaks.

Weekly

● Empty and clean the sieve in the water connection (see chapter Clean the sieve in the water connection). ● Clean the filter on the detergent suction hose. ● Have the device serviced by Customer Service.

Every 500 operating hours, at least annually

Maintenance work

Clean the sieve in the water connection

1. Unscrew the union nut.
2. Remove the hose union.
3. Remove the sieve.
4. Externally clean and rinse the sieve.
5. Insert the sieve.

Note

Align the hex-head of the hose union to the connection on the device.

1. Attach the hose union and tighten with the union nut.

Troubleshooting guide

⚠️DANGER

Inadvertently starting up device, touching live components

Risk of injury, electric shock

Switch off the device before performing any work on the device.

Remove the mains plug.

Have all checks and work on electrical parts performed by a qualified electrician.

In case of any malfunctions not mentioned in this chapter, contact the authorised Customer Service.

The device cannot be started

1. Check the mains cable for damage.
2. Check the mains voltage.
3. If the device overheats: a Set the power switch to "0/OFF". b Allow the device to cool for at least 15 minutes. c Set the power switch to the "I/ON" position.
4. Contact Customer Service in the case of electrical faults.

Device does not reach required pressure

1. Set the nozzle to high-pressure.
2. Vent the device (see chapter Vent the device).
3. Empty and clean the sieve in the water connection (see chapter Clean the sieve in the water connection).
4. Check the water supply volume (for the necessary volume see chapter Technical data).
5. Clean the nozzle and replace if necessary.
6. Contact Customer Service if necessary.

The pump is leaking.

Up to 3 drops of water per minute are permissible.

- In case of more serious leaks, have the device checked by Customer Service.

The pump knocks

1. Check the water supply line for leaks.
2. Check the detergent suction line for leaks.
3. Adjust the suction volume at the detergent filter to the minimum volume.
4. Vent the device (see chapter "Vent the device").
5. Contact Customer Service if necessary.

The detergent mixture ratio is too weak.

1. Set the nozzle to "CHEM".
2. Increase the suction volume at the detergent filter.
3. Open or check/clean the detergent suction hose with filter.
4. Contact Customer Service if necessary.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Technical data

		HD 5/11C	HD 5/12C HD 5/12 CX	HD 5/12C HD 5/12 CX	HD 5/12C HD 5/12 CX	HD 5/12C HD 5/12 CX	HD 5/12C	HD 5/12C
Country variant
Country AU EU GB CH AU KAP SA
Electrical connection
Voltage	V			240				230
Phase	~	1	1	1	1	1	1	1
Frequency	Hz	50	50	50	50	50	60	60
Connection output	kW	2,1 2,5	2,5 2,2	2,4 2,4
Degree of protection		IPX5	IPX5	IPX5	IPX5	IPX5	IPX5	IPX5

HD 5/11C

HD 5/12C HD 5/12 CX

HD 5/12C HD 5/12 CX

HD 5/12C HD 5/12 CX

HD 5/12C HD 5/12 CX

HD 5/12C

HD 5/12C

P

o

w

e

r

p

r

o

t

e

c

t

i

o

n

Extension cable, 30 m mm

2

2,5

2,5

2,5

2,5

2,5

2,5

Water connection

F

e

e

d

p

r

e

s

s

u

r

e

(

l

n

p

u

t

t

e

m

p

e

r

a

t

Input amount (min.)

l/min

12

12

12

12

12

12

12

12

Suction height (max.)

m

0,5 0,5

0,5 0,5

0,5 0,5

0,5 0,5

Minimum water supply hose length

m

7,5 7,5

7,5 7,5

7,5 7,5

7,5 7,5

Minimum water supply hose diameter in

1/2 1/2

1/2 1/2

1/2 1/2

1/2 1/2

Suction hose with filter order number

2.643-100.0

2.643-100.0

2.643-100.0

2.643-100.0

2.643-100.0

2.643-100.0

2.643-100.0

Device performance data

Nozzle size of standard nozzle		038	035	035	038	038	036	036
Operating pressure	MPa	11	12	12	11,5	11,5	12	12
Operating pressure (max.)	MPa	17,1	17,5	17,5	17,1	17,1	18	18
Water flow rate	l/min	8,3	8,3	8,3	8,3	8,3	8,3	8,3
Detergent flow rate	l/h	0-25	0-25	0-25	0-25	0-25	0-25	0-25
High-pressure gun recoil force	N	21,3	21,3	21,3	21,3	21,3	21,3	21,3

Dimensions and weights

Typical operating weight (CX)	kg	24,2 (-)	23,7(26)	23,7(26)	23,7(26)	24,2(26,4)	25,2 (-)	25,2 (-)
Length	mm	380	380	380	380	380	380	380
Width (CX)	mm	360 (-)	360(370)	360(370)	360(370)	360(370)	360 (-)	360 (-)
Height	mm	930	930	930	930	930	930	930

Determined values in acc. with EN 60335-2-79

Hand-arm vibration value	m/s2	3,6 3,6 3,6 3,6 3,6 4,2 4,2
Uncertainty K	m/s2	0,9 0,9 0,9 0,9 0,9 0,9 0,9
Sound pressure level LpA (CX)	dB(A)	72 (-)	72 (75)	72 (75)	72 (75)	72 (75)	74 (-)	74 (-)
Uncertainty KpA	d	B	(	A	) 3	3	3	3
Sound power level LWA + K uncertaintyWA (CX)	dB(A)	88 (-)	88 (92)	88 (92)	88 (92)	88 (92)	90 (-)	90 (-)

HD 5/13C HD 5/13 CX

HD 5/15C HD 5/15 CX

HD 5/17C HD 5/17 CX

HD 5/17C HD 5/17 CX

HD 6/13C HD 6/13 CX

HD 6/13C HD 6/13 CX

HD 6/13C HD 6/13 CX

Country variant

Country

EU EU EU KAP

EU AR GB

Electrical connection

Voltage

V

230

230

230

220

230

220

230-240

P

h

a

s

e

~

1

1

1

Frequency

Hz

50

50

50

60

50

50

50

Connection output

kW

2,6 2,8 3,0 3,0 2,9 2,9 2,9

Degree of protection

IPX5

IPX5

IPX5

IPX5

IPX5

IPX5

IPX5

P

o

w

e

r

p

r

o

t

e

c

t

i

o

n

Extension cable, 30 m mm

2

2,5 2,5 2,5 2,5 2,5 2,5 2,5

Water connection

F

e

e

d

p

r

e

s

s

u

r

e

(

l

n

p

u

t

t

e

m

p

e

r

a

t

		HD 5/13C HD 5/13 CX	HD 5/15C HD 5/15 CX	HD 5/17C HD 5/17 CX	HD 5/17C HD 5/17 CX	HD 6/13C HD 6/13 CX	HD 6/13C	HD 6/13C HD 6/13 CX
Input amount (min.) l/min 12 12 12 13 13 13
Suction height (max.) m 0,5 0,5 0,5 0,5 0,5 0,5
Minimum water supply hose length m 7,5 7,5 7,5 7,5 7,5 7,5
Minimum water supply hose diameter in 1/2 1/2 1/2 1/2 1/2
Suction hose with filter order number 2.643-		2.643-100.0	2.643-100.0	2.643-100.0	2.643-100.0	2.643-100.0	2.643-100.0	2.643-100.0
Device performance data
Nozzle size of standard nozzle 034 032 027 030 038 038 038
Operating pressure MPa 13 15 17 16,5		13 13 13
Operating pressure (max.)	MPa 17,5	20 20 20 19 19 19
Water flow rate	l/min	8,3	8,3	8,1	8,0	9,8	9,8	9,8
Detergent flow rate	l/h	0-25	0-25	0-25	0-25	0-25	0-25	0-25
High-pressure gun recoil force	N	22,2	23,8	25,4	25,4	26,6	26,6	26,6
Dimensions and weights
Typical operating weight (CX)	kg	23,7(26)	25,2(27,5)	25,2(27,5)	25,2(27,5)	25,2(27,5)	25,2(-)	25,2(27,5)
Length	mm	380 380	380 380	380 380 380
Width (CX)	mm	360(370)	360(370)	360(370)	360(370)	360(370)	360(-)	360(370)
Height	mm	930 930	930 930	930 930 930
Determined values in acc. with EN 60335-2-79
Hand-arm vibration value	m/s 2	3,6 2,4	2,4 2,4 4,1	4,1 4,1
Uncertainty K	m/s 2	0,9 0,7	0,7 0,7 0,9	0,9 0,9
Sound pressure level L pA (CX)	dB(A)	72 (75)	72 (74)	72 (75)	75 (75)	72 (75)	72 (-)	72 (75)
Uncertainty K pA	dB(A)	3	3	3	3	3	3	3
Sound power level L WA +K uncertainty WA (CX)	dB(A)	88 (92)	88 (90)	88 (92)	91 (91)	88 (92)	88 (-)	88 (92)

		HD 6/13 C	HD 6/13 C
Country variant
Country		KAP SA
Electrical connection
Voltage	V	220	220
Phase	~	1 1
Frequency	Hz	60 60
Connection output	kW	2,9 2,8
Degree of protection		IPX5	IPX5
Power protection (slow-blowing) A		15 13
Extension cable, 30 m	mm2	2,5 2,5
Water connection
Feed pressure (max.)	MPa	1 1
Input temperature (max.)	°C	60 60
Input amount (min.) l/min 13 13
Suction height (max.) m	0,5 0,5
Minimum water supply hose length m		7,5 7,5
Minimum water supply hose diameter in		1/2 1/2
Suction hose with filter order number		2.643-100.0	2.643-100.0

HD 6/13 HD 6/13

C C

Device performance data

Nozzle size of standard nozzle 042 043

Operating pressure MPa 13 12,5

Operating pressure (max.) MPa 18 18

Water flow rate l/min 10,0 10,0

Detergent flow rate l/h 0-25

0-25

High-pressure gun recoil force

N

26,6 26,6

Dimensions and weights

Typical operating weight (CX) kg	25,2 (-)	25,2 (-)
Length	mm	380 380
Width (CX)	mm	360 (-) 360 (-)
Height	mm	930 930

Determined values in acc. with EN 60335-2-79

Hand-arm vibration value	m/s2	3,7	3,7
Uncertainty K	m/s2	0,9	0,9
Sound pressure level LpA (CX)	dB(A)	73 (-)	73 (-)
Uncertainty KpA	dB(A)	3	3
Sound power level LWA+K uncertaintyWA (CX)	dB(A)	89 (-)	89 (-)

Subject to technical modifications.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: High-pressure cleaner

Type: 1.520-xxx

Currently applicable EU Directives

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

Harmonised standards used

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 62233: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2008

Applied conformity evaluation method

2000/14/EG: Appendix V

Sound power level dB(A)

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Documentation supervisor: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Contents

Non-compliant transport

Risk of damage

Storage

⚠ CAUTION

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Documentation manager: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Winnenden, 2019/05/01

Index

Storage

⚠CAUTION

Failure to observe the weight

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Contents

● chloride: < 300 mg/l

● sulfate: < 240 mg/l

● calcium: < 200 mg/l

- total hardness: < 28 °dH, < 50° TH, < 500 ppm (mg CaCO₃/l)

- iron: < 0.5 mg/l

- manganese: < 0.05 mg/l

Storage

⚠CAUTION

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Storage

△CAUTION

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Index

Storage

△CAUTION

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2019/05/01

Contents

Storage

⚠CAUTION

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Contents

General notes 69

Transport holder for surface cleaner

Storage

⚠CAUTION

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

Applied harmonized standards

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 62233: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2008

2000/14/EC: Annex V

Sound power level dB(A)

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Winnenden, 2019/05/01

Contents

General information 77

● Chloride: < 300 mg/l

● Sulfate: < 240 mg/l

● Calcium: < 200 mg/l

● Total hardness: < 28 °dH, < 50° TH, < 500 ppm (mg CaCO3/l)

● Iron: < 0.5 mg/l

● Manganese: < 0.05 mg/l

- Copper: < 2 mg/l

● Active chlorine: < 0.3 mg/l

Storage

⚠CAUTION

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tfn: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Contents

General instructions 84

Storage

△WARNING

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Documentation officer: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2019/05/01

Contents

Storage

CAUTION

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Contents

● Calcium: < 200 mg/l

- Total hardness: < 28 °dH, < 50° TH, < 500 ppm (mg CaCO₃/l)

● Iron: < 0.5 mg/l

● Manganese: < 0.05 mg/l

● Copper: < 2 mg/l

● Active chlorine: < 0.3 mg/l

Bedding

WARNING

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Winnenden, 2019/05/01

Storage

⚠CAUTION

Failure to observe the weight

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Table of Contents

Storage

⚠CAUTION

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Winnenden, 2019/05/01

Table of contents

General instructions 125

Storage

⚠WARNING

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Authorized representative for documentation: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

Winnenden, 2019/05/01

Table of contents

General instructions 133

Intended use 133

Environmental protection 133

Accessories and spare parts.... 133

Scope of delivery.... 133

Safety instructions.... 133

Device description 134

Assembly.... 134

- Hydrocarbons: < 20 mg/l

● Chloride: < 300 mg/l

● Sulfate: < 240 mg/l

● Calcium: < 200 mg/l

● Total hardness: < 28 °dH, < 50° TH, < 500 ppm (mg CaCO ₃ /l)

- Iron: < 0.5 mg/l

● Manganese: < 0.05 mg/l

● Baker: < 2 mg/l

● Active chlorine: < 0.3 mg/l

Storage

CAUTION

Non-compliance with weight

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Winnenden, 2019/05/01

Table of contents

Storage

⚠CAUTION

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2019/05/01

Table of Contents

Storage

⚠CAUTION

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

Harmonized standards applied

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 62233: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2008

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Contents

General safety instructions 157

1. Release the handle lock for pushing.
2. Pull the push handle to the end position. For devices without a hose reel:
3. Connect the high-pressure hose to the high-pressure gun and the high-pressure connection of the device and tighten firmly by hand (EASY!Lock). For devices with a hose reel:
4. Straighten the extended high-pressure hose on the floor.
5. Insert and secure the crank into the shaft of the hose reel.
6. Turn the crank clockwise and wind the high-pressure hose onto the hose reel in even layers.
7. Connect the high-pressure hose to the high-pressure gun and tighten firmly by hand (EASY!Lock).

Electrical connection

⚠DANGER

Storage

⚠WARNING

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/ES

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Contents

General notes.... 165

Storage

△CAUTION

Non-observance of weight

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EZ

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Authorized for documentation: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Contents

General notes.... 173

Intended use 173

1. Release the locking of the push handle.
2. Pull the push handle to the end position. For devices without a hose reel:
3. Connect the high-pressure hose to the high-pressure spray gun and the high-pressure connection of the device, and tighten it firmly by hand (EASY!Lock). For devices with a hose reel:
4. Lay the high-pressure hose on the floor.
5. Insert the crank handle into the shaft of the hose reel and let it engage.
6. Turn the crank handle clockwise and wind the high-pressure hose onto the hose reel in even layers.
7. Connect the high-pressure hose to the high-pressure spray gun and tighten it firmly by hand (EASY!Lock).

Storage

△CAUTION

Failure to observe the weight

Risk of injury and damage

Pay attention to the weight of the device during transport and storage.

Store the device only indoors.

Storing the device

1. Place the spray lance with the high-pressure spray gun into the nozzle holder and slot it into the spray lance holder.
2. Wind up the mains cable and hang it over the cable holder.
3. Secure the plug using the attached snap lock. For devices with a hose reel:
4. Wind the high-pressure hose onto the hose reel and fold the handle of the rotary crank.

For devices without a hose reel:

1. Storing the high-pressure hose: a Wind the high-pressure hose

b Hang the high-pressure hose above the hose storage compartment.

c Secure the high-pressure hose with the rubber band.

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

Applied harmonized standards

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 62233: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2008

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Authorized for documentation: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2019/05/01

Contents

General instructions.... 181

Intended use.... 181

Storage

⚠CAUTION

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Table of contents

General instructions.... 190

Mounting accessories

Note

Water intake from tank

Storage

⚠CAUTION

Product: High-pressure cleaner

Type: 1.520-xxx

2006/42/EÜ (+2009/127/EÜ)

2014/30/EL

2000/14/EÜ

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2019/05/01

Contents

Storage

⚠CAUTION

Failure to observe the weight

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Authorized to prepare documentation: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

Winnenden, 2019/05/01

Contents

Storage

CAUTION

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2019/05/01

CONTENTS

Storage

△CAUTION

Failure to observe the weight

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/05/01

Table of Contents

General notes 221

Intended use 221

Environmental protection 222

Accessories and spare parts 222

Scope of delivery 222

Safety instructions 222

Device description 222

Installation 223

Electrical connection 223

Water connection 223

Operation 223

Transport 224

Storage 224

Maintenance and care 225

Troubleshooting 225

Quality assurance 225

Technical data 225

General notes

www.kaercher.com/REACH

Accessories and spare parts

Storage

△Caution

Ignore weight

Risk of injury and damage

Pay attention to the weight of the device during transport and storage.

Store the device indoors only.

Storing the device

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]
