Product type	Document shredder
Brand	HSM
Model	Shredstar X8pro
Cut type	Cross cut
Cut size	3 x 9 mm
Cutting capacity (80 g/m² paper)	8 sheets per pass
Cutting capacity (CD)	1 CD (max thickness 1.2 mm)
Cutting capacity (credit card)	1 card per pass
Cut speed	40 mm/s
Collector volume	25 liters
Power supply	220-240 V, 50-60 Hz
Dimensions (W x D x H)	395 x 270 x 580 mm
Weight	16 kg
Maximum continuous operation time	5 minutes
Cooling time after overheating	Approximately 20 minutes
Overload protection	Yes (red LED and reverse)
Auto stop	Yes (approx. 3 s after pass)
Cutting unit maintenance	Regular oiling with HSM special oil (ref. 1.235.997.403)
Cleaning	Soft cloth and non-corrosive soapy water
Warranty	2 years
CE conformity	Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC

Frequently Asked Questions - Shredstar X8pro HSM

What is the cut type of the HSM Shredstar X8pro?

The shredder uses a cross cut with a cut size of 3 x 9 mm.

How many sheets can I shred at once?

The maximum capacity is 8 sheets of paper (80 g/m²) or 1 credit card or 1 CD per pass.

How to turn on the shredder?

Plug in the device and set the rocker switch to the I (on) position. The green LED lights up. Insert the paper so that the photocell activates the cutter.

What to do if the red LED flashes?

The flashing red LED indicates overheating. Let the machine cool down for about 20 minutes before using it again.

How to clean the shredder?

Turn off and unplug the device. Clean the outside with a soft cloth and non-corrosive soapy water. Avoid water getting inside.

How to oil the cutting unit?

Use HSM cutting unit special oil (ref. 1.235.997.403). Spray across the entire width of the cylinders through the paper feed, then run in reverse (position R) without paper.

What to do in case of paper jam?

Press the switch to position R (reverse) to retract the paper. If necessary, carefully remove the jammed paper. Check that you do not exceed 8 sheets at a time.

Can I shred CDs and credit cards?

Yes, use the specific CD slot (located separately) and the main slot for credit cards. Insert only one CD or one card at a time.

Why is the red LED continuously lit?

This indicates an overload of the cutting unit. Set the switch to R (reverse) to unload, then remove the paper. Reduce the number of sheets.

How to empty the CD collector?

Press the front edge of the collector (1), push it back (2), then lift it (3) to remove it. The shredder will not operate if the CD collector is not properly in place.

USER MANUAL Shredstar X8pro HSM

X8pro

BETRIEBSANLEITUNG

AKTENVERNICHTER

OPERATING INSTRUCTIONS

PAPER SHREDDER

NOTICE D'UTILISATION

DESTRUCTEUR DE DOCUMENTS

MANUALE OPERATIVO

DISTRUGGIDOCUMENTI

INSTRUCCIONES DE SERVICIO

DESTRUCTORA DE DOCUMENTOS

english: Paper shredder HSM shredstar X8pro 7

1 Proper use, warranty

The shredder is designed exclusively for destroying paper. Depending on the cutting type, it can also handle small quantities of CDs, credit and charge cards.

Its sturdy drive mechanism is not damaged by paper clips and staples.

The warranty period for the document shredder is 2 years. This warranty and guarantee exclude wear and damage caused by improper handling or actions taken by third parties.

2 Safety instructions

• Read the operating instructions before switching on the document shredder. Save these instructions for later use.
• Observe all safety instructions on to the machine.

Risk of injury!

Do not reach into the paper feed slot.

Risk of injury from being pulled in!

Keep long hair, loose articles of clothing, ties, scarves, jewellery, etc. away from feed opening. Material with the tendency to form loops, e.g. tapes, strapping material, etc. must not be shredded.

Keep the paper shredder out of the reach of children. Do not let the shredder run if the person using it is not present.

Switch the shredder off and disconnect it from the mains if it is damaged, not working correctly or before relocating or cleaning it.

Service work may only be carried out by HSM Customer Service or by the service technicians of our contractual partners.

• Make sure that the mains plug is easily accessible.
• Before you insert the mains plug, make sure that the voltage and frequency of your power supply comply with the information on the name plate.
  • Make sure that no liquid gets into the shredder.
• The shredder is for indoor use only and must not be placed near a heater or other heat source. The ventilation slots must not be blocked or covered and they must be at a distance of at least 2" (5 cm) away from walls or furniture.
• If you detach the cutting head from the base cabinet, please pay attention to the flap on the bottom side of the cutting head.

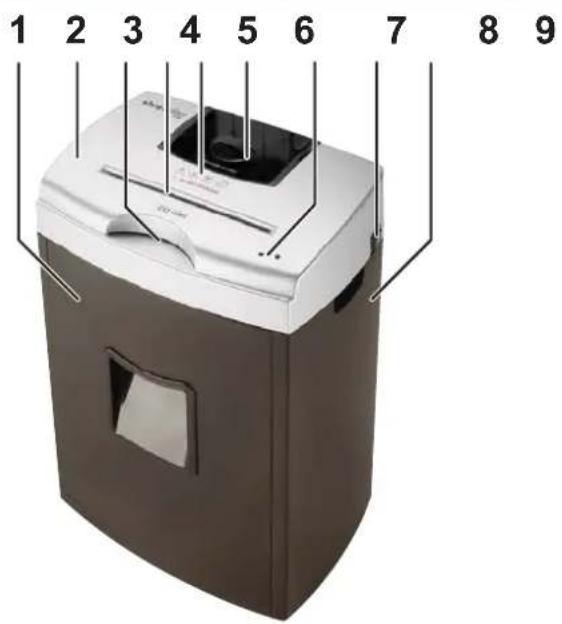

3 Machine components

1 Shredded paper container
2 Cutting head
3 Feed opening for CDs
4 Feed opening for paper and cards
5 Safety notice
6 Container for shredded CD
7 LED indicator
8 Rocker switch

I: On

O: Off

R: Reverse

9 Base cabinet

4 Setting up

Take the shredded paper container and cutting head out of the base cabinet.

• Carefully place the cutting head on the base cabinet.
  The lugs on the bottom of the cutting head latch into the openings on the base cabinet.
• Push the shredded paper container into the base cabinet until it latches in the housing.
• Plug in the mains plug.

5 Operation

Switching the paper shredder on

• Press the rocker switch „I“.
  The rocker switch locks in place.
  The green LED lights up.
  The paper shredder is ready for operation (standby).

Shredding paper and credit cards

• Feed in only one credit card or no more than 8 sheets of paper.

▶ The light barrier starts the cutting unit automatically.
The material is pulled into the cutting unit and shredded.
- Three seconds after the feed opening is clear again, the shredder switches off automatically and goes into standby.

Shredding CDs

The machine is equipped with a separate CD cutting unit. Push the CD into the feed opening until the cutting unit catches it.

The CD is cut into fi ve strips.
The shredder switches off.

Switching the paper shredder off

• Press the rocker switch "R".
  The rocker switch locks in place.

6 Troubleshooting

LED-indicator Cause	Remedy
No LED lights up - Place	the cutting head	ad correctly on the base cabinetand push the containers for shredded paper and CDs in properly.Press “I” on the switch.
Both LEDs light up The	shredded paper container is full	Empty the container.If you take the cutting head off the base cabinet, take care not to damage the fl ap on the bottom of the cutting head.
The red LED flashes	Overheating	The maximum uninterrupted operating time is five minutes. Let the machine cool down for around 20 minutes.
Only the red LED lights up	Paper cutting unit overloaded	Press “R” on the switch.Note:The cutting unit starts up with a delay of two seconds.Remove the paper.Do not feed in more than 8 sheets of paper at a time.

For any other malfunctions, switch off the machine and get in touch with our customer service.

Instructions on removing the CD container

Push down the front of the container (1), push it back (2) and lift the container out of the bracket (3).

Note that the shredder can only be switched on when the CD container is properly in place.

7 Cleaning and maintenance

Switch off the shredder and pull out the mains plug. When cleaning only use a soft cloth and a mild soap-water solution. However, no water may enter the equipment.

Oil the cutting unit when cutting performance deteriorates or the device becomes noisy, or every time you empty the waste container.

• Squirt special cutting unit oil (order number 1.235.997.403) through the paper feed across the entire width of the cutting shafts.
• Without feeding in paper, run the cutting unit in reverse (R).
  This loosens paper dust and particles.

8 Technical data

Cutting type * Cross cut
Shred size * 1/8" x 1 1/16" (3 x 9 mm)
Cutting ca pa ci ty per cycle 1 CD (max. 1.2 mm thick)or 1 credit card / store cardor 8 sheets of paper (80 g/m2)9 sheets of paper (70 g/m2)
Cutting speed *	7.9 ft/min (40 mm/s)
Shredded material container volume * 6.6 gal (25 l)
Voltage 120 V / 60 Hz	220 - 240 V, 50 - 60 Hz
Dimensions B x T x H	15.6" x 10.6" x 22.5"(395 x 270 x 580 mm)
Weight 35.3 lbs. (16 kg)

*: only applies to the paper/card cutting unit

EC Declaration of Conformity

HSM GmbH + Co. KG, Austrasse 1 - 9, D-88699 Frickingen hereby declares that the machine, referred to here as document shredder HSM shredstar X8pro

corresponds to the health and safety requirements of the following EC directives listed below due to its conception and design of the version in which it was put into circulation by us:

Low voltage directive 2006 / 95 / EEC

EMC directive 2004 / 108 / EC

Applied standards and technical specifications:

• EN 13857:2008 • EN 55014-1:2006
• EN 55014-2:1997 + A1:2001 • EN 61000-3-2:2006
• EN 61000-3-3:2008

Frickingen, 26.10.2010

Rolf Gasteier - Technical Director
