USER MANUAL SJ-WS320T SHARP

SJ-WS360T SJ-WP360T SJ-RP360T SJ-RM360T Device of this mark is a trademark of Sharp Corporation.

Plasmacluster is a registered trademark or a trademark of Sharp Corporation.

Un appareil de cette marque est une marque déposée de Sharp Corporation. Plasmacluster est une marque déposée inscrite ou une marque déposée de Sharp Corporation.

SJ-WS320T SJ-RP320T SJ-WP320T SJ-RM320T SJ-WS360T SJ-RP360T SJ-WP360T SJ-RM360T

@ © © © © © © @ @ @ © ® © © ® © © 0 © @

Thank you very much for buying this SHARP product. Before using your SHARP refrigerator,

please read this operation manual to ensure that you gain the maximum benefit from it. Household use only.

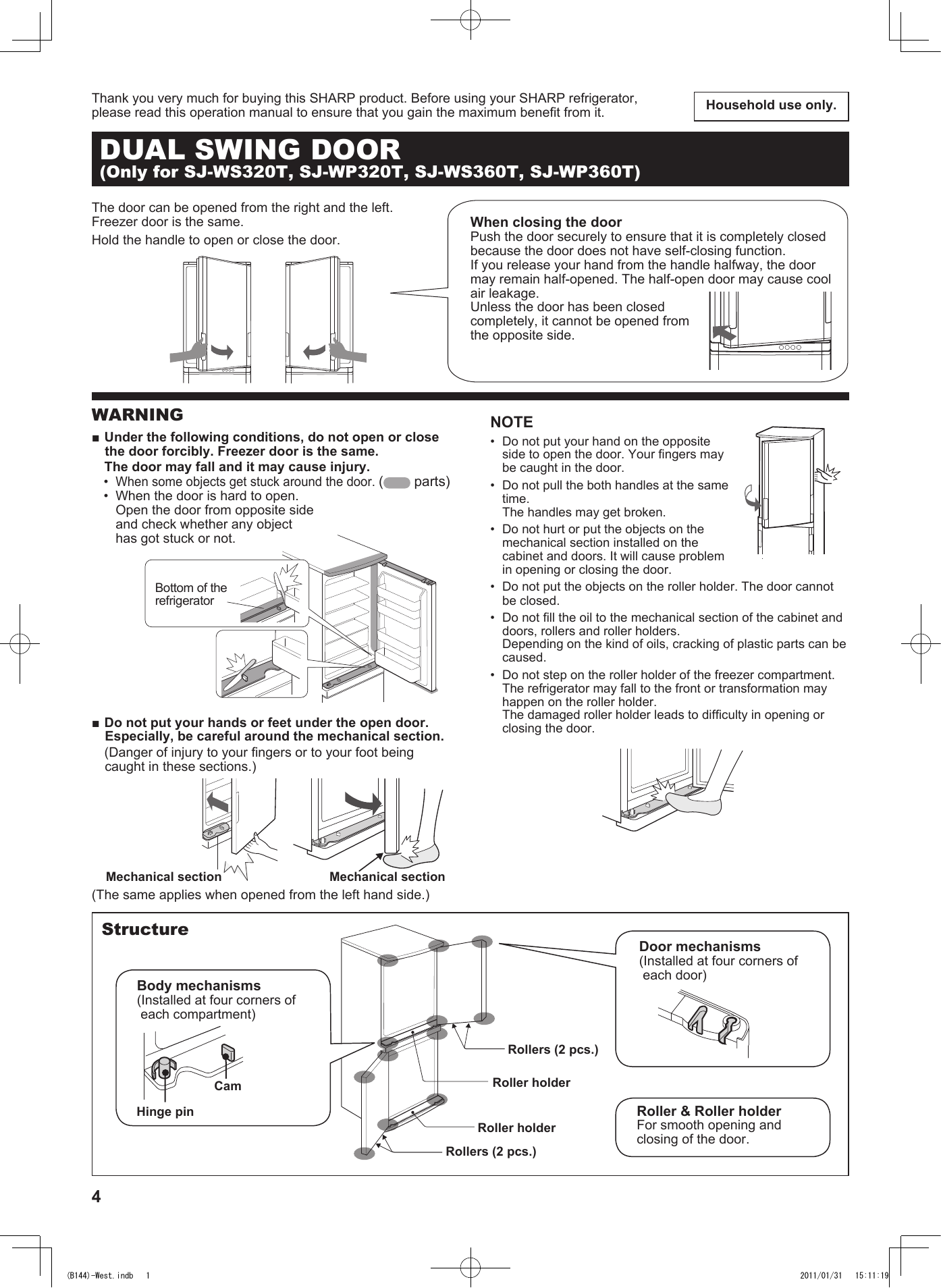

(Only for SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

The door can be opened from the right and the left. Freezer door is the same.

Hold the handle to open or close the door.

When closing the door Push the door securely to ensure that it is completely closed because the door does not have self-closing function.

If you release your hand from the handle halfway, the door may remain half-opened. The half-open door may cause cool air leakage.

Unless the door has been closed completely, it cannot be opened from the opposite side.

= Under the following conditions, do not open or close . the door forcibly. Freezer door is the same. The door may fall and it may cause injury.

Do not put your hand on the opposite side to open the door. Your fingers may be caugfhit in the door.

+ When some objects get stuck around the door. ( + When the door is hard to open. Open the door from opposite side

Do not pull the both handles at the same time. The handles may get broken.

and check whether any object has got stuck or not.

Do not hurt or put the objects on the mechanical section installed on the cabinet and doors. lt will cause problem in opening or closing the door.

Do not put the objects on the roller holder. The door cannot be closed.

Do not fill the oil to the mechanical section of the cabinet and doors, rollers and roller holders.

Depending on the kind of oils, cracking of plastic parts can be caused.

Do not step on the roller holder of the freezer compartment. The refrigerator may fall to the front or transformation may happen on the roller holder.

The damaged roller holder leads to difficulty in opening or closing the door.

Bottom of the refrigerator

# Do not put your hands or feet under the open door. Especially, be careful around the mechanical section. (Danger of injury to your fingers or to your foot being caugfht in these sections.)

Mechanical section "N Mechanical section (The same applies when opened from the left hand side.)

Door mechanisms (Installed at four corners of each door)

Body mechanisms (Installed at four corners of each compartment)

Roller & Roller holder For smooth opening and

Hinge pin Roller holder

closing of the door.

= This refrigerator contains flammable refrigerant (R600a: # Do not touch the compressor unit or its peripheral parts, isobutane) and insulation blowing gas (cyclopentane). as they become extremely hot during operation and the Observe the following rules to prevent ignition and metal edges may cause injury. explosion. # Do not touch foods or metal containers in the freezer + The refrigeration system behind and inside the compartment with your wet hands. This may cause refrigerator contains refrigerant. Do not allow any sharp frostbite. objects to come into contact with the refrigeration # Do not use an extension cord or adapter plug.

system. . | Do not place bottled and canned drinks in the freezer as Do not use mechanical devices or other means to they may crack when frozen.

accelerate the defrosting process. (This refrigerator has é e Make sure that the power cord has not been damaged adopted automatic defrosting system.) during installation or moving. lf the power plug or cord

+ Do not use electric appliances inside the refrigerator. is loose, do not insert the power plug. There is a risk of + Use only the specified parts for the refrigerator electric shock or fire. compartiment light. = Disconnect from the mains electricity supply by removing + Do not block the openings on the circumference of the the mains plug from the electricity supply socket. Do not refrigerator. remove by pulling the mains lead. This may cause electric + Do not use flammable sprays, such as spray paint near shock or fire. the refrigerator. It may cause explosion or fire. = Should the flexible supply cord be damaged, it must + Ifthe refrigeration system should get punctured, do not be replaced by service agent approved by SHARP as a touch the wall outlet and do not use open flames. Open special cord is required. the window and air out the room. Then ask a service ” In case of gas leak, ventilate the area by opening a agent approved by SHARP for servicing. window, etc. Do not touch the refrigerator or the power + This refrigerator should be disposed appropriately. outlet. Take the refrigerator to a recycling plant for flammable # Do not place objects containing liquid or unsteady objects refrigerant and insulation blowing gases. on top of refrigerator. # Do not store highly volatile and flammable materials such = This refrigerator is not intended for use by persons as ether, petrol, propane gas, aerosol cans, adhesive (including children) with reduced physical, sensory or agents and pure alcohol etc. mental capabilities, or lack of experience and knowledge, These materials are liable to explode. unless they have been given supervision or instruction = Dust deposited on the power plug may cause fire. Wipe it concerning use of the refrigerator by a person responsible off carefully. for their safety. Young children should be supervised to

ensure that they do not play with the refrigerator.

Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.

Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.)

Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance With legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product

D | free of charge if you purchase a similar new one. *) Please contact your local authority for further details.

Attention: If your used electrical or electronic equipment has batteries or accumulators, please dispose Your product is marked of these separately beforehand according to local requirements. with this symbol. By disposing of this product correctly you will help ensure that the waste undergoes the It means that used necessary treatment, recovery and recycling and thus prevent potential negative effects on electrical and electronic the environment and human health which could otherwise arise due to inappropriate waste products should not handling.

be mixed with general household waste. There is a separate collection system for these products.

2. In other Countries outside the EU If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

(B144)-lest. indb 2 . 20/01/31 18:11:20

# Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leakage. Condensation may also build on the outer cabinet and cause rust.

= in order to prevent possible electric shock, connect the receptacle of earth to the earth terminal properly.

Keep adequate ventilation space around the refrigerator.

+ The figure shows the minimum required space for installing the refrigerator. The measurement condition of power consumption is conducted under a different space dimension.

By keeping greater space, the refrigerator may be operated under a less amount of power consumption.

If using the refrigerator in the smaller space dimension than the below figure, it may cause the temperature rise in the unit, loud noise and failure.

60mm 60mm or more or more

Use the two front adjustable feet, to ensure that the refrigerator is positioned firmly and flat on the floor.

SJ-RP320T SJ-WS320T SJ-RM320T SJ-WP320T SJ-RP360T SJ-WS360T SJ-RM360T SJ-WP360T Adjustable foot

Clip the foot cover (supplied inside the refrigerator compartment) in the position on the front of the two adjustable feet.

NOTE Position your refrigerator so that the plug is accessible. Keep your refrigerator out of direct sunlight.

Do not place next to heat generating appliance.

Do not place directly on the ground.

Provide suitable stand.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

+ Wipe up water in the evaporating pan. Before wiping up the water, wait more than 1 hour after pulling out the plug because the refrigeration cycle equipment is extremely hot. (The evaporating pan is located on the rear of the product.)

NOTE + Do not bend or damage the ductwork located on the inside of the evaporating pan. lt may cause failure.

+ The casters allow the refrigerator to move back and forth. + Carry the refrigerator by holding the handles located on the rear and the bottom.

When the door is heavy to open (Only for SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T) When one side door is heavy + When the left side is heavy, lower the right side adjustable foot. (Until the opposite side adjustable foot is slightly off-ground.)

+ When the right side is heavy, lower the left side adjustable foot.

When both sides are heavy

+ When the refrigerator is tilted backwards, insert a wooden board (with relatively large width), etc. between the rear of the refrigerator and the floor to adjust the tilting.

A wooden board (with relatively #7 large width)

(Only for SJ-RP320T, SJ-RM320T, SJ-RP360T, SJ-RM360T) Itis possible to change the door to left side opening. To modify the door a REFRIGERATOR HINGE KIT (for left side opening) will be required, SJ-LR320TD. For details of the kit and the modification work, please contact the service agent approved by SHARP.

CAUTION SHARP recommends that all modification work will be carried out by the approved service agent.

1 | Ji 25 sr 1.) ai > 19 2 —= 20 3—NEI KT À 7 21 2 | 1 TE x | a 22 4 | 4 ll ë 23 Chilled section 24 9 L EX 10 P NE —, 11 | | 1) 12 13 N 15 14 LL LIEN L2 J 25 16 18 _+ SJ-WS360T 1. LED lights 15. Freezer shelf À 2. Hybrid cooling panel (Aluminum panel) 16. Foot cover |. K The panel is cooled from the rear, thus indirectly cools 17. Casters (4 pes.) pi the refrigerator compartment. In this way, food is ï refrigerated gently, without exposing it to cold air flow. 18. Adjustable feet (2 pcs.) 3. Refrigerator shelves 19. Utility pocket cover [SAMSS20T-SRPS2OT : 2 pcs | 20. Utility pocket SJ-WP320T,SJ-RM320T * ° 21. Egg holder

EE el : 3 pcs. | 22. Door pockets (2 pes.)

SJ-WP860T,SJ-RM360T 23. Bottle stopper / Tube stand

4. Fruit & vegetable shelf Prevents bottles etc. from falling. The airflow to the vegetable Stick-type food products stored inside.

crisper can be controlled by 24. Bottle pocket 1 | |

moving the vent hole lever to A the right or left. 25. Magnetic door seals (2 pcs.)

5. Fruit & vegetable crisper _. - S P Deodorizing unit 6. Divider : ei : _—=; Deodorizing catalyst is installed on the routes of cold air. No 7. Shelf | _ operation and cleaning are required. 8. Chilled case 9. Control panel More foods can be stored by removing the following 40. Ice cube maker accessories as indicated in the figure below.

1) Do not over fill the ice cube trays; otherwise the ice cubes will be joined together when frozen.

2) When the ice cubes are made, turn the lever clockwise to empty the ice into the ice cube box.

Chilled case, Ice cube maker, Ice cube box, Freezer case (top & middle)

+ Ifthe refrigerator is operated with these accessories taken out, it will work under the most

Ice cube box 9 NOTE energy-efficient condition.

+ Please do not remove

To prevent damage to the ice cube box, do not make ice Freezer case (bottom).

in the ice cube box or pour oil into it. 11. Ice cube box 12. Freezer case (top) 13. Freezer case (middle) 14. Freezer case (bottom)

(B144)-llest. indb 4 . 20/01/31 15:11:22

1. Display for temperature setting The preset temperature of selected compartment is displayed. It is not the actual temperature in the compartment. 2. Display for controlling temperature The temperature of refrigerator and freezer can be selected. The indicator of the temperature will light when the compartment is selected to change its temperature. 3. Display for feature icon Icons of features in operation are displayed.

8 Child lock* + Express Freezing* # Power failure

( Vacation mode* (": Except for SJ-RM320T, SJ-RM360T)

4. Energy saving indication

This indication shows energy saving "ON". 5. Sound ON/OFF indication

This indication shows sound "OFF".

6. Door alarm indication This indication shows door alarm "ON". (Door alarm is only for the refrigerator compartment.)

The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the refrigerator compartment.

7. Select button Press to select feature icon and door alarm signal. 8. w | A button Press to select feature ON/OFF or temperature setting.

9. © (Enter) button Finalize the setting.

+ Features start automatically like right figure when inserting the power plug. .C Ë

(The initial content is only Door alarm

When there is no operation for 1 minute, the display will automatically return to the initial content.

Additionally, the display will be turned off when there is no operation for 1 minute.

When either of the button is pressed, the display will blink once and show the initial content. When the refrigerator stops with power failure, the display shows similarly as before having a power failure at the time of re-power distribution. However, when it has a power failure during operation of Express Freezing, the operation is stopped at the time of re- power distribution.

3 Press the > button.

C To cancel operation

It is the same method as starting operation. Press the w button in step 2. Se

+ There may be a slight odor in the refrigerator. This is the smell of ozone generated by the ionizer. The amount of ozone is minimal, and quickly decomposes in the refrigerator.

# Express Freezing (Except for SJ-RM320T, SJ-RM360T) ms

High-quality frozen foods can be made using this feature and is convenient for home-freezing.

1 Press the select button and select express freezing icon.

ti Vacation Mode (Except for SJ-RM320T, SJ-RM360T)

Use this feature when going on a trip or leaving the house for a long time.

1 Press the select button and select vacation mode icon.

LIN To cancel operation Press the w button in step 2.

The temperature inside the refrigerator compartment will be adjusted to about 10°C.

Food storage period in the refrigerator compartment becomes approx.1/2-1/3 of normal operation. Please utilize only when there is no perishable food.

Temperature of refrigerator compartment cannot be modified. ("10°C"is indicated on the display.)

Itis the same method as starting operation. Press the w button in step 2.

PUF FRE NOTE Express Freezing ends automatically in about 2 hours.

(The icon will disappear.)

Large foods cannot be frozen in a single operation.

Express Freezing may require more than 2 hours in the case operation overlaps with defrosting as operation is started after defrosting is completed.

Avoid opening the door as much as possible during operation of this feature.

4 Child Lock (Except for SJ-RM320T, SJ-RM360T)

Key operation of the control panel will be locked. Use this feature to prevent the panel from being used unintentionally by children or someone.

Press the select button and select the child lock icon.

INEELC DER Fresnine)

It is the same method as starting operation. Press the W button in step 2.

Controlling Temperature

The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows. l 2 3

Refrigerator compartment Freezer compartment Adjustable between 0°C and 6°C in steps of 1°C. Adjustable between -13°C and -21°C in steps of 1°C. 1 Press the select button and select [R] icon. 1 Press the select button and seleci icon. Flashing 136Ë Press the & / W button and set the temperature. Press the & / W button and set the temperature.

[A : increase, w : decrease ] [A : increase, W : decrease ]

+ During vacation mode is operating, this compartment cannot be set. ( "10°C" is indicated on the display. )

3 Press the © button. 3 Press the <> button.

‘ MAÉ -17, + + Ve eb «0

Advanced Setting of Refrigerator compartment The temperature of refrigerator compartment can be adjusted in steps of 0.5°C by following steps (D to (®) below.

D sets. GE @] Press button continuously for 3 seconds or more. 13 É € E

© Adjust the temperature in the same way as steps 2 to 3 above.

[2 Follow steps to @again if you want to adjust the temperature 11 DSEt

Indicator of Temperature

This refrigerator is provided with an indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

BLUE WHITE Coldest zone

The symbol indicates the coldest zone in Symbol the refrigerator compartment. ! (The door pocket positioned at the same

height isn't the coldest zone.) Checking the temperature in the

coldest zone Correct setting Temperature too high, adjust the refrigerator temp.

You can carry out regular checks to ensure the control.

temperature in the coldest zone is correct and, NOTE

if necessary, adjust the refrigerator temp. control. + The internal temperature of the refrigerator depends on

To maintain a correct temperature inside the appliance, various factors such as the ambient temperature of the

check that the indicator of temperature is always BLUE. room, the amount of food stored and the frequency of door

If the indicator of temperature turns WHITE, the opening.

temperature is too high: in this case, increase the + When fresh food has been introduced or the door has been

refrigerator temp. control setting and wait for 6 hours left open for some time, it is normal for the indicator of

before checking the indicator of temperature again. temperature to turn WHITE.

(B144)-llest. indb 7 . 20n/01/31 18:11:30

While this feature is operating, it will indicate the rise of inside temperature caused by power failure or something.

Press the select button and select the power failure icon. (The icon is orange.)

It is the same method as starting operation. Press the w button in step 2.

Indication of power failure

+ Atthe time of repower, if the inside temperature of the refrigerator and freezer compartment becomes as follows, R: more than 7°C, F: more than -10°C, power failure icon

Will blink slowly. 5 3#

+ Check the quality of food before you eat.

How to cancel the indicator blink Press the <ÿ button while the icons are blinking.

(B144)-llest. indb 8

+ When the refrigerator door is left open, the door alarm will sound.

The door alarm will sound in 1minute after opening the door and again after 1 minute (once in each case).

Ifthe door is left open for approx. 3 minutes, the alarm will sound continuously.

+ Atfirst, door alarm is set "ON".

Press the select button and select the door alarm indication like the below figure.

Door alarm indication Æ& :ON, W :OFF]

À The indication will disappear.

It is the same method as canceling operation. Press the Æ& button in step 2.

. 20n/01/31 15:11:31

Sound ON/OFF Use this feature to turn off the sound of key operation.

1 Press the w button and <> button simultaneously and

continuously for 3 seconds or more.

Lit shows the sound "OFF".

Use this feature when you want to switch the appliance to energy-saving operation.

1 Press the & button and © button simultaneously and

continuously for 3 seconds or more.

1 Le It shows Energy Saving "ON".

To cancel operation Press the Æ button and < button simultaneously and continuously for 3 sceconds or more again.

À The indication will disappear.

Press the # button and K02 button simultaneously and continuously for 3 sceconds or more again.

L The indication will disappear.

+ While this feature is operating, the inside temperature of the refrigerator and freezer compartment will be higher than the preset temperature as follows ; R: about 1°C, F: about 2°C. (If the preset temperature is set at R: 3°C, F: -18°C.)

The displayed temperature will not be changed.

The efficiency of power saving depends on the usage environment (controlling temperature, ambient temperature, frequency of opening or closing the door, amount of food).

If express freezing is operated at the same time, the efficiency of power saving will also change.

Cancel this feature when you feel the beverages are not cooled enough or ice making takes time.

Tips for saving energy

= Keep the ventilation space as much as possible around the refrigerator.

= Keep your refrigerator out of direct sunlight, and do not place next to heat generating appliance.

= Open your refrigerator door as briefly as possible.

= Hot foods should be cooled before storing.

# Place the food evenly on the shelves to allow the cooling air to circulate efficiently.

The amount of power consumption of this model is measured according to the international standard of the refrigerator

+ The amount of power consumption of this model is measured under the space dimensions on the right figure.

+ The amount of power consumption of this model is measured with some accessories taken out as indicated in the right figure.

Meat, Fish, Poultry etc.

Vegetables are improper L Bottles etc. in this case. They may be frozen.

| ï Frozen foods Frozen foods ——— (Small size) (Large size)

Refrigeration reduces the rate of food spoilage. NOTE To maximize the shelf life of perishable food products, .

ensure that the food is the freshest possible quality. The PE Aou tre Dane air to following is a general guide to help promote longer food circulate efficiently.

storage. + Hot foods should be cooled

before storing. Storing hot foods

increases the temperature in the Fruit / Vegetables unit and increases the risk of food To minimize moisture loss, fruit and vegetables should be spoilage. : ñ loosely enclosed in a plastic material e.g. wrap, bags (do Do not block the outlet and inlet o

£ the cool air circulating circuit with not seal) and place in the vegetable crisper. foods or containers: otherwise the

Dairy Products & Eggs foods will not be evenly cooled

+ Most dairy products have a use by date on the outer Ken ne done center dUced =) Y packaging which informs the recommended temperature : and shelf life of the product.

+ Eggs should be stored in the Egg holder.

REA Meats / Fish / Poultry D

+ Place on a plate or dish and cover with paper or plastic <F IN L \ wrap. OU = —

-+_ For larger cuts of meat, fish, or poultry, place to the rear of the shelves. Do not place food directly in front of

+ Ensure all cooked food is wrapped securely or placed in cold air outlet. This may lead to the food an airtight container. freezing.

+ Quality of foods should be fresh.

+ Freeze small quantities of food at a time to freeze them quickly.

+ Food should be properly sealed, sealed tightly or covered.

+ Evenly place the food in the freezer.

+ Label bags or containers to keep an inventory of freezing food.

= Unplug the refrigerator first to prevent electric shock. # Do not splash water directly on the outer cabinet or

the interior. This may lead to rusting and deterioration of the electrical insulation.

IMPORTANT To prevent cracking on inside surfaces and plastic

components, follow these tips.

+ Wipe any food oils adhered to plastic components.

+ Some household chemicals may cause damage,so use only diluted washing-up liquid (soapy water).

+ If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.

1 Remove the accessories e.g. shelves from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry.

2 Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water.

3 Wipe the exterior with a soft cloth each time it is soiled.

Clean the magnetic door seal with a toothbrush and warm soapy dishwashing water.

5 Wipe the control panel with the dry cloth.

+ To prevent damage to your refrigerator, do not use heavy duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.)

If the power supply is disconnected, please wait for at least 5 minutes before re-connecting power.

The glass shelves weigh approximately 2kg each. Hold firmly when removing from the cabinet or carrying.

When dropped the juice and the like near the control panel, wipe off directly. lt becomes cause of failure of the control panel.

Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.

Defrosting Defrosting is fully automatic due to a unique energy saving system.

When the compartment light is blown Contact the service agent approved by SHARP to request a replacement compartment light. The compartment light is not to be removed other than by qualified service personnel.

Switching off your refrigerator

If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

BEFORE Y LL FOR SERVICE Before you call for service, check the following points.

The outside of the cabinet is hot when touched.

Itis normal. The hot pipe is in the cabinet in order to prevent dew generation.

When there is refrigerator noise.

It is normal for the refrigerator to produce the following sounds. + Loud noise produced by the compressor when operation starts --- Sound becomes quieter after a while. + Loud noise produced once a day by the compressor --- Operating sound produced immediately after automatic defrost operation. Sound of flowing fluid (gurgling sound, fizzing sound) -- Sound of refrigerant flowing in pipes (sound may become louder from time to

Cracking or crunching sound, squeaking sound --- Sound produced by expansion and contraction of inner walls and internal parts

Frosting or dew generation occurs inside or outside the refrigerator.

This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.

+ When the ambient humidity is high.

+ When the door is frequently opened and closed.

+ When foods containing plenty of moisture are stored. (Wrapping is required.)

The foodfs in the refrigerator compartment freeze. 0°C?

- Is the refrigerator operated for a long time with refrigerator temp. control set at

- Is the refrigerator operated for a long time with freezer temp. control set at -21°C? + Low ambient temperature may cause placed foods to freeze even if refrigerator temp. control is set to 6°C.

It smells in the compartment.

+ Wrapping is required for the foods with strong smell. + Deodorizing unit cannot remove all of the smell.

IF YOU STILL REQUIRE SERVICE Refer to your nearest service agent approved by SHARP.

Plasmacluster. nm LUN <|]

(B144)-lest. indb 11 20n/01/31 18:11:52

(Solo per i modelli SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

SJ-RP320T SJ-WS320T SJ-RM320T SJ-WP320T SJ-RP360T SJ-WS360T SJ-RM360T SJ-WP360T Libera installazione

(Solo per i modelli SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

(SE NRS2OT ST RM20r SJ-WP320T,SJ-RM320T (RSS ST RO SJ-WP360T,SJ-RM360T

de congélation express. INEESC HEC Anne |

SJ-RP320T SJ-WS320T SJ-RM320T SJ-WP320T SJ-RP360T. SJ-WS360T SJ-RM360T SJ-WP360T Tipo isolado

(Movo y1aSJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

(Môvo yia SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

(D AziToupyia GIQKOTTUWV == (Exrôs arré SJ-RM320T, SJ-RM360T)

INSTALATIE WAARSCHUWING

of meer of meer 1040mm 1350mm

SJ-RP320T SJ-WS320T SJ-RM320T SJ-WP320T

il SJ-RP360T SJ-WS360T Vristaand type SJ-RM360T SJ-WP360T Gebruik de twee voorste stelvoetjes om te verzekeren dat de koelkast stevig en plat op de grond staat.

= [Æ: ON (WEACZONY), W: OFF (WYLACZONY)]

1040mm 1350mm SJ-RP320T SJ-WS320T SJ-RM320T SJ-WP320T SJ-RP360T SJ-WS360T pus SJ-RM360T SJ-WP360T

(Numai pentru SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

(Numai pentru SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

SJ-WP320T,SJ-RM320T *

9. © Buton (Introducere)

(B144)—East. indb 11

SJ-RP320T SJ-WS320T SJ-RM320T SJ-WP320T SJ-RP360T SJ-WS360T SJ-RM360T SJ-WP360T Volnë st proveden

(B144)—East. indb 11

(lba SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

: ON (ZAP), W: OFF (VYP)]

(B144)—East. indb 11

SJ-RP320T SJ-WS320T SJ-RM320T SJ-WP320T

SJ-RP320T SJ-WS320T SJ-RM320T SJ-WP320T SJ-RP360T SJ-WS360T SJ-RM360T SJ-WP360T

(B144)—East. indb 11

(B144)—East. indb 11

1040mm 1350mm SJ-RP320T SJ-WS320T SJ-RM320T SJ-WP320T SJ-RP360T SJ-WS360T SJ-RM360T SJ-WP360T

2 Pritisnite gumb A. [ Æ: ON (VKLOP), W: OFF (IZKLOP)]

3 Pritisnite gumb © .

2 Pritisnite gumb 2. [ N (VKLOP), W: OFF (IZKLOP)]

3 Pritisnite gumb © .

3 Pritisnite gumb ©. In ll

2 Pritisnite gumb W. [ Æ: ON (VKLOP), W: OFF (IZKLOP)]

(B144)—East. indb 11

a came 3ananoeTCa npaBuü

2 HarucHiTk kHonku A. [ A: ON

3 HarucHiTe kHonky D.

He GnokyBaTu BnyckHi i

(Camo 3a SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

He cTrtnBañTe BEPXy pOñKOBHA DUKCATOP Ha Pp3EPHOTO

(Camo SJ-WS320T, SJ-WP320T, SJ-WS360T, SJ-WP360T)

He maxaüre AonHOTO py3epHo oTaenenue.

* Honu3arop “Plasmacluster” =

j LINK Ft T BOF FRE FF

“BakaHLUOHEH pEKUM”. Len Mura

© L © ® NpH HATHCKAHETO UM. BkntouBaHe Ha 3ByKa

MyeLLa TEYHOCT (canyHEHA BOA).

(B144)—East. indb 11

(Toneki ana Magonaÿ SJ-WS320T, SJ-WP320T, SJ-WNS360T, SJ-WP360T)

30FF&O A: ON (Vun.), #7: OFF (Bbikn.) ]

[Æ: ON (Ykn.), W: OFF (Bbikn.) ]

LA: ON (Vu), W: OFF (Bbikn.) ]

BbikniousHHe Xanag3iñnbHikKa

(B144)—East. indb 11

TINS-B144CBRZ 11CK(THD@D
