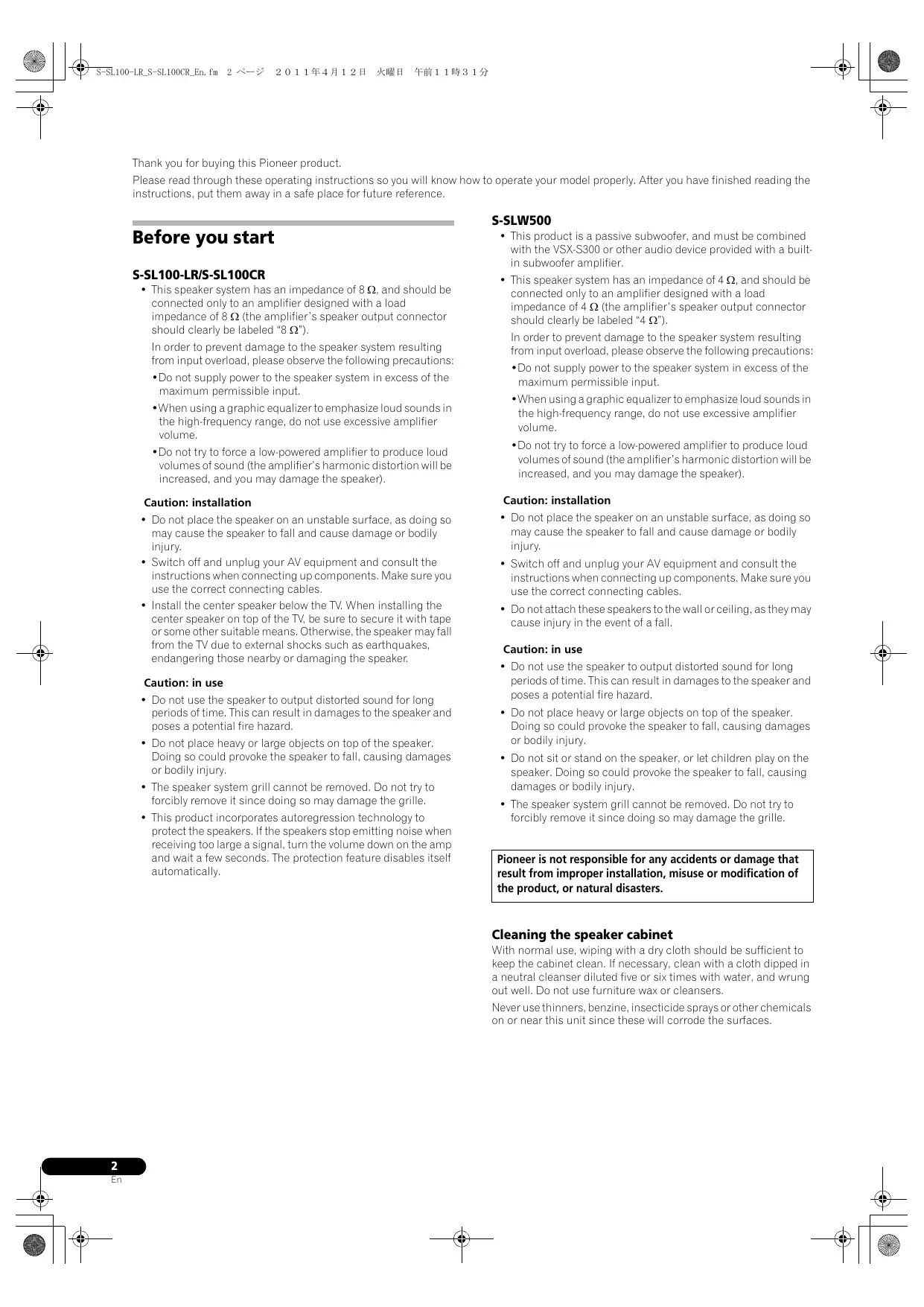

Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

• This product is a passive subwoofer, and must be combined with the VSX-S300 or other audio device provided with a builtin subwoofer amplifier.

S-SL100-LR/S-SL100CR

• This speaker system has an impedance of 4 Ω, and should be connected only to an amplifier designed with a load impedance of 4 Ω (the amplifier’s speaker output connector should clearly be labeled “4 Ω”).

• This speaker system has an impedance of 8 Ω, and should be connected only to an amplifier designed with a load impedance of 8 Ω (the amplifier’s speaker output connector should clearly be labeled “8 Ω”). In order to prevent damage to the speaker system resulting from input overload, please observe the following precautions: •Do not supply power to the speaker system in excess of the maximum permissible input. •When using a graphic equalizer to emphasize loud sounds in the high-frequency range, do not use excessive amplifier volume. •Do not try to force a low-powered amplifier to produce loud volumes of sound (the amplifier’s harmonic distortion will be increased, and you may damage the speaker). Caution: installation • Do not place the speaker on an unstable surface, as doing so may cause the speaker to fall and cause damage or bodily injury. • Switch off and unplug your AV equipment and consult the instructions when connecting up components. Make sure you use the correct connecting cables. • Install the center speaker below the TV. When installing the center speaker on top of the TV, be sure to secure it with tape or some other suitable means. Otherwise, the speaker may fall from the TV due to external shocks such as earthquakes, endangering those nearby or damaging the speaker. Caution: in use • Do not use the speaker to output distorted sound for long periods of time. This can result in damages to the speaker and poses a potential fire hazard. • Do not place heavy or large objects on top of the speaker. Doing so could provoke the speaker to fall, causing damages or bodily injury. • The speaker system grill cannot be removed. Do not try to forcibly remove it since doing so may damage the grille. • This product incorporates autoregression technology to protect the speakers. If the speakers stop emitting noise when receiving too large a signal, turn the volume down on the amp and wait a few seconds. The protection feature disables itself automatically.

In order to prevent damage to the speaker system resulting from input overload, please observe the following precautions: •Do not supply power to the speaker system in excess of the maximum permissible input. •When using a graphic equalizer to emphasize loud sounds in the high-frequency range, do not use excessive amplifier volume. •Do not try to force a low-powered amplifier to produce loud volumes of sound (the amplifier’s harmonic distortion will be increased, and you may damage the speaker). Caution: installation • Do not place the speaker on an unstable surface, as doing so may cause the speaker to fall and cause damage or bodily injury. • Switch off and unplug your AV equipment and consult the instructions when connecting up components. Make sure you use the correct connecting cables. • Do not attach these speakers to the wall or ceiling, as they may cause injury in the event of a fall. Caution: in use • Do not use the speaker to output distorted sound for long periods of time. This can result in damages to the speaker and poses a potential fire hazard. • Do not place heavy or large objects on top of the speaker. Doing so could provoke the speaker to fall, causing damages or bodily injury. • Do not sit or stand on the speaker, or let children play on the speaker. Doing so could provoke the speaker to fall, causing damages or bodily injury. • The speaker system grill cannot be removed. Do not try to forcibly remove it since doing so may damage the grille.

Pioneer is not responsible for any accidents or damage that result from improper installation, misuse or modification of the product, or natural disasters.

Cleaning the speaker cabinet With normal use, wiping with a dry cloth should be sufficient to keep the cabinet clean. If necessary, clean with a cloth dipped in a neutral cleanser diluted five or six times with water, and wrung out well. Do not use furniture wax or cleansers. Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit since these will corrode the surfaces.

The subwoofer can be mounted in either vertical or horizontal orientation. The factory default is horizontal orientation.

S-SL100-LR • Speaker cord (4 m) x 2 • Non-skid pads x 8

• Warranty card x 1 (European model only) • Operating instructions (this document)

S-SL100CR • Speaker cord (4 m) x 1 • Speaker cord (10 m) x 2 • Non-skid pads x 12 • Warranty card x 1 (European model only)

For vertical orientation installation

• Operating instructions (this document)

1 The feet are attached with Phillips screws; use a Phillips screwdriver to remove them.

2 Apply the accessory seals to the place the feet were located to hide the screw holes.

• Speaker cord (3 m) x 1 • Non-skid pads x 4

3 Apply the non-skid pads to the four corners of the surface where the subwoofer is to be mounted. Note that the nonskid pads may not be fully effective on all surfaces, so do not install in slippery locations.

• Seal x 4 • Warranty card x 1 (European model only)

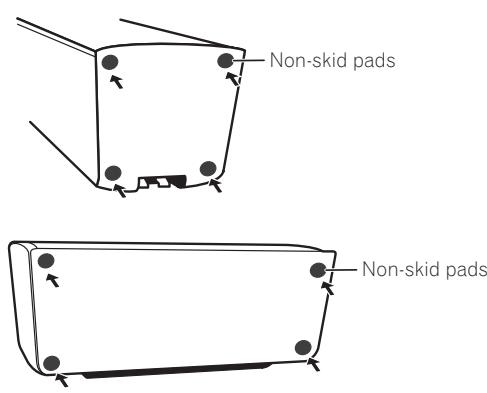

Installation S-SL100-LR/S-SL100CR Install non-skid pads Use the accessory non-skid pads as necessary, depending on your installation location.

Lay the unit on its side on soft cloth or other material that will not scar the unit.

Non-skid pads Step 3 Non-skid pads

･ Do not attempt to perform these procedures while tilting the unit at an angle. Lay the unit on its side on soft cloth or other material that will not scar the unit.

Installation example: Vertical orientation

• The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor, as the interaction of magnetic materials can cause distortion of the colors on your TV screen. Devices easily affected by magnetism (magnetic media cards, wrist-watches, video tapes, etc.) should not be placed near the subwoofer.

• When installing the speaker system on a TV rack or AV rack, the rack or other audio components may vibrate due to vibrations generated by the speaker. Caution should be taken to assure that the rack shelves or other components do not shift positions due to the vibration. • Do not place disc media (DVD, CD) players on top of the subwoofer since sound skipping may occur due to vibration.

• When installing, allow at least 10 cm space between the rear of the unit and any wall; when installing vertically, also allow at least 10 cm space between the unit's left side and any wall. If insufficient distance is taken, the unit may display inadequate performance, or may malfunction.

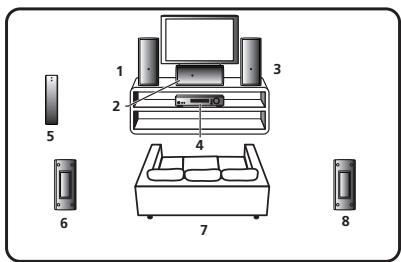

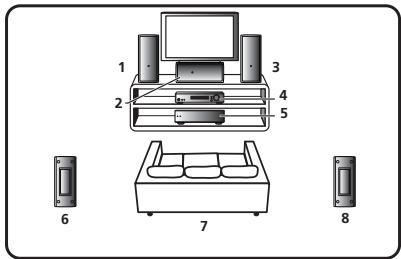

Front left speaker Center speaker Front right speaker Receiver Subwoofer Surround left speaker Listening position Surround right speaker

S-SL100-LR/S-SL100CR • Front speakers installed to the right and left should be separated by about 1.8 m to 2.7 m distance. They should be installed at equal distances from the television, and at equal heights from the floor. • Optional speaker stands can be purchased to facilitate optimal mounting of the surround speakers at or slightly above the listener’s ear height. • The surround effect will be diminished if the surround speakers are mounted at extreme distances from the listener’s position. • This speaker system furnished in this system are designed for use close to a CRT-based TV or color monitor. However, if color distortion is caused due to the installation, try turning off the power to the CRT-based TV or color monitor for 15 to 30 minutes, then turning on the power again. The selfdegaussing function built into the CRT-based TV or color monitor should help ameliorate the effect of the speakers on the image. If color distortion continues to be a problem, separate the speakers farther away from the screen. If magnets or devices emitting magnetic fields are installed nearby, the interactive effect with the speaker system may cause color distortion in a CRT-based TV or color monitor.

S-SLW500 • The subwoofer reproduces ultra-low sounds in monaural, using the fact that the human ear has little directional sensitivity to sounds in the low frequencies. As a result, the subwoofer can be located in a variety of places, but if placed too distant, the linkage between sounds of the subwoofer and other speakers may seem unnatural. The intensity of the sound from the subwoofer can be adjusted by changing the distance from the wall.

• Since the speaker system is heavy, installation in unstable locations is extremely dangerous and should not be attempted. A falling speaker may cause damage or personal injury.

Wall mounting the speakers (S-SL100-LR/S-SL100CR) The front, center and surround speakers have a mounting hole which can be used to mount the speaker on the wall.

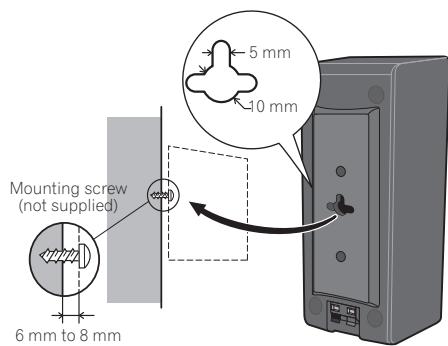

Before mounting • Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls. • Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

• If you are unsure of the qualities and strength of the wall, consult a professional for advice. • Pioneer is not responsible for any accidents or damage that result from improper installation.

Mounting screw (not supplied)

• Do not mount this product on a wall or hang from a ceiling. If the unit falls it may result in personal injury.

1 Attach one end of the supplied speaker cord to the rear of the each speaker.

Enclosure. . . . . . . . Closed-box bookshelf type (magnetically shielded) Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 10 cm x 7 cm, full range Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Ω Frequency range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 Hz to 20 kHz Sensitivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81 dB Maximum input power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 W Exterior dimensions . . . . . . 86.5 (W) mm x 206 (H) mm x 85.5 (D) mm Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7 kg

• Connect the wire with the colored marker to the red (+) terminal; the plain wire to the black (–) terminal. Press down the spring-loaded tab and insert the wire, as shown below. Release the tab to secure the wire. Black (–)

Supplied accessories (S-SL100CR) 2 Connect the other ends of the cords to the amp’s speaker output terminals (for more details, refer to your amp instruction manual).

Speaker cord (4 m) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Speaker cord (10 m) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Non-skid pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Warranty card (European model only) . . . . . . . . . . . . . . . . . . . . . . . . . 1 Operating instructions (this document)

S-SLW500 • These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cords, disconnect the power cord before touching any uninsulated parts. • After connecting the plugs, pull lightly on the cords to make sure that the ends of the cords are securely connected to the terminals. Poor connections can create noise and interruptions in the sound. • If the cords’ wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the receiver. This may cause the amp to stop functioning, and may even damage the receiver. • When using a set of speakers connected to an receiver, you won’t be able to obtain the normal stereo effect if the polarity (+, –) of one of the speakers (left or right) is reversed.

Supplied accessories Speaker cord (3 m) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Non-skid pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty card (European model only) . . . . . . . . . . . . . . . . . . . . . . . . .

• The S-SL100-LR is shipped with two speaker systems per package.

Operation (S-SL100-LR/S-SL100CR)

• The S-SL100CR is shipped with three speaker systems per package.

Since the S-SL100-LR/S-SL100CR are designed as compact satellite speakers, it is recommended that they be used in combination with a sub-woofer to provide full base sound. In this case, set your amplifier (receiver) speaker setting to “small” and the crossover frequency to 200 Hz.

• Specifications and design subject to possible modification without notice, due to improvements.

is a trademark placed on a product with Pioneer’s Phase Control technology. This technology enables high-grade sound reproduction through each component by improving overall phase matching.
