Product Type	5.1 Channel Home Cinema Audio System
Brand	Pioneer
Model	HTP206
Output Power	130 W per channel (6 ohms, 1 kHz, 1% THD)
Speaker Impedance	6 to 16 ohms
Supported Audio Formats	Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, PCM (32-192 kHz), MP3, WMA, AAC
HDMI Connectivity	2 inputs, 1 output with ARC
Audio Inputs	1 coaxial, 1 optical, 1 analog (RCA), 1 USB
Bluetooth	Yes, version 2.1+EDR, range 10 m
Tuner	FM/AM with 30 presets
Automatic Calibration	MCACC with supplied microphone
Power Supply	220-240 V, 50/60 Hz
Standby Power Consumption	0.3 W
Dimensions (W x H x D)	435 x 148 x 320 mm
Weight	8.2 kg
Supplied Accessories	Remote control (RC-929R), batteries, FM antenna, AM loop antenna, setup microphone, speaker and subwoofer cables
Maintenance and Cleaning	Disconnect the device before cleaning. Use a soft dry cloth. Do not use abrasive or liquid products.
Safety	Do not block the ventilation slots. Leave at least 40 cm of space above, 20 cm at the back and on the sides. Do not expose to moisture.
Spare Parts and Repairability	Contact Pioneer after-sales service. Do not open the device. Only use original parts.
General Information	Made in Vietnam. CE marking. Reduced standby power consumption.

Frequently Asked Questions - HTP206 PIONEER

How do I connect the system to my TV?

Use an HDMI cable between the receiver's HDMI (ARC) output and the TV's ARC input. Make sure to enable ARC in the HDMI Setup menu (set ARC to ON). For TV sound, press the TV button on the remote control.

Why is there no sound from the subwoofer?

If the front speakers are set to LARGE, the subwoofer may not output sound. Change the front speaker setting to SMALL or set the subwoofer to PLUS in the Manual SP Setup menu. Also check that the subwoofer is on and the volume is sufficient.

How do I reset the receiver to factory settings?

Put the device into standby. Press and hold the BAND button while pressing STANDBY/ON for about 2 seconds. When 'RESET?' appears, press AUTO SURROUND/STREAM DIRECT, then ALC/STANDARD SURR to confirm.

How do I pair my smartphone via Bluetooth?

Press the BT button on the remote. Enable Bluetooth on your smartphone and select 'Pioneer AV Receiver' from the list. If a password is requested, enter '0000'. The connection is established when 'CONNECT' is displayed.

What should I do if the device suddenly turns off?

Check that no bare speaker wire is touching the rear panel or another wire. If so, reconnect the cables properly. Also check the Auto Power Down setting in the menu. If the problem persists, contact after-sales service.

How do I select the correct input source?

Press the INPUT SELECTOR button corresponding to the jack name to which the source device is connected (e.g., BD/DVD, CBL/SAT, etc.). Make sure the TV displays the correct input.

What audio formats are supported via HDMI?

The receiver supports Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS 96/24, DTS Express, DTS-HD Master Audio, PCM (32-192 kHz), SACD (DSD 2-channel) and DVD Audio (up to 192 kHz).

How do I automatically set up the speakers with MCACC?

Place the setup microphone at the listening position and plug it into the SETUP MIC jack. Turn on the subwoofer and increase its volume. Press HOME MENU, select Full Auto MCACC, then confirm with ENTER. Test tones will be emitted and optimal settings applied.

Can I listen to the radio without an antenna?

No, an antenna is necessary. Use the supplied AM loop antenna for the AM band and the FM wire antenna for FM. Move the antennas to optimize reception.

How do I play music from a USB flash drive?

Plug the USB flash drive into the front USB port. Playback of the first file starts automatically. To navigate, press RETURN to display the file list, use the cursor buttons to select, then press ENTER to start playback. Supported formats: MP3, WMA, AAC.

USER MANUAL HTP206 PIONEER

AV Receiver / Amplificateur AV VSX-531

For detailed descriptions of this unit, see the "Operating Instructions". (En)

http://www.pioneer-audiovisual.com/manual/vsx531/euen.pdf

Front Right Speaker Front Left Speaker Center Speaker Surround Right Speaker Surround Left Speaker Subwoofer

1 2 3

En

Front Speakers, Center Speaker

Front speakers output front stereo sound and a center speaker outputs center sound such as dialogs and vocals.

The optimal positioning is for front speakers to be at ear height. Center speaker should be set up facing the listening position.

Fr

120° 120°

En

Surround Speakers

Surround speakers create back sound field.

The optimal positioning is just above ear height.

Fr

Simple diagram with checkmarks and a signature symbol, likely for approval or verification purposes.

En

Subwoofer

Subwoofer reproduces bass sounds and creates rich sound field.

Place it anywhere in the front of the listening position. Placing it between the center speaker and either of the front speakers enables more natural playback of music sources.

Fr

Caisson de basse

The power cord must be connected only after all other connections are completed.

Connect speakers with 6 Ω to 16 Ω impedance. Match the + and - terminals on this unit with the + and - terminals on the speakers when connecting. After all connections are complete, make speaker settings in "Automatic Speaker Setting (MCACC) (→ 12)".

Fr

Diagram illustrating various types of electrical connectors and wiring, including no-prohibited symbols and various cable configurations.

En

Make sure the exposed wires of the speakers do not stick out of the speaker terminals when connecting. If the exposed wires of the speakers touch the rear panel or the + and - wires touch each other, the protection circuit will be activated.

Fr

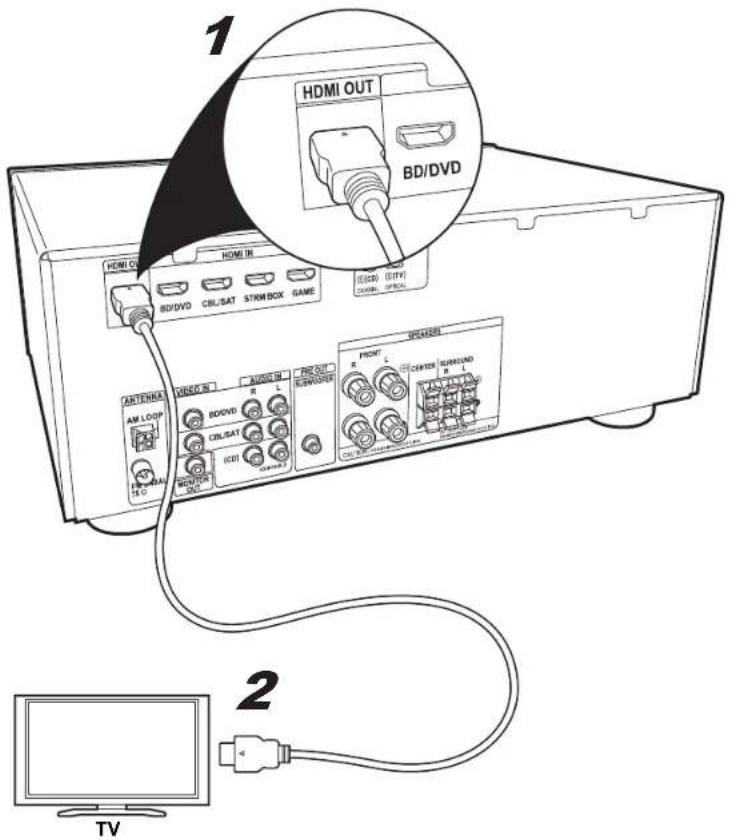

TV-1 (ARC TV) / TV-1 (TV ARC) / TV-1 (TV ARC)

HDMI OUT BD/DVD

HDMI IN 1/ARC 2 3

HDMI IN (ARC)

1 HDMI OUT BD/DVD HDMI OUT BID/DVD CBL/SAT STROM BOX GAME CCDCD (E-TV) CCDCN (SP/NC) ANTENKE AM LOOP R AUSB IN BDOVD CBL/SAT PROJ MEMPUER FRONT R C CEMTER SURROUND R CCL BCD SUNION 2 TV

En

This describes the connections for a TV that supports the ARC (Audio Return Channel) feature. With this connection, set ARC to ON in "HDMI Setup ( 12)". To hear audio from the TV, press TV on the remote control.

• This unit does not support linked operations with other devices.
- Please refer to the TV's operation manual for directions on connections and setup for the TV.

Fr

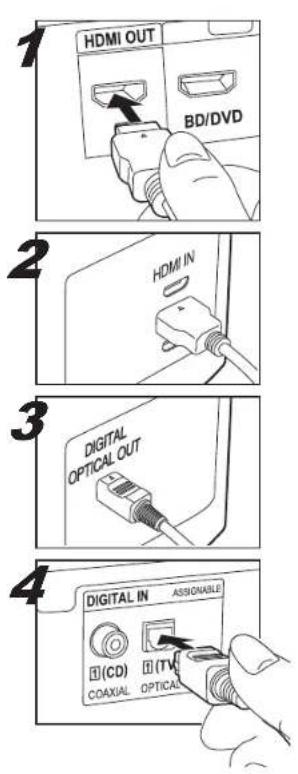

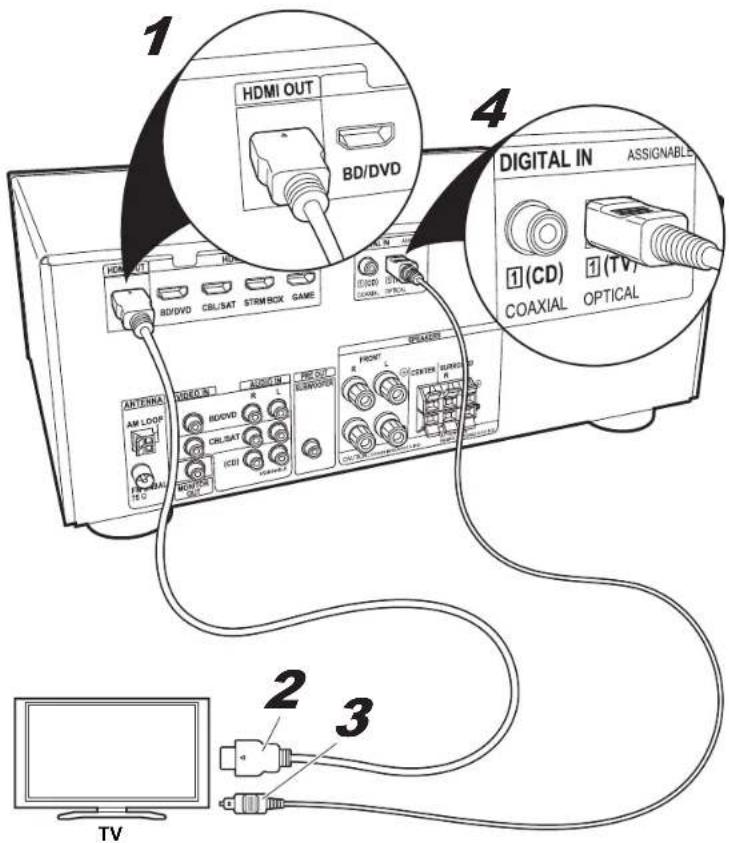

TV-2 (Non-ARC TV) / TV-2 (TV Non-ARC) / TV-2 (TV no ARC)

1 HDMI OUT BD/DVD 80/600V CD/SAT STRM BOX GAME DIGITAL IN ASSIGNABLE 1(CD) 1(TV) COAXIAL OPTICAL 2 3 TV

1-2 HDMI cable/Câble HDMI/Cable HDMI, 3-4 Optical cable/Câble optique/Cable óptico

En

This describes the connections for a TV that does not support the ARC (Audio Return Channel) feature.

Connect using an optical cable along with a HDMI cable.

To hear audio from the TV, press TV on the remote control.

- Please refer to the TV's operation manual for directions on connections and setup for the TV.

Fr

1 BD/DVD 2 HDMI CUT HDMI IN ANTERRA AM LOOP FRONTAL TDG R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R SUPPORTS FRONT L CENTER SURROUND N N N N N N N N N N N N N N N N N N N N N N N N

Cable/Satellite set-top box/ Décodeur câble/satellite/ Decodificador de cable/satélite
Streaming media player/ Lecteur de contenu multimédia en flux/ Reproductor multimedia de flujo de datos continuo

En

To play the player, press INPUT SELECTOR on the remote control with the same name as the jack to which you connected the player so that the input on the unit is selected.

• This unit does not support linked operations with other devices.

Fr

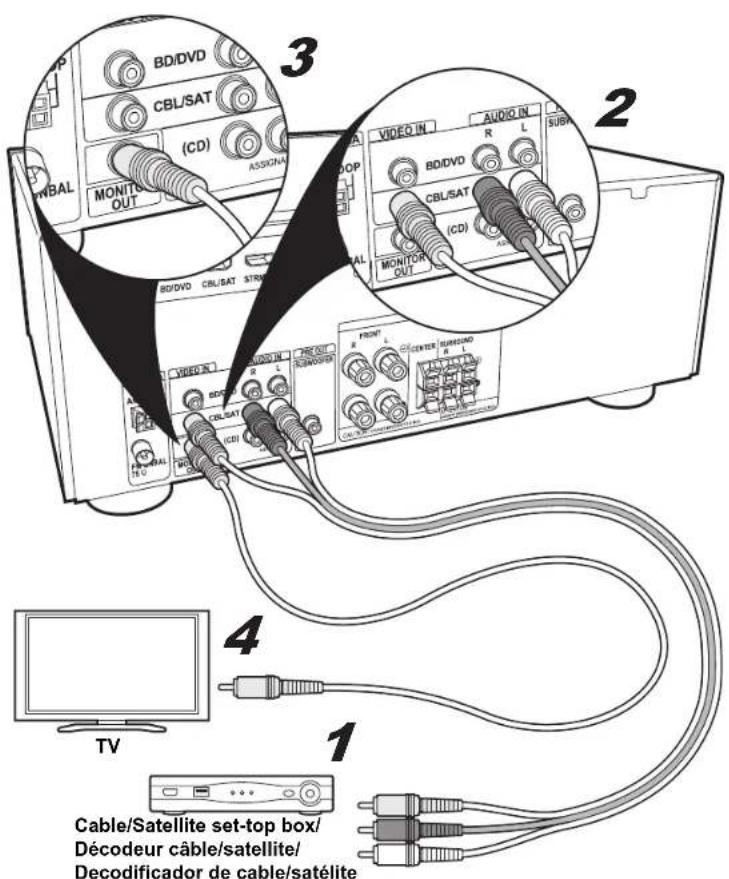

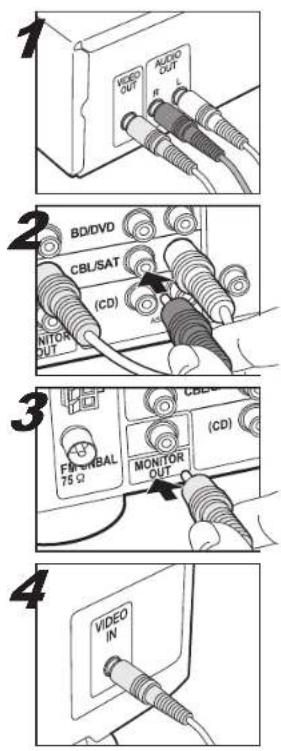

AV Component (Non-HDMI) / Appareil AV (Non-HDMI) / Componente AV (No HDMI)

3 2 4 1 Cable/Satellite set-top box/ Décodeur câble/satellite/ Decodificador de cable/satélite

En

When making this connection, the setup screen for this unit is not displayed on the TV. Perform the settings while looking at the display on this unit. To play the player, press INPUT SELECTOR on the remote control with the same name as the jack to which you connected the player so that the input on the unit is selected.

Fr

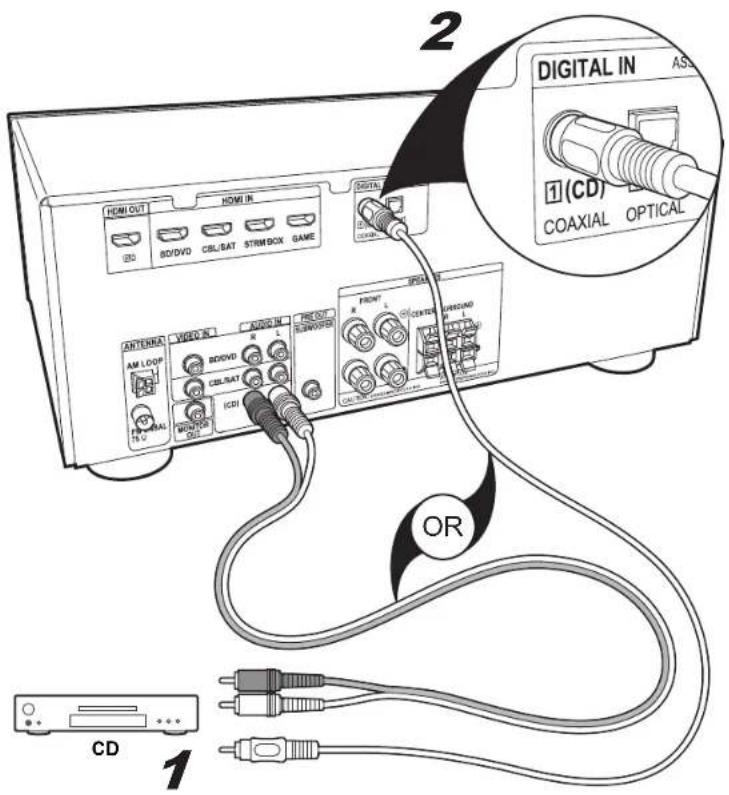

AUDIO OUTPUT DIGITAL OPTICAL COAXIAL DIGITAL IN ASSIGNABLE (CD) E (TV) COAXIAL OF

2 DIGITAL IN AS 1(CD) COAXIAL OPTICAL OR CD 1

En

Connect using a coaxial cable or analog audio cable.

To play the player, press CD on the remote control.

Fr

Move the antenna around while playing the radio to find the position with the best reception. Use a thumb tack or similar to attach the FM wire antenna to a wall.

Simple line drawing of a computer monitor with an arrow on the screen (no text or symbols)

Fr

Connect the power cord to the power outlet after completing all other connections. Switch between on and standby using ⏻ RECEIVER on the remote control or ⏻ STANDBY/ON on the main unit.

Fr

SETUP MIC

A REGISTER 12 CDD 80 SAT COL STREAMBOX ECON DARAY

d c b AUTO AIR AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO ZERO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO OTHER

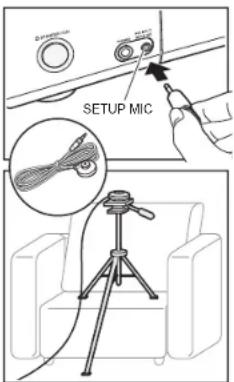

Automatic Speaker Setting (MCACC)

Position the supplied setup microphone in the listening position to automatically make the optimum settings to suit the environment of the room, such as the speaker connections and volume level.

• Before starting, turn the subwoofer on and raise the volume.
• Switch the input on the TV to that assigned to the unit.
• Connect the setup microphone to the SETUP MIC jack of the main unit, and place it in the listening position.
• Press BD (a).
• Press HOME MENU (b).
• Select Full Auto MCACC, and press ENTER (c).
• Select the item with the cursors of the remote control and press ENTER to confirm your selection (c). To return to the previous screen, press RETURN (d).

Home Menu ► 1.Full Auto MCACC 2.Manual SP Setup 3.Input Assign 4.Auto Power Down 5.HDMI Setup Return

1. Press ENTER (c) again.

- Test tones are emitted by the speakers, and firstly the unit detects the speakers connected and the noise in the environment.

1. After the results of the above measurements are displayed, the test tones are emitted again, and the unit automatically makes settings such as the optimum volume level and the crossover frequency. The Home Menu is displayed once all the settings are complete.

a b c HOMO MENU RETURN OUTPUT AUTO TOLER 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106

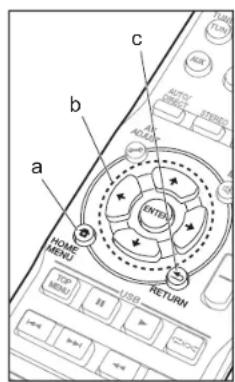

HDMI Setup

ARC

When connecting to a TV that supports ARC (Audio Return Channel), enable the ARC feature.

1. Switch the input on the TV to that assigned to the unit.
2. Press HOME MENU (a).
3. Select HDMI Setup, and set ARC to ON in the next screen.

- Select the item with the cursors of the remote control and press ENTER to confirm your selection (b). To return to the previous screen, press RETURN (c).

5. HDMI Setup ► a. ARC b. Standby Through [ LAST ] c. 4k60p Setting Return

1. To exit setup, press RETURN (c).

- You may need to change some TV settings to use the ARC feature. Please refer to the TV's operation manual for directions on connections and setup for the TV.

Standby Through

When the receiver is in standby, the HDMI input signal selected here will be output to the TV by HDMI. Select from the following Standby Through items to set.

LAST: The HDMI input signal selected previously will be output.

BD/DVD, CBL/SAT, STRM BOX, GAME: The

HDMI input signal selected here will be output

OFF: Signal will not be output during standby.

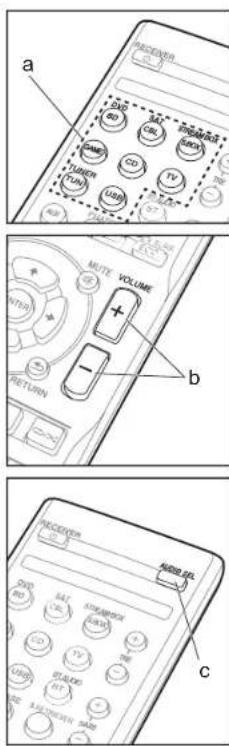

Playback

Basic Playback

1. Switch the input on the TV to that assigned to the unit.
2. Press INPUT SELECTOR (a) on the remote control with the same name as the jack to which you connected the player to switch the input.
3. Start play on the player.
4. Use VOLUME +/- (b) to adjust the volume.

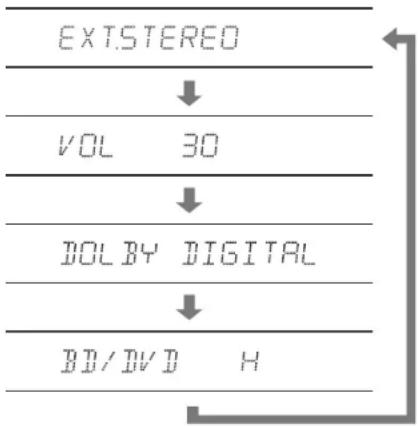

5. You can switch the audio to suit the connected cable. Press AUDIO SEL (c) to select H (HDMI cable), C1 (coaxial cable), O1 (optical cable), or A (analog audio cable).

a TAKEN RUN

Listening To the Radio

1. Press TUN (a).
2. Press BAND (b) several times to select either AM or FM.
3. Press and hold TUNE+ or TUNE− (c) for about a second to start automatic tuning to a radio station. Tuning stops when one is found.

You can preset up to 30 stations.

1. Tune into the AM/FM radio station you want to register.
2. Press EDIT (d) so that the preset number on the display flashes.
3. Press PRESET+ or PRESET- (e) to select a number between 1 and 30 while the preset number is flashing.
4. Press ENTER (f) to confirm.

- To select a preset radio station, press TUN (a) then press PRESET+ or PRESET− (e).

a DVD BD LAD CAL STRAWBUSH LINE FLUOR FLASH CD TV R BLADO RST PAUSE A ELECTRONIC

Bluetooth Bluetooth Pioneer AV Receiver

a b c AUTO AV 400V STOCK MUTE VOLUME + - RETURN

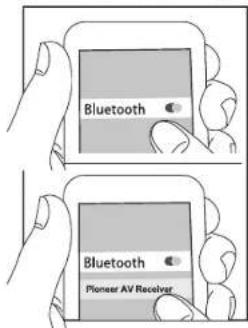

BLUETOOTH® Playback

You can wirelessly enjoy music files stored in a smartphone or other BLUETOOTH-enabled device. The coverage area is about 33 feet (10 meters).

- Note that connection is not always guaranteed with all BLUETOOTH-enabled devices.

1. Press BT (a)
2. Enable (turn on) the BLUETOOTH function of the BLUETOOTH-enabled device.
3. On the screen, etc., of the BLUETOOTH-enabled device, select "Pioneer AV Receiver". After a short time "CONNECT" is displayed and pairing is completed.
4. If a password is requested, enter "0000".
5. Play some music on the BLUETOOTH-enabled device. Increase the volume of the BLUETOOTH-enabled device to an appropriate level.

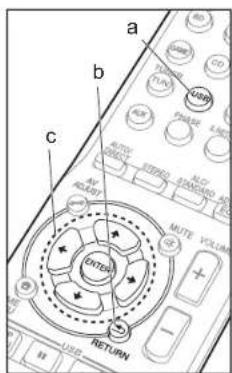

Playing a USB Device

Play music files on a USB storage device. This unit supports play of WMA/MP3/MPEG-4 AAC music files.

• Note that operation is not guaranteed with all USB storage devices.
• Switch the input on the TV to that assigned to the unit.
• Press USB (a).
• Connect the USB storage device to the USB port on the main unit.

- Play of the first file starts automatically when the USB storage device is detected.

1. To play another file, press RETURN (b) to display the list of files and folders on the TV, then use the cursors to select and ENTER to confirm (c).

- If characters that cannot be read are recorded on the USB file, they are replaced with >marks.

d b c d S2D RD MAT GRL GAMM TURGER 1000 STRAWB RST PHASE LED/SPRING AUTO DRAGON STEERD STOCKEER ON BURN IN ALABUS MILIE

About Listening Modes

The default setting is for the EXT.STEREO mode to be selected which plays a stereo image from the front and rear, irrespective of the input audio format.

ALC/STANDARD button (a)

You can select the Dolby Digital and DTS listening modes. When the input signal is multi-channel, the listening mode switches to Dolby Digital or DTS-HD MasterAudio, for example, to suit the input audio format. When the input signal is 2-channel, you can select the DOLBY PRO LOGIC, DOLBY PLII MOVIE/MUSIC/GAME and NEO:6 CINEMA/MUSIC listening modes which expand playback to 5.1 channels. Select STEREO ALC to play at a balanced level even when there are differences in sound level between tracks, for example.

AUTO/DIRECT button (b)

You can select listening modes such as AUTO SURROUND, DIRECT, and PURE DIRECT that play the sound field according to the number of channels in the input signal. The DIRECT mode bypasses circuits that can affect sound quality, such as the tone control circuits, so you can enjoy even better sound quality. The PURE DIRECT mode allows you to shut down additional circuits and processing that affect sound quality.

STEREO button (c)

You can select the STEREO mode to playback only from the front speakers and subwoofer.

ADV SURR button (d)

You can select original surround modes such as the EXT.STEREO and DRAMA modes.

Press STATUS (e) several times to check various settings in the following order: listening mode → volume → input audio format → input source.

You can also see which audio format is being input by checking the indicators in the lower part of the display.

DTS HD 96/24 NEO:6 HD D+PLII

This unit is compatible with the following digital audio formats. (with HDMI connection)

• Dolby Digital
  • Dolby Digital Plus
• Dolby TrueHD
  • DTS
  • DTS 96/24
• DTS Express
  • DTS-HD MasterAudio
  • PCM (32 kHz to 192 kHz sampling frequencies)
  • SACD (DSD 2ch only)
  • DVD Audio (including 192 kHz)

Important: The listening modes may not be available depending on the current source, settings and status of the receiver.

Troubleshooting

• When a sound can not be heard from center and rear speakers, press ALC/STANDARD or ADV SURR to change listening modes. E.g.) Press ADV SURR for several times to select EXT STEREO.
• In order to listen to the audio from the source component that is connected to this receiver, press AUDIO SEL to select H (HDMI cable), C1 (coaxial cable), O1 (optical cable), or A (analog audio cable).
• If there is no sound from the subwoofer: When the front speaker is set to LARGE then, in some cases, no sound may come from the subwoofer. Change the front speaker setting to SMALL or change the subwoofer to PLUS and the sound should be restored.
• If the power suddenly turns off:
• Check that there are no loose strands of speaker wire touching the rear panel or another set of wires. If so, re-attach the speaker wires, making sure there are no stray strands.
• When Auto Power Down is set, the power automatically turns off at the set time.
• We will not accept responsibility for any damage arising from the connection of equipment manufactured by other companies.

Resetting the Main Unit

Use this procedure to reset all the receiver's settings to the factory default. Use the front panel controls to do this.

1. Switch the receiver into standby.

2. While holding down BAND, press and hold ⏻ STANDBY/ON for about two seconds.

3. When you see RESET? appear in the display, press AUTO SURROUND/STREAM DIRECT. OK? shows in the display.

4. Press ALC/STANDARD SURR to confirm.

Configuration

SETUP MIC

a RACKOVER 22 ADD 80 SAY CBL STREAMBOX ELECTRIC GAMPO

d c b AUTO AIRS ENTER HDMI MENU RETURN TOP MENU U-SD
