USER MANUAL HTS260 PIONEER

Operating Instructions Mode d’emploi HTS-260 SX-SW260 S-ST404 Audio Multi-channel Receiver SubwooferCaisson de basse de rècepteur multi-voies audioSpeaker SystemEnceintes Acoustiques Register Your Product at www.pioneerelectronics.com (US) www.pioneerelectronics.ca (Canada) SX-SW260_KU.book Page 1 Wednesday, March 29, 2006 2:43 PMThe exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.CAUTION:TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCKDO NOT OPEND1-4-2-3_En IMPORTANT NOTICE – THE SERIAL NUMBER FOR THIS EQUIPMENT IS LOCATED IN THE REAR. PLEASE WRITE THIS SERIAL NUMBER ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SECURE AREA. THIS IS FOR YOUR SECURITY. D1-4-2-6-1_En NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

WARNING – TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE. D1-4-2-1_En CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. D8-10-3a_En AVERTISSEMENT Cet appareil n’est pas étanche. Pour éviter les risques d’incendie et de décharge électrique, ne placez près de lui un récipient rempli d’eau, tel qu’un vase ou un pot de fleurs, et ne l’exposez pas à des gouttes d’eau, des éclaboussures, de la pluie ou de l’humidité. D3-4-2-1-3_A_Fr SX-SW260_KU.book Page 2 Wednesday, March 29, 2006 2:43 PMREAD INSTRUCTIONS — All the safety and operating instructions should be read before the product is operated. RETAIN INSTRUCTIONS — The safety and operating instructions should be retained for future reference. HEED WARNINGS — All warnings on the product and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS — All operating and use instructions should be followed. CLEANING — The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet. ATTACHMENTS — Do not use attachments not recommended by the product manufacturer as they may cause hazards. WATER AND MOISTURE — Do not use this product near water — for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. ACCESSORIES — Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. CART — A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. VENTILATION — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. POWER SOURCES — This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. LOCATION – The appliance should be installed in a stable location. NONUSE PERIODS – The power cord of the appliance should be unplugged from the outlet when left un-used for a long period of time.

GROUNDING OR POLARIZATION

• If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

• If this product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin, it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug. POWER-CORD PROTECTION — Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. OUTDOOR ANTENNA GROUNDING — If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A. LIGHTNING — For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. POWER LINES — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. OVERLOADING — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. OBJECT AND LIQUID ENTRY — Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. SERVICING — Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. DAMAGE REQUIRING SERVICE — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the product.

• If the product has been exposed to rain or water.

• If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

• If the product has been dropped or damaged in any way.

• When the product exhibits a distinct change in performance — this indicates a need for service. REPLACEMENT PARTS — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. SAFETY CHECK — Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. WALL OR CEILING MOUNTING — The product should not be mounted to a wall or ceiling. HEAT — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. GROUND CLAMP ELECTRIC SERVICE EQUIPMENT ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS

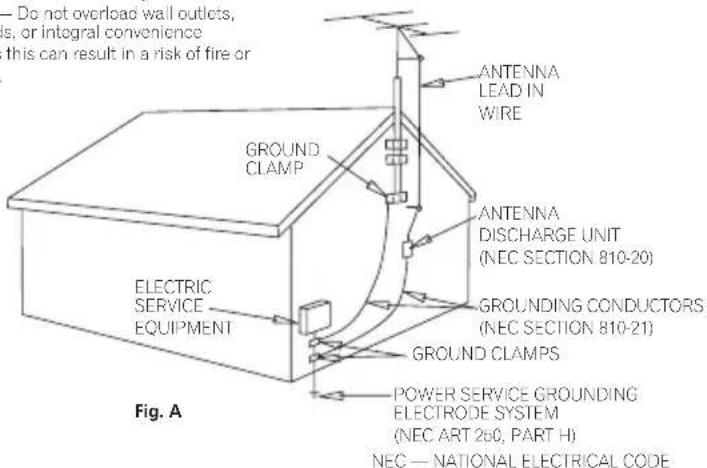

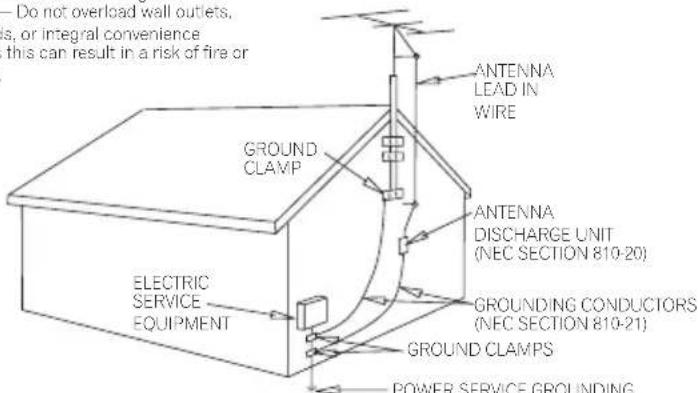

POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

NEC — NATIONAL ELECTRICAL CODE

Fig. A D1-4-2-2_En This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_En

his product contains mercury. Disposal of this material may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance : www.eiae.org. K057_En SX-SW260_KU.book Page 3 Wednesday, March 29, 2006 2:43 PMWARNING: Handling the cord on this product or cords associated with accessories sold with the product will expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm.D36-P4_A_En Wash hands after handling Ce produit est destiné à une utilisation domestique générale. Toute panne due à une utilisation autre qu'à des fins privées (comme une utilisation à des fins commerciales dans un restaurant, dans un autocar ou sur un bateau) et qui nécessite une réparation sera aux frais du client, même pendant la période de garantie. K041_FrFor U.S. and Australia ModelC67-7-3_En POWER-CORD CAUTION Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. S002_En

A DECOUVVERT. D2-4-4-1_EF This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. D8-20-1_EF SX-SW260_KU.book Page 4 Wednesday, March 29, 2006 2:43 PMS001_EnSelecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing.Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.To establish a safe level: • Start your volume control at a low setting.• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.Once you have established a comfortable sound level:• Set the dial and leave it there.Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime. We Want You Listening For A Lifetime Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’sConsumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.DecibelLevel Example 30 Quiet library, soft whispers 40 Living room, refrigerator, bedroom away from traffic 50 Light traffic, normal conversation, quiet office 60 Air conditioner at 20 feet, sewing machine 70 Vacuum cleaner, hair dryer, noisy restaurant 80 Average city traffic, garbage disposals, alarm clock at two feet.THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE 90 Subway, motorcycle, truck traffic, lawn mower 100 Garbage truck, chain saw, pneumatic drill 120 Rock band concert in front of speakers, thunderclap 140 Gunshot blast, jet plane 180 Rocket launching padInformation courtesy of the Deafness Research Foundation. What’s in the box Please confirm that the following items are all supplied. Receiver subwoofer (SX-SW260) box: • Remote control (page 15)• AA/R6 dry cell batteries (to confirm operation) x2 (page 16)• Display unit (page 14)• Power cord (page 12)• AM loop antenna (page 11)• FM wire antenna (page 11)• Display cable (page 11)• Coaxial cable (page 27)• Microphone (for Auto MCACC setup) (page 17)• These operating instructions• Warranty card Speakers (S–ST404) box: • Speakers (front x2, surround x2, center x1) (page 12)• Speaker cables x5 (page 11)• Non-skid pads (large) x4 (page 7, 8)• Non-skid pads (small) x20 (page 7, 8)• Speaker stands x2 (page 8)• Screws (for speaker stands) x2 (page 8) English

SX-SW260_KU.book Page 5 Wednesday, March 29, 2006 2:43 PMContents

Thank you for buying this Pioneer product. Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference

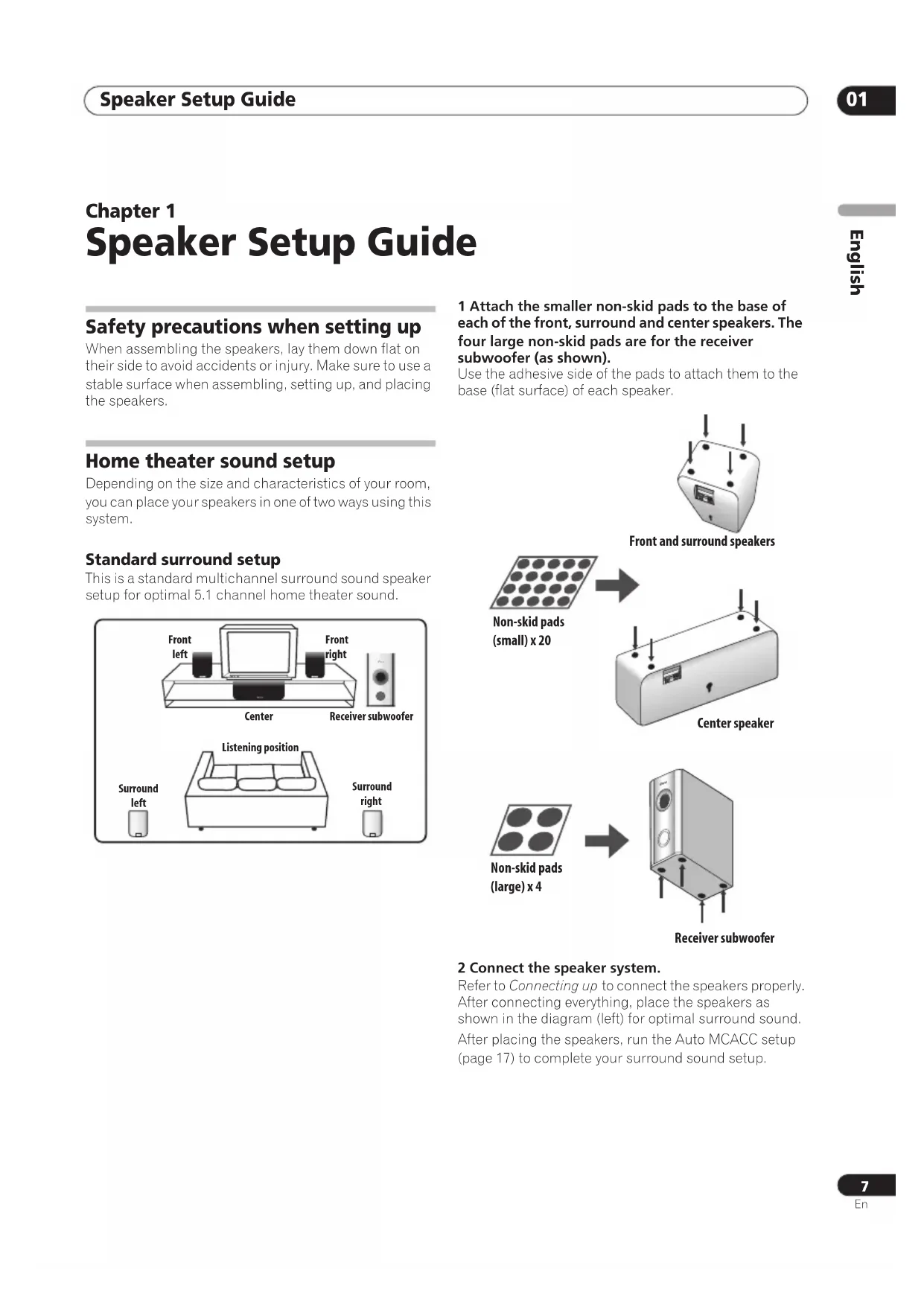

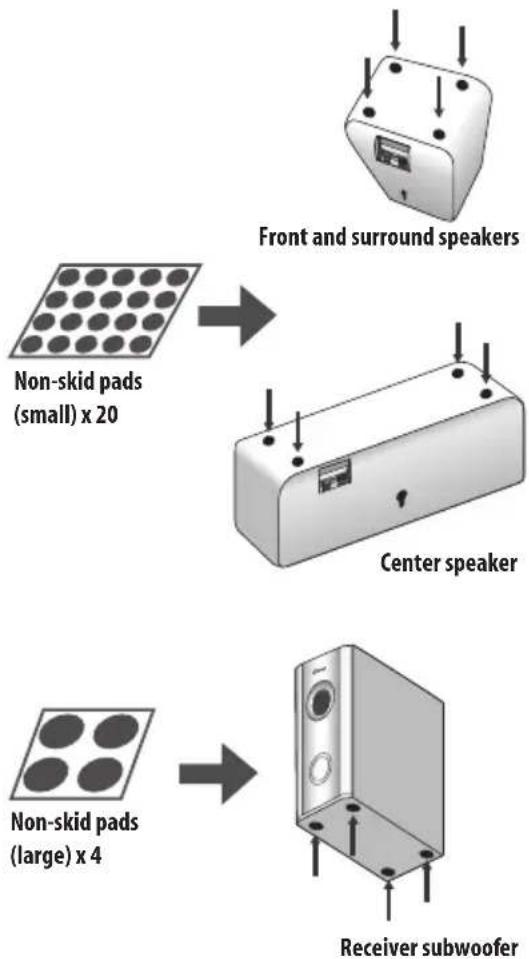

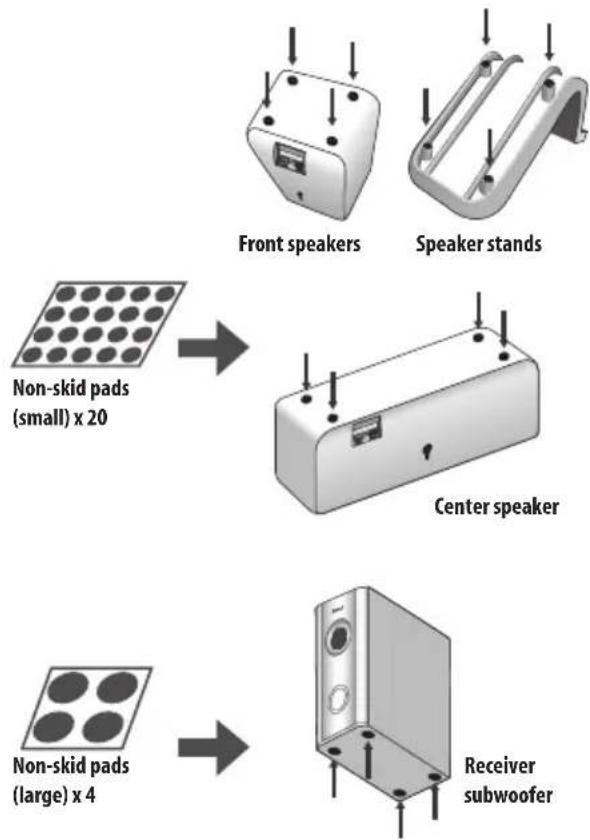

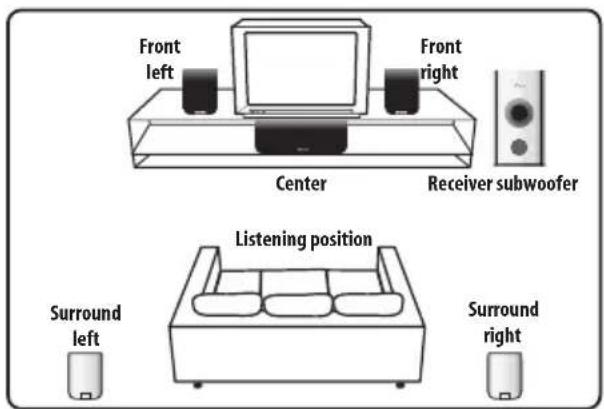

Speaker Setup Guide Safety precautions when setting up When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers. Home theater sound setup Depending on the size and characteristics of your room, you can place your speakers in one of two ways using this system. Standard surround setup This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound. 1 Attach the smaller non-skid pads to the base of each of the front, surround and center speakers. The four large non-skid pads are for the receiver subwoofer (as shown). Use the adhesive side of the pads to attach them to the base (flat surface) of each speaker. 2 Connect the speaker system. Refer to Connecting up to connect the speakers properly. After connecting everything, place the speakers as shown in the diagram (left) for optimal surround sound.After placing the speakers, run the Auto MCACC setup (page 17) to complete your surround sound setup. Receiver subwoofer Front left Surround left Listening position Center Listening position Front right Surround right Non-skid pads (small) x 20 Front and surround speakers Center speaker Non-skid pads (large) x 4 Receiver subwoofer SX-SW260_KU.book Page 7 Wednesday, March 29, 2006 2:43 PMSpeaker Setup Guide

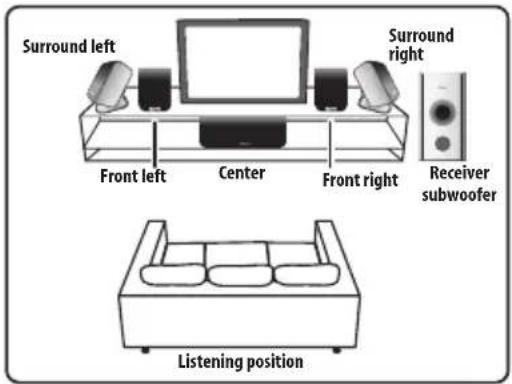

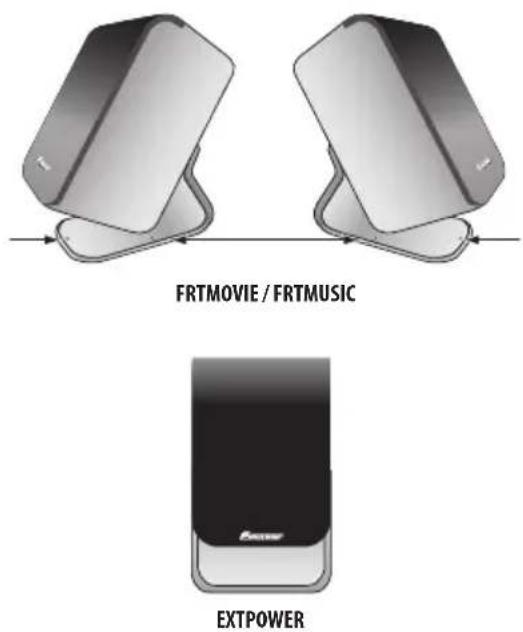

Front surround setup This setup is ideal when rear surround speaker placement isn't possible or you want to avoid running long speaker cables in your listening area. Use this setup together with the Front Surround modes in page 20 to take advantage of wall and ceiling reflections for a very realistic surround effect. 1 Attach the smaller non-skid pads to the base of the front and center speakers and to the speaker stands. The four large non-skid pads are for the receiver subwoofer (as shown). Use the adhesive side of the pads to attach them to the base (flat surface) of each speaker or stand. 2 Attach the surround speakers to the speaker stands. For each speaker, line up the spurs on the stand with the holes on the back of the speaker and insert, then secure the speaker to the stand with the screw provided. 3 Connect the speaker system. Refer to Connecting up to connect the speakers properly. After connecting everything, place the speakers as shown in the diagram (left) for optimal surround sound (the surround speakers are next to the front speakers). 4 Turn the speakers as shown, following the guide marks for optimal Front Surround. If you have selected FRTMOVIE (Front Surround Movie)

FRTMUSIC (Front Surround Music), turn each surround speaker so that the guide markers on the stand base are lined up horizontally in the direction the listening position (see below). With EXTPOWER (Extra Power), the surround speakers should point in the same direction as the front speakers (see below). See Using Front Surround on page 20 for more information. After placing the speakers, run the Auto MCACC setup (page 17) to complete your surround sound setup. Front leftSurround leftListening positionCenterReceiversubwooferFront rightSurround rightNon-skid pads (small) x 20Front speakersSpeaker standsCenter speakerNon-skid pads (large) x 4Receiver subwooferEXTPOWERFRTMOVIE / FRTMUSIC SX-SW260_KU.book Page 8 Wednesday, March 29, 2006 2:43 PMSpeaker Setup Guide

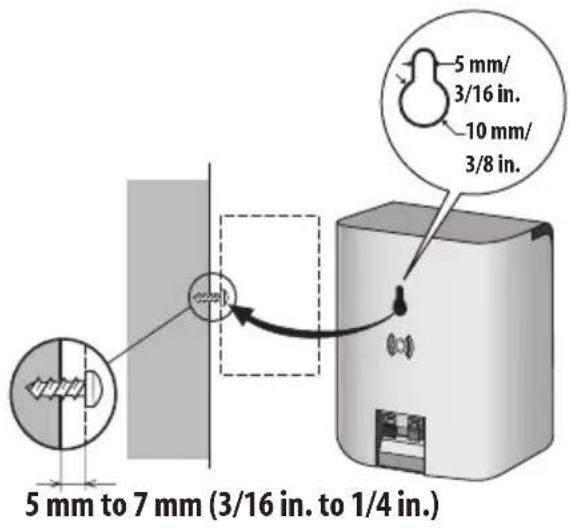

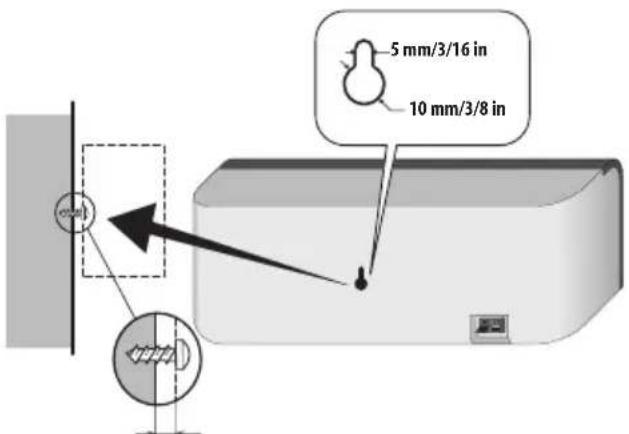

English Caution • Please don’t attach the surround speakers to the wall for Front surround setup. Wall mounting the speakers Before mounting • Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls.• Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker. Caution • If you are unsure of the qualities and strength of the wall, consult a professional for advice.• Pioneer is not responsible for any accidents or damage that result from improper installation. Wall mounting the center speaker The center speaker has a mounting hole which can be used to mount the speaker on the wall. Wall mounting the other speakers In addition to the center speaker, the front and surround speakers also have holes for wall mounting. However, if you are using the Front Surround setup described on the previous page, do not wall mount the surround speakers. Additional notes on speaker placement

• Install the main front left and right speakers at an equal distance from the TV.• For optimum effect, install the rear speakers slightly above ear level.• Install the center speaker above or below the TV so that the sound of the center channel is localized at the TV screen. Precautions: • When installing the center speaker on top of the TV, be sure to secure it with tape or some other suitable means. Otherwise, the speaker may fall from the TV due to external shocks such as earthquakes, endangering those nearby or damaging the speaker.• The front (L/R), center and surround (L/R) speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this happens, turn the power switch of the television set OFF, and turn it ON after 15 min to 30 min. If the problem persists, place the speaker system away from the television set.• The receiver subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the receiver subwoofer.• Do not attach the receiver subwoofer to the wall or ceiling. They may fall off and cause injury.• For safety, make sure that there is no exposed bare speaker wire outside of the speaker terminals.• Do not connect the supplied speakers with any other amplifier. This may result in malfunction or fire.• Do not connect any speakers other than those supplied to this system. 5 mm to 7 mm (3/16 in. to 1/4 in.) 5 mm/3/16 in10 mm/3/8 in 5 mm to 7 mm (3/16 in. to 1/4 in.) 5 mm/ 3/16 in. 10 mm/ 3/8 in. SX-SW260_KU.book Page 9 Wednesday, March 29, 2006 2:43 PMConnecting up

Connecting up Basic connections Important • When connecting this system or changing connections, be sure to switch power off and disconnect the power cord from the wall socket.After completing all connections, connect the power cord to the wall socket. SPEAKERS SUB WOOFER CENTER SURROUND DIGITAL AUDIO INPUT ANTENNA

SX-SW260_KU.book Page 10 Wednesday, March 29, 2006 2:43 PMConnecting up

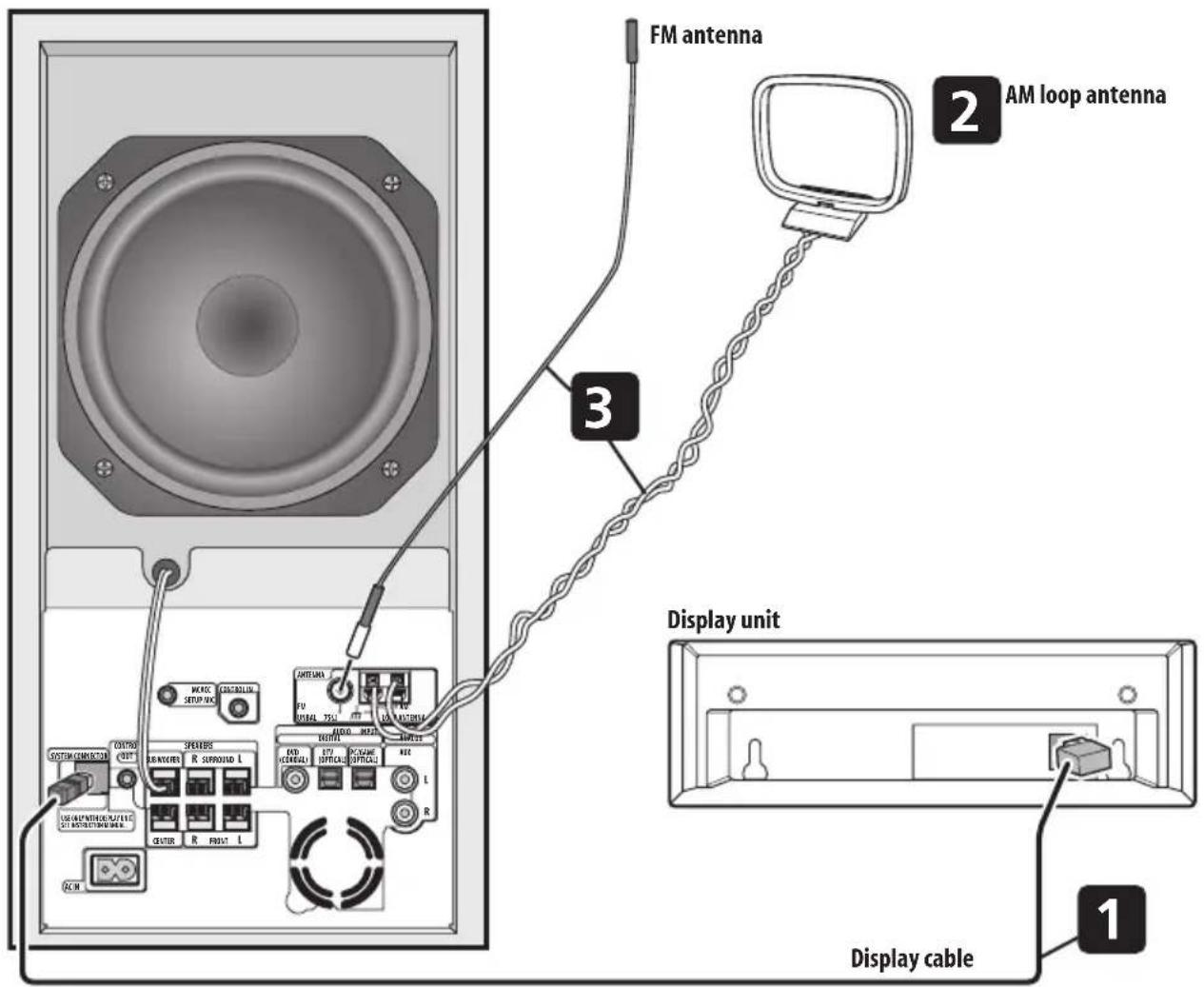

English 1 Connect the display unit to the receiver subwoofer. Plug the L-shaped end of the display cable into the connector on the rear of the display unit, then plug the other end of the display cable into SYSTEM CONNECTOR jack on the receiver subwoofer. 2 Assemble the AM loop antenna.

a. Bend the stand in the direction indicated by the arrow.b. Clip the loop onto the stand.c. If you want to fix to a wall or other surface, perform step b after first securing the stand with screws.It is recommended that you determine the reception strength before securing the stand with the screws. 3 Connect the AM and FM antennas

a. Connect one wire of the AM loop antenna to each AM antenna terminal

For each terminal, press down on the tab to open; insert the wire, then release to secure.b. Push the FM antenna

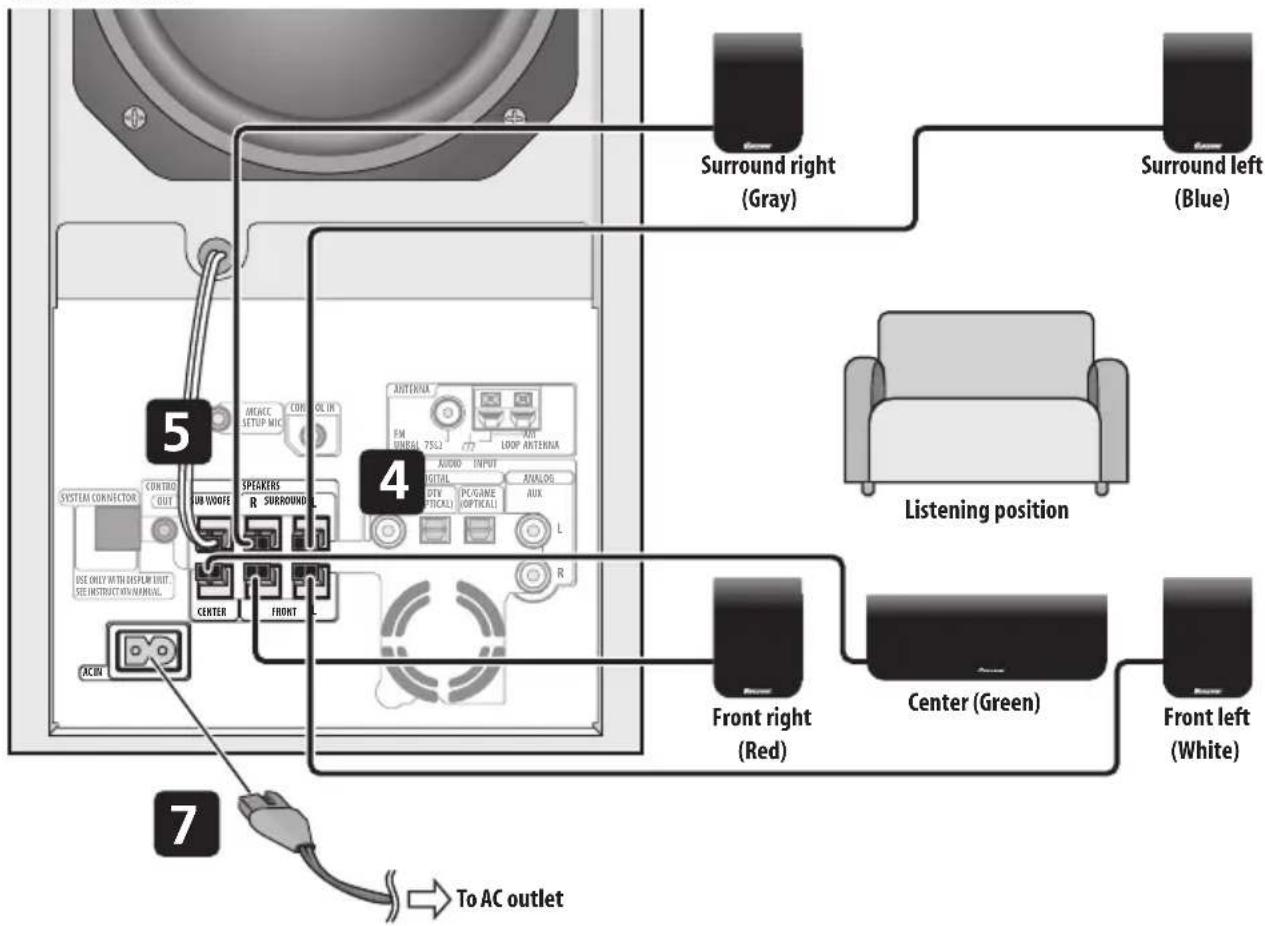

plug onto the center pin of the FM antenna socket. 4 Connect each speaker.

• Each speaker cable has a color-coded connector at one end and two wires at the other end.• Twist and pull off the protective shields on each wire.• Connect the wires to the speaker. Match the colored wired with the color-coded label (model label), then insert the colored wire into the red (

) side and the other wire into the black (

) side.• Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer. Make sure to insert completely.The small lug at the wire-end of the speaker plug should face up or down depending on whether it’s being plugged into one of the upper or lower speaker terminals. Please make sure to connect correctly. 5 Connect the subwoofer cable.

• Just below the subwoofer speaker, to the left of center, you should see the subwoofer connecting cable. Plug this into the SUBWOOFER SPEAKER

terminal. Note 1• Keep antenna cables away from other cables, the display unit and receiver subwoofer.• If reception with the supplied antenna is poor, see Improving poor FM reception and Improving poor AM sound on page 23 or Connecting external antennas on page 27. 2• Don’t let it come into contact with metal objects and avoid placing near computers, television sets or other electrical appliances.

• The signal earth ( ) is designed to reduce noise that occurs when an antenna is connected. It is not an electrical safety earth.• If radio reception is poor, you may be able improve it by re-inserting each antenna wire into the opposite terminal.• For best reception, do not untwist the AM loop antenna wires or wrap them around the loop antenna. 3• To ensure optimum reception, make sure the FM antenna is fully extended and not coiled or hanging at the rear of the unit.

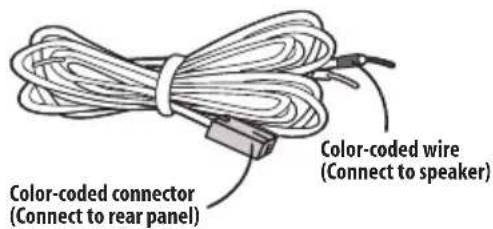

Color-coded wire (Connect to speaker)Color-coded connector(Connect to rear panel) Upper terminal Lower terminal SX-SW260_KU.book Page 11 Wednesday, March 29, 2006 2:43 PMConnecting up

• These speaker terminals carry HAZARDOUS LIVE voltage . To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.• Do not connect any speakers other than those supplied to this system.• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire. 6 If you have a DVD player or other source

component you want to connect, connect it now before connecting the power cord in the next step. See Connecting auxiliary components on page 27 for how to connect a digital source component. 7 Connect the power cords.

• Connect the power cords to AC inlets on the receiver subwoofer. Connect the power cords to a wall socket. Receiver subwoofer SPEAKERS SUB WOOFER CENTER SURROUND DIGITAL AUDIO INPUT ANTENNA

To AC outlet Front right (Red) Front left (White) Surround left (Blue) Surround right (Gray) Listening position Center (Green) Note 1 Make sure to connect a TV or monitor (for video sources) to take advantage of this system’s home theater potential. Please refer to the instruc- tion manual supplied with your TV or monitor for connection details.2• Do not use any power cord other than the one supplied with this system.• Do not use the supplied power cord for any purpose other than connecting to this system. SX-SW260_KU.book Page 12 Wednesday, March 29, 2006 2:43 PMConnecting up

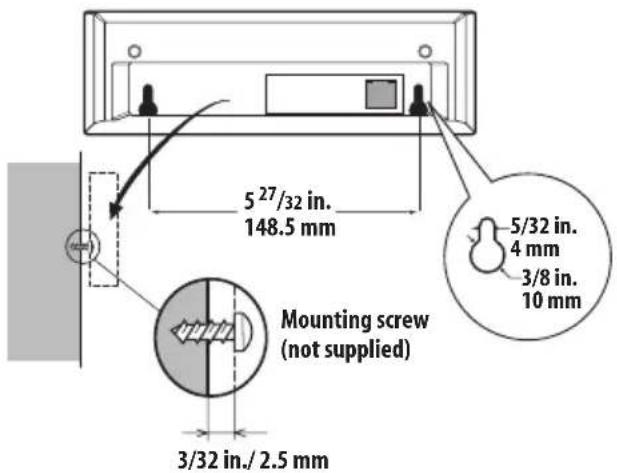

English Wall mounting the display unit It is possibe to mount the display unit on the wall. Before mounting: • Remember that the display unit is heavy and could cause the wood screws to work loose, or the wall material to fail to support it, resulting in the display falling. Make sure that the wall you intend to mount the display on is strong enough to support it. Do not mount on plywood or soft surface walls.• Mounting screws are not supplied. Use screws that are suitable for the wall material and that will support the weight of the display. •Pioneer bears no responsibility for accidents resulting from faulty assembly or installation, insufficient mounting strength of walls or other building fixtures, misuse or natural disasters. • If you are unsure of the qualities and strength of the wall, consult a professional for advice. Using this system for TV audio If your TV has a stereo audio output you can connect it to this system and enjoy surround TV sound. 1 Connect the AUDIO OUTPUT jacks on your TV to the AUX AUDIO INPUT jacks on the receiver subwoofer. Use the red/white stereo audio cable (not supplied) for this connection. Make sure you match the left and right outputs with their corresponding inputs for correct stereo sound.• You can use the AUX input jacks for any analog source you want, such as a tape deck, etc.

3/32 in./ 2.5 mm Mounting screw (not supplied) 5/32 in. 4 mm 3/8 in. 10 mm

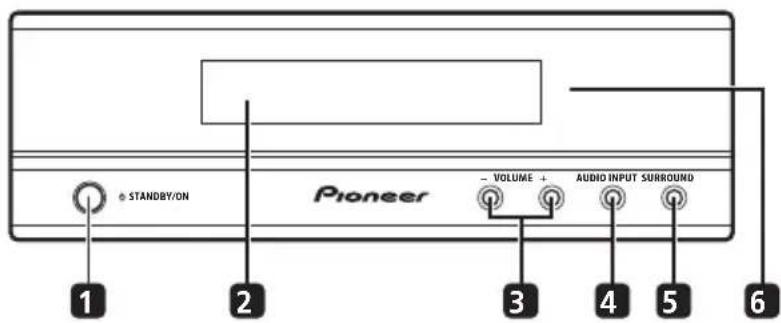

SX-SW260_KU.book Page 13 Wednesday, March 29, 2006 2:43 PMControls and displays

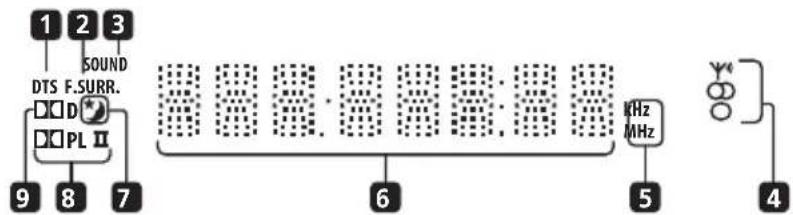

STANDBY/ON Press to switch the system on/into standby. 2 Front panel display See below for details.

(page 27) Press repeatedly to select one of the external audio inputs ( DVD

DTS Lights during playback of a DTS source (page 19).

F.SURR. Lights when one of the Front Surround listening modes is selected (page 20). SURR. Lights when one of the Advanced Surround listening modes is selected (page 20). 3 SOUND Lights when Sound Retriever is active (page 20). 4 Tuner indicators – Lights when a broadcast is being received. – Lights when a stereo FM broadcast is being received in auto stereo mode. – Lights when FM mono reception is selected. 5 kHz / MHz Indicates the frequency unit shown in the character display ( kHz for AM, MHz for FM). 6 Character display

PL II Lights during Dolby Pro Logic II decoding (page 19).

Lights during playback of a Dolby Digital source (page 19). STANDBY/ON

SX-SW260_KU.book Page 14 Wednesday, March 29, 2006 2:43 PMControls and displays

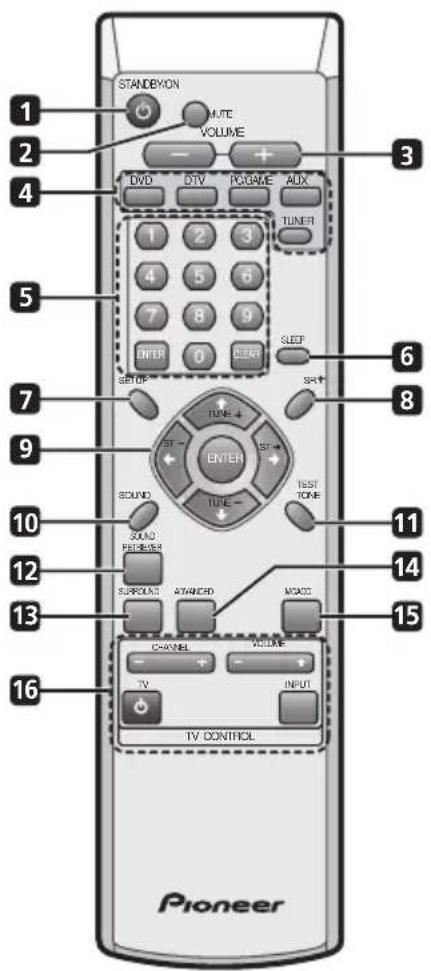

English Remote control

STANDBY/ON Press to switch the receiver subwoofer on or into standby.

MUTE Press to mute all audio from the speakers. Press again to cancel and restore the sound. VOLUME Use to adjust the volume. 4 Input select buttons DVD Press to select the DVD input. DTV Press to select the DTV input. PC/GAME Press to select the PC/game console ( PC/GAME input. AUX (page 28)Press to select the auxilliary ( AUX ) input. TUNER (page

23) Press to select the built-in radio tuner. 5 Numeric buttons, CLEAR and ENTER Use the number buttons for entering radio stations directly, and so on. Use CLEAR to clear an entry and start again. Use ENTER to confirm an entry.

Use to access the menu system for surround sound setup, tuner settings and so on (page 17, 23, 24, 25, 30). 8 SR+ Use to setup the SR+ features and to select the SR+ mode (page 29).

(cursor buttons) and ENTER Use to navigate the receiver subwoofer menus.

(page 21)Press to access the sound menu, from which you can adjust bass and treble, etc.

Use to output the test tone (for speaker setup) (page 26). 12 SOUND RETRIEVER Press to restore CD quality sound to compressed stereo audio sources (page 21).

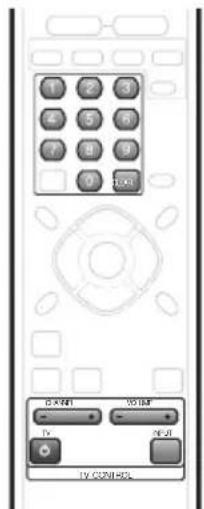

Starts the Auto MCACC setup (page 17). 16 TV CONTROL (page 31)After setting up, use these controls to control your TV. TV CONTROL

SX-SW260_KU.book Page 15 Wednesday, March 29, 2006 2:43 PMControls and displays

Using the remote control Please keep in mind the following when using the remote control:• Make sure that there are no obstacles between the remote and the remote sensor on the unit.• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor.• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.• Replace the batteries when you notice a fall off in the operating range of the remote.• Use within the operating range in front of the remote control sensor on the display unit, as shown. Putting the batteries in the remote control 1 Open the battery compartment cover on the back of the remote control.2 Insert two AA/R6 batteries into the battery compartment following the indications (

) inside the compartment.3 Close the cover. Caution Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:• Don’t mix new and old batteries together.• Don’t use different kinds of battery together—although they may look similar, different batteries may have different voltages.• Make sure that the plus and minus ends of each battery match the indications in the battery compartment.• Remove batteries from equipment that isn’t going to be used for a month or more.• When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area. WARNING • Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

23 ft. SX-SW260_KU.book Page 16 Wednesday, March 29, 2006 2:43 PMGetting started

Getting started System demo setting Switches the automatic demo feature on or off (this starts when you plug in for the first time). 1Switch the system into standby. 2 Press SETUP

(cursor up/down) buttons to select a setting, then press ENTER

DEMO OFF – Switches the demo display off and the system into standby. Using the Auto MCACC setup for optimal surround sound The Multichannel Acoustic Calibration (MCACC) system measures the acoustic characteristics of your listening area, taking into account ambient noise, and testing for channel delay and channel level. After you have set up the microphone provided, the system uses the information from a series of test tones to optimize the speaker settings and equalization (Acoustic Calibration EQ) for your particular room.

• The test tones used for Auto MCACC setup are loud; however, do not turn the volume down during setup as this may result in a sub-optimal setup.

• Make sure the microphone and speakers are not moved during the MCACC setup. 1 Connect the microphone to the MCACC SETUP MIC jack on the rear panel. 2 Place the microphone at your normal listening position. Place the mic horizontally about ear level at your normal listening position using a table or chair. Make sure there are no obstacles between the speakers and the microphone. TUNE TUNE SOUND SETUP TEST TONE

ENTER ENTER CLEAR Note 1 You only need to use the Auto MCACC setup once (unless you change the placement of your speakers or your room layout). VOLUME STANDBY/ON DVD DTV PC/GAME AUX MUTE TUNER TUNE TUNE SOUND SETUP TEST TONE

CONTROL IN MCACC SETUP MIC CONTROL OUT SYSTEM CONNECTOR USE ONLY WITH DISPLAY UNIT. SEE INSTRUCTION MANUAL. AC IN ANALOG DTV (OPTICAL) DVD (COAXIAL) AUX PC/GAME (OPTICAL) SX-SW260_KU.book Page 17 Wednesday, March 29, 2006 2:43 PMGetting started

3 If the receiver subwoofer is off, press

to turn the power on. 4 Press MCACC

Try to be as quiet as possible after pressing MCACC . The volume increases automatically and the system outputs a series of test tones.

• To cancel Auto MCACC setup before it has finished, press MCACC . The unit will continue to use the previous settings.

• If the ambient noise level is too high, NOISY blinks in the display for five seconds. To exit and check the noise levels

, press MCACC , or to try again, press ENTER when RETRY shows in the display.

• If you see an ERR MIC

ERR SP message in the display, there may be a problem with your mic or the speaker connections. To try again, press ENTER

When the MCACC setup is complete, the volume level returns to normal, COMPLETE

shows in the display, and Acoustic Calibration EQ is activated.

Note 1• If the room environment is not optimal for the Auto MCACC setup (too much ambient noise, echo off the walls, obstacles blocking the speakers from the microphone) the final settings may be incorrect. Check for household appliances (air conditioner, fridge, fan, etc.), that may be affecting the environ- ment and switch them off if necessary.

• Some older TVs may interfere with the operation of the mic. If this seems to be happening, switch off the TV during Auto MCACC setup. 2 If this doesn’t work, press MCACC , turn off the power, and check the problem indicated by the ERR message, then try the Auto MCACC setup again.3 If COMPLETE doesn’t appear, it is likely an error occurred during the setup. Please check all connections and try again.4 See Listening with Acoustic Calibration EQ on page 21 to switch on/off Acoustic Calibration EQ. SX-SW260_KU.book Page 18 Wednesday, March 29, 2006 2:43 PMListening to your system

Listening to your system Auto listening mode The Auto listening mode is the simplest way to listen to any source as it was mastered: the output from the speakers mirrors the channels in the source material. If you set up the system for Front surround (page 8), the Front Surround modes will give the best results (see Using Front Surround on page 20).

DTS indicator lights.

• You can also use the SURROUND button on the display unit to change the listening mode. Listening in surround sound You can listen to stereo or multichannel sources in surround sound. Surround sound is generated from stereo sources using one of the Dolby Pro Logic decoding modes. If you set up the system for Front surround (page 8), the Front Surround modes will give the best results (see Using Front Surround on page 20).

• Press SURROUND repeatedly to select a listening mode.

• You can also use the SURROUND button on the display unit to change the listening mode. The choices that appear in the display will vary according to the type of source that’s playing. If the source is Dolby Digital or DTS, the front panel

DTS indicator lights.

DOLBY PL (Dolby Pro Logic) – 4.1 channel surround sound for use with any two-channel source

MOVIE (Dolby Pro Logic II Movie) – 5.1 channel surround sound, especially suited to movie sources, for use with any two-channel source

MUSIC (Dolby Pro Logic II Music) – 5.1 channel surround sound, especially suited to music sources, for use with any two-channel source; see Dolby Pro Logic II Music settings below

STEREO – See Listening in stereo on page 20 Dolby Pro Logic II Music settings When listening in Dolby Pro Logic II Music mode (see above), there are three settings you can adjust: Center Width, Dimension, and Panorama. 1With Dolby Pro Logic II Music mode active, press SOUND

C WIDTH (Center Width): Provides a better blend of the front speakers by spreading the center channel between the front right and left speakers, making it sound wider (higher settings) or narrower (lower settings)

DIMEN. (Dimension): Adjusts the depth of the surround sound balance from front to back, making the sound more distant (minus settings), or more forward (positive settings)

PANORAMA : Extends the front strereo image to include the surround speakers for a ‘wraparound’ effect. 3 Use

(cursor up/down) to adjust the setting then press ENTER to confirm.

ENTER ENTER CLEAR SX-SW260_KU.book Page 19 Wednesday, March 29, 2006 2:43 PMListening to your system

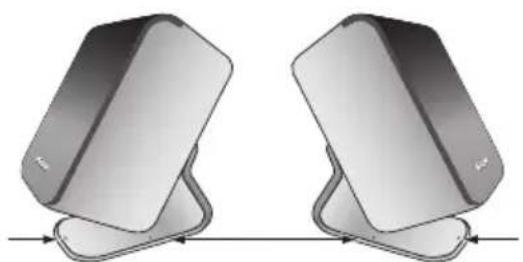

Using Front Surround The Front Surround modes are effective when you are using the Front surround speaker setup as described on page 8. The surround speakers should be placed beside the front speakers and oriented either towards the walls, or straight ahead, depending on which mode you are using (see below). • Press ADVANCED to select a Front Surround mode. Press repeatedly to select FRTMOVIE

• If you have selected FRTMOVIE (Front Surround Movie) or FRTMUSIC (Front Surround Music), turn each surround speaker so that the guide markers on the stand base are lined up horizontally in the direction the listening position (see below). With EXTPOWER (Extra Power), the surround speakers should point in the same direction as the front speakers (see below). Using Advanced Surround The Advanced Surround effects can be used with any multichannel or stereo source for a variety of additional surround sound effects.If you set up the system for Front surround (page 8), the Front Surround modes will give the best results (see Using Front Surround above). • Press ADVANCED to select an Advanced Surround mode. Press repeatedly to select:

• ADVMOVIE – Suitable for movies

• ADVMUSIC – Suitable for music

• EXPANDED – Wide sound field

• TV SURR. – Surround sound for mono or stereo TV broadcasts

• SPORTS – Suitable for sports programming

• GAME – Suitable for TV game units

• VIRTUAL – A virtual surround effect using just the subwoofer and front speakers.

5 STEREO – Powerful surround sound for stereo music sources Listening in stereo You can listen to any source—stereo or multichannel—in stereo. When playing a multichannel source, all channels are downmixed to the front left/right speakers and the subwoofer. • Press SURROUND repeatedly until STEREO shows in the display.

English Using the Sound Retriever When audio data is removed during the MP3 or WMA compression process, sound quality often suffers from an uneven sound image. The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed 2-channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression. •While listening to a stereo source, press SOUND RETRIEVER Press repeatedly to switch between: RTRV ON — Switches the Sound Retriever on. RTRV OFF — Switches the Sound Retriever off. Listening with Acoustic Calibration EQ You can listen to sources using the Acoustic Calibration EQ set in Using the Auto MCACC setup for optimal surround sound on page 17. 1 Press SOUND 2 Use the (cursor left/right) buttons to select MCACC EQ then press ENTER 3 Use the (cursor up/down) buttons to switch EQ ON or EQ OFF then press ENTER to confirm. • On the EQ OFF setting, equalization is set to off and speaker settings (channel delay and channel level) remains as it is set.• Acoustic Calibration EQ is set to on automatically after Auto MCACC setup is used. Enhancing dialogue The Dialogue Enhancement feature is designed to make the dialogue stand out from other background sounds in a TV or movie sound track. 1 Press SOUND.2 Use the (cursor left/right) buttons to select DIALOGUE then press ENTER.3 Use the (cursor up/down) buttons to select the amount dialogue enhancement then press ENTER to confirm. Select between OFF

Using Quiet and Midnight listening modes The Quiet listening feature reduces excessive bass or treble in a sound source.The Midnight listening feature allows you to hear effective surround sound of movies at low volume levels. 1 Press SOUND.2 Use the (cursor left/right) buttons to select TONE then press ENTER.3 Use the (cursor up/down) buttons to select QUIET or MIDNIGHT then press ENTER to confirm. • To cancel the Quiet or Midnight listening modes, select BASS/TRE

Adjusting the bass and treble Use the bass and treble controls to adjust the overall tone. 1 Press SOUND.2 Use the (cursor left/right) buttons to select TONE then press ENTER.3 Use the (cursor up/down) buttons to select BASS/TRE then press ENTER. • Selecting BASS/TRE cancels the Quiet and Midnight listening modes. These modes cannot be used at the same time. 4 Use the (cursor left/right) buttons to select BASS or TREBLE; use the (cursor up/down) buttons to adjust the sound then press ENTER to confirm.

ENTER ENTER CLEAR SX-SW260_KU.book Page 21 Wednesday, March 29, 2006 2:43 PMListening to your system

Boosting the bass level There are two bass modes you can use to enhance the bass in a source. 1 Press SOUND 2 Use the

(cursor left/right) buttons to select BASSMODE then press ENTER 3 Use the

(cursor up/down) buttons to select the sound then press ENTER to confirm. Select between OFF

SX-SW260_KU.book Page 22 Wednesday, March 29, 2006 2:43 PMListening to the radio

Listening to the radio Listening to the radio The tuner can receive both FM and AM broadcasts, and lets you memorize your favorite stations so you don’t have to manually tune in every time you want to listen. 1 Press TUNER to switch to the tuner, then press repeatedly to select the FM or AM band. The display shows the band and frequency. 2 Tune to a frequency. There are three tuning modes—manual, auto, and high- speed:

Manual tuning : Press TUNE +/– repeatedly to change the displayed frequency.

Auto tuning : Press and hold TUNE +/– until the frequency display starts to move, then release. The tuner will stop on the next station it finds. Repeat to keep searching.

High-speed tuning : Press and hold TUNE +/– until the frequency display starts to move rapidly. Keep the button held down until you reach the frequency you want. If necessary, fine tune the frequency using the manual tuning method. Improving poor FM reception If you’re listening to an FM station in stereo but the reception is weak, you can improve the sound quality by switching to mono. 1 Tune to an FM radio station then press SETUP

(cursor up/down) buttons to select

The mono indicator ( ) lights when the tuner is in mono reception mode. Select FM AUTO above to switch back to auto-stereo mode (the stereo indicator ( ) lights when receiving a stereo broadcast). Improving poor AM sound The simplest way to improve the sound quality of AM radio is to make sure that the TV in the room is switched off. Also try changing the position and direction of the AM loop antenna. Changing the noise cut mode If you find that the sound quality is bad even after trying the above, you may be able to improve it using a different noise cut mode. Just choose the one that sounds best. 1 Tune to an AM radio station then press SETUP

Memorizing stations You can save up to 30 station presets so that you always have easy access to your favorite stations without having to tune in manually each time. 1 Tune to an AM or FM radio station. For the FM band, select mono or auto-stereo reception as necessary. This setting is saved along with the preset. 2 Press SETUP

(cursor up/down) buttons to select the station preset you want then press ENTER

Listening to station presets 1Make sure the tuner function is selected. 2 Use the ST +/–

buttons to select a station preset.

TUNER ENTER ENTER CLEAR SX-SW260_KU.book Page 23 Wednesday, March 29, 2006 2:43 PMListening to the radio

Changing the frequency step If you find that you can’t tune into stations successfully, the frequency step may not be suitable for your country/region. 1Switch the system into standby. 2 Press SETUP

(cursor up/down) buttons to select a setting then press ENTER to confirm.

AM 9K – 9 kHz step for AM;50 kHz step for FM

AM 10K – 10 kHz step for AM; 100 kHz step for FM SX-SW260_KU.book Page 24 Wednesday, March 29, 2006 2:43 PMSurround sound settings

Surround sound settings Using the Setup menu From the Setup menu you can access all the surround sound settings of the system

, including channel levels, speaker distances, dynamic range adjustment and dual mono audio playback. Use the following buttons to use the Setup menu. Channel level setting The Auto MCACC feature (see page 17) should give you the best surround sound setup. However you may find that by further adjustment of the channel levels you can improve the surround sound in your listening room. This method of setting the channel levels allows you to listen to a source and adjust the levels of each playback channel. Note that the channel level settings for stereo playback are independent of the settings for surround sound playback. A further method of setting the channel levels is to use the test tone method. See Adjusting the channel levels using the test tone on page 26 for more on this. 1 Select stereo or multichannel playback for a source. 2 Press SETUP

(cursor left/right) to select a channel;

(cursor up/down) to adjust the level of that channel.

• You can adjust the level of each channel by ± 10 dB.

• If the system is in Stereo or Virtual mode, or a stereo source is playing in Auto mode, you will not be able to adjust the center or surround channels. 5 Press ENTER when you’re finished.

• If you use the Auto MCACC feature again, it will overwrite the settings you have made here. Speaker distance setting The Auto MCACC feature (see page 17) should give you the best surround sound setup. However you may find that by further adjustment of the speaker distance settings you can improve the surround sound in your listening room. Set the distance of each speaker from your normal listening position. 1 Press SETUP

(cursor left/right) to select a speaker;

(cursor up/down) to adjust the distance. Adjust the following speakers:

– Front left speaker

– Front right speaker

– Surround right speaker

– Surround left speaker

– Subwoofer Each speaker can be adjusted from 1 FT

4 Press ENTER when you’re finished.

• If you use the Auto MCACC feature again, it will overwrite the settings you have made here. Dynamic Range Control When watching Dolby Digital or DTS material at low volume, low level sounds—including some of the dialog—can be difficult to hear properly. Using one of the Dynamic Range Control (DRC) settings can help by bringing up the low level sounds, while controlling high level peaks. Dynamic Range Control works only with Dolby Digital soundtracks and some DTS soundtracks. 1 Press SETUP

(cursor up/down) to select a setting. Select one of the following: Note 1 There are other settings you can adjust from the Setup menu; these are explained in Listening to the radio on page 23 and Additional informa- tion on page 30. TUNE TUNE SOUND SETUP TEST TONE

ENTER ENTER CLEAR SX-SW260_KU.book Page 25 Wednesday, March 29, 2006 2:43 PMSurround sound settings

DRC OFF (default) – No dynamic range adjustment (use when listening at higher volume) DRC MID – Mid setting DRC HIGH – Dynamic range is reduced (loud sounds are reduced in volume while quieter sounds are increased) 4 Press ENTER to exit. Dual mono setting Specifies how dual mono encoded Dolby Digital or DTS soundtracks should be played. You can also use this setting to switch the audio channel on DVD-RW discs recorded with bilingual audio. 1 Press SETUP 2 Use the (cursor left/right) buttons to select DUALMONO, then press ENTER 3 Use (cursor up/down) to select a setting. Select one of the following: CH1 MONO (default) – Only channel 1 is played CH2 MONO – Only channel 2 is played CH1/CH2 – Both channels are played through the front speakers 4 Press ENTER to exit. Adjusting the channel levels using the test tone If you prefer, you can set the channel levels using a test tone as a reference, rather than playing a source (see Channel level setting on page 25). A test tone is played through each speaker in turn, allowing you to adjust the level as it plays.Note that the channel level settings for stereo sources are independent of the settings for surround sound sources. 1 Press SURROUND to select the Auto listening mode. • If you want to set the channel levels for stereo (two channel) playback, select the STEREO listening mode. 2 Press TEST TONE The test tone is output from each speaker in turn. 3While a test tone is playing, use the (cursor up/down) buttons to adjust that channel level. The aim is to adjust the levels so that you hear the test tone at the same volume from each speaker. You can adjust the level of each channel by ± 10 dB.• You can adjust the overall volume of test tone output using the VOLUME

buttons (this does not affect the channel level settings).• If the system is in Stereo or Virtual mode, you will not be able to adjust the center or surround channels.• Because of the ultra low frequencies the subwoofer produces, it may sound quieter than it really is. We suggest adjusting the subwoofer level while listening to a source. See the method described in Channel level setting on page 25. 4When you’re done, press ENTER to exit test tone setup. • If you use the Auto MCACC feature again, it will overwrite the settings you have made here.

ENTER ENTER CLEAR SX-SW260_KU.book Page 26 Wednesday, March 29, 2006 2:43 PMOther connections

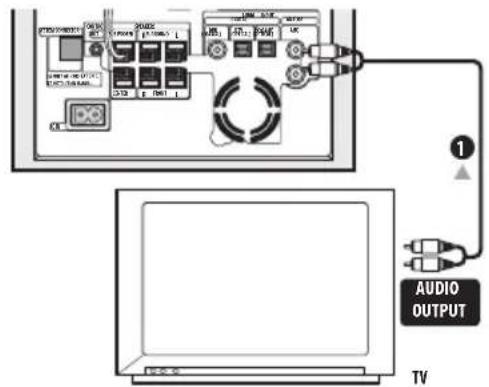

Other connections Important • When connecting this system or changing connections, be sure to switch power off and disconnect the power cord from the wall socket.After completing all connections, connect the power cord to the wall socket. Connecting auxiliary components The receiver subwoofer has several digital inputs for digital playback components, such as DVD, CD and MD players. • Connect the digital output jack on your CD recorder, etc. to one of the DIGITAL input jacks on the receiver subwoofer. Use a commercially available optical cable or supplied coaxial cable to make this connection. Connecting an analog audio component You can use the AUX input jacks to connect an analog audio component, such as a tape player. See Using this system for TV audio on page 13 for connection details (this explains connecting the audio output from your TV, but any analog audio component can be connected). Listening to an external audio source You can connect both analog and digital external audio sources to this system. Digital audio sources include digital satellite receivers, CD recorders, etc. Analog sources include your TV. See also Connecting auxiliary components above. 1 If the system isn’t already on, press

to switch on. Also make sure that the external source (TV, satellite receiver, etc.) is switched on. 2 Select DVD, DTV, PC/GAME or AUX to select the source for playback. These buttons correspond with the input jacks on the receiver subwoofer. 3 If necessary, start playback of the external source. Connecting external antennas For an external AM antenna, use 5–6 meters of vinyl-insulated wire and set up either indoors or outdoors. Leave the loop antenna connected. SPEAKERS SUB WOOFER CENTER SURROUND DIGITAL AUDIO INPUT ANTENNA

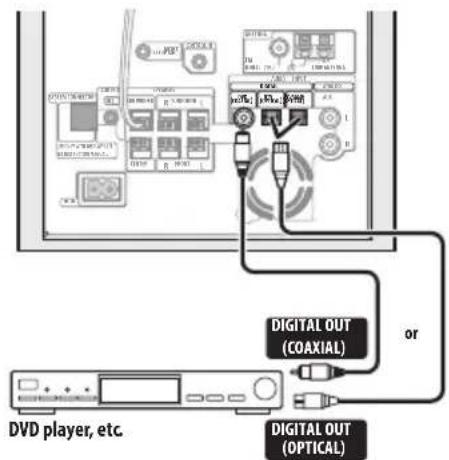

CONTROL IN MCACC SETUP MIC DVD player, etc. DIGITAL OUT (COAXIAL) DIGITAL OUT (OPTICAL)

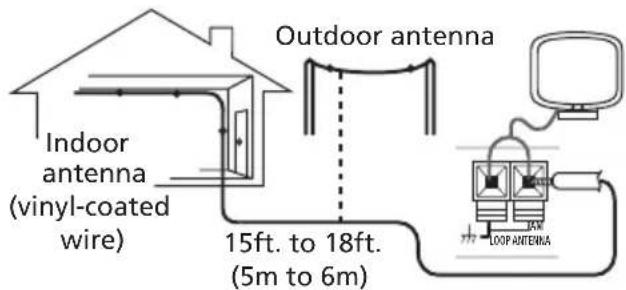

MUTE TUNER Outdoor antenna 15ft. to 18ft.(5m to 6m)Indoor antenna(vinyl-coated wire)

LOOP ANTENNA SX-SW260_KU.book Page 27 Wednesday, March 29, 2006 2:43 PMOther connections

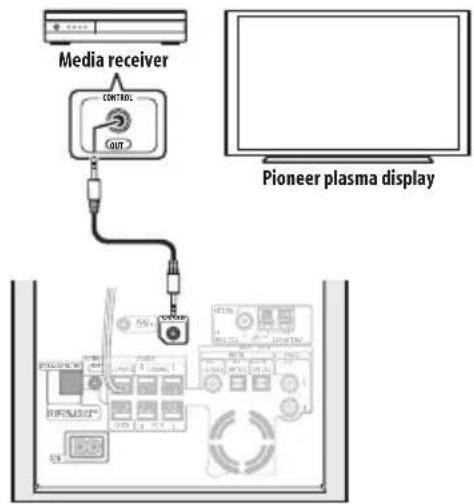

For an external FM antenna, Use a PAL connector to hook up an external FM antenna. Using this unit with a Pioneer plasma display If you have a Pioneer plasma display

, you can use an SR+ cable

to connect it to this unit and take advantage of various convenient features, such as controlling this unit via the plasma display’s remote sensor, automatic video input switching of the plasma display, display unit messages appearing on the plasma display screen, and automatic volume muting on the plasma display. Important

• With an SR+ cable connected, the remote must now be pointed towards your plasma display rather than the display unit of the receiver subwoofer in order to control the receiver subwoofer.

• Use a 3-ringed miniplug SR+ cable to connect the CONTROL IN jack of this unit (through a media receiver, if applicable) to the CONTROL OUT jack of your plasma display.

Before you can use the extra SR+ features, you need to make a few settings in the unit—see SR+ Setup for Pioneer plasma displays below. SR+ Setup for Pioneer plasma displays Make the following settings if you have connected a Pioneer plasma display to this unit using an SR+ cable. 1 Press SR+. 2 Use the

(cursor left/right) buttons to choose the setting you want to adjust. The current setting is shown for each option as you cycle through the display. See below for a full list and description of each. 4 Use the

(cursor up/down) buttons to adjust the setting. 5 Repeat steps 3 and 4 to make other settings. 6 When you’re done, press ENTER to leave the SR+ setup menu. Automatic plasma display volume muting When Volume Control is switched on, the volume of the plasma display is automatically muted when the receiver subwoofer is switched on, or the receiver subwoofer’s input function is changed to one that you would want to hear the sound from the receiver subwoofer rather than the plasma display (DVD, for example). Note 1 This system is compatible with all Pioneer plasma displays from 2003 onward. 2 The 3-ringed SR+ cable from Pioneer is commercially available under the part number ADE7095. Contact the Pioneer Customer Support division for more information on obtaining an SR+ cable. ANTENNA PAL connector SPEAKERS SUB WOOFER CENTER SURROUND DIGITAL AUDIO INPUT ANTENNA

CONTROL IN MCACC SETUP MIC CONTROL OUT SYSTEM CONNECTOR USE ONLY WITH DISPLAY UNIT. SEE INSTRUCTION MANUAL. AC IN ANALOG DTV (OPTICAL) DVD (COAXIAL) AUXPC/GAME (OPTICAL) OUT CONTROL Pioneer plasma display Media receiver 3 You won’t be able to use the remote sensor of this unit with the CONTROL IN jack of this unit connected to the CONTROL OUT jack of your plasma display. You can use the remote sensor of the plasma display (even in standby) as long as the power isn’t switched off. TUNE TUNE SOUND SETUP SETUP TEST TONE

TUNER ENTER ENTER CLEAR SX-SW260_KU.book Page 28 Wednesday, March 29, 2006 2:43 PMOther connections

– When this unit is switched on, or the input function is changed, the volume on the plasma display is muted so only sound from this unit is heard.

– This unit does not control the volume of the plasma display Automatic plasma display input switching In order that the plasma display can switch automatically to the correct input when you switch the input function of the receiver subwoofer, you need to tell it how your system is connected.For example, if you connected your DVD player to the DVD input on the receiver subwoofer, and to input 2 on your plasma display, select the DVD PDP2 setting here so that when you switch the input function of the receiver subwoofer to DVD to watch your DVD player, the plasma display will automatically switch to input 2.For each receiver subwoofer input function ( DVD

AUX ) you can select:

TVTN – switches the plasma display to its built-in TV tuner Note

• The number of video inputs available will depend on the plasma display you’ve connected.• The PDP5 input may be called ‘PC Input’ (or similar) on your plasma display.• The SR+ setting remains in effect even in standby.• The SR+ setting does not affect the FM/AM tuner function. Using the SR+ mode with a Pioneer plasma display 1 Press SR+ on the remote.2 Use

(cursor left/right) to select SR+ ON then press ENTER.

• The SR+ setting is maintained even after switching the receiver subwoofer into standby then back on. Automatic muting and input switching will be effective when the receiver subwoofer is switched on.• If you disconnect the SR+ cable or switch the plasma display off while SR+ is on, the SR+ ON setting remains.• To switch to SR+ OFF , follow steps

• You can control this unit with the plasma display’s remote sensor even in standby, but you can’t control this unit with either this unit’s remote sensor or the plasma display’s remote sensor when the plasma display is switched off (AC off) and the SR+ cable is connected to the CONTROL IN jack of this unit. About the control out jack Many Pioneer components have SR CONTROL jacks which can be used to link components together so that you can use just the remote sensor of one component. When you use a remote control, the control signal is passed along the chain to the appropriate component.Note that if you use this feature, make sure that you also have at least one set of analog or coaxial digital audio jacks connected to another component for grounding purposes.

• Connect the CONTROL IN jack on another Pioneer component to the CONTROL OUT jack on the receiver subwoofer. This will allow you to control the other component (such as a DVD recorder in a cabinet) by pointing its remote at the display unit supplied with this receiver subwoofer.• You can also connect this receiver subwoofer to your plasma display as described above, in which case you should point the remote at the plasma display to control your DVD player, receiver subwoofer, and plasma display.Use a cable with a mono mini-plug on each end for the connection. SX-SW260_KU.book Page 29 Wednesday, March 29, 2006 2:43 PMAdditional information

Additional information Setting the sleep timer The sleep timer switches off the receiver subwoofer after a specified time so you can fall asleep without worrying about it.

1 Press the SLEEP button to select an option. Choose between the following options: SLP ON – Switches off after about an hour SLP OFF – Cancels the sleep timerAfter selecting SLP ON , you can press SLEEP again to check how much time is left. Each line indicates approximately 12 minutes (remaining): Dimming the display You can choose to dim the display if you find it too bright.

DTS CD setting If you play a DTS-encoded CD, you will need to change this setting to hear the decoded signal. 1Switch the system into standby. 2 Press SETUP

(cursor up/down) buttons to select a setting, then press ENTER Select from: NORMAL – Use for playback of regular audio CDs. Some DTS-encoded CDs will output noise when played. DTS-CD – Use for playback of DTS-encoded CDs, but note that the beginning of regular CD tracks may be skipped. Resetting the system Use this procedure to reset all system settings to the factory default. 1Switch the system on. 2 Press and hold SURROUND then press the

STANDBY/ON button on the display unit. The next time you switch on, all the system settings should be reset. Note 1 The display dims when the sleep timer is set. 2 The display dims when the sleep timer is set, regardless of this setting. TUNE SETUP

ENTER ENTER CLEAR SX-SW260_KU.book Page 30 Wednesday, March 29, 2006 2:43 PMAdditional information

English Installation and maintenance Hints on installation We want you to enjoy using this system for years to come, so please bear in mind the following points when choosing a location: Do...

Use in a well-ventilated room.

Place on a solid, flat, level surface, such as a table, shelf or stereo rack

Use in a place exposed to high temperatures or humidity, including near radiators and other heat-generating appliances.

Place on a window sill or other place where the system will be exposed to direct sunlight.

Use in an excessively dusty or damp environment.

Place directly on top of an amplifier, or other component in your stereo system that becomes hot in use.

Use near a television or monitor as you may experience interference—especially if the television uses an indoor antenna.

Use in a kitchen or other room where the system may be exposed to smoke or steam.

Use on a thick rug or carpet, or cover with cloth—this may prevent proper cooling of the system unit.

Place on an unstable surface, or one that is not large enough to support all four of the system unit’s feet. Glossary Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc. Setting up the remote to control your

You can use the supplied remote to control your TV. To be able to use this feature you first have to program the remote with a maker code from the table on the following page. 1 Switch on your TV. 2 Press and hold down the CLEAR button, then enter the maker code for your TV.

• If the maker’s name of your TV doesn’t appear in the table, you will not be able to use this remote to control your TV. 3 Point the remote towards your TV and press

to check that the remote works with your TV. If the remote is set up correctly, the TV should switch off. If it doesn’t and there is another code given for your maker, repeat step with a new code. Using the TV remote control buttons The table below shows how to use this remote control with your TV. Dolby Digital A multi-channel audio encoding system developed by Dolby Laboratories that enables far more audio to be stored on a disc than PCM encoding. Dolby Pro Logic II A matrix decoding technology developed by Dolby Laboratories that expands any two-channel source audio, such as CDs and TV broadcasts, to a five-channel playback (left/center/right/left surround/right surround), resulting in a surround experience. DTS A multi-channel audio encoding system developed by Digital Theater Systems that enables far more audio to be stored on a disc than PCM encoding. ButtonWhat it does

Press to switch the TV on/off (standby) INPUT Press to change the TV’s video input TV VOLUME Use to adjust the TV volume TV CHANNEL Use to change TV channels TV CONTROL

DVD DTV PC/GAME AUX TUNER ENTER ENTER CLEAR SX-SW260_KU.book Page 31 Wednesday, March 29, 2006 2:43 PMAdditional information

Preset code list Please note that there are cases where only certain functions may be controllable after assigning the proper preset code, or the codes for the manufacturer in the list will not work for the model that you are using. Manufacturer Code(s) Manufacturer Code(s) Manufacturer Code(s) Manufacturer Code(s) ACURA ADMIRAL

SX-SW260_KU.book Page 32 Wednesday, March 29, 2006 2:43 PMAdditional information

English Troubleshooting Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the system does not operate normally due to external effects such as static electricity disconnect the plug from the outlet and insert again to return to normal operating conditions.• For audio-related problems, please also check the settings of the audio playback device. See the operating instructions for the device for detailed information. GeneralTuner ProblemRemedy The power does not turn on, or switches off suddenly (an error message may be displayed at startup).• Leave the unit plugged in, wait for one minute, then switch back on.• Make sure there are no loose strands of wire touching the unit. This could cause the system to shut off automatically.• Check that the speakers are connected correctly.• Make sure there is enough space for ventilation around the receiver subwoofer.• Make sure the voltage of the mains power source is correct for the model. • Try reducing the volume level.• If the problem persists, take it to your nearest Pioneer authorized service center or your dealer for servicing.No sound is output when an input function is selected.• If you’re using the line input, make sure the component is connected correctly (see Connecting auxiliary components on page 27).• Turn up the volume.• Press MUTE on the remote control to turn muting off.No sound from surround or center speakers.• Refer to Channel level setting on page 25 to check the speaker levels.• Check that you haven’t selected the AUTO

STEREO , or VIRTUAL mode (see Listening in surround sound on page 19).• Connect the speakers properly (refer to Connecting up).Can’t operate using the remote control.• Replace the batteries ( Putting the batteries in the remote control on page 16).• Operate within 23 ft., 30° of the remote sensor ( Using the remote control on page 16).• Remove any obstacles or operate from another position.• Avoid exposing the remote sensor on the front panel to direct light.• For operating the DVD recorder or other Pioneer component connected to the CONTROL OUT jack of this receiver subwoofer, make sure that the control cable and coaxial cable or at least one set of analog audio cables are connected. (page 29)• If the receiver subwoofer is connected to a Pioneer plasma display with an SR+ cable, check that the plasma display is switched on. Point the remote control at the plasma display in order to operate the receiver subwoofer.• Check that nothing is mistakenly plugged into the CONTROL IN jack. ProblemRemedy Considerable noise in radio broadcasts.• Connect the AM antenna (refer to the Connecting up) and adjust the direction and position for best reception. You may also connect an additional internal or external AM antenna (refer to Connecting external antennas on page 27).• Fully extend the FM wire antenna, position for best reception, and secure to a wall. You may also connect an outdoor FM antenna (see Connecting external antennas on page 27).• Turn off other equipment that may be causing the noise or move it further away. SX-SW260_KU.book Page 33 Wednesday, March 29, 2006 2:43 PMAdditional information

Error Messages Auto tuning does not pick up some stations.

• The radio signal is weak. Auto tuning will only detect radio stations with a good signal. For more sensitive tuning, connect an outdoor antenna. Problem Remedy Message Description 2CH ONLY

• An operation is prohibited because it is only applicable to 2 channel sources, while the current source is a multichannel source. 96K

• An operation is prohibited because the source is 96 kHz digital. MUTING

• An operation is prohibited because the sound is muted (press MUTE

• Appears when a menu is automatically exited after a set period of inactivity. NOISY

• Background noise is too high to complete MCACC setup successfully. ERR MIC

• An error occurred during MCACC setup because the microphone is not connected or is not connected properly. ERR SP

• An error occurred during MCACC setup because the speakers are not connected or are not connected properly. EEP ERROR

• Contact your Pioneer authorized service center or your dealer for servicing. NO SPTYP

• Try switching the unit off then on again. If the error still appears, please contact a Pioneer authorized service center or your dealer. SX-SW260_KU.book Page 34 Wednesday, March 29, 2006 2:43 PMAdditional information

English Specifications SX-SW260 Audio Multi-channal Receiver Subwoofer •Amplifier section RMS Power Output :Front, Center, Surround ........................ 100 W per channel(1 kHz, 10 % T.H.D., 4

FTC Power Output :Front, Center, Surround .......................... 25 W per channel(200 Hz to 20 kHz 1 % T.H.D., 4

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

WARNING – TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE. D1-4-2-1_En CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. D8-10-3a_En AVERTISSEMENT Cet appareil n’est pas étanche. Pour éviter les risques d’incendie et de décharge électrique, ne placez près de lui un récipient rempli d’eau, tel qu’un vase ou un pot de fleurs, et ne l’exposez pas à des gouttes d’eau, des éclaboussures, de la pluie ou de l’humidité. D3-4-2-1-3_A_FrREAD INSTRUCTIONS — All the safety and operating instructions should be read before the product is operated. RETAIN INSTRUCTIONS — The safety and operating instructions should be retained for future reference. HEED WARNINGS — All warnings on the product and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS — All operating and use instructions should be followed. CLEANING — The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet. ATTACHMENTS — Do not use attachments not recommended by the product manufacturer as they may cause hazards. WATER AND MOISTURE — Do not use this product near water — for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. ACCESSORIES — Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. CART — A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. VENTILATION — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. POWER SOURCES — This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. LOCATION – The appliance should be installed in a stable location. NONUSE PERIODS – The power cord of the appliance should be unplugged from the outlet when left un-used for a long period of time.

GROUNDING OR POLARIZATION

• If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

• If this product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin, it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug. POWER-CORD PROTECTION — Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. OUTDOOR ANTENNA GROUNDING — If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A. LIGHTNING — For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. POWER LINES — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. OVERLOADING — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. OBJECT AND LIQUID ENTRY — Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. SERVICING — Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. DAMAGE REQUIRING SERVICE — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the product.

• If the product has been exposed to rain or water.

• If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

• If the product has been dropped or damaged in any way.

• When the product exhibits a distinct change in performance — this indicates a need for service. REPLACEMENT PARTS — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. SAFETY CHECK — Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. WALL OR CEILING MOUNTING — The product should not be mounted to a wall or ceiling. HEAT — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. GROUND CLAMP ELECTRIC SERVICE EQUIPMENT ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

NEC — NATIONAL ELECTRICAL CODE

Fig. A D1-4-2-2_En This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_En

his product contains mercury. Disposal of this material may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance : www.eiae.org. K057_EnWARNING: Handling the cord on this product or cords associated with accessories sold with the product will expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm. D36-P4_A_En Wash hands after handling Ce produit est destiné à une utilisation domestique générale. Toute panne due à une utilisation autre qu'à des fins privées (comme une utilisation à des fins commerciales dans un restaurant, dans un autocar ou sur un bateau) et qui nécessite une réparation sera aux frais du client, même pendant la période de garantie. K041_FrFor U.S. and Australia Model C67-7-3_En POWER-CORD CAUTION Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. S002_En

A DECOUVVERT. D2-4-4-1_EFS001_En Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion. Once you have established a comfortable sound level:

• Set the dial and leave it there. Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime. We Want You Listening For A Lifetime Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection. Decibel Level Example 30 Quiet library, soft whispers

Living room, refrigerator, bedroom away from traffic 50 Light traffic, normal conversation, quiet office 60 Air conditioner at 20 feet, sewing machine 70 Vacuum cleaner, hair dryer, noisy restaurant

Average city traffic, garbage disposals, alarm clock at two feet.

Subway, motorcycle, truck traffic, lawn mower 100 Garbage truck, chain saw, pneumatic drill 120 Rock band concert in front of speakers, thunderclap 140 Gunshot blast, jet plane 180 Rocket launching pad Information courtesy of the Deafness Research Foundation.Table des matières

SX-SW260_FR.book Page 10 Wednesday, March 29, 2006 1:43 PMConnexions

7 m SX-SW260_FR.book Page 16 Wednesday, March 29, 2006 1:43 PMPour commencer
