Product Type	Personal GPS Navigation System
Brand	SONY
Model	NV-U50
Dimensions (W × H × D)	Approx. 104.7 × 87.5 × 42.9 mm
Weight	Approx. 310 g
Power Supply	5 V DC via supplied AC adapter or 12 V car battery adapter (via cradle)
Battery	Built-in rechargeable lithium-ion battery; charging between 5 °C and 45 °C
Display	3.5-inch LCD touchscreen (4:3), 230400 dots (960×240)
GPS Receiver	12 parallel channels
Voice Guidance	15 selectable languages
Connectivity	USB port, DC IN 5 V jack, external GPS antenna jack
Functions	GPS navigation, touchscreen, voice guidance, RDS-TMC (on NV-U50T), automatic brightness adjustment, rechargeable battery
Maintenance and Cleaning	Clean with a soft, dry cloth; avoid moisture and extreme temperatures
Safety	Do not obstruct driver's view; do not use while driving; obey traffic laws; do not expose to water or fire
Spare Parts and Repairability	Optional accessories: external GPS antenna VCA-41, car mount kit NVA-CU3T/CU3, car installation kit XA-49FM
Operating Temperature	5 °C to 45 °C
Box Contents	Cradle, car battery adapter, AC adapter, AC power cord(s), USB cable, carrying case, application disc (CD-ROM), quick start guide, warranty card

Frequently Asked Questions - NV-U50 SONY

How to install the device in the car?

Fix the cradle to the windshield using the suction cup, after cleaning and drying the surface. Connect the car battery adapter to the DC IN 5.2 V jack on the cradle and to the cigarette lighter. Place the device on the cradle until you hear two clicks. Adjust the angle using the center button.

How to charge the battery?

Make sure the POWER switch is in the ON position. The battery charges automatically when the device is placed on the cradle connected to the car battery adapter or AC adapter. The CHG indicator lights red during charging.

What to do if the GPS does not receive a signal?

Park the vehicle in an open area (no tall buildings) and wait up to 20 minutes. Check GPS status in the information. If the windshield is heated or heat-reflective, use the optional external GPS antenna VCA-41.

How to adjust the voice guidance volume?

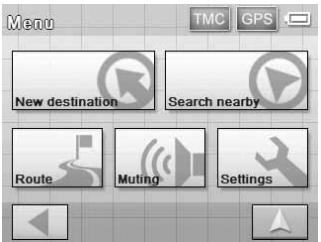

In the main menu, select Settings > Volume. Adjust the level. Note that when powered by the internal battery, the maximum volume is limited to about 70%.

How to reset the device?

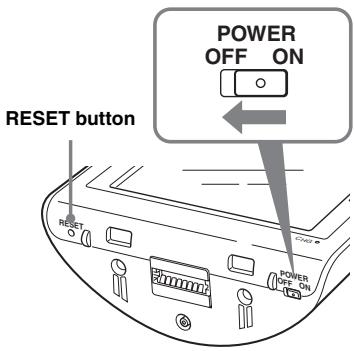

Use a pointed object (ballpoint pen) to press the RESET button. If the problem persists, cut the power by sliding the POWER switch to OFF, then turn on again after 10 seconds.

Can I use the device while driving?

No, for safety reasons. Do not look at the screen while driving. Stop the vehicle in a safe place before entering a destination or changing settings.

How to update maps?

Use the software provided on the CD-ROM/DVD-ROM. Connect the device to a computer via USB and follow the instructions in the Map Assistant to add or remove map data.

What to do if the touchscreen does not respond?

Calibrate the screen via Settings > Touch Screen Calibration. If the problem persists, reset the device. Avoid pressing with sharp objects.

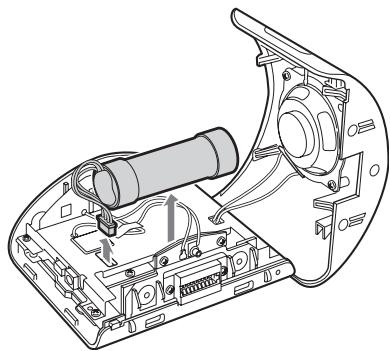

How to remove the battery for recycling?

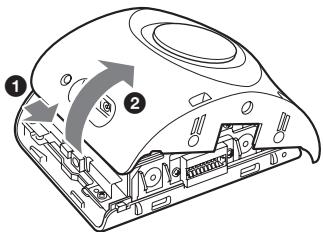

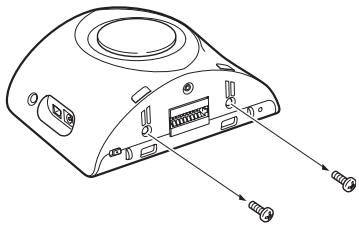

Set the POWER switch to OFF. Remove the jack cover, unscrew the two screws under the device, slide off the back cover, then remove the battery. Insulate the terminal with adhesive tape. Take the battery to an appropriate collection point.

Is the device compatible with RDS-TMC systems?

Yes, the NV-U50T model is compatible with the RDS-TMC traffic information channel. A TMC antenna is supplied and must be installed on the windshield to receive traffic messages.

USER MANUAL NV-U50 SONY

Personal Navigation System

Quick Start Guide	GB
Anleitung zur schellen Inbetriebnahme	DE
Guide de démarriage rapide	FR
Guida rapida all'uso	IT
Beknopte handleiding	NL
Guía de inizio=rápido	ES
Snabbstartguide	SE
Guía de iniciação=rápida	PT
Skrócona instrukcja obstrugi	PL
Öðnyós σύντομns éKKiVŋσns	GR

NV-U70T

NV-U50T

NV-U50

About this manual

• This Quick Start Guide contains instructions for installation, connections and basic operations. For more information, see the PDF manual on the supplied Application Disc.
• Contents of this manual are written for users with knowledge of using the Microsoft® Windows® operating system. For details about computer operation, see the manual for your computer.
• Illustrations in this manual may differ from the actual device.
• Retain this manual in a place where you can refer to at any future time.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its

packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Applicable accessories: Car battery adapter/AC power adapter

No guarantee for lost data or damaged data

Sony does not provide any guarantee for lost or damaged data.

Caution

IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING WITHOUT LIMITATION LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER'S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.

Welcome!

Thank you for purchasing this Sony Personal Navigation System. Before operating this system, read this manual thoroughly and retain it for future reference.

FEATURING:

• Plug & Play capability
• Pre-installed European map (NV-U70T)
• Pre-installed regional map (NV-U50T/U50)
  15 languages selectable for voice guidance and on-screen display
  3.5-inch high quality display with touch screen
• Advanced 12ch parallel GPS receiver
  High-quality speaker
• RDS-TMC (Traffic Message Channel) compatible (NV-U70T/U50T)
• Battery operation
• Auto dimmer function

Important notice. 4

Getting Started 6

Checking the contents 6

Installing the unit. 7

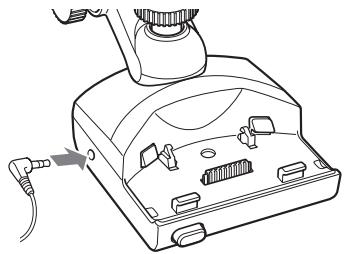

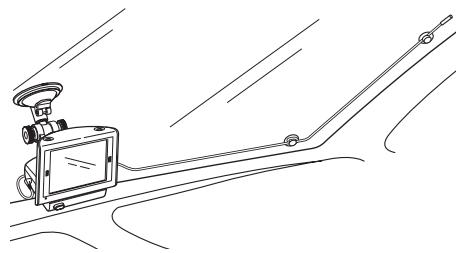

Installing the TMC aerial (NV-U70T/U50T only). 9

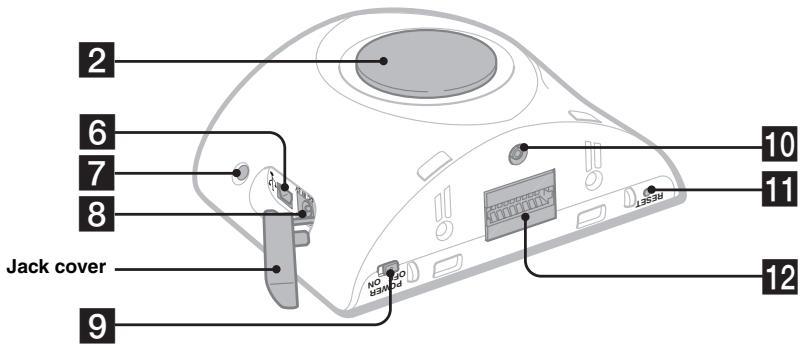

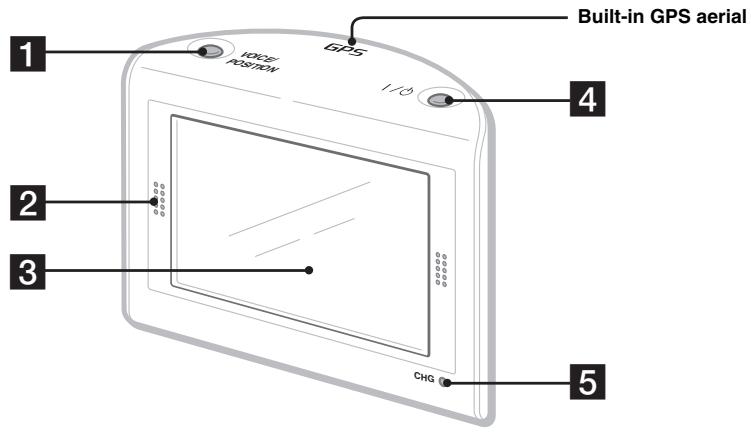

Location of controls. 10

Turning the unit on 11

Starting up the navigation 11

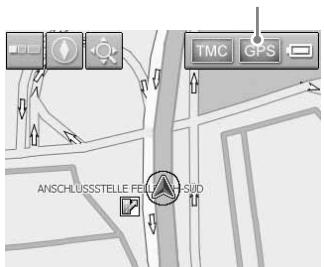

Receiving GPS signals 11

Basic Operations 12

Menu operations 12

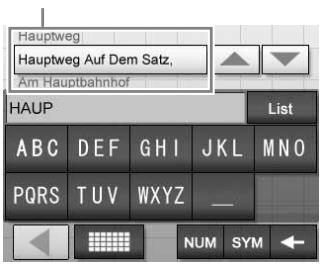

Keyboard operations 12

Route Searching 13

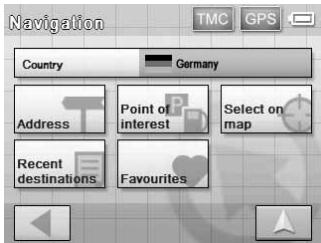

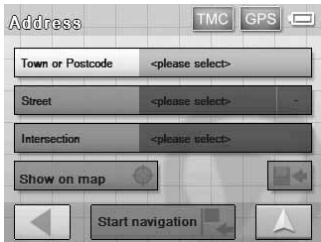

Setting the destination and starting guidance. 13

Setting the destination in other ways. 14

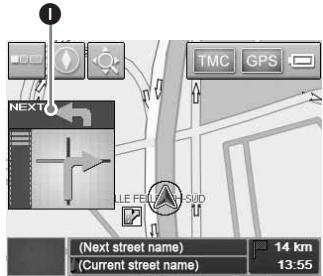

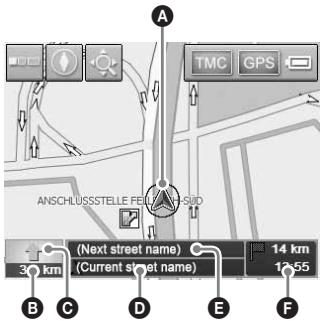

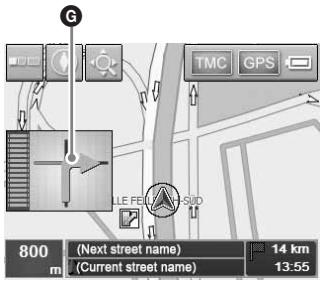

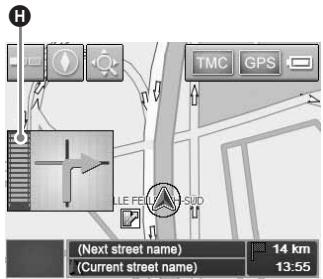

Guidance displays 15

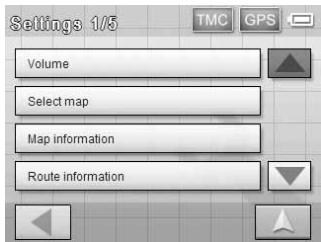

System Settings 16

Using the Supplied Software 17

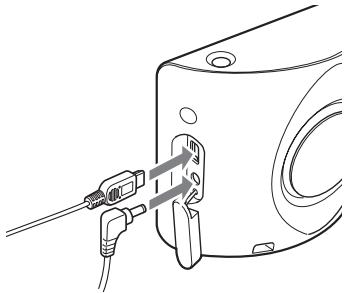

Connecting to your computer. 17

Software features 18

Additional Information 18

Precautions 18

Note on LCD panel. 18

Maintenance 18

Notes on unit disposal. 18

Specifications 19

Troubleshooting 20

Resetting the unit 20

Important notice

To avoid the risk of accident or injury, read the following warning before installing and operating the unit.

On handling

• Do not let foreign objects get inside the cradle connector of the unit, as it may cause malfunction.

• Turn the unit off by pressing I/(), take it out of the cradle, then disconnect the car battery adapter, otherwise car battery drain may occur. Note the following.
• Turning the ignition off does not turn off the unit, which continues to draw power from the lithium-ion rechargeable battery (built-in).
• If your car's cigarette lighter socket is not connected to the ignition switch ACC position, power continues to be supplied to the built-in battery, even if you turn the ignition off.
• Check the CHG indicator at the bottom right of the unit which lights up during charging.

• Do not expose the unit to fire, as it may cause malfunction.
• Do not let water or rain get into the unit, as it may cause malfunction.
• If you leave the unit in direct sunlight, the LCD may darken and not display clearly. This is not a malfunction, and it will return to normal as temperature decreases.
  Note that the built-in battery cannot be charged at temperatures outside 5 - 45^ (41 - 113^)
• Do not leave the unit in high ambient temperature as the built-in battery capacity will deteriorate, or it will become unchargeable.

On safety

General

• Do not apply excessive force to the unit or cradle as it may fall under the brake pedal, etc., and cause an accident.
• Observe actual traffic regulations, such as one-way streets, while driving with the route guidance.
• Do not watch the unit while driving. It is dangerous and may cause a traffic accident.
• If you need to operate the unit while driving, be sure to stop the car in a safe place before operating.
• Be sure to take the unit out of the car when leaving your car to prevent theft or high temperature damage inside the car.
• When the car battery adapter is not in use, disconnect it from the cigarette lighter socket, as car battery drain may still occur even with ignition OFF.
• Do not allow any liquid or foreign objects to enter the unit.
• Do not place anything other than the specified unit in the cradle.
• Do not connect any accessory (car battery adapter, AC power adapter, etc.) other than those supplied or optional.
• Do not modify the unit.
• Do not disassemble the unit except when disposing of it.

Installation

• Before installing the unit, check your local traffic laws and regulations.
• Make sure you install the unit properly according to the installation instructions. Improper installation may result in fire or electric shock.
• Before installation, be sure to turn the ignition switch to the OFF position or take out the key. Installing the unit with the ignition on may cause the car battery to drain or short circuit.

• Be sure to:

• attach the unit to the cradle properly.
  clean the surface of the suction cup and windscreen before attaching. Also, confirm that the suction cup is securely attached to the windscreen after installation.

warm up the car interior and then install the cradle and unit if ambient temperature is low.

The cup suction is affected at high/low temperatures or sudden changes in temperature.

• wipe the windscreen before installation if there is condensation inside the car.

Otherwise, the unit or cradle may fall under the brake pedal, etc., and cause an accident.

• Be sure to place the cables where it does not obstruct driving.
• Do not use the unit in a car with the USB cable connected.
• Connect the car battery adapter only to the cradle.

• Do not damage any pipes, tubes, the fuel tank or electric wiring when installing the unit, as fire or accident may result. If you drill a hole in a car panel, make sure that any hidden car parts will not be damaged.

• Do not use or modify any nuts or bolts of critical devices such as steering linkage, fuel supply or braking systems. This can cause fire or an accident.
  Take care to prevent cords or wires from getting tangled or crimped in the moving portion of a seat rail.

• For information about the polarity, battery voltage and location of the airbag of your car, please consult your car dealer.

Installing location

• Please install the unit in a safe place where:

• it does not obstruct the driver's view.

• it does not obstruct the operation of the airbag system.
• it does not obstruct the operation of the car, especially the steering wheel, shift lever, or brake pedal.

• it is not subjected to heat/high temperature.

• Please consult a qualified technician or service personnel if you cannot attach the cradle to the car securely.

On GPS

GPS (Global Positioning System) satellites continuously emit signals for positioning anywhere on the earth. As a GPS aerial receives these signals, users can be informed of their location (latitude, longitude and altitude). Information must be received from 3 satellites in order to obtain two-dimensional fixes (latitude and longitude), and 4 satellites are required for three-dimensional positioning (latitude, longitude and altitude). As GPS satellites are controlled by the U.S. Department of Defense, a deliberate margin of error between a few metres (a few feet) and 10 metres (32.8 feet) exists. As a result, the GPS navigation system may include an error of between 10 metres (32.8 feet) and about 200 metres (656.2 feet), depending on the circumstances.

As GPS information is obtained using signal from satellites, it may be impossible or difficult to obtain the information in the following locations:

• Tunnel or underground

Under a highway

• Between high buildings

• Between tall trees with dense foliage

After the initial installation, park your car in a safe, open place (no high buildings, etc.) for up to 20 minutes to allow for GPS signals to be received before using the navigation system. The system requires signals from a minimum of 3 GPS satellites to calculate the current car position properly.

Note

It takes time to receive a GPS signal when switching the unit ON after switching OFF the main power, after the built-in battery is fully discharged, or after resetting the unit.

On the software

Read the following conditions carefully before use.

Copyright laws prohibit reproducing the software or the software manual in whole or in part or renting the software without the permission of the copyright holder.
- In the event a problem occurs with this software as a result of defective manufacturing, Sony will replace it at Sony's option or issue a refund. However, Sony bears no other responsibility.
- The software provided with this product cannot be used with equipment other than that which it is designated for use with.
- Please note that, due to continued efforts to improve quality, the software specifications may be changed without notice.
- Roads and names on the map may differ from actual roads and names.
- The warranty does not extend to an exchange or refund due to some typographical errors and omissions, or any other discrepancy in layout found in the software.
- In no way may the map data be copied and used, in whole or in part, without permission of the copyright holder.
- Contents are subject to change without notice.
By using the unit, you are agreeing to be bound by the above.

Getting Started

Checking the contents

Check the package contents.

• Main unit (1)

• Cradle*1 (1)

• Car battery adapter (1)

• AC power adapter (1)

• AC power cable(s)

-For NV-U70TW/U70TC*2 (2)

-For NV-U50TG/U50G*2 (1)

-For NV-U50F/U50D/U50I/U50A/U50B/U50S/ U50N*2 (1)

• USB cable (1)

• TMC antenna (aerial) (1)/suction cups (2) (For NV-U70T/U50T)

Adhesive tape (1)

• Pad (1)

• Carrying pouch (1)

Application Disc (CD-ROM) (1) (For NV-U50T/U50)

Application Disc (DVD-ROM) (1) (For NV-U70T)

• Quick Start Guide (1)
  Warranty card (1)
• User registration card (1)
• END-USER LICENSE AGREEMENT (1)

1 NV-U70T/U50T have a TMC aerial jack on the left side.
2 The model names are written on the label on the bottom of the main unit.

Installing the unit

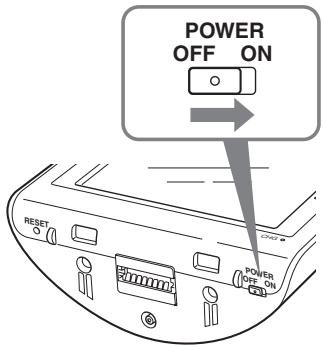

About the main power switch

Before installation, switch on the main power by sliding the POWER switch to the ON position.

Thereafter, you can turn the unit on/off by pressing I / I on the top right of the unit.

Notes

• Keep main power on unless the unit is not to be used for more than 3 months.
• If you switch off the main power, it may take time to receive GPS signals when switching on again.

About the suction mount

Before you start, choose a position on the windscreen that is clearly visible to the driver without obstructing the road view, and make sure all surfaces are clean and dry.

The optional cradles NVA-CU3T/CU3 can also be installed following the steps below.

Notes

• Install the unit in a safe place where it does not interrupt the GPS signal.
• Detach and reattach the cradle regularly as cup suction is affected by high/low temperature, extended use, etc.
• Be sure to keep a distance between the cradle and dashboard when installing.

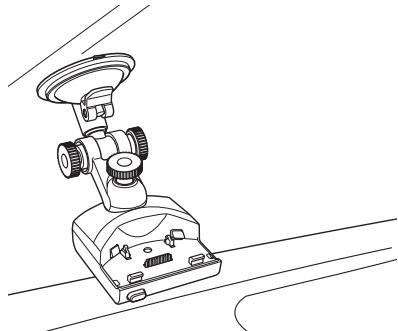

1 Attach the cradle on the windscreen. Figure example of completed cradle installation

Follow steps 1 - 3 to complete.

Clean and dry the surface of the suction cup.

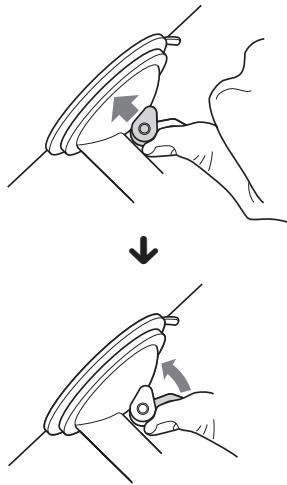

Press the centre of suction cup firmly against the windscreen to remove the remaining air inside it, then press the lever.

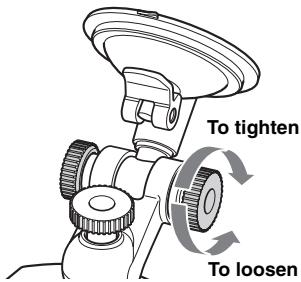

Holding the left knob*, loosen the right knob and set the approximate vertical angle, then retighten.

*The left knob does not turn.

If you want to fix the cradle on the windscreen permanently

The suction cup is affected in high/low temperatures and may come off. If you want to fix the cradle on the windscreen permanently, use the supplied adhesive tape on the suction cup.

If the bottom of the cradle touches the dashboard

Attach the supplied pad for protection. Cut the pad to the appropriate size before attaching.

Note

The adhesive tape is difficult to remove once applied.

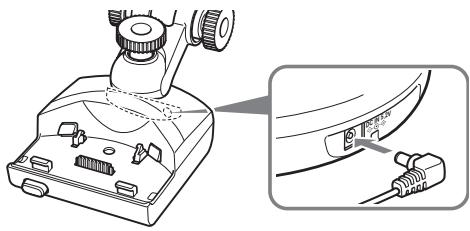

2 Connect the cradle to the car cigarette lighter socket.

Plug the car battery adapter into the DC IN 5.2V jack at the rear of the cradle.

Insert the other end of the car battery adapter fully into the car cigarette lighter socket.

• Lights up when you turn the ignition on after installation.

Note

Depending on the size or shape of the cigarette lighter socket, connection may not be possible.

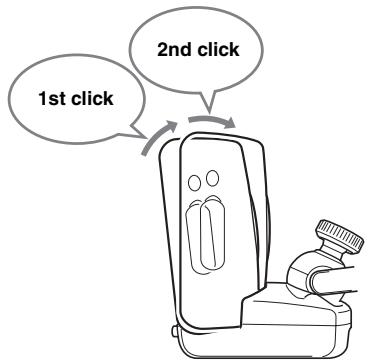

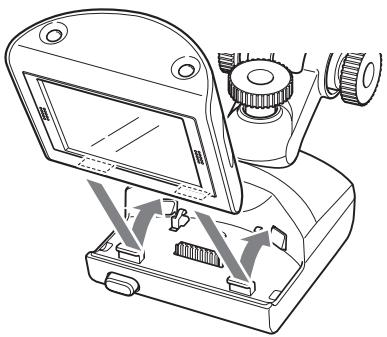

3 Align the 2 slots on the underside of the unit with the tabs on the cradle, then push to snap the unit into place.

Be sure the unit is securely locked in the cradle (2 clicks).

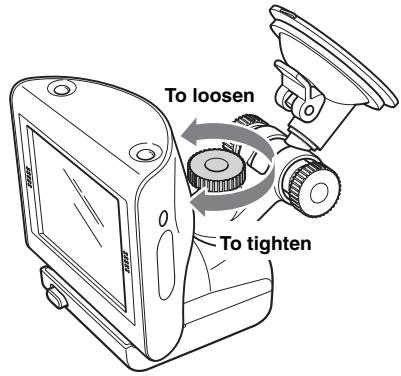

4 Loosen the centre knob, fine adjust the angle so you can view the monitor properly, then retighten.

Tip

You can also connect the unit to an outlet using the supplied AC power adapter.

To detach the unit from the cradle

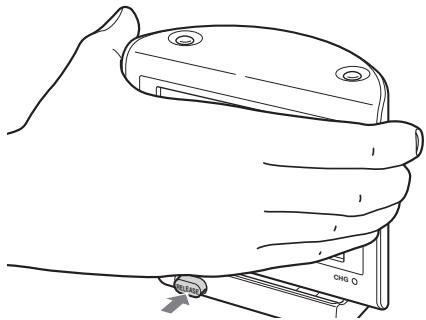

1 Holding the unit, press the RELEASE button of the cradle.

The unit pops out of the cradle.

2 Take the unit out of the cradle.

Installing the TMC aerial (NV-U70T/U50T only)

Install the TMC aerial to obtain traffic information from RDS-TMC (Traffic Message Channel).

1 Plug the TMC aerial cord into the TMC aerial jack on the left side of the cradle.

2 Attach the end suction cup to the windscreen, then attach the other suction cup so as the cord forms 2 straight lines.

Front:

Rear:

Refer to the pages listed for details.

1 VOICE/POSITION button

During route guidance:

To hear the next voice guidance.

In map scrolling mode:

To show your current car position.

2 Speaker

Outputs guidance and warnings.

3 Display window/touch screen

4 I( on/standby) button 11

To turn the unit on/off.

5 CHG (battery charge) indicator

Lights up in red while charging.

USB jack 17

To connect to a computer with the USB cable.

7 Auto dimmer sensor

For details on auto dimmer function, see the supplied PDF manual.

DC IN 5V jack

To connect to the AC power adapter.

9 POWER switch 7,20

To turn the main power on/off.

10 External GPS antenna (aerial)* jack
11 RESET button 20
12 Cradle connector

Turning the unit on

Check that the POWER switch on the bottom right of the unit is in the ON position beforehand (page 7).

1 Press I/O.

To turn the unit off

Press I/

The unit enters standby mode for minimum power consumption.

Note

Be sure to take the unit out of the cradle and disconnect the car battery adapter when the unit is not in use to prevent car battery drain.

Starting up the navigation

1 After turning the unit on, touch the desired language.

The warning display appears.

2 Read the warning display, then touch "Agree."

The tutorial displays appear.

3 Touch to proceed.

The top menu appears.

Receiving GPS signals

After the initial installation, park your car in a safe, open place (no high buildings, etc.) for up to 20 minutes to allow for GPS signals to be received before using the navigation system. The system requires signals from a minimum of 3 GPS satellites to calculate the current car position properly.

You can check the GPS status on displays.

GPS status indicator

Lights up in bright green when signal reception is sufficient for navigation.
Lights up in dark green when signal has been lost.

Basic Operations

Common procedures to operate the system are explained.

General operations can be performed on the touch screen. Touch the displayed icons with your finger gently.

Note

Do not press the display with excessive force, or use any sharp article, such as a pen, etc., to tap on the display.

Menu operations

You can set items in the menu by the following procedures.

1 Show the top menu.

In the map display, touch the map.
In the menu display, touch to show the map, then touch the map.

2 Touch "Settings," then touch a desired item.

3 Touch / to scroll the list, then touch a desired setting item.

E.g.: Volume setting display

4 Make the desired setting.

Touch and select the desired setting or input characters.

During menu operation:

To return to the previous display, touch. To cancel the menu selection, touch (the current car position display appears).

Note

The items on the menu and setting operations differ depending on the selected menu item.

Keyboard operations

The keyboard display appears when you need to enter text.

You need only enter characters in upper case, as the system automatically converts them to appropriate characters. You can enter special characters when necessary (e.g. when naming a saved destination, etc.).

Mobile phone keyboard display

Candidates

To	Touch
enter an alphabetical character	the relevant key (e.g. “ABC”) repeatedly until the desired character is highlighted in the line above the keyboard.
enter a number	“NUM” to switch to the number keyboard, then the desired number key; and “ABC” to switch back.
enter a space	“-”
delete a character	“←”
select a candidate	▲▼ to scroll the list, then the desired candidate to confirm.
see the list of all candidates	“List”

You can select either a mobile phone keyboard or a character keyboard (alphabetical) for the keyboard display.

Touch to switch to character keyboard. The character keyboard is used in the same way as the mobile phone keyboard, except when:

• entering a character (touch the desired character key).

• entering a special character (touch "SYM" to switch to the special character keyboard; touch "ABC" to switch back).

Touch to switch back to the mobile phone keyboard.

Route Searching

The system searches for routes automatically after setting the destination.

Before starting, check that GPS signals are sufficient for navigation (page 11).

Setting the destination and starting guidance

The procedure for searching for the route and starting route guidance is explained.

As an example, setting the destination by the address is introduced here.

For details on setting the destination in other ways, see "Setting the destination in other ways" on page 14.

For your safety, park your car in a safe place, then enter the destination information before starting a journey.

1 Show the top menu.

In the map display, touch the map.

In the menu display, touch to show the map, then touch the map.

2 Select "New Destination" "Navigation."

3 Select the desired country by touching the "Country" entry field.

Only countries included in the current map data are selectable.

4 Select "Address."

5 Input the address details.

For details on how to input characters, see "Keyboard operations" on page 12.

Touch the respective entry field to input the items below.

"Town or Postcode"

Input the town name or postcode.

"Street"/"-

Input the street name, and house number (if known).

If no house number is available, the “-” field is deactivated.

"Intersection"

Input the crossroad name if you want it as the destination point.

6 Select "Start navigation."

The route option selection display appears.

For details on selecting route options, see the supplied PDF manual.

7 Select "Start navigation" again.

The map display appears, the route is calculated, and route guidance starts.

Setting the destination in other ways

You can also set the destination and search for routes by the following methods.

From the top menu, select the items in the following order, then "Start navigation" (if necessary).

For details, see the supplied PDF manual.

Search nearby

Searches for routes to a POI, such as restaurant, hotel, etc., near the current car position.

Home

Searches for routes to your home when it is registered.

"New Destination" "Home"

Point of interest

Searches for routes to a POI, such as restaurant, hotel, etc., by selecting the category(ies) and correct destination from the list.

Select "New Destination" "Navigation"

"Point of interest," then the following options which allow you to specify the search area.

---nearby

Searches within the specified radius of the centre of the map.

--nationwide

Searches within the specified country.

---in a town

Searches within the specified town.

Select on map

Searches for routes by setting the destination directly from the map display.

"New Destination" "Navigation" "Select on map"

Recent destinations

Searches for routes to recently searched destinations.

"New Destination" "Navigation" "Recent destinations"

Favourites

Searches for routes to a saved destination point.

"New Destination" "Navigation"

"Favourites"

Guidance displays

Once a route has been calculated, visual guidance navigates you to the destination along with audio guidance.

Information on map tool menu

To show/hide tool menu.
To switch the map direction (north up/heading up) of the 2D map.
3 To switch to map scrolling mode.
To view TMC information.*
5 To view detailed GPS information.
Indicates battery condition.

• NV-U70T/U50T only.

Lights up in bright orange during reception.

Lights up in dark orange during no reception.

2D map display

Straight-ahead driving

Approaching an intersection

Approaching an intersection (closer)

Next guidance immediately after intersection

A Current position
Distance to next turn
Next direction
Current street name
Next street name
ETA (Estimated Time of Arrival)/Distance to destination
Next turn instruction
Bar indication of distance to next turn
Instruction after next

3D map display

You can set the 3D map display in the setting menu (page 16).

View route display

You can view the entire route to the destination. To display, from the top menu, select "Route" "View route."

continue to next page

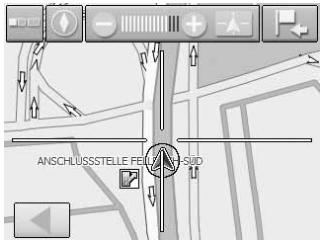

Map scrolling mode

You can switch to map scrolling mode from map display by touching , whether during route guidance or not.

In map scrolling mode, the cross-hair is displayed on the map, and you can drag the screen to scroll the map.

Touch - / + to adjust map scale.

Place the intersection of the cross-hair on a desired point, then touch to show the map scrolling mode menu, where you can set the point as a destination, etc.

Touch to return to the current car position display.

System Settings

Various settings related to the system and memory are configurable.

From the top menu, select "Settings," then the desired item below to make each setting.

For details, see the supplied PDF manual.

Volume

To adjust the voice guidance volume.

Note

When the unit is powered by the built-in battery, maximum available volume is 70% even if set higher (80%, etc) . When it is powered using the car battery adapter or AC power adapter, this does not apply.

Select map

To select a map stored in the unit.

Map information

To show/hide the information bar (displayed at the bottom of the map), POI icons, and street names on the map.

Route information

To show/hide ETA (Estimated Time of Arrival) and distance to final destination on the map.

Signpost information

To show/hide signposts indicating motorway/highway exits*1 on the map.

Light sensor

To adjust the sensitivity of the auto dimmer sensor.

Graphical look

To set the brightness and map colour.

Touch screen calibration

To calibrate the contact position of the touch screen.

Auto mode

To select the default map display (2D or 3D); automatically change the map scale depending on the driving speed (configurable for 2D and 3D respectively); select the default map direction for 2D map display (north up or heading up).

Routing options

To select the route search preference (time-optimized or distance-optimized); permit/avoid motorways, ferries and toll roads on route.

Itinerary

To automatically proceed to the next destination after reaching the previous destination.

Time zone

To select the time zone of the current region; switch between daylight saving time and standard time.

Although the current time is automatically set by GPS, the time zone needs to be set for ETA (Estimated Time of Arrival) to be displayed accurately.

Format

To select 12/24-hour clock indication; select the distance unit (kilometres/miles).

Select language

To select the desired language for on-screen display and voice guidance.

Home address

To register your home address.

Radio muting*2

To attenuate the radio sound.

Demo mode

To start the demonstration.

Product information

To display unit information, such as name, version, etc., and tutorials.

1 Displayed only if contained in the map information.
2 Only if the optional Car Install Kit XA-49FM is connected to the "Radio muting" jack of your car audio.

Note

Warnings given according to map information may not always be correct due to road works, etc. Traffic situations and road regulations take absolute precedence over information given by the navigation system.

Using the Supplied Software

Significant functions using the supplied software are introduced here.

For details, see the supplied PDF manual.

Operating system requirements

• OS: Windows 98SE/2000/ME/XP
  CD-ROM/DVD-ROM drive
• USB port
• 150 MHz CPU speed minimum (recommended)

Connecting to your computer

1 Connect the unit to an outlet using the AC power adapter and the AC power cable.
2 Connect the unit to your computer with the USB cable.

Connect the small connector of the USB cable to the USB jack on the unit, then the large connector to a USB port on your computer.

Notes when transferring data

During transfer, do not

• disconnect the USB cable or the AC power adapter.
• turn off the main power of the unit, enter unit standby mode, or reset the unit.
• shut down the computer, enter computer standby mode, or restart the computer.

If you want to cancel transferring mid-way, click the cancel button on the computer screen.

continue to next page

Software features

Install PC connection software

PC connection software (ActiveSync) can be installed.

Backup and Restore pre-installed map (NV-U50T/U50 only)

The map data pre-installed in the unit can be backed up on your computer and restored to the unit, in case of accidental deletion, etc.

Map Manager

Map data can be added to the unit from the supplied or optional DVD-ROM. When adding, you may need to delete unnecessary map data from the unit to free up memory space.

Language Manager

Language data for on-screen display and voice guidance can be added to the unit from the supplied CD-ROM/DVD-ROM, and unnecessary language data can be deleted from the unit.

Read the manual

You can read the manual in PDF format.

Support link

Easy access to the Sony navigation support site is available.

Visit this site for technical support, such as software and firmware updates, FAQs, etc.

Re-install application

The navigation software pre-installed in the unit can be re-installed from the supplied CD-ROM/DVD-ROM, in case of accidental deletion, etc.

Additional Information

Precautions

If your car has been parked in direct sunlight, allow the unit to cool off before operating it.

Moisture condensation

On a rainy day or in a very damp area, moisture condensation may occur inside the display of the unit. Should this occur, the unit will not operate properly. In such a case, slide the POWER switch on the bottom right of the unit to OFF position, then wait for about an hour until the moisture has evaporated.

Note on LCD panel

Some stationary blue, red or green dots may appear on the monitor. These are called "bright spots," and can happen with any LCD. The LCD panel is precision-manufactured with more than 99.99% of its segments functional. However, it is possible that a small percentage (typically 0.01% ) of the segments may not light up properly. This will not, however, interfere with your viewing.

Maintenance

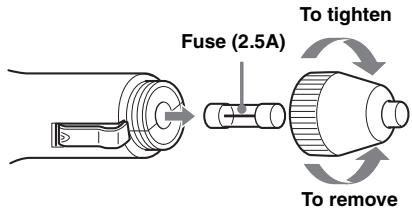

Fuse replacement

When replacing the fuse in the car battery adapter, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Warning

Never use a fuse with an amperage rating exceeding the one supplied with the unit as this could damage the unit.

Notes on unit disposal

Remove the built-in lithium-ion battery when disposing of the unit, and return the battery to a recycling location.

The procedure for removing the battery is explained below.

Note

Never disassemble the unit except when disposing of it.

1 Switch off the main power by sliding the POWER switch to the OFF position.
2 Remove the jack cover (page 10).

3 Remove the 2 screws on the underside of the unit using a screwdriver.

4 Slide the rear cover, then lift to open.

5 Remove the battery.

6 Insulate the connector terminal by wrapping with a tape.

Notes on the lithium-ion battery

• Keep the battery out of the reach of children.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated.
Do not recharge, disassemble, or dispose of in fire.

Specifications

Main unit

Operating temperature: 5 - 45^ (41 - 113^)

Power requirements: DC 5 V (from supplied AC power adapter)

Connection terminals:

Cradle connector

DC IN 5V jack

USB jack

External GPS antenna (aerial) jack

Speaker: 2-way speaker

Consumption current: Approx. 0.5 A

Dimensions: Approx. 104.7 × 87.5 × 42.9 ~mm

(4.1× 3.5× 1.8 in) (w× h× d)

Mass: Approx. 310g (11 oz)

Monitor

System: Transmissive liquid crystal display

Drive system: a-Si TFT active matrix system

Dimensions: 3.5 in (4:3)

70.1× 52.6 87.6mm (2.8× 2.1 3.5 in) (h× v,d)

Segment: 230,400 (960× 240) dots

Cradle

Operating temperature: 5 - 45^ (41 - 113^)

Power requirements: DC 5.2 V

(from supplied 12V car battery adapter (negative earth))

Connection terminals:

Unit connector

DC IN 5.2V jack

TMC aerial jack (NV-U70T/U50T only)

Reception frequency: 87.5 - 108.0 MHz

(NV-U70T/U50T only)

Optional accessories

External GPS Antenna: VCA-41

TMC Car Cradle Kit: NVA-CU3T

Car Cradle Kit: NVA-CU3

Car Install Kit:XA-49FM

European Map Package: NVD-DU3

(for NV-U50T/U50)

Design and specifications are subject to change without notice.

• Lead-free solder is used for soldering.
• Halogenated flame retardants are not used in the certain printed wiring boards.
• Use of rechargeable lithium ion batteries.
  Corrugated cardboard is used for the packaging cushions.
  VOC (Volatile Organic Compound)-free vegetable oil based ink is used for printing the carton.
• This manual is printed on 100% recycled paper using VOC (Volatile Organic Compound)-free vegetable oil based ink.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit.

Before going through the checklist below, check the connection and operating procedures.

The operation icons on the display do not function.

An operation may take time while a map is displayed.

The unit does not turn on.

Check that the POWER switch on the bottom right of the unit is in the ON position.
Charge the built-in battery.
Check that the unit is securely attached to the cradle (page 8).

The built-in battery cannot be charged.

Check that the POWER switch on the bottom right of the unit is in the ON position.
If the AC power adapter is being used, disconnect it from the outlet, then reconnect.
The built-in lithium-ion battery can be charged at temperatures between 5 - 45^ (41 - 113^) . The battery may not be charged if the temperature inside the unit increases because of direct sunlight exposure, etc. This is not a malfunction.

GPS signal cannot be received.

• The system cannot receive GPS signals due to an obstruction.
  Move your car to a place where signals can be received clearly.
• GPS signal reception is low.
  Check the GPS information.
  →The optional External GPS Antenna VCA-41 may be required for a heated or heat reflective windscreen.
• There is an obstacle in front of the GPS aerial.
  Install the unit where the signal is not interrupted by the body of the car, etc. For details on the unit installation, see "Installing location" on page 5.
• Signal may not be received if a window film is attached. In that case, use the optional External GPS Antenna VCA-41.

The car position on the map does not match the current road.

The error margin of the signal from the GPS satellites is too large. A maximum error margin of a few hundred metres can exist.

Voice guidance cannot be heard.

The volume is set too low.

Raise the volume in the setting menu (page 16). When the unit is powered by the built-in battery, maximum available volume is 70% even if set higher (80%, etc.) .

The LCD is not displayed normally.

• In high temperatures, the LCD may darken and not display clearly. In low temperatures, afterimage may occur on the LCD. These are not malfunctions, and the LCD will return to normal when the temperature returns to within the specified operating range.
• The LCD is dark, or the map colour has changed.

The auto dimmer function may be activated because its sensor (page 10) is covered by a hand, etc.

Resetting the unit

If the navigation software freezes, try resetting the unit.

Press the RESET button with a pointed object, such as a ballpoint pen.

If the problem persists, switch off the main power by sliding the POWER switch to the OFF position, then switch on again after approximately 10 seconds.

Note

After you switch off the main power, it may take time to receive GPS signals when switching on again.

Wichtig!

Appareil principal (1)

Reinstaller I'application

Softwarefunctions. 19

(allele NV-U70T/U50T)

Optionele accessoires

Externe GPS-antenna: VCA-41

Lyser ljust orange under mottagning.

Lyser mörkt orange'nar mottagning saknas.

2D-karta

Alternative for rutt

Dukommen latt at Sonys supportsida for navigating.

Noriculum
Noriculum
No curriculum
No curriculum
No curriculum
No curriculum
No curriculum
No curriculum
No curriculum

Characteristicas techniques

Unidade principal

Temperatura de funciona: 5 - 45^

Tva anevpyonoioeTn movda

Pntjote I/O

H movada maiavei o xataoataon avamovis yva v elambdaotonoi n i n xatavaloon evoyia.

Σημειωη

Otarv xpnouoieTn movda, npEe va tv baycTe ano Tbaon kai va anouuvdTeToV npooapauoya maatapiaac autokivntou, wot e va myn EgavTn0e n atapiau tokivntou.

Evapξη Πης πλοήνησς

1 Aphiou evepyonoioeTn movada, eIIAETE ano Tnv oOovn aoc Tn yawosao nou eEeTE.

Euavicovtaoi0b0vcs tov 1ooyaamatoe exaohno

Install PC connection software

(Eyataoataon loyoouov ouvdeoos uvooyoiot)

Mnoogeitv aeyataoantoe to loyuao ouvdeon vnooloyuot (ActiveSync).

Backup and Restore pre-installed map

• Microsoft and Windows are registered trademarks of Microsoft Corporation.
• All other trademarks are trademarks of their respective owners.

V-Trafic Information in France is provided by Mediamobile company.

Traffic Information in the UK is provided by ITIS Holdings Plc.

© 1993 NAVTEQ. All Rights Reserved.

Ausw/Italy © 1994

Austria © 1996

Belgium © 1995

Benelux © 1993

Central Europe © 1993

Czech Republic © 2002

Denmark © 1997

Finland © 2001

France © 1993

Germany © 1993

Great Britain © 1993

Italy © 1994

Luxembourg © 1996

Mediterranean Coast © 1993

Norway © 2001

Portugal © 1997

Spain © 1997

Sweden © 1994

Switzerland © 1996

The Netherlands © 1993

Austria

Based on Ordnance Survey electronic data and used with the permission of the Controller of Her Majesty's Stationary Office © Crown Copyright, 1995.

Greece

© EuroGeographics; Copyright Geomatics Ltd.

Hungary

Copyright © 2003; Top-Map Ltd.

Italy

Copyright © 2000; Norwegian Mapping Authority

Portugal

Source: IgeoE - Portugal

Spain

Based upon electronic data © National Land Survey Sweden.

Switzerland

If you have any questions or for the latest support information on navigation, visit the website below:

http://www.sonydigital-link.com/observation/
