Region	Speicherebenen
EUROPE	FM1, FM2, FMT, MW, LW
USA	FM1, FM2, FMT, AM, AMT
THAI	FM1, FM2, FMT, AM
S AMERICA	FM1, FM2, FMT, AM, AMT

RDS	ON
REG*	ON
TRAF*	OFF

* Nur in Tuner-Region „EUROPE“

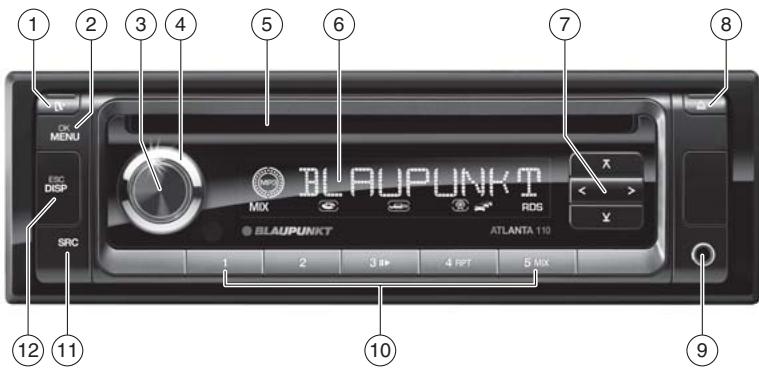

① [button
Unlock the detachable control panel
② MENU/OK button
Short press: Call up menu, confirm settings Long press: Start scan function
③ On/Off button
Short press: Switch on car sound system In operation: Mute car sound system (Mute) Long press: Switch off car sound system
④ Volume control
⑤ CD tray
⑥ Display

⑦ A / Y button

In the menu: Call up menu item Radio mode: Select memory bank MP3/WMA mode: Change to next/previous folder

< / > button

In the menu: Change settings Radio mode: Adjust the stations Other operating modes: Track selection

⑧ ▲ button (Eject) Eject a CD
⑨ Front AUX-IN socket
⑩ Keys 1 - 5
⑪ SRC button Selecting an audio source
⑫ DISP/ESC button In the menu: Exit menu In operation: Switch display

Safety notes 18

Symbols used....18

Road safety 18

General safety notes....18

Declaration of conformity 18

Cleaning notes....19

Disposal notes.... 19

Scope of delivery 19

Optional equipment (not part of the scope of delivery)....19

Placing the device in operation.... 19

Attaching/detaching the control panel .....19

Setting the tuner region 20

Switching on/off 20

Volume 20

Switching demo mode on/off....20

Traffic information....21

Radio mode....21

RDS....21

Changing to radio mode....21

Selecting the memory bank....21

Tuning into a station 21

Storing stations/Calling stored stations......22

Scanning stations 22

Storing stations automatically (Travelstore)..22

Configuring the display....22

CD/MP3/WMA mode....23

Basic information....23

Changing to CD/MP3/WMA mode....23

Inserting a CD 23

Ejecting a CD....24

Selecting tracks....24

Select a folder (only in MP3/WMA mode).....24

Fast searching 24

Interrupting playback 24

Scanning all tracks 24

Playing tracks in random order 24

Repeatedly playing individual tracks or directories ....24

Configuring the display....25

External audio sources....25

Front AUX-IN socket....25

Sound settings 25

Calling and exiting the audio menu 25

Performing settings in the audio menu......25

User settings 26

Calling and exiting the user menu....26

Performing settings in the user menu......26

Factory settings 28

Useful information 28

Warranty 28

Service 28

Technical data 28

Installation instructions....213

Safety notes

The car sound system was manufactured according to the state of the art and established safety guidelines. Even so, dangers may occur if you do not observe the safety notes in these instructions.

These instructions contain important information to easily and safely install and operate the car sound system.

• Read these instructions carefully and completely before using the car sound system.
• Keep the instructions at a location so that they are always accessible to all users.
  • Always pass on the car sound system to third parties together with these instructions.

In addition, observe the instructions of the devices used in conjunction with this car sound system.

Symbols used

These instructions employ the following symbols:

DANGER!

Warns about injuries

CAUTION!

Warns about damaging the CD drive

The CE mark confirms the compliance with EU directives.

Identifies a sequencing step

- Identifies a listing

Road safety

Observe the following notes about road safety:

• Use your device in such a way that you can always safely control your vehicle. In case of doubt, stop at a suitable location and operate your device while the vehicle is standing.
• Remove or attach the control panel only while the vehicle is standing an.

- Always listen at a moderate volume to protect your hearing and to be able to hear acoustic warning signals (e.g. police sirens). During mute phases (e.g. when changing the audio source), changing the volume is not audible. Do not increase the volume during this mute phase.

General safety notes

Observe the following notes to protect yourself against injuries:

• Do not modify or open the device. The device contains a Class 1 laser that can cause injuries to your eyes.
• Do not increase the volume during mute phases, e.g. when changing the audio source. Changing the volume is not audible during a mute phase.

Use as directed

This car sound system is intended for installation and operation in a vehicle with 12 V vehicle system voltage and must be installed in a DIN slot. Observe the performance limits in the technical data. Repairs and installation, if necessary, should be performed by a specialist.

Installation instructions

You may only install the car sound system yourself if you are experienced in installing car sound systems and are very familiar with the electrical system of the vehicle. For this purpose, observe the installation instructions at the end of these instructions.

Declaration of conformity

The Blaupunkt AudioVision GmbH & Co. KG declares that the car sound system Atlanta 110 complies with the basic requirements and the other relevant regulations of the directive 89/336/EEC.

Cleaning notes

Solvents, cleaning and scouring agents as well as dashboard spray and plastics care product may contain ingredients that will damage the surface of the car sound system.

• Use only a dry or slightly moistened cloth for cleaning the car sound system.
• If necessary, clean the contacts of the control panel regularly using a soft cloth moistened with cleaning alcohol.

Disposal notes

Do not dispose of your old unit in the household trash!

Use the return and collection systems available to dispose of the old device.

Scope of delivery

The scope of delivery includes:

1 Car sound system
1 Operating/installation instructions
1 Case for the control panel
1 Support frame
1 Set of small parts

Optional equipment (not part of the scope of delivery)

Use only optional equipment approved by Blaupunkt. Information is available from your Blaupunkt specialised dealer or on the Internet under www.blaupunkt.com.

Placing the device in operation

Attaching/detaching the control panel

The car sound system is equipped with a detachable control panel (release panel) to protect your equipment against theft. In the delivery state, the control panel is in the supplied case. To start operating the radio after installation, you must first attach the control panel (see the section "Attaching the control panel" in this chapter).

Always take the control panel with you when leaving the vehicle. The car sound system is worthless to a thief without this control panel.

Caution

Damage to the control panel

Never drop the control panel.

Transport the control panel so that it is protected against impacts and the contacts cannot become dirty.

Do not expose the control panel to direct sunlight or another heat source.

Avoid direct skin contact with the control panel's electrical contacts.

Attaching the control panel

→ Push the control panel into the bracket at the right edge of the device.
→ Push the control panel carefully into the left bracket until it clicks into place.

Removing the control panel

Press the [▼ button ① to unlock the control panel.
The left side of the control panel detaches from the device and is secured by a latch against falling out.
Grasp the control panel at the left side and pull it beyond the resistance of the latch and straight out of the bracket.

Note:

The car sound system automatically switches off as soon as the control panel is removed.

Setting the tuner region

This car sound system is designed for operation in different regions with different frequency ranges and station technologies. It is factory set to the tuner region "EUROPE". Other available tuner regions include "USA", "THAI" (Thailand) and "S AMERICA" (South America). If you operate the car sound system outside of Europe, you may first have to set a suitable tuner region:

Switch off the car sound system if it is not already turned off.
Press and hold the buttons MENU/OK ② and 4 ⑩ at the same time and press the On/Off button ③.
The car sound system switches on. The currently set tuner region appears on the display.
Press the button V/ ⑦ repeatedly until the desired tuner region is displayed.
Press the MENU/OK button ②.

Switching on/off

Switching on/off with the On/Off button

For switch-on, press the On/Off button ③.
The car sound system switches on.
To switch off the device, press and hold down the On/Off button ③ for longer than 2 seconds.
The car sound system switches off.

Note:

If you switch on the car sound system while the vehicle ignition is switched off, it automatically switches off after 1 hour to preserve the vehicle battery.

Switching on/off via vehicle ignition

The car sound system will switch off/on simultaneously with the ignition if the device is correctly connected to the vehicle's ignition as shown in the installation instructions and you did not switch the device off by pressing the On/Off button ③.

Volume

Adjusting the volume

You can adjust the volume in steps from 0 (off) to 50 (maximum).

Turn the volume control ④ to change the volume.

Note:

If a telephone or navigation system is connected with the car sound system as described in the installation instructions, the car sound system is muted in case of a telephone call or navigation announcement so that you can hear the playback of the telephone or navigation system undisturbed. While it is muted, the display shows "TELEPHONE".

Muting the car sound system (Mute)

You can quickly reduce the volume to a preset level.

Briefly press the On/Off button ③ to mute the car sound system or to reactivate the previous volume.

While it is switched low, the display shows "MUTE".

To adjust the mute volume, please read the section "Performing settings in the user menu", "MUTE LVL" menu item in the chapter "User settings".

Switching demo mode on/off

The demo mode shows the functions of the car sound system as scrolling text on the display. You can turn the demo mode on or off:

Switch off the car sound system if it is not already turned off.
Press and hold the buttons MENU/OK ② and 2 ⑩ at the same time and press the On/Off button ③.

The car sound system switches on. The display briefly shows "DEMO MODE" if you switched on the demo mode. By pressing any button, the demo mode is interrupted and you can operate the device.

Traffic information

In the tuner region "EUROPE", an FM station can identify traffic reports by means of an RDS signal. If priority for traffic announcements is switched on, a traffic announcement is automatically switched through, even if the car sound system is currently not in radio mode.

If priority is switched on, the display shows the traffic jam symbol ( ### ). "TRAFFIC" is displayed during a switched-through traffic announcement.

To switch the priority on and off, please read the section "Performing settings in the user menu", "TRAF" menu item in the chapter "User settings".

Notes:

• The volume is increased for the duration of the switched-through traffic announcement. You can adjust the minimum volume for traffic announcements (see the ch. "User settings", section "Performing settings in the user menu", "TA VOLUME" menu item).
• To cancel a switched-though traffic announcement, press the DISP/ESC button ⑫.

Radio mode

RDS

Many FM stations broadcast an RDS (Radio Data System) signal in addition to their programme in the tuner region "EUROPE" that allows the following additional functions:

• The station name is shown on the display.
- The car sound system recognises traffic announcements and news broadcasts and can automatically switch them through in any operating mode (e.g. in CD mode).
- Alternate frequency: If RDS is activated, the car sound system automatically selects the best receivable frequency for the station that is currently set.

- Regional (REG): At certain times, some radio stations divide their programme into regional programmes providing different content. If the REG function is activated, the car sound system changes only to those alternate frequencies on which the same regional programme is being broadcast.

To switch the RDS or REG function on or off, please read the section "Performing settings in the user menu" in the chapter "User settings" (menu items "RDS", "REG").

Changing to radio mode

Press the SRC button ⑪ repeatedly until "TUNER" is displayed:

The current memory bank appears once as scrolling text on the display.

Selecting the memory bank

The following memory banks are available in the different tuner regions:

Region	Memory banks
EUROPE	FM1, FM2, FMT, MW, LW
USA	FM1, FM2, FMT, AM, AMT
THAI	FM1, FM2, FMT, AM
S AMERICA	FM1, FM2, FMT, AM, AMT

Press the button /⑦ repeatedly until the desired memory bank is displayed.

Note:

Up to 5 stations can be stored in each memory bank.

Tuning into a station

There are various ways of tuning into a station:

Tuning into stations manually

Briefly press the button < / >⑦ once or several times to change the frequency in increments, or long to quickly change the frequency.

Note:

For the tuner region "EUROPE": In the FM waveband, the next station of the broadcasting network is automatically tuned into if the RDS function is switched on.

Starting station seek tuning

Press the button </>⑦ for approx. 2 seconds to start station seek tuning.

The radio tunes into the next receivable station.

Notes:

• For the tuner region "EUROPE": In the FM waveband, only traffic information stations are tuned into if the priority for traffic information (car) is switched on.
• The sensitivity of seek tuning can be adjusted (see the chapter "User settings", section "Performing settings in the user menu", menu item "SENS").

Storing stations/Calling stored stations

Select the desired memory bank.
If necessary, set the desired station.
Press the station button 1 - 5 ⑩ for approx. 2 seconds to store the current station under the button.

- or -

Briefly press the station button 1 - 5 ^⑩ to call up the stored station.

Scanning stations

The scan function is used to scan every receivable station of the current waveband.

Press the MENU/OK button ② for approx. 2 seconds to start the scan, or long to continue playing the currently set station.

During the scan, the display alternately displays "SCAN" and the current frequency as well as memory bank or station name.

Note:

For radio mode, you can adjust the scan time for each station (see the ch. "User settings", section "Performing settings in the user menu", "SCAN TIME" menu item).

Storing stations automatically (Travelstore)

With Travelstore, you can automatically search for and store the 5 FM stations offering the strongest reception in the region in one memory bank, Any previously stored stations in this memory bank are deleted in the process.

In the tuner regions "EUROPE" and "THAI", you can store 5 FM stations in the FMT memory bank with Travelstore. In the tuner regions "USA" and "S AMERICA", you can also store 5 AM stations in the AMT memory bank.

Select a memory bank of the desired waveband, e.g. FM1 or AM.
Press the button Y/ ⑦ for approx. 2 seconds.

The tuner starts the automatic station seek tuning; the display shows "FM TSTORE" or "AM TSTORE". After the storing is completed, the radio plays the station at memory location 1 of the FMT or AMT level.

Note:

For the tuner region "EUROPE": If the priority for traffic information is switched on ( ), only traffic information stations are stored.

Configuring the display

Press the DISP/ESC button ⑫ to change between these two displays:

Display	Meaning
ABCDEF or FM1 102.90	Station name or memory bank/frequency
FM1 11:32	Memory bank/time

CD/MP3/WMA mode

Basic information

This car sound system can be used to play audio CDs (CDDA) and CD-R/RWs with audio, MP3 or WMA files.

Risk of severe damage to the CD drive!

Noncircular contoured CDs (shape CDs) and CDs with a diameter of 8 cm (mini CDs) must not be used.

We accept no responsibility for any damage to the CD drive that may occur as a result of the use of unsuitable CDs.

Notes:

• To ensure proper functioning, use only CDs with the Compact-Disc logo.
• Blaupunkt cannot guarantee the flawless function of copy-protected CDs and all CD blanks available on the market.

Note the following information when preparing an MP3/WMA data carrier:

- Naming of tracks and directories:

• Max. 16 characters (CD) incl. the file extension ".mp3" or ".wma" (if more characters are used, the number of tracks and folders that are recognisable by the car sound system is reduced)
  – No umlauts or special characters

• CD formats: Audio CD (CDDA), CD-R/RW, ∅: 12 cm
  • CD data formats: ISO 9669 Level 1 and 2, Joliet
  • CD burn speed: Max. 16x (recommended)
  • File extension of audio files:

- .MP3 for MP3 files

- .WMA for WMA files

- WMA files only without Digital Rights Management (DRM) and created with Windows Media Player version 8 or later

• MP3 ID3 tags: Version 1 and 2
• Bitrate for creating audio files:

- MP3: 32 to 320 kbps

– WMA: 32 to 192 kbps

Changing to CD/MP3/WMA mode

Press the SRC button ⑪ repeatedly until the desired audio source is displayed:

• "CD": Inserted CD.
• "MP3": Inserted CD that has already been recognised as MP3 CD.
  • "AUX": Connected external audio source.

Notes:

• The respective audio source can be selected only if a corresponding CD is inserted or a corresponding device is connected.
• If the car sound system first has to read the data of a connected device or data carrier before the playback, the display shows "READING". For large data volumes, this may take up to 1 minute. If the device or data carrier is defective or the transferred data cannot be played back, a corresponding message appears on the display ("CD ERROR").

Inserting a CD

Note:

You must not hinder or assist the drive as it automatically draws in the CD.

Insert the CD with its printed side up into the CD tray ⑤ until you feel a slight resistance.

The CD is automatically pulled in and its data are checked (the display shows "READING" during this time). Afterwards, the playback starts in CD or MP3 mode. If a CD is inserted, the display shows the CD symbol.

Note:

If the inserted CD cannot be played back, "CD ERROR" is briefly displayed and the CD is automatically ejected after approx. 2 seconds.

Ejecting a CD

Notes:

• If a CD is ejected and not removed, the drive will automatically draw it back in again after approx. 10 seconds.
• You can also eject CDs while the car sound system is switched off or whilst another audio source is activated.

Press the ▲ button ⑧ to eject an inserted CD.

Selecting tracks

Briefly press the button </>⑦ to change to the previous/next track.

Note:

If the current track plays longer than 3 seconds, pressing ≤slant⑦ once restarts the track.

Select a folder (only in MP3/WMA mode)

Press the button Y/ ⑦ to change to the previous/next folder.

Fast searching

Press and hold down the button </>⑦ until the desired position has been reached.

Interrupting playback

Press the button 3 ▶⑩ to interrupt the playback ("PAUSE") or to continue.

Scanning all tracks

The scan function scans all available tracks.

Press the MENU/OK button ② for approx. 2 seconds to start the scan, or long to continue playing the currently scanned track.

During the scan, the display alternately displays "SCAN" and the current track number or file name.

Note:

You can set the scan time (see the ch. "User settings", section "Performing settings in the user menu", "SCAN TIME" menu item).

Playing tracks in random order

Press the 5 MIX button ⑩ to change between the playback modes:

Operation	Display	Meaning
CD	MIX ALL	Mixing tracks
MP3/WMA	MIX DIR	Mixing tracks of the current folder
	MIX ALL	Mixing tracks of the data carrier
Gen.	MIX OFF	Regular playback

If the MIX function is active, the MIX symbol appears on the display.

Repeatedly playing individual tracks or directories

Press the 4 RPT button ⑩ to change between the playback modes:

Operation	Display	Meaning
CD	RPT TRACK	Repeating tracks
MP3/WMA	RPT TRACK	Repeating tracks
	RPT DIR	Repeating folders
Gen.	RPT OFF	Regular playback

If the RPT function is active, the RPT symbol appears on the display.

Configuring the display

Press the DISP/ESC button ⑫ once or several times to change between these displays:

Operation	Display	Meaning
CD	T 01 02:15	Track number and playing time
	T 01 18:33	Track number and time
MP3/WMA	01 ABC	File name
	ABCDEF	Artist ^1
	ABCDEF	Album name ^1
	PLAY 02:15	Playing time
	CLK 18:33	Time

^1 Artist and album name must be stored as ID3 tag and are displayed only for approx. 10 seconds and perhaps as scrolling text; otherwise, the file name is displayed.

External audio sources

Front AUX-IN socket

Danger!

Increased risk of injury from connector.

In case of an accident, the protruding connector in the front AUX-IN socket may cause injuries. The use of straight plugs or adapters leads to an increased risk of injury.

For this reason, we recommend using angled jack plugs, e.g. the Blaupunkt accessories cable (7 607 001 535).

As soon as an external audio source, such as a portable CD/MiniDisc or MP3 player is connected to the Front-AUX-IN socket, it can be selected with the SRC button ⑪. "AUX" then appears on the display.

Sound settings

The following sound settings can be changed in the Audio menu:

• Adjusting bass and treble
• Setting the left/right volume distribution (Balance) or front/rear (Fader)
• Setting the boost of bass at low volume (X-Bass).
• Selecting equalizer presettings

Calling and exiting the audio menu

Briefly press the MENU/OK button ② to open the User menu.
Press the button /⑦ repeatedly until the "AUDIO" menu item is selected.
Press the >button ⑦ to open the audio menu.
Press the button V/ ⑦ repeatedly until the desired menu item is selected.
Perform the setting (see the next section).
Briefly press the MENU/OK button ② to select a different menu item.
- or -
Briefly press the DISP/ESC button ⑫ to exit the menu.

Note:

The menu is automatically exited approx. 15 seconds after the last button activation and you are returned to the display of the current audio source.

Performing settings in the audio menu

BASS

Bass level. Settings: -7 to +7.

Press the > button ⑦ to open the submenu.

Press the button /⑦ to perform the setting.

TREBLE

Treble. Settings: -7 to +7.

Press the > button ⑦ to open the submenu.
Press the button /⑦ to perform the setting.

BALANCE

Left/right volume distribution. Settings: L9 (left) to R9 (right).

Press the > button ⑦ to open the submenu.

Press the button /⑦ to perform the setting.

FADER

Front/rear volume distribution. Settings: R9 (rear) to F9 (front).

Press the > button ⑦ to open the submenu.

Press the button /⑦ to perform the setting.

X-BASS

Increase of bass at low volume. Settings: ON, OFF..

Press the > button ⑦ to open the submenu.

Press the > button ⑦ to change between the settings.

PRESETS

Selecting equalizer presettings. Settings: POP, ROCK, CLASSIC, P-EQ OFF (no presetting).

Press the > button ⑦ to open the PRESETS submenu.

Press the button /⑦ to change between the settings.

User settings

Calling and exiting the user menu

Briefly press the MENU/OK button ② to open the menu.
Press the button V/ ⑦ repeatedly until the desired menu item is selected.
Perform the setting (see the next section).
Briefly press the MENU/OK button ② to select a different menu item.
- or -
Briefly press the DISP/ESC button ⑫ to exit the menu.

Note:

The menu is automatically exited approx. 15 seconds after the last button activation and you are returned to the display of the current audio source.

Performing settings in the user menu

TA VOLUME

(only for tuner region "EUROPE")

Setting the minimum volume for traffic announcements. Settings: 1 – 50.

Press the > button ⑦ to open the submenu.
Press the button /⑦ or turn the volume control ④ to perform the setting.

SENS

Only possible in radio mode: Setting the sensitivity of station seek tuning. Settings: LOW, HIGH.

Press the > button ⑦ to open the submenu.
Press the >button ⑦ to change between the settings.

SCAN TIME

Setting the scan time in 5-second increments. Settings: 5 – 30.

Press the > button ⑦ to open the submenu.
Press the button Y/X ⑦ to perform the setting.

CLOCK SET

Setting the time.

Press the > button ⑦ to open the submenu.
Press the button </>⑦ to change between minutes and hours.
The minute or hour display flashes if it is selected.
Press the button √ / ∧ ⑦ to adjust the minutes or hours.
Briefly press the MENU/OK button ② to confirm the time entered.

Note:

In 12-hour mode (12H MODE), an "A" is displayed after the time for the time before noon or a "P" for the time after noon.

12H/24H MODE

Selecting the 12 or 24-hour time. Settings: 12H, 24H.

Press the > button ⑦ to open the submenu.
Press the >button ⑦ to change between the settings.

BEEP

Switching the confirmation beep on or off. Settings: ON, OFF.

Press the > button ⑦ to open the submenu.
Press the >button ⑦ to change between the settings.

MUTE LVL

Setting the volume for low volume. Settings: 0 - 50.

Press the > button ⑦ to open the submenu.

Press the button /⑦ or turn the volume control ④ to perform the setting.

ON VOLUME

Setting the power-on volume Settings: 0 – 50 or LAST VOL (volume set last before switching off the car sound system). With the "LAST VOL" setting, the power-on volume is limited to max. 25.

Press the > button ⑦ to select the setting "LAST VOL".
- or -
Press the <button ⑦ to set the power-on volume between 0 and 50.
Press the button Y/X ⑦ or turn the volume control ④ to perform the setting.

REG

(only for tuner region "EUROPE")

Only possible in FM radio mode: Switching REG function on or off. Settings: ON, OFF.

Press the > button ⑦ to open the submenu.
Press the > button ⑦ to change between the settings.

DIM DAY/DIM NIGHT

Setting the display brightness for the day (DIM DAY) or the night (DIM NIGHT). Settings: 1 – 16.

Press the > button ⑦ to open the submenu.
Press the button /⑦ to perform the setting.

If your car sound system is installed as described in the installation instructions and your vehicle features the corresponding connection, the display brightness for day and night is switched by switching the vehicle lighting on or off.

TRAF

(only for tuner region "EUROPE")

Only possible in FM radio mode: Switching priority for traffic announcements on or off. Settings: ON, OFF.

Press the > button ⑦ to open the submenu.
Press the >button ⑦ to change between the settings.

RDS

Only possible in FM radio mode: Switching RDS function on or off. Settings: ON, OFF.

Press the > button ⑦ to open the submenu.
Press the >button ⑦ to change between the settings.

Factory settings

Factory settings in the user menu:

ON VOLUME	LAST VOL
MUTE LVL	0
SENS	HIGH
SCAN TIME	10
BEEP	ON
DIM DAY	15
DIM NIGHT	12
12H/24H MODE	24H
CLOCKSET	12:00
TA VOL	20
RDS	ON
REG*	ON
TRAF*	OFF

* Only in tuner region "EUROPE"

You can restore the original factory settings of the car sound system:

Briefly press the MENU/OK button ② to open the menu.
Press the button V / ⑦ repeatedly until the "NORMSET" menu item is selected.
Press and hold down the MENU/OK button ② for longer than 4 seconds.

"NORM ON" briefly appears on the display. The car sound system automatically switches off and on again with the factory settings.

Note:

If you press the MENU/OK button ② for less than 4 seconds, "NORM OFF" appears on the display and the current settings are retained.

Useful information

Warranty

We provide a manufacturer's warranty for products bought within the European Union. For devices purchased outside the European Union, the warranty terms issued by our respective responsible domestic agency are valid. The warranty terms can be called up under www.blaupunkt.com.

Service

In some countries, Blaupunkt offers a repair and pick-up service.

Information about the availability of this service in your country can be found at www.blaupunkt.com.

If you want to take advantage of this service, you may request a pick-up service for your car sound system via the Internet.

Technical data

Voltage supply

Operating voltage: 10.5 - 14.4 V

Current consumption

In operation: 10 A

10 sec. after switch-off: < 3.5 mA

Amplifier

Output power: 4 x 22 watts sine at

14.4 V at 4 ohms.

4 x 50 watts max. power

Tuner

Wavebands in Europe/Thailand:

FM: 87.5 - 108 MHz

AM (MW): 531 - 1,602 kHz

LW (Europe only): 153 - 279 kHz

Wavebands in the US:

FM: 87.7 - 107.9 MHz

AM (MW): 530 - 1,710 kHz

Wavebands in South America:

FM: 87.5 - 107.9 MHz

AM (MW): 530 - 1,710 kHz

FM frequency response:

30 - 15,000 Hz

CD

Frequency response:

20 - 20,000 Hz

Pre-amp out

2 channels: 2 V

Input sensitivity

Front-AUX-IN: 300 mV / 10 kΩ

Dimensions and weight

W x H x D: 178 x 50 x 160 mm

Weight: approx. 1.60 kg

Subject to changes

1 2 3 4 5 6 7 8 OK MENU ESC DISP SRC BLAUPUNKT MIX ROS BLAUPUNKT ATLANTA 110 1 2 3 IP 4 RPT 5 MIX 9 10 12 11

① Touche [→]

Regione	Livelli di memoria
EUROPE	FM1, FM2, FMT, OM (MW), OL (LW)
USA	FM1, FM2, FMT, AM, AMT
THAI	FM1, FM2, FMT, AM
S AMERICA	FM1, FM2, FMT, AM, AMT

AM (MW): 530 - 1710 kHz

AM (MW): 530 - 1710 kHz

Frequentiebereik FM: 30 - 15 000 Hz

CD

Frequentiebereik: 20 - 20 000 Hz

Pre-amp out

Twee kanalen: 2 V

Ingangsgevoeligheid

Front-AUX-IN: 300 mV / 10 kΩ

Region	Minnesnivåer
EUROPE	FM1, FM2, FMT, MV, LV
USA	FM1, FM2, FMT, AM, AMT
THAI	FM1, FM2, FMT, AM
S AMERICA	FM1, FM2, FMT, AM, AMT

Região	Níveis de memória
EUROPE	FM1, FM2, FMT, MW, LW
USA	FM1, FM2, FMT, AM, AMT
THAI	FM1, FM2, FMT, AM
S AMERICA	FM1, FM2, FMT, AM, AMT

AM (MW): 530 - 1710 kHz

Gem station/hent gemt station.... 120

scanne stationer....120

Automatisk lagring af stationer (Travelstore)....120

Region	Hukommelsesniveau
EUROPE	FM1, FM2, FMT, MB, LB
USA	FM1, FM2, FMT, AM, AMT
THAI	FM1, FM2, FMT, AM
S AMERICA	FM1, FM2, FMT, AM, AMT

Indstille station manuelt

Gem station/hent gemt station

Alue	Muistitasot
EUROPE	FM1, FM2, FMT, MW, LW
USA	FM1, FM2, FMT, AM, AMT
THAI	FM1, FM2, FMT, AM
S AMERICA	FM1, FM2, FMT, AM, AMT

RDS	ON
REG*	ON
TRAF*	OFF

AM (MW): 530 - 1710 kHz

Lungimi de undă America de Sud:

FM (UKW): 87,5 - 107,9 MHz

AM (MW): 530 – 1 710 kHz

Zona de transmitere FM:

30 - 15 000 Hz

CD

Zona de transmitere: 20 – 20 000 Hz

Pre-amp Out

2 canale: 2 V

Sensibilitatea de intrare

Frontal AUX-IN: 300 mV / 10 kΩ

AM (MW): 531 - 1602 kHz

LW (само Европа): 153 – 279 kHz

AM (MW): 530 - 1710 kHz

AM (MW): 530 - 1710 kHz

EN Installation instructions

Safety instructions

When carrying out installation work and making connections please observe the following safety instructions:

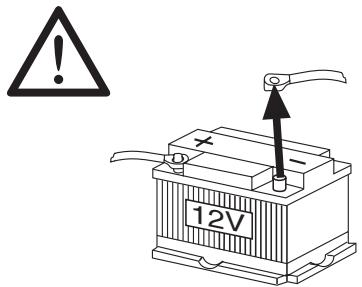

• Disconnect the negative terminal of the battery! When doing so, please observe the vehicle manufacturer's safety instructions.
• Make sure you do not damage vehicle components when drilling any holes.
• The cross sections of the positive and negative cables must not be less than 1.5 mm ^4 .

- Do not connect the vehicle's plug connectors to the radio!

You can obtain the adapter cable required for your vehicle type from any BLAUPUNKT dealer.

- Depending on the model, your vehicle may differ from the description provided here. We accept no responsibility for any damages due to incorrect installation or connection or for any consequential damages.

If the information provided here is not suitable for your specific installation requirements, please contact your Blaupunkt dealer, your vehicle manufacturer or our telephone hotline.

When installing an amplifier, you must first connect the device earth connections before connecting the plugs for the line-out jacks.

Earth connection of external devices may not be connected to earth of car sound system (housing).

Supplied mounting hardware

Isometric line drawing of a rectangular electronic component with multiple internal slots and mounting holes (no text or symbols)

Line drawing of an open cylindrical object with a flat top and side cutouts (no text or symbols)

Available as an optional accessory

Disponible en option

Pure electrical circuit lines without any symbols

7 607 621 ...

Diagram of an electronic device showing a rack-mounted connector and a separate housing (no text or symbols present)

1.

12V

1.

Diagram showing a device with warning symbols and labeled components, including a warning triangle and circular arrows indicating rotation or movement.

1.

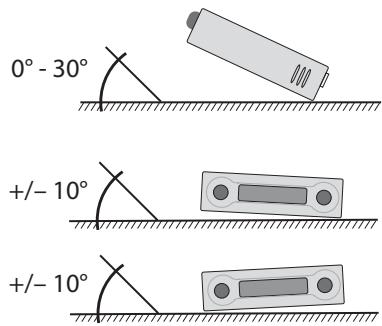

0° - 30° +/- 10° +/- 10°

1.

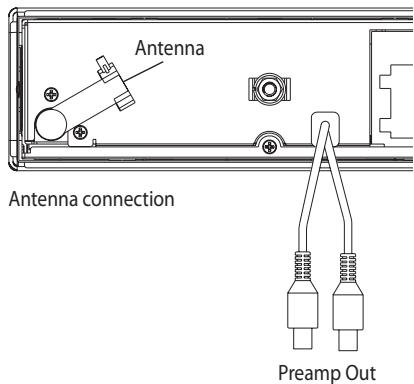

Antenna Antenna connection Preamp Out

1.

Technical diagram showing assembly of an electronic device with labeled components and dimensions

6.

Ausbau • Removal • Démontage • Smontaggio • Demontage • Urmontering • Desmontaje • Desmontagem • Udbygning • Irrotus • Aφαίρεση • Demontaż • Eltávolítás • Scoaterea • Отстраняване

1.

Diagram showing a device with an internal panel connected to a rectangular box (no text or symbols visible)

2.

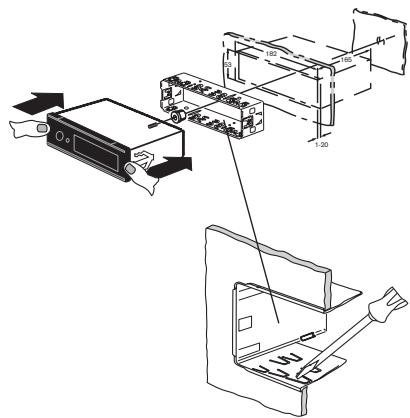

Diagram showing a device with labeled components, including a panel and a housing with internal components.

3.

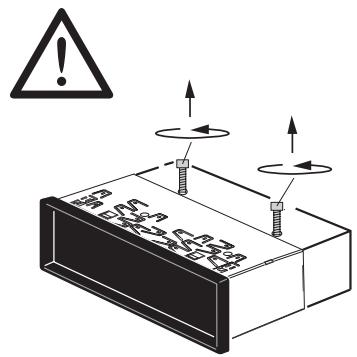

Illustration of a rectangular electronic device with arrows indicating direction (no text or symbols)

Illustration of a rectangular electronic device with a close-up view showing internal components (no text or symbols)

7.

12V

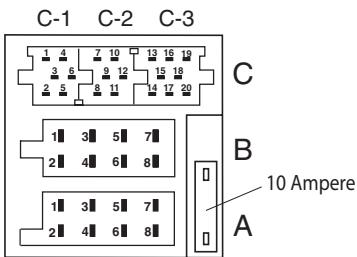

C-1 C-2 C-3 1 4 7 10 13 16 19 3 6 9 12 15 18 2 5 8 11 14 17 20 C 1 3 5 7 2 4 6 8 B 1 3 5 7 2 4 6 8 A 10 Ampere A

*
-√○- Aut. antenna / +12V Amplifier -√○- Remote Control +12V
max. 150 mA

A		B
1	NC	1	Speaker out RR+
2	Radio Mute	2	Speaker out RR-
3	NC	3	Speaker out RF+
4	Permanent +12V	4	Speaker out RF-
5	Aut. antenna *	5	Speaker out LF+
6	Illumination	6	Speaker out LF-
7	KI.15/Ignition	7	Speaker out LR+
8	Masse/GND	8	Speaker out LR-

C1		C2		C3
1	NC	7	NC	13	NC
2	NC	8	NC	14	NC
3	NC	9	Radio Mute	15	NC
4	NC	10	SW Supply - RC +12V *	16	NC
5	NC	11	Remote Control	17	NC
6	NC	12	RC - GND	18	NC
				19	NC
				20	NC

Simple line drawing of a sensor device connected to a rectangular block (no text or symbols)

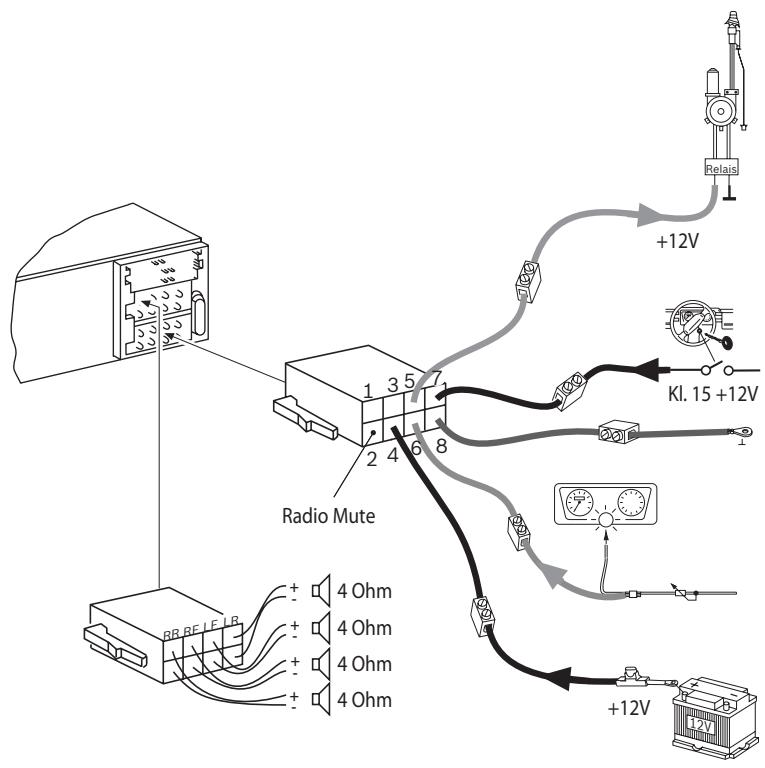

Radio Mute +12V Kl. 15 +12V +12V 4 Ohm 4 Ohm 4 Ohm 4 Ohm

Änderungen vorbehalten! • Subject to changes! • Sous réserve de modifications! • Modifiche riservate! • Wijzigingen voorbehouden! • Ändringar förbehålles! • Modificaciones reservadas! • Sob reserva de alterações! • Ret til ændringer forbeholdes! • Oikeus muutoksiin pidätetään! • Мпорєі va αλλάξει! • Zmiany techniczne zastrzeżone! • Podložno promjenama! • Sub rezerva modificărilor ulterioare! • Въzmожни са промени!

© 2010 All rights reserved by Blaupunkt. This material may be reproduced, copied or distributed for personal use only.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Please keep the filled-in radio pass in a safe place!
