Product type	Freezer
Brand	Siemens
Model	KI86SSDE0
Dimensions (H x W x D)	186 x 60 x 65 cm
Weight	72 kg
Energy class	E
Freezer volume	220 L
Autonomy in case of power failure	15 h
Freezing capacity	10 kg/24h
Power supply	220-240 V, 50 Hz
Climate class	SN-T
Noise level	42 dB
Main features	Fan cooling (No Frost), temperature alarm, LED lighting
Available spare parts	Door gasket, hinges, shelves, bins, LED lighting
Repairability index	8,0/10
Safety	Disconnect before servicing, wear protective gloves
Maintenance	Regular cleaning with soft cloth, no manual defrosting (No Frost)

Frequently Asked Questions - KI86SSDE0 SIEMENS

How to replace the door gasket?

Open the door, remove the old gasket by pulling, then install the new gasket by pressing firmly. Refer to the manual for details.

How to change the LED lighting?

Unplug the appliance and wait 60 seconds. Remove the LED cover with a flat screwdriver, disconnect the module and replace it. Risk of electric shock, call a professional if necessary.

How to remove the freezer shelves?

Lift the shelf slightly and pull it forward. For telescopic shelves, lower the locking tab.

What to do if the temperature is too high?

Check that the door is properly closed and the gasket is not damaged. Ensure that the ventilation openings are not blocked. If the problem persists, contact customer service.

How to clean the freezer?

Unplug the appliance, empty it, and clean the interior with a soft cloth and soapy water. Rinse and dry. Do not use abrasive products.

Where to find spare parts?

Parts such as door gasket, hinges and bins are available from Siemens or authorized dealers. Use only original parts.

The freezer makes noise, is it normal?

A slight humming is normal. If the noise is unusual, check that it is level and that nothing is touching the back.

How to change the fruit and vegetable bin?

Pull the bin forward until it stops, then lift it to remove it. Assembly is done in reverse order.

What to do in case of power failure?

Do not open the door to keep the cold. Autonomy is about 15 hours. Afterwards, check the quality of frozen food.

How to reverse the door opening direction?

This operation requires disassembly of the hinges. Consult the installation manual or call a professional to avoid damage.

USER MANUAL KI86SSDE0 SIEMENS

Ремонт

Ремонт

1. 1. Свалете четирите винта (1).
2. Свалете долните панти (2)

Пантите са свалени.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Diagram showing a door handle with two black arrows indicating downward motion (no text or symbols)

Diagram of a file drawer with a black arrow indicating direction, no text or symbols present

Abstract graphic with a document icon and arrows, no readable text or symbols

Ремонт

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Zahtjev:

Uređaj je isključen iz napajanja.
Vrata namještaja su uklonjena. Pogledajte upute za postavljanje.
Vrata su otvorena.

4.2.1 Uklanjanje ravnog zgloba


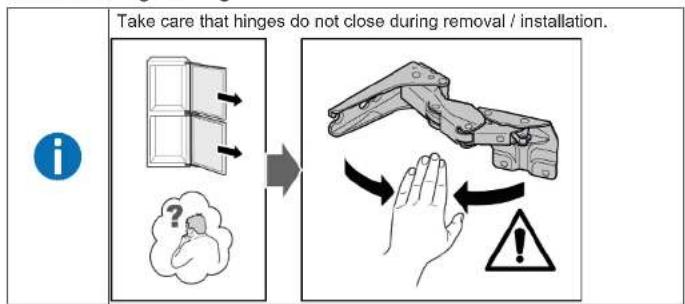

    A["Pazite da zglobovi ne budu preblizu tijekom uklanjanja/postavljanja."] --> B["Hand with hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand, hand"]

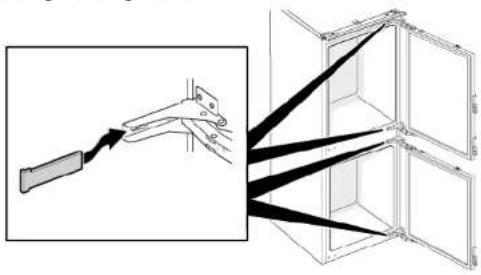

1. Uklonite četiri poklopca zgloba.


Popravak

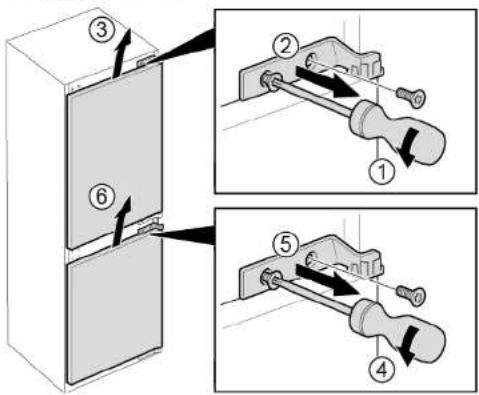

1. 1. Otpustite četiri vijka (1).

2. Gurnite gornja vrata prema van i uklonite ih (2).

1. 1. Uklonite četiri vijka (1).

2. Uklonite zglobove (2).

Zglobovi gornjih vrata su uklonjeni.

1. 1. Otpustite četiri vijka (1).

2. Gumite donja vrata prema van i uklonite ih (2).

1. 1. Uklonite četiri vijka (1).

2. Uklonite zglobove (2).

Zglobovi donjih vrata su uklonjeni.

Popravak

4.2.2 Postavljanje ravnog zgloba

▶ Postavite obratnim redoslijedom.

Popravak

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Teški, veliki uređaji!

Popravak

1. 1. Uklonite četiri vijka (1).

2. Uklonite donje zglobove (2).

Zglobovi su uklonjeni.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

1. Spustite izvlačnu policu i zaokrenite je bočno.

2. Izvlačna je polica uklonjena.

4.6.2 Postavljanje izvlačne police

▶ Postavite obratnim redoslijedom.

Popravak

4.7 Zamjena police odjeljka zamrzivača

Zahtjev:

Vrata su otvorena.

4.7.1 Uklanjanje police odjeljka zamrzivača

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Polica odjeljka zamrzivača je uklonjena.

4.7.2 Postavljanje police odjeljka zamrzivača

▶ Postavite obratnim redoslijedom.

Popravak

4.8 Zamjena spremnika za zamrznute namirnice

Zahtjev:

Vrata su otvorena.

4.8.1 Uklanjanje spremnika za zamrznute namirnice

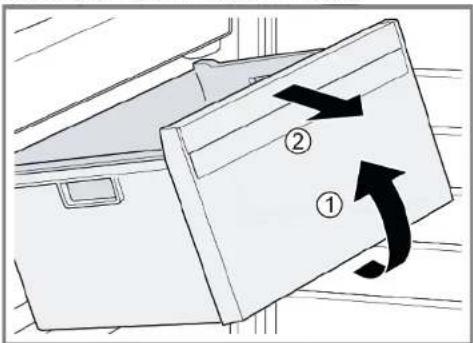

1. Potpuno izvucite spremnik za zamrznute namimice (1).
2. Uklonite spremnik za zamrznute namimice (2).

Spremnik za zamrznute namirnice je uklonjen.

4.8.2 Postavljanje spremnika za zamrznute namirnice

▶ Postavite obratnim redoslijedom.

Popravak

4.9 Zamjena spremnika za voće i povrće

Zahtjev:

Vrata su otvorena.

→ Spremnik je uklonjen.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Uklonite spremnik za voće i povrće.→40

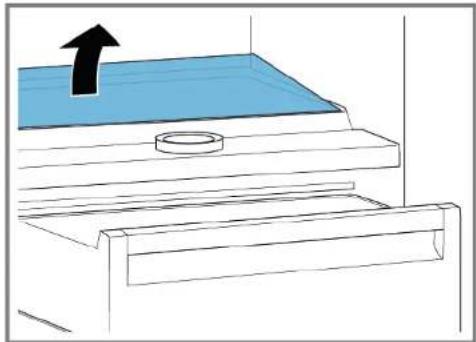

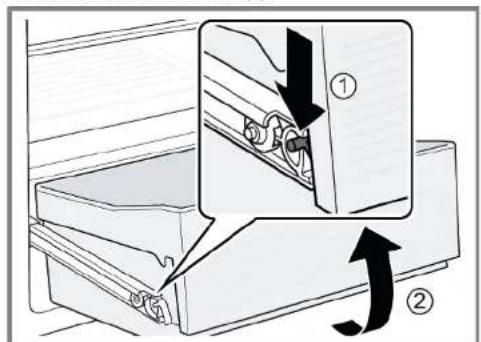

2. 1. Pritisnite polugu ispod obje strane pregrade (1).
3. Povucite pregradu prema naprijed (2).

1. Podignite pregradu i zaokrenite je bočno prema van.

→ Pregrada je uklonjena.

Spremnik za održavanje svježine je uklonjen.

Abstract graphic with a document icon and arrows, no readable text or symbols

Popravak

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

Oprava

Oprava

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a rectangular object and two arrows pointing outward, no text or symbols present.

Oprava

Diagram of a tool interacting with a rectangular device, showing motion lines and no text or symbols

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Reparation

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

→ Beholderen er fjernet.

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Reparation

Diagram of a tool interacting with a rectangular device, showing motion lines and no text or symbols

1. Afbryd LED-spotlampens elektriske tilslutning.

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Reparatie

Reparatie

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and arrows, no readable text or symbols

Reparatie

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Self-repair hints - Fridge-freezer combination

i Concerning this document.... 113

1.1 Important information.... 113

1.1.1 Purpose.... 113

1.2 Explanation of symbols 113

1.2.1 Danger levels.... 113

1.2.2 Hazard symbols 113

1.2.3 Structure of the warnings.... 114

1.2.4 General symbols.... 114

Safety.... 115

2.1 General Safety instructions 115

2.1.1 All domestic appliances 115

Tools and aids.... 116

Repair 117

4.4 Replacing door rack....123

4.7 Replacing freezer compartment shelf 126

4.7.1 Removing freezer compartment shelf 126

4.7.2 Installing freezer compartment shelf.... 126

4.8 Replacing frozen food container 127

4.8.1 Removing frozen food container 127

4.8.2 Installing frozen food container 127

4.9 Replacing fruit and vegetable container 128

4.9.1 Removing fruit and vegetable container 128

4.9.2 Installing fruit and vegetable container 128

4.10 Replacing partition and cover of fruit and vegetable container.... 129

4.10.1 Removing partition and cover of fruit and vegetable container 129

4.10.2 Installing partition and cover of fruit and vegetable container.... 129

4.11 Replacing cool-fresh container.... 130

4.11.1 Removing cool-fresh container 130

4.11.2 Installing cool-fresh container.... 130

4.12 Replacing extendable container 131

4.12.1 Removing extendable container 131

4.12.2 Installing extendable container 131

4.13 Replacing LED spot light 132

4.13.1 Removing LED spot light.... 132

4.13.2 Installing LED spot light 133

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Torx Bit TX20[00340865]	6,3 mm (1/4")
Auxiliary tool[00342180]	For disassembly of plastic parts,"magic tool"

Repair

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door are removed. See Installation Instruction.
√ Door is open.

4.2.1 Removing flat hinge

1. Remove four hinge covers.


Repair

1. 1. Loosen four screws (1).

2. Slide out and remove upper door (2).

1. 1. Remove four screws (1).

2. Remove hinges (2).

Upper door hinges are removed.

1. 1. Loosen four screws (1).

2. Slide out and remove lower door (2).

1. 1. Remove four screws (1).

2. Remove hinges (2).

→ Lower door hinges are removed.

Repair

4.2.2 Installing flat hinge

▶ Install in reverse order.

Repair

4.3 Replacing sliding hinge

Suggested tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door and appliance door are separated. See Installation Instruction.

4.3.1 Removing sliding hinge

1. 1. Unscrew two screws (1).

2. Remove upper door upper hinge (2).

3. Remove upper door (3).
4. Unscrew two screws (4).
5. Remove lower door upper hinge (5).
6. Remove lower door (6).

Repair

1. 1. Remove four screws (1).

2. Remove lower hinges (2).

Hinges are removed.

4.3.2 Installing sliding hinge

▶ Install in reverse order.

Repair

4.4 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift door rack upwards.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Door rack is removed.

▶ Install in reverse order.

Repair

4.5 Replacing shelf

Prerequisite:

Door is open.

4.5.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Shelf is removed.

4.5.2 Installing shelf

▶ Install in reverse order.

Repair

4.6 Replacing extendable shelf

Prerequisite:

√ Door is open.

4.6.1 Removing extendable shelf

1. Pull out extendable shelf until the locking catch is released.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

1. Lower extendable shelf and swing it out to the side.

2. ➕ Extendable shelf is removed.

4.6.2 Installing extendable shelf

▶ Install in reverse order.

Repair

4.7 Replacing freezer compartment shelf

Prerequisite:

√ Door is open.

4.7.1 Removing freezer compartment shelf

▶ Pull out freezer compartment shelf.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Freezer compartment shelf is removed.

4.7.2 Installing freezer compartment shelf

▶ Install in reverse order.

Repair

4.8 Replacing frozen food container

Prerequisite:

Door is open.

4.8.1 Removing frozen food container

1. Pull out frozen food container all the way (1).
2. Remove frozen food container (2).

Frozen food container is removed.

4.8.2 Installing frozen food container

▶ Install in reverse order.

Repair

4.9 Replacing fruit and vegetable container

Prerequisite:

√ Door is open.

4.9.1 Removing fruit and vegetable container

▶ 1. Pull container out all the way (1).

1. Remove container (2).

Container is removed.

4.9.2 Installing fruit and vegetable container

▶ Install in reverse order.

Repair

4.10 Replacing partition and cover of fruit and vegetable container

Prerequisite:

Door is open.

4.10.1 Removing partition and cover of fruit and vegetable container

1. Remove glass plate from partition.

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

1. Remove fruit and vegetable container.→ Page 128

2. 1. Press lever on the underside on both partition sides (1).
3. Pull the partition forwards (2).

1. Lift the partition and swivel it out to the side.

Partition is removed.

1. 1. Lift the cover of fruit and vegetable container.

2. Pull cover of fruit and vegetable container forwards and swivel it out to the side.

Cover of fruit and vegetable container is removed.

4.10.2 Installing partition and cover of fruit and vegetable container

▶ Install in reverse order.

Repair

4.11 Replacing cool-fresh container

Prerequisite:

√ Door is open.

4.11.1 Removing cool-fresh container

▶ 1. Tilt cool-fresh container forwards (1). 2. Remove cool-fresh container (2).

Cool-fresh container is removed.

4.11.2 Installing cool-fresh container

▶ Install in reverse order.

Repair

4.12 Replacing extendable container

Prerequisite:

√ Door is open.

4.12.1 Removing extendable container

▶ 1. Tilt extendable container forwards (1).
2. Remove extendable container (2)

Extendable container is removed.

4.12.2 Installing extendable container

▶ Install in reverse order.

Repair

4.13 Replacing LED spot light

Suggested tools:

Special tool [00342180]
Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light.

These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electricians.
After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.13.1 Removing LED spot light

1. Release LED spot light cover.

1. Pull LED spot light cover inwards and simultaneously push forwards.

Abstract graphic with a document icon and two arrows pointing to it, set against a dark background (no text or symbols)

Repair

1. Detach LED spot light module.

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

1. Disconnect LED spot light electrical connection.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED spot light is removed.

4.13.2 Installing LED spot light

▶ Install in reverse order.

1. Eemaldage neli hinge katet.


Remont

Remont

1. 1. Eemaldage neli kruvi (1).

2. Eemaldage alumised hinged (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a rectangular object and two arrows pointing outward, set against a dark background with faint white patterns (no text or symbols)

Remont

Diagram of a tool interacting with a device, showing motion lines and no visible text or symbols

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Korjaus

Korjaus

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Cool-fresh-lokero on poistettu.

4.11.2 Cool-fresh-lokeron asennus

Abstract graphic with a document icon and arrows, no readable text or symbols

Korjaus

1. Irrota LED-kohdevalomoduuli.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Outillage suggérèse:

Embout Torx TX20 6,3 mm (1/4") [00340865]

Réparation

Outillage suggérèse:

Embout Torx TX20 6,3 mm (1/4") [00340865]

Réparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Outillage suggérèse:

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Réparation

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Instandsetzen

Instandsetzen

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and arrows, no readable text or symbols

Instandsetzen

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Επισκευή

Επισκευή

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

To páfi pórtas éxei aφαιρεθεί.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

To páφι αφαιρέθηκε.

Diagram showing a mechanical assembly with an arrow indicating direction and a blue component, no text or symbols present.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

To theo kottiko surtári afaipéthke.

Abstract graphic with a document icon and arrows, no readable text or symbols

Επισκευή

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

Javítás

Javítás

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a rectangular panel and two arrows pointing inward, set against a dark background with faint wave-like patterns (no text or symbols)

Javítás

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Riparazione

Riparazione

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with a rectangular panel and two arrows pointing outward, set against a dark background with faint wave-like patterns (no text or symbols)

Riparazione

Diagram of a tool interacting with a rectangular device, showing motion lines and no text or symbols

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Remonts

Remonts

Viras ir nonemtas.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Tvertne ir iznemta.

4.9.2 Auglu un dârzenu tvertnes uzstâdîsana

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Starpliku paceliet un sagaziet uz sāniem, lai iznemtu.

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Remonts

1. Atvienojiet LED starmeša moduli.

Diagram showing a tool interacting with a rectangular device, no text or symbols present

1. Atvienojiet LED starmeša elektrisko savienojumu.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED starmetis ir nonemts.

Remontas

Remontas

Vyriai nuimti.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Talpykla išimta.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with two arrows pointing to a rectangular panel, no text or symbols present

Remontas

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Fare for å knuse/sette fast fingre

Reparasjon

De nedre dørhengslene er demontert.

Reparasjon

Reparasjon

1. 1. Fjern fire skruer (1).

2. Demonter nedre hengsler (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Hyllen i fryseren er demontert.

4.7.2 Montering av hylle i fryser

→ Beholderen for frysevarer er demontert.

Beholderen er demontert.

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Cool-Fresh-beholderen er demontert.

1. Trekk LED-spotlightdekslet innover og skyv det samtidig forover.

Abstract graphic with a document icon and arrows, no readable text or symbols

Reparasjon

1. Løsne LED -spotlightmodulen.

Diagram of a handheld device with a screen and cable, showing internal components (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

LED-spotlight er demontert.

Naprawy

Naprawy

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.5.2 Montaż półki

Diagram showing a mechanical assembly with an arrow indicating direction and a blue component inside (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Naprawy

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

Reparação

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças (2).

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças (2).

Reparação

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças inferiores (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Abstract graphic with two arrows pointing to a rectangular panel, no text or symbols present

Reparação

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Balamalele uşii de sus sunt demontate.

Balamalele uşii de jos sunt demontate.

Repararea

4.2.2 Montarea balamalei plate

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Balamalele sunt demontate.

4.3.2 Montarea balamalei glisante

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Repararea

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Oprava

Oprava

Závesy sú odobraté.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Polička v dvierkach je odobratá.

4.4.2 Montáž poličky do dvierok

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Polica mraziaceho priestoru je odobratá.

4.7.2 Montáž police mraziaceho priestoru

Nádoba je odobratá.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Odoberte nádobu na ovocie a zeleninu.→436

2. 1. Stlačte páčku na spodnej strane oboch strán priehradky (1).
3. Potiahnite priehradku dopredu (2).

1. Zdvihnite priehradku a vyklopte ju nabok.

Priehradka je odobratá.

Nádoba cool-fresh je odobratá.

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Oprava

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device mounted on a wall with a red panel and cable, against a gray background (no text or symbols visible)

Poškodbe hrbta in mišic

Popravilo

Poškodbe hrbta in mišic

Popravilo

1. 1. Odstranite štiri vijake (1).

2. Odstranite spodnja tečaja (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.5.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

1. Odstranite predal za sadje in zelenjavo.→458

2. 1. Pritisnite pritrdila na spodnji strani steklene plošče (1).
3. Pregrado potegnite k sebi (2).

1. Pregrado dvignite in jo z obračanjem na stran odstranite. → Pregrada je odstranjena.

2. 1. Dvignite polico nad predalom za sadje in zelenjavo.
3. Polico nad predalom za sadje in zelenjavo potegnite k sebi in jo z obračanjem na stran odstranite. → Polica nad predalom za sadje in zelenjavo je odstranjena.

4.10.2 Namestitev pregrade in police nad predalom za sadje in zelenjavo

▶ Namestite v obratnem vrstnem redu.

Popravilo

1. Pokrovček točkovne lučke LED povlecite navznoter in ga hkrati potisnite naprej.

Abstract graphic with a rectangular panel and two arrows pointing to it, set against a dark background with faint white patterns (no text or symbols)

Popravilo

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Reparación

Reparación

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Reparación

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Reparation

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Dörrhyllan har tagits bort.

4.4.2 Montera dörrhylla

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Frysdelens hylla har tagits bort.

4.7.2 Montera frysdelens hylla

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Cool fresh-facket har tagits bort.

4.11.2 Montera cool fresh-fack

Abstract graphic with a document icon and two arrows pointing right, set against a dark background (no text or symbols)

Reparation

1. Ta loss LED-spotlightmodulen.

Diagram of a screwdriver interacting with a rectangular device, showing blade and handle (no text or symbols)

1. Lossa LED-spotlightens elanslutning.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED-spotlighten har tagits bort.

4.13.2 Montera LED-spotlight

Onarim

Onarim

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Kap çıkartılmıştır.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Special tool [00342180]

Düz tornavida Biçak 2,4 mm x 0,4 mm x 60 mm,

Abstract graphic with a document icon and two arrows pointing to it, set against a dark gray background (no text or symbols)

Onarim

Diagram of a screwdriver interacting with a rectangular device, showing blade and handle (no text or symbols)

3D rendering of a rectangular device mounted on a wall with a red panel and cable, against a gray background (no text or symbols visible)
