Product type	Upright freezer
Brand	Bosch
Model	GID18ASE0
Climate class	SN-ST (temperate to subtropical)
Freezing capacity	~20 kg/24 h
Autonomy in case of power failure	~20 h
Dimensions (H x W x D)	185 x 60 x 65 cm
Net weight	~70 kg
Power supply	220-240 V, 50 Hz
Energy consumption	Class A+ (estimate)
Noise level	~42 dB
Refrigerant	R600a
Main functions	Quick freezing, LED lighting, door open alarm
Safety	Child lock, surface safety
Maintenance and cleaning	Clean with soft cloth and soapy water, manual defrost
Spare parts	Door gasket, hinges, shelves, frozen food bins
Repairability	Replacement instructions included for gasket, hinge, shelf, bin

Frequently Asked Questions - GID18ASE0 BOSCH

How to install my Bosch GID18ASE0 freezer?

Place the appliance in a well-ventilated area, away from direct sunlight and heat sources. Maintain at least 5 cm clearance at the back for air circulation. Plug into a grounded outlet.

What is the ideal freezing temperature?

The recommended temperature is -18 °C. Use the adjustment button to set the temperature. A lower temperature may increase energy consumption.

How to reverse the door opening direction?

Unplug the appliance. Unscrew the top and bottom hinges, remove the door, then reassemble the hinges on the other side. Follow the instructions in the manual for proper assembly.

How to defrost the freezer?

Unplug the appliance and remove all food. Leave the door open until the ice melts. Never use sharp tools to scrape ice. Clean and dry before plugging back in.

What to do in case of an audible alarm?

The alarm sounds if the temperature exceeds the set threshold. Check that the door is properly closed and there is no power failure. If the alarm persists, contact customer service.

How to clean the door gaskets?

Use a soft damp cloth with soapy water. Then dry thoroughly. Avoid abrasive products as they may damage the gasket.

Can I replace the door gasket myself?

Yes, the manual provides detailed instructions. Remove the old gasket from the groove, then insert the new one by pressing firmly. Make sure the groove is not damaged.

How to replace a door hinge?

Unplug the appliance. Using a Torx TX20 bit, unscrew the hinge screws. Remove the door, then the hinge. Install the new hinge in reverse order. Be careful of the heavy load.

Why is my freezer making noise?

Operating noises (gurgling, clicking) are normal. If the noise is abnormal, check that it is level and that nothing is touching the compressor. Consult the manual if necessary.

Where to find spare parts for my model?

Original spare parts are available from Bosch customer service. Only use recommended parts to ensure safety and operation.

USER MANUAL GID18ASE0 BOSCH

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural components (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Ремонт

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Рафтът е свален.

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted device with multiple shelves and an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Brtva vrata je postavljena.

Popravak

4.2 Zamjena zgloba vrata

Specijalni alati:

Nastavak Torx TX20 6,3 mm (1/4") [00340865]

Zahtjev:

√ Uređaj je isključen iz napajanja.
Vrata su otvorena.

4.2.1 Uklanjanje zgloba vrata

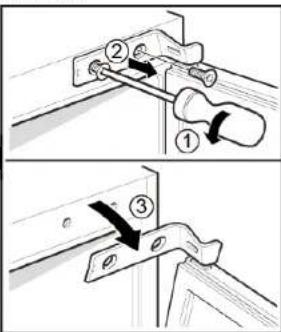

1. 1. Odvijte dva vijka (1).

2. Otpustite gornji zglob (2)

3. Izvucite vrata s gornjim zglobom (3).

Simple line drawing of an open refrigerator with a black cable inserted (no text or symbols)

1. 1. Uklonite vrata (1).

2. Uklonite gornji zglob (2).

Gornji je zglob uklonjen.

Popravak

1. 1. Odvijte dva vijka (1).

2. Uklonite donji zglob (2).

Donji je zglob uklonjen.

4.2.2 Postavljanje zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.3 Zamjena police

Zahtjev:

Vrata su otvorena.

4.3.1 Uklanjanje police

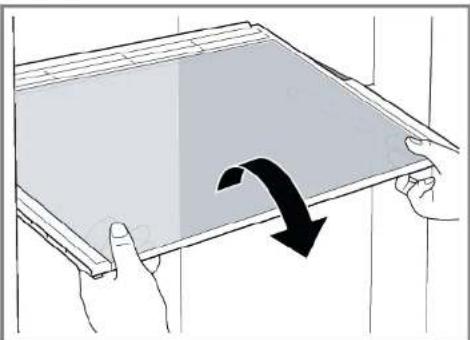

- Izvucite policu.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Spremnik za zamrznute namirnice je uklonjen.

4.4.2 Postavljanje spremnika za zamrznute namirnice

▶ Postavite obratnim redoslijedom.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Reparation

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparatie

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Repair hints - Freezer

i Concerning this document.... 63

1.1 Important information....63 1.1.1 Purpose....63

1.2 Explanation of symbols 63

1.2.1 Danger levels....63

1.2.2 Hazard symbols 63

1.2.3 Structure of the warnings....64

1.2.4 General symbols....64

Safety....65

2.1 General Safety instructions 65
2.1.1 All domestic appliances 65

Tools and aids....66

Repair 67

4.4 Replacing frozen food container 73

4.4.1 Removing frozen food container....73

4.4.2 Installing frozen food container 73

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Torx Bit TX20[00340865]	6,3 mm (1/4")

Repair

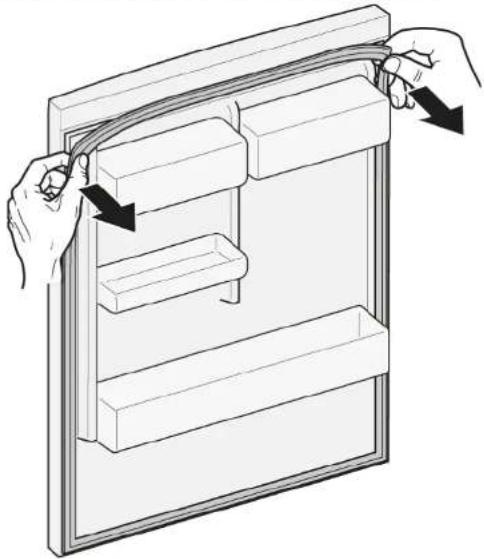

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

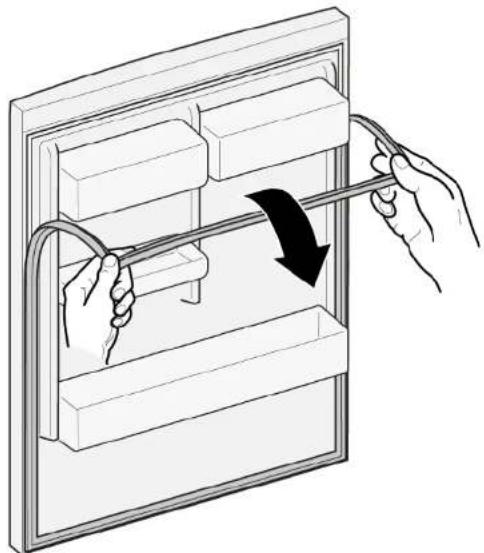

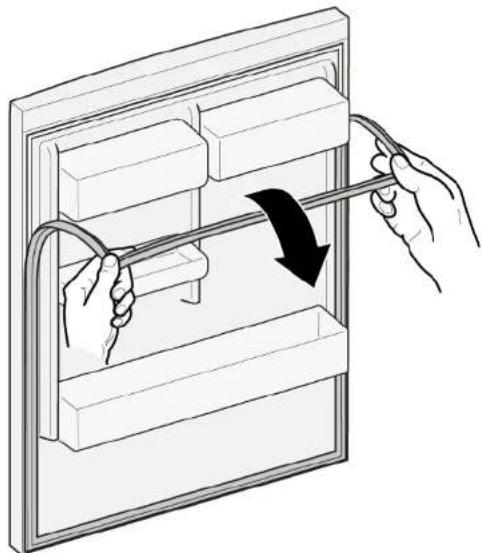

1. Pull out door gasket from groove.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

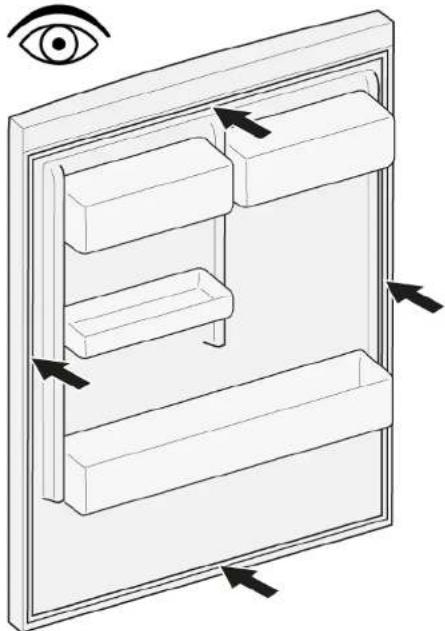

1. Check groove for gasket for damage.

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

1. (if) If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

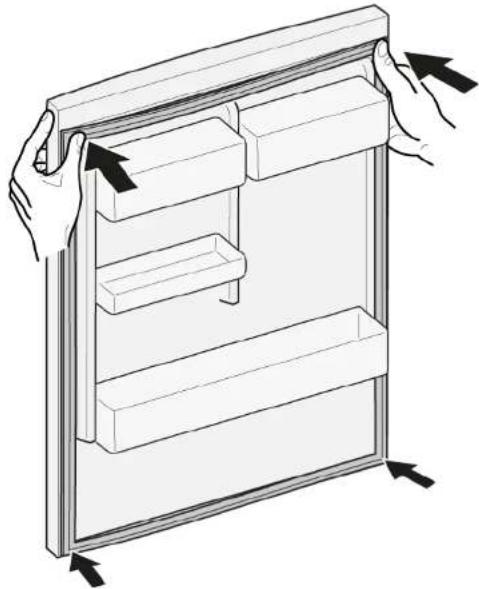

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

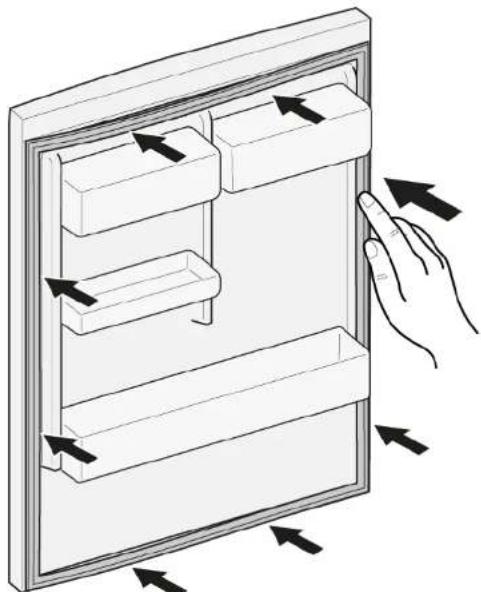

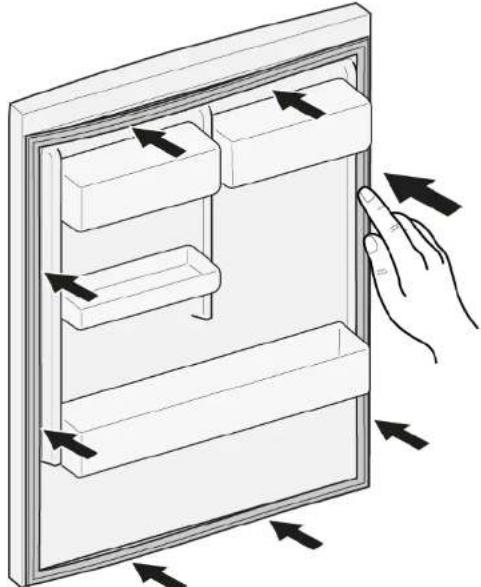

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

Heavy, bulky appliances!

Back and muscle injuries

▶ Appliance door removal operation should only be carried out by
trained specialists.
To move the appliance, two people are required.
▶ Use only suitable tools and equipment.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.

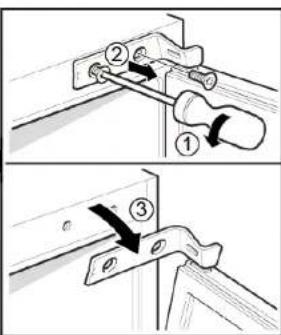

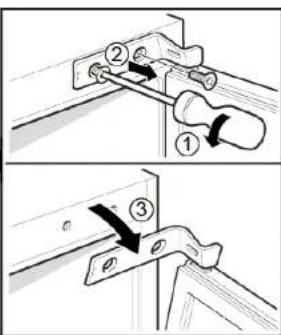

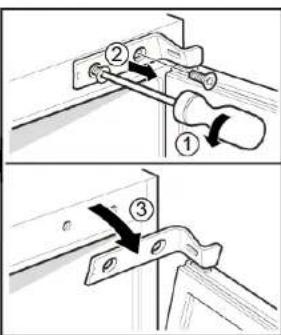

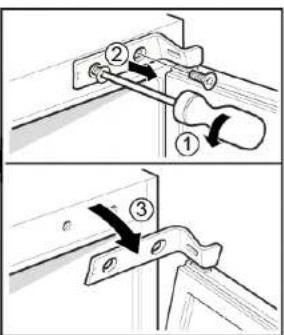

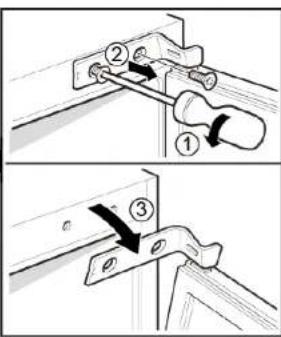

1. 1. Unscrew two screws (1).
2. Release upper hinge (2)
3. Move out door with upper hinge (3).

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

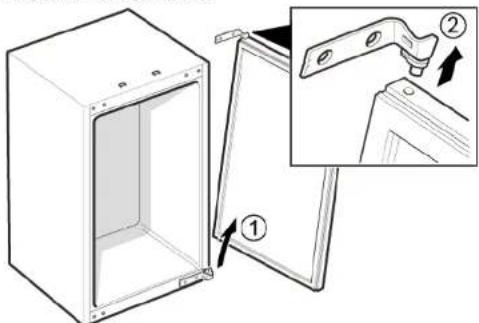

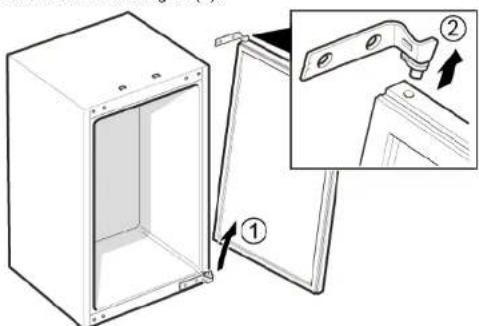

1. 1. Remove door (1).

2. Remove upper hinge (2).

• Upper hinge is removed.

Repair

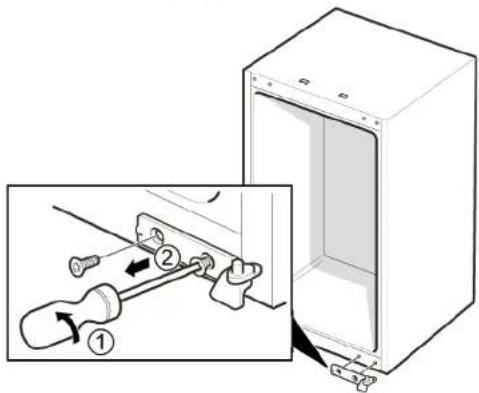

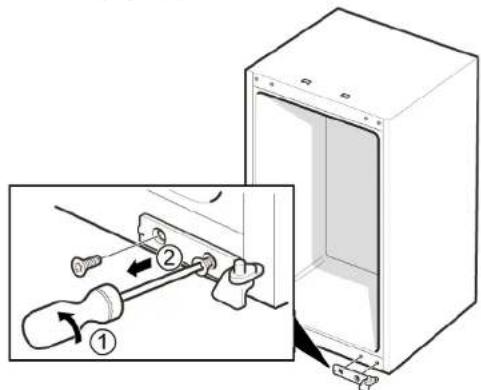

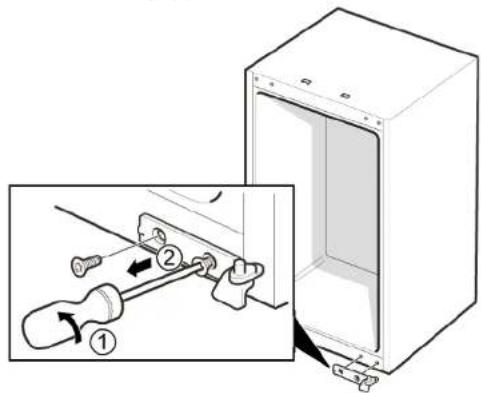

1. 1. Unscrew two screws (1).
2. Remove lower hinge (2)

Lower hinge is removed.

▶ Install in reverse order.

Repair

4.3 Replacing shelf

Prerequisite:

Door is open.

4.3.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Shelf is removed.

4.3.2 Installing shelf

▶ Install in reverse order.

Repair

4.4 Replacing frozen food container

Prerequisite:

√ Door is open.

4.4.1 Removing frozen food container

▶ 1. Pull out frozen food container all the way (1).
2. Remove frozen food container (2).

→ Frozen food container is removed.

4.4.2 Installing frozen food container

▶ Install in reverse order.

Remonditeave - Sügavkülmik

i Selle dokumendiga seoses 75

1.1 Tähtis teave 75

1.1.1 Eesmärk 75

1.2 Sümbolite selgitus 75

1.2.1 Ohutasemed....75

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a door frame with shelves and an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural components (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Simple line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Alasarana on poistettu.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Illustration of hands connecting a cable to a door frame with shelves (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon pointing to the top panel (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Simple line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

To páφι αφαιρέθηκε.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Javítás

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon, showing internal compartments and directional arrows (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

1. 1. Nonemiet durvis (1).

2. Nonemiet augšējo viru (2).

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

1. 1. Nuimkite dureles (1).

2. Nuimkite viršutinj vyrj (2).

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Lentyna išimta.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Simple line drawing of an open refrigerator with a black cable inserted (no text or symbols)

1. 1. Demonter døren (1).

2. Demonter øvre hengsel (2).

∅vre hengsel er demontert.

Reparasjon

1. 1. Skru ut to skruer (1).

2. Demonter nedre hengsel (2).

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

→ Beholderen for frysevarer er demontert.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Simple line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.3.2 Montaż półki

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Line drawing of a cabinet with an open door and lid, showing internal structure (no text or symbols)

1. 1. Remova a porta (1).

2. Remova a dobradiça superior (2).

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable inside a rectangular frame, with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Cap torx TX20 6.3 mm (1/4") [00340865]

Simple line drawing of an open refrigerator with a black cable inserted (no text or symbols)

1. 1. Demontați uşa (1).

2. Demontați balamaua de sus (2).

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement, showing internal compartments (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Tesnenie dvierok je namontované.

Oprava

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

1. 1. Odoberte dvierka (1).

2. Odoberte horný záves (2).

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Poškodbe hrbta in mišic

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

1. 1. Odstranite vrata (1).

2. Odstranite zgornji tečaj (2).

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.3.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted device with multiple shelves and an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Line drawing of an open refrigerator with a black cable inserted (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)
