GSV33VW31N - Freezer BOSCH - Free user manual and instructions

Product type	Freezer
Brand	Bosch
Model	GSV33VW31N
Energy efficiency class	A+
Annual energy consumption	260 kWh
Total capacity	280 litres
Dimensions (H x W x D)	176 cm x 60 cm x 65 cm
Net weight	68 kg
Installation type	Built-in or freestanding
Noise level	39 dB
Climate class	SN-T (10 °C to 43 °C)
Quick freeze function	Yes, SuperFreeze
Temperature alarm	Yes
Open door alarm	Yes
Child safety	Control lock
Defrosting	Manual
Interior light	LED
Control type	Electronic, digital display
Electrical connection	230 V, 50 Hz
Repairability	Spare parts available for 10 years

Frequently Asked Questions - GSV33VW31N BOSCH

How to adjust the temperature of my Bosch GSV33VW31N freezer?

Use the + and - keys on the control panel to set the temperature between -16 °C and -24 °C. The recommended value is -18 °C.

What to do if the temperature alarm goes off?

The alarm triggers if the internal temperature becomes too high. Check that the door is properly closed and that the freezer is not overloaded. Press the 'Alarm' button to turn it off.

How to activate the SuperFreeze function?

Press the 'SuperFreeze' button to activate rapid freezing. The appliance then operates at maximum power for about 24 hours, ideal for freezing large quantities of fresh food.

My freezer is making noise, is this normal?

A noise level up to 39 dB is normal. Slight sounds of refrigerant flow or compressor operation are typical. If the noise is unusual, check that the appliance is level and not in contact with furniture.

How to defrost the GSV33VW31N freezer?

Unplug the appliance, remove the food and leave the door open. Place towels to absorb melting water. Never use sharp objects to remove frost. Clean and dry before restarting.

Where to find the full user manual?

You can download the free PDF manual on notice-facile.com or on the official Bosch website by entering the reference GSV33VW31N.

What is the annual electricity consumption of this model?

The annual consumption is about 260 kWh, corresponding to energy class A+. This figure may vary depending on usage and location.

Can I install the freezer in an unheated garage?

Yes, the SN-T climate class allows use from 10 °C to 43 °C. However, ensure that humidity is not excessive and that the temperature does not drop below 10 °C.

How to clean the interior of the freezer?

Unplug the appliance and remove the food. Clean with a soft cloth and soapy water. Rinse and dry. Do not use aggressive cleaners or abrasive products.

Where to buy spare parts for this model?

Spare parts are available from authorized Bosch dealers and on their website. Use the model number GSV33VW31N to find compatible parts.

USER MANUAL GSV33VW31N BOSCH

Free-standing appliance

Using the installation instructions ..... 8

Installation location 8

Installing appliances next to each other 9

Changing over the door hinges ...... 9

Changing the door handle 10

Fitting the wall spacer 10

Aligning the appliance 10

Using the installation instructions

Please fold out the illustrated last page. These installation instructions refer to several models.

The diagrams may differ.

Installation location

A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

■ 3 cm to electric or gas cookers. ■ 30 cm to an oil or coal-fired cooker.

The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.

Distance from wall

When installing the appliance, ensure that the door can be opened by 90°.

Installing appliances next to each other

Fig. 3

When installing two appliances, ensure that the refrigerator is on the left and the freezer is on the right.

The right side panel of the refrigerator is heated slightly. This prevents condensation from forming between the appliances.

Attaching spacers

Fig. 4

1. On the right side of the refrigerator, degrease the adhesive areas with petroleum ether or spirit.
2. Stick spacers in all four corners at a distance of 5 cm from the side edges to ensure a minimum gap between the appliances.

Note

You can purchase a connection set from your dealer.

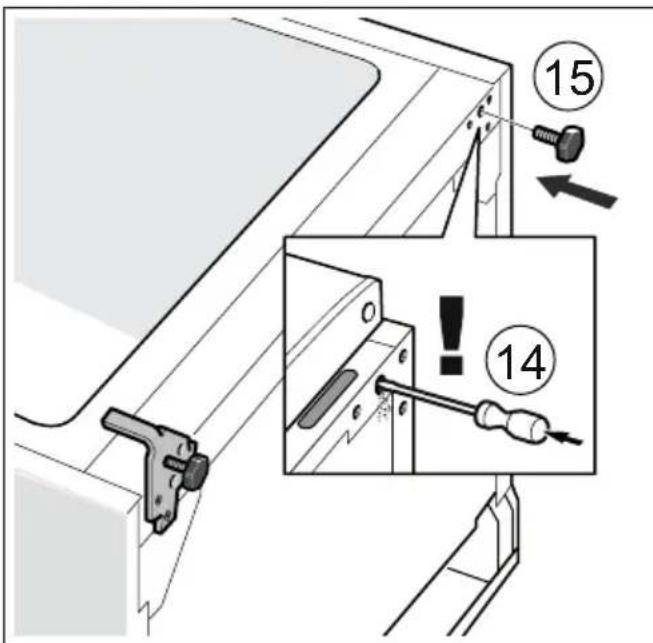

Changing over the door hinges

(if required)

We recommend that you have the door hinges changed over by our customer service. You can find out the costs for changing over the door hinges from your appropriate customer service.

Warning

While changing over the door hinges, ensure that the appliance is not connected to the power supply. Pull out the mains plug beforehand. To prevent damaging the back of the appliance, place adequate padding underneath. Carefully place the appliance on its back.

Change over the door hinges in numerical sequence. Fig. 1

Note

If the appliance is placed on its back, ensure that the wall spacer is not fitted.

Changing the door handle

(if required)

Fig. 2 A/B

Change the door handle in numerical sequence.

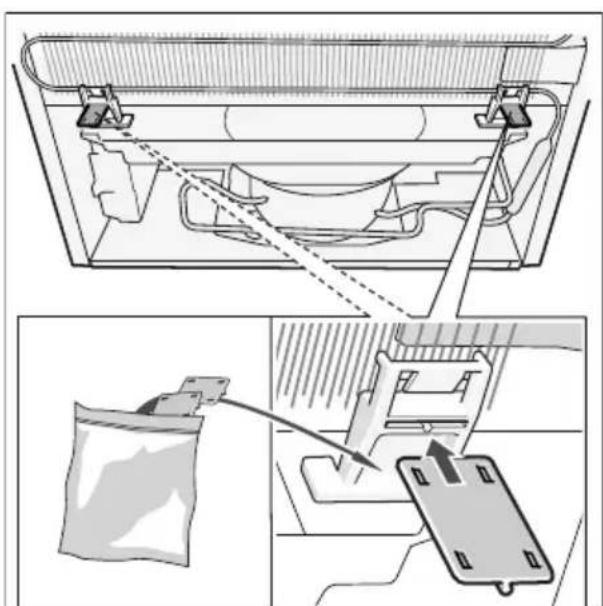

Fitting the wall spacer

Fig. 5

If available:

Fit wall spacers to obtain the indicated energy absorption of the appliance.

A reduced wall gap will not restrict the function of the appliance. The energy absorption may then change slightly.

Aligning the appliance

Place the appliance in the designated location and align. The appliance must be level. If the floor is uneven, use the front height-adjustable feet. Adjust the height-adjustable feet with a wrench.

Note

The appliance must be upright. Please align it with a spirit level.

2/B

3

4

5
