Product Type	Canister Vacuum Cleaner
Brand	Eldom
Model	ORION OS1700
Power Rating	700 W
Supply Voltage	220-240 V ~ 50 Hz
Dust Container Capacity	3 L
Filtration System	Internal motor protection filter and external exhaust filter (washable frames, replaceable cartridges)
Dust Bag Type	Reusable canvas bag (included) or disposable paper bag (model OSW1700, not included)
Bag-full Indicator	Yes, colour change from white to red
Cord Rewind	Yes, with foot switch
Telescopic Tube	Yes, adjustable length
Suction Power Control	Variable via electronic regulator on handle and airflow adjustment on hose
Accessories Included	Hose, telescopic tube, big brush, dual-function nozzle (crevice tool with brush)
Intended Use	Dry vacuum cleaning of carpets, hard floors, upholstery, curtains, and furniture
Housing Material	Plastic
Storage Options	Can be stored vertically or horizontally; has handle for parking the tube
Filter Maintenance	Frames washable with water; cartridges should be replaced periodically
Safety Features	Bag-full indicator prevents motor overload; do not use without filters or bag
Dual-function Nozzle	Combines crevice tool and brush for hard-to-reach areas and delicate surfaces

Frequently Asked Questions - ORION OS1700 Eldom

How do I replace the dust bag?

First, switch off and unplug the vacuum. Remove the hose from the inlet seat. Press the lid lock, open the lid, and tilt the appliance vertically. Pull out the frame with the bag. For the canvas bag, slide the plastic strip off, empty it, and slide back. For a paper bag, remove the old bag and insert a new Eldom OSW1700 bag into the frame guides. Reinstall the frame and close the lid.

How do I clean the filters?

The vacuum has two filters: an internal inlet filter (protects the motor) and an external exhaust filter. Access the internal filter by opening the lid and removing the bag. The external filter is accessed by opening its lid. The frames of both filters can be washed with water. The cartridges themselves should not be washed; replace them periodically.

What type of paper bag can I use?

Only use disposable paper bags model Eldom OSW1700. Do not use other brands or types, as they may not fit properly and could damage the appliance.

How do I rewind the power cord?

After use, unplug from the mains. Press and hold the cord rewind switch (located on the appliance). Hold the plug firmly to guide the cord and prevent uncontrolled movement. The cord will automatically rewind.

What does the bag-full indicator mean?

The bag-full indicator is a window that changes colour from white to red when the dust bag is full. If it turns red, you must empty or replace the bag immediately. Never continue vacuuming with the indicator red, as it may reduce suction and strain the motor.

Can I vacuum liquids with this vacuum?

No, this vacuum cleaner is designed for dry use only. Do not vacuum water, wet carpets, or any liquids. Doing so can cause electric shock and damage the appliance.

How do I adjust the suction power?

Suction power can be adjusted in two ways: using the electronic regulator on the handle, or the airflow adjustment slider on the hose. Reduce suction for delicate fabrics like curtains or upholstery.

How should I store the vacuum cleaner?

The vacuum can be stored either vertically or horizontally. It has a handle on the back for parking the suction tube, and a catch on the brush for secure storage.

Why is the suction weak?

Weak suction can be caused by a full dust bag, clogged filters, or a blocked hose/nozzle. Check the bag-full indicator; if red, empty/replace bag. Clean or replace the filters. Inspect the hose and tubes for obstructions.

How do I clean the exterior of the vacuum?

Use a soft cloth slightly dampened with a mild dishwashing detergent to wipe the housing, accessories, and power cord. Do not immerse the appliance in water or use aggressive chemicals, as they may damage the plastic surface.

USER MANUAL ORION OS1700 Eldom

Black and white photo of a vacuum cleaner with coiled hose and handle (no text or symbols visible)

/PL/

Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

/CZ/

Close-up of a woven fabric or mesh material with visible texture and layered structure (no text or symbols)

1. Before first use, please carefully read the entire content of this manual;
2. The appliance is intended for private domestic use only. This appliance is not intended for use as part of economic activity;
3. Do not use in the open air;
4. The connecting cable should be connected to the wall outlet whose parameters are in compliance with those provided in the manual;
5. The power cable must be kept away from hot surfaces;
6. Move the cleaner using the holder (do not pull the hose);
7. Do not use the vacuum cleaner to collect the following:
8. Hot ash;
9. Cigarette butts and matches;
10. Sharp objects (glass splinters);
11. Plaster, cement, stone dust, and flour, etc.
12. Debris;
13. Water or other liquids;
14. Do not operate the appliance, if the filter is damaged;
15. Do not cover the ventilating holes;
16. Do not use the vacuum cleaner to clean wet carpets after e.g. cleaning with a washing shampoo. Wait until the foam dries and the cleaned surface is dry;
17. Do not clean people or animals with the vacuum cleaner, in particular do not put the suction inlet near eyes or ears;
18. Always disconnect the appliance from the mains by pulling the plug, not by the power cable;
19. The appliance must be disconnected from the mains, before cleaning or replacing parts, and when it is not used;
20. Do not grab the appliance, if your hands are wet;
21. Do not immerse the appliance in water;

22. The vacuum cleaner should be protected from moisture; do not place any dish with a liquid on it;

23. Do not leave the appliance unattended;

24. This appliance can be used by children, who are at least 8 years old, by people with reduced physical and mental capabilities, and by people with lack of experience and knowledge of the equipment, provided that supervision or instructions for use of the appliance in a safe manner are ensured, so that the risks related to it are understood. Children should not play with the appliance. Children should not carry out cleaning and maintenance of the appliance without supervision;
25. Exercise extreme caution, when working with the appliance in the presence of children;
26. Do not use the vacuum cleaner without the filters and the waste bin;
27. Do not stand on the inlet hose;
28. Do not place heavy objects on the inlet hose;
29. Do not block the inlet hole;
30. Use only with the original accessories provided;
31. Before each cleaning and emptying, disconnect the appliance from the mains;
32. Do not use, if the power cable is damaged, or when the appliance has been damaged in any other way. The appliance shall be repaired by an authorized service; information about the method of servicing is included in the warranty card and provided on www.eldom.eu;
33. The appliance may be repaired only be an authorised service centre. Any modernisation or use of spare parts or components of the appliance other than the original ones is prohibited and can compromise the safety of use;
34. DO NOT use the device in a manner inconsistent with its intended use and this manual;
35. ELDOM Sp. z o. o. shall not be liable for potential losses due to improper use of the device.

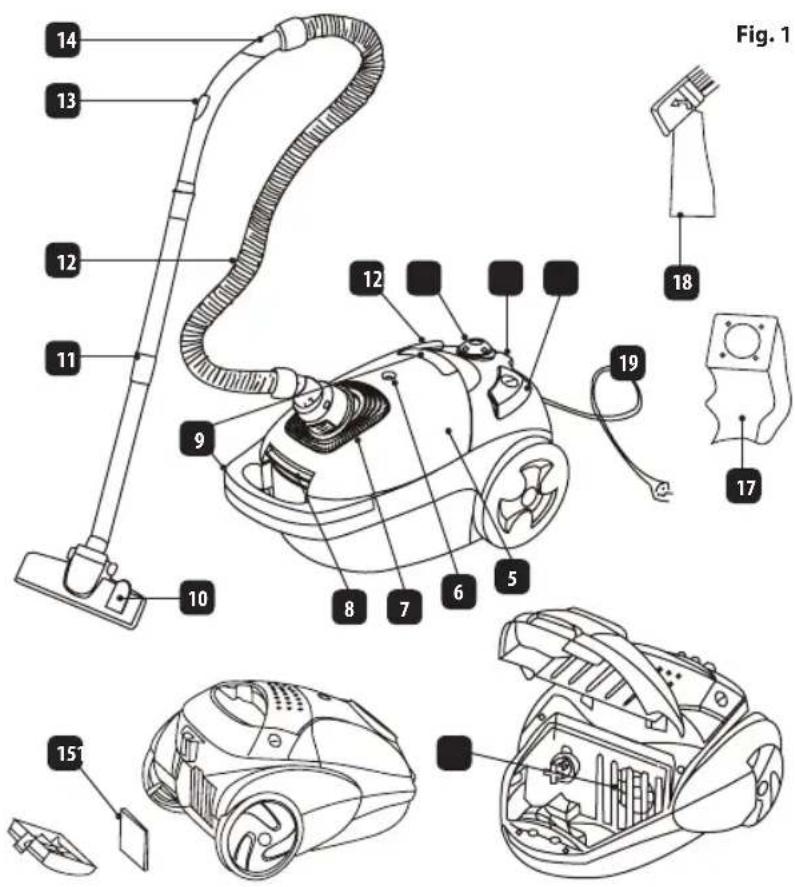

GENERAL DESCRIPTION

1. Cord rewind
2. Power regulator
3. Brush handle
4. "ON/OFF" switch
5. Lid
6. Bag-full indicator
7. Seat
8. Lid lock
9. Handles
10. Big brush
11. Tube
12. Hose
13. Airflow adjustment
14. Holder
15. External filter
16. Internal filter
17. Bag (canvas)
18. Double-function suction nozzle
19. Cord

DECHNICAL DATA

Power rating: 700W

Supply voltage: 220-240V \~ 50Hz

Container capacity: 3 l

INTENDED USE

The OS1700 vacuum cleaner is designed for cleaning carpets, fitted carpets, net curtains, curtains, and upholstered furniture from dust. It is equipped with a bag-full indicator, which makes it easy to control the amount of dust accumulated in the bag. You can use both the reusable canvas bag (included) and the disposable paper bag model Eldom OSW1700.

USE

The vacuum cleaner can be moved using the handles (9).

Before use, follow the instructions provided:

• check if the filters (15, 16) are installed - Fig. 1,
• install the bag (canvas),
• Do not use the vacuum cleaner without the filters and the bag installed.
• insert one end of the hose (12) into the seat (7),
• then connect the end (14) to the tubes (11),
• attach a suitable nozzle (10 or 18) to the other end of the tube (11),
• grab the plug and pull out the power cord to a desired length.
• adjust the length of the telescopic tube.

NOTE:

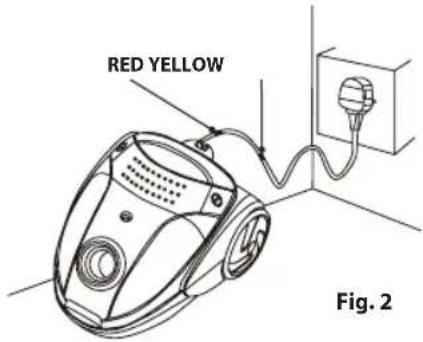

The power cord can be pulled out up to the yellow mark - Fig. 2. Never pull the power cord out to the red mark, as this could damage the cord rewind mechanism.

• if the power cord is pulled out beyond the yellow mark, rewind it with the switch (1),
• connect the appliance to a mains socket with parameters specified in the manual,

• the vacuum cleaner starts working after pressing the "ON/OFF" switch (4),

• during vacuuming, the suction power can be adjusted using the adjuster (2, 13),

• observe the bag-full indicator (6); if its colour changes from white to red, empty the canvas bag (17) or replace it for the paper bag.

NOTE: Never vacuum if the indicator (6) has turned red.

• press the "ON/OFF" switch (4) to stop the appliance,
• after work is completed, disconnect the power cord from the mains and rewind it by pushing and holding down the switch (1). Hold the power cord firmly to prevent its uncontrolled movement.

BAG - EMPTYING / REPLACING

Before any operation, switch off the appliance using the switch (4) and disconnect it from the mains. Press the switch (1) to rewind the power cord.

Canvas bag (17) - emptying:

• remove the hose (12) from the seat (7) by pressing the corrugated parts at the end of the hose and pulling upwards,
• press the lock switch (8), swivel the lid (5), and place the vacuum cleaner vertically,
• pull out the frame with the installed bag,
• slide the plastic strip off the bag (Fig. 3) and empty it - fasten the slide back,
• install the frame with the bag in the vacuum cleaner,
• close the lid (5).

Paper bag - replacement:

Instead of a canvas bag (17), you can use paper bags model ELDOM OSW1700.

• remove the hose (12) from the seat (7) by pressing the corrugated parts at the end of the hose and pulling upwards,
• press the lock switch (8), swivel the lid (5), and place the vacuum cleaner vertically,
• pull out the frame with the installed bag,
• remove the old bag from the frame and insert the new bag by inserting the bag's plate into the frame's guides,
• install the frame with the bag in the vacuum cleaner,
• close the lid (5).

FILTERS

Check the condition of the filters (15, 16) regularly and replace them periodically.

The vacuum cleaner is equipped with two filters:

• the internal inlet filter (16) protects, among others, the motor against damage. The filter can be accessed by opening the lid (5) and pulling out the dust bag (17),
• external filter (15) is a protection against air pollution in vacuumed rooms. The filter can be accessed by opening the filter lid (15) - Fig. 1.

The frames of the external and internal filters can be washed with water.

Never wash the cartridges; replace them periodically.

RECOMMENDATIONS AND TIPS

• The vacuum cleaner can be stored in the vertical or horizontal position. On the back of the appliance, there is a handle for parking the suction tube, and there is an appropriate catch on the brush (10).
• It is recommended to reduce suction force with the controller (13), when vacuum cleaning of upholstery, rugs, or delicate fabrics.
• If the cable is jammed when coiling, it is recommended to pull it out a little, and then try coiling it again;
• Use the dual-function tip (18) to clean hard-to-reach places (corners, gaps, etc.) This component is also equipped with a brush, which enables removing dust from furniture, books, etc.

CLEANING AND MAINTENANCE

- Before maintaining or repairing of the appliance, switch it off and disconnect from the power supply.

• Clean the appliance, replace the filters (15, 16), and empty the container at regular intervals to ensure the proper operation of the appliance.
• The housing, accessories, and the power cable should be cleaned with a soft cloth slightly damped with a dishwashing detergent.
• Do not immerse the appliance in water.
• Do not use any aggressive washing detergents for cleaning, as they can damage the housing surface.

ENVIRONMENTAL PROTECTION

- the appliance is made of materials which can be recovered or recycled

• the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment.

WARRANTY

• the appliance is intended for personal use at a household,
- it is not intended for professional purposes,
- in case of misuse, the warranty is rendered null and void.

Close-up of a textured fabric surface with a mesh pattern, labeled 'Fig. 3' (no other text or symbols)
