OK1800 - Vacuum Cleaner Eldom - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Eldom
Model	OK1800
Dimensions (L x W x H)	30 x 28 x 48 cm
Weight	5.2 kg
Power Supply	Mains, 220-240 V, 50 Hz
Power Consumption	800 W
Dust Capacity	1.8 L
Filtration System	HEPA 12 filter
Suction Power Control	Electronic slide control on handle
Cord Length	6 m
Reach	10 m (with hose and wand)
Floor Nozzle	Combined for hard floors and carpets
Accessories Included	Crevice tool, upholstery brush, dusting brush
Noise Level	78 dB(A)
Dust Container Type	Bagless, transparent
Filter Maintenance	Washable HEPA filter; replace every 6 months
Overheat Protection	Automatic shut-off
Spare Parts Availability	Filters and accessories available from retailer
Warranty	2 years

Frequently Asked Questions - OK1800 Eldom

How do I clean the HEPA filter?

Turn off and unplug the vacuum. Open the dust container and remove the filter. Tap it gently to remove loose dust or rinse under running water (if indicated). Let it dry completely for 24 hours before reinstalling. Do not use the vacuum without a dry filter.

Why is the suction power weak?

Check if the dust container is full or if the filter is clogged. Also inspect the hose and nozzle for blockages. Ensure the suction control is set to maximum. A full dust bin or dirty filter are the most common causes.

Can I use the vacuum on hard floors?

Yes, the combined floor nozzle is designed for both hard floors and carpets. For delicate floors, you may use the dusting brush accessory.

How do I empty the dust container?

Press the release button to detach the container from the unit. Hold it over a trash bin and press the bottom latch to open the flap. Empty the contents and close the flap securely before reattaching.

What does the electronic suction control do?

The slide control on the handle allows you to adjust the suction power from low (for curtains or delicate fabrics) to high (for deep carpet cleaning). Slide it up for more power.

How often should I replace the HEPA filter?

It is recommended to replace the HEPA filter every 6 months for optimal performance. However, if you notice persistent loss of suction or a musty odor, replace it sooner.

The vacuum suddenly stopped working. What happened?

This model has an automatic overheat protection. If the vacuum gets too hot, it shuts off. Unplug it and let it cool down for 30 minutes. Check for blockages or a full dust container before restarting.

Can I wash the dust container?

Yes, the dust container can be washed with mild soap and water. Make sure it is completely dry before reattaching. Do not wash the HEPA filter in a dishwasher.

Where can I buy replacement filters?

Replacement filters are available from the Eldom retailer or online spare parts shops. Use only genuine Eldom filters to ensure proper fit and performance.

How do I store the vacuum?

Wrap the power cord around the cord hooks on the back of the unit. Attach the floor nozzle to the parking clip on the back for compact storage. Store in a dry place.

USER MANUAL OK1800 Eldom

Close-up of a black and white filter component with red rim, labeled number 14 (no text or symbols on the object itself)

Close-up of an orange object with black protrusions and a yellow number 15 on the side (no readable text or symbols)

Close-up of a white spray gun with orange cover and black circular opening, marked with number 16 (no text or symbols on the gun itself)

OPIS OGÓLNY

UŻYTKOWANIE URZĄDZENIA

Close-up of a kitchen appliance with folded paper and black contents, no visible text or symbols

FOT. 1

ODKURZANIE MOKRYCH I WILGOTNYCH POWIERZCHNI

Interior view of a stainless steel steamer with open lid and paper-lined inner pan (no text or symbols visible)

FOT. 2

CZYSZCZENIE I KONSERWACJA

Two black cylindrical objects with horizontal connectors, possibly industrial tanks or pipes (no text or symbols visible)

FOT. 4

WSKAZÓWKI BEZPIECZEŃSTWA

Close-up of a black and white filter component with red rim, labeled number 14 (no text or symbols on the object itself)

Close-up of a red-orange object with black protrusions and a yellow number 15 on the side (no readable text or symbols)

Close-up of a red and black industrial component with a circular hole, labeled with the number 16 (no readable text or symbols beyond the number)

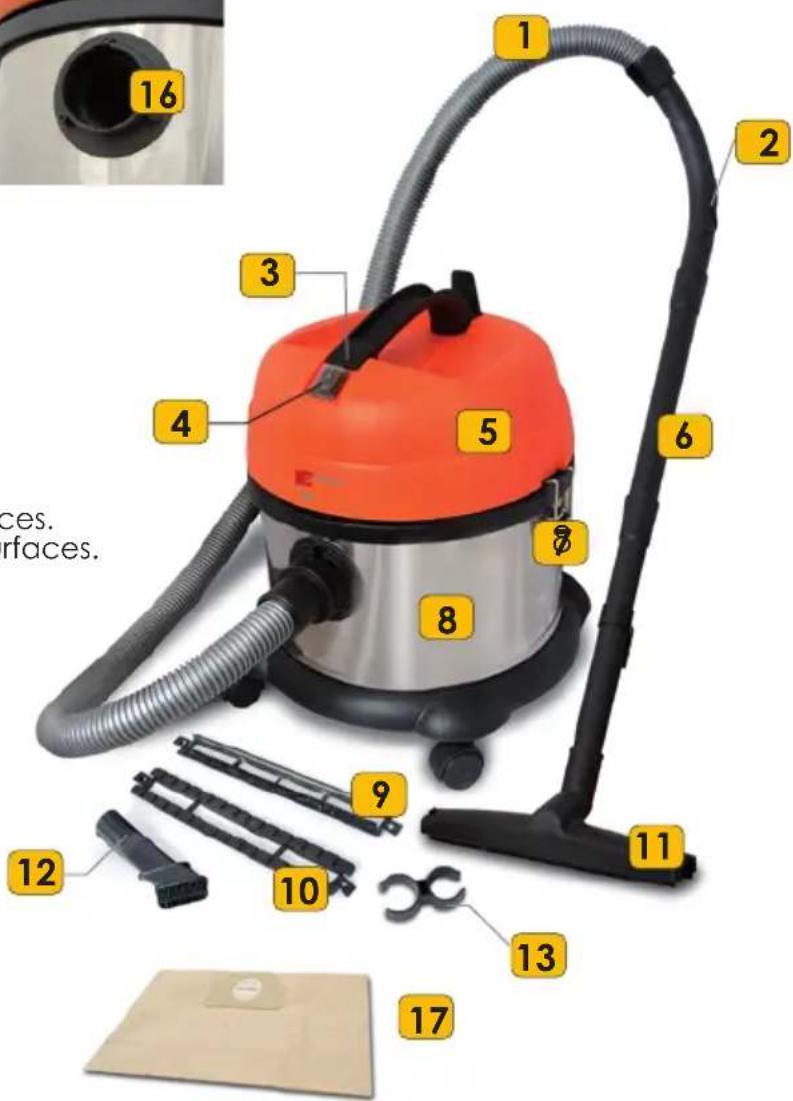

NAME OF EACH PART

1. Hose
2. Vacuum power regulation
3. Carrying handle
4. Switch
5. Cover
6. Suction hose (3 elements)
7. Buckles gripping the cover
8. Canister
9. Working cover for vacuuming soft surfaces.
10. Working covers for vacuuming hard surfaces.
11. Big brush
12. Small, two-functional suction brush
13. Handle
14. HEPA filter
15. A place to hang the suction hose
16. Air intake
17. Paper bag

TECHNICAL DATA

• power : 1200 W
• voltage: 230 V \~ 50 Hz
• container capacity: 15 l
  -level of noise: 77\~79 dB(A)

USING THE VACUUM CLEANER

The vacuum leaner is devoted to dust the carpet, carpet floors, net curtains, curtains, upholstered furniture, etc. The device enables vacuuming wet surfaces.

Before the first use you should:

open the cover (5) by releasing the blocking clasps (7)

take out all accessories from the vacuum's container (8)

install wheels and join all required equipment elements together

the thicker end of the flexible hose should be put in the air intake

join together the elements of the suction hose and join them to the hose

depending on the needs and types of surface, install the big brush (11) or one of the working covers (9 or 10) or the small two-function suction brush (12)

put the cover by fixing the blocking flaps (7)

VACUUMING OF DRY SURFACES

Dry surfaces may be vacuumed either using the bagless vacuuming mode or with the paper bag installed. In case of the bagless operating mode, dust is collected directly in the container (8).

In order to place a bag one should:

• unplug the device
• open the cover (5)

- place the ring of the paper bag on the air intake, photo 1

- place the paper bag equally against the walls of the container, photo 2

- put the cover (5) on and fix the blocking clasps (7)

- plug the cable to the socket with due parameters specified in the instruction manual

- the vacuum cleaner starts working after switching on (4)

The exchange of the paper bag is necessary when the vacuum cleaner performs more slowly or the bag is full. When the paper bag is full it should be disposed to the rubbish bin.

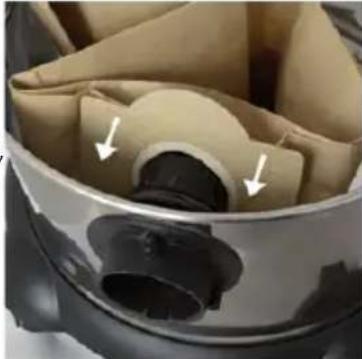

Close-up of a kitchen appliance with beige fabric and black filter, showing interior components and arrows indicating parts (no text or symbols)

photo 1

VACUUMING WET AND HUMID SURFACESI

Humid surfaces should be vacuumed without bag Warning: The vacuum cleaner does not serve for removing water or foam. Both while vacuuming dry and humid surfaces, the filter should be placed in (14).

Vacuuming with the bag is recommended. The bagless performance provokes fast blocking of HEPA filters and a frequent necessity of cleaning the filter.

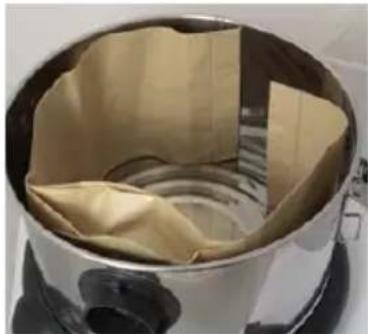

Interior view of a stainless steel baking pan with paper-covered insulation and a small cylindrical lid on a stovetop (no text or symbols visible)

photo 2

CLEANING AND MAINTAINANCE

Before the cleaning of the device, emptying the dust compartment or bag exchange the vacuum cleaner should be unplugged.

The cover, equipment elements, and the cable should be cleaned with a soft cloth with a bit of washing-up liquid. Do not use any of the invasive cleaning products since they made corrode the cover surface. The device should not undergo water immersions.

The proper performance of the vacuum cleaner and optimal suction is guaranteed by regular emptying of the dust container, bag exchange or cleaning of the HEPA filter.

photo 3

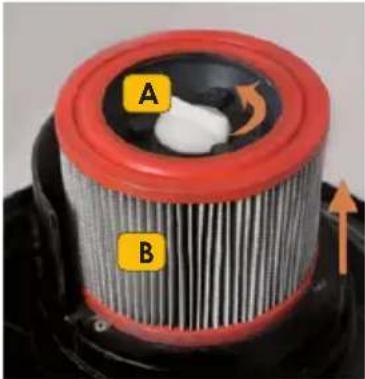

FILTER CLEANING

The filter is accessible after removing the cover (5) after removing the cover turn it away turn the filter blockade (A) anti-clockwise and take it out take the filter out (B), photo 3

The filter may be cleaned in water and dried properly before inserting. The filter installation should be done in the reversed order of the process described above.

ADVICE AND GUIDELINES

- in the cover there is a place (15) to organise the suction hose (on the suction hose "3" there is a special hook

- while storing it is vital to notice if the hose is not bent to much

- while vacuuming upholstery products, rugs and delicate materials it is advised to reduce the suction power by using a regulatory switch (2)

- while vacuuming hardly accessible surfaces such as corners, chasms, the two-function suction brush must be used (12). The ending has got a brush enabling to remove dust from furniture, books, etc.

- the holding unit helps to stock the parts of the suction hose, photo 4

- when not used, the cable may be wound and put on the storage hook placed on the handle (3)

Close-up of two black cylindrical mechanical components with no visible text or symbols

photo 4

SAFETY INSTRUCTIONS

• before the first use familiarise with the instruction of use
• the cable should be plugged in the socket with working parameters described in the instruction manual
• the vacuum cleaner does not serve to clean:
• hot ash
• cigarettes studs and matches
• sharp pieces (pieces of glass)
• plaster, concrete, stone dust and flour
• rubble
• do not vacuum people or animals, and particularly do not place the suction ending to eyes and ears
• do not unplug by pulling the cable
• protect from humidity, do not place liquids containers on ita
• do not leave the vacuum cleaner without supervision while working
• the device should not be used by people (including children) with limited physical, sensory and mental abilities unless they are under a supervision of a person responsible for their safety
• preserve particular caution when using the vacuum cleaner near children
• do not use the vacuum cleaner without the filter
• do not step on the suction hose
• do not put heavy objects on the suction hose
• do not block the inlet opening
• do not immerse in water
• move the vacuum cleaner using the handle (do not pull the hose)
  -use only with originally attached accessories
• unplug before exchanging the bag, cleaning and emptying the dust container
• indoors use only
• do not use with damaged cable or with any other damage to the vacuum cleaner. The device should be fixed at the authorised service providers, the list of service providers is on the website www.eldom.eu
• any mending of the equipment should be held by authorised service providers. All modernisations and using spare parts or equipment other than original is forbidden and may be dangerous.
• the device should not be used against its usage and this instruction manual
• Eldom sp. z o.o. shall not be responsible for any damages occurring as a result of improper usage

ENVIRONMENTAL PROTECTION

- the device is made of materials which can be reused or recycled

- the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

GUARANTEE

- the vacuum cleaned is designed to be used in households and small companies like offices

- it cannot be used for professional purposes

- the guarantee expires when used in an improper way

Detailed warranty description is in the annex.

Close-up of a black and white filter component with red edge, labeled '14' in yellow (no other text or symbols)

Close-up of a black plastic object with a yellow number 15 on it, no visible text or symbols

Close-up of a red and white industrial component with a black circular opening, marked with the number 16 (no text or symbols on the object itself)

Technické údaje

Close-up of a kitchen appliance showing beige fabric layers and a black handle (no text or symbols visible)

obrázek 1

Interior view of a stainless steel pot with open lid and paper-lined inner casing (no text or symbols visible)

obrázek 2

Čištění a údržba

Close-up of two black cylindrical mechanical components with flanges (no text or symbols visible)

obrázek 4

Close-up of a black and white filter component with red rim, labeled number 14 (no text or symbols on the object itself)

Close-up of a red-orange object with black protrusions and a yellow label showing number 15 (no readable text or symbols)

Close-up of a mechanical component with orange top and black circular opening, marked with number 16 (no text or symbols on the object itself)

Gerätegebrauch

Close-up of a kitchen appliance showing dough being filled with paper and a black plastic component (no text or symbols visible)

Bild 1

NASSSAUGEN

Interior view of a stainless steel pot with paper-lined lid and inner circular opening, placed on a stovetop (no text or symbols visible)

Bild 2

Close-up of two black cylindrical mechanical components with flanges (no text or symbols visible)

Bild 4

Close-up of a black and red filter component with a yellow number '14' on the side (no text or symbols on the component itself)

Close-up of a black plastic clip attached to an orange bulb with a yellow number 15 label (no text or symbols on the object itself)

Close-up of a red and black industrial chimney with a circular opening labeled '16' (no other text or symbols visible)

Close-up of a kitchen appliance showing a beige oven with a black outlet and two white arrows pointing to the interior (no text or symbols visible)

рис. 1

Interior view of a stainless steel pot with open lid and paper-lined inner casing (no text or symbols visible)

рис. 2

ОЧИСТКА И УХОД

Close-up of two black cylindrical mechanical components with attached clamps (no text or symbols visible)

рис. 4

МЕРЫ БЕЗОПАСНОСТИ
