Product Type	Cylinder vacuum cleaner
Brand	Eldom
Model	Vaac OC1200S
Power Rating	1000 W
Supply Voltage	230 V ~ 50 Hz
Dust Container Capacity	2 L
Filtration System	Exhaust filter, inlet filter, multi-cyclone filter
Suction Power Control	Adjustable airflow via hand grip controller
Cord Rewind System	Button-activated cord coiling mechanism
Telescopic Tube	Adjustable length with button
Accessories Included	Brush nozzle, dual-function suction nozzle, telescopic tube, hose, hand grip
Transparent Container	Yes, for easy dust monitoring
Parking Feature	Handle on back for tube parking; catch on brush
Intended Use	Domestic, carpets, padded carpets, curtains, upholstered furniture
Storage Positions	Vertical or horizontal
Weight	Not specified (approx. 3-5 kg estimated)
Dimensions (HxWxD)	Not specified (approx. 30x25x25 cm estimated)
Noise Level	Not specified
Safety Features	Do not use without filters; keep away from heat; do not vacuum liquids or hot ash
Cleaning and Maintenance	Empty container when full; clean filters regularly; replace filters periodically

Frequently Asked Questions - Vaac OC1200S Eldom

How do I empty the dust container?

Turn off and unplug the vacuum cleaner. Press the lock button to remove the container. Open the bottom over a bin to discard dust. Then remove the lid and filter unit to clean the filters if needed.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed for dry vacuuming only. Do not use it to pick up water or other liquids.

How often should I clean the filters?

Check the filters regularly and clean them when they are dirty. The inlet filter can be tapped clean over a bin; the multi-cyclone filter can be washed with water and dried thoroughly before reinstallation.

What should I do if the cord does not rewind properly?

Pull out the cord a little and try pressing the rewind button again. If jammed, gently pull out a bit and reattempt. Avoid pulling beyond the red marker.

Is it safe to vacuum sharp objects?

No, do not pick up sharp objects like glass splinters as they can damage the vacuum cleaner and create hazards.

Can children use this vacuum cleaner?

Children aged 8 and above can use it under supervision. Children should not play with the appliance or perform cleaning/maintenance without supervision.

How do I adjust the telescopic tube?

Press the button (2a) on the tube and slide the parts to the desired length. Release the button to lock it.

What does the MAX mark on the container mean?

It indicates the maximum fill level. Do not exceed this mark; empty the container when dust reaches that level to maintain suction and performance.

Where can I get replacement filters?

Replacement filters are available from authorized service centers or online through Eldom's official website or partner retailers.

Can I use the vacuum cleaner without the filters?

No, never operate the vacuum cleaner without the filters and dust container installed. This can damage the motor and reduce performance.

USER MANUAL Vaac OC1200S Eldom

Black and white photo of a vacuum cleaner with coiled tubing (no text or symbols visible)

ODKURZACZ PL

VACUUM CLEANER EN

VYSAVAČ CZ

STAUBSAUGER DE

ПЫЛЕСОС RU

VYSÁVAČ SK

PORSZÍVÓ HU

ASPIRADORA ES

WARUNKI BEZPIECZEŃSTWA

Close-up of a mechanical device with a lid and arrow indicating rotation (no text or symbols)

UWAGA

1. Before first use, please carefully read the entire content of this manual;
2. The appliance is intended for private domestic use only. This appliance is not intended for use as part of economic activity;
3. Do not use in the open air;
4. The connecting cable should be connected to the wall outlet whose parameters are in compliance with those provided in the manual;
5. The power cable must be kept away from hot surfaces;
6. Move the cleaner using the holder (do not pull the hose);
7. Do not use the vacuum cleaner to collect the following:
8. Hot ash;
9. Cigarette butts and matches;
10. Sharp objects (glass splinters);
11. Plaster, cement, stone dust, and flour, etc.
12. Debris;
13. Water or other liquids;
14. Do not operate the appliance, if the filter is damaged;
15. Do not cover the ventilating holes;
16. Do not use the vacuum cleaner to clean wet carpets after e.g. cleaning with a washing shampoo. Wait until the foam dries and the cleaned surface is dry;
17. Do not clean people or animals with the vacuum cleaner, in particular do not put the suction inlet near eyes or ears;
18. Always disconnect the appliance from the mains by pulling the plug, not by the power cable;
19. The appliance must be disconnected from the mains, before cleaning or replacing parts, and when it is not used;
20. Do not grab the appliance, if your hands are wet;
21. Do not immerse the appliance in water;

22. The vacuum cleaner should be protected from moisture; do not place any dish with a liquid on it;

23. Do not leave the appliance unattended;

24. This appliance can be used by children, who are at least 8 years old, by people with reduced physical and mental capabilities, and by people with lack of experience and knowledge of the equipment, provided that supervision or instructions for use of the appliance in a safe manner are ensured, so that the risks related to it are understood. Children should not play with the appliance. Children should not carry out cleaning and maintenance of the appliance without supervision;
25. Exercise extreme caution, when working with the appliance in the presence of children;
26. Do not use the vacuum cleaner without the filters and the waste bin;
27. Do not stand on the inlet hose;
28. Do not place heavy objects on the inlet hose;
29. Do not block the inlet hole;
30. Use only with the original accessories provided;
31. Before each cleaning and emptying, disconnect the appliance from the mains;
32. Do not use, if the power cable is damaged, or when the appliance has been damaged in any other way. The appliance shall be repaired by an authorized service; information about the method of servicing is included in the warranty card and provided on www.eldom.eu;
33. The appliance may be repaired only be an authorised service centre. Any modernisation or use of spare parts or components of the appliance other than the original ones is prohibited and can compromise the safety of use;
34. DO NOT use the device in a manner inconsistent with its intended use and this manual;
35. ELDOM Sp. z o. o. shall not be liable for potential losses due to improper use of the device.

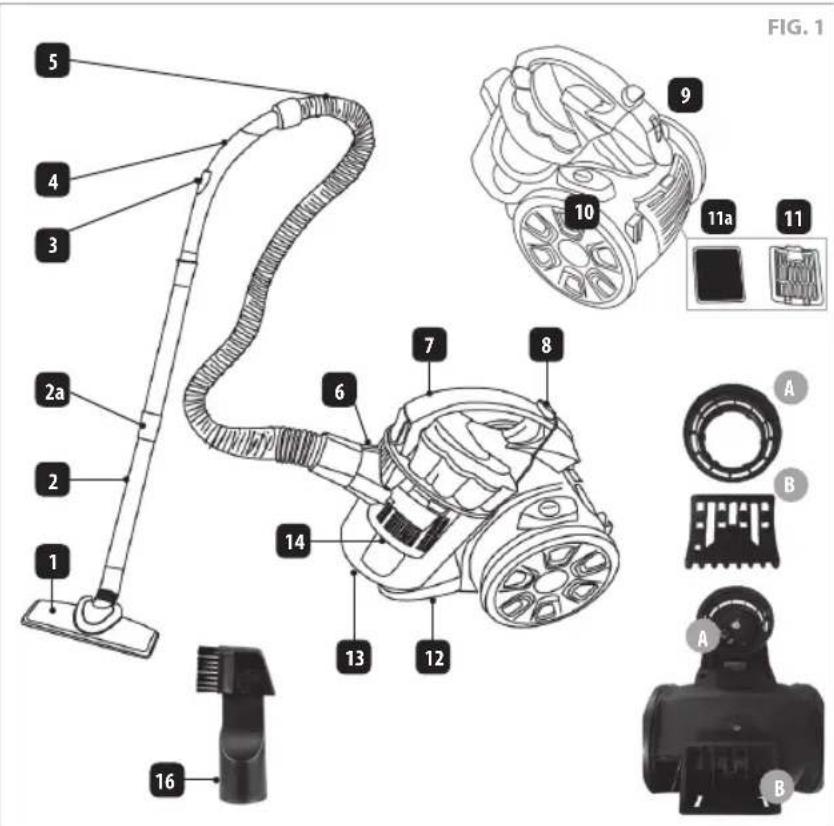

GENERAL DESCRIPTION

1. Brush
2. Telescopic tube

2a. Adjusting the telescopic tube

1. Adjusting air flow
2. Hand grip
3. Hose
4. Socket
5. Handle
6. Interlock

7. Cord coil mechanism

8. On/Off switch

9. Filter cover

11a. Exhaust filter

1. Body
2. Container lid
3. Filter unit

14a. Inlet filter

14b. Multi-cyclone filter

1. Dust container
2. Dual-function suction nozzle

A. Transport protection 1
B. Transport protection 2

DANE TECHNICZNE

Power rating: 1000W

Supply voltage: 230V \~ 50Hz

Container capacity: 2L

INSTALLATION

OF THE FILTER UNIT

FIG. 2

13

14a

14b

15

INTENDED USE

The vacuum cleaner is intended to clean dust from carpets, padded carpets, sheer curtains, curtains, and upholstered furniture. The appliance is equipped with a transparent container that enables easy monitoring of the accumulated dust.

USE

Before the first use, remove the protective elements (A, B), and then connect the required components to one another.

• Install the following in the container (15), in sequence: the cyclone filter (14b), the two-part inlet filter (14a), and then apply the cover (13) and close it by turning it clockwise (Fig. 2).
• Place everything onto the body and lock it. Make sure that the container and with cover are properly locked in place, by lifting the whole vacuum cleaner by the holder (7);
• Check, whether the exhaust filter has been mounted (11a);

• Do not use the vacuum cleaner, if the filters and the waste bin are not installed;

• Insert the end of the hose (5) in the socket (6) and turn it anti-clockwise, until home;

• Then, connect the end of the hose (4) to the telescopic tube (2);
• Install the proper tip (1 or 16) on the opposite end of the tube (2);
• Adjust the length of the telescopic tube with the button (2a);
• Grab the plug and pull out the power cable to the desired length.

ATTENTION

The cable can be pulled up to the yellow marker. Never pull out the cable all the way to the red marker, as this could damage the coiling mechanism.

• If the cable is pulled out beyond the yellow marker, roll it back using the button (9);
• Plug in the power cable to the wall outlet whose parameters are in compliance with the ones provided in the manual;
• The vacuum cleaner will start, after pressing the switch (10);
• While vacuum cleaning, you can change suction power with a controller (3);

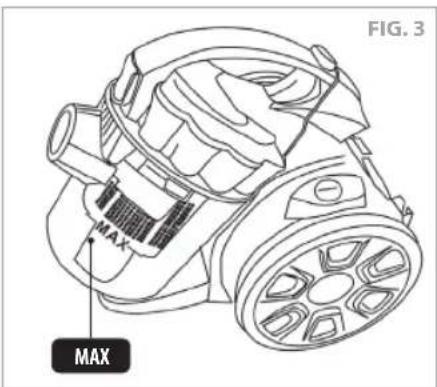

• Monitor the status of container filling (15); if the "MAX" level has been reached (Fig. 3), the container (15) must be emptied (see EMPTYING THE CONTAINER).

ATTENTION

Do not clean, if the MAX level in the container has been reached (15).

• To switch off the appliance, press the button (10).
• When work is finished, disconnect the cable from the mains and coil it, by pushing and holding the button (9). Be sure to hold the hose firmly to prevent uncontrolled movements.

EMPTYING THE CONTAINER

Regular emptying of containers ensures the proper operation of the vacuum cleaner and the optimum suction force.

• Switch the device off with the button (10) and disconnect the hose from the mains;
• Turn the end of the hose (5) clockwise and remove it from the socket (6);
• Hold the handle (7), press the lock button (8), and demount the container from the base;
• Open the bottom of the container above the bin (Fig. 4), discard litter, and close it;
• Then, remove the cover (13) (Fig. 2) and remove the components of the filter unit;
• Clean the inlet filter (14a) over the dustbin;
• The cyclone filter (14b) can be cleaned with water.

Diagram showing two views of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols present)

Please note

Dry the filter (14b) carefully, before installing it.

- Fold the filter unit, re-install the cover (13) (Fig. 2), and place the entire unit inside the body (12).

RECOMMENDATIONS AND TIPS

• The vacuum cleaner can be stored in the vertical or horizontal position. On the back of the appliance, there is a handle for parking the suction tube, and there is an appropriate catch on the brush (1).
• It is recommended to reduce suction force with the controller (3), when vacuum cleaning of upholstery, rugs, or delicate fabrics.
• If the cable is jammed when coiling, it is recommended to pull it out a little, and then try coiling it again;
• Use the dual-function tip (16) to clean hard-to-reach places (corners, gaps, etc.) This component is also equipped with a brush, which enables removing dust from furniture, books, etc.

CLEANING AND MAINTENANCE

Before maintaining or repairing of the appliance, switch it off and disconnect from the power supply.

Clean the appliance, replace the filters (11a, 14a), and empty the container at regular intervals to ensure the proper operation of the appliance.

The housing, accessories, and the power cable should be cleaned with a soft cloth slightly damped with a dishwashing detergent.

Do not immerse the appliance in water.

Do not use any aggressive washing detergents for cleaning, as they can damage the housing surface.

Filters. Check the state of filters (11a, 14a) at regular intervals, and replace them periodically. To access the external filter (11a), open the cover (11).
