SWING OS3000B - Vacuum Cleaner Eldom - Free user manual and instructions

Product Type	Cylinder Vacuum Cleaner
Brand	Eldom
Model	SWING OS3000B
Rated Power	800 W
Supply Voltage	220-240 V ~ 50 Hz
Container Capacity	4 L
Dust Bag Type	Reusable canvas bag (included) or disposable paper bag (model WEBBER 92)
Bag-full Indicator	Yes – changes from white to red when full
Suction Power Adjustment	Yes – on handle and body
Cord Rewind	Yes – automatic, with foot switch
Cord Length	Approx. 5 m (estimate based on typical)
Filters	Internal inlet filter and external exhaust filter – washable frames, periodic cartridge replacement
Accessories Included	Big brush, small brush, suction nozzle, telescopic tube, hose with handle
Dimensions (L x W x H)	Approx. 40 x 30 x 30 cm (estimated)
Weight	Approx. 4.5 kg (estimated)
Color	White and gray
Intended Use	Household dry vacuum cleaning only – not for liquids, hot ash, or sharp objects
Safety Features	Overheat protection? Not specified; but includes bag-full indicator and cord rewind safety mark
Maintenance	Empty bag regularly; clean filters; washable frames; replace cartridges periodically
Repairability	Only authorized service center; use original spare parts

Frequently Asked Questions - SWING OS3000B Eldom

How often should I empty the dust bag?

Empty the canvas bag when the bag-full indicator turns red. For disposable paper bags, replace when full. Do not continue vacuuming when the indicator is red to avoid damage.

Can I use this vacuum cleaner to pick up liquids?

No. This vacuum cleaner is designed for dry vacuuming only. Do not use it to collect water or other liquids, as it may damage the appliance and pose a safety risk.

What type of dust bag does this model use?

It comes with a reusable canvas bag. Alternatively, you can use disposable paper bags model WEBBER 92. Do not use the vacuum without a bag installed.

How do I clean the filters?

The frames of the external and internal filters can be washed with water. Let them dry completely before reinstalling. The filter cartridges themselves are not washable and must be replaced periodically.

Why is the bag-full indicator red even after emptying the bag?

If the indicator remains red after emptying, check if the filters are clogged. Clean or replace the filters as needed. Also ensure the bag is installed correctly.

Can I vacuum ash or cement dust?

No. Do not vacuum hot ash, cigarette butts, matches, plaster, cement, stone dust, or flour. These can damage the appliance and pose a fire hazard.

How do I rewind the power cord?

After use, press and hold the cord rewind foot switch (1). Hold the plug to prevent uncontrolled whipping. Never pull the cord beyond the yellow mark.

Is this vacuum suitable for pet hair?

Yes, it can be used on carpets and upholstery where pet hair is common. However, do not use it directly on animals.

What should I do if the suction power decreases?

First, check if the dust bag is full or the filters are clogged. Empty/replace the bag and clean the filters. Also ensure the hose and nozzles are not blocked.

Can I use a longer hose or different accessories?

Only use original accessories provided with the vacuum. Using non-original parts may affect performance and safety, and void the warranty.

USER MANUAL SWING OS3000B Eldom

Exterior view of a white and gray vacuum cleaner with coiled hose and handle (no text or symbols visible)

/PL/

Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

/CZ/

Close-up of a woven fabric or mesh material with visible texture and layered structure (no text or symbols)

FILTRY

1. Before first use, please carefully read the entire content of this manual;
2. The appliance is intended for private domestic use only. This appliance is not intended for use as part of economic activity;
3. Do not use in the open air;
4. The connecting cable should be connected to the wall outlet whose parameters are in compliance with those provided in the manual;
5. The power cable must be kept away from hot surfaces;
6. Move the cleaner using the holder (do not pull the hose);
7. Do not use the vacuum cleaner to collect the following:
8. Hot ash;
9. Cigarette butts and matches;
10. Sharp objects (glass splinters);
11. Plaster, cement, stone dust, and flour, etc.
12. Debris;
13. Water or other liquids;
14. Do not operate the appliance, if the filter is damaged;
15. Do not cover the ventilating holes;
16. Do not use the vacuum cleaner to clean wet carpets after e.g. cleaning with a washing shampoo. Wait until the foam dries and the cleaned surface is dry;
17. Do not clean people or animals with the vacuum cleaner, in particular do not put the suction inlet near eyes or ears;
18. Always disconnect the appliance from the mains by pulling the plug, not by the power cable;
19. The appliance must be disconnected from the mains, before cleaning or replacing parts, and when it is not used;
20. Do not grab the appliance, if your hands are wet;
21. Do not immerse the appliance in water;

22. The vacuum cleaner should be protected from moisture; do not place any dish with a liquid on it;

23. Do not leave the appliance unattended;

24. This appliance can be used by children, who are at least 8 years old, by people with reduced physical and mental capabilities, and by people with lack of experience and knowledge of the equipment, provided that supervision or instructions for use of the appliance in a safe manner are ensured, so that the risks related to it are understood. Children should not play with the appliance. Children should not carry out cleaning and maintenance of the appliance without supervision;
25. Exercise extreme caution, when working with the appliance in the presence of children;
26. Do not use the vacuum cleaner without the filters and the waste bin;
27. Do not stand on the inlet hose;
28. Do not place heavy objects on the inlet hose;
29. Do not block the inlet hole;
30. Use only with the original accessories provided;
31. Before each cleaning and emptying, disconnect the appliance from the mains;
32. Do not use, if the power cable is damaged, or when the appliance has been damaged in any other way. The appliance shall be repaired by an authorized service; information about the method of servicing is included in the warranty card and provided on www.eldom.eu;
33. The appliance may be repaired only be an authorised service centre. Any modernisation or use of spare parts or components of the appliance other than the original ones is prohibited and can compromise the safety of use;
34. DO NOT use the device in a manner inconsistent with its intended use and this manual;
35. ELDOM Sp. z o. o. shall not be liable for potential losses due to improper use of the device.

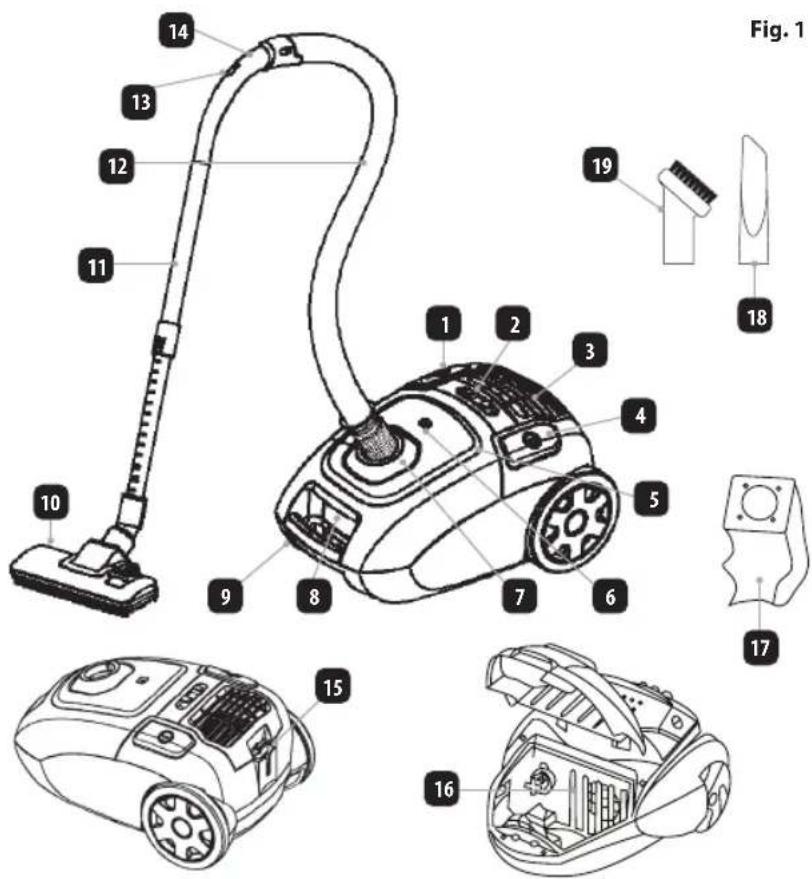

GENERAL DESCRIPTION

1 Cord rewind
2 Power regulator
3 External filter
4 "ON/OFF" switch
5. Lid
6. Bag-full indicator
7. Seat
8. Lid lock
9. Handle
10. Big brush
11. Tube
12. Hose
13. Airflow adjustment
14. Holder
15. Brush hanger
16. Internal filter
17. Bag (canvas)
18. Suction nozzle
19. Small brush

DECHNICAL DATA

Power rating: 800W

Supply voltage: 220-240V \~ 50Hz

Container capacity: 4 l

INTENDED USE

The OS3000 vacuum cleaner is designed for cleaning carpets, fitted carpets, net curtains, curtains, and upholstered furniture from dust. It is equipped with a bag-full indicator, which makes it easy to control the amount of dust accumulated in the bag. You can use both the reusable canvas bag (included) and the disposable paper bag model WEBBER 92.

USE

The vacuum cleaner can be moved using the handle (9).

Before use, follow the instructions provided:

• check if the filters (3, 16) are installed - Fig. 1,
• install the bag (canvas),
• Do not use the vacuum cleaner without the filters and the bag installed.
• insert one end of the hose (12) into the seat (7),
• then connect the end (14) to the tubes (11),
• attach a suitable nozzle (10, 18, 19) to the other end of the tube (11),
• grab the plug and pull out the power cord to a desired length.
• adjust the length of the telescopic tube.

NOTE:

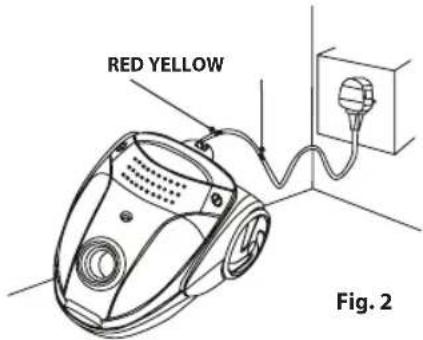

The power cord can be pulled out up to the yellow mark - Fig. 2. Never pull the power cord out to the red mark, as this could damage the cord rewind mechanism.

• if the power cord is pulled out beyond the yellow mark, rewind it with the switch (1),
• connect the appliance to a mains socket with parameters specified in the manual,

• the vacuum cleaner starts working after pressing the "ON/OFF" switch (4),

• during vacuuming, the suction power can be adjusted using the adjuster (2, 13),

• observe the bag-full indicator (6); if its colour changes from white to red, empty the canvas bag (17) or replace it for the paper bag.

NOTE: Never vacuum if the indicator (6) has turned red.

• press the "ON/OFF" switch (4) to stop the appliance,
• after work is completed, disconnect the power cord from the mains and rewind it by pushing and holding down the switch (1). Hold the power cord firmly to prevent its uncontrolled movement.

BAG - EMPTYING / REPLACING

Before any operation, switch off the appliance using the switch (4) and disconnect it from the mains. Press the switch (1) to rewind the power cord.

Canvas bag (17) - emptying:

• remove the hose (12) from the seat (7),
• press the lock switch (8), swivel the lid (5), and place the vacuum cleaner vertically,
• pull out the frame with the installed bag,

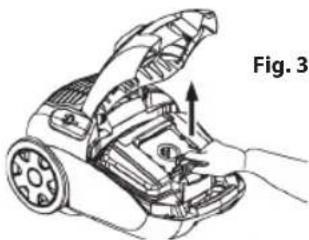

• slide the plastic strip off the bag (Fig. 3) and empty it - fasten the slide back,
• install the frame with the bag in the vacuum cleaner,
• close the lid (5).

Paper bag - replacement:

Instead of a canvas bag (17), you can use paper bags model WEBBER 92.

• remove the hose (12) from the seat (7),
• press the lock switch (8), swivel the lid (5), and place the vacuum cleaner vertically,
• pull out the frame with the installed bag,
• remove the old bag from the frame and insert the new bag by inserting the bag's plate into the frame's guides,
• install the frame with the bag in the vacuum cleaner,
• close the lid (5).

Illustration of a robotic device with an open lid and mechanical components, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Fig. 4

Close-up of a woven fabric or mesh material with visible texture and folds (no text or symbols)

FILTERS

Check the condition of the filters (3, 16) regularly and replace them periodically.

The vacuum cleaner is equipped with two filters:

• the internal inlet filter (16) protects, among others, the motor against damage. The filter can be accessed by opening the lid (5) and pulling out the dust bag (17),
• external filter (3) is a protection against air pollution in vacuumed rooms. The filter can be accessed by opening the filter lid (3) - Fig. 1.

The frames of the external and internal filters can be washed with water.

Never wash the cartridges; replace them periodically.

RECOMMENDATIONS AND TIPS

• The vacuum cleaner can be stored in the vertical or horizontal position. On the back of the appliance, there is a handle for parking the suction tube, and there is an appropriate catch on the brush (10).
• It is recommended to reduce suction force with the controller (13), when vacuum cleaning of upholstery, rugs, or delicate fabrics.
• If the cable is jammed when coiling, it is recommended to pull it out a little, and then try coiling it again;
• Use the dual-function tip (18,19).

CLEANING AND MAINTENANCE

• Before maintaining or repairing of the appliance, switch it off and disconnect from the power supply.
• Clean the appliance, replace the filters (3, 16), and empty the container at regular intervals to ensure the proper operation of the appliance.
• The housing, accessories, and the power cable should be cleaned with a soft cloth slightly damped with a dishwashing detergent.
• Do not immerse the appliance in water.
• Do not use any aggressive washing detergents for cleaning, as they can damage the housing surface.

ENVIRONMENTAL PROTECTION

- the appliance is made of materials which can be recovered or recycled

• the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment.

WARRANTY

• the appliance is intended for personal use at a household,
• it is not intended for professional purposes,
• in case of misuse, the warranty is rendered null and void.

BEZPEČNOSTNÍ POKYNY

Close-up of a woven fabric or mesh material with visible texture and layered structure (no text or symbols)

FILTRY

Line drawing of a robotic device with an open lid and mechanical components, labeled Abb.3 (no text or symbols on the device itself)

Abb.4

Close-up of a textured fabric or mesh panel with no visible text or symbols

FILTER

Close-up of a woven fabric or mesh material with no visible text or symbols

BEZPEČNOSTNÉ POKYNY

Close-up of a woven fabric or mesh material with layered structure (no text or symbols visible)

FILTRE

Close-up of a woven fabric or mesh material with visible texture and stitching (no text or symbols)

SZÜRÖK

Illustration of a robotic device with an open lid and directional arrow, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Fig. 4

Close-up of a woven fabric or mesh material with visible texture and folds (no text or symbols)

KARTA GWARANCYJNA

WAŻNA Z DOWODEM ZAKUPU

ODKURZACZ OS3000B
