CK1500 - Kettle Zelmer - Free user manual and instructions

Product Type	Electric Kettle
Brand	Zelmer
Model	CK1500
Capacity	1.7 L
Power	2200 W (approx.)
Voltage	220-240 V
Body Material	Plastic
Heating Element Material	Stainless steel
Display	LCD, blue backlight
Temperature Range	40°C - 100°C, adjustable in 5°C increments
Keep Warm Function	Yes, 40°C - 90°C, up to 60 minutes
Boiling Time Setting	3 - 6 seconds (for temperatures above 95°C)
Base Type	360° swivel cordless base
Safety Features	Auto shut-off, boil-dry protection, thermal cut-off
Filter	Removable mesh filter
Water Level Indicator	Yes
Cleaning	Soft damp cloth; descale with vinegar or citric acid
Color	Orange

Frequently Asked Questions - CK1500 Zelmer

How do I set the water temperature?

Press the settings buttons (9) to adjust temperature from 40°C to 100°C in 5°C increments. The selected temperature shows on the LCD display.

How does the keep warm function work?

After selecting keep warm, the kettle boils water to the preset temperature (40°C-90°C) and then maintains it for up to 60 minutes. The keep warm icon flashes during operation.

How do I descale the kettle?

Use 0.5 L of 6-10% vinegar or 40 g of citric acid mixed with water to MAX. Bring to boil, let stand for 30 minutes, empty, rinse, and repeat if necessary. Remove and clean the filter separately.

Can I open the lid while boiling?

No, do not open the lid while water is boiling to avoid scalding from steam. Allow the kettle to cool before opening.

What should I do if the kettle switches off before boiling?

This may be due to the boil-dry protection. If the kettle was empty, let it cool for about 15 minutes, fill with water, and switch on again. Ensure water level is above MIN.

How do I clean the kettle?

Unplug and allow to cool. Remove filter and rinse. Wipe exterior with a soft damp cloth and mild detergent. For limescale, use vinegar on a cloth. Rinse thoroughly and dry all parts.

What is the boiling time setting?

You can set a boiling time from 3 to 6 seconds, effective only when the set temperature exceeds 95°C. Press the settings buttons to adjust.

How do I clean the filter?

Remove the filter (11) and rinse it under running water. Reinsert after drying. Clean regularly to maintain performance.

Is the kettle safe to use with children?

Children aged 8+ can use the kettle under supervision. Keep the kettle and cord out of reach of children under 8. Children should not play with the appliance.

What should I do before first use?

Wash the inside, fill to MAX with fresh water, boil four times (each time with new water), then clean again. This removes any residues from manufacturing.

USER MANUAL CK1500 Zelmer

Orange kettle with silver handle and black handle, no visible text or symbols on the device itself.

Functional stainless steel electric contact,

Orange kettle pouring liquid into a glass of red tea, with sliced oranges and orange slices nearby (no text or symbols visible)

zelmer

www.zeimer.pl www.zeimer.com

A

B

Szanowni Klienci!

PAVOJUS! / ĮSPĖJIMAI!

Congratulations on your choice of Zelmer electric kettle, and welcome among the users of Zelmer products.

In order to achieve best results, we recommend using only original Zelmer accessories. They have been specially designed for this product.

Please read this user manual carefully. Special attention should be paid to the safety precautions. Please keep this manual safe for future reference.

Safety precautions and instructions on the proper use of the electric kettle

Read this entire manual carefully before using the appliance.

DANGER! / WARNING!

Risk of injury

- Special attention should be kept when using the kettle in the presence of children.

- Do not operate the kettle if the power cord is damaged or if there is any visible damage to the kettle body.

- Do not plug the kettle to an ungrounded outlet as this may cause an electric shock.

- Do not plug the power cord with wet hands.

- If the non-detachable power cord is damaged, it should be replaced by the manufacturer, an authorised service point or a qualified person in order to avoid any hazards.

- Only qualified staff may repair the appliance. Improper repair may cause a serious threat to the user. In case of any defects, contact an authorised ZELMER service point.

- Do not touch the metal body of the kettle when in use; move the kettle only using the handle.

- Do not touch any hot surfaces of the kettle. Surfaces remain hot even after the device is switched off.

- Do not fill the kettle beyond the maximum fill indicator "MAX" – water might spatter out of the kettle.

- Be careful not to wet the plug of the power cord.

- Steam coming out of the kettle when the water is boiling may cause scalding.

- Allow the kettle to cool completely before cleaning.

- Do not open the lid while the water is boiling.

● Always remove the plug from the mains before cleaning the kettle.

- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance.

WARNING!

Risk of property damage

Always plug the appliance to the mains (AC only) with voltage corresponding to that indicated on the rating plate.

Always plug the appliance to a grounded outlet. If an outlet is not grounded, contact a qualified electrician. Do not modify the plug and/or use any adapters.

Always place the kettle on a stable, smooth, flat surface; the power cord must not hang loosely off the edge of a table (or any other work surface) or touch a heated surface.

Do not remove the plug from the mains by pulling by the cord.

This appliance is intended for indoor use only.

The kettle can only be operated with the original power base (each base is type-specific).

Use the kettle for boiling water only.

Do not open the lid right after the water has boiled – steam might condense and appear on the exterior of the kettle.

Do not place the kettle on or near hot objects.

Do not immerse the kettle or the power base in water when filling or washing the electric kettle.

If water gets into any electric elements inside the kettle or onto the base, carefully dry these elements before plugging the kettle to the mains.

Do not operate the kettle when empty.

Do not use the kettle with the lid open – the automatic shut off will not work then.

Do not tilt the kettle back when it is filled with water, as water may pour out through the steam outlet. If this happens, dry the kettle thoroughly before switching it on again.

Do not use any abrasive cleaning agents – such as emulsions, creams, pastes, etc. – for cleaning the kettle body. They might remove graphic information symbols, such as scales, marks, warning signs, etc.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Always switch off the kettle before lifting it off the base.

Do not unplug the kettle when it is in operation. Switch off the kettle first.

The inside of the kettle should be cleaned regularly to remove limescale. Limescale may cause malfunctions.

TIP Product information and tips on use

This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential environments;

• bed and breakfast type environments.

In case it is used for food business purposes, the warranty conditions change.

Do not use the kettle without the filter.

Technical data

The technical parameters are given on the rating plate of the product.

1.7 litre capacity.

The kettle is a class 1 appliance equipped with a power cord with a protective conductor and a plug with an earthed pin.

The kettle meets the requirements of valid standards.

The appliance is compliant with the requirements of the following directives:

- Low Voltage Directive (LVD) - 2006/95/EC.

- Electromagnetic Compatibility (EMC) - 2004/108/EC.

The product is affixed with the CE mark on the rating plate.

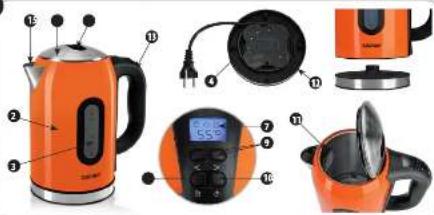

Kettle elements

1 Spout

2 Kettle body

3 Water level indicator

4 360° swivel base

5 Lid

6 Lid release button

7 LCD display

boiling water

keep warm

boiling time

8 Boiling program selection button

9 Settings button <>

10 On/Off button

11 Filter

Preparing the kettle for operation

Before first use, wash the inside of the kettle (follow the procedure described in the following sections), fill it with water to the „MAX” level. Then boil water four times (use fresh water each time) and clean the inside of the kettle again.

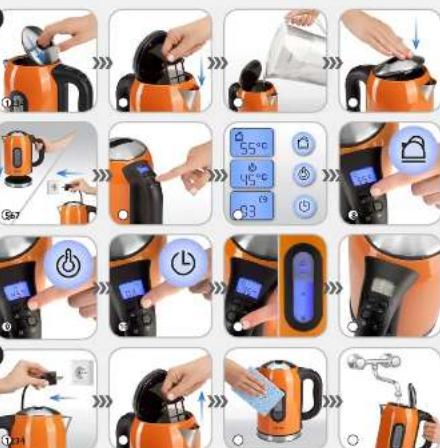

Operating the kettle

① Pull the lid release button (6) in the direction indicated by the arrow. The kettle lid will open.

② Place the filter (11) in the kettle (if it is not in place).

③ Fill the kettle with the desired amount of water (the level is visible on the indicator (3)).

Do not boil water if the water level is below the MIN or above the MAX indicator (3).

④ Close the lid (5).
⑤ Place the kettle on the base (4). Plug the kettle to a socket provided with an earth pin.
⑥ Switch on the kettle by pushing button (10) – the LCD display (7) will turn blue and the icon will flash. After some time the illumination will go out (the icon will keep flashing). The kettle will switch off automatically after boiling.

⑦ The kettle has three functions:

boiling water 📋, keep warm ⚫ and boiling time . The selected mode is displayed on the LCD display (7). Functions can be changed using the boiling program selection button (8). During boiling, the LCD display will turn blue, and the icon of the selected function will appear on the display.

⑧ Default settings: boiling water to 100^ C, the keep warm function in on.

When setting boiling parameters, water temperature may be adjusted from 40^ C to 100^ C (each time the button is pressed the temperature changes by 5^ C). The temperature setting may be changed by pressing the settings buttons (9). The selected boiling temperature is shown on the LCD display.

⑨ When setting the keep warm temperature, water temperature may be set between 40^ C and 90^ C, if the previous temperature setting was 100^ C. If boiling temperature was set for example to 50^ C, the keep warm temperature may be set from 40^ C to 50^ C (each time the button is pressed the temperature changes by 5^ C). The set temperature may be changed by pressing the settings buttons (9). The maximum duration of the keep warm function is 60 minutes. In order to switch off the keep warm function, set this parameter to «00».

When the keep warm function is on, the kettle boils water to the preset temperature (the icon flashes) and then switches to the pres keep warm temperature (the 🔊 icon flashes).

⑩ When setting the water boiling time, it may be set from 3 to 6 seconds. The water boiling time may be changed by pressing the settings buttons (9).

This setting is effective only when boiling temperature exceeds 95^ C.

⑪ When finished programming the settings, press button (10). When in the operation mode, the operation function icon flashes; the selected water temperature is shown on the LCD display. When heating starts, a blue light comes on inside the kettle. To go back to the settings mode, press button (10) button.
⑫ The appliance will switch off automatically after reaching the set temperature. The light will go out.

ring boiling or when the keep warm function is on, if you lift the kettle off the base and put it back on, all previous settings will be re. The appliance will automatically go default settings (see ③⑧). To use the boiling function or the keep warm function, select an appropriate program again.

If water cools down, switch on the kettle again to boil or heat water again.

If you plan to use the kettle again soon, it is not necessary to remove the plug from the mains.

Make sure that the maximum kettle capacity is not exceeded when the kettle is filled with water.

In the event that an empty kettle is switched on, it will be switched off automatically by a thermal device. In order to switch on the kettle again after it cools down (approx. 15 minutes), lift it off the base, fill with water, put the kettle back on the base and switch on by pressing button (10). Do not fill a hot kettle with cold water (and the other way around).

When filling the kettle, avoid high temperature differences.

Cleaning and maintenance

Always allow the kettle to cool down pletely before cleaning!

① Unplug the kettle from the mains.
② Remove the filter (11) and rinse it under running water.
③ Clean the outside surfaces with a soft damp cloth and washing-up liquid.
In order to remove the build-up of hard water film from the outside and inside walls of the kettle, wipe them with a damp cloth and vinegar.
④ Rinse the kettle with fresh water and assemble the appliance only after all parts have been dried thoroughly.

Various black-coloured, rusty, milky, etc. deposits may form inside the kettle on the water. This is caused by minerals occurring naturally in water (calcium, magnesium, iron, etc.). Such discoloration is not caused by faulty operation of the appliance and does not affect its use. In case of substantial accumulation of mineral deposits, proceed as described in the “Descaling” section.

and

Descaling

In the event that scale builds up on the bottom of the kettle, it needs to be removed. For this purpose use 6 - 10% vinegar or citric acid.

• Open the lid by pressing the lid release button (6).
• Pour in 0.5 l of vinegar (or add 40 g of citric acid) and fill the kettle with water to the MAX level. Switch on the kettle.
• Bring the mixture to boil and allow the kettle to stand for 30 minutes.
  ● Empty the kettle and rinse it with fresh water.
• Remove the filter (11) and rinse it under running water. Replace the filter.
• Fill the kettle with fresh water, boil the water and empty the kettle.
• Wipe any remaining limescale with a sponge and rinse the inside of the kettle with water. Repeat the whole process in necessary.

The kettle should be descaled periodically to avoid its possible damage.

Ecology – environment protection

Each user can protect the natural environment. It is neither difficult nor expensive. In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose into the domestic waste disposal!

The importer/manufacturer is not liable for any damages resulting from improper use or handling of the appliance.

The importer/manufacturer reserves the right to modify the product at any time and without prior notice in order to adjust it to valid law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons.
