CK1020 - Kettle Zelmer - Free user manual and instructions

Type of product	Electric kettle
Brand	Zelmer
Model	CK1020
Capacity	1.7 L
Power	2200 W
Voltage	220-240 V
Frequency	50/60 Hz
Material	Stainless steel body, plastic base
Cordless base	Yes, with 360° rotation
Auto shut-off	Yes
Boil-dry protection	Yes
Concealed heating element	Yes
Water level indicator	Yes, transparent window with scale
Lid	Push-button opening
Filter	Removable mesh filter for scale
Cord length	0.7 m approx
Dimensions (H x W x D)	24 x 22 x 17 cm
Weight	1.2 kg
Color	White / black trim
Safety features	Auto shut-off, boil-dry protection, overheat protection
Spare parts available	Filter, base unit, lid assembly
Cleaning	Descale regularly with vinegar or citric acid

Frequently Asked Questions - CK1020 Zelmer

How do I descale the kettle?

Mix equal parts white vinegar and water, fill to half, boil, let sit for 30 minutes, then rinse thoroughly. Alternatively, use citric acid descaler.

Can I boil milk or other liquids?

No, this kettle is designed for water only. Boiling milk can cause overheating residue and damage the heating element.

How do I clean the filter?

Remove the filter from the spout and rinse under running water. Use a soft brush if needed. Replace when worn.

What does the auto shut-off do?

The kettle automatically turns off when water reaches boiling point. This prevents overboiling and saves energy.

Why does the kettle turn off before boiling?

This may be due to scale buildup. Descale the kettle. Also ensure the lid is fully closed and the base is correctly connected.

Is the kettle safe to leave unattended?

The kettle has boil-dry and auto shut-off protection, but it is recommended not to leave it unattended while in use.

How much water should I put in?

Fill between the minimum and maximum marks on the water level window. Minimum is usually 0.5 L, maximum 1.7 L.

Can I use the kettle on a metal surface?

Place the base on a flat, heat-resistant surface. Avoid metal surfaces that may scratch the base.

How do I replace the filter?

Contact Zelmer or an authorized dealer for a replacement filter. Push the old filter out from inside the spout and snap the new one in.

What does the indicator light mean?

The blue light turns on when the kettle is heating. It turns off when the water boils and the kettle shuts off automatically.

USER MANUAL CK1020 Zelmer

Exterior view of a modern silver kettle with black handle and teacup, no visible text or symbols on the main subject.

PL	INSTURICIA EJYTRJANNA CZAJNIK ELEKTRYCZNY Typ CK1020	4-8
CZ	NAMCO K.PEDZI ELEKTRICKÁ KONVICE Typ CK1020	7-9
S#	NAMCO NA OBSUHU ELEKTRICKÁ KANVICA Typ CK1020	10-12
T#	FASZAVLATUAS IAS ELEKTROMOS VIZFORRALÓ CK1020 Typus	13-15

NO	КИЙНОС ТОМ ОЛУ НЕАК.ПЕРВАТОР ЕЛЕТРОСТо СК1020	18-19
NO	ЧИЙНОСНИЯ Г ОЗЕПРОНАЛЬКЭЛЕКТРИЧЕСКИЙ ЧАЙНИКТо СК1020	19-21
NO	ЧИЙНОСНИЯ ЗА УЧЕПРОНАЛЕЕЛЕКТРИЧЕСКА КАНАТо СК1020	22-21
NO	ЧИЙНОСНИЯ ЗА КИЙНОС ПУДНИНЕЛЕКТРОЧАЙНИКТо СК1020	25-27

VIRKOMO INSTRUKCA ELEKTRINIAI VIRDULIAI Tiss CK1020	20~30
LILIOKANSI INSTRUKAN ELEKTRISKAS TEJKANNAS Tiss CK1020	31~32
KOSUUSUTLU ELEKTRITEEKNNUD Tuss CK1020	33~35
VSLRKANAL ELECTRIC KETTLE Typo CK1020	36~38

CK1020

Czajnik elektryczny

Electric kettle

m = 311

1. 本报告书

(四)交易对方

12

1. 2014年

(1) 陈明伟

Figure 1

[Unreadable]

2.1.1 陈伟民

技术：Boschro

(1) 本公司董事会

1. 1. 34.

The image is too blurry to recognize any text content.

[Unreadable]

zelmer

www.teimercl

www.aper.com

A

B

C

Szanowni Klienci!

Congratulations on your choice of Zelmer electric kettle, and welcome among the users of Zelmer products.

In order to achieve best results, we recommend using only original Zelmer accessories. They have been specially designed for this product.

Please read this user manual carefully. Special attention should be paid to the safety precautions. Please keep this manual safe for future reference.

Safety precautions and instructions on the proper use of the electric kettle

Read this entire manual carefully before using the appliance.

Make sure that you understand the below safety precautions.

Danger! / Warning! Risk of injury

Special attention should be kept when using the kettle in the presence of children.
Do not operate the kettle if the power cord is damaged or if there is any visible damage to the kettle body.
Do not plug the power cord with wet hands.
the non-detachable power cord is damaged, it should be replaced by the manufacturer, an authorised service point or a qualified person in order to avoid any hazards.
Only qualified staff may repair the appliance. Improper repair may cause a serious threat to the user. In case of any defects, contact an authorised ZELMER service point.
Do not touch the metal body of the kettle when in use; move the kettle only using the handle.
Do not touch any hot surfaces of the kettle. Surfaces remain hot even after the device is switched off.
Do not fill the kettle beyond the maximum fill indicator "max" – water might spatter out of the kettle.
Be careful not to wet the plug of the power cord.
- Team coming out of the kettle when the water is boiling may cause scalding.
Allow the kettle to cool completely before cleaning.
Do not open the lid while the water is boiling.
Always remove the plug from the mains before cleaning the kettle.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Warning! Risk of property damage

Always plug the appliance to the mains (AC only) with voltage corresponding to that indicated on the rating plate.
Always place the kettle on a stable, smooth, flat surface; the power cord must not hang loosely off the edge of a table (or any other work surface) or touch a heated surface.
Do not remove the plug from the mains by pulling by the cord.
This appliance is intended for indoor use only.
The kettle can only be operated with the original power base (each base is type-specific).
Use the kettle for boiling water only.
Do not open the lid right after the water has boiled – steam might condense and appear on the exterior of the kettle.
Do not place the kettle on or near hot objects.
Do not immerse the kettle or the power base in water when filling or washing the electric kettle.
water gets into any electric elements inside the kettle or onto the base, carefully dry these elements before plugging the kettle to the mains.
Do not operate the kettle when empty.
Do not use the kettle with the lid open – the automatic shut off will not work then.
Do not use any abrasive cleaning agents – such as emulsions, creams, pastes, etc. – for cleaning the kettle body. They might remove graphic information symbols, such as scales, marks, warning signs, etc.
The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Product information and tips on use

The appliance is intended for domestic use. In case it is used for food business purposes, the warranty conditions change.

Do not use the kettle without the filter.

Technical data

The technical parameters are given on the rating plate of the product.

1.7 litre capacity.

The kettle is built in insulation class I and is equipped with a power cord provided with a grounding wire and a grounding plug.

The kettle meets the requirements of valid standards.

The appliance is compliant with the requirements of the following directives:

Low Voltage Directive (LVD) - 2006/95/EC. -

Electromagnetic Compatibility (EMC) - 2004/108/EC.

The product is affixed with the CE mark on the rating plate.

Kettle elements (Fig. A)

1 Spout
2 Kettle body
3 Water level indicator
4 360° swivel base
5 Lid release button
6 On/off switch (0-I with power indicator)
7 Handle
8 Anti-deposit filter
9 Cord storage

Preparing the kettle for operation

ore first use, wash the kettle inside (for washing instructions see the "Cleaning and maintenance" section), fill it with water up to the "max" level, boil water four times (each time use fresh water) and wash the kettle inside again.

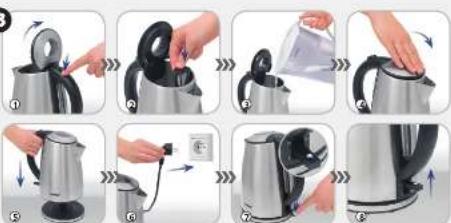

Operating the kettle (Fig. B)

① Press the lid button (5) – the kettle lid will open.
② Place the filter (8) in the kettle (if it is not in place).
③ Fill the kettle with the desired amount of water (the level is visible on the indicator (3)).

ot boil the water if it is below the minimum level or beyond the maximum level on the indicator (3).

④ Close the lid.
⑤ Place the kettle on the base (4).
⑥ Plug the kettle to a socket provided with an earth pin.
⑦ Turn the kettle on by pressing the switch (6) – the power indicator light will come on.
⑧ After the water is boiled, the kettle will switch off automatically, the lever switch will return to its starting position and the power indicator will go off.

If you plan to use the kettle again soon, it is not necessary to remove the plug from the mains.

Make sure that the maximum kettle capacity is not exceeded when the kettle is filled with water.

In the event that an empty kettle is switched on, it will be switched off automatically by a thermal device.

To switch on the kettle after it has cooled down (about 15 min), remove it from the base, fill with water, replace on the base and switch on by pressing the switch (6). The cooling down of the kettle can be accelerated by pouring cold water into the kettle.

Cleaning and maintenance

(Fig. C)

ys allow the kettle to cool down completely before cleaning!

① Unplug the kettle from the mains.
② Remove the filter (8) and rinse it under running water.
③ Clean the outside surfaces with a soft damp cloth and washing-up liquid.
In order to remove the build-up of hard water film from the outside and inside walls of the kettle, wipe them with a damp cloth and vinegar.
④ Rinse the kettle with fresh water.

Various black-coloured, rusty, milky, etc. deposits may form inside the kettle and float on the water. This is caused by minerals occurring naturally in water (calcium, magnesium, iron, etc.). Such discoloration is not caused by faulty operation of the appliance and does not affect its use. In case of substantial accumulation of mineral deposits, proceed as described in the "Descaling" section.

Descaling

In the event that scale builds up on the bottom of the kettle, it needs to be removed. For this purpose use 6-10% vinegar or citric acid.

• Open the lid by pressing the lid release button (5).
• Add 0.5 l of vinegar or 40 g of citric acid and fill the kettle with water up to the maximum level. Switch on the kettle.
• Bring the mixture to boil and allow the kettle to stand for 30 minutes.
  ● Empty the kettle and rinse it with fresh water.
• Remove the filter (8) and rinse it under running water. Replace the filter.
• Fill the kettle with fresh water, boil the water and empty the kettle.

sediment is still visible in the kettle, remove it with a sponge and rinse the kettle again. If unsuccessful, repeat the descaling process.

kettle should be descaled periodically to avoid its possible damage.

Ecology – environment protection

Each user can help protect the environment. It is neither difficult nor expensive. In order to do it, remember to discard the cardboard packing into a recycling paper container and the polyethylene (PE) bags into a container for plastics.

Dispose of the worn out appliance by handing it over to a local disposal centre, as the dangerous elements of this appliance can be hazardous to the environment.

Do not dispose the appliance together with other domestic wastes!!!

The importer/manufacturer is not liable for any damages resulting from improper use or handling of the appliance.

The importer/manufacturer reserves the right to modify the product at any time and without prior notice in order to adjust it to valid law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons.
