ZV 115 - Styler ECG - Free user manual and instructions

Product Type	Hair Straightener (Styler)
Brand	ECG
Model	ZV 115
Power Supply	110-240 V~, 50-60 Hz
Power Consumption	40 W
Temperature Range	120°C - 220°C
Temperature Adjustments	Increments of 20°C
Heating Time	Approximately 30 seconds
Plate Material	Ceramic
Auto Shut-Off	After 30 minutes of inactivity
Hinge Lock	Yes, for safe storage
Cable Type	Coiled power cord
Safety Protection	Do not immerse in water; keep away from water sources
Usage	Dry hair only
Cleaning	Wipe with a damp cloth; do not use abrasive cleaners
Storage	Allow to cool completely, lock hinge, store in a dry place
Certification	Complies with EU directives (EMC and electrical safety)
Manufacturer	K+B Progres, a.s., U Expertu 91, 250 69 Klíčany, Czech Republic
Warranty	Refer to manufacturer's terms (not specified in manual)

Frequently Asked Questions - ZV 115 ECG

How do I turn on the ECG ZV 115 hair straightener?

Press and hold the ON/OFF button (④) for 2 seconds. The default temperature is 160°C. The indicator will flash until the set temperature is reached.

How do I adjust the temperature?

Use the temperature selection buttons (② and ③) to adjust in 20°C steps from 120°C to 220°C. The selected temperature is shown on the LED display.

What temperature should I use for my hair type?

For fine, colored, or bleached hair: 120-140°C. For normal hair: 160-180°C. For strong or tough hair: 200-220°C.

How long does it take to heat up?

Approximately 30 seconds. The temperature indicator stops flashing when the set temperature is reached.

Does the straightener have an automatic shut-off?

Yes, it shuts off automatically after 30 minutes of inactivity for safety. To continue, press the ON/OFF button again.

Can I use the straightener on wet hair?

No, the straightener must only be used on dry hair to avoid damage and electric shock.

How should I clean the ceramic plates?

Unplug and let cool. Wipe the plates with a damp cloth (not wet) and dry with a soft dry cloth. Do not use aggressive cleaners or immerse in water.

Can I use hair products like gel or spray with the straightener?

It is not recommended. Keep the plates free from styling products to avoid buildup and damage.

How do I store the straightener safely?

After use, turn off, unplug, and let it cool completely. Lock the hinge and store in a dry place. Do not wrap the cord around the device.

What should I do if the cord is damaged?

Stop using the appliance immediately. Do not attempt to repair the cord yourself; take it to a qualified service center for replacement.

USER MANUAL ZV 115 ECG

Black electric iron curling iron with a coiled cable, shown against a white background (no text or symbols visible)

ZV 115

ŽEHLIČKA NA VLASY

NÁVOD K OBSLUZE

ŽEHLIČKA NA VLASY

NÁVOD NA OBSLUHU

PROSTOWNICA DO WŁOSÓW

INSTRUKCJA OBSŁUGI

HAJVASALÓ

HASZNÁLATI ÚTMUTATÓ

HAAR-GLÄTTEISEN

BEDIENUNGSANLEITUNG

HAIR STRAIGHTENER

INSTRUCTION MANUAL

GLAČALO ZA KOSU

UPUTE ZA UPORABU

LIKALNIK ZA RAVNANJE LAS

NAVODILA

PEGLA ZA KOSU

UPUTSTVO ZA UPOTREBU

JUUKSESIRGENDAJA

KASUTUSJUHEND

PLAUKU TIESINIMO PRIETAISAS

INSTRUKCIJŲ VADOVAS

MATU TAISNOTÄJS

ROKASGRÄMATA

CZ

SK

PL

HU

DE

GB

HR/BIH

SI

SR/MNE

ET

LT

LV

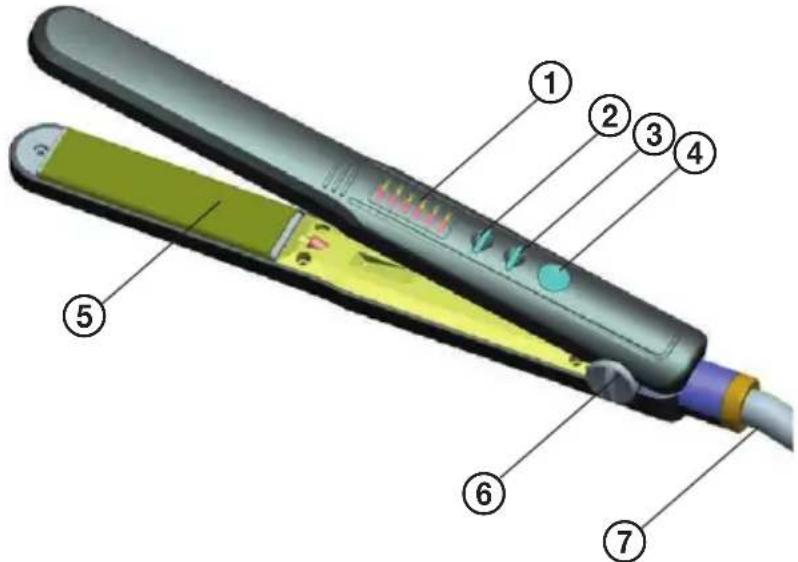

POPIS / POPIS / OPIS / A KÉSZÜLÉK RÉSZEI / BESCHREIBUNG / DESCRIPTION / OPIS / OPIS / OPIS / KIRJELDUS / APRAŠYMAS / APRAKSTS

CZ

Do not immerse in water! – Neponořovat do vody!

POKYNY K POUŽÍVÁNÍ

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. It is recommended that to install residual current protection (RCD) for better protection with nominal tripping current not exceeding 30 mA in the bathroom electrical circuit. Ask your electrician for advice.
3. Do not operate straightener with a damaged cord. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
4. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock. If the straightener falls into water, unplug the cord from the outlet immediately.
5. Do not operate the straightener outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock. Do not leave the straightener exposed to direct sunlight or other sources of heat; the straightener can become damaged.
6. Close supervision is necessary for operating the straightener near children!

7. Do not leave the straightener running unattended. For safety reasons, switch off the straightener each time you lay it down.

8. Do not turn the appliance on or off by plugging or unplugging the power cord. Always turn the straightener off using the main switch; afterwards you may unplug the cord from the outlet!

9. Leaving the straightener cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.
10. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges. Do not wrap the cord around the body of the straightener.
11. Do not touch the ceramic plates, they may be hot. The straightener may only be used on dry hair!
12. Unplug the appliance immediately after you are done using it and let the straightener cool completely before putting away.
13. Do not use accessories that the manufacturer does not recommend.
14. Use the hair straightener only in accordance with the instructions in this manual. This hair straightener is intended for domestic use only. The manufacturer is not liable for damages caused by the improper use of this appliance.
15. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

WARNING:

Do not use this appliance near bathtubs, showers, washbasins or other vessels containing water.

CAUTION

RISK OF EYE BURN

KEEP AWAY FROM CHILDREN

Do not immerse in water!

USING THE APPLIANCE

1. Carefully place the straightener on a firm, flat and heat resistant surface and make sure that the surface is not in contact with the plates of the straightener.
2. Plug the straightener in the electrical outlet and press and hold (for 2 seconds) the switch ④ to turn it on.
3. The default temperature setting is 160^ C. During the heating the temperature indicator flashes until the set temperature is reached.
4. Once the set temperature is reached (in about 30 seconds) the temperature indicator stops flashing and you can use the straightener.

Microprocessor control and temperature selection

Thanks to the highly sophisticated microprocessor display with LED indicators, you can adjust the setting of the hair straightener according to your specific needs.

- Individual temperature setting: Using the temperature selection buttons ② and ③, you can set the working temperature in 20 °C steps in range from 120 °C to 220 °C. We recommend to use the following temperature settings:

Hair structure Temperature settings

Fine, coloured or bleached hair 120^ C – 140^ C

Normal hair 160°C – 180°C

Strong, tough ... and for professional results 200°C – 220°C

Creating a hairstyle

• Pay attention when using the appliance, the work surfaces have very high temperature.
• Make sure that the hair is completely dry before styling.
• To make it easier to style your hair, divide it in the middle or on the sides, and fasten the parts, which you are not straightening with clips.
• It is necessary to comb your hair before straightening it to disentangle it.
• Divide the hair into layers and start with straightening from the bottom layers. After straightening the bottom layers continue with the middle ones and finally straighten the top layers at the parting.
• When you have shorter hair, insert between the scalp and the straightener a comb to prevent contact of the skin with the hot plates. Do not use the hair straightener too close to the skin of the head, ears and neck.
• Switch the straightener off and disconnect from the outlet after use.
• You can finish the styling by application of hair balm. Rub the balm in with your palms with smooth motions from the roots to the tips.

Note: We recommend that people with dyed, fragile, damaged and fine hair use lower degree setting. To save time and effort, using the maximum amount of heat, established on the highest setting, is recommended for people with healthy rough, strong, exotic and resistant hair.

Automatic safety shutoff

- The appliance shuts down automatically after 30 minutes for safety reasons. If you want to continue with hair styling, simply press again the ON/OFF button ④.

Useful hair styling advice

- Straight hair

Insert a strand of hair about 5 cm wide between the ceramic plates, then press the handle and slowly glide with the straightener over the hair from the roots to the tips.

- Fine curls

Insert a strand of hair about 5 cm wide between the ceramic plates, then gently press the handle and slowly glide with the straightener over the hair from the roots to the tips; finally, wrap the hair around the plates.

- Outward curls

Insert a strand of hair about 5 cm wide between the ceramic plates, then press the handle and slowly glide with the straightener over the hair from the roots and finally turn their ends out.

- Inward curls

Insert a strand of hair about 5 cm wide between the ceramic plates, then press the handle and slowly glide with the straightener over the hair from the roots and finally gently turn the tips in.

CLEANING AND MAINTENANCE

• The unit does not contain inside any elements, which could be adjusted by the user, refer all repairs to qualified service personnel!
• Disconnect the appliance from the electrical outlet prior to performing any maintenance.
• The appliance shall only be cleaned when cool; clean the appliance regularly after every use.
• Do not use aggressive cleaning agents or abrasives for cleaning.
• Keep the working plates clean, without dust, dirt, hairspray and hair gel. Never use in combination with hair styling foam, hairspray, gel, etc.
• Wipe the plates with moist cloth (not wet) and dry with soft dry cloth. Never clean the iron under running water, do not rinse or immerse the iron into water!

Hair straightener storage

- Before storing the hair straightener, make sure that it cooled completely and that it is clean and dry.

Hinge lock function

Store the hair straightener safely with the ceramic plates pressed together with the hinge locked securely.

TECHNICAL INFORMATION

Setting temperature (120–220 °C)

Nominal voltage: 110–240 V\~ 50–60 Hz

Nominal input power: 40 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
