Product Type	Ionic Hair Styler (Straightener/Curler)
Brand	ECG
Model	HK 130 ionic
Ionic Technology	Yes, reduces frizz and static
Plate Material	Ceramic with tourmaline coating
Plate Size	Approx. 110 x 25 mm
Temperature Settings	Adjustable, up to 230°C (450°F)
Heating Time	Up to 30 seconds
Auto Shut-Off	Yes, after 1 hour
Swivel Cord	Yes, 360° swivel cord (approx. 2.5 m)
Power Supply	AC 220-240V, 50-60Hz
Power Consumption	45-60 W
Dimensions (L x W x H)	Approx. 300 x 40 x 60 mm
Weight	Approx. 400 g (without cord)
Color	Black with silver accents
Safety Features	Overheat protection, heat-resistant stand
Cleaning	Wipe with damp cloth after unplugging and cooling
Storage	Hang loop or store in heat-resistant pouch
Spare Parts Availability	Contact ECG customer service
Warranty	2 years (subject to local regulations)

Frequently Asked Questions - HK 130 ionic ECG

How do I adjust the temperature on the ECG HK 130 ionic styler?

Use the temperature slider or buttons on the handle. Start at a lower temperature (150°C) for fine hair and increase gradually for thicker hair. The current temperature is displayed on the LED screen.

Does the ionic technology really work?

Yes, ionic technology releases negative ions to neutralize static electricity, reducing frizz and leaving hair smooth and shiny.

How long does it take to heat up?

The HK 130 ionic heats up to the selected temperature in about 30 seconds. An indicator light will show when it's ready.

Can I use this styler on wet hair?

No, always use on dry hair to prevent damage and ensure even styling. Damp hair can cause uneven heat distribution and potential injury.

How do I clean the styler?

Unplug the device and let it cool completely. Wipe the plates and housing with a slightly damp cloth. Do not use abrasive cleaners or immerse in water.

What should I do if the styler doesn't turn on?

Check the power cord for damage, ensure the outlet is working, and verify the power switch is on. If still not working, contact ECG customer service.

Does the styler have an auto shut-off feature?

Yes, it automatically shuts off after 1 hour of inactivity for safety. You can also manually turn it off by pressing the power button.

What is the maximum temperature?

The maximum temperature is 230°C (450°F). Use caution with high heat on fine or damaged hair.

Can I use the styler abroad?

The styler is designed for 220-240V outlets. For use in countries with 110V, you need a voltage converter. Check the voltage rating before use.

How do I store the styler after use?

Allow it to cool completely, then wrap the cord loosely around the handle. Store in a dry place, preferably in a heat-resistant pouch.

USER MANUAL HK 130 ionic ECG

White hair roller with black and white brush spool, no visible text or symbols on body

HK 130 ionic

CZ

HORKOVZDUŠNÁ KULMA

NÁVOD K OBSLUZE

SK

TEPLOVZDUŠNÁ KULMA

NÁVOD NA OBSLUHU

PL

SUSZARKO - LOKÓWKA

INSTRUKCJA OBSŁUGI

HU

FORRÓLEVEGŐS HAJCSAVARÓ

HASZNÁLATI ÚTMUTATÓ

DE

HEISSLUFTLOCKENSTAB

BEDIENUNGSANLEITUNG

GB

HOT AIR STYLER

INSTRUCTION MANUAL

HR/BIH

ČETKA ZA KOSU

UPUTE ZA UPORABU

SI

KODRALNIK NA VROČI ZRAK

NAVODILA

SR/MNE

ČETKA ZA KOSU

UPUTSTVO ZA UPOTREBU

ET

JUUKSEHARI-KOOLUTAJA

KASUTUSJUHEND

LT

KARŠTO ORO PLAUKU MODELIAVIMO PRIETAISAS

INSTRUKCIJŲ VADOVAS

LV

MATU IEVEIDOTĀJS

ROKASGRÄMATA

BEZPEČNOSTNÍ POKYNY

CZ

$$ 0 = \text { Vypnuto } $$

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damage caused during transportation, improper use, voltage fluctuation or any change or modification of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. It is recommended that to install residual current protection (RCD) for better protection with nominal tripping current not exceeding 30 mA in the bathroom electrical circuit. Ask your electrician for advice.
3. Do not operate straightener with a damaged cord. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
4. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock. If the hot air straightener falls into water, unplug the cord from the outlet immediately.
5. When using the appliance in the bathroom disconnect it after use by pulling the plug from the power supply, because the proximity of water presents danger even when the appliance is switched off. Do not leave the hot air straightener running unattended. For safety reasons switch off the curling iron whenever you set it aside.

6. Leaving the hot air straightener cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.

7. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges. Do not wrap the cord around the body of the straightener.

8. Do not spray any aerosols or water into the openings of the hot air curling iron and do not stick your fingers or other objects there.
9. Do not use the straightener outdoors or in moist environments. Do not touch the cord or straightener with wet hands. Risk of electric shock.
10. Close supervision is necessary for operating the straightener near children!
11. Clean the air inlet grille on a regular basis to remove all potentially blocking obstacles. Make sure you do not leave hair near the inlet grille.
12. If the air flow is blocked during the operation of the curling iron (by e.g. dirt or a tuft of hair), the integrated protective fuse shuts off the curling iron automatically. The appliance automatically stars again after cooling (i.e. after several minutes).
13. To prevent hair damage, do not block the air inlet grilles with hair wrapped around brush too tightly, particularly with respect to the selected power.
14. Do not use accessories that the manufacturer does not recommend. Exchangeable accessories become hot during operation. This effect is normal and is the result of the appliance functioning properly!
15. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.
16. Use only in accordance with the instructions in this manual. This straightener is intended for domestic use only. The manufacturer is not liable for damages caused by the improper use of this appliance.

WARNING:

Do not use this appliance near bathtubs, showers, washbasins or other vessels containing water.

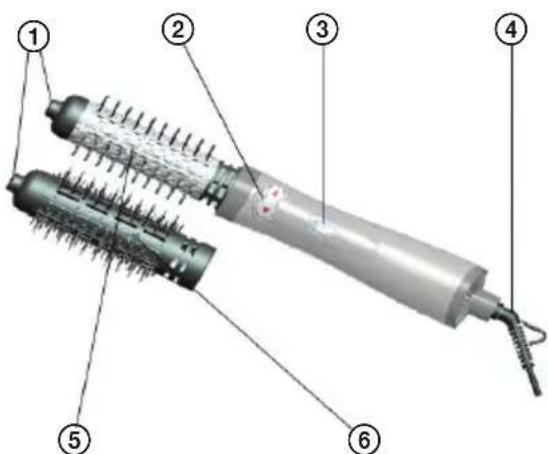

DESCRIPTION

1. Button for changing attachments
2. Brush rotation control
3. Power switch and temperature setting
4. Swivelling cord terminal
5. Brush with aluminium tube, ∅ 38 mm
6. Brush, ∅ 38 mm

USING THE APPLIANCE

Replacing accessories

ATTENTION! Brushes ⑤ and ⑥ become very hot during operation. Be very careful when replacing them!

• Inserting: Press the button ① and insert the brush, which you want to use. You will hear a click when properly installed.
• Removal: Press the button ① and remove the brush.

Brush with aluminium tube for short hair

- The brush allows for simultaneous drying and styling of hair. You can quickly achieve perfect results. The brush is equipped with rotation function, which allows you to dry your hair quickly and easily with one movement – quicker and easier than regular hair drying.

Brush for long hair

- The brush allows for simultaneous drying and styling of hair. You can quickly achieve perfect results. The brush is equipped with rotation function, which allows you to dry your hair quickly and easily with one movement – quicker and easier than regular hair drying.

Direction of rotation

This function allows you to wind a strand of hair automatically around the brush and dry it easily with a stream of hot air.

1. If you want to start rotation of the brush, press the control ② in the required direction.
2. Keep the control pressed while simultaneously drying.
3. If you want to stop the rotation, release the control ②.

WARNING!

Do not turn the brush when the appliance is off or unplugged from the power supply!

Setting the air temperature

Using the switch ③ you can select the air temperature.

$$ 0 = \text { Off } $$

$$ 1 = \text { W a r m a i r } $$

$$ C = \text { Cold air styling(without brush rotation) } $$

$$ 2 = \text { Hot air } $$

Note: We recommend that people with dyed, fragile, damaged and fine hair use lower level setting. To save time and effort, using the maximum amount of heat, established on the highest setting, is recommended for people with healthy rough, strong, exotic and resistant hair.

Tip: We recommend for firming the created hair style to use cold air in the final stage of drying.

Ionization technology

The hot air curling iron emits negative ions automatically preventing static electricity. The result is radiant hairstyle and easy combing of hair.

CLEANING AND MAINTENANCE

Disconnect the appliance from the electrical output prior to performing any maintenance. Cleaning should always be performed on a cooled down appliance and regularly after every use!

Wipe the styler with a damp (not wet) cloth and dry with a soft dry cloth. Do not immerse the styler into water! Protect the styler against dust, dirt and accumulated hair. Clean the air inlet grille occasionally using a soft brush. Clean accessories by immersing them into soap water for a short period and than clean with a small hairbrush, rinse and leave to dry. Lay them down shortly, opening side down, to remove any remaining water. Always make sure the styler is completely cooled, clean and dry before putting it away.

GB

TECHNICAL INFORMATION

2 rotating brushes

2 levels of power and temperature

Possibility to rotate in both directions

Ionization function

Cool air fixation

Safety fuse against overheating

Hanging loop

Cable with a turntable end: 1.8 m

Noise level 85 dB

Nominal voltage: 220–240 V\~ 50–60 Hz

Nominal input power: 800 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

SIGURNOSNE UPUTE

1. Tipka za zamjenu nastavka
2. Regulator okretanja četke
3. Termostat i podešavanje temperature
4. Okretna zaštita kabela
5. Četka s aluminijskom cijevi ∅ 38 mm
6. Četka, ∅ 38 mm

HR/BIH

UPUTE ZA UPORABU

Zamjena nastavaka

2 razine snage i temperature

$$ 0 = I Z K L J U \check {C} E N O $$

$$ 1 = \text { topel zrak } $$

$$ C = \text { fiksiranje hladnega zraka (brez vrtenja krtače) } $$

BEZBEDNOSNA UPUTSTVA

1. Prekidač za promenu nastavaka

2. Kontrola rotacije četke

3. Prekidač za uključivanje i podešavanje temperature

4. Okretni kabl

5. Četka s aluminijumskom cevi, ∅ 38 mm

6. Četka, ∅ 38 mm

UPOTREBA UREĐAJA

Zamena nastavaka

250 69 Klíčany, Czech Rep. e-post: [e-mail]

LT

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. el. paštas: [e-mail]

LV

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-pasts: [e-mail]
