ZV 117 - Styler ECG - Free user manual and instructions

Product Type	Hair Styler
Brand	ECG
Model	ZV 117
Dimensions (L x W x H)	30 x 4 x 4 cm
Weight	0.4 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	50 W
Cable Length	1.8 m
Heat-up Time	Approx. 60 seconds
Temperature Range	120°C - 200°C
Plate Material	Ceramic
Swivel Cord	360°
Auto Shut-off	Yes, after 30 minutes
Indicator Light	Yes
Storage Lock	Yes
Voltage	Single voltage (220-240 V)
Safety Features	Overheat protection, auto shut-off
Cleaning	Wipe with damp cloth when unplugged
Spare Parts Availability	Replaceable plates (contact ECG support)
Warranty	2 years
Color	Black/Silver
Box Contents	Styler, user manual

Frequently Asked Questions - ZV 117 ECG

How do I adjust the temperature on the ECG ZV 117 styler?

Turn the temperature dial or press the +/- buttons (depending on model) to set desired heat from 120°C to 200°C. Wait for the indicator light to stop flashing, indicating it has reached the set temperature.

Can I use the styler on wet hair?

No, the styler is designed for use on dry hair only. Using it on wet hair can cause damage or electric shock. Towel-dry and fully dry your hair before styling.

What does the auto shut-off feature do?

The auto shut-off turns the styler off automatically after 30 minutes of inactivity for safety. If you stop using it, it will power down to prevent accidents.

How should I clean the ECG ZV 117?

Unplug the styler and let it cool completely. Wipe the plates and body with a soft, damp cloth. Do not use abrasive cleaners or immerse in water.

Is the styler suitable for travel?

The styler is designed for 220-240 V mains voltage. For use in countries with different voltage, a voltage converter may be needed. Check local voltage before travel.

Does the styler have ionic technology?

This model does not specifically advertise ionic technology. It relies on ceramic plates for even heat distribution and smooth styling.

What should I do if the styler does not heat up?

Check that it is properly plugged into a working outlet. Ensure the power switch is on. If still not heating, contact ECG support for troubleshooting or repair. Do not attempt to open the device.

How do I store the styler safely?

After use, unplug and let it cool. Use the storage lock to close the plates and wrap the cord loosely around the base. Store in a dry place away from children.

Can I replace the plates on the ECG ZV 117?

Plates are not user-replaceable. If damaged, contact ECG customer service for information on repair or replacement under warranty.

What is the warranty period for this styler?

ECG offers a 2-year warranty against manufacturing defects. Keep your proof of purchase. Warranty does not cover normal wear or misuse.

USER MANUAL ZV 117 ECG

White and gold hair curling iron iron with a curling iron, no visible text or symbols on the device itself.

ZV 117

CZ

ŽEHLIČKA NA VLASY

NÁVOD K OBSLUZE

SK

ŽEHLIČKA NA VLASY

NÁVOD NA OBSLUHU

PL

PROSTOWNICA DO WŁOSÓW

INSTRUKCJA OBSŁUGI

HU

HAJVASALÓ

HASZNÁLATÍ ÚTMUTATÓ

DE

HAAR-GLÄTTEISEN

BEDIENUNGSANLEITUNG

GB

HAIR STRAIGHTENER

INSTRUCTION MANUAL

HR/BIH

GLAČALO ZA KOSU

UPUTE ZA UPORABU

SI

LIKALNIK ZA RAVNANJE LAS

NAVODILA

SR/MNE

PEGLA ZA KOSU

UPUTSTVO ZA UPOTREBU

ET

JUUKSESIRGENDAJA

KASUTUSJUHEND

LT

PLAUKU TIESINIMO PRIETAISAS

INSTRUKCIJU VADOVAS

LV

MATU TAISNOTĀJS

ROKASGRĀMATA

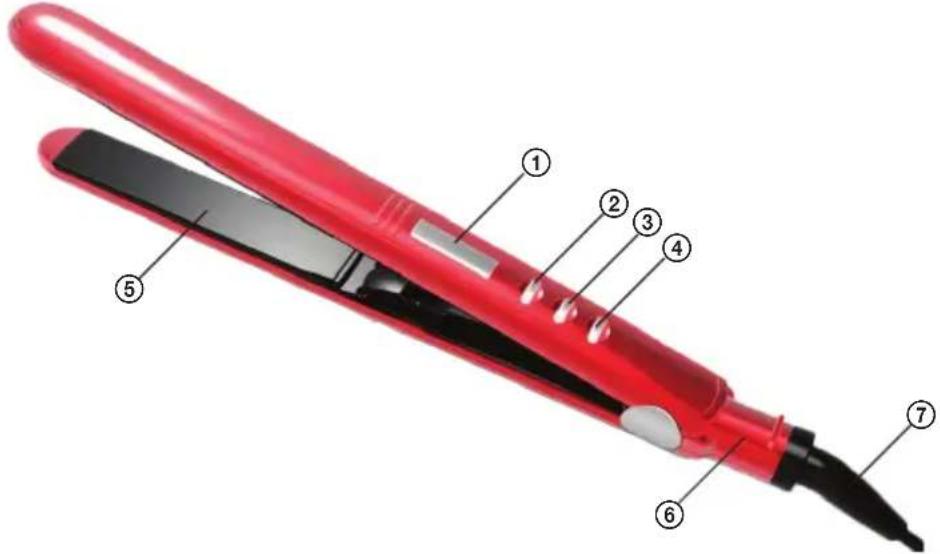

POPIS / POPIS / OPIS / A KÉSZÜLÉK RÉSZEI / BESCHREIBUNG / DESCRIPTION / OPIS / OPIS / OPIS / KIRJELDUS / APRAŠYMAS / APRAKSTS

CZ

1. LED temperature indicators
2. Temperature setting button (+)
3. Temperature setting button (-)
4. ON/OFF switch
5. Floating ceramic plates
6. Hinge slide lock
7. Swivelling cord terminal

HR/BIH

1. LED kontrolna žaruljica temperature
2. Tipka za odabir temperature (+)
3. Tipka za odabir temperature (-)
4. Prekidač
5. Pomične keramičke ploče
6. Pomična bravica zgloba
7. Okretna zaštita kabela

SI

Do not immerse in water! – Neponořovat do vody!

POKYNY K POUŽÍVÁNÍ

CZ

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
2. It is recommended that to install residual current protection (RCD) for better protection with nominal tripping current not exceeding 30 mA in the bathroom electrical circuit. Ask your electrician for advice.

3. Do not operate straightener with a damaged cord. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!

4. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock. If the straightener falls into water, unplug the cord from the outlet immediately.

5. Do not operate the straightener outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock. Do not leave the straightener exposed to direct sunlight or other sources of heat; the straightener can become damaged.

6. Close supervision is necessary for operating the straightener near children!

7. Do not leave the straightener running unattended. For safety reasons, switch off the straightener each time you lay it down.

8. Do not turn the appliance on or off by plugging or unplugging the power cord. Always turn the straightener off using the main switch; afterwards you may unplug the cord from the outlet!

9. Leaving the straightener cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.

10. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges. Do not wrap the cord around the body of the straightener.

11. Do not touch the ceramic plates, they may be hot. The straightener may only be used on dry hair!

12. Unplug the appliance immediately after you are done using it and let the straightener cool completely before putting away.

13. Do not use accessories that the manufacturer does not recommend.

14. Use the hair straightener only in accordance with the instructions in this manual. This hair straightener is intended for domestic use only. The manufacturer is not liable for damages caused by the improper use of this appliance.

15. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

WARNING:

Do not use this appliance near bathtubs, showers, washbasins or other vessels containing water.

CAUTION

RISK OF EYE BURN

KEEP AWAY FROM CHILDREN

Do not immerse in water!

USING THE APPLIANCE

1. Carefully place the straightener on a firm, flat and heat resistant surface and make sure that the surface is not in contact with the plates of the straightener.
2. Plug the straightener in the electrical outlet and press and hold (for 2 seconds) the switch ④ to turn it on.
3. The default temperature setting is 180^ C. During the heating the temperature indicator flashes until the set temperature is reached.
4. Once the set temperature is reached (in about 30 seconds) the temperature indicator stops flashing and you can use the straightener.
5. Never use in combination with hair styling foam, hairspray, gel, etc.

Microprocessor control and temperature selection

Thanks to the highly sophisticated microprocessor display with LED indicators, you can adjust the setting of the hair straightener according to your specific needs.

- Individual temperature setting: Using the temperature selection buttons ② and ③, you can set the working temperature in 20 °C steps in range from 140 °C to 220 °C. We recommend to use the following temperature settings:

Hair structure Temperature settings

Fine, coloured or bleached hair 140°C

Normal hair 160°C – 180°C

Strong, tough ... and for professional results 200°C – 220°C

GB

Creating a hairstyle

• Pay attention when using the appliance, the work surfaces have very high temperature.
• Make sure that the hair is completely dry before styling.
• To make it easier to style your hair, divide it in the middle or on the sides, and fasten the parts, which you are not straightening with clips.
• It is necessary to comb your hair before straightening it to disentangle it.
• Divide the hair into layers and start with straightening from the bottom layers. After straightening the bottom layers continue with the middle ones and finally straighten the top layers at the parting.
• When you have shorter hair, insert between the scalp and the straightener a comb to prevent contact of the skin with the hot plates. Do not use the hair straightener too close to the skin of the head, ears and neck.
• Switch the straightener off and disconnect from the outlet after use.
• You can finish the styling by application of hair balm. Rub the balm in with your palms with smooth motions from the roots to the tips.

Note: We recommend that people with dyed, fragile, damaged and fine hair use lower degree setting. To save time and effort, using the maximum amount of heat, established on the highest setting, is recommended for people with healthy rough, strong, exotic and resistant hair.

Automatic safety shutoff

- The appliance shuts down automatically after 30 minutes for safety reasons. If you want to continue with hair styling, simply press again the ON/OFF button ④.

Useful hair styling advice

- Straight hair

Insert a strand of hair about 5 cm wide between the ceramic plates, then press the handle and slowly glide with the straightener over the hair from the roots to the tips.

- Fine curls

Insert a strand of hair about 5 cm wide between the ceramic plates, then gently press the handle and slowly glide with the straightener over the hair from the roots to the tips; finally, wrap the hair around the plates.

- Outward curls

Insert a strand of hair about 5 cm wide between the ceramic plates, then press the handle and slowly glide with the straightener over the hair from the roots and finally turn their ends out.

- Inward curls

Insert a strand of hair about 5 cm wide between the ceramic plates, then press the handle and slowly glide with the straightener over the hair from the roots and finally gently turn the tips in.

CLEANING AND MAINTENANCE

• The unit does not contain inside any elements, which could be adjusted by the user, refer all repairs to qualified service personnel!
• Disconnect the appliance from the electrical outlet prior to performing any maintenance.
• The appliance shall only be cleaned when cool; clean the appliance regularly after every use.
• Do not use aggressive cleaning agents or abrasives for cleaning.
• Keep the working plates clean, without dust, dirt, hairspray and hair gel.
• Wipe the plates with moist cloth (not wet) and dry with soft dry cloth. Never clean the iron under running water, do not rinse or immerse the iron into water!

Hair straightener storage

- Before storing the hair straightener, make sure that it cooled completely and that it is clean and dry.

Hinge lock function

Store the hair straightener safely with the ceramic plates pressed together with the hinge locked securely.

TECHNICAL INFORMATION

Setting temperature (140–220 °C)

Nominal voltage: 220–240 V\~ 50/60 Hz

Nominal input power: 40 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
