Product Type	Slow Juicer
Model	EasyJuice ZJP3900
Brand	Zelmer
Power Consumption	150 W
Voltage	220-240 V ~ 50/60 Hz
Speed Settings	Low (65 RPM ±20%) and High (80 RPM ±20%)
Reverse Function	Yes, for clearing jams
Juice Cup Capacity	600 ml
Pulp Container Capacity	800 ml
Max Continuous Operation	10 minutes
Material	ABS Plastic, BPA-Free
Dimensions (L x W x H)	250 x 200 x 400 mm
Net Weight	3.5 kg
Cord Length	1.2 m
Cleaning	Detachable parts for easy cleaning; hand wash recommended
Safety Features	Lock button for disassembly; automatic shut-off not specified
Suitable for	Soft and hard fruits and vegetables (except sugar cane, guava, mango)
Warranty	2 years
Certifications	CE, WEEE

Frequently Asked Questions - EasyJuice ZJP3900 Zelmer

How do I assemble the juicer?

Follow the steps in the manual: insert the auger into the juicing body, attach the rear and front covers by turning anticlockwise, place the food tray and pusher, then mount the juicing body onto the main unit until you hear a 'CLICK'.

How do I use the reverse function?

If the pomace discharging is not smooth or jammed, press and hold the REV button gently for about 2 seconds. The auger will reverse for 10 seconds and then stop automatically. After that, you can resume normal juicing by pressing HARD or SOFT.

What fruits and vegetables can I juice?

You can juice most soft and hard fruits and vegetables like apples, carrots, celery, oranges, grapes, tomatoes, spinach, etc. Do not juice sugar cane, guava, mango, or fruits with thick or hard shells (remove kernels and hard seeds first).

Why does the juicer stop during operation?

This may be due to low voltage, overloading with too much or too hard ingredients, or exceeding the maximum continuous working time (10 minutes). Disconnect power and remove excess ingredients, then let the motor cool down before resuming.

How do I clean the juicer?

Always unplug the juicer before cleaning. Press the lock button to remove the juicing body, then disassemble the pusher, food tray, front cover, auger, and rear cover. Wash all removable parts directly with water. Do not wash the main body; wipe it with a damp cloth.

Is the juicer safe to leave unattended?

No. Always disconnect the appliance from the supply if left unattended and before assembling, disassembling, or cleaning. Do not let children use or play with the juicer.

What should I do if the juicer smells bad when first used?

A slight odor is normal during initial use. If the smell persists after repeated use, contact an official technical service for inspection.

Can I use the juicer continuously for long periods?

No. The maximum continuous working time is 10 minutes. After that, allow the motor to cool down before using again.

How do I disassemble the juicing body?

Press and hold the lock button located near the juicing body, then pull out the entire juicing body following the arrow direction. Then remove the food tray, pusher, front cover, auger, and rear cover in that order.

What does the warranty cover?

The product has a 2-year warranty from B&B TRENDS for manufacturing defects. It covers repair or replacement at no charge, but not wear-and-tear parts or damage from misuse. Contact an authorised technical service for repairs.

USER MANUAL EasyJuice ZJP3900 Zelmer

Black and white photo of a Zalmer brand juice brush with open lid and clear glass, no visible text or symbols on the device itself.

EN USER MANUAL Slow juicer

DE BENUTZERHANDBUCH Langsamer Entsafter

FIG. 3 FIG. 4

Technical line drawing of a mechanical component with an arrow indicating transformation (no text or symbols present)

FIG. 5 FIG. 6

Technical line drawing of a mechanical component with two views showing assembly or assembly steps (no text or symbols)

FIG. 7

Line drawing of a kitchen grater with a hand operating the blade (no text or symbols)

FIG. 8

Line drawing of a modern kitchen brush unit with three buckets (no text or symbols)

FIG. 9

Line drawing of a kitchen grater with a side-mounted tool and directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component enclosed in a circular outline (no text or symbols)

FIG. 10

Diagram of a mechanical device with a cylindrical component and an upward arrow indicating motion (no text or symbols)

FIG. 11

Exploded view diagram of a mechanical assembly showing internal components like gears and a valve (no text or labels)

OSTRZEŻENIE

PRZED UŻYCIEM PRODUKTU NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ UŻYTKOWANIA. PRZECHOWUJ JĄ W BEZPIECZNYM MIEJSCU DO WYKORZYSTANIA W PRZYSZŁOŚCI

OPIS (RYS. 1)

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE

DESCRIPTION (FIG. 1)

1. Power cord
2. Control panel
3. Slow juicer body
4. Lock buton
5. Juice cup
6. Pulp container
7. Rear cover of juicing body
8. Auger
9. Pusher
10. Food tray
11. Juicing body
12. Front cover
13. Juice outlet

CONTROL PANEL (FIG. 2)

A. REV – reverse function: used when the pomace discharging is not smooth or jammed.
B. OFF - OFF button
C. SOFT - low speed switch 65 RPM ±20% (suitable for juicing soft fruits orange, grape, water melon small tomato etc.)
D. HARD - high speed switch 80 RPM ±20%

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Proceed according to maintenance and cleaning section of this manual for cleaning.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Do not use the appliance if the rotating sieve is damaged.

Warning: potential injury from misuse!

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or

cleaning.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

This appliance is for household use and not intended for use applications such as: staff kitchen areas in shops, offices and working environments, farm houses, by clients in hotels, motels, “bed and breakfast” and other residential type environments.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

This device is designed for use at a maximum altitude of 2000 m above sea level.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

HOW TO ASSEMBLY?

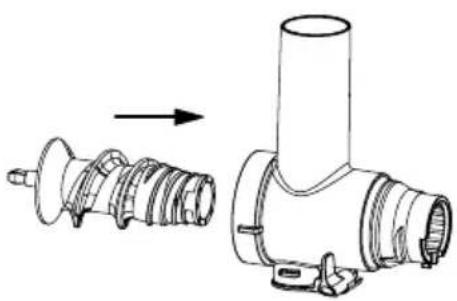

1. Follow the direction arrow, put the auger (8) inside the juicing body (11) – FIG. 3

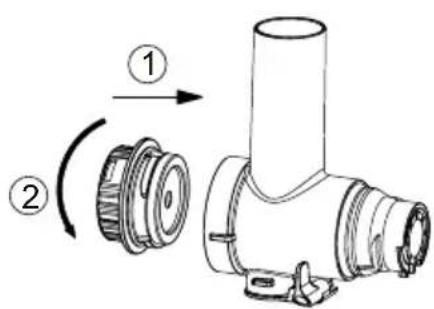

2. Assemble the rear cover (7) into juicing body (11) as direction arrow shown – FIG. 4, step 1.

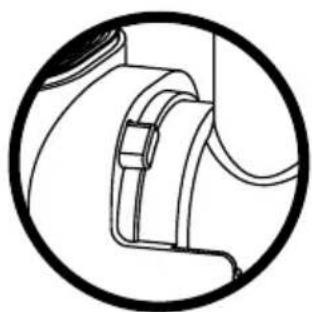

3. Turning the rear cover (7) anticlockwise, ensure the rear cove fasten together with the latch on juicing body – FIG. 4, step 2.

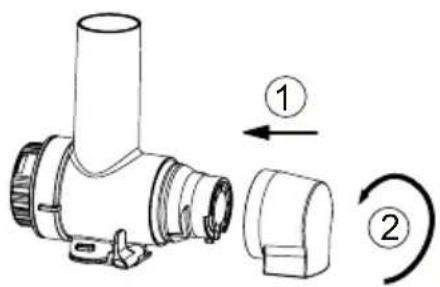

4. Assemble the front cover (12) on juicing body (11) – FIG. 5, step 1
5. Turning the front cover (12) anticlockwise, ensure the front cove fasten together with the latch on juicing body (11) – FIG. 5, step 2

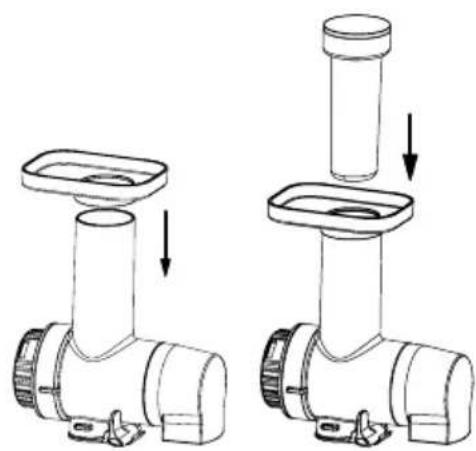

6. Place the food tray (10) on the upper end of the feeding chute of the juicing body (11) – FIG. 6. The food tray makes feeding ingredients more convenient, especially when processing small-grained ingredients such as grapes, strawberries, etc.
7. Place the pusher (9) inside the feed chute of juicing body

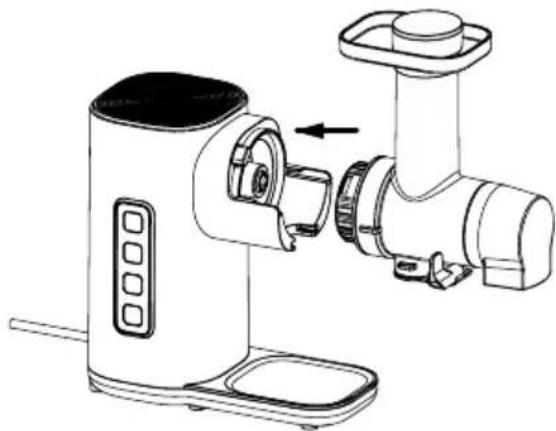

8. Follow the arrow direction assemble the juicing body (11) into the slow juicer body (3). During the assembling a "CLICK" sound happen indicating that all the parts were well assemble – FIG. 7
9. Place the juice cup (small shape) (5) and the pulp container (bigger shape) (6) properly – FIG. 8
10. Plug-in the product and get ready for work

Wash the fruits and vegetables, cut them into pieces that can be put into the feed inlet, and place them on the food tray for use.

Please remove kernels, hard seeds, thick or hard shell of fruits and vegetables first.

Note: Fruits such as sugar cane, guava, and mango cannot be juiced with this machine.

HOW TO USE?

Press the switch HARD (D) or SOFT (C) FIG. 2 - the product starts to work, the working time shall be less than or equal to 10 minutes.

Press the switch OFF (B) to switch off or stop the product.

Press the switch REV (A) when the pomace discharging is not smooth or jammed, press and hold the REV button gently for about 2 seconds, the auger will start to reverse, then working with 10 seconds, reverse function will automatically stop. Then you may press HARD (D) or SOFT (C) button to resume normal juicing

Caution! Do not touch the power switch with wet hands to avoid electric shock, electric leakage or fire.

Hint:

Put the ingredients into the feed inlet of the juicing body and push the ingredients with the pusher.

When ingredients are put in, the force to push the ingredients should not be so great, and it is advisable that the ingredients just can be cut off.

Caution! Don't put your fingers or other objects into the feed inlet of the juicing body! If the pomace cup or juice cup is full, disconnect the power and clean it before use.

When the ingredients processing is completed and there is no juice come out from juice spout, turn off the switch and disconnect the power. Wait until the auger completely stops rotating, and then remove the juice cup from the juice mouth.

The fresh juice should be drunk immediately. If it is exposed to the air for a while, its taste and nutritional value will be affected. Residues cannot be stored for long periods.

Caution! Do not touch the power switch with wet hands to avoid electric shock, electric leakage or fire.

TIPS FOR FRUIT SELECTION

Select and use fresh fruits and vegetables, which contain more juice. Particularly suitable fruits include: pineapple, celery sticks, apples, cucumbers, spinach, melons, tomatoes, oranges, grapes, and the like.

Instead of paring the thin skin of fruits and vegetables, you only need to pare the thick skin of fruits and vegetables like oranges, pineapples, etc. Seeds of citrus fruits also need to be removed because they will bring bitterness to the juice.

Freshly juiced apple juice may quickly turn brown, and you can add a few drops of lemon juice to slow this process.

Leaves and leaf stems (such as lettuce) can be juiced with this machine.

MAITENANCE AND PRESERVATION

Before washing this product, be sure to turn off the switch and disconnect the power supply.

Please timely wash this product after application.

The juicer body must not be washed with water. The stains on the body must be wiped with a drying rag or drying cotton cloth.

Please make sure the product is clean and dry before storage.

Please refer to the following steps to disassemble the juicer and then clean:

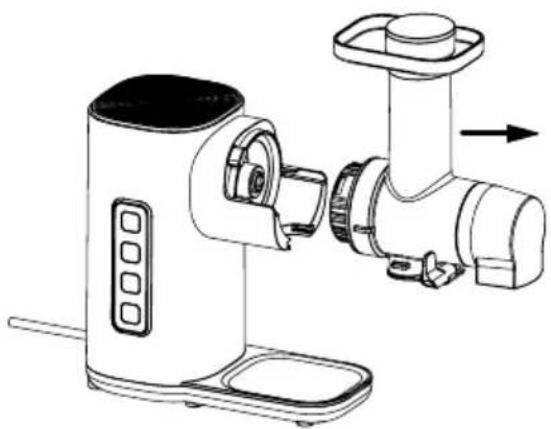

1. Press and hold the lock button (4) near the juicing body, then pull out the entire juicing body as the arrow direction shown - FIG. 9
2. Disassemble and take out the pusher and the food tray in proper order – FIG. 10

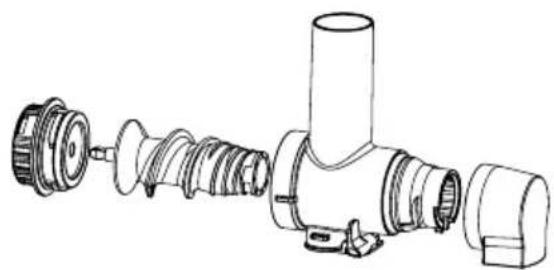

3. Disassemble and the front cover, auger, rear cover in proper order. Then use the water to wash directly – FIG. 11

TROUBLESHOTING

FAULT ANALYSIS OF CAUSES FAULT RESOLUTION
After connecting the power supply, turn on the switch, but this product cannot work.	1. The power plug is not plugged in properly2. The outlet is in poor contact3. The internal cable of the main unit is off or the circuit board is damaged.	1. Plug the power plug back in again2. Replace the power socket and try again3. Please send the product to the nearest official technical service for inspection
When this product is used initially, the motor smells terrible.	This is not an abnormal occurrence	If the product still emits this odor after repeated use, please send it to the nearest official technical service for inspection.
This machine stops during the application.	1. The voltage is too low2. Excessive or hard ingredients3. The continuous working hour is too long	1. Check if the voltage is too low2. Disconnect the power and remove the excess ingredients (Sugar cane cannot be juiced. Hard skin / hard core fruits and vegetables should be first removed the hard skin / hard core before juiced)3. It is a normal phenomenon, and the motor will resume operation after a break
Noise at work 1. The auger is not fully installed, resulting in unsteady operation;2. The start motor in the machine body breaks down.3. Too noisy when some ingredients are juiced.		1. Fully install the auger.2 and 3. Please send it to the nearest official technical service for inspection.
It is difficult to unscrew the juicing body cover after juicing	1. There is oil stain on the surface of the juicing body cover;2. The ingredients in the juice net are not juiced completely;	1. Clean the surface of the juicing body cover;2. Continue to proceed working/juicing until the juicing finished, or the ingredients completely or press and hold the “REV” button for a few seconds to rotate the ingredients out of the juicing bodyi

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

We hope that you will be satisfied with this product.

ELIMINAREA PRODUSULUI

B&B TRENDS, S.L. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, S.L. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, S.L. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, S.L., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com
