Product Type	Juicer
Brand	Zelmer
Model	ZJE1800X
Dimensions (H x W x D)	36 cm x 24 cm x 28 cm
Weight	4.5 kg
Power Consumption	900 W
Voltage / Frequency	220-240 V / 50 Hz
Material	Stainless steel filter, plastic body
Juice Container Capacity	1.5 L
Pulp Container Capacity	2.0 L
Feeding Tube Diameter	75 mm (whole apple)
Speed Settings	Single speed with reverse function
Main Functions	Juicing, continuous pulp ejection
Cleaning	Dishwasher-safe parts (excluding motor base)
Safety Features	Safety lock, non-slip feet, overheat protection
Spare Parts Available	Replacement jug, filter, feeder
Repairability	Modular design, easy to replace components
Warranty	2 years
BPA Free	Yes
Certifications	CE, RoHS

Frequently Asked Questions - ZJE1800X Zelmer

How do I clean the Zelmer ZJE1800X juicer?

Most parts (excluding the motor base) are dishwasher safe. For immediate cleaning, rinse under running water and use the included brush to remove pulp. Do not immerse the motor base in water.

Can I juice leafy greens like spinach or kale?

Yes, the ZJE1800X can handle leafy greens. For best results, roll leaves into a ball and feed slowly with other fruits or vegetables.

What is the feeding tube size?

The feeding tube has a diameter of 75 mm, allowing you to juice whole apples and large pieces without pre-cutting.

Does the juicer have a reverse function?

Yes, if ingredients get stuck, press the reverse button to clear the blockage without disassembling.

What is the warranty period?

The Zelmer ZJE1800X comes with a 2-year warranty covering manufacturing defects.

Can I juice frozen fruits?

It is not recommended to juice frozen fruits as they can damage the filter. Thaw them first.

How does the pulp ejection work?

The juicer continuously ejects pulp into a separate container, so you don't need to stop and empty it frequently.

Is the juice container BPA-free?

Yes, all plastic parts that come in contact with food are BPA-free.

What is the noise level?

The juicer operates at approximately 75 dB, similar to a standard blender. It has non-slip feet to reduce vibration.

Can I replace the filter drum?

Yes, replacement filters are available from Zelmer or authorized dealers. Ensure you order the correct model.

USER MANUAL ZJE1800X Zelmer

Exterior view of a modern electric juice brush unit (no signage or text visible on body)

PLF !INSTRUKCJA UŻYTKOWANIA SOKOWIRÓWKA

4-10

CZ NÁVOD K POUŽITÍ ODŠTAVOVAČ

11-16

SK NÁVOD NA OBSLUHU ODŠTAVOVAČ

17-22

RO INSTRUCTIUNI DE UTILIZARE STORCĂTOR DE FRUCTE

23-29

Modern design juice extractor.

Black-and-white photo of a modern juice<|im_start|> Greenland tea maker with fruit and glassware nearby (no visible text or symbols)

Hand holding a small container with liquid, no visible text or symbols

Szanowni Klienci!

INFORMACJE O OWOCACH I WARZYWACH

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

Appliance characteristic

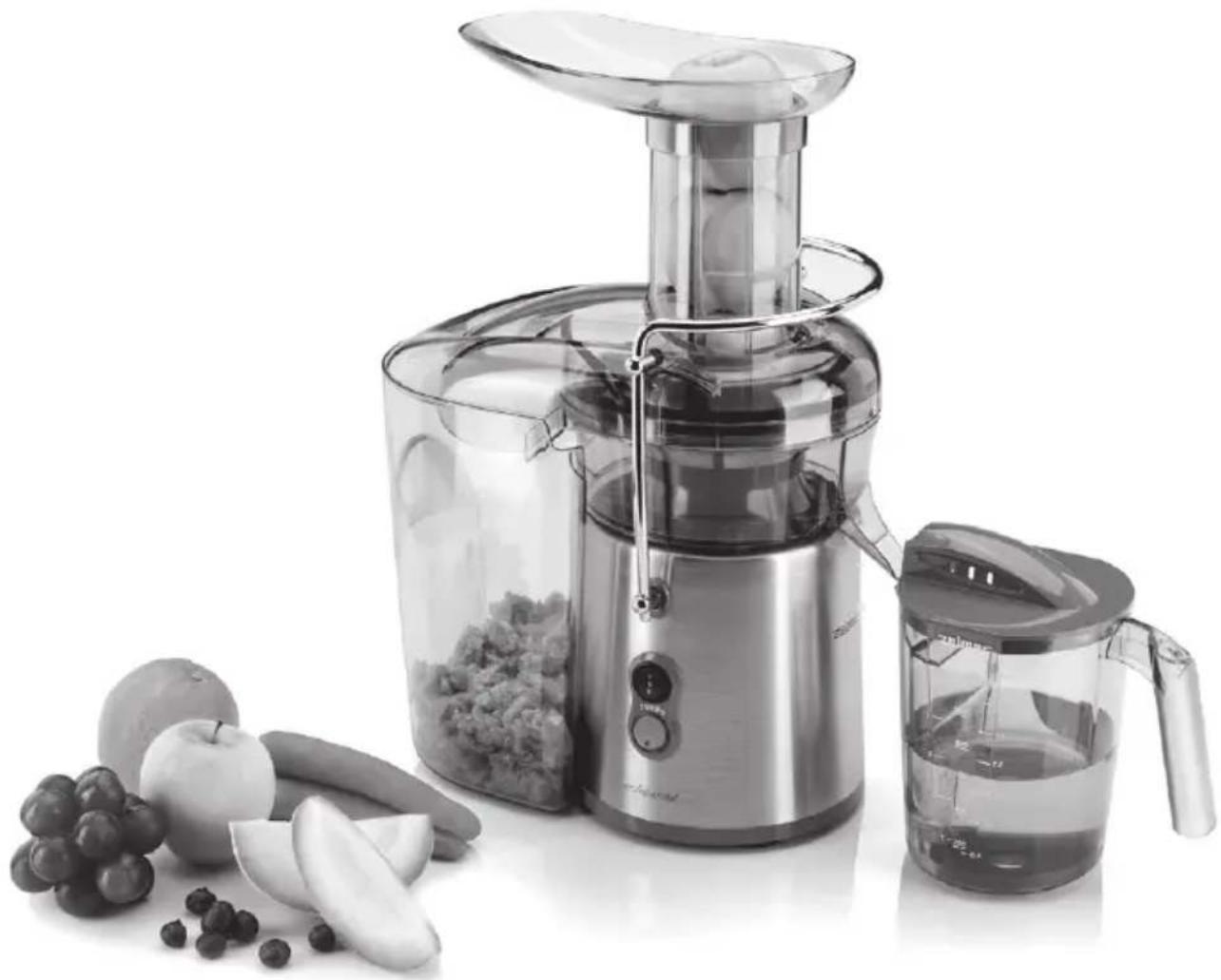

Juice extractor ZJE1800X is an electrical appliance for fast fruit and vegetable juice centrifuging including automatic pulp separation. The raw material is pulped and then the juice is centrifuged from the pulp. The usage advantages are increased due to the easy and simple operation. Electronic speed stabilizer provides constant rotation speed independent on loading, which allows juice even consistency obtaining. The juice extractor is equipped with 2 centrifuging speeds (for soft and hard fruit), which have been selected to obtain the optimal quality parameters for squeezed juice. Keeping the maximal content of vitamins, pectin, enzymes and minerals causes the lower juice clarity. This is an intended effect, as the juice extractor Manufacturer decided, that keeping the highest nutrient, pro-health and dietetic values of a juice is more important than its clarity. The juice extractor is equipped with special safety system preventing starting it in case of incomplete appliance assembling. The juice extractor is additionally equipped with filter self-cleaning function. After pressing TURBO button the engine operates 1,5÷2 seconds with high rotation. High rotation helps to clean the filter in case the vibration occurring due to excessive pulp accumulation. TURBO function can be used in 10 seconds intervals only. The juice extractor can operate 15 minutes without any break. The quantity of juice obtained from i.e. 1kg of a raw material, depends on its freshness, as well as on filter cleanness and pulping blade condition. The parts in contact with processed raw materials are made of materials permitted for contact with food.

Safety operation instructions

Read this manual carefully before you use the appliance.

Make sure that you understand the below safety precautions.

DANGER! / WARNING! Risk of injury

- Do not start up the appliance when the supplying cord is damaged or the casing is visibly damaged.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

- Do not use the juice extractor when the filter is damaged.

- Before you start the juice extractor up, check the lid if it is locked well with the locking bar.

- Do not unfasten the locking bar during juice extractor operation and the filter wiring, as in such case the safety system will switch the appliance off.

- Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.

• Always unplug the appliance from the electrical outlet when it is left unattended and before assembling, disassembling and cleaning.

- To push the product use the pusher only.

• Be especially careful with the juice extractor operation in the presence of children.
• Do not place the juice extractor on the wet surface.
• Do not use the juice extractor without the pulp collector.
• This product is not intended for use by children. Keep the appliance and the power cable out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Only use the appliance indoors at room temperature and up to 2000 m above sea level.

WARNING!

Risk of property damage

Do not disconnect the plug from the socket pulling the cord.
The juice extractor must be plugged to alternating current 230 V grounded receptacle.
Switch the juice extractor off immediately, when you notice strong vibrations or rotation decrease. Clean the filter and its casing.
Stop the operation and unplug the appliance when the product is blocked in chute or pulping blade. Unblock it.
Stop the operation immediately and unplug the appliance when any liquid gets into the motor. Bring the juice extractor to the service for inspection.
Do not expose the juice extractor to temperatures over 60^ C.
Do not leave the appliance plugged unattended.
Do not immerse the motor in water neither clean it under running water.

Do not clean the casing with aggressive detergents, such as emulsion, milk, paste, etc. They can remove the graphic symbols such as: scales, labels, caution signs, etc.
Do not overload the appliance with extensive amount of product or do not push it to strong (with a pusher), because a sudden increase of juice amount in the bowl spout can cause the juice overflow out of the lid or into pulp collector.
Place the motor body near a socket on a flat, stable surface so that the vent holes of the appliance are not covered.

TIP

Product information and tips on its use

This appliance is intended for domestic use only. In case it is used for food business purposes, the warranty conditions shall change.
Unplug after operation.
Clean the metal parts, especially the filter including the sharp pulping blade with soft brush.
To make the maintenance easier, you can put the plastic bag into the pulp collector, which you can remove to the rubbish bin after operation.
Before the first use, wash thoroughly all elements of the equipment.

Specifications

The technical parameters are quoted on the nameplate of the product.

Admissible time of non-stop operation 15 minutes

An interval between repeated operation 30 minutes

An interval between repeated TURBO usage 10 seconds

Noise generated by the appliance (LWA) 75 dB/A

Speed range: I gear, II gear

This device complies with Commission Regulation (EC) no. 1275/2008 on eco-design requirements.

INFORMATION ON FRUIT AND VEGETABLES

Fruit/vegetables	Centrifuging speed
Pineapples	II
Blueberries	I
Peaches	I
Beetroots	I
Pears	I
Apples	I
Cabbage	II
Fennel	I
Fruit/vegetables Centrifuging speed
Raspberries I
Carrots II
Melons I
Apricots I
Nectarines I
Cucumbers I
Kiwi I
Tomatoes I
Celery II
Grapes I

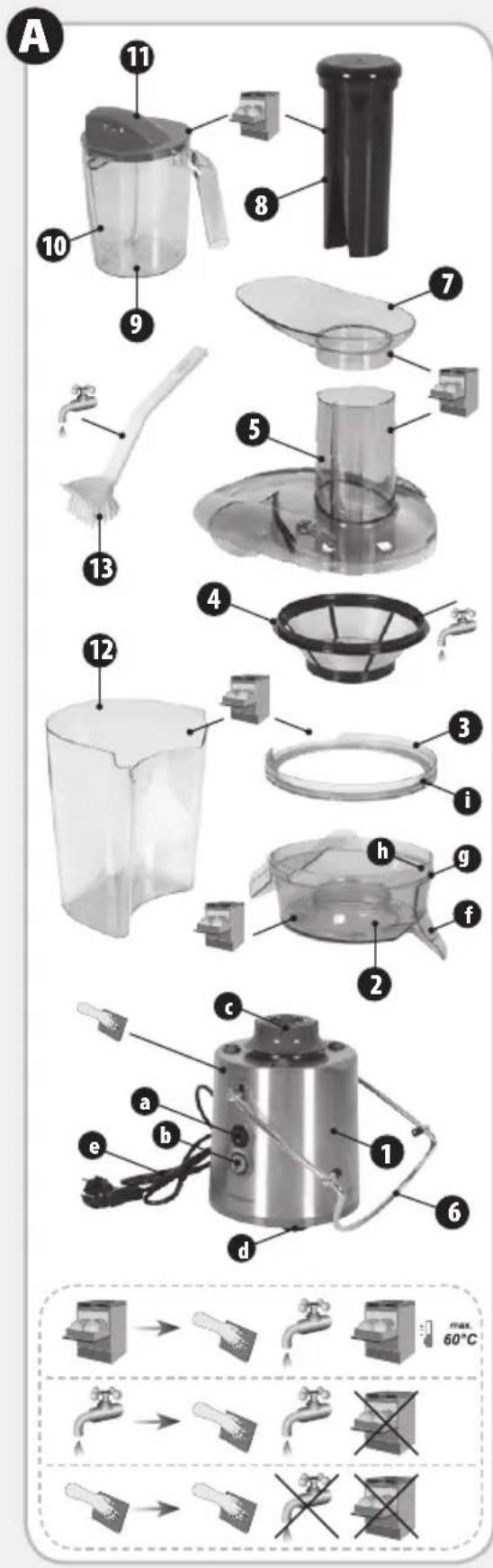

Part names

1 Juice extractor motor
a I-0-II switch
b TURBO button
c skimmer
d vacuum cup
e supply cord
2 Bowl
f juice spout
g outer fin
h inner fin
3 Bowl insert
i notch
4 Filter
5 Lid
6 Locking bar
7 Bowl for small fruits
8 Pusher
9 Juice collector
10 Foam separator
11 Lid of collector
12 Pulp collector
13 Brush

Preparations for operation (disassembling)

Disassemble the juice extractor before first usage and clean the parts in contact with processed product.

① Place the juice extractor near the socket on the firm, clean and dry surface.
② Pull down the locking bar (6) so that the tracks moved out of grooves of the lid (5) from position 1 to position 2.

③ Take the pusher (8) out and remove the bowl (7) and lid (5).
④ Then remove the bowl (2) including the insert (3) and filter (4).
⑤ Then, disassemble the insert (3) from the bowl (2).

Wash the disassembled parts (apart from the motor) carefully in hot water and wash-up liquid. You can clean them in dishwasher in max temp. 60°C (apart from the motor and filter). After drying carefully start assembling the clean parts.

Preparations for operation (assembling)

① Align the bowl (2) to the motor (1), so that the juice spout (f) was placed exactly in the casing (1) groove and 4 buckles from the upper part of the motor (1) were placed inside the 4 grooves in the bottom of the bowl (2).
② Insert the bowl insert (3) to the bowl (2) so that the notch (i) in the bowl insert (3) is located in the inner fin (h) of the bowl (2).

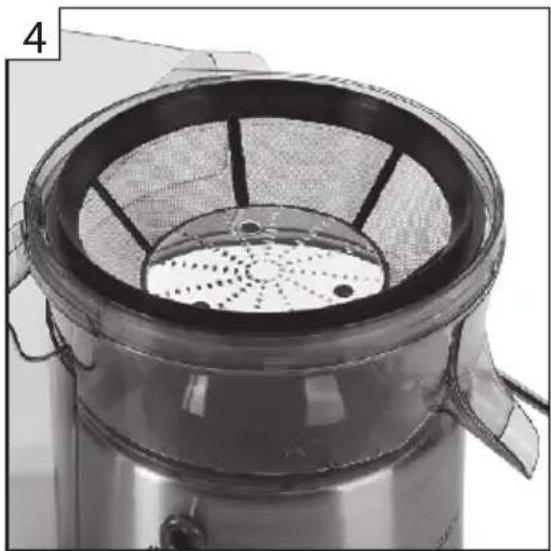

③ Put the filter (4) inside and check if it is well mounted and rotates easily.
④ Install the lid (5) so that the outer fin (g) of the bowl (2) is in the notch of the lid (5).
⑤ Pay attention to assemble the parts correctly. The outer fin (g) of the bowl (2) should be in one line with the notch in the lid (5).
⑥ Pull the locking bar (6) up, so that the rolls moved into grooves of the lid (5) from position 2 to position 1 (you will hear a characteristic clicking sound).

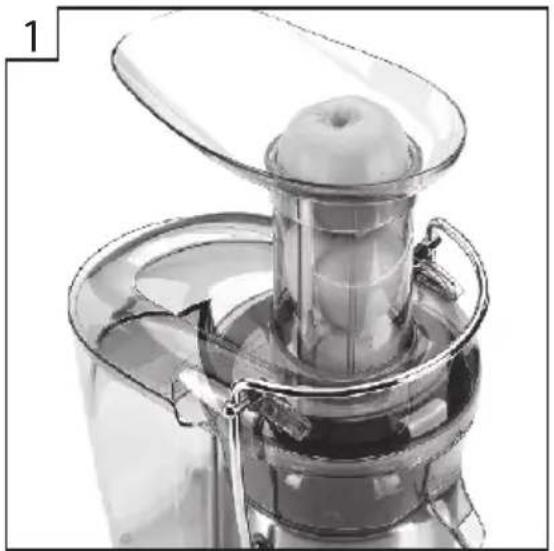

⑦ Each time insert a bowl for small fruit (7) on the feeder opening of the cover (5).
⑧ Put the pusher (8) into the chute so that the V-shaped hole was put on the knife inside the chute.
⑨ Put the pulp collector (12) under the lid (5) in the following way: lean the collector and place it under the insert (3) and lid (5), then push it towards the motor (1).
⑩ Put the juice collector (9) so that the juice spout (f) was inside the collector (9).

Start-up and operation

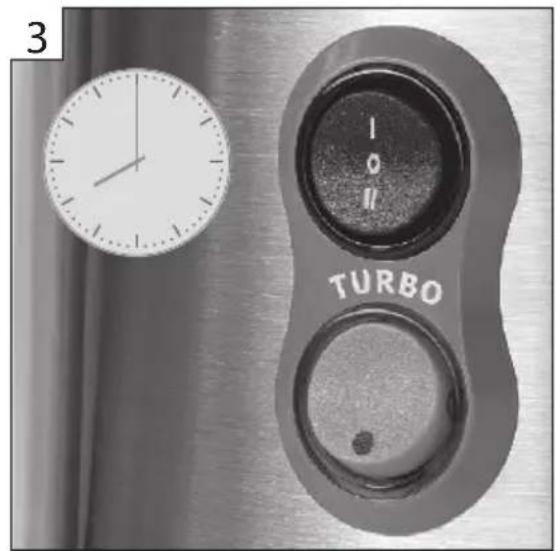

- Check if the switch is turned to „0” position.

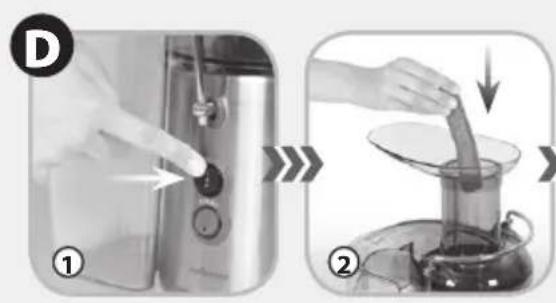

① Plug the juice extractor in and start it up with the switch (a) setting as necessary gear 1 (position I – low rotation) or gear 2 (position II – high rotation).

Such exemplar table including exact information on selection of appropriate gear for particular fruit and vegetables is on page 53.

② Put some fruit or vegetables into chute and press them slightly with the pusher.

mustn't push the products with your fingers or other objects.

In case of the necessity (In case of excessive accumulation of the pulp on the filter, which causes juice extractor vibrations) you can use TURBO button (b). The engine operates in such case on maximal rotation for approximately 2 seconds. After this time, the TURBO function switches off automatically, and the engine returns to previous rotation.

eated usage of TURBO function can take place after min. 10 seconds.

When centrifuging juice of small fruits, use the bowl for small fruits (7), put it on the chute.

Pour the extracted juice into glasses or cups prepared in advance.

③ The juice collector (9) is equipped with foam separator (10), which task is to stop the thicker particles of juice and foam.

recommend natural version of juice, less clear. In order to obtain such a juice it is necessary to remove the foam separator.

After operation (juice centrifuging)

① Switch the juice extractor off, turning the switch (a) to position „0”.
② Unplug the appliance.

After the motor stops start to disassemble the juice extractor in order to wash the parts (see „Preparing for operation”).

Remove the accumulated pulp from the pulp collector.

ent the excess of the pulp collector. The excessive pulp can pour out while leaning the collector during removing.

Juice extractor maintenance rules

● clean carefully after each usage, to prevent drying of juice and fruit remains.
Remove the dirt from the corners with a bottle brush or tooth brush.
Clean the motor with damped cloth sprinkled with washing up liquid. Then dry it.

in water or juice getting into the motor, stop operation immediately and bring the appliance to service for inspection.

The following elements of the equipment: juice bowl, insert, and lid, bowl for small fruits, pusher and the juice collector including foam separator should be washed in hot water with wash-up liquid.
You can clean them in dishwashers in maximum temperature 60°C.
The exception is a filter (4). It should be washed with

hard brush (13) only, which is included to this juice extractor equipment. Do not use any metal brushes to clean the filter!

Some elements can change their colour after long-term usage. It is not a defect.
Colour from carrot can be removed by cleaning the surface with a cloth immersed in edible oil.
Dry carefully all parts after cleaning.
Assemble the juice extractor according to instruction mentioned above (see „Preparing for operation”).
Roll the supplying cord inside the base of juice extractor motor.

a special attention to transparent plastic parts. They are the most sensitive for hits and falls. They can be easily damaged then.

What to do when ...

The juice extractor does not work:

Bring the juice extractor to service agent.

The juice extractor extracts little juice or vibrates:

Use the TURBO function. If the problem still exists, switch the appliance off; clean the filter from accumulated pulp. Additionally, empty the pulp collector if it is full.
In case of mechanical filter damage, implicitly replace it with a new one.

Fruit and vegetable juices preparation

Fruit and vegetables for juice extraction, should be fresh and washed carefully. Vegetables should be cleaned from sand and soil with running water and peeled. Publications concerning juice preparation, recommend to deep the vegetables into water with salt and citric acid for 5 minutes. Such prepared vegetables do not get darker during processing and their juice has natural colour.
Berry fruits should be washed directly before using, so that they do not loose their freshness.
The selection of fruit and vegetables depends on the season of the year, taste likes or health recommendations. The way of preparation influences the nutritive value.
Juices should be made of juicy kinds of fruits and vegetables, which should be ripe and fresh, to get the juice of the perfect flavour and fragrance.
The following vegetables are good for juice preparation: tomatoes, carrots, celeries, beetroots, parsley, onions, cabbages, cucumbers, black turnip, rhubarb, etc. You can also prepare juice of lettuce, spinach, leek and other vegetables as part of diet.
The following vegetables can be added to juices chopped: radish, chives, green parsley, dill, cress.
Fruit juice can be made of almost all kinds of fruit.
Apples, peaches, apricots and plums should be blanched with boiling water on the strainer.
Remove the stones from the fruit, which have it, to prevent damages of the juice extractor.

duice extracting of plums, blueberries, soft pears, apples or other fruit is inconvenient. The flesh of these fruit becomes a spongy pulp, which blocks the filter holes. You can use these fruit mixing a small amount of them with other fruit or vegetables, it is also necessary to clean the filter more often.

You can extract a small amount of grapes juice, but it is necessary to put whole bunch to the chute after removing ligneous stalk.

Cut the radical vegetables and hard fruit into pieces small enough for the chute. Cut the apples into pieces (if they are not small enough to put them whole into the chute) without peeling and removing seed cavity.

Put the fruit or vegetables into the chute after you start up the juice extractor.

In case the product is blocked in the chute or on the filter pulping blade, use the TURBO function. If the problem still exists, switch the appliance off, disassemble and clean.

The fresh juice nutritive value is close to fruit and vegetables nutritive value, but part of fibre is eliminated during juice centrifuging process. That is why the juice can be consumed by people, who can not eat raw vegetables due to digestions problems.

Juice drinks are specially recommended for children and elderly people nourishment.

It is recommended to have a small amount of water while drinking vegetable juices, which are very strong. If the juices are not diluted, a daily dose should not exceed a half of glass.

Fruit juices are easier to digest so it is possible to drink a big amount of them: 3 up to 4 glasses per day between meals.

duices should be consumed immediately after preparing, and drunk in sips. When drinking juice slowly, it mixes with saliva, which makes digestion easier. Drunk too fast and in too big quantity the juice is not properly absorbed.

You should not mix fruit with vegetables apart from apples. Melon juice shouldn't be mixed with other fruit juices.

You shouldn't store juice for later consumption.

Vegetable juices can be diluted with lukewarm, boiled water, mineral water, milk, whey, sweeten, or flavoured another way.

You can prepare chasers of juice.

The following fragrance spices can be used for vegetable juices: pepper, dill, caraway, nutmeg, thyme, marjoram, and for fruit juices: vanilla, cinnamon and clove. It is necessary to mince the spices carefully to obtain full fragrance. The spices should be used in small amount to keep natural fragrance and flavour of the juice basic products. Due to low caloricity, fruit and vegetable juices are recommended for people on a slimming diet.

Fruit and vegetable juices are served in room temperature or cooled with ice cubes.

Salty sticks, crackers and toasts can be good snacks for vegetable juices, as biscuits, cakes, sponge cakes for fruit juices.

The juice obtained of some fruit and vegetables has tendency to self-condensing. Such phenomena results from the properties of used products and does not depend on the appliance.

Fresh juice is healthy

Carrot juice

It accelerates metabolism since it contains microelements and vitamins necessary for the body to function properly.

Vitamin A, produced from carotene, improves sight. The ingredients of this juice eliminate

harmful effects of nicotine, restores the natural healthy colour of the skin. Half a glass of carrot juice and half a glass of milk is recommended for little children. Carrot juice in combination with apple juice is recommended as an energizing drink for elderly people.

Tomato juice

Ripe and fresh tomatoes produce juice of an excellent quality. Tomato juice may be mixed with all other vegetable juices. It contains a lot of vitamin A and C.

Two glasses of this juice covers a daily demand of vitamin C. Salt and pepper enhance the taste of the juice.

Beetroot juice

Beetroot juice in combination with orange juice gives a drink of an excellent taste. This juice in a pure form may be drunk only upon a doctor's recommendation.

Cabbage juice

This juice is applied in treatment of gastric ulcers, however only upon a doctor's recommendation. When mixed with carrot juice, it may be drunk by those with sensitive stomach.

Spinach juice

This juice is highly hematopoietic, however due to a strong smell it is recommended to mix it with carrot juice. Spinach juice, carrot juice and celery juice mixed in equal amounts give a tasty drink.

Celery juice

Do not use celery leaves because of their bitter taste. The juice from a root of a celery is very tasty. It can be mixed with other vegetable juices. It should be drunk in smaller amounts than carrot juice. Adding

apple juice or lemon improves the taste of the juice.

Cucumber juice

It is naturally bland and it should be mixed with apple, carrot or celery juice. Cucumber juice is used for skin care. It also filters kidneys. It is recommended for slimming treatment.

Apple juice

Juice made from fresh and ripe apples has a pleasant fragrance and taste and it is rich in vitamins A and B and valuable mineral salts. A high content of pectin in the juice makes that

it has properties supporting digestion. Fresh apple juice is used to treat podagra and rheumatism. It is, generally speaking, an excellent nutriment.

Blackberry juice

Blackberry juice with a small amount of sugar and mineral water makes a very refreshing drink. Due to a big content of vitamins and microelements, it gives energy, especially to elderly people.

Black elder juice

The juice is rich in nutritive elements, it has diaphoretic properties and is used to treat a cold. When preparing preserves, it may be mixed with other fruit juices.

Blackcurrant juice

Blackcurrant juice has a specific fragrance, high acidity and noticeable tartness. Due to its chemical composition and a content of vitamins, it is one of the best juices. It should be mixed with juices of low acidity or with water, honey or sugar.

Special health recipes

Energy drink6 carrots2 apples 12 of beetroot	Body detox juice4 carrots 12 of cucumber1 beetroot
"Strong breath" drink1 handful of spinach1 handful of parsley2 celeries4 carrots	"Timeless regulator" juice2 apples1 hard pear 14 of lemon or a handful of spinach6 carrots
"Sunny" drink2 apples6 strawberries	"Love" drink3 big tomatoes 12 of cucumber1 celery 14 of lemon

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The manufacturer does not accept any liability for any damages resulting from unintended use or inappropriate handling.

The manufacturer reserves his rights for modifying the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade aesthetic or other reasons, without notifying it in advance.

Close-up of a food grainer with a apple inside, showing internal structure and lid (no text or symbols visible)

Close-up of a metallic industrial valve with a wall clock and two labeled buttons (no readable text or symbols beyond labels)

Close-up of a stainless steel steamer with mesh filter and side handle (no text or symbols visible)

PL 1. Możliwość odwirowania soku z całych owoców i warzyw 2. Pojemnik na sok z separatorem piany - 1,2 L 3. 2 prędkości obrotowe 4. Sito ze stali szlachetnej - wydajność i precyzja pracy urządzenia
1. Možnost výroby šťávy z celých plodů ovoce a zeleniny 2. Nádoba na šťávu se separátorem pěny - 1,2 L 3. 2 rychlosti 4. Síto z ušlechtilé oceli - výkonnost a přesnost práce zařízení
SK 1. Možnost' vytlačit' šťavu z celých plodov a zeleniny 2. Nádoba na ovocnú šťavu s oddeľovačom peny - 1,2 L 3. 2 otáčkové rýchlosti 4. Sito z ušľachtilej ocele - efektívnost' a presnost' práce prístroja
RO 1. Posibilitate de a stoarce suc din fructe si legume intregi 2. Recipient pentru suc cu separator de spumă - 1,2 L 3. Doua trepte de viteza 4. Sita din inox - functionare eficienta si precisa a aparatului
