Product Type	Centrifugal Juicer
Model	ZJP1300B
Brand	Zelmer
Dimensions (H x W x D)	40 cm x 25 cm x 30 cm
Weight	4.2 kg
Power Consumption	800 W
Voltage	220-240 V, 50/60 Hz
Juice Capacity	1.5 L
Pulp Container Capacity	2 L
Feeding Tube Diameter	75 mm
Material	Stainless steel filter, BPA-free plastic
Speed Settings	2 speeds (low/high)
Functions	Juice extraction, pulp separation
Additional Features	Anti-drip spout, overload protection, non-slip feet
Cleaning	Dishwasher-safe removable parts, cleaning brush included
Safety	Safety lock, overload protection
Spare Parts Available	Filter, jug, lid, pusher
Warranty	2 years

Frequently Asked Questions - ZJP1300B Zelmer

How do I assemble the juicer?

Place the motor unit on a flat surface. Insert the filter basket, lock it with the lid, then attach the pulp container and juice jug. Ensure the locking arm is engaged.

Can I juice leafy greens like spinach?

Yes, you can juice leafy greens. Use the low-speed setting for best results and alternate with firmer vegetables.

How do I clean the juicer?

Unplug and disassemble. Rinse parts immediately under running water. Use the included brush for the filter. Most parts are dishwasher safe.

What is the maximum operating time?

Do not run continuously for more than 2 minutes. Let it cool for at least 2 minutes before restarting.

Why is the juicer vibrating excessively?

Check if the filter basket is properly seated. Ensure the pulp container is empty and the juicer is on a level surface.

Can I juice frozen fruits?

No, frozen fruits can damage the motor. Thaw them completely before juicing.

What is the feeding tube size?

The feeding tube has a diameter of 75 mm, allowing whole apples and oranges without pre-cutting.

Does the juicer have overload protection?

Yes, it features overload protection that automatically shuts off the motor if it overheats.

How do I store the juicer?

Clean and dry all parts completely. Store in a dry place. You can wrap the cord around the base for compact storage.

Where can I find spare parts?

Spare parts are available from Zelmer authorized service centers or online retailers. Common parts include the filter basket and jug.

USER MANUAL ZJP1300B Zelmer

WYCISKARKA DO OWOCÓW, WARZYW I ZIÓŁ

соковыжималка для

/ fruit, vegetable and herb

juice presser

zelmer

Silver Zeimer brand juice maker with black handle and white spout, no visible text or symbols on device body

PLF INSTRUKCJA UŻYTKOWANIA WYCISKARKA DO OWOCÓW, WARZYW I ZIÓŁ 6–11
CZ NÁVOD K POUŽITÍ LIS NA OVOCE, ZELENINU A BYLINKY 12–17
SK NÁVOD NA OBSLUHU LIS NA OVOCIE, ZELENINU A BYLINKY 18–23
HU HASZNÁLATI UTASÍTÁS GYÜMÖLCS, ZÖLDSÉG ÉS GYÓGYNÖVÉNY PRÉS 24–29
RO INSTRUCTIUNI DE UTILIZARE STORCATOR DE FRUCTE, LEGUME SI PLANTE MEDICINALE 30-35

ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ СОКОВЫЖИМАЛКА ДЛЯ ФРУКТОВ, ОВОЩЕЙ И ТРАВ 36–42
BG ИНСТРУКЦИЯ ЗА УПОТРЕБА ИЗСТИСКВАЧКА ЗА ПЛОДОВЕ, ЗЕЛЕНЧУЦИ И БИЛКИ 43–49
UA ІНСТРУКЦІЯ З ВИКОРИСТАННЯ СОКОВИЖИМАЛКА ДЛЯ ФРУКТИВ, ОВОЧІВ ТА ТРАВ 50–56
EN USER MANUAL FRUIT, VEGETABLE AND HERB JUICE PRESSER 57–62

ZJP1300B

WYCISKARKA DO OWOCÓW, WARZYW I ZIÓŁ

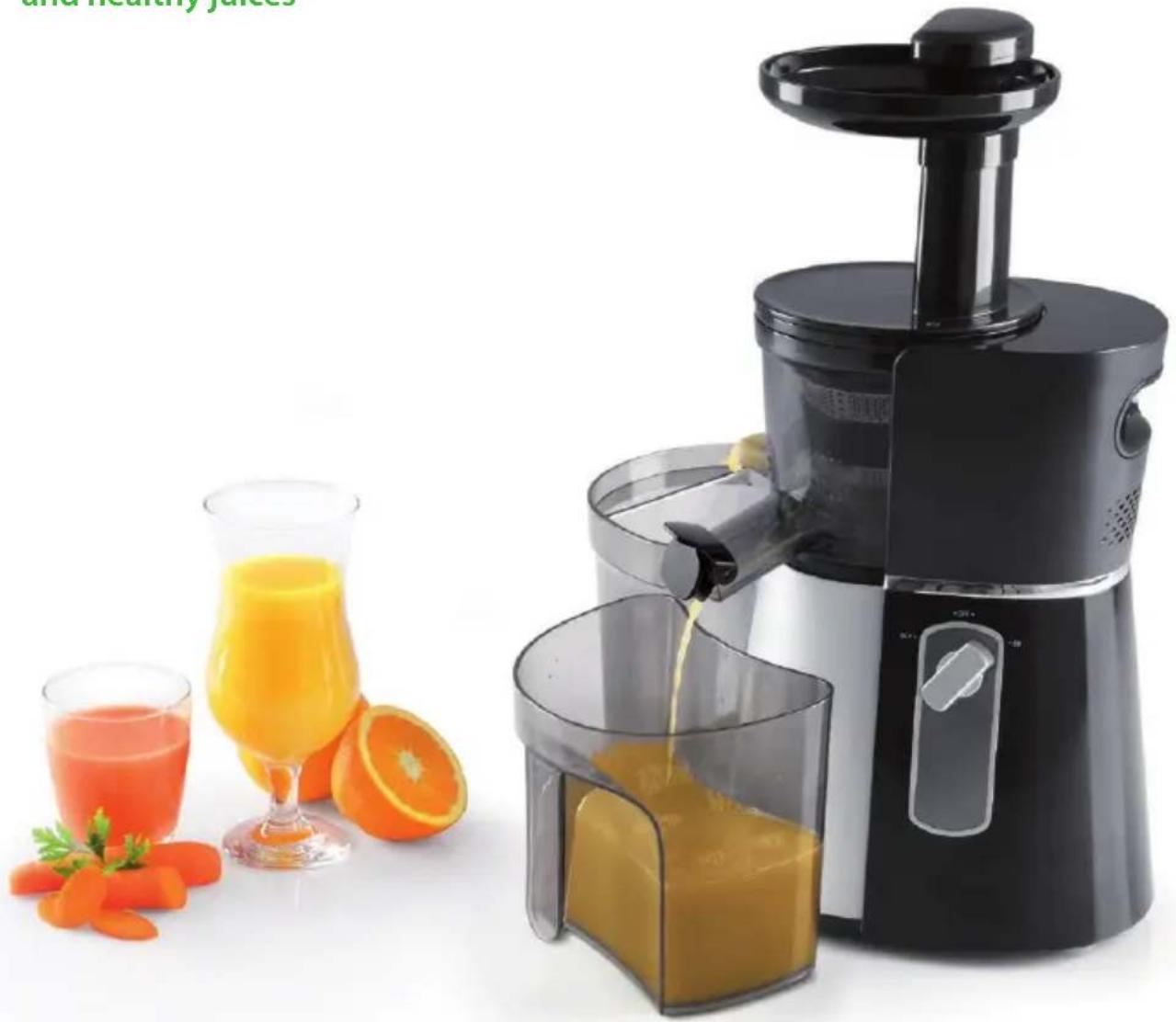

Modern low speed juice maker to obtain natural and healthy juices

Black and white photo of a modern juice brush unit with orange juice being poured into a glass, accompanied by glasses and fresh carrots (no text or symbols visible)

A

C

Close-up of a hand holding a black and silver Japanese-style juice maker, no visible text or symbols on the device itself.

Close-up of a hand pressing down a black cylindrical device with a blue upward arrow (no text or symbols visible)

Close-up of a hand holding a black beverage brush with a lock icon, showing internal mechanism (no text or symbols visible)

Close-up of hands installing or adjusting a black appliance into a kitchen (no text or symbols visible)

Hand placing a black vacuum cleaner into a cylindrical device with an upward arrow indicator (no text or symbols)

Hand holding a black vacuum cleaner with a blue upward arrow indicating motion (no text or symbols visible)

Hand placing a red object into a clear glass kitchen appliance with a blue upward arrow (no text or symbols visible)

Close-up of hands assembling a black plastic mechanical component with a blue arrow indicating rotation (no text or symbols visible)

D

Close-up of hands assembling a black plastic component with a red cable (no text or symbols visible)

Hand placing a red object into a clear plastic kitchen appliance, with a blue arrow indicating the process (no text or symbols visible)

Close-up of hands operating a black and silver portable food maker with a close-up inset showing the interior (no text or symbols visible)

Close-up of a hand pressing down on a black vacuum cleaner's side panel, with close-ups of the component (no text or symbols visible)

D

Hand placing a black air fryer into a container with a blue arrow indicating motion (no text or symbols)

Close-up of a hand using a black vacuum cleaner to press down a cylindrical component, with an inset showing the lock mechanism (no text or symbols visible)

Hand pressing down on a black cylindrical device with a blue arrow indicating motion (no text or symbols)

Hand placing a small container into a white griddle, with no visible text or symbols on the device itself.

E

Hand inserting a plug into a black appliance with a white electrical outlet (no text or symbols visible)

Hand placing a small orange object into a black cylindrical container with a blue arrow indicating downward motion (no text or symbols)

Hand inserting a black plastic clip into a cylindrical device, with a blue arrow indicating rotation (no text or symbols visible)

Close-up of a hand pressing down on a black appliance handle (no visible text or symbols)

Person using a black frying pan to prepare food from a pot (no text or symbols visible)

F

Close-up of a hand pressing down on a kitchen blender with a rotary knob (no text or symbols visible)

Hand inserting a plug into a black appliance with a power outlet, showing electrical wiring (no text or symbols visible)

Close-up of a hand adjusting a black plastic clip on a curved surface, with no visible text or symbols.

Szanowni Klienci!

Congratulations on your choice of our appliance and welcome among the users of Zelmer appliances!

For best results we recommend using original Zelmer accessories only. They have been designed specifically for this product.

Please carefully read this manual. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

Appliance features

Enjoy the true taste of nature with your new Zelmer ZJP1300B.

The ZJP1300B Juice Maker allows you to squeeze juice out of fruits, vegetables, and herbs. Operating at low speed, it squeezes products in order to obtain the juice. This innovative solution makes the juice rich in nutrients and gives it a truly natural taste. With the ZJP1300B juice maker you can squeeze juice not only from the fruits or vegetables, but also from herbs.

The special squeezing method employed improves the juice maker performance and gives the juice more nutritional value. Rugged screw presses the products, squeezing juice out of them completely and efficiently. Thanks to the low-speed motor no heat is generated, which preserves the valuable vitamins and extends the appliance lifetime. Application of this technology makes the ZJP1300B extremely quiet.

ZJP1300B is not only about delicious juice, but also about ease of use and cleaning. You can remove the product residue with a special brush supplied.

All parts in contact with the food products are made of materials intended for contact with food.

Enjoy the taste of all natural juice.

Zelmer – reliably.

Safety precautions

Please read the entire manual before using this appliance.

DANGER! / WARNING!

Failure to follow safety recommendations may result in injury

• Do not connect the plug into the outlet with wet hands.
• Do not operate the appliance if its power cord, housing or the handle are damaged.
• If the power cord is damaged, in order to avoid a hazard it should be replaced by the manufacturer or by a specialised service centre or by a qualified person.
• The appliance should be repaired by trained staff only. Improper repair may result in a serious hazard to the user. In case of defects, please contact a qualified Zelmer service centre.
• Do not use the appliance when squeezing screw, screens or bowl are damaged.
• Turn off the appliance and unplug it from wall outlet before approaching the moving parts or changing the accessories.
• Always unplug the unit from wall outlet when it is left unattended and before assembling, dismantling or cleaning.
• Be careful when using the appliance around children.

• Do not leave the appliance unattended when plugged in.

• This appliance shall not be used by children. Keep the appliance and its power cord of reach of children.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments.

• Only use the appliance indoors at room temperature and up to 2000 m above sea level.

NOTE!

Failure to observe these guidelines may result in damage to property

Do not remove the lid with hopper, as this will turn off the appliance.
Do not plug the pulp ejection outlet or the juice spout during appliance operation.
Do not operate the appliance without any food products.
Do not move the appliance during operation.
Do not unplug the appliance by pulling the cord.

Always connect the appliance to the power outlet (alternating current only) equipped with a grounding prong, with voltage matching that indicated on the name plate.

Before starting, check that the hopper is secured.
Use the pusher only to push the product.
Do not overload the appliance with too much food product or by pushing it too hard (by means of the pusher).
Do not expose the appliance to temperatures above 60^ C.

Do not place the appliance on a wet surface.
Do not immerse the appliance motor unit in water, or wash it under running water.

Always place the appliance on a stable, even and flat surface. The power cord must not hang over the edge of the surface, where you placed the appliance.

The appliance is intended for indoor household use only.

TIP

Product information and directions for use

The appliance is intended for domestic use. Warranty conditions change when appliance is used for catering.

Specifications

Technical specifications are listed on the product name plate. Do not operate the appliance for longer than 20 minutes.

Allow the appliance to cool for one hour before using it again. Noise level (LWA): 65 dB(A).

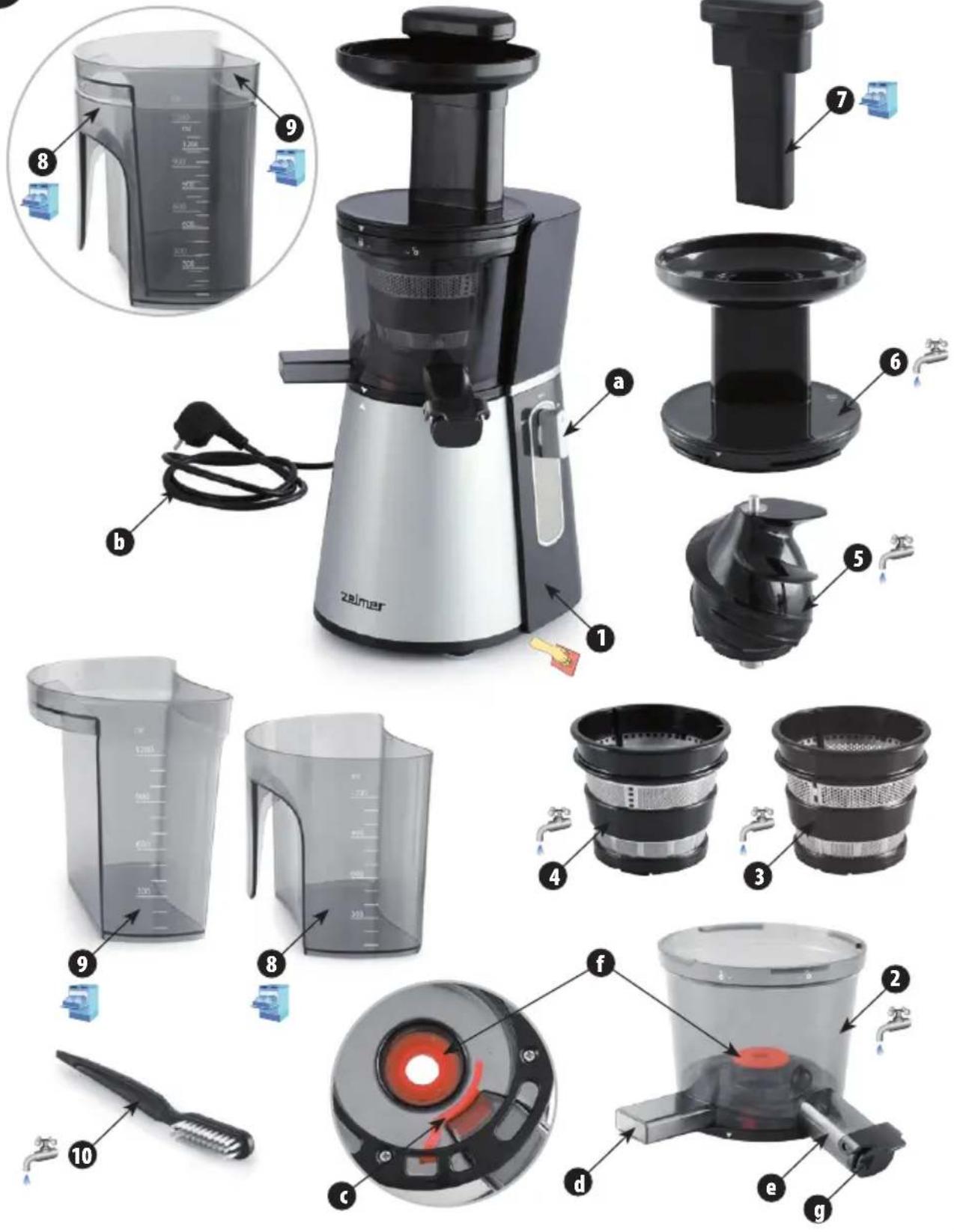

Features and components

1 Motor unit

a ON/OFF/REV
b Power cord

2 Bowl

c Rubber plug
d Pulp ejection outlet
e Juice spout
f Sealing sleeve
g Anti-drip plug

3 Soft products screen – coarse mesh
4 Hard products screen – fine mesh
5 Squeezing screw
6 Lid with hopper
7 Food pusher
8 Juice container
9 Pulp container
10 Brush

Before Use (take apart)

Before first use, take the juicer apart, wash the parts that come into contact with the food products.

① Place the juicer near a wall outlet on hard, clean and dry surface.

② Remove the pusher (7).
③ Remove the lid (6) by turning it counter-clockwise.
④ Next, remove the bowl (2) with accessories.
⑤ Remove squeezing screw (5) from the bowl (2).
⑥ Then remove the screen ((3) or (4)) from the bowl (2).
⑦ Remove the sealing sleeve (2f) from the bowl (2).

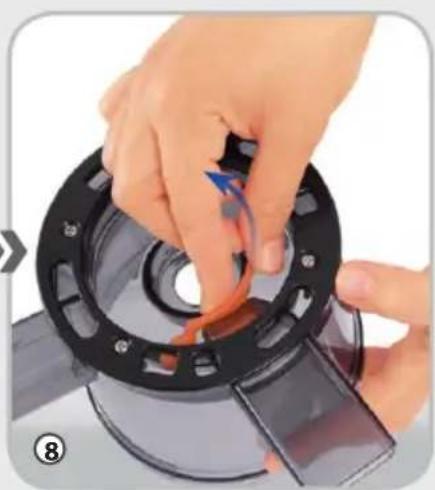

⑧ Remove the rubber plug (2c) on the bottom of the bowl (2).
Thoroughly wash the parts (except the motor unit) in warm water with dishwashing liquid. Once parts are thoroughly dried, proceed to re-assemble the Juice Maker.

not wash the parts in the dishwasher. When cleaning water temperature should not exceed 60°C.

Prepare the appliance for use (assemble)

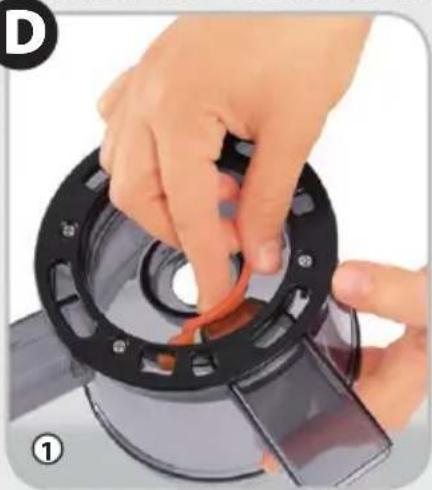

① Replace the rubber plug (2c) in the hole on the bottom of the bowl (2).

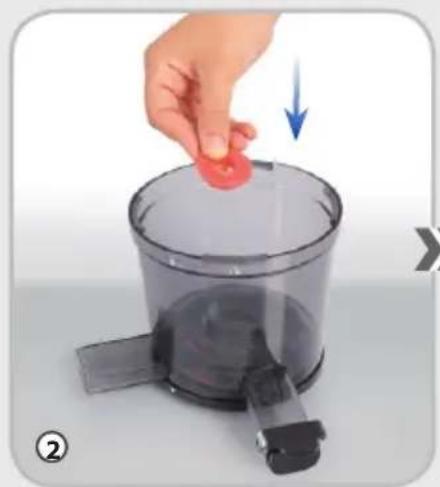

② Replace the sealing sleeve (2f) in the bowl (2), if previously removed.
③ Mount the bowl (2) on the motor unit (1) so that three tabs on the motor unit (1) slide into the three slots on the bottom of the bowl (2).
④ Place the selected screen ((3) or (4)) in the bowl (2), so that the triangle on the edge of the screen is aligned with the padlock on the bowl (2). The hole in the screen should be aligned with the hole in the bowl.

fine mesh screen (4) for hard fruits such as carrots, cucumbers, and apples. Use coarse mesh screen (3) for soft fruits such as watermelon, oranges, tomatoes, etc.

⑤ Put the squeezing screw (5) into the bowl (2).
⑥ Place the hopper (6) on the bowl (2), sliding the tabs into the bowl slots 🔒 and turn the hopper (6) fully clockwise 🔒.
⑦ Insert pusher (7) into the hopper (6).

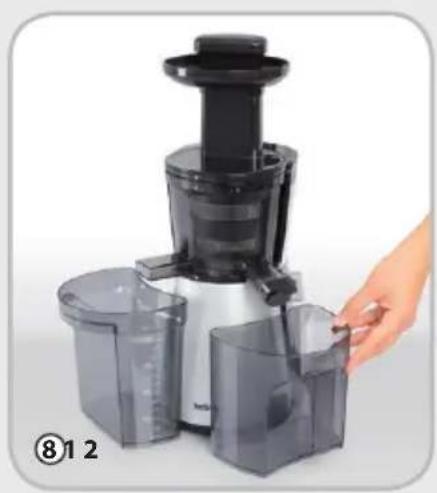

⑧ Place the containers (8) under the juice spout (2e) and the container (9) under the pulp outlet (2d).

Start up and use the appliance

Juice Maker rocker switch positions are shown in Figure B.

"ON" – turn on the appliance. "OFF" – turn off the appliance

"REV" – reverse mode.

Make sure the rocker switch (1a) is set in "OFF" position.

① Plug in the appliance.
② Put chopped fruits or vegetables into the hopper and gently push with the pusher.

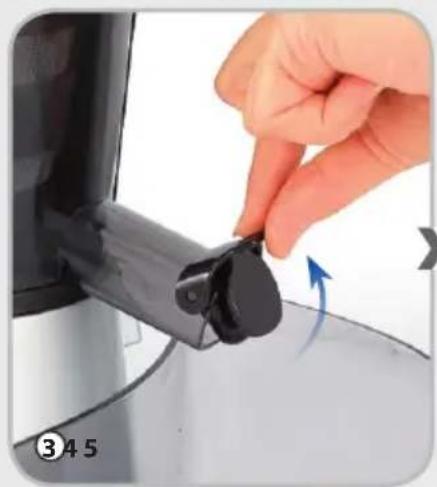

③ Open anti-drip plug (2g).

Do NOT push products with your fingers or other objects.

Thoroughly wash fruits and vegetables, remove seeds or other hard fractions before placing products in the appliance.

④ Turn on the appliance on by placing the rocker switch (1a) in "ON" position.

Do not touch the rocker switch (1a) with wet hands.

with hopper (6) must be securely locked , otherwise the appliance will not start.

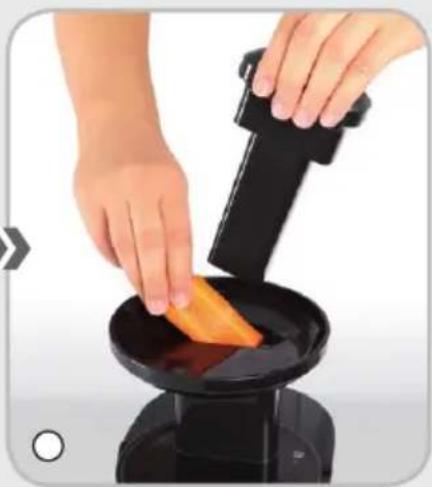

⑤ Put more chopped fruits or vegetables into the hopper and gently push with the pusher.

not use the appliance continuously for more than 20 minutes. When squeezing juice from hard food products, do not operate the appliance for longer than 40 seconds and then allow it to cool down completely.

maximum weight of fruits and vegetables placed in the Juice Maker should not exceed 250 g for each minute of operation. If the squeezing screw gets stuck or clogged with fruits or vegetables use the "REV" function for 2-3 seconds. If the problem persists, take the appliance apart, clean and re-assemble (see "Prepare the appliance for use (assemble)").

After use (squeezing juice)

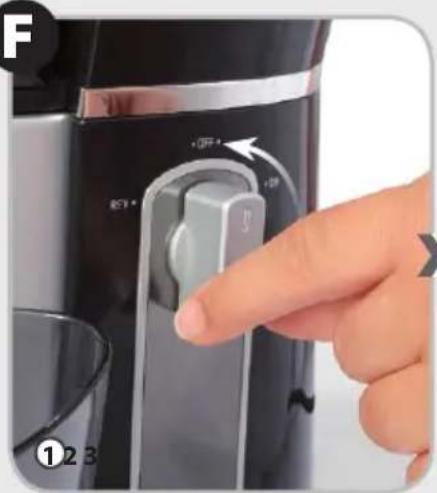

① Turn off the appliance on by placing the rocker switch (1a) in "OFF" position.
② Unplug power cord from wall outlet.
③ Close the anti-drip plug (2g) before removing the juice container from under the juice spout (2e). This will prevent the juice from dripping on the kitchen worktop.

Pour the squeezed juice from the pitcher into glasses, cups, etc.

If you want to rinse the appliance before squeezing other fruits, you must first turn off the appliance, replace the juice pitcher, turn the appliance on again and pour a glass of water in the hopper to rise out most of the residual pulp.

Take apart the appliance (see "Before Use (take apart)").

To save space stack washed and dried containers (8) and (9).

Maintenance

Thoroughly wash the appliance after each use, preventing any juice or residual fruit or vegetable pulp from drying.
Remove residue from crevices or corners using the brush supplied with the juice maker.
Wipe the motor unit with a damp cloth and a few drops of dishwashing liquid. Then wipe it dry.

water or juice penetrates into the motor unit unplug the appliance and return it to a service centre for inspection.

All items such as: a bowl (2), anti-drip plug (2g), sealing sleeve (2f), screens ((3) and (4)), squeezing screw (5), lid with hopper (6), pusher (7) and containers ((8) and (9)) should be washed in warm water with dishwashing liquid.
When cleaning the appliance do not use detergents containing organic solvents, bleach, chlorine, gasoline or other abrasive materials.
After prolonged use the plastic elements of the appliance may become discoloured. This is not a defect.
Any discolouration from carrots can be removed with a cloth soaked in cooking oil.
Thoroughly dry all appliance components after washing.
Assemble the appliance as described earlier (see "Prepare the appliance for use (assemble)").

What to do if...

Juicer Maker will not work:

1. Make sure the Juice Maker is plugged into a wall outlet.
2. Make sure the Juice Maker correctly assembled as described in the manual.
3. Juice Maker may have turned off because it was used for more than 20 minutes. Wait until the appliance cools down completely.
4. Take the appliance to a service centre.

The juice is too dense or too watery:

1. Make sure the rubber plug (2c) is properly installed
2. Make sure that the juice is made with fresh ingredients.
3. Make sure the screens ((3) or (4)) are not clogged.

Juice Maker stopped working:

1. Make sure you have not loaded too many ingredients and ingredients do not have too many hard seeds. Use the "REV" function for 2-3 seconds, and then to rocker switch back to "ON".
2. If the problem persists, take the appliance apart, clean and re-assemble.
3. Juice Maker may have turned off because it was used for more than 20 minutes.

How to make healthy, delicious juice?

Fruits and vegetables for making juice should be fresh and thoroughly washed. Vegetables should be cleaned from sand and soil under running water and peeled. Publications on juice-making recommend soaking vegetables for 5 minutes in water with salt and citric acid. Vegetables prepared in this way do not darken during chopping and produce natural colour juice.

Wash berries just before use, as they quickly lose their freshness.

The choice of fruits and vegetables depends on the time of year, your personal preferences and health recommendations. The nutritional value of juices from fruits and vegetables is affected by how they are squeezed.

Juices should be made from juicy fruits and vegetable species that are ripe, fresh, because they have the most juice with excellent taste and aroma.

The following vegetables are most suitable for beverages: tomatoes, carrots, celery, beetroots, parsley, onions, cabbage, cucumbers, black turnip, rhubarb, etc. For dietary reasons and for great culinary experience you can make juice from lettuce, spinach, leek and even fresh herbs or cooked soybean.

Vegetables such as radishes, chives, parsley leaves, dill, watercress should be added to beverages finely chopped.

You can make juice from almost all the species of fruits.

Apples, peaches, apricots and plums should be scalded in boiling water in a colander.

Remove pits from fruits because they could damage the appliance.

Squeezing juice from plums, blueberries, raspberries, soft pears and apples and other fruits may be troublesome. The pulp of these fruits forms spongy mass that clogs the strainer holes. You can make juice from these fruits by adding them in small quantities to other fruits or vegetables but you may need clean the strainer more often.

Root vegetables and hard fruits should be cut into pieces that will fit into hopper. Apples should be cut up into pieces (if they do not fit into the hopper without cutting) – there is no need to peel them or remove the cores.

The nutritional value of raw juice is similar to the nutritional value of the original food products - thanks to a unique juice squeezing method, the prepared beverage contains fibre, enzymes, minerals and vitamin C.

Juice beverages are recommended especially for children and the elderly.

It is advisable to consume vegetable juices with a sip of water, as they are very strong. If the juices are not thinned down, the daily intake should not exceed half a glass.

Juice may not be stored for later consumption.

You can add aromatic spices such as pepper, fennel, cumin, nutmeg, thyme, marjoram to vegetable beverages and vanilla, cinnamon and cloves to fruit

juices. To get the full flavour of spices, grind them to fine powder before adding to drink. Use spices in small quantities to preserve the natural taste and flavour of the product from which the beverage is prepared. Due to their low nutritional value, beverages made from fruit and vegetable juices are highly recommended for those on a diet.

Fruit and vegetable beverages should be served at room temperature or chilled with ice cubes.

Fresh juice for good for health

Carrot juice

It speeds up the metabolism, as it contains a whole range of trace elements and vitamins necessary for proper functioning of the human body. Vitamin A is produced from carotene and improves eyesight.

The ingredients of this juice neutralise the harmful effects of nicotine, restores skin's natural healthy colour. Half a glass of carrot juice and half a glass of milk a day are recommended for young children. Carrot juice with addition of apple juice is recommended as an energising drink for the elderly.

Tomato juice

Ripe and fresh tomatoes provide excellent quality juice. You can mix tomato juice with all other vegetable juices. It contains a lot of vitamin A and C. Two glasses of juice cover

the daily requirement of vitamin C. You can improve the taste of tomato juice by seasoning it with salt and pepper.

Beetroot juice

Beetroot juice combined with orange juice is a great tasting drink. This juice in its pure form can be consumed only when recommended by a doctor.

Cabbage juice

It may used to treat stomach ulcers, but only when recommended by a doctor. When mixed with carrot juice, it is suitable for drinking by people who have a sensitive stomach.

Spinach juice

This juice is a potent hematopoietic, but because of its pungent flavour, it is best mixed with carrot juice. You will get a very tasty drink mixing spinach, carrot and celery juice in equal amounts.

Celery juice

Do not use celery leaves to make juice because they have a bitter taste. Celery root juice is very tasty. It can be combined with other vegetable juices. It should be consumed in smaller amounts than carrot juice. Add apple or lemon juice to improve its flavour.

Cucumber juice

By itself it tastes a bit bland and it should be mixed with apple, carrot or celery juice. Cucumber juice is used in skin care. It also cleanses kidneys. It is recommended for people on a diet.

Apple juice

Juice from fresh ripe apples has a pleasant aroma and taste, it is rich in vitamins A and B and valuable minerals. It facilitates digestion due to its high pectin content. Fresh apple juice is used against gout and arthritis. Overall, it is an excellent nutritional supplement.

Blackberry juice

Blackberry juice with a small addition of sugar and mineral water creates a very refreshing drink. Due to the high vitamin and trace elements content it improves stamina, especially in older people.

Black elderberry juice

The juice is rich in nutrients, has diaphoretic properties and can be used to treat the common cold. It may be combined with other juices when making fruit preserves.

Blackcurrant juice

Blackcurrant juice has a unique flavour, and it is characterised by high acidity and a distinct tartness. It is one of the best juices in terms of chemical composition and vitamin content. It should be mixed with low acidity juices or water, honey and sugar.

Contents of Fruits & Vegetables

Fruit/ Vegetable	Vitamin/Mineral substance	Kilocalorie/ Calorie
Apple Vitamin C	200 g = 150 KJ	(72 cal.)
Apricot	Dietary fiber, kalium	30 g = 85 KJ (20 cal.)
Sugar beet	Folacin, dietary fiber, blueberry is a good source of vitamin C and kalium	160 g = 190 KJ (45 cal.)
Blueberry	Vitamin C 125 g = 295 KJ	(70 cal.)
Cabbage	Vitamin C, kalium, folacin, B6, dietary fiber	100 g = 110 KJ (26 cal.)
Carrot	Vitamin A, C, B6, dietary fiber	120 g = 125 KJ (30 cal.)
Celery Vitamin C,	kalium 80 g = 55 KJ	(7 cal.)
Cucumber Vitamin C	280 g = 120 KJ	(29 cal.)
Fennel Vitamin C,	dietary fiber	300 g = 145 KJ (35 cal.)
Grape Vitamin C,	B6, kalium	125 g = 355 KJ (85 cal.)
Kiwi fruit Vitamin C,	kalium 100 g = 100 KJ	(40 cal.)
Hami melon Vitamin C,	folacin, dietary fiber, vitamin A	200 g = 210 KJ (50 cal.)
Nectarine (no pit)	Vitamin C, B3, kalium, dietary fiber	180 g = 355 KJ (85 cal.)
Peach (no pit)	Vitamin C, B3, kalium, dietary fiber	150 g = 205 KJ (49 cal.)
Pear Dietary fiber	150 g = 205 KJ	(60 cal.)
Pineapple Vitamin C	150 g = 250 KJ	(59 cal.)
Strawberry Vitamin C,	ferrum, kalium and magnesium	125 g = 130 KJ (31 cal.)
Tomato Vitamin C,	dietary fiber, vitamin E, foalcin, vitamin A	100 g = 90 KJ (22 cal.)

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline

determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The manufacturer shall not be liable for any damage resulting from unintended use or improper handling of the appliance.

The manufacturer reserves the right to modify the product at any time, without prior notice, in order to adapt it to the requirements of laws, standards, directives, or to improve its construction due to commercial, aesthetic or other reasons.

Black and white industrial turbine or impeller component with a metallic shaft (no visible text or symbols)

Close-up of a hand pressing down on a black appliance (no visible text or symbols)

Hand placing a black filter into a black appliance on a stovetop (no text or symbols visible)
