USER MANUAL PACK TRIDER MATRIX LIGHT JANE

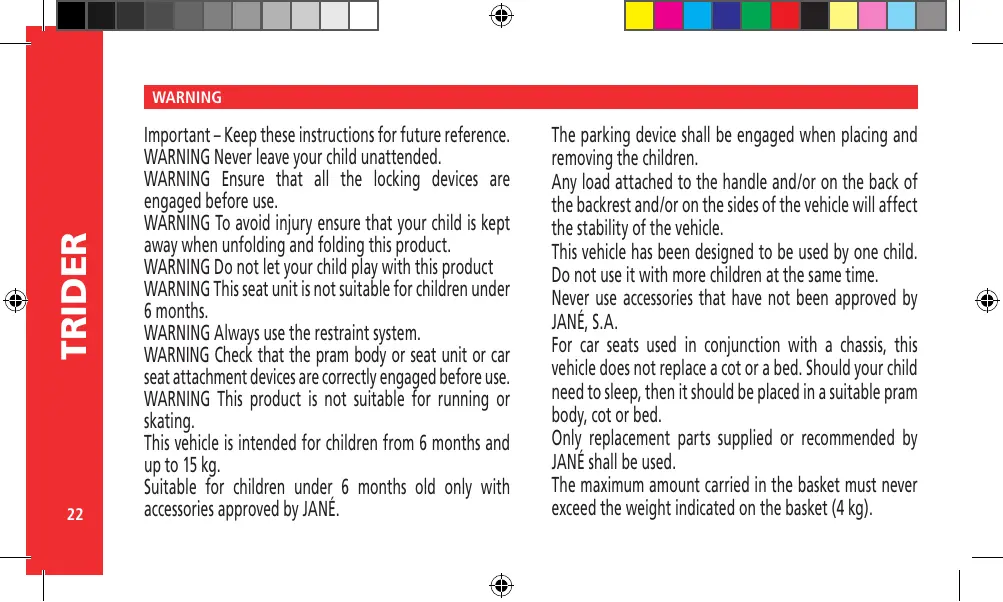

Important - Keep these instructions for future reference.
WARNING Never leave your child unattended.

WARNING Ensure that all the locking devices are engaged before use.

WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.

WARNING Do not let your child play with this product

WARNING This seat unit is not suitable for children under 6 months.

WARNING Always use the restraint system.

WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use. WARNING This product is not suitable for running or skating.

This vehicle is intended for children from 6 months and up to 15kg

Suitable for children under 6 months old only with accessories approved by JANE.

The parking device shall be engaged when placing and removing the children.

Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.

This vehicle has been designed to be used by one child.

Do not use it with more children at the same time.

Never use accessories that have not been approved by JANE, S.A.

For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

Only replacement parts supplied or recommended by JANÉ shall be used.

The maximum amount carried in the basket must never exceed the weight indicated on the basket (4kg)

1.- FITTING AND REMOVING THE WHEELS

Before using the TRIDER pushchair for the first time it is necessary to fit the rear wheels. To fit the wheels press the button on the middle of the wheel and insert the axle into the rear wheel bearer and push until it slots firmly into place. If you need to remove the wheels, press the central button and take the wheel off. 1a

To assemble the front wheel fit the upper axle into the lower part of the frame until it clicks into place.

If you need to detach it, press the button on the inside of the frame and take the wheel off. 2.a

2.- FOLDING AND UNFOLDING

To unfold your TRIDER, lightly press the bar on the back to tilt the buggy and make it easier to manoeuvre. 3 Then hold the handlebar with one hand while you press the locking pedal at the bottom on the right. 4 Pull the handlebar and unfold until it clicks and locks into place. 5

To fold your TRIDER place the hammock in the folding position (P) (see ADJUSTING THE ANGLE OF THE SEAT).

Then pull the two slide catches on the sides and push the handlebar forwards until the pushchair is completely folded.

7-7.a

When folding the pushchair it is useful to place the hammock facing forwards as this makes it fold up more compactly.

WARNING: You must make sure that the child is kept away from the pushchair while it is being folded or unfolded. During these operations the appearance of sharp points and compression areas are inevitable.

3.- PRO-FIX SYSTEM

The chassis of your pushchair is fitted with the PRO-FIX system, making it ready for the following baby carriers and child Restraint Systems to be attached: Micro, Transporter, Matrix Light and Strata 8-9 The PRO-FIX system makes it easier to attach and remove these accessories to and from the chassis, securing them to the chassis in a quick, simple and safe way. To do this follow the instructions for these accessories carefully.

WARNING: It is necessary to remove the hammock from the pushchair to attach any of the auto accessories.

4.- FITTING AND REMOVING THE HAMMOCK

Your TRIDER is fitted with the pro-fix system. With this system, the TRIDER hammock can be attached perfectly to the chassis. What's more, the hammock is reversible so it can be positioned facing you or facing forwards.8-9

To take the hammock off, simultaneously pull the unlocking levers situated on both sides of the hammock.

The hammock can be reclined so your baby can travel in the most comfortable position possible at all times. Pull the lever on the upper part of the hammock and tilt it to one of the 3 possible positions. 10

WARNING: Position P is only to be used when folding the pushchair, you must not use this position when your baby is in the hammock.11

6.- USING THE SAFETY ARMREST

The safety armrest is designed to fit into the slots on the hammock.

If required it is possible to release one side of the armrest and it will still be completely articulated by the other side. There are buttons on the lower part to do this. 12-12a

WARNING: The child should be kept away from the mobile parts when the responsible adult is handling these. The appearance of cutting, compression and pinch points are inevitable during these operations.

7.- USING THE HOOD

To fasten the hood onto the frame of the hammock, slide it from the top down to the corresponding slots on the central part. Use the zip on the hood to attach it to the frame. 13-13a Follow the same steps in reverse order to take the hood off.

8.- ADJUSTING THE HANDLEBAR

The handlebar can be set to 7 different positions. Simultaneously press the buttons on both sides of the handlebar.14

9.- SEAT BELT

Your pushchair has a safety harness to keep your child safe at all times. Fit the belt onto the child whenever he is using the pushchair. 15

10.- ADJUSTING THE FOOTREST

The footrest can be adjusted to 5 different positions. Use your thumb to simultaneously press the two buttons on the lower part of the hammock. 16

PUTTING THE BRAKE ON: Push the lever downwards. 17

TAKING THE BRAKE OFF: Pull the lever upwards. 17.a

To adjust the brake:

If you need a more precise adjustment follow the indications in figure.18

WARNING: When the brake is on make sure that the pushchair has braked correctly. It may be necessary to push the pushchair slightly for the brake to be fully activated.

12.- ADJUSTING THE STRENGTH OF THE SUSPENSION

To increase the strength turn the lever clockwise. 19

To reduce it turn the lever anti-clockwise. 19.a

13.- FRONT WHEEL LOCK

To lock the front wheel, press the button found behind the front wheel bearer. 20

14.- MAINTENANCE

Do not expose the cover to sunlight for long periods.

Wash the plastic parts with warm water and soap and carefully dry all the components after.

The cover can be removed for washing.

Regularly check the brakes, harnesses and fastening elements that may suffer wear and tear through use.

Regularly grease the mobile parts and mechanisms with a silicone-based spray. Do not use oil or grease.

Remember to adjust the brake from time to time using the method explained in figure.18

For your safety and the good conservation of this product, it is important to bring it to one of our official workshops for regular inspections.

15.- RAIN COVER

The rain cover of your TRIDER is very easy to fit, simply cover the hammock and fit the hooks onto the chassis to secure it. The rain cover has a small window which can be rolled up and held with Velcro so the child is free to investigate his surroundings.[21]

INFORMATION ABOUT THE GUARANTEE

This article comes with a guarantee in accordance with the provisions of law 23 / 2003 of 10th July. Keep your receipt as proof of purchase, it is essential to present the receipt in the shop where you bought the product to confirm validity of the guarantee in the event of any problems.

This guarantee excludes any defects or breakages caused by inappropriate use of the article or inobservance of the safety and maintenance rules listed in the instruction pages and on the care labels, as well as faults caused by wear and tear through normal use and daily handling.

The label displaying the chassis number of the model should never be taken off, it contains important information.

Notice:

For the maximum safety and care of your new JANÉ product, it is very important that you complete the registration card found on the web page www.jane.es

This registration means we can inform you, if necessary, of the evolution and maintenance of your product. Additionally, if you would like, we can also inform you about new models or news that we think may be useful for you.
