Muum Pro 2 - Stroller JANE - Free user manual and instructions

Product type	Stroller (carrycot)
Brand	JANE
Model	Muum Pro 2
Dimensions (folded)	Approximately 85 x 60 x 35 cm
Dimensions (unfolded)	Approximately 100 x 60 x 40 cm
Weight	Approximately 10 kg
Maximum load	15 kg
Recommended age	From birth to approximately 3 years
Harness type	5-point harness
Number of wheels	4 wheels
Handle	Height adjustable (3 positions)
Folding system	Compact fold
Car seat compatibility	Compatible with Matrix Light car seat via Pro-Fix system
Cover	Removable and hand washable (30°C max)
Care	Clean plastic parts with warm water and soap
Safety	Brake, 5-point harness, Pro-Fix system
Warranty period	2 years (estimate)
Frame material	Aluminum
Wheel type	Inflatable or foam (estimate)

Frequently Asked Questions - Muum Pro 2 JANE

How to fold the Muum Pro 2 stroller?

To fold the stroller, lower the handle to transport position (position 2), then activate the folding mechanism located on the side of the frame. Refer to the manual for detailed steps.

Can I use a car seat with this stroller?

Yes, the Muum Pro 2 stroller is compatible with the Matrix Light car seat from JANE via the Pro-Fix system. Simply insert the couplers into the frame cavity until you hear a click.

How to adjust the transport handle?

The handle has 3 positions: canopy folded (position 1), transport (position 2) and auto (position 3). Press the push buttons (2) and turn the handle to the desired position.

What is the maximum weight supported by the stroller?

The maximum weight for the child is approximately 15 kg. Always check the limits indicated in the instructions.

How to clean the stroller cover?

The cover is removable. Hand wash it at a temperature not exceeding 30°C. Use warm water and mild soap. Do not dry it in the sun.

Is the stroller suitable from birth?

Yes, the Muum Pro 2 stroller can be used from birth with a bassinet or an adapted car seat. In carrycot mode, make sure to use the reclined position.

How to install the car seat on the frame?

To attach the Matrix Light car seat to the frame, insert the seat couplers into the frame cavity and press until you hear a click. To remove it, press the handle unlocking devices.

What if the car seat belt is too short for the car seat?

Slightly recline the car seat backrest, move the car seat back, or lower the shoulder belt height adjuster. Consult the manual for details.

Does the stroller have a braking system?

Yes, the stroller is equipped with a braking system. Always activate it when stopping.

Where to find spare parts for the stroller?

Contact JANE customer service or visit their website www.janeworld.com to order original spare parts. Only use parts approved by the manufacturer.

USER MANUAL Muum Pro 2 JANE

General Instructions 18

Getting to know the MATRIX LIGHT safety seat 19

Installing in the vehicle

Comfort and safety for the baby

Comfort for the parents

1. Prior adjustments 20

Adjusting the height of the shoulder straps

Changing the position of the handle

Choosing where to install the safety seat

1. Installing the seat in the car 22

Reclining position, GROUP 0

Sitting position, GRUPO 0+

1. Placing the baby in the safety seat 23

2. Using your MATRIX LIGHT in a pushchair 23

WARNING 24

RECOMMENDATIONS 25

MAINTENANCE 25

INFORMATION ABOUT THE GUARANTEE 26

PART LIST

1-CARRYING HANDLE
2-HANDLE POSITION BUTTON
3- PRO-FIX RELEASE CATCH
4- LEVER TO RECLINE THE BACKREST
5-INTEGRAL 5-POINT HARNESS
6-HARNESS TIGHTENER
7-HARNESS TIGHTENER LOCK
8- SHOULDER PADDING
9-INTEGRATED CLAMP FOR GROUP 0
10- GROUP 0+ FRONT GUIDE
11- VENTILATION CHANNELS
12- INSTRUCTIONS
13- PRO-FIX CONNECTORS
14-UPHOLSTERY
15- SHOULDER STRAPS AUTOMATIC ADJUSTMENT SYSTEM
16- GROUP 0+ SHOULDER STRAP GUIDE WITH LOCK

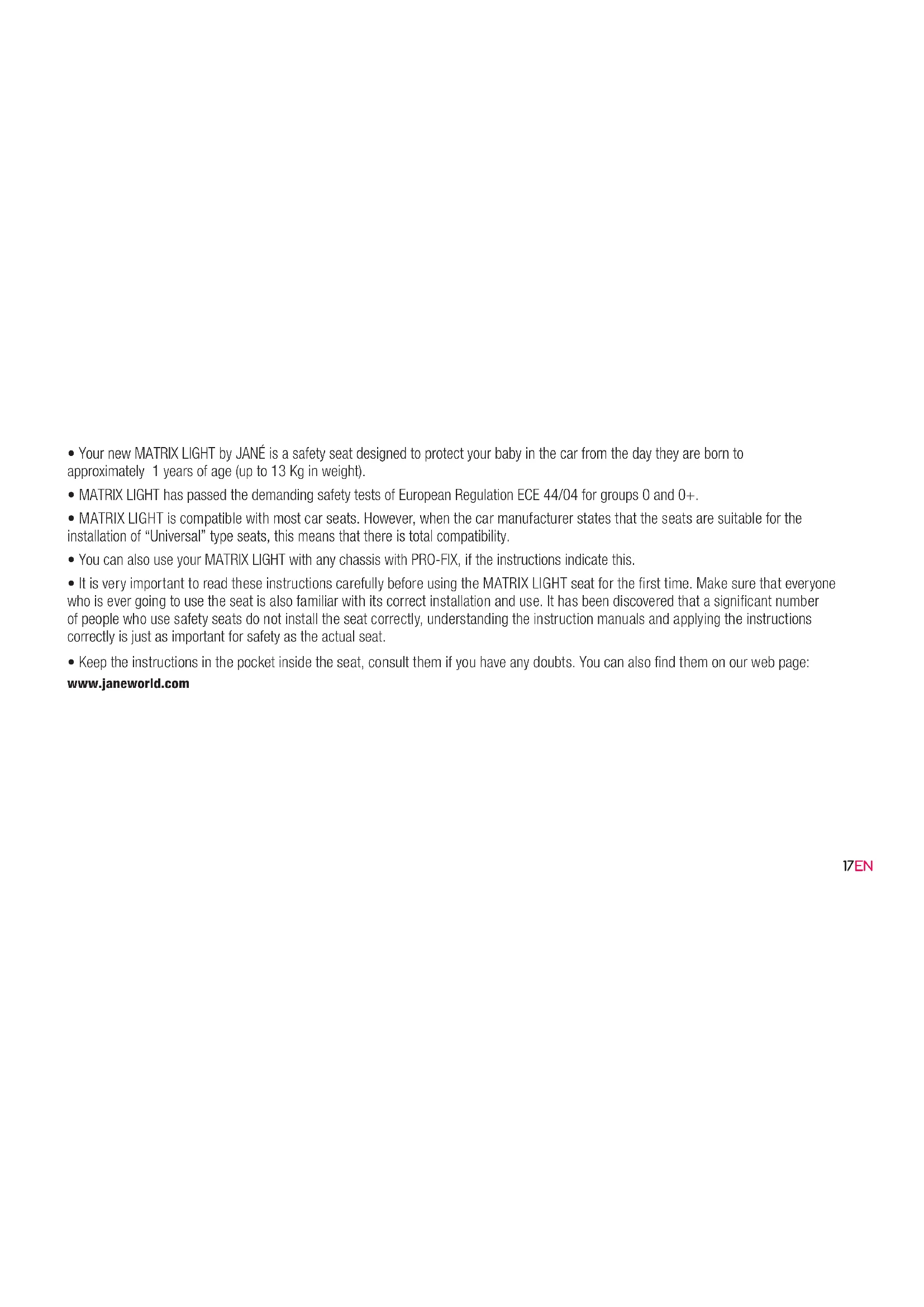

• Your new MATRIX LIGHT by JANE is a safety seat designed to protect your baby in the car from the day they are born to approximately 1 years of age (up to 13Kg in weight).
• MATRIX LIGHT has passed the demanding safety tests of European Regulation ECE 44/04 for groups 0 and 0+ .
• MATRIX LIGHT is compatible with most car seats. However, when the car manufacturer states that the seats are suitable for the installation of "Universal" type seats, this means that there is total compatibility.
• You can also use your MATRIX LIGHT with any chassis with PRO-FIX, if the instructions indicate this.
• It is very important to read these instructions carefully before using the MATRIX LIGHT seat for the first time. Make sure that everyone who is ever going to use the seat is also familiar with its correct installation and use. It has been discovered that a significant number of people who use safety seats do not install the seat correctly, understanding the instruction manuals and applying the instructions correctly is just as important for safety as the actual seat.
• Keep the instructions in the pocket inside the seat, consult them if you have any doubts. You can also find them on our web page:

www.janeworld.com

GENERALINSTRUCTIONS

In order to protect your baby adequately and to ensure their comfort and stability in the car, the following instructions must be strictly followed:

• Your MATRIX LIGHT safety seat can be installed in both the front seat, if it does not have an airbag, and in the back seat of your car. Either way, we advise you to install it in the back seat. If you position it in the front seat of the car, this must NOT have an AIRBAG, or the airbag must be disconnected.
  It is only suitable for cars fitted with three anchoring point automatic belts, approved according to Regulation ECE-16 or other equivalent rules. DO NOT use with a two anchoring point belt.

• Not all safety systems are exactly the same, so we advise that you check your MATRIX LIGHT in the car in which it is going to be fitted.
  It is very important not to use second-hand products, as JANE can only guarantee complete safety with items used by their first buyer. JANE recommends that you replace your MATRIX LIGHT safety seat with a new one if it has been subjected to violent stresses in an accident.

• Check that all the straps are in the correct position and duly adjusted to your MATRIX LIGHT. Make sure that none of the straps are twisted. The child must understand that he must not play with the straps or fasteners under any circumstances.

• For your baby's proper development, we advise you not to over-use the safety seat in the seated position on long journeys. Let the baby rest frequently in a Moses basket or bed in the reclining position.

GETTING TO KNOW THE MATRIX LIGHT SAFETY SEAT

Your MATRIX LIGHT safety seat has been designed taking into account the latest advances in terms of safety and it has been tested under the toughest conditions. It has the following features:

Installing in the vehicle:

• Belt slots underneath the shell to permit installation in cars where the belts are shorter. It also leaves the area around the baby's feet free.
• Car seat belt lock that tightens the seat for more stability in the sitting position.
  New anchorages for the reclining position to help with installation.
• Chassis ready for installation on a base with ISOfix system (optional). Install the seat in your car with a simple click and no need to thread seat belts through.

Comfort and safety for the baby:

• Integrated 5-point straps, with a greater fastening area, so distributing loads on the baby better in the event of an accident.
• Aeration in the shell to permit transpiration. Impact-absorbent material over the entire surface in contact with the baby.

4-position reclining backrest:

R1 - Group O position, so that the baby can travel fully reclining. Highly recommendable option for the first months.
R2/R3-Intermediate position. (Not suitable for in the car.) R4 - Group 0+ position, so that the baby can travel seated.

Comfort for the parents:

Pro-Fix fasteners compatible with the JANE chasses.
- Carrying handle with 3 positions.
- Height adjustment for the straps simply by pressing a button. Avoids the inconvenience of having to fasten and unfasten straps when you need to change the height of the straps.
Removable upholstery.

1 PRIOR ADJUSTMENTS

Adjusting the height of the shoulder straps Changing the position of the handle

For maximum protection the shoulder straps of the MATRIX LIGHT safety seat should be adjusted to just above the baby's shoulders. Check this height with the baby in the sitting or lying down position in the safety seat. The straps can be adjusted using a tightener so that the seat adjusts to your baby during the whole stage of growth.

The MATRIX LIGHT safety seat has a quick shoulder strap height adjustment system, you just have to press a button and slide the adjustment mechanism along the backrest.

1a MATRIX LIGHT has 6 different heights for the shoulder straps. There are two possible ways of changing the position:

1a.1 To change the position when lying down, pull the plastic flap and slide the adjustment mechanism.
1a.2 To change the position when sitting down, press the button on the backrest and slide it to the required position.

Release the button or flap and move the adjustment mechanism to the nearest locking position, it should click into place. Check that it is locked by pulling the adjustment mechanism.

The carrying handle has 3 positions (figure 1b), each one of them has a specific function:

Position 1: Hood folded. Does not have a lock.

Position 2: Carrying position. Position for installing the seat and taking it off a JANE chassis and for carrying.

Position 3: AUTO position. For travelling in the car.

To change the position, press the buttons (2) and turn the handle to the required position.

CAUTION Check and adjust the height and length of the shoulder straps as the baby grows.

Choosing where to install the safety seat

Correctly choosing where to position the safety seat in the car can reduce the risk of injury to the baby in the event of an accident.

Reclining position, Group 0. The safety seat must be installed cross-wise in the back seats. MATRIX LIGHT occupies two seats: you can choose between a side and a middle seat, so an adult can travel alongside, or completely in the middle. If you decide on middle and side seats, place the MATRIX LIGHT so that the head is as far as possible from the door.

Seated position, Group 0+. Whenever possible, install the safety seat in the back seats. It is highly advisable that someone travels alongside the baby to take care of them. Of the three back seats, the middle one is the safest.

If you are travelling alone with your baby, it is a good idea to keep them in sight without being distracted while driving. You can position them in the passenger seat, providing it does NOT have an airbag or the airbag IS DISCONNECTED. Do not be distracted for any reason while driving: to take care of the baby, stop the car completely in a safe place.

2 INSTALLING THE SEAT IN THE CAR

Reclining position, GROUP 0 Sitting position, GRUPO 0+

In the reclining position, MATRIX LIGHT must be fitted cross-wise on the back seats. Decide on which seats after reading the section on:

"Choosing where to install the safety seat".

2a Unfasten the clamp, to do this, first release the catch by turning the red lever.
Insert the seat belt between the hold-down plate and the carrycot and fasten the clamp.
2c -Press the carrycot while tightening the seat belt.

To take the MATRIX LIGHT carrycot out of the vehicle, follow the same steps in reverse order, release the catch by turning the red lever, unfasten the aluminium lock and remove the seat belt.

The MATRIX LIGHT safety seat must be installed FACING AWAY FROM THE DIRECTION OF TRAVELLING. Decide on which seat after reading the section on:"Choosing where to install the safety seat".

2d - Fasten the 3-point belt.
2e- Place the safety seat on the seat of the vehicle. Put the handle in the AUTO position, position 3 in diagram 1b.
Pass the abdominal part of the car seat belt through the two front guides situated on the sides of the frame.
2g- The shoulder belt of the car should be passed behind the safety seat.
2h - Tighten this part of the belt and fasten the locking clip. Make sure that the seat is firmly fastened by pulling it.

If you observe that the car seat belts are not long enough, you can adjust the following parameters to improve this:
- Recline the backrest of the car seat a little.
- Move the car seat back.
- Adjust the shoulder height regulator of the car seat belts to the lowest position.

EN22

3 PLACING THE BABY IN THE SAFETY SEAT

3a - Unfasten the buckle.
Bb - Loosen the harness by pulling the shoulder straps while pressing the tightening button.
3c- Place the baby in the safety seat, ensuring that they are sitting well back and that their back is straight. Join the top ends of the buckles.
3d - Insert them in the central lock and press until you hear a click.
3e - Tighten the shoulder straps and pull on the tightening strap.

4 USING YOUR MATRIX LIGHT IN A PUSHCHAIR

MATRIX LIGHT can be anchored on any JANE chassis that has the PRO-FIX system.

To fasten the safety seat onto a chassis, insert the connectors into the slots on the chassis and press until they click.
To release your MATRIX LIGHT from the chassis, press the catches on the handle and pull the seat upwards.

WARNING

DO NOT use with a two anchoring point belt.
Not all safety systems are exactly the same, so we advise that you check your MATRIX LIGHT in the car in which it is going to be fitted.
It is very important not to use second-hand products, as JANE can only guarantee complete safety with items used by their first buyer.

Never leave the baby on their own.

Always remember to carry your baby with the safety harnesses correctly buckled.
For your baby's proper development, we advise you not to over-use the carry cot in the seated position on long journeys, letting the baby rest in the reclining position (for babies up to 10Kg
Any alteration or addition to the device without proper authorisation from JANE may seriously alter the safety of the retaining system.

Failure to follow the instructions carefully for the correct use of the retaining system may be dangerous for the safety of the baby.

This safety device must not be used without the upholstery or the mattress pad, or be used with others that are not the originals, as they form an integral part of the safety features of the system. Check that the seat has been positioned correctly.

EN24

• Ensure that the belt has not been caught between the folding seats or doors.
  It is only suitable for cars fitted with three anchoring point automatic belts, approved according to Regulation ECE-16 or other equivalent
  rules.

WARNING: This Child Restraint System should not be used as a reclined cradle. It should only be used in vehicles and on pushchairs that

have been approved by Jane.

WARNING: Check the road traffic regulations in the country where you are travelling. The use of your child restraint system may be restricted.

RECOMMENDATIONS

• Keep this instruction book for future reference. Always keep it in the pocket inside the seat.
• Ensure that inside the car, both luggage and any other object liable to cause injury in the event of an accident are properly fastened or stored.
  The MATRIX LIGHT safety seat should be properly fixed with the safety belts, even when not in use, as in the event of an accident it may be thrown about, causing injury to the occupants of the vehicle.
• Remember not to use the MATRIX LIGHT safety seat in cars fitted with a front airbag, unless it is disconnected or disabled, for which you should consult the car manufacturer or retailer.

MAINTENANCE

• Do not expose the cover to sunlight for long periods. When the seat is not in use, cover it or store it in the boot.

• Wash the plastic parts with warm water and soap, carefully drying all the components afterwards.
  The upholstery can be removed for washing. Follow the instructions below:

• Unfasten the safety harness clip and pass it through the slot in the upholstery.
  Take off the rubber bands that go underneath the car seat belt fasteners.

• And take off those that are on the base next to the handle.
• Take the upholstery off the MATRIX LIGHT safety seat.

• Undo the Velcro strips that are in the area of the seat belts and pull the upholstery.

• Wash by hand at a temperature never higher than 30^ .
  To refit the cover, follow the same steps in reverse order.

• For your safety and the good conservation of this product, it is important to bring it to one of our official workshops for regular inspections.

You can access the link: www.janeworld.com for further information on fitting your new MATRIX LIGHT.

INFORMATION ABOUT THE GUARantee

• This item is guaranteed against manufacturing defects as stipulated in the legal Directives and/or regulations in force on guarantees for consumer goods applicable to the European Union and those of the country in which it is marketed.
• It is essential to present the purchase invoice or receipt in order to process the guarantee through the seller of the item or, failing that, through the manufacturer.
• The guarantee excludes anomalies or faults caused by misuse, noncompliance with the safety regulations and instructions for use and maintenance provided, or due to wear and tear caused by normal use and regular handling of the item.
• The label containing the serial number of your model must not be torn off under any circumstances as it contains information relevant to the guarantee.
