SDM-S205 - Monitor SONY - Free user manual and instructions

Product type	LCD monitor
Brand	Sony
Model	SDM-S205
Screen size	20.1 inches (diagonal)
Native resolution	1600 x 1200 pixels (UXGA)
Aspect ratio	4:3
Brightness	250 cd/m²
Contrast ratio	500:1
Response time	16 ms
Viewing angle (horizontal/vertical)	170° / 170°
Connectivity	VGA (D-Sub), DVI-D
Power supply	100-240 V AC, 50/60 Hz
Power consumption (typical)	45 W
Standby power consumption	Less than 1 W
Dimensions (with stand, W x H x D)	452 x 452 x 235 mm
Weight (with stand)	7.2 kg
Main features	OSD menu, automatic source detection, image adjustments
Care and cleaning	Use a soft, dry cloth; avoid solvents
Safety	Use a grounded outlet, do not open the case
Spare parts and repairability	Not applicable, contact an authorized service center

Frequently Asked Questions - SDM-S205 SONY

How to adjust the brightness on the Sony SDM-S205?

Use the front panel buttons to access the OSD menu, then navigate to 'Brightness' and adjust using the +/- buttons.

What is the maximum resolution supported by this monitor?

The native resolution is 1600 x 1200 pixels (UXGA). It can also support lower resolutions.

How to connect a computer to the Sony SDM-S205?

Connect the provided VGA or DVI-D cable between the monitor and your computer. The monitor automatically detects the source.

Does the monitor have built-in speakers?

No, the Sony SDM-S205 is a monitor without built-in speakers. Use external speakers.

How to clean the monitor screen?

Turn off the monitor and gently wipe the screen with a soft, dry cloth. Never use any chemicals.

What to do if the screen remains black?

Check that the power cable is plugged in and the monitor is turned on. Make sure the video cable is properly connected and the computer is running.

How to change the OSD menu language?

Press the Menu button, go to 'Language', and select your language from the available options.

Is the monitor compatible with a VESA mount?

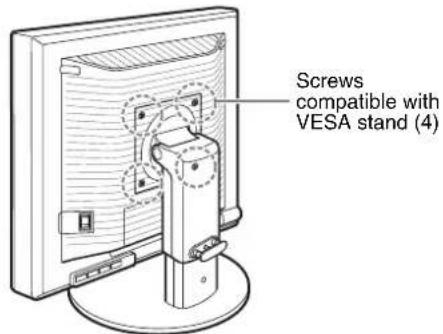

Yes, the Sony SDM-S205 is compatible with the VESA 100 x 100 mm standard for wall mounting.

What is the power consumption in standby?

In standby mode, the consumption is less than 1 watt.

How to activate standby mode manually?

Press the power button to turn off the monitor. It automatically enters standby if no signal is detected.

USER MANUAL SDM-S205 SONY

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

目次

使用上のご注意 4

ディスプレイの型名を確認する 5

各部の名前とはたらき 5

接続と設定....6

準備 1：スタンドを組み立てる 6

TCO'99 Eco-document (for the black model) ..... i

TCO'03 Eco-document (for the silver model) .....ii

使用上のご注意

電源について

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

3 本機にビデオ信号ケーブルをつなぐ。

Diagram showing a computer monitor connected to a wall-mounted cable, with an inset close-up of the lock mechanism (no text or symbols present)

ご注意

Illustration of hands holding a rectangular object with an upward arrow, no text or symbols present

高さ調整スタンド 約 110 mm

ピボットスタンド 約 130 mm

Diagram of a device with a cable and directional arrows indicating motion or force (no text or symbols)

Simple line drawing of a tilted rectangular object with a base and explosion sparks (no text or symbols)

Illustration of a hand pressing down on a flat-screen monitor with an arrow indicating rotation (no text or symbols)

3 調整する。

4 メニューを消す。

This display is designed for use in Japan only and cannot be used in any other country.

主な仕様

TCO'99 Eco-document (for the black model)

■Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled

products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■Emissions

• Electromagnetic fields
- Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

- Belgium: www.recupel.be

• Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
• Norway: www.elretur.no
• Sweden: www.el-kretsen.se

• Switzerland: www.swico.ch

• If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205 *

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA

92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Be sure to confirm the carton that came with your display. The ID label of your display model is located at the rear of the display.

NOTICE

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Table of Contents

Precautions....4

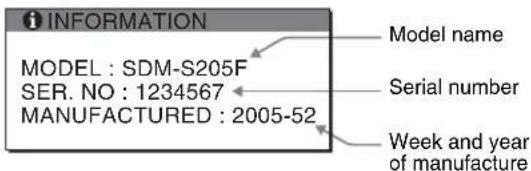

Checking the model name of the display 5

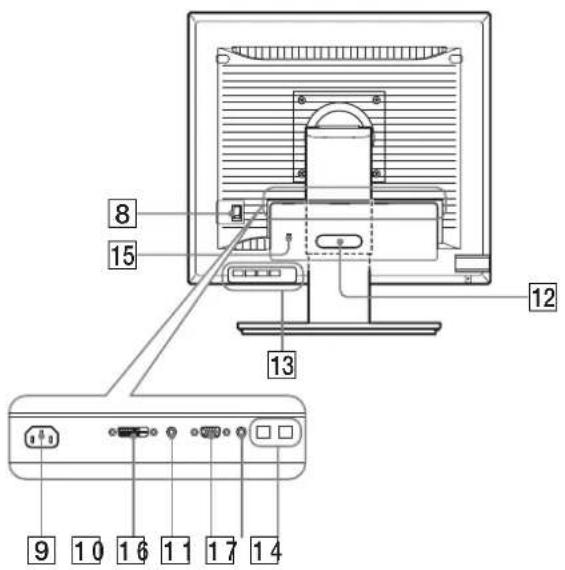

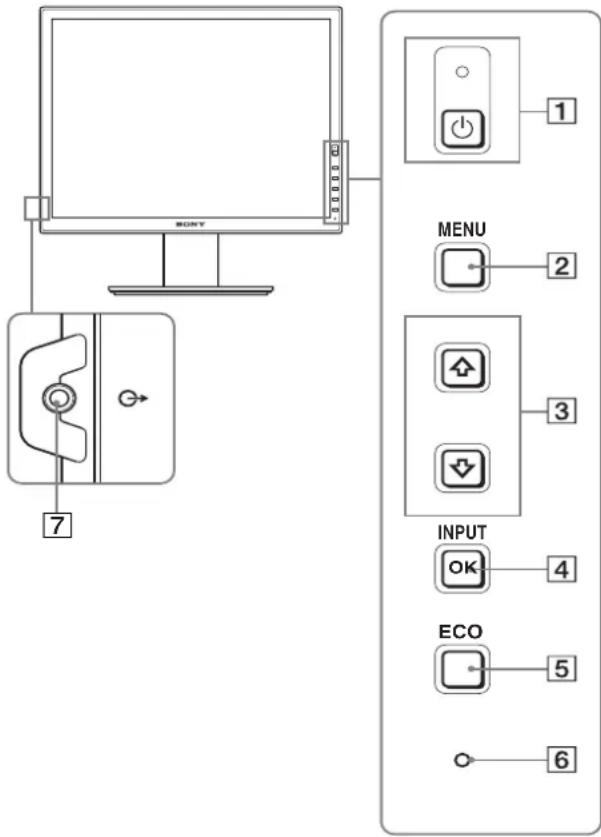

Identifying parts and controls 5

Setup....6

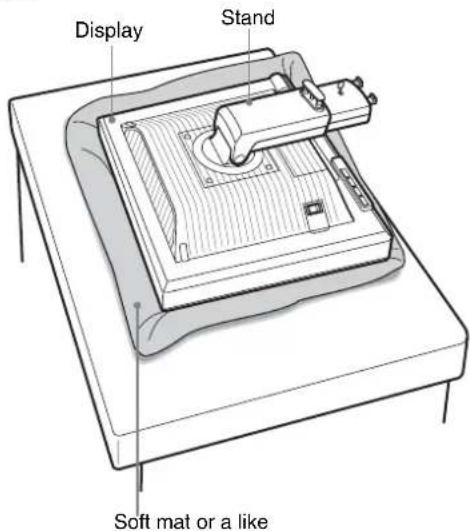

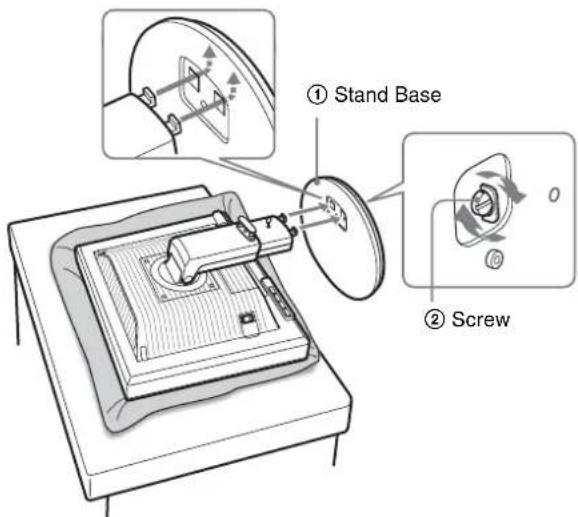

Setup 1: Assemble the stand....6

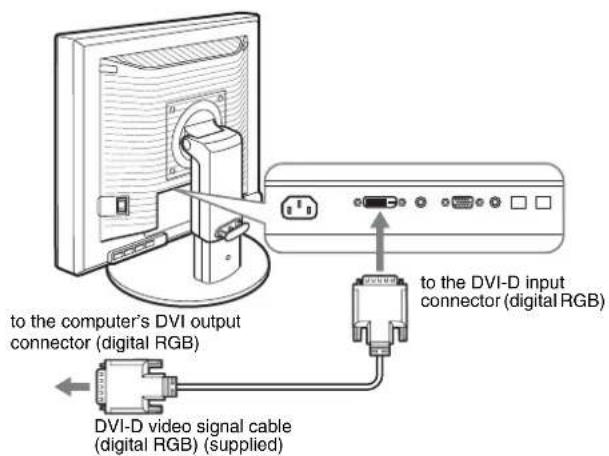

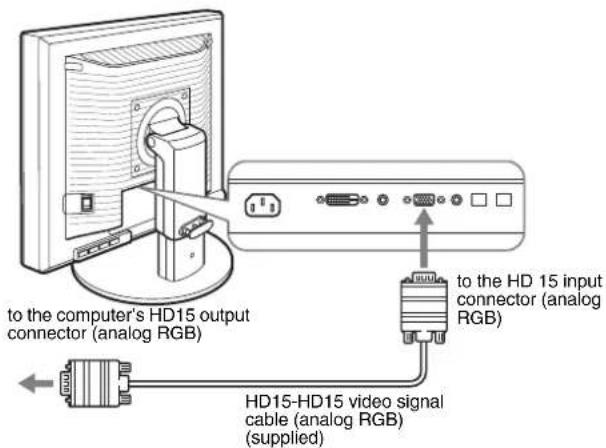

Setup 2: Connect the video signal cables ..... 7

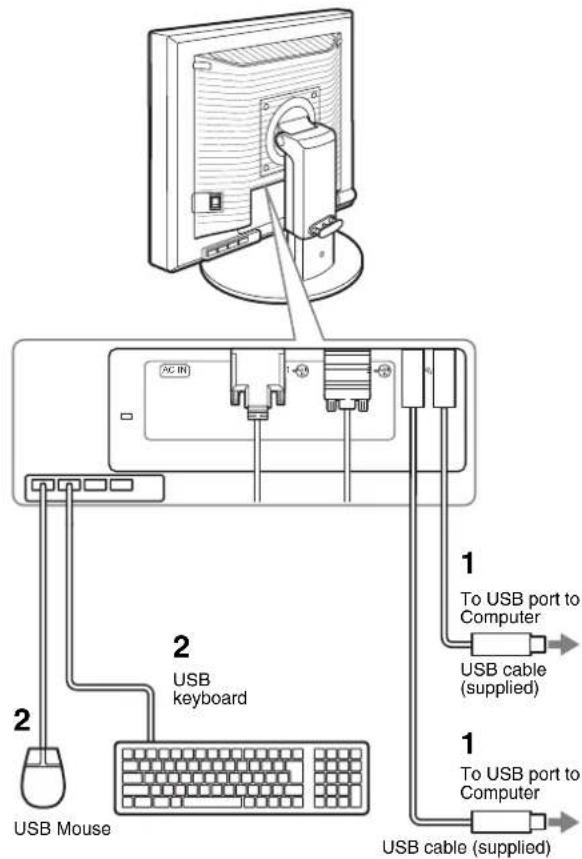

Setup 3: Connect the USB mouse or the USB keyboard or other devices (USB port-equipped models only). . . . . . 8

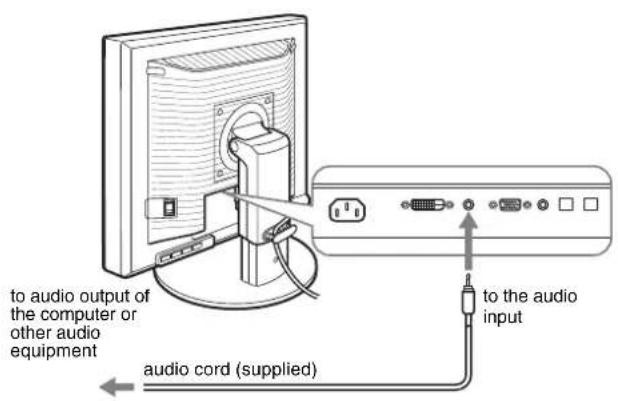

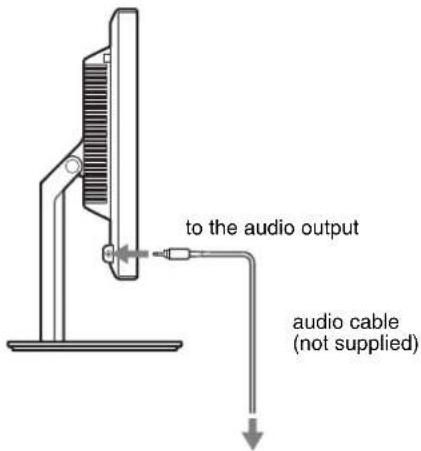

Setup 4: Connect the audio cords .....9

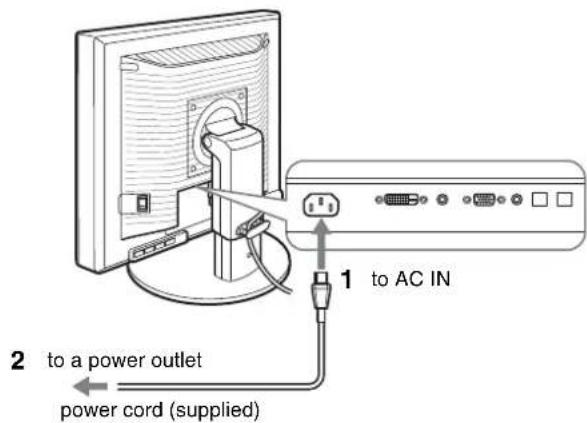

Setup 5: Connect the power cord ..... 9

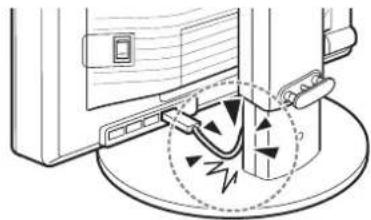

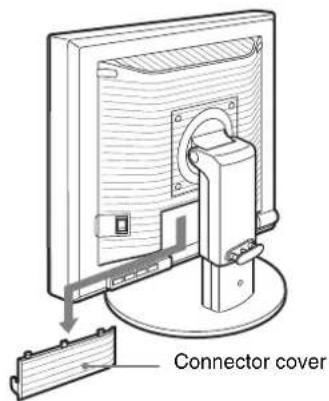

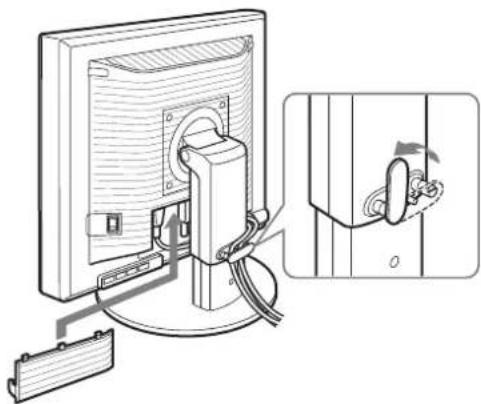

Setup 6: Secure the cords and close the connector cover .....9

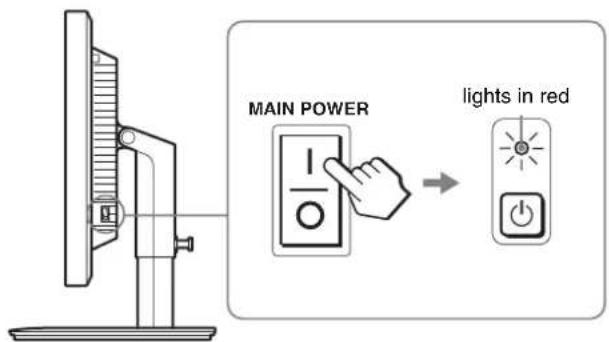

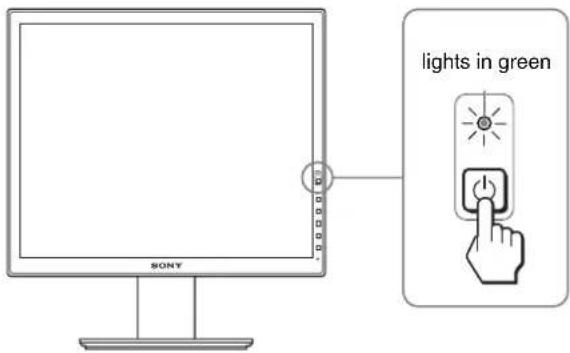

Setup 7: Turn on the display and computer ..... 10

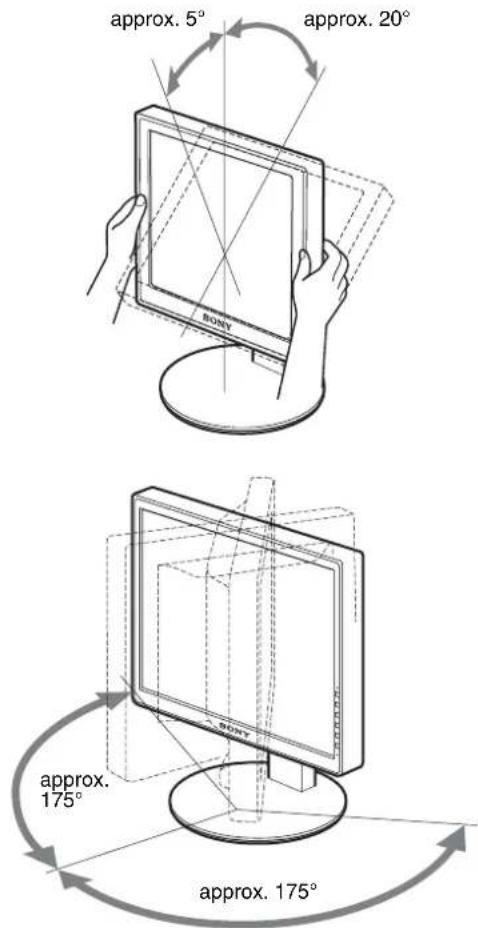

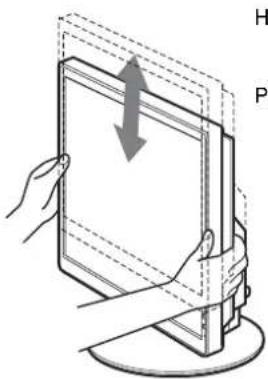

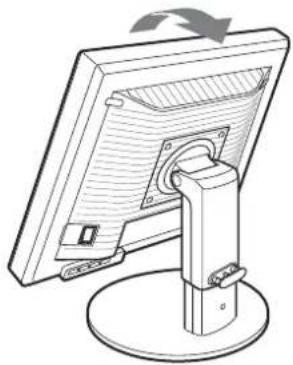

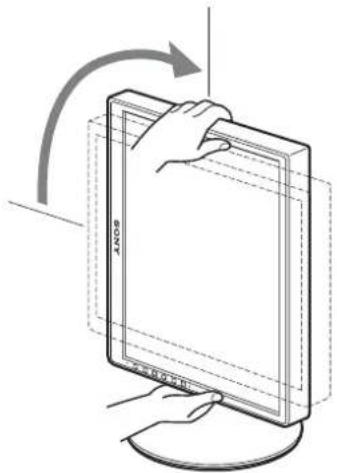

Setup 8: Adjust the tilt and height ..... 11

Switching your picture to portrait/landscape (For the Pivot Stand attached models only)....12

Selecting the input signal (INPUT1/INPUT2) ..... 12

Customizing Your Display ....13

GB

Navigating the menu....13

Menu options list.... 14

PICTURE ADJUST menu....15

A SCREEN menu (analog RGB signal only) 15

ZOOM menu 16

MENU POSITION menu 16

→ INPUT SENSING menu 16

A LANGUAGE menu 17

→← RESET menu (reset to the default setting) ..... 17

ON MENU LOCK menu 17

OPTION menu 17

Technical Features ....17

Power saving function....17

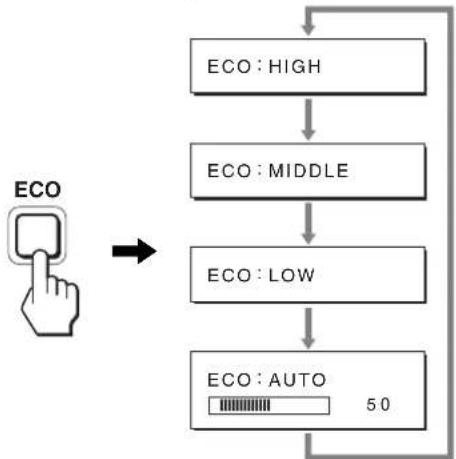

Reducing the power consumption (ECO mode) 17

Automatic brightness adjustment function (light sensor) ..... 18

Automatic picture quality adjustment function (analog RGB signal only) 18

KVM function (Keyboard-Video-Mouse function) ..... 18

Troubleshooting....19

On-screen messages 19

Trouble symptoms and remedies 20

Specifications....23

http://www.sony.net/

TCO'99 Eco-document (for the black model) .....i

TCO'03 Eco-document (for the silver model) ..... ii

Precautions

Warning on power connections

- Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply. For the customers in the U.S.A.

If you do not use the appropriate cord, this display will not conform to mandatory FCC standards.

For the customers in the UK

If you use the display in the UK, be sure to use the appropriate UK power cord.

Example of plug types

Three line drawings of different types of electrical plugs (no text or symbols)

for 100 to 120 V AC for 200 to 240 V AC for 240 V AC only

The equipment should be installed near an easily accessible outlet.

Installation

Do not install or leave the display:

• In places subject to extreme temperatures, for example near a radiator, heating vent, or in direct sunlight. Subjecting the display to extreme temperatures, such as in an automobile parked in direct sunlight or near a heating vent, could cause deformations of the casing or malfunctions.
• In places subject to mechanical vibration or shock.
• Near any equipment that generates a strong magnetic field, such as a TV or various other household appliances.
• In places subject to inordinate amounts of dust, dirt, or sand, for example near an open window or an outdoor exit. If setting up temporarily in an outdoor environment, be sure to take adequate precautions against airborne dust and dirt. Otherwise irreparable malfunctions could occur.

Be careful not to touch the air vents on the upper rear of the display, since they become heated.

Handling the LCD screen

• Do not leave the LCD screen facing the sun as it can damage the LCD screen. Take care when you place the display by a window.
• Do not push on or scratch the LCD screen. Do not place a heavy object on the LCD screen. This may cause the screen to lose uniformity or cause LCD panel malfunctions.
• If the display is used in a cold place, a residual image may appear on the screen. This is not a malfunction. The screen returns to normal as the temperature rises to a normal operating level.
• If a still picture is displayed for a long time, a residual image may appear for a while. The residual image will eventually disappear.
• The LCD panel becomes warm during operation. This is not a malfunction.

Note on the LCD (Liquid Crystal Display)

Please note that the LCD screen is made with high-precision technology. However, black points or bright points of light (red, blue, or green) may appear constantly on the LCD screen, and irregular colored stripes or brightness may appear on the LCD screen. This is not malfunction.

(Effective dots: more than 99.99%)

Maintenance

• Be sure to unplug the power cord from the power outlet before cleaning your display.
• Clean the LCD screen with a soft cloth. If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the LCD screen's coating.
• Clean the cabinet, panel, and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.
• Note that material deterioration or LCD screen coating degradation may occur if the display is exposed to volatile solvents such as insecticide, or if prolonged contact is maintained with rubber or vinyl materials.

Transportation

• Disconnect all the cables from the display. If you use a height adjustable stand adjust its height to the highest position and hold both sides of the LCD display securely. Be careful not to scratch the screen when transporting. If you drop the display, you may injured or the display may be damaged.
• When you transport this display for repair or shipment, use the original carton and packing materials.

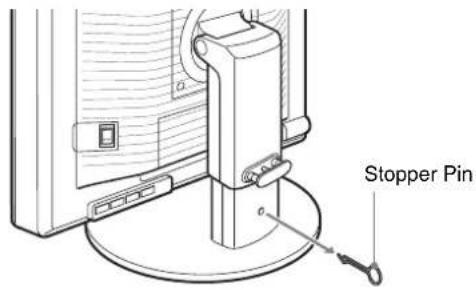

• Replace the stopper pin for the height adjustable stand to fix the stand during the transportation.

Disposal of the display

• Do not dispose of this display with general household waste.
• The fluorescent tube used in this display contains mercury. Disposal of this display must be carried out in accordance to the regulations of your local sanitation authority.

For customers in the United States

This product contains mercury. Disposal of this product may be regulated if sold in the United States. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance (http://www.eiae.org).

Checking the model name of the display

Check the model name of the display first.

The model name is located at the rear of the display (Example: SDM-S205F).

You cannot use some of the functions or menu options for certain display models.

Identifying parts and controls

See the pages in parentheses for further details.

The illustration only shows one of all the models that are available for this display.

Front of the display

The contents with *mark for specifications vary depending on the models. For details, see “Specifications” (page 23).

1 ⏻ (Power) switch and ⏻ (power) indicator (pages 10, 17)
This switch turns the display on when ⏻ (power) indicator is red. To turn the display off, press this switch again. If the ⏻ (power) indicator fails to light, press the MAIN POWER switch (8).

2 MENU button (page 13)

This button turns the menu screen on and off.

3 ↓/↑ buttons (page 13)

These buttons are used to select the menu items and make adjustments.

4 OK button (page 13)

This button activates the selected menu item and adjustments made using the ↓/↑ buttons (3).

INPUT (page 12)

These buttons switch the video input signal between INPUT1 and INPUT2 when two computers are connected to the display. (Only available when menu is turned off.)

5 ECO button (page 17)

This button is used to reduce the power consumption. When the menu screen is not displayed, you can also automatically adjust the picture quality for the current input signal while keeping pressing this button for more than 3 seconds (One touch Auto adjust). (analog RGB signal only)

6 Light sensor (page 18)

This sensor measures the brightness of the area surrounding the display. Be sure not to cover the sensor with paper, etc.

7 Audio output jack (page 9)

This jack outputs audio signals to speakers or other audio equipment.

Rear of the display

8 MAIN POWER switch (page 10)

This switch is to turn the MAIN POWER button of the display on and off.

9 AC IN connector (page 9)

This connector connects the power cord (supplied).

10 DVI-D input connector (digital RGB) (page 8)

This connector inputs digital RGB video signals that comply with DVI Rev.1.0.

11 HD15 input connector (analog RGB) (page 8)

This connector inputs analog RGB video signals (0.700 Vp-p, positive) and sync signals.

12 Cable holder (page 9)

This part secures cables and cords to the display.

13 USB downstream port (USB port-equipped models only) (page 8)*

Connecting the USB mouse and USB keyboard to the display, you can connect up to two computers to the display switching the input back and forth.

14 USB upstream port (USB port-equipped models only) *

Connect the USB cable to your computer and display.

15 Security lock hole

The Kensington Micro Saver Security System should be used for the security lock hole.

Micro Saver Security System is a trademark of Kensington.

16 Audio Jack for INPUT1

This jack inputs audio signals when connected to the audio output jack of a computer or other audio equipment connected to INPUT1.

17 Audio Jack for INPUT2

This jack inputs audio signals when connected to the audio output jack of a computer or other equipment connected to INPUT2.

Setup

Before using your display, check that the following items are included in your carton:

• LCD display
- Power cord
• Stand Base
• HD15-HD15 video signal cable (analog RGB)
• DVI-D video signal cable (digital RGB)
• Audio cord (stereo miniplug)
- USB cable *
- CD-ROM (utility software for Windows/Macintosh, Operating Instructions, etc.)
- Warranty card
- Quick Setup Guide

The contents with *mark for specifications vary depending on the models. For details, see “Specifications” (page 23).

Setup 1: Assemble the stand

Do not press the LCD screen when placing or raising the display straight on a desk or a like. It may affect the uniformity of the screen or damage the LCD display.

■ When using supplied stand

1 Open the carton and take out the stand base.

2 Confirm the supplied items.

- With a screw attached to the bottom of Stand Base.

3 Put a soft mat or a like on a desk or a like.

You may damage the LCD screen and the display itself, if putting the display directly on the desk.

4 Take the display out from the carton and then place the frame of the laid display along the edge of the desk.

5 Hook the Stand Base holes onto the prongs of stand to attach. ① Lift the handle of screw to screw the stand base securely. ② Be sure that the screw is secured and turn the screw handle back.

6 Remove the stopper pin after raising the height adjustable stand straight.

Note Do not remove the stopper pin while the stand is laid. It may fall or injure you by the stand neck coming off from the Stand Base impetuously.

■ When using VESA Stand

You can attach a VESA stand in other brand by removing the supplied stand attached to the display.

Setup 2: Connect the video signal cables

- Turn off the display and computer before connecting.

Notes

• Do not touch the pins of the video signal cable connector as this might bend the pins.
• Check the alignment of the connector to avoid bending the pins of the video signal cable connector.

1 Slide down the connector cover.

2 Tilt the display up. And then move the display's angle higher.

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

3 Connect the video signal cables to the display.

■ Connect a computer equipped with an HD15 output connector (analog RGB)

Using the supplied HD15-HD15 video signal cable (analog RGB), connect the computer to the display's HD 15 input connector (analog RGB).

■ Connect a computer equipped with a DVI output connector (digital RGB)

Using the supplied DVI-D video signal cable (digital RGB), connect the computer to the display's DVI-D input connector (digital RGB).

Setup 3: Connect the USB mouse or the USB keyboard or other devices (USB port-equipped models only)\*

By connecting the USB mouse or the USB keyboard or other devices, you can switch inputs back and forth (KVM function). For more details, see "KVM function" (page 18). If you are not using the USB mouse or the USB keyboard or other devices on your display, go to Setup 4.

1 Connect the supplied cable between the display and the computer.

2 Connect the USB mouse or the USB keyboard or other devices to the display.

For Macintosh User:

If you connect the USB Downstream port to a Macintosh keyboard with a power button, the power button on the keyboard may fail to turn on. Turn on the power button on your computer or connect the keyboard directly to your computer and turn it on, and then connect the USB Downstream port to the keyboard.

Notes

• The USB port of this display is compatible with Windows 2000 / Windows XP Professional / Windows XP Home edition / Macintosh.
• If the USB mouse or the USB keyboard or other devices have already connected to your computer, remove them once.
• This Setup is only designed for those computers and OS that are USB compatible. For more details, refer to the operating instruction of your computer or OS.

Setup 4: Connect the audio cords

If you are not intended to output audio, you do not need this connection.

1 Connect the display's audio input jack and audio output jack of the computer or other audio equipment using the supplied audio cord.

2 Connect the audio cable (not supplied) securely to the display's audio output jack.

Audio output will be changed when the display's audio input and audio output connection has been completed.

Connect audio equipment that is within the input range shown in the display's audio input specifications. Too high of an input may cause damage to the display.

Setup 5: Connect the power cord

1 Connect the supplied power cord securely to the display's AC IN connector.

2 Connect the other end securely to a power outlet.

Setup 6: Secure the cords and close the connector cover

1 Draw the cords and cables through the cable holder as illustrated.
2 Close the connector cover.

Diagram showing a computer monitor mounted on a wall with cable, alongside a close-up of a door lock mechanism (no text or symbols present)

Note

When bounding the cords and cables, be sure to loosen them a little. If they get pulled hard they may come off from the connectors/plugs as you adjust the display angle. If you stretch the cords and cables too hard they may get damaged.

Setup 7: Turn on the display and computer

1 Make sure that the ⏻ (power) Indicator blinks red. At the time of your purchase, the MAIN POWER switch is set to the I side.

Note

When the MAIN POWER switch on the right side of your display is not set to the | side, press the | side and check that the ⏻ (power) indicator blinks red.

2 Press the ⏻ (power) switch located on the front right of the display.

The ⏻ (power) indicator lights up in green.

3 Turn on the computer.

If no picture appears on your screen

• Check that the power cord and the video signal cables are properly connected.
• If "NO INPUT SIGNAL" appears on the screen:
• The computer is in the power saving mode. Try pressing any key on the keyboard or moving the mouse.
• Check that the input signal setting is correct by pressing the OK button (page 12).
• If "CABLE DISCONNECTED" appears on the screen:
• Check that the video signal cables are properly connected.
• Check that the input signal setting is correct by pressing the OK button (page 12).
• If "OUT OF RANGE" appears on the screen:

Reconnect the old display. Then adjust the computer's graphics board within the following ranges.

	Analog RGB Digital RGB
Horizontal frequency	28–92 kHz 28–75 kHz
Vertical frequency	48–85 Hz 60 Hz
Resolution	1600 × 1200 or less

For more information about the on-screen messages, see "Trouble symptoms and remedies" on page 20.

No need for specific drivers

The display complies with the "DDC" Plug & Play standard and automatically detects all the display's information. No specific driver needs to be installed to the computer.

The first time you turn on your computer after connecting the display, the setup Wizard may appear on the screen. If this is the case, follow the on-screen instructions. The Plug & Play display is automatically selected so that you can use this display.

The vertical frequency turns to 60 Hz.

Since flickers are unobtrusive on the display, you can use it as is. You do not need to set the vertical frequency to any particular high value.

Setup 8: Adjust the tilt and height

This display can be adjusted within the angles shown below.

Hold both sides of the LCD display, then adjust display angles.

When you use the height adjustable stand, the height adjust is also available as below.

Hold both sides of the LCD display, and then adjust the display height.

Diagram of a hand holding a rectangular object with an arrow indicating upward motion, no text or symbols present

Height Adjustable Stand

approx. 110 mm

(4 11/32 inches)

Pivot Stand

approx. 130 mm

(5 1/8 inches)

To use the display comfortably

Adjust the viewing angle of your display according to the height of your desk and chair so that light is not reflected from the display to your eyes.

Notes

• When you adjust the display position, do not crash the display or cables or other USB devices against objects around it. Be sure to move the display quietly.
• Do not put any objects under the display when you adjust the height of stand. It may get damaged by accident.
• When connecting USB products or USB devices to the display, be sure not to crash them against the Stand Base. As adjusting the tilt and height of the display, the display might get damaged depending on the size of the products or devices. (USB port-equipped models only)

Diagram of a device with attached cable and mounting bracket, showing internal wiring and directional arrows (no text or symbols)

Switching your picture to portrait/ landscape (For the Pivot Stand attached models only)\*

If your computer has a function to switch the screen to portrait/landscape, you can rotate the screen 90°.

Adjust your setting to switch images on your computer first, then rotate the screen.

Rotating the display to portrait

1 Adjust the setting on your computer to rotate the screen 90° anti-clockwise.

2 Press the MENU button of the display, and then select "MENU ROTATION" from the OPTION Menu, and select "PORTRAIT."

You can change the menu display position according to the screen position.

3 Hold both sides of the display and raise it slowly to the highest position.

Notes

• If you rotate the display connected to the USB device or the USB compatible products, you may damage the display.

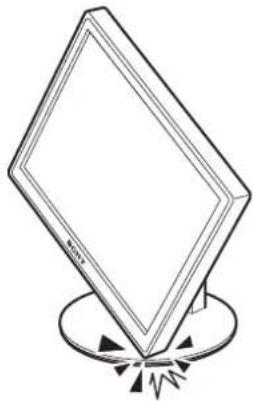

• If you rotate the display, do not crash the display or cables or other USB devices against objects around it. Be sure to move the display quietly.
• When you rotate your display remove all the cables from the cable holder, then move them carefully without pulling them hard.

Simple line drawing of a tilted rectangular object with a base and triangular base, no text or symbols present.

4 Hold both sides of the display, and rotate it 90° clockwise slowly.

You cannot rotate the display larger than 90^ .

Illustration of a hand holding a tablet device with a curved arrow indicating rotation (no text or symbols)

5 Hold both sides of the display, and adjust the height and tilt of the display.

To set back the display to the flat position

1 Adjust the setting on your computer to rotate the screen 90° clockwise.
2 Press the MENU button of the display, and then select "MENU ROTATION" from the OPTION Menu, and select "LANDSCAPE."

Set back the menu display to the flat position.

3 Hold both sides of the display and raise it to the highest position slowly.
4 Hold both sides of the display, and rotate it 90° anti-clockwise slowly.

Selecting the input signal (INPUT1/INPUT2)

Press the OK button.

The input signal changes every time you press the OK button.

On-screen message Input signal configuration

(Appears about 5 seconds on the upper left corner.)

INPUT1 : DVI-D DVI-D input connector

(digital RGB) for INPUT1

INPUT2 : HD15 HD15 input connector

(analog RGB) for INPUT2

Customizing Your Display

Before making adjustments

Connect the display and the computer, and turn them on. For the best results, wait for at least 30 minutes before making any adjustments after display is connected to the computer and turned on.

You can make numerous adjustments to your display using the on-screen menu.

Navigating the menu

1 Display the main menu.

Press the MENU button to display the main menu on your screen.

2 Select the menu you want to adjust.

Press the ↓/↑ buttons to display the desired menu. Press the OK button to select the menu item.

3 Adjust the item.

Press the ↓/↑ buttons to make an adjustment, then press the OK button.

When you press the OK button, the setting is stored, then the display returns to the previous menu.

4 Close the menu.

Press the MENU button once to return to normal viewing. If no buttons are pressed, the menu closes automatically after about 45 seconds.

■ Resetting the adjustments to the default settings

You can reset the adjustments using the RESET menu. For more information about resetting the adjustments, see (RESET) on page 17.

Menu options list

	SDM-S205F
PICTURE ADJUST menu
MODE (ECO mode) HIGH
	MIDDLE
	LOW
	AUTO ^1)
| BackLIGHT ☑	1)
○ CONTRAST ☑	1) 2)
○ BRIGHTNESS ☑	2)
γ GAMMA USER	2)
	CAL. ^2)
● COLOR 9300K
	6500K
	sRGB ^2)
	USER (GAIN and BIAS)
√ SMOOTHING TEXT
	STANDARD
	GRAPHICS
→ MODE RESET ☑
A SCREEN AUTO
	PHASE
	PITCH
	H CENTER
	V CENTER
⊗ ZOOM FULL
	ASPECT KEEP
	REAL
→ MENU POSITION ☑
→ INPUT SENSING AUTO ON
	INPUT1
	INPUT2
	AUTO OFF
A LANGUAGE ENGLISH
	FRANÇAIS
	DEUTSCH
	ESPAÑOL
	ITALIANO
	NEDERLANDS
	SVENSKA
	РУССКИЙ
	日本語
	中文
→ RESET OK
	CANCEL
ON MENU LOCK	ON
	OFF

	SDM-S205K
PICTURE ADJUST menu
MODE (ECO mode)	HIGH
	MIDDLE
	LOW
	AUTO ^1)
BACKLIGHT	1)
CONTRAST	1) 2)
BRIGHTNESS	2)
GAMMA USER	2)
	CAL. ^2)
COLOR 9300K
	6500K
	sRGB ^2)
	USER (GAIN and BIAS)
SMOOTHING TEXT
	STANDARD
	GRAPHICS
MODE RESET
SCREEN AUTO
	PHASE
	PITCH
	H CENTER
	V CENTER
ZOOM FULL
	ASPECT KEEP
	REAL
MENU POSITION
INPUT SENSING AUTO ON
	INPUT1
	INPUT2
	AUTO OFF
LANGUAGE ENGLISH
	FRANÇAIS
	DEUTSCH
	ESPAÑOL
	ITALIANO
	NEDERLANDS
	SVENSKA
	РУССКИЙ
	日本語
	中文
RESET OK
	CANCEL
MENU LOCK	ON
	OFF
OPTION
MENU ROTATION	LANDSCAPE
	PORTRAIT

1) When the ECO mode is set to "AUTO," you cannot adjust BACKLIGHT.

2) CONTRAST, BRIGHTNESS, and GAMMA are not adjustable when "sRGB" selected.

PICTURE ADJUST menu

Items	Press the ↑ button Press the ↓ button
MODE	Set the ECO mode.
HIGH	Select the brightness of your display from HIGH, MIDDLE, LOW, and AUTO to save power consumption.
MIDDLE
LOW	You can set a variety of mode by setting an input.
AUTO
BACKLIGHT	Brightens the screen. Darkens the screen.
CONTRAST Sharpens the picture contrasts.		Blurs the picture contrasts.
BRIGHTNESS	Brightens the picture (Black level).	Darkens the picture (Black level).

Notes

• When the ECO mode is set to "AUTO," you cannot adjust BACKLIGHT.
• If you select "sRGB," you cannot adjust CONTRAST and BRIGHTNESS.

Items

γ GAMMA

Options Features

USER Adjust the colors of images.

CAL. This mode sets the display to a raw gamma condition for the LCD. This mode should be set when using an external color calibration system for the best calibration results.

Note

If you select "sRGB," you cannot adjust GAMMA.

Items

COLOR
Options Features
9300K Bluish hue
6500K Reddish hue
sRGB ^1)	When you select “sRGB” your coloring is adjusted to the sRGB profile. (The sRGB color setting is an industry-standard color space protocol designed for computer products.) When you select “sRGB,” the color settings of your computer must be set to the sRGB profile.
USER You can make additional adjustments to lighter areas (GAIN: white level) and darker areas (BIAS: black level). Also, you can store the set color in memory.

1) If a computer or other equipment connected to the display is not sRGB-compliant, color cannot be adjusted to the sRGB profile.

When you select "sRGB," you cannot adjust CONTRAST, BRIGHTNESS, and GAMMA.

If you have set the ECO mode to "AUTO," you cannot select "sRGB."

Items

SMOOTHING
Options Features
TEXT To make the characters appear clear(This mode is suited for text-based applications).
STANDARD Standard smoothing effect.
GRAPHICS	To make the pictures appear clean (This mode is suited for photo images or illustrations).

Note

You cannot use the SMOOTHING feature when the signal at resolution is 1600 × 1200 .

Items

MODE RESET
Options Features
OK	You can reset BACKLIGHT,CONTRAST, BRIGHTNESS, GAMMAand COLOR to the default setting.
CANCEL	To cancel resetting and return to themenu.

A SCREEN menu (analog RGB signal only)

■Automatic picture quality adjustment function

When the display receives an input signal, it automatically adjusts the picture's position and sharpness (phase/pitch). This ensures that a clear picture appears on the screen (page 18).

Note

While the automatic picture quality adjustment function is activated, only the ⏻ (power) switch is operable.

If the automatic picture quality adjustment function of this display did not seem to adjust the picture completely

You can make further automatic adjustment of the picture quality for the current input signal. (See AUTO below.)

If you still need to make subtle adjustments to your picture quality

You can manually adjust the picture's sharpness (phase/pitch) and position (horizontal/vertical position).

These adjustments are stored in memory and automatically recalled when the display receives the same input signal. These

settings may have to be repeated if you change the input signal after reconnecting your computer.

Items Features

AUTO Make the appropriate adjustments of the screen's phase, pitch and horizontal/ vertical position for the current input signal and save them.

- Adjust the picture's sharpness and position manually (PHASE/PITCH/H CENTER/V CENTER)

You can adjust the picture's sharpness and position as follows.

1 Set the resolution to 1600 × 1200 , on the computer.

2 Load the CD-ROM.

3 Start the CD-ROM and display the test pattern.

For Windows User

When Auto run operates:

①Click "DISPLAY ADJUSTMENT TOOL (UTILITY)."

②Click “Adjust” and confirm the resolution and then click “Next.”

Test pattern for PITCH, PHASE, H CENTER and V CENTER appears in order.

When Auto run fails to operate:

①Open “My Computer” and right click the CD-ROM icon. Go to “Explorer” and open the CD-ROM icon.

②Open | Utility| and then select | Windows].

③Start [Win_Utility.exe].

Test pattern appears.

For Macintosh user

①Open [Utility] and then select [Mac].

②Start [Mac_Utility.exe].

Test pattern appears.

Items	Press the ↓/↑ buttons
PHASE Minimize the horizontal stripes on the screen.
PITCH Vertical stripes become vanished.
H CENTER Adjust the picture position when your picture does not appear on the center of the screen.
V CENTER

ZOOM menu

Items Features

FULL The input signal is displayed on the screen in full, irrespective of the picture's mode or resolution.

ASPECT KEEP The input signal is displayed on the screen at its actual aspect ratio.Therefore, black bands may appear at the top and bottom of the picture, depending on the signal.

REAL The input signal is displayed on the screen at its actual resolution. Sub-1600 × 1200 signals are displayed at the center of the screen surrounded by a black frame.

Note

You cannot use this feature when the signal at resolution is 1600 × 1200. The picture is displayed on the screen in full.

MENU POSITION menu

Items Press the ↓/↑ buttons

MENU POSITION You can change the menu displayed position on the screen. You can choose one of 9 positions.

INPUT SENSING menu

You can search any input signals, switching the signals back and forth automatically.

Items Features

AUTO ON When the selected input has no signal, or when you select an input with the OK button and if it has no input signal, an on-screen message appears (page 19). Then the display checks the input signal and switch to other input automatically. When an input is changed, the selected input is displayed on the upper left corner of the screen.When there still is no input signal, the display goes into the power saving mode.
INPUT 1 When turning on the display, INPUT1 or INPUT2 will be displayed as priority setting (INPUT SENSING will not function).
INPUT 2
AUTO OFF	The input is not changed automatically. Press the OK button to change the input.

LANGUAGE menu

Items Press the ↓/↑ buttons

ENGLISH
FRANÇAIS	French
DEUTSCH	German
ESPAÑOL	Spanish
ITALIANO	Italian
NEDERLANDS	Dutch
SVENSKA	Swedish
РУССКИЙ	Russian
日本語	Japanese
中文	Chinese

→← RESET menu (reset to the default setting)

Items Features

OK To reset all the adjustment data to the default setting except for the (LANGUAGE) menu setting.

CANCEL To cancel resetting and return to the menu screen.

MENU LOCK menu

Items Features

ON Only the ⏻ (power) switch will operate. If you attempt any other operation, the Ⓞn (MENU LOCK) icon appears on the screen.

OFF Set (MENU LOCK) off. If Ⓞn (MENU LOCK) has been set to ON, when you press the MENU button, Ⓞn (MENU LOCK) is automatically selected.

OPTION menu\*

Items

MENU ROTATION

Options Features

LANDSCAPE Displays the screen in the landscape position.

PORTRAIT Displays the screen in the portrait position.

Technical Features

Power saving function

This display meets the power saving guidelines set by VESA, ENERGY STAR, and NUTEK. If the display is connected to a computer or video graphics board that is DPMS (Display Power Management Standard) for Analog input / DMPM (DVI Digital Monitor Power Management) for Digital input compliant, the display will automatically reduce power consumption as shown below.

Power mode ⏻ (power) indicator

normal operation	green
active off^1) (deep sleep)	orange
power off	red
main power off	off

1) When your computer enters the "active off" mode, the input signal is cut and NO INPUT SIGNAL appears on the screen. After 5 seconds, the display enters the power saving mode. "deep sleep" is the power saving mode defined by the Environmental Protection Agency.

Reducing the power consumption (ECO mode)

If you press the ECO button on the front of the display repeatedly, you can select the screen brightness.

Each mode appears on the screen and the screen brightness is reduced according to the mode. The menu automatically disappears after about 5 seconds.

Screen brightness and power consumption are reduced as the mode changes from HIGH to MIDDLE to LOW.

The default setting of the screen brightness is set to HIGH.

Automatic brightness adjustment function (light sensor)

This display is provided with a feature to automatically adjust the screen brightness according to the brightness of the surroundings. The brightness of the screen is set to the most appropriate level by setting the ECO mode to AUTO with the ECO button on the front of the display, or in the PICTURE ADJUST menu. The default setting of the brightness of the screen is set to HIGH. Also, when you set the ECO mode to "AUTO" with the ECO button on the front of the display, the adjustment bar is also displayed. You can adjust the bar with the ↓/↑ buttons. Screen brightness changes according to the level you set.

Automatic picture quality adjustment function (analog RGB signal only)

When the display receives an input signal, it automatically adjusts the picture's position and sharpness (phase/pitch), and ensures that a clear picture appears on the screen.

The factory preset mode

When the display receives an input signal, it automatically matches the signal to one of the factory preset modes stored in the display's memory to provide a high quality picture at the center of the screen. If the input signal matches the factory preset mode, the picture appears on the screen automatically with the appropriate default adjustments.

If input signals do not match one of the factory preset modes

When the display receives an input signal that does not match one of the factory preset modes, the automatic picture quality adjustment function of this display is activated to ensure that a clear picture always appears on the screen (within the following display frequency ranges):

Horizontal frequency: 28–92 kHz (analog RGB)

28–75 kHz (digital RGB)

Vertical frequency: 48–85 Hz (analog RGB)

60 Hz (digital RGB)

Consequently, the first time the display receives input signals that do not match one of the factory preset modes, the display may take a longer time than normal to display the picture on the screen. This adjustment data is automatically stored in memory so that, the display will function in the same way as when the display receives the signals that match one of the factory preset modes next time.

If you adjust the phase, pitch, and picture position manually

For some input signals, the automatic picture quality adjustment function of this display may not completely adjust the picture position, phase, and pitch. In this case, you can set these adjustments manually (page 16). If you set these adjustments manually, they are stored in memory as user modes and automatically recalled whenever the display receives the same input signals.

Note

While the automatic picture quality adjustment function is activated, only the ⏻ (power) switch will operate.

KVM function (Keyboard-Video-Mouse function)\*

You can use up to two computers connecting between the USB mouse and USB keyboard switching INPUT/OK button (page 8) back and forth.

About USB port

• We recommend that you connect the USB mouse and the USB keyboard to the USB port of the display. If you connect the devices other than the above, the display might fail to operate properly. Or, the devices that are compatible with Bluetooth might fail to operate properly.
• The USB port on the display is compatible with USB Full-Speed (Max 12 Mbps).

Notes

• Even when you press INPUT/OK button, the computers may not be able to switch back and forth promptly.
  • Install the latest USB driver to use the USB devices. The older USB driver may not operate properly.
• When using a USB hub, set the input signals to the AUTO OFF with INPUT SENSING menu.

Troubleshooting

Before contacting technical support, refer to this section.

On-screen messages

If there is something wrong with the input signal, one of the following messages appears on the screen. To solve the problem, see “Trouble symptoms and remedies” on page 20.

If "OUT OF RANGE" appears on the screen

This indicates the input signal is not supported by the display's specifications. Check the following items.

For more information about on-screen messages, see “Trouble symptoms and remedies” on page 20.

If "xxx.x kHz/xxx Hz" is displayed

This indicates either the horizontal or vertical frequency is not supported by the display's specifications.

The figures indicate the horizontal and vertical frequencies of the current input signal.

Example

If "RESOLUTION > 1600 × 1200" is displayed

This indicates that the resolution is not supported by the display's specifications (1600 × 1200 or less).

Example

If "NO INPUT SIGNAL" appears on the screen

This indicates that no signal is being input via the currently selected connector.

When INPUT SENSING (page 16) is set to ON, the display finds another input signal and changes the input automatically.

Example

When input signals cannot be found,

"GO TO POWER SAVE"

message appears. About 5 seconds later, the power saving mode starts.

If "CABLE DISCONNECTED" appears on the screen

This indicates that the video signal cable has been disconnected from the currently selected connector.

When INPUT SENSING (page 16) is set to ON, the display finds another input signal and changes the input automatically.

Example

When input signals cannot be found,

"GO TO POWER SAVE"

message appears. About 45 seconds later, the power saving mode starts.

Trouble symptoms and remedies

If a problem occurs as a result of a connected computer or other equipment, refer to the connected computer/equipment's instruction manual.

Symptom Check these items
No picture
If the ⏻ (power) indicator is not lit,or if the ⏻ (power) indicator will notlight up when the ⏻ (power) switchis pressed:	Check that the power cord is properly connected.Check that the MAIN POWER switch on the display is turned on (page 10).
If the ⏻ (power) indicator turns onin red:	Check that the ⏻ (power) switch is on.
If “CABLE DISCONNECTED”appears on the screen:	Check that the video signal cable is properly connected and all plugs are firmly seated intheir sockets (page 7).Check that the video input connector’s pins are not bent or pushed in.Check that the input select setting is correct (page 12).A non-supplied video signal cable is connected. If you connect a non-supplied videosignal cable, CABLE DISCONNECTED may appear on the screen. This is not amalfunction.
“NO INPUT SIGNAL” warningmessage appears on the screen, or ⏻(power) indicator turns orange:	Check that the video signal cable is properly connected and all plugs are firmly seated intheir sockets (page 7).Check that the video input connector’s pins are not bent or pushed in.Check that the input select setting is correct (page 12).■ Problems caused by a computer or other equipment connected, and notcaused by the displayThe computer is in the power saving mode. Try pressing any key on the keyboard ormoving the mouse.Check that your graphics board is installed properly.Check that the computer’s power is on.Restart the computer.
If “OUT OF RANGE” appears onthe screen (page 19):	■ Problems caused by a computer or other equipment connected, and notcaused by the displayCheck that the video frequency range is within that specified for the display. If youreplaced an old display with this display, reconnect the old display and adjust thecomputer’s graphics board within the following ranges:Horizontal: 28 – 92 kHz (analog RGB), 28 – 75 kHz (digital RGB)Vertical: 48 – 85 Hz (analog RGB), 60 Hz (digital RGB)Resolution: 1600 × 1200 or less
If using Windows: • If you replaced an old display with this display, reconnect the old display and do thefollowing. Select “SONY” from the “Manufacturers” list and select the desired modelname from the “Models” list in the Windows device selection screen. If the model name ofthis display does not appear in the “Models” list, try “Plug & Play.”
If using a Macintosh system: • When connecting a Macintosh computer, use an adapter (not supplied) if necessary.Connect that adapter to the computer before connecting the video signal cable.
Picture flickers, bounces,oscillates, or is scrambled	Adjust the pitch and phase (analog RGB signal only) (page 16).Try plugging the display into a different AC outlet, preferably on a different circuit.■ Problems caused by a computer or other equipment connected, and notcaused by the displayCheck your graphics board manual for the proper display setting.Confirm that the graphics mode (VESA, Macintosh 19” Color, etc.) and the frequency ofthe input signal are supported by this display. Even if the frequency is within the properrange, some graphics boards may have a sync pulse that is too narrow for the display tosync correctly.This display does not process interlace signals. Set for progressive signals.Adjust the computer’s refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy • Adjust the brightness and contrast (page 15).• Adjust the pitch and phase (analog RGB signal only) (page 16).■ Problems caused by a computer or other equipment connected, and not caused by the display• Set the resolution to 1600 × 1200 on your computer.
Picture is ghosting	• Eliminate the use of video cable extensions and/or video switch boxes.• Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized properly (analog RGB signal only)	• Adjust the pitch and phase (page 16).• Adjust the picture position (page 16). Note that some video modes do not fill the screen to the edges.
Picture is too small	■ Problems caused by a computer or other equipment connected, and not caused by the display• Set the resolution to 1600 × 1200 on your computer.
Picture is dark • Adjust the backlight (page 15).• Adjust the brightness (page 15).• Adjust the gamma using GAMMA menu (page 15).• It takes a few minutes for the display to become bright after turning on the display.• The screen might turn darker, depends on ECO mode you selected.
Wavy or elliptical pattern (moire) is visible	• Adjust the pitch and phase (analog RGB signal only) (page 16).
Color is not uniform	• Adjust the pitch and phase (analog RGB signal only) (page 16).
White does not look white	• Adjust the color temperature (page 15).
Display buttons do not operate (appears on the screen)	• If MENU LOCK is set to ON, set it to OFF (page 17).
The device connecting through the USB cable fails to operate	• Check the USB cable (supplied) is connected properly (page 8).• Press the MAIN POWER switch and the ⏻ (power) indicator to turn on the display.■ Problems caused by your computer or other connected device• Check if your device has been turned on.• Reinstall the updated USB driver. For more information, contact the manufacture of your product.• If you fail to operate your computer with the keyboard or mouse attached to the display, connect the keyboard or mouse to your computer directly. After restarting your computer, reset the USB connection. After having completed this process, connect the keyboard or mouse back to the display. When the display is connected to a computer, keyboard, or mouse via the USB port, you might not be able to operate your computer with them as you restart the computer.
The display turns off after a while	■ Problems caused by the connected computer or other equipment• Set the computer's power saving setting to off.
Resolution displayed on the menu screen is incorrect	• Depending on the graphics board setting, the resolution displayed on the menu screen may not coincide with the one set on the computer.
After turning off the main power, the ⏻ (power) indicator stays bright for a while	• When the main power is on but the ⏻ (power) switch is not pressed, or when the display is in the power saving mode, if you turn the MAIN POWER switch off, the ⏻ (power) indicator may not turn off right away. This is not a malfunction.

Displaying this display's information

While the display is receiving a video signal, press and hold the MENU button for more than 5 seconds until the information box appears.

Press the MENU button again to make the box disappear.

Example

Although the safety standard registered model name of this display is SDM-S205*the name of SDM-S205F/S205K is used on sale.

If any problem persists, call your authorized Sony dealer and give the following information:

• Model name
• Serial number
  • Detailed description of the problem
• Date of purchase
• Name and specifications of your computer and graphics board
  • Type of input signals (analog RGB/digital RGB)

Specifications

Model name SDM-S205F	SDM-S205K
LCD panel	Panel type: a-Si TFT Active Matrix
Picture size: inch	20.1
Input signal format	RGB operating frequency ^1) Horizontal: 28 – 92 kHz (analog RGB)28 – 75 kHz (digital RGB)Vertical: 48 – 85 Hz (analog RGB)60 Hz (digital RGB)
Resolution	Horizontal: Max.1600 dotsVertical: Max.1200 lines
Type of input signal(Digital/Analog)	Digital × 1/Analog × 1
Input signal levels	Analog RGB video signal 0.7 Vp-p, 75 Ω, positiveSYNC signal TTL level, 2.2 kΩ, positive or negativeDigital RGB (DVI) signal TMDS (single link)
Audio input	Stereo minijack, 0.5 Vrms
Audio output	Stereo minijack
USB port	-	USB Full-Speed (Max12 Mbps)A Port × 4, B Port × 2
Power requirements	100 – 240 V, 50 – 60 Hz, Max. 1.2 A
Power consumption	Max. 55 W
Operating temperature	5 – 35 °C
Type of the stand	Height adjust Pivot
Dimensions (width/height/depth)	Approx. 441.5 × 410.5 – 520.5 × 277.5 mm(17 ^3/_8 × 16 ^1/_4 – 20 ^1/_2 × 11 inches)(with stand)Approx. 441.5 × 356.5 × 74 mm(17 ^3/_8 × 14 ^1/_8 × 2 ^7/_8 inches)(without stand)	Approx. 441.5 × 421 – 551 × 277.5 mm(17 ^3/_8 × 16 ^5/_8 – 21 ^3/_4 × 11 inches)(with stand(normal condition))Approx. 356.5 × 470.5 – 600.5 × 277.5 mm(14 ^1/_8 × 18 ^5/_8 – 23 ^3/_4 × 11 inches)(with stand (pivoted condition))Approx. 441.5 × 356.5 × 74 mm(17 ^3/_8 × 14 ^1/_8 × 2 ^7/_8 inches)(without stand)
Mass	Approx. 9.6 kg (21 lb 2 ^3/_8 oz)(with stand)Approx. 6.0 kg (13 lb 3 ^3/_8 oz)(without stand)	Approx. 9.9 kg (21 lb 12 ^3/_16 oz)(with stand)Approx. 6.1 kg (13 lb 6 ^3/_5 oz)(without stand)
Plug & Play DDC2B
Accessories	See page 6.

1) Recommended horizontal and vertical timing condition
• Horizontal sync width duty should be more than 4.8% of total
horizontal time or 0.8 μs, whichever is larger.
• Horizontal blanking width should be more than 2.5 μsec.
• Vertical blanking width should be more than 450 μsec.
Design and specifications are subject to change without notice.

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled

products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

- Belgium: www.recupel.be

• Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
• Norway: www.elretur.no
• Sweden: www.el-kretsen.se

• Switzerland: www.swico.ch

• If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

©

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA

92127 U.S.A.

Telephone Number : 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Table des matières

Précautions....4

TCO'99 Eco-document (for the black model) .....i

TCO'03 Eco-document (for the silver model) ..... ii

Précautions

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram showing a computer monitor connected to a wall-mounted cable, with an inset close-up of the cable being inserted (no text or symbols present)

Remarque

Diagram of a device with a cable and directional arrows indicating movement or force (no text or symbols)

Simple line drawing of a tilted rectangular object with a base and corner explosion (no text or symbols)

Illustration of a hand holding a tablet device with an arrow indicating rotation (no text or symbols)

4 Refermez le menu.

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled

products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

- Belgium: www.recupel.be

• Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
• Norway: www.elretur.no
• Sweden: www.el-kretsen.se

• Switzerland: www.swico.ch

• If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Inhalt

TCO'99 Eco-document (for the black model) .....i

TCO'03 Eco-document (for the silver model) ..... ii

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram of a computer monitor connected to a wall-mounted cable, with an inset showing a close-up of the cable being inserted (no text or symbols present)

Hinweis

Höhenverstellbarer

Ständer ca. 110 mm

Diagram of a device with a cable inserted into a socket, showing internal components and motion arrows (no text or symbols)

DE

Simple line drawing of a tilted rectangular object with a base and starburst at the base (no text or symbols)

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimydighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled

products may also be obtained via the Internet, using the address:

http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative ^® processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.

** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
- Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.eiac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TCO'99 Eco-document (for the black model) .....i

TCO'03 Eco-document (for the silver model) ..... ii

Precauciones

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram showing a computer monitor connected to a wall-mounted cable, with an inset close-up of the cable being locked (no text or symbols present)

Nota

Illustration of a hand holding a rectangular device with a downward arrow, mounted on a stand (no text or symbols)

Soporte regulable en altura aprox. 110 mm (4 ^11 / _32 pulgadas)

Soporte giratorio aprox. 130 mm (5 18 pulgadas)

Diagram of a device with arrows indicating motion or force, no text or symbols present

Simple line drawing of a tilted rectangular object with a base and triangular base, no text or symbols present.

Illustration of a hand holding a rectangular device with a curved arrow indicating rotation (no text or symbols)

4 Cierre el menú.

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimydighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled

products may also be obtained via the Internet, using the address:

http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative ^® processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.

** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
- Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.eiac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205 *

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric

character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA

92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This display complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Indice

Precauzioni....4

TCO'99 Eco-document (for the black model) .....i

TCO'03 Eco-document (for the silver model) ..... ii

Three line drawings of different types of electrical plugs (no text or symbols)

da 100 a 120 V CA da 200 a 240 V CA solo 240 V CA

Tappetino morbido o simile

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram showing a computer monitor mounted on a stand with cable, alongside a close-up of the door lock mechanism (no text or symbols present)

Nota

Diagram of a device with attached components and directional arrows indicating motion (no text or symbols)

Simple line drawing of a tilted rectangular frame with a base and starburst pattern at the base (no text or symbols)

Illustration of a hand holding a rectangular device with a curved arrow indicating rotation or movement (no text or symbols)

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled

products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
- Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

- Belgium: www.recupel.be

• Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
• Norway: www.elretur.no
• Sweden: www.el-kretsen.se

• Switzerland: www.swico.ch

• If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205 *

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA

92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Índice

TCO'99 Eco-document (for the black model) .....i

TCO'03 Eco-document (for the silver model) ..... ii

Precauções

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram showing a computer monitor connected to a wall-mounted cable, with an inset close-up of the cable being inserted (no text or symbols present)

Nota

Illustration of a hand holding a rectangular object with an upward arrow, placed on a stand (no text or symbols)

Diagram of a device with attached cables and a circular base, showing no text or symbols

Simple line drawing of a tilted rectangular object with a base and corner sparkles (no text or symbols)

3 Regule o item.

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled

products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

- Belgium: www.recupel.be

• Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
• Norway: www.elretur.no
• Sweden: www.el-kretsen.se

• Switzerland: www.swico.ch

• If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Содержание

TCO'99 Eco-document (for the black model) .....i

TCO'03 Eco-document (for the silver model) ..... ii

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram showing a computer monitor mounted on a wall with cable, alongside a close-up of a door lock mechanism (no text or symbols present)

Illustration of a hand holding a rectangular object with an upward arrow, mounted on a stand (no text or symbols)

Diagram of a device with attached components and a circular base, showing no text or symbols.

Simple line drawing of a tilted rectangular object with a base and explosion effect (no text or symbols)

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled

products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

- Belgium: www.recupel.be

• Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
• Norway: www.elretur.no
• Sweden: www.el-kretsen.se

• Switzerland: www.swico.ch

• If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205 *

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric

character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA

92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Installation 1: Montera stativet ....6

Installation 2: Anslut bildskärmskablarna ....7

Installation 3: Anslut USB-musen, USB-tangentbordet eller andra enheter (endast modeller utrustade med USB-port) .. 8

Installation 4: Anslut ljudkablarna....9

Installation 5: Ansluta nätkabeln....9

TCO'99 Eco-document (for the black model) .....i

TCO'03 Eco-document (for the silver model) ..... ii

Installation 1: Montera stativet

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram showing a computer monitor connected to a wall-mounted cable, with an inset close-up of the lock mechanism (no text or symbols present)

Simple line drawing of a tilted rectangular object with a base and starburst pattern (no text or symbols)

Illustration of a hand holding a rectangular device with a curved arrow indicating rotation or movement (no text or symbols)

3 Justera menyalternativet.

4 Stäng menyn.

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled

products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

- Belgium: www.recupel.be

• Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
• Norway: www.elretur.no
• Sweden: www.el-kretsen.se

• Switzerland: www.swico.ch

• If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric

character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA

92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Inhoudsopgave

TCO'99 Eco-document (for the black model) .....i

TCO'03 Eco-document (for the silver model) ..... ii

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram showing a computer monitor connected to a wall-mounted cable, with an inset close-up of the cable being locked (no text or symbols present)

Opmerking

Diagram of a device with arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a tilted rectangular object with a base and corner explosion (no text or symbols)

Illustration of a hand holding a tablet device with an arrow indicating rotation (no text or symbols)

MANUFACTURED : 2005-52

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled

products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

- Belgium: www.recupel.be

• Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
• Norway: www.elretur.no
• Sweden: www.el-kretsen.se

• Switzerland: www.swico.ch

• If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205 *

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. Serial No.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

Note : means any number or alphanumeric character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

目录

使用前注意事项 4

检查显示器的型号名称 5

识别部件和控制钮 5

安装....6

步骤 1：底座装配 ……6

TCO'99 Eco-document (for the black model)....i

TCO'03 Eco-document (for the silver model)....ii

使用前注意事项

有关电源连接的警告事项

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

3 将视频信号电缆连接到显示器上。

Diagram showing a computer monitor connected to a wall-mounted cable, with an inset close-up of the lock mechanism (no text or symbols present)

注意

Diagram of a device with a plug inserted into a socket, showing internal wiring and motion arrows (no text or symbols)

CS

Simple line drawing of a tilted rectangular frame with a base and corner sparkles (no text or symbols)

Illustration of a hand holding a rectangular device with a curved arrow indicating rotation (no text or symbols)

4 关闭菜单。

TCO'99 Eco-document (for the black model)

■Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimydighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins. PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205 *

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA

92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Obsah

TCO'03 Eco-document (for the silver model) ..... ii

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram showing a computer monitor mounted on a stand with cable, alongside a close-up of a door lock mechanism (no text or symbols present)

Poznámka

Diagram of a device with a circular base and internal components, showing directional arrows indicating movement or force (no text or symbols present)

Simple line drawing of a tilted rectangular object with a base and arrow symbol (no text or labels)

Diagram of a hand holding a device with an arrow indicating rotation or movement (no text or symbols present)

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimydighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205 *

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA 92127 U.S.A.

Telephone Number : 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Tartalomjegyzék

Óvintézkedések 4

TCO'99 Eco-document (for the black model)....i

TCO'03 Eco-document (for the silver model) ..... ii

Óvintézkedések

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram of a computer monitor connected to a wall-mounted cable, with an inset showing a close-up of the cable being locked (no text or symbols present)

Megjegyzés

Illustration of a hand holding a rectangular object with an upward arrow, no text or symbols present

Diagram of a device with cable and switch components, no text or symbols present

Simple line drawing of a tilted rectangular object with a base and triangular base, no text or symbols present.

Illustration of a hand holding a device with an arrow indicating rotation or movement (no text or symbols present)

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA

92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Spis treści

TCO'99 Eco-document (for the black model)....i

TCO'03 Eco-document (for the silver model) ..... ii

Środki ostrożności

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram showing a computer monitor connected to a wall-mounted cable, with an inset close-up of the cable being locked (no text or symbols present)

Uwaga

Illustration of a hand holding a rectangular object with an arrow indicating upward motion, no text or symbols present.

Diagram of a device with a circular base and internal components, showing directional arrows indicating motion or force (no text or symbols)

Simple line drawing of a tilted rectangular object with a base and explosion sparks (no text or symbols)

Illustration of a hand holding a rectangular device with a curved arrow indicating rotation (no text or symbols)

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimydighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
- Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205 *

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA

92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

Kazalo

Varnostni napotki....4

Preverjanje naziva modela zaslona....5

Deli monitorja in elementi za nastavljanje. 5

Nastavitev....6

Nastavitev 1: Sestavite stojalo ....6

Nastavitev 2: Priključite video signalne kable ..... 7

Nastavitev 3: Priključite USB miško, USB tipkovnico ali druge naprave (samo pri modelih z USB vrati) ..... 8

Nastavitev 4: Priključite avdio kable .....9

Meni PICTURE ADJUST....15

A Meni SCREEN (samo analogni RGB signal). 15

Meni ZOOM 16

Meni MENU POSITION 16

→ Meni INPUT SENSING 16

A Meni LANGUAGE....17

TCO'03 Eco-document (for the silver model) ..... ii

Varnostni napotki

Opozorilo glede omrežnih priključkov

Three line drawings of different types of electrical plugs (no text or symbols)

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Diagram showing a computer monitor connected to a wall-mounted cable, with an inset close-up of the lock mechanism (no text or symbols present)

Opomba

Diagram of a device with attached components and directional arrows indicating motion (no text or symbols)

Preklapljanje vaše slike na portret/pokrajinsko sliko (samo za modele z vrtljivim stojalom)\*

Simple line drawing of a tilted rectangular object with a base and triangular base, no text or symbols present.

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimydighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

■ Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html

TFT LCD Color Computer Display

SDM-S205 *

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

IMPORTANTE

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name : SONY

Model : SDM-S205

*

Note : means any number or alphanumeric character.

Responsible Party : Sony Electronics Inc.

Address : 16530 Via Esprillo, San Diego, CA

92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 × 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

(for the black model)

This monitor complies with the TCO'03 guidelines.

(for the silver model)

çindekiler

Uyarılar....4

TCO'99 Eco-document (for the black model) .....i

TCO'03 Eco-document (for the silver model) ..... ii

Line drawing of a computer monitor with a stand and scroll wheel (no text or symbols)

Not

3 Bilgisayarı açın.

Illustration of a hand holding a folded document or folder with an upward arrow, no text or symbols present

Diagram of a device with a circular base and internal components, showing directional arrows and motion lines (no text or symbols)

Simple line drawing of a tilted rectangular object with a base and starburst at the base (no text or symbols)

Illustration of a hand holding a rectangular device with a curved arrow indicating rotation or movement (no text or symbols)

TCO'99 Eco-document (for the black model)

■ Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■ Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■ What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimydighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (frecons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■ Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.

** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

TCO'03 Eco-document (for the silver model)

■ Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

■ Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

■ Emissions

• Electromagnetic fields
- Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been

involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Recycling Information

■ Customer in Europe

The collection and recycling of this product has been planned according to your country's relevant legislation. To ensure that this product will be collected and recycled in way that minimizes the impact on the environment, please do the following:

1. If you purchased this product for private use, contact your municipality or the waste collection system and bring the product to this collection point / have the product be picked up by the waste collection system. Alternatively, your retailer might take back this if you purchase new equivalent equipment; please check with your retailer whether he will take back this product before bringing it. For information on your country's recycling arrangements, please contact the Sony representation in your country (contact details at: www.sony-europe.com). Further details on specific recycling systems can be found at the following addresses:

2. Belgium: www.recupel.be

3. Netherlands: www.nvmp.nl (consumer electronics) www.ictmilieu.nl (IT equipment)
4. Norway: www.elretur.no
5. Sweden: www.el-kretsen.se

6. Switzerland: www.swico.ch

7. If you use this product professionally, check the product's delivery contract for take back / recycling arrangements and follow the procedures described therein. Alternatively, follow the procedures described under point 1.

■ Customer in USA

We Sony as a member of EIA recommends to visit URL below http://www.ciac.org/

■ Customer in Asia

http://www.sony.co.jp/SonyInfo/Environment/recycle/3R.html
