ZJE4800 SANO - Juicer Zelmer - Free user manual and instructions

Product Type	Juicer / Juice Extractor
Brand	Zelmer
Model	ZJE4800 SANO
Rated Voltage	220-240 V~
Rated Power	600 W
Rated Frequency	50 Hz
Speed Settings	2 speed: Low (soft fruits/vegetables) and High (hard fruits/vegetables)
Continuous Operation Time	Max ≤2 minutes per cycle; after 3 cycles, rest 15-20 minutes
Safety System	Double safety switch: appliance works only when all parts are properly installed
Material (Food Contact)	Food grade certified parts
Cleaning	Main body: wipe with damp cloth; Removable parts: wash in warm water (<60°C) with mild detergent
Not Suitable For	Sugarcane, ginger, or ingredients with hard seeds/thick skin
Warranty	2 years (against manufacturing defects)
Disposal	Compliant with WEEE Directive 2012/19/EU
Included Accessories	Pusher, inlet protective cover, sieve, pulp container, juice container, cover
Class	Class II (no grounding required)

Frequently Asked Questions - ZJE4800 SANO Zelmer

How do I clean the Zelmer ZJE4800 SANO juicer?

First, turn off and unplug the appliance. Wipe the main body with a damp cloth. Removable parts (sieve, pulp container, etc.) can be cleaned with warm water (<60°C) and mild detergent. Use the provided cleaning brush for the sieve. Do not immerse the main body in water.

What is the maximum continuous operating time?

Do not operate continuously for more than 2 minutes. After each 2-minute cycle, allow the motor to cool for 2 minutes. After 3 consecutive cycles, let the appliance rest for 15-20 minutes.

Which fruits and vegetables can I juice?

Soft fruits/vegetables (watermelon, tomatoes, cucumbers, strawberries) use low speed. Hard ones (carrots, beetroot, apples) use high speed. Remove hard seeds, thick skin, or hard shells before juicing. Avoid bananas, papaya, avocado, figs, peaches, mangoes, sugarcane, and ginger.

Why won't the juicer start?

The appliance has a double safety system. Ensure the pulp container, upper cover, and connecting head are properly installed. If still not working, check the power supply and switch position.

What should I do if the motor stops during use?

This may be due to overload or motor thermal protection. Turn off the appliance, remove excess food, and let it cool for 20-30 minutes before resuming. Also check that voltage is not too low.

How do I reduce pulp in the juice?

If the juice contains too much pulp, check if the sieve is broken or if the pulp container is full. If the sieve is damaged, replace it. Clean the pulp container regularly.

Is the juicer safe to use?

Yes, it has a double safety system and meets safety standards. Always follow instructions: do not use if the sieve is damaged, keep hands away from moving parts, and never insert objects other than the pusher into the feed inlet.

Can I juice citrus fruits with seeds?

It is recommended to remove seeds from citrus fruits as they can make the juice taste bitter. Also remove thick peels from pineapple, cantaloupe, and raw beetroot.

How do I store the juicer?

Store in a dry place away from direct UV light. Ensure all parts are clean and dry before storing. Do not wrap the cord around the appliance.

What is the warranty on this product?

The product comes with a 2-year warranty against manufacturing defects. It covers repair or replacement, but not normal wear and tear. Keep your receipt and contact an authorised service centre.

USER MANUAL ZJE4800 SANO Zelmer

Exterior view of a modern electric juice brush with control panel and side drink (no text or symbols visible)

EN USER MANUAL Juice extractor

DE BENUTZERHANDBUCH Entsafter

CZ NÁVOD K POUŽITÍ Odštavňovač

DZIEKUJEMY ZA WYBÓR MARKI ZELMER. ŻYCZYMY SATYSFAKCJI Z UŻYTKOWANIA URZĄDZENIA.

OSTRZEŻENIE

PRZED UŻYCIEM PRODUKTU NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ UŻYTKOWANIA. PRZECHOWUJ JĄ W BEZPIECZNYM MIEJSCU DO WYKORZYSTANIA W PRZYSZŁOŚCI

OPIS

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE

DESCRIPTION

1 Pusher
2. Inlet protective cover
3. Upper cover
4. Sieve
5. Pulp container
6. Juice outlet
7. Buckle
8. Connecting head
9. Body
10. Switch
11. Juice container
12. Juice container cover

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Proceed according to maintenance and cleaning section of this manual for cleaning.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Do not use the appliance if the rotating sieve is damaged.

Warning: potential injury from misuse!

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

This appliance is for household use and not intended for

EN

use applications such as: staff kitchen areas in shops, offices and working environments, farm houses, by clients in hotels, motels, "bed and breakfast" and other residential type environments.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

This device is designed for use at a maximum altitude of 2000 m above sea level.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet. Do not pull on the connection cord in order to unplug it or use it as a handle.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

EN

1. Please wipe the main body with wet cloth. Do not rinse or soak with water, so as to prevent leakage or damage of electrical elements
2. It is strictly forbidden to use items other than the pushing rod in the feeding inlet while the product is working, as it may cause damage to the product
3. It is strictly forbidden to contact the sieve, motor and other movable parts when working, so as to avoid personal injury
4. It is prohibited to use overheated food (≥60°C) so as to avoid parts getting broken, splash burns
5. Please do not pull the plug with wet hand as it may cause electric shock
6. Please do not place the product close to sources of high temperature, strong magnetic field, flammable and explosive gas (such as natural gas, biogas, etc.) as it may cause damage, failure or fire
7. It is strictly forbidden to put product parts into an alexipharmic ark, dishwasher and clean them in hot water of more than 60°C in order to avoid damage resulting from heat deformation
8. It is strictly forbidden to keep eyes near the feeding inlet when the product is working as it may result in accidents.

ATTENTION

The input voltage of this product is 220-240V \~ 50Hz, please check if it is in accordance with the local power supply voltage, before connecting the product to the power supply, as too high or too low voltage can damage the components.

This product is type Y link. If the power cord is damaged, it must be replaced by the professional staff of the manufacturer, the maintenance department or similar departments. Do not disassemble to perform any repairs so as to avoid danger.

1. Before use, please check whether the power cord, plug, knife, cover and other parts are not damaged. If any damage is found, please stop using the product immediately and do not hesitate to contact our customer service department to avoid danger. Please do not repair or interfere in the product by yourself
2. In the process of use, if you find that the blade is broken, please stop using the product immediately and contact the customer service department of our company at once so as to avoid danger. Do not disassemble to perform repairs by yourself
3. Please do not operate this product on tilting or unstable surface or carpet, towel, etc., so as to avoid accident or damage to the product
4. Before connecting the power supply, please make sure that the removable parts are installed in place so as to avoid abnormal operation of the product
5. Please strictly comply with the rated operating time. Juicing function continuous operation must not exceed 2 minutes, cooling should take place after 2 minutes of processing. After 2 minutes as a cycle and continuous work in 3 cycles, the product must stop for 15 to 20 minutes. Wait for motor to cool before working again. This method is best to extend the life of the product
6. If the product stops working in the process of operation, it may be caused by the temperature control protection of the motor. Please turn off the power and then use the product after 20-30 minutes of cooling

7. After processing, please stop the blade motor and cut off power. Then remove the juicer removable parts, sharp blade. Disassembly should be careful to avoid injury. You can wear protective gloves

8. If the machine is not used for a long time, to prevent damage caused by short circuit, please turn off the switch and disconnect the power

9. Please clean it in time after using. Be careful in removing and cleaning removable parts, so as to avoid injury or damage to accessories
10. Do not use any steel wool, abrasive cleaner or corrosive liquid (e.g. gasoline or acetone) to clean the product
11. Hard seeds, thick skin or hard shell on fruit and vegetables must be removed before processing. The parts and materials in contact with food are food grade certified, clean, hygienic and reliable
12. This product is not suitable for pressing sugarcane and ginger, etc., as this kind of material may easily jam the product and cause abnormal vibration, etc., which can damage the product or its parts and affect the life of the product
13. The operating speed of each gear of this product has been set to its optimal state and it is no need to adjust it
14. This product is for household use only and must be used in accordance with the instructions in this manual. It shall not be used for other purposes.

USING METHODS

Thoroughly clean the parts in contact with food before using the product for the first time, (refer to "Chapter 4: Maintenance").

The knob switch:

1. "0": off / stop
2. "1": low rotate speed for squeezing juice from soft fruit and vegetables such as watermelon, tomatoes, cucumbers and strawberries etc.
3. "2": high speed. Suitable for juicing hard fruit and vegetables such as carrot, beetroot, apples, etc.

SFor detailed instructions on the selection of ingredients, please refer to the second point of the "Using methods".

INSTRUCTIONS FOR USE

This product has a double safety system. It starts working only after all parts are properly installed.

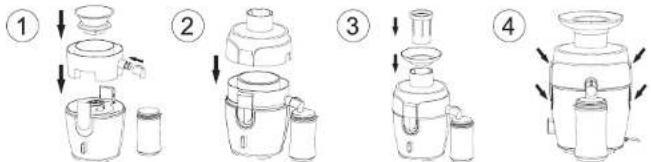

Please follow these steps when installing and using the product:

1. Remove the power cord and place it behind the machine.
2. Install the pulp container on the main body; Put the sieve into the pulp container ensuring that it is installed properly on the connecting head.
3. Install the top cover to the main body and ensure that the cover is in place.
4. Fit into two corresponding grooves and push down the connectors until a click indicates that the installation is in place otherwise the product will not work.

EN

Please pay attention to check whether the sieve is damaged before use or after use. If there is any damage, please stop using the sieve and immediately contact the customer service department of our company. Do not perform repairs by yourself.

1. Turn the juice outlet downwards and place the juice container provided or other container parallel to the outlet
2. Put the inlet protective cover in its position
3. Put the pusher in the inlet
4. Wash the ingredients and cut into the size of the inlet
5. Turn on the power, turn the switch to the appropriate gear. Then the product starts work. The
   working time is less than 2 minutes.

Please make sure the switch is off before turning on the power.

Please first remove hard seeds, thick skin or hard shell from the ingredients.

1. Put the prepared ingredients into the feeding inlet and gently push the fruit and vegetable pieces with the push rod. Do not push too hard, so as not to affect the juicing effect

2. When food processing ends, when no more juice flows out, close the switch, cut off the power, wait until motor and sieve stop and there is no more juice

Take juice container to drink the juice. If the pulp container or juice container is full, disconnect the power supply and clean the pulp and container. It is recommended that juice should be drunk immediately. Exposure to air for long periods of time affects the taste and nutritional value.

EN

JUICING TIPS

• Choose fresh fruit and vegetables such as pear, grape, melon (watermelon, cantaloupe), celery sticks, beetroot, carrot, etc. They contain more juice.
• You need to peel off the thick skin of pineapple, cantaloupe and raw beetroot.
  • The seeds of citrus fruit will make juice taste biller and it is recommended to eliminate them
  • The amount and taste of apple juice depends on the type and freshness of apples
• Freshly squeezed apple juice quickly turns brown, which is a normal oxidation phenomenon. Add a few drops of lemon juice to slow the oxidation process
• Fruit that contain starch such as bananas, papaya, avocado, figs, peaches and mangos are not suitable for juicing in juicers.

MAINTENANCE

Please clean the product timely after use. Before cleaning the product make sure to turn off the switch and disconnect the product from the power supply. Please wipe the main body with wet cloth. Do not rinse or soak with water to avoid leakage or device damage.

This product should be stored in a dry place and with no direct exposure to UV. Before storing the product, make sure it is clean and dry.

Follow the steps below to remove and clean the juice function component:

1. Take out pushing rod, open the left/right buckle
2. Take down the top part, sieve, pulp container and so on
3. Add detergent in clear water, clean sieve with cleaning brush, rinse clean with water. The other removable components are cleaned with a sponge or a wet cloth. Use warm water (temperature less than 60°C) adding a few drops of dishwashing detergent to make the cleaning effect better.

PRODUCT SAFETY INDICATORS

Rated voltage 220-240V~
Rated power 600W
Rated frequency 50Hz
Juice function of continuous working time ≤2 minutes

The product is class II electric appliance, no need for additional grounding device.

EN

CHAPTER 6: TROUBLESHOOTING

Fault Reason Problem removal
After connecting power, start switch, product is out of work	1. The pulp container was not installed in place2. The upper cover not installed in place3. The cup body, cup holder and main body are not installed properly	1. Install the pulp container in place2. Install the upper cover in place3. Install the connecting elements in place
Motor emits odor Normal for initial use of new motor if after multiple use the product still emits smell, check the unit processing time
Stop working during used 1. Lower voltage2. Too much food3. Push rod pushed too hard4. Motor temperature rise initiates the protection	1. Check whether voltage is too low2. Remove the excessive food from the inlet3. Push the push rod more gently4. Use again after 20-30 minutes
Juice cup contains more pulp 1. Sieve broken2. Too much pulp in container	1. Replace with a new sieve2. Clean pulp container
Abnormal vibration or noise 1. The sieve is not installed properly2. Product placement is uneven or foot pad fell off3. Voltage overtension4. Too much food	1. Install sieve in place2. Put product evenly3. Check whether voltage is too high4. Cut off the power, remove excessive material
Less juice 1. Excessive pulp quantity2. Push rod pushed too hard	1. Clean pulp container2. Push the push rod more gently

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

We hope that you will be satisfied with this product.

DE

1. Vyberte tlačný valec, uvolnite pravů a ľavú západku.
2. Zložte vrchný diel spotrebiča a vyberte sitko, nádobu na dužinu atd..
3. Do čistej vody pridajte čistiaci pripravok, sitko vyčistite kefkou a opíachnite čistou vodou. Ostatné odnímateřné diely vyčistite pomocou hubky alebo mokrou handričkou. Na dosiahnutie lepšleho výsledku použite teplů vodu (s teplotou nižšou ako 60°C) zmiešanou s niekolýkými kvapkami pripravku na umývanie rladu.

TECHNICKÉ ÚDAJE BEZPEČNEJ PREVÁDZKY

Napájanie 220-240 V~
Prikon 600W
Menovitá frekvencia 50Hz
Doba nepretržílej prevádzky odšťavovania ≤2 minut

ELIMINAREA PRODUSULUI

B&B TRENDS, S.L. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, S.L. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, S.L. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, S.L., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zeimer.com
