Product type	Rechargeable oral irrigator for dental care
Brand / Model	Panasonic EW1313
Power supply	Mains charger with automatic voltage conversion (100‑240 V~, 50‑60 Hz)
Power consumption	Approx. 1 W
Battery type	Nickel‑Metal‑Hydride (Ni‑MH) built-in, rechargeable
Charging time	Approx. 15 hours (first charge or after prolonged non-use: 23 hours or more)
Operating time (full charge)	Approx. 15 minutes of continuous use (at 20 °C)
Water tank capacity	Approx. 130 mL (approx. 35 seconds of use in AIR IN REGULAR mode)
Jet modes	JET (strong jet for food debris), AIR IN REGULAR (aerated jet for periodontal pockets), AIR IN SOFT (gentle aerated jet for gum massage)
Dimensions (main unit)	197 (H) × 59 (W) × 75 (D) mm (nozzle not included)
Dimensions (charger)	40 (H) × 93 (W) × 98 (D) mm
Weight (main unit)	Approx. 305 g (nozzle included)
Weight (charger)	Approx. 180 g
Sound level	68 dB(A) (ref. 1 pW)
Supplied accessories	General use nozzle, charger, nozzle holder, 2 screws for wall mounting
Spare parts / Consumables	Replacement nozzle (ref. EW0950 for general use, WEW0984 orthodontic) – sold separately
Care and cleaning	Rinse the tank and nozzles after each use; clean the filter with a soft brush; do not wash the charger with water
Safety	Do not use water >40 °C; do not direct the jet towards eyes, nose or throat; do not share the nozzle; unplug the charger during cleaning
Recommended use	Household use only; consult a dentist in case of periodontal disease or dental treatment
Warranty and repairability	Battery replaceable only by an authorized service center; do not disassemble yourself

Frequently Asked Questions - EW1313 PANASONIC

How to charge the Panasonic EW1313 oral irrigator?

Place the main unit vertically on the charging stand, then plug the charger into a wall outlet. The charging indicator lights up. Full charging takes about 15 hours. For first use or after one year without charging, charge for 23 hours or more.

What is the battery life?

At full charge, the unit operates for approximately 15 minutes of continuous use (at 20 °C). Battery life decreases as the battery ages (typical lifespan: about 3 years).

What are the different jet modes and when to use them?

Three modes are available: JET (strong jet to remove food debris between teeth), AIR IN REGULAR (aerated jet to clean periodontal pockets and stimulate gums), AIR IN SOFT (gentle aerated jet for gentle gum massage). Use the selection button to change modes.

Can I share the nozzle with a family member?

No, it is not recommended to share the nozzle as it may cause infections or inflammation. Each user should have their own nozzle. The identification ring allows differentiation of nozzles.

How to clean the unit after use?

Empty the water tank, then run the unit for a few seconds to expel remaining water. Remove the nozzle and clean it with water (not >50 °C). Clean the filter with a soft brush. Wipe the charger with a dry cloth – never wash it with water.

What to do if water does not come out or the pressure is low?

Make sure the unit is held vertically during use. If pressure is low, the nozzle may be clogged: replace it. Also clean the filter at the end of the suction tube. If the problem persists, contact an authorized service center.

How often should I replace the nozzle?

The general use nozzle should be replaced approximately every 6 months for hygiene reasons, even if it appears intact. The orthodontic nozzle should be changed every 3 months or as soon as the brush bristles are bent.

Can I use mouthwash or special solutions in the tank?

Yes, you can use cold or lukewarm water (<40 °C) or specific solutions recommended by the manufacturer. Avoid overly viscous or abrasive products that could clog the unit.

How to dispose of the battery at the end of its life?

The built-in Ni‑MH battery must be removed only when disposing of the unit. Follow the disassembly steps described in the manual, then insulate the terminals with adhesive tape. Dispose of it at a designated collection point (in accordance with local regulations).

Can I mount the charger on the wall?

Yes, the charger can be wall-mounted using the two screws provided. Use the screw holes located on the back of the base. Ensure the installation is sturdy and the charger remains accessible.

USER MANUAL EW1313 PANASONIC

Operating Instructions

(Household use) Rechargeable Oral Irrigator

Model No. EW1313

Panasonic Corporation

http://www.panasonic.com Panasonic Corporation 2020

EN, GE, FR, IT, DU, SP, DA, PT, NW, SW, FI, PL, CZ, SK, HU, RO, TK

Printed in Thailand

EW921013133031 A0720 0

PANASONIC: SEW'131330303_COVER_OL_PROOF2_NUK_26/5/2020 PANASONIC: SEW'131330303_COVER_ORIGINAL_PROOF1_NUK_26/5/2020

ILLUSTRIATOR OK

BLACK

English	3	Dansk	107	Česky	205
Deutsch	19	Português	123	Slovensky	221
Français	37	Norsk	139	Magyar	237
Italiano	55	Svenska	155	Română	255
Nederlands	71	Suomi	171	Türkçe	271
Español	89	Polski	187

13.28 mm.

SIZE:162×128mm.

MEMO

2

PANASONIC: SEW131330303_COVER_OL_PROOF2_NUK_26/5/2020 PANASONIC: SEW131330303_COVER_ORIGINAL_PROOF1_NUK_26/5/2020

287

ILLUSTRIATOR OK

BLACK

SIZE : 182x128 mm.

Panasonic

Operating Instructions

(Household use) Rechargeable Oral Irrigator

Model No. EW1313

Contents

Safety precautions...... 6

Important information ......9

Parts identification ....10

Charging 10

How to use ....11

Tips on usage ......13

After use ....13

Cleaning 14

Frequently asked questions .....15

Troubleshooting 15

Battery life 16

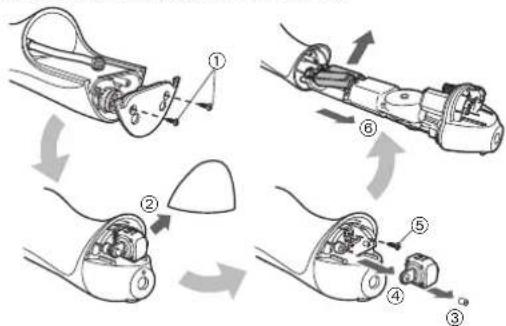

Removing the built-in rechargeable

battery....16

Specifications ....17

Changing the nozzle

(Sold separately)....18

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

3

Warning

• Do not immerse the charger in water or wash it with water.
  Doing so may cause electric shock or fire due to a short circuit.
  • Always unplug the power plug from a household outlet when cleaning the charger.
  Failure to do so may cause electric shock or injury.
• The supply cord cannot be replaced. If the cord is damaged, the charger should be scrapped.
  Failure to do so may cause an accident or injury.
• Oral irrigators can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge under supervision.

BLACK

SIZE : 182x128 mm.

• Oral irrigators shall be used only with cold or warm water, or specific solutions as defined in the manufacturer's instructions.
  • Children shall not play with the appliance.
• Do not use anything other than the supplied charger for any purpose. Also, do not use any other product with the supplied charger. (See page 10.) Doing so may cause burn or fire due to a short circuit.
• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Safety precautions

English

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

⚠️ DANGER	Denotes a potential hazard that will result in serious injury or death.
⚠️ WARNING	Denotes a potential hazard that could result in serious injury or death.
⚠️ CAUTION	Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

▶ Preventing accidents

Do not store within the reach of children or infants. Do not let them use it. - Doing so may cause an accident or injury due to accidental ingestion of removable parts.

▶ Power supply

Do not connect or disconnect the power plug to a household outlet with a wet hand. - Doing so may cause electric shock or injury.

Do not place the charger over or near water filled sink or bathtub.

Do not use when the cord or the power plug is damaged or when the fitting into the household outlet is loose.

Do not damage the cord or the power plug. - Do not deface, modify, forcefully bend or pull the cord or the power plug. Also, do not place anything heavy on, twist or pinch the cord. - Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many power plugs to one household outlet may cause fire due to overheating.

WARNING

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the charger. Fully insert the power plug.

- Failure to do so may cause fire or electric shock.

▶In case of an abnormality or malfunction Immediately stop using and remove the power plug if there is an abnormality or malfunction.

- Failure to do so may cause fire, electric shock, or injury.

•The main unit or charger is deformed or abnormally hot.

•The main unit or charger smells of burning.

•There is abnormal sound during use or charging of the main unit or charger.

- Immediately request inspection or repair at an authorized service centre.

▶ This product

This product has a built-in rechargeable battery. Do not throw into flame or heat.

- Doing so may cause fluid leak, overheating, or explosion.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact an authorized service centre for repair (battery change, etc.).

Never disassemble except when disposing of the product.

- Doing so may cause fire, electric shock, or injury.

▶ Cleaning

Regularly clean the power plug to prevent dust from accumulating (once every half a year).

- Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the power plug and wipe with a dry cloth.

CAUTION

▶ Preventing damage to teeth and gums People who are unable to operate should not use this appliance.

People with weak oral senses should not use this appliance.

- Doing so may cause injury or damage to teeth and gums.

People who may have periodontal disease, have teeth being treated, or concerned about symptoms within their mouth should consult a dentist before use.

- Failure to do so may cause injury or damage to teeth and gums.

CAUTION

▶ This product

Never use for a purpose other than oral cleaning.

- Doing so may cause an accident or injury when the stream of water is pointed toward the eyes, nose, ears, or throat.

Do not fill the tank with water warmer than 40 °C. - Doing so may cause burns.

Do not share nozzle with your family or other people.

- Doing so may cause infection or inflammation.

Do not place a metallic object such as a coin or a clip on top of the charger.

- Doing so may cause burns due to excessive heat.

▶ Note the following precautions

Do not allow metal objects or trash to adhere to the power plug.

- Doing so may cause electric shock or fire due to a short circuit.

Do not drop or subject to shock.

- Doing so may cause injury.

Do not wrap the cord around the charger when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Disconnect the power plug from the household outlet when not using for extended period of tin

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the power plug by holding onto it instead of the cord.

- Failure to do so may cause electric shock or fire due to a short circuit.

After use, always care for and clean the appliance. (See page 14.)

- Failure to do so may cause damage to your health due to propagation of mold and bacteria.

Handling of the removed battery when disposing

DANGER

•The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.
- Do not charge the battery after it has been removed from the product.
- Do not throw into fire or apply heat.
- Do not solder, disassemble, or modify the battery.
- Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
- Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.
- Never peel off the tube.
- Doing so may cause fluid leak, overheating, or explosion.

The battery contains alkaline fluid. If it comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water.

- Failure to do so may cause loss of vision. Consult a physician immediately.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed.

If this happens, consult a physician immediately.

The battery contains alkaline fluid. If it comes in contact with the skin or clothes, rinse off with clean water, such as tap water.

- Failure to do so may cause skin injury.

Important information

• Do not put salt, mouthwash or other chemicals into the water tank. Doing so may cause malfunction.
• Do not dry the main unit with a dryer or a fan heater. Doing so may cause malfunction or deformation of the parts.
• Do not wipe with thinners, benzine, alcohol etc. Doing so may cause malfunction, cracking or discoloration of the parts.
• Store the appliance in a place with low humidity after use. Leaving the appliance in a bathroom may cause malfunction.
• Charge the appliance correctly according to these Operating Instructions. (See page 10 "Charging".)
• This appliance contains battery that is only replaceable by skilled persons. Please contact an authorized service centre for the details of repair.

Parts identification

English

A Main unit

① Nozzle release button
②Power switch
③ Mode switch
④ Mode indicator
⑤ Charging indicator
⑥ Ventilation hole
⑦Suction hose
⑧Filter
⑨ Water tank
⑩ Water tank cap

B Charger (RE8-47)

⑪ Charging section
⑫ Cord
⑬ Power plug

⑭ Nozzle stands
⑮ Screw holes for wall mounting The charger can be mounted on a wall using two wood scre

© Nozzle (for general use)

⑯ Nozzle
⑰ Nozzle handle
⑱ Identification ring

D Orthodontic nozzle

Accessories
E2 screws

Note

There may be moisture inside the main unit (water tank and suction hose) left from the distilled water used for product testing.

Charging

▶ On the bathroom countertop or a shelf

1. Place the cord in the right, left or centre cord guide, depending on where the charger will be placed.
2. Place the charger on a secure, level surface.
3. Plug in the power plug.

1 Insert main unit so it stands upright in the charging section.

The charging indicator will light up.

• Be sure to place the main unit upright. If the main unit is tilted or not in direct contact with the charger, the main unit may not charge properly.
• Charging is completed in about 15 hours.
• The lamp does not go off even when charging ends.
• The main unit will provide an operation time of approximately 15 minutes of use when the battery is fully charged. (The operating duration will become shorter as the batteries get older.)

2 Disconnect the power plug after charging is completed.

(for safety and to reduce energy usage)

- The battery performance will not be affected even if it is charged for more than 15 hours.

Notes

• When using the appliance for the first time or if it has not been used for more than half a year, the charging indicator may not light up for several minutes after charging starts or the operating time may become shorter. In such cases, charge the battery for 23 hours or more.
• Recommended ambient temperature for charging is 0^ - 35^ . Battery performance may decrease outside of the recommended temperature.

How to use

1 Attach the nozzle firmly onto the main unit.

2 Open the water tank cap, hold the main unit so it is level, and fill the tank with water.

• Always use new tap water or lukewarm water.
- If the water feels cold, use lukewarm water with a temperature of 40^ or less.

3 Close the water tank cap, making sure it locks in place.

English

4 Press the mode switch and select the desired water jet mode.

• The mode indicator will glow the previously selected mode. If the appliance is not used for more than 30 days, or after the appliance has been fully charged from its fully discharged state, the mode is initialized to AIR IN (SOFT). (When the battery is drained, the mode will be reset but this is not a fault.)
• If you want to use a different mode, press the mode switch until it changes to the desired setting. Pressing the mode switch will change the mode from AIR IN (SOFT) to AIR IN (REGULAR) to JET.

BLACK

SIZE : 182x128 mm.

Mode Description
	JET modeThis mode is for removing food particles trapped between the teeth.
	AIR IN (REGULAR) modeThis mode is for periodontal pocket cleaning and gum care.
	AIR IN (SOFT) modeThis mode is for gently massaging the gums.

Notes

• When you use the appliance for the first time, press the power switch to turn the appliance on and test each of the water jet modes with the tank filled with water.
• The appliance may not operate in an ambient temperature approximately 5 °C or lower.
• Do not hold the tip of the nozzle firmly against the teeth or gums. (Except orthodontic nozzle)
• Since plaque adhering to the surface of teeth cannot be removed only with water flow, brushing is always necessary. It is recommended to clean inside your mouth with water flow after brushing your teeth.
• Do not operate the main unit when empty other than when pouring out any remaining water after use. Operating the main unit without water may result in a malfunction.

5 Place the nozzle in your mouth and close your mouth gently before pressing the power swit

• To use, place your face over a washbasin, and with the main unit upright and the nozzle at the top, raise your elbow.

• Pressing the mode switch during use will change the mode.
• A fully filled water tank provides approximately 35 seconds of use. (When using the nozzle (for general use))
• If the nozzle is inclined too much, water will come out of the ventilation hole instead of the nozzle. (The ventilation hole in the rear of the main unit allows for easier water suction of the hose.)

Turn the nozzle handle to adjust the direction of the water flow.

6 After use, press the power switch to turn off the main unit.

- Stop operation with the nozzle still in the mouth to prevent water from splashing.

Tips on usage

Nozzle (for general use)

When cleaning with water flow

▶ Cleaning the space between the teeth

In the JET mode

• Direct the water flow onto the zone between the teeth.
• Direct from the front and rear sides of the teeth.

▶ Periodontal pocket cleaning

In the AIR IN (REGULAR) mode

• Aim the water flow at the space between the teeth and gum.
• Slowly shift the water flow along the gum.
• Clean the front and back of the teeth and behind the molars as well.
• Clean the areas of concern in the gum in the AIR IN (SOFT) mode.
  * Do not clean the periodontal pocket in JET mode, since the strength of water flow is too strong.

▶Gum care

In the AIR IN (REGULAR) mode

• Stimulate the gum.
• Gently stimulate the areas of concern in the gum in the AIR IN (SOFT) mode.

Orthodontic nozzle

When cleaning crooked teeth and orthodontic bracket area with the brush and water flow

Lightly place the brush tip on the teeth and wiggle the brush.

▶ For crooked teeth

• Place the brush tip on the area that is difficult for a toothbrush to reach and tends to remain unpolished.
• Wiggle the brush mainly in interdental spaces.

▶ For orthodontic bracket area

• Insert the brush to the gap between the teeth and the orthodontic bracket.
• Wiggle the brush tip.

After use

1. Open the water tank cap and discard the water.
2. Be sure to discard the water in the water tank every time.
3. Turn on the power switch and drain out the water.
4. Operate until no more water appears and then turn off the power switch.

Illustration of a hand holding a device with a curved handle and a separate close-up of its tip (no text or symbols)

English

BLACK

1. Stand the main unit in the charger.
2. While pressing the nozzle release button, remove the nozzle from the main unit and place it on the nozzle stand.

Cleaning

1. Pull out the water tank downwards.

1. Clean with water.

Four-step illustration showing a hand holding a tool above a droplet, with water droplets falling (no text or symbols)

• Remove the identification ring and clean with water.

• Do not wash with hot water exceeding 50 °C.

• If using a detergent, use one suitable for dishwashing. Rinse well with water to ensure no detergent remains after cleaning.

• Wipe away moisture with a towel and leave to dry in a well-ventilated area.

Scrub the filter at the tip of the suction hose lightly with a soft brush.

1. Wipe away the water with a towel etc. and dry.
2. Align and slide the water tank along the groove and install it securely.

Use a cloth to wipe away the stains on the charger.

• Never use thinners, benzine, or alcohol since it may cause malfunction or cracking/discoloration of the parts.
• Do not clean the charger with water.
• About once every six months wipe the prongs of the power plug with a dry cloth.

Frequently asked questions

Question Answer

Will the battery be exhausted after a long period of disuse?

Can the battery be charged before every use?

When the appliance is not used for 6 months or more, the battery will weaken (leak battery fluid, etc.). Fully charge the battery once every 6 months.

Yes, but it is recommended that you charge the battery when it is empty. The life of the battery will vary depending upon usage and storage conditions.

Troubleshooting

Problem Possible cause Action

The appliance does not operate.

You have just purchased the product or it has not been used for more than 6 months.

▶ Charge the unit for at least 23 hours. (See page 11.)

The appliance can be used only for several minutes, even if it is charged.

▶ The charging time is short.

The main unit is not standing upright on the charger. (See page 10.)

▶ Stand the main unit upright so that its base contacts the charging section of the charger.

▶ Battery life is over (approx. 3 years).

The battery has reached the end of its life. (See page 16.)

Water pressure is low.

▶ The nozzle is clogged.

▶ Mouth of the nozzle is squashed.

Replace the nozzle.

▶ Filter is clogged. Clean filter. (See page

14.)

Water does not come out.

The main unit is tilted too much while in use.

Use with the main unit in a vertical state. (See page 12.)

If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Battery life

English

The battery life is about 3 years when charged about once a week (when used by one person). If the operating time is significantly shorter even after a full charge, the battery has reached the end of its life. (The operating life of the battery may differ depending on usage or storage conditions) Have the battery replaced by an authorized service centre.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing the appliance.

The battery is to be disposed of safely. Please make sure that the battery is disposed of at an officially designated location if there is one. This figure must only be used when disposing the appliance, and must not be used to repair it. If you dismantle the appliance yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the appliance from the charger when removing the battery.

• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.

• Perform steps ① to ⑥ and lift the battery, and then remove it.

• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

For environmental protection and recycling of materials This appliance contains a Nickel-Metal Hydride battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Specifications

Power source	See the name plate on the product (Automatic voltage conversion)
Charging time Approx. 15 hours
Power consumption	Approx. 1 W
Operating time	Approx. 15 minutes* (at 20 °C when fully charged)
Tank volume	Approx. 130 mL (Nozzle (for general use): approx. 35 seconds*) (Orthodontic nozzle: approx. 30 seconds*)
Dimensions	Main unit: 197 (H) x 59 (W) x 75 (D) mm (Not including nozzle) Charger: 40 (H) x 93 (W) x 98 (D) mm
Mass	Main unit: Approx. 305 g (Including nozzle) Charger: Approx. 180 g
Airborne Acoustical Noise	68 (dB (A) re 1 pW)

* When using AIR IN (REGULAR) mode This product is intended for household use only.

For more information about the energy efficiency of the product, please visit our website, www.panasonic.com, and enter the model number in the search box.

Changing the nozzle (Sold separately)

- Optional nozzles with identification ring to allow several persons to share the main unit.

▶ Nozzle (for general use)

• If the tip of nozzle (for general use) gets deformed, please replace with a new nozzle.
• The nozzle is a consumable. The nozzle (for general use) should be replaced with a new one every 6 months or so due to hygiene reasons, even if its shape is unchanged.

New nozzle (tip)

Deformed (worn) nozzle (tip)

▶Orthodontic nozzle

- Replace the orthodontic nozzle in approx. 3 months. If the brush bristles are bent out, replace it even within 3 months.

New nozzle

Nozzle with bent out bristles

Part number	Replacement Nozzle for EW1313
EW0950 Nozzle (for general use)
WEW0984	Orthodontic nozzle

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

BLACK

SIZE : 182x128 mm.

Panasonic

Betriebsanleitung

Illustration of a hand holding a medical device with a curved tool, and a second image showing an endoscopic device (no text or symbols present)

Reinigung

Four-step illustration showing a hand holding a bottle, with water droplets and a knife above them (no text or symbols)

▶ Prévention des accidents

Illustration of a hand holding a medical device with a curved tool, showing motion and angle (no text or symbols)

Nettoyage

1. Nettoyez à l'eau.

66

SIZE: 182x128 mm.

Specifications....86

Illustration of a hand holding a small electronic device with a curved handle and a separate close-up of its internal components (no text or symbols)

Reinigen

Illustration of a hand holding a medical device with a curved tool, alongside a secondhand view of an electric tooth (no text or symbols)

Español

BLACK

SIZE: 182x128 mm.

Limpieza

Illustration of a hand holding a cylindrical device with a curved handle, and a close-up of its internal components (no text or symbols)

Dansk

BLACK

Four-step illustration showing a hand holding a small object through different droplets, illustrating a water safety or disinfection scenario (no text or symbols)

Illustration of a hand holding a cylindrical device with a knob, and a close-up of a handheld device with a pointer (no text or symbols)

133

Português

BLACK

Illustration of a hand holding a cylindrical object with a curved handle, and a separate view of an electric tooth being held (no text or symbols)

Norsk

BLACK

Four-step illustration showing a hand holding a small object through different droplets, illustrating a water safety or disinfection scenario (no text or symbols)

Illustration of a hand holding a cylindrical device with a curved handle, and a second close-up of a dental instrument (no text or symbols)

Svenska

BLACK

Four-step illustration showing a hand holding a tool and cleaning a bottle, with droplets indicating water droplets (no text or symbols)

Illustration of a hand holding a cylindrical device with a curved handle, and a separate view of a handheld device with a scroll wheel (no text or symbols)

BLACK

Four-step illustration showing a hand holding a small object through different water droplets (no text or symbols)

A Jednostka główna

Illustration of a hand holding a medical device with a curved tool, showing motion (no text or symbols)

Czyszczenie

Polski

B Nabiječka (RE8-47)

Illustration of a hand holding a cylindrical object with a curved handle, and a separate view of an electric tooth being held (no text or symbols)

BLACK

Four-step illustration showing a hand washing a bottle with liquid, illustrating the process (no text or symbols)

Illustration of a hand holding a cylindrical device with a curved handle, and a separate close-up of a dental instrument (no text or symbols)

BLACK

Illustration of a hand holding a medical device with a curved tool, and a separate view of an endoscopic device (no text or symbols present)

Tisztítás

Illustration of a hand holding a medical device with a curved tool, showing motion (no text or symbols)

Romana

BLACK

    %% Diagrammatic labels
    %% Step numbers and arrows indicate process flow

Navanakorn Industrial Estate Zone 3 No.106 Moo 18

Khlong 1, Khlong Luang, Pathum Thani, 12120, Thailand

YETKILI TEMSILCI

İthalatçı Firma:

Tesan İletişim A.Ş.
