| Brand | Einhell |
| Model | TP-APD 18/321 Li BL |
| Product type | Cordless jigsaw (keyhole saw) |
| Power supply | 18 V DC, lithium-ion battery (not included, compatible with Power X-Change) |
| Max. stroke rate | 3000 rpm |
| Stroke height | 32 mm |
| Cutting depth (wood) | 300 mm |
| Cutting depth (iron) | 20 mm |
| Cutting depth (plastic) | 30 mm |
| Max. blade width | 1,7 mm |
| Weight | 3,0 kg |
| Sound pressure level | 93 dB(A) (K=3 dB) |
| Sound power level | 101 dB(A) (K=3 dB) |
| Vibration emission (wood) | 8,8 m/s² (K=1,5 m/s²) |
| Vibration emission (beams) | 9,5 m/s² (K=1,5 m/s²) |
| Speed adjustment | Yes, continuous electronic regulator |
| Pendulum stroke | Yes, switchable (activated/deactivated) |
| Adjustable base plate | Yes, tool-free |
| Blade change | Tool-free, via rotating ring |
| Fixing hook | Yes, foldable |
| Battery charge indicator | Yes, 3 LEDs on battery |
| Delivery contents | Saw, 6 saw blades, instruction manual, safety instructions |
| Maintenance and cleaning | Clean with a damp cloth and a little soap; no internal maintenance required |
| Safety | Lock switch, hearing and eye protection recommended, dust mask |
| Spare parts and repairability | Wear parts: battery, blades; Einhell after-sales service; parts available at www.Einhell-Service.com |
| General information | Storage between 5 and 20 °C, frost-free; do not dispose of with household waste |
Frequently Asked Questions - TP-APD 18/321 Li BL EINHELL
User questions about TP-APD 18/321 Li BL EINHELL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual TP-APD 18/321 Li BL - EINHELL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TP-APD 18/321 Li BL by EINHELL.
USER MANUAL TP-APD 18/321 Li BL EINHELL
EN Original operating instructions Universal Cordless Saw
FR Instructions d'origine Scie universelle sans fi I
DE
Gefahr!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

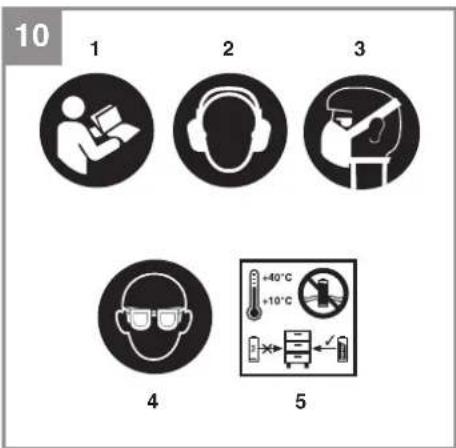

Explanation of the symbols used (see Fig. 10)
- Danger! - Read the operating instructions to reduce the risk of injury.
- Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.
- Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
- Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
- Store the batteries only in dry rooms with an ambient temperature of +10°C to +40°C. Place only fully charged batteries in storage (charged at least 40%).
1. Safety regulations
The corresponding safety information can be found in the enclosed booklet. WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
2. Layout and items supplied
2.1 Layout (Fig. 1)
- On/Off switch
- Locking button for On/Off switch
- Soleplate
- Blade holder
- Locking button for soleplate
- Handle
- Speed controller
- Selector switch for pendulum action
- Fastening hook
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.
Danger!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!
• Universal cordless saw
- 6x Saw blade
• Original operating instructions
- Safetyinstructions
EN
3. Proper use
The multi-saw is designed for sawing wood, iron, non-ferrous metals and plastic. It should only be used with the appropriate saw blade.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
4. Technical data
Motor power supply: 18 V DC
Stroke speed: .... max. 3000 min ^1
Stroke height: 32 mm
Cutting depth, wood: 300 mm
Cutting depth, iron: 20 mm
Cutting depth for plastic 30 mm
Maximum saw blade width: 1.7 mm
Weight: 3.0 kg
Danger!
Sound and vibration
Sound and vibration values were measured in accordance with EN 62841.
L_pA sound pressure level ..... 93 dB(A)
K_pA^int uncertainty 3 dB
L_wA sound power level 101 dB(A)
K_WA uncertainty ....3 dB
Wear ear-muff s.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions) determined in accordance with EN 62841.
Cutting wooden boards
Vibration emission value a_h = 8.8 m/s^2
Uncertainty K = 1.5 m/s ^4
Cutting wooden beams
Vibration emission value a_h=9.5 m/s^2
Uncertainty K = 1.5 m/s ^4
The stated vibration emission levels and stated noise emission values were measured in accordance with a set of standardized criteria and
can be used to compare one power tool with another.
The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.
Warning:
The vibration and noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.
Keep the noise emissions and vibrations to a minimum.
- Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance. - Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:
- Lung damage if no suitable protective dust mask is used.
- Damage to hearing if no suitable ear protection is used.
- Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.
EN
5. Before starting the equipment
Warning!
Always remove the battery pack before making adjustments to the equipment.
5.1 Changing the saw blade (Fig. 2) Warning!
Switch off the universal saw and pull out the battery pack each time before doing any work on the machine and changing the blade.
To adjust the soleplate, press the soleplate locking button (5) on the right-hand side (looking from the top) in order to unlock the soleplate (3). Set the required distance and press the soleplate locking button (5) on the left-hand side (looking from the top) in order to lock the soleplate again. Check that the soleplate is secure.
5.2 Adjusting the soleplate (Fig. 3) Warning!
Pull out the battery pack.
To adjust the soleplate, press and hold the sole-plate locking button (5) on the left-hand side (looking from the bottom) in order to unlock the soleplate (3). Set the required distance and release the soleplate locking button (5) in order to lock the soleplate again.
Check that the soleplate is secure.
5.3 Charging the Li battery pack (Fig. 4-5)
-
Remove the battery pack (d) from the handle, pressing the pushlock button (c) downwards to do so.
-
Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger (e) into the mains socket outlet. The green LED will then begin to fl ash.
-
Push the battery pack onto the battery charger.
In section 10 (Charger indicator) you will find a table with an explanation of the LED indicator on the charger.
If the battery pack fails to charge, check for the following:
• voltage at the power socket
- whether there is good contact at the charging contacts of the charging unit
If the battery pack still fails to charge, send
• the charger and charging adapter
• and the battery pack
to our customer service center.
To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased.
When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res.
To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect.
5.4 Battery capacity indicator (Fig. 4 /Item f) Press the button for the battery capacity indicator (g). The battery capacity indicator (f) shows the charge status of the battery using 3 LEDs.
All 3 LEDs are lit:
The battery is fully charged.
2 or 1 LED(s) are lit:
The battery has an adequate remaining charge.
1 LED blinks:
The battery is empty, recharge the battery.
All LEDs blink:
The battery temperature is too low. Remove the battery from the equipment, keep it at room temperature for one day. If the fault reoccurs, this means that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery.
EN
6. Operation
6.1 On/Off switch (Fig. 1/Item 1)
To switch on:
Press the locking button (2) and the On/Off switch (1).
Infinitely variable stroke speed control is possible with the On/Off switch (1). The further you push the switch, the higher the stroke speed.
To switch off :
Release the locking button (2) and the ON/OFF switch (1) at the same time
6.2 Use as a jigsaw (Fig. 6)
Place the multi-saw on the material to be cut as shown in Fig. 6. Switch on the multi-saw and push it along against the material to be cut. Adapt your cutting speed to the material.

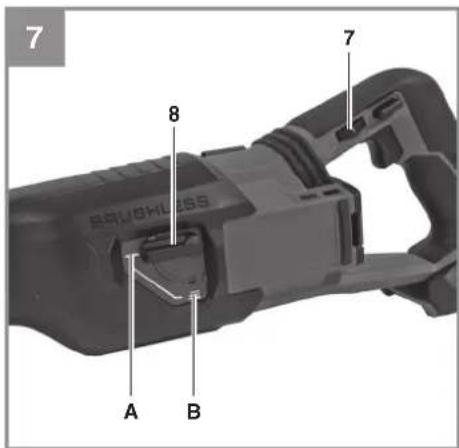

6.3 Preselecting the speed (Fig. 7/Item 7)
The speed controller (7) enables you to define the maximum speed.
- Set the speed controller (7) to the required position.
- With the On/Off switch (1) pressed right in, the motor will now run as quickly as was set at the speed controller (7).
- The setting can also be made during operation.
6.4 Setting the pendulum action (Fig. 7/Item 8)
The pendulum action for the saw blade can be switched on or off at the selector switch for pendulum action (8).
Set the selector switch for pendulum action (8) to one of the following positions:
Position A = pendulum action off
Material: Rubber, ceramic, aluminium, steel
Please note: For fi ne clean cuts, thin materials (e.g. sheet steel) and hard materials.
Position B = pendulum action on
Material: Wood
Please note: For soft materials and sawing along the grain
The best combination of speed and pendulum action depends on the material you want to saw. We recommend you to make a trial cut on a waste
piece in order to check the ideal settings.

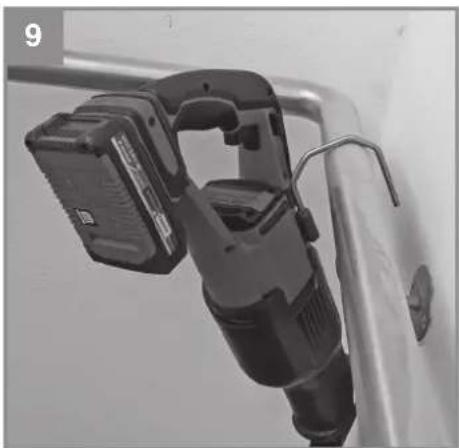

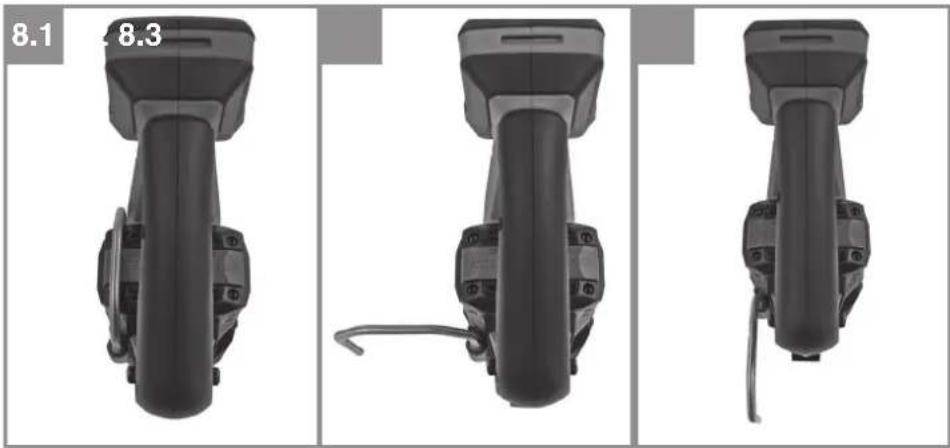

6.5 Fastening hook (Fig. 8/Item 9)
The cordless universal saw can be attached to stair railings, scaffolding, etc. using the fastening hook.
To do this, unfold the fastening hook as shown in Fig. 8 and hang the device at the desired location.
7. Cleaning, maintenance and ordering of spare parts
Danger!
Always remove the battery pack before making adjustments to the equipment.
7.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it. - Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.
7.2 Maintenance
There are no parts inside the equipment which require additional maintenance.
9.3 Ordering spare parts and accessories
Please provide the following information when ordering spare parts:
- Type of unit
• Article number of the unit
• ID number of the unit - Spare part number of the required spare part For our latest prices and information please go to www.Einhell-Service.com
Tip! For good results we recommend high-quality accessories from kwbi ! www.kwb.eu welcome@kwb.eu
EN
8. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
9. Storage
Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 20°C. Store the electric tool in its original packaging.
EN
10. Charger indicator
| Indicator status Explanations and actions | ||
| Red LED Green LED | ||
| Off | Flashing | Ready for useThe charger is connected to the mains and is ready for use; there is no battery pack in the charger |
| On Off Charging | The charger is charging the battery pack in quick charge mode. The charging times are shown directly on the charger.Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge. | |
| Off | On | The battery is charged and ready for use. (READY TO GO)The unit then changes over to gentle charging mode until the battery is fully charged.To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer.Action:Take the battery pack out of the charger. Disconnect the charger from the mains supply. |
| Flashing Off | Adapted charging | The charger is in gentle charging mode.For safety reasons the charging is performed less quickly and takes more time. The reasons can be:- The rechargeable battery has not been used for a very long time.- The battery temperature is outside the ideal range.Action:Wait for the charging to be completed; you can still continue to charge the battery pack. |
| Flashing Flashing Fault | Charging is no longer possible. The battery pack is defective.Action:Never charge a defective battery pack.Take the battery pack out of the charger. | |
| On On Temperature fault | The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0^ ).Action:Remove the battery pack and keep it at room temperature (approx. 20^ ) for one day . | |
EN
Disposal
Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of power tools and batteries/rechargeable batteries into household waste!
Only for EU countries:
According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.
If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.
Only for United Kingdom:
According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.
Subject to technical changes
EN
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
| Category Example | |
| Wear parts* Battery | |
| Consumables* Saw blade | |
| Missing parts |
* Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
FR
Danger!
Voeding motor: 18 V DC
Aantal slagen: max. 3000 min ^1
Slaghoogte: 32 mm
Negotovost K_pA .....3 dB
Nivo zvočne moči L _WA 101 dB (A)
Negotovost K_WA .....3 dB
Svetle sve LED diode:
Akumulator je napunjen do kraja.
Svetle 2 ili 1 LED dioda
Akumulator raspolaže s dovoljnim kapacitetom.
1 LED dioda treperi:
Akumulator je prazan, napunite ga.
Trepere sva LED svetla:
Temperatura akumulatora je ispod granice. Izvadite akumulator iz uređaja i ostavite ga jedan dan na sobnoj temperaturi. Ako se greška ponavlja, znači da je akumulator potpuno prazan i neispravan. Uklonite akumulator iz uređaja. Neispravan akumulator više ne smete da koristite niti punite.
6. Rukovanje
X 2006/42/EC
Annex IV
Notified Body:
Reg. No.:
□2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise:measuredLWA = dB (A); guaranteed LWA = dB (A)
P = kW; L/∅ = cm
Notified Body:
□2012/46/EU_(EU)2016/1628
Emission No.
Standard references: EN 62841-1; EN 62841-2-11; EN IEC 55014-1; EN IEC 55014-2
Subject to change without notice
Archive-File/Record: NAPR035047
Documents registrar: Georg Riedel
Wiesenweg 22, D-94405 Landau/Isar
ENV Universal Cordias Sae - RH Fols universale sans III - IT Gattucio universale a bietaria - D/A/O AKku-universelsev - SV Betterdiriven universalsag - CS Akumulatorová universaliz píle - SK Akumulatorová universzina píle - NL Universis accuurag - SS Sistma universale do bateria - FI Akuckitytönn- yütssaha - SL Akumulatorová universzina fóga - NIO Akkus-univerzalis körssz - RO Peristau- universal ou a acumulator. EI Špindi výničke způjím, pe úmupióra - PT Serra universal sem fiho - NR/62 Akumulatorová universzina píle - SP Akumulatorová universzana testera - PL Universaliza píle - AL UBIUŠKAZAVI KOMAŠKAR (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNUR SRAVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VIBUSAVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍINURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1) - VÍNURSÁVNIK (1).
Declaration of conformity
We, Einhell UK Ltd
Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom
declare the conformity to UK standards and legislation was assessed for:
Cordless All Purpose Saw TP-APD 18/321 Li BL (Einhell)
UK legislation
□ Simple Pressure Vessels (Safety) Regulation
□ Electrical Equipment (Safety) Regulation
□ Radio Equipment Regulation
□ Personal Protective Equipment Regulation
☐ The Ecodesign for Energy-Related Products and Energy Information Regulation
X The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation
□ Noise Emission in the Environment by Equipment for use Outdoors Regulation
X Electromagnetic Compatibility Regulation
□ Measuring Instruments Regulation
☐ Pressure Equipment (Safety) Regulation
Annex V
Annex VI
Noise:measuredLWA = dB (A); guaranteed LWA = dB (A)
P = kW; L/∅ = cm
UK Approved Body:
X Supply of Machinery (Safety) Regulation
Annex IV
UK Approved Body:
UKTE Certifi cate No.:
Standards: BS EN 62841-1; BS EN 62841-2-11; BS EN IEC 55014-1; BS EN IEC 55014-2
Wirral, 2025.06.11
Tom Chambers, Managing Director Einhell UK Ltd.
Article Number: 43.262.96 I.-No.: 21015
Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany
Archive-File/Record: NAPR035047
Documents registrar: Georg Riedel
EH 06/2025 (01)
