ADVERTENCIA

Technical line drawing of a mechanical component with a circular feature and a numbered label (4), no readable text or symbols present.

Technical line drawing of a device with a grating and labeled component (no text or symbols present)

Line drawing of a digital camera with a coiled cable and attached rectangular component (no text or symbols)

Diagram showing a USB connector connected to a digital camera via cable (no text or symbols present)

Line drawing of a digital camera with front panel and control buttons (no text or symbols)

Menu Settings

Menu Settings Rec Resolution 4K/30FPS > White Balance Auto > Filter none > Exposure Setting 0 >

TF card Storage Space: 29.08G/29.12G Format Cancel

Circular diagram with circular elements and abstract symbols, no readable text or labels

Technical diagram of a digital camera with labeled parts including front, back, and screen views

Video player interface with playback controls and a mountain landscape background (no readable text or symbols)

Grayscale image showing a small house with mountainous background and camera interface elements (no readable text or symbols)

Diagram of a digital camera with labeled parts including front panel, screen, and buttons

Diagram showing connection between a device and a laptop via USB cable, with an inset image of the device's connector.

USB Connected Charging Mode Mass Storage Mode PC Camera

Modo de carga

Wi-Fi Information Wi-Fi ID: PRIXTON XPLORER DV900 Wi-Fi pwd: 12345678 Press UP to turn off WiFi Please scan the QR code to download APP

Zero Com V1.0.10 Connect the camera Press down Join up Zero Com 5:00 7 Take Press 8 Settings 9 10 11 12

To reduce the risk of fire or electric shock,

1. Do not expose the unit to rain or moisture.

2. Do not place objects filled with liquids, such as vases, on the apparatus.

3. Do not expose the batteries to excessive heat such as sunshine, fire or the like.

4. Do not ingest battery chemical burn hazard.

5. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

6. If you think batteries might have been swallowed or placed inside any part of body, seek immediate medical attention.

CAUTION

If the battery is mishandled, the battery pack can burst, cause a fire or even chemical burns.

Observe the following cautions.

Do not disassemble.

Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.

Do not short circuit and do not allow metal objects to come onto contact with the battery terminals.

Do not expose to high temperature above 60^ C ( 140^ F) such as in direct sunlight or in a car parked in the sun.

Do not incinarete or dispose of in fire.

Do not handle damaged or leaking lithium ion batteries.

Keep the battery pack out of the reach of small children.

Keep the batter pack dry.

Replace the battery with the specified type only. Otherwise, burst, fire or injury may result. Dispose of used batteries according to the instruction.

Use a nearby wall outlet(wall socket) when using the AC Adapter/Battery charger.

If any malfunction occurs, disconnect the plug from the wall outlet immediately to disconnect from the power source. If you use the product with a charge lamp, note that the product is not disconnected from the power source even when the lamp turns off.

Do not use the AC adapter/Battery charger placed in a narrow space, such as between a wall and furniture.

If static electricity or electromagnetism cause data transfer to discontinue midway (fair), restart the application or disconnect and connect the communication cable (USB, etc.) again.

About the camera

System requirement

Users can ransfer videos and photos to computers with the following

system 2GB RAM 40GB above available disk memory/ Standard USB interface /1GB GPU or higher 1920x1080 pixel or higher resolution.

Parts and controls

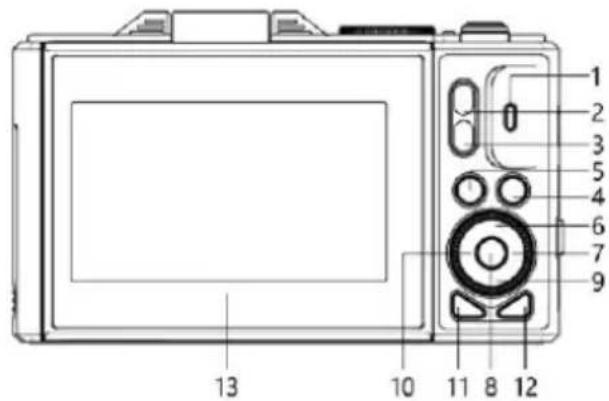

Rear view

1 2 3 5 4 6 7 9 13 10 11 8 12

1. Charging/working indicator light
2. Digital zoom in
3. Digitaal zoom out
4. Delete button
5. Playbackbutton
6. Up button/shortcut button for fill light
7. Right button
8. OK button

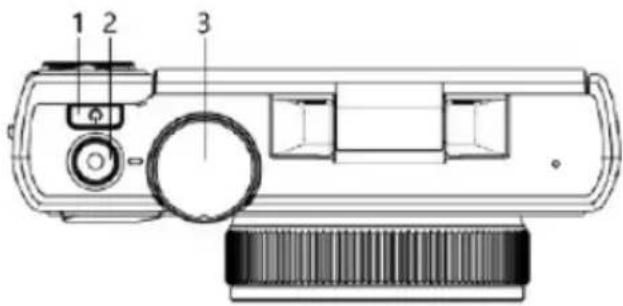

Top side view

1 2 3

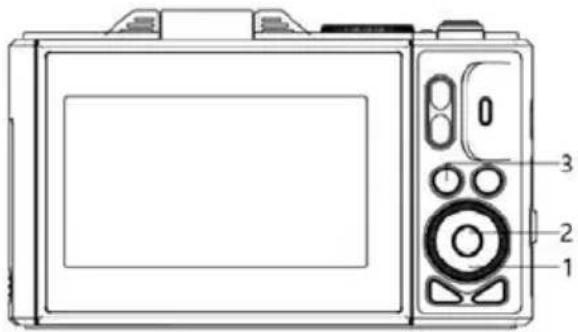

1. POWER button
2. Photo button

Left side view

1 2 100/75

1. Memory card slot
2. Type-C USB interface
3. Battery compartment

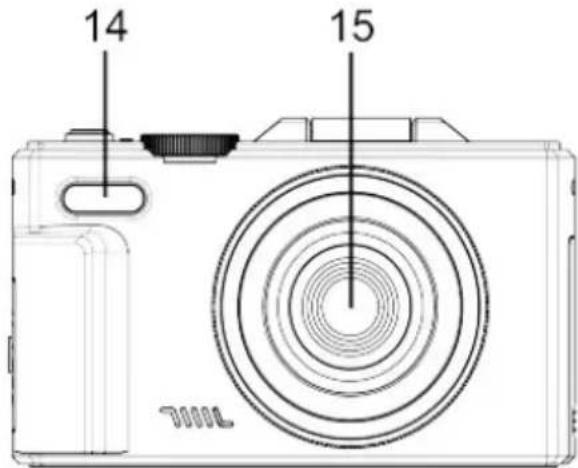

Front view

14 15

1. Down button/Delete button
2. Left button
3. DISP button
4. Menu button
5. Display screen
6. Fill light
7. Lens

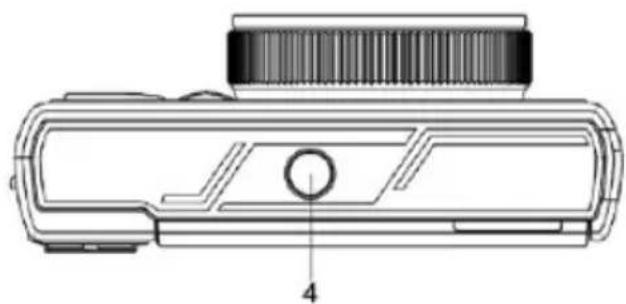

Bottom side view

Technical line drawing of a mechanical device with a circular component and textured top (no text or symbols)

1. Model Dial
2. Tripod hole

Right side view

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Buttons/ Indicators Functions
POWER	Power on / off
PHOTO	Take photo
	Pause of recording
Mode dial Switch shooting mode
T	digital zoom in
W	Digital zoom out
Indicator light Working / Charging indicator light
Playback button Open/Exit Media Playback
Delete button	Delete photo/video
Up	Upward
	Turn on/off the fill light
Right Rightward
Down	Downward
	Delete photo/video
Left	Leftward
OK	Confirm
DISP	Turn on/off the display
MENU Open / Close menu settings
USB	USB cable charging
	Connect the computer with USB cable

Charging the battery

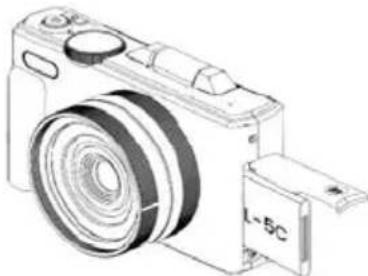

1. Power off your camera, open the battery cover and insert the battery in the direction as the shown of following picture, then close the battery cover

Line drawing of a digital camera with a labeled L-5C module (no text or symbols on the device itself)

2.You can use supplied USB cable to charge your camera via a adapter (5V/1A\~5V/2A) .

Diagram showing a DSLR camera connected to a USB port, with no text or symbols present.

* The charging indicator will be turned on in red when the battery is in charging.

* The charging indicator will be turned off automatically when the battery is fully charged. Normally it takes around 2 hours to full charging of the battery.

When the battery is fully charged, the battery life is around 60 minutes for recording.

Power on/off the camera

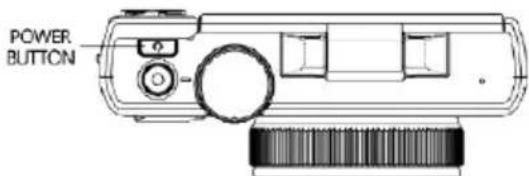

Press the power button, the camera will turn on automatically.

POWER BUTTON

To turn off the camera, press and hold the power button for 3 seconds.

Note: When you turn on the camera for the first time, you need to press and hold the power button to turn it on.

When there is no battery in the battery compartment, you need to press and hold the power button to turn on the cameraafter you put the battery in.

Set the camera

You can make custom settings of the camera.

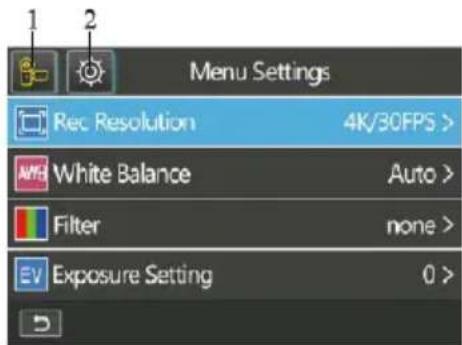

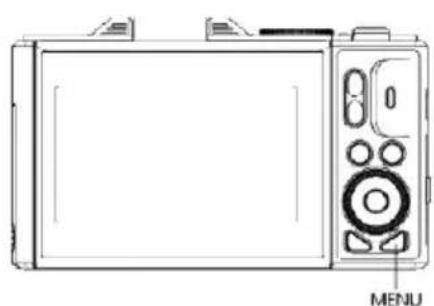

After the camera is turned on, press the menu button to open the menu settings.

Line drawing of a digital camera with front panel and control buttons (no text or symbols)

Menu Settings

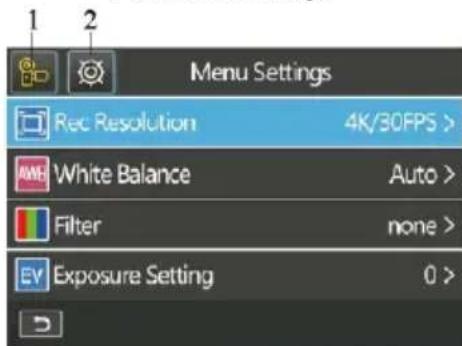

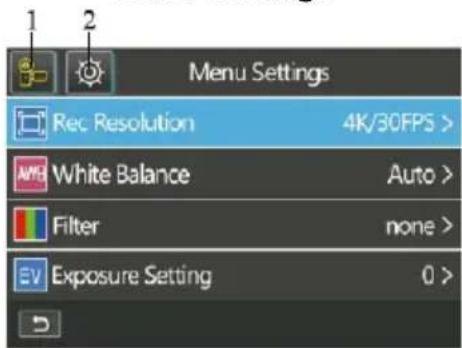

Menu Settings Rec Resolution 4K/30FPS > White Balance Auto > Filter none > Exposure Setting 0 >

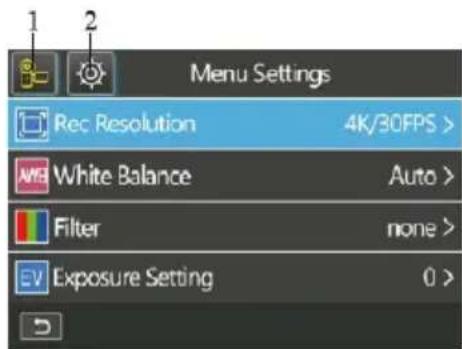

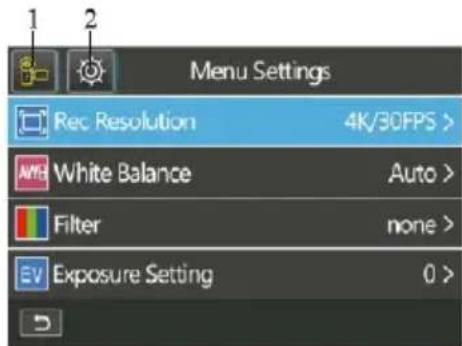

1. Sub-menu for current mode

2. System settings

Sub-menu Menu content
Image Rotation	Turn On/Turn Off
Icon Display	Turn On/Turn Off
Video Focus Mode Auto focus/Manual focus/Fixed focus
Wi-Fi	Turn On/Turn Off
Light Source Frequency	Auto/50Hz/60Hz
LED Indicator	Turn On/Turn Off
Auto Screen Saver	Turn Off/30s/1Minute/2Minute
Auto Power Off	Turn Off/3Minute /5Minute /10Minute
Display Brightness	High/Middle/Low
Button Prompt	High/Middle/Low/Turn Off
Startup Music	Turn On/Turn Off
Language	Simplified Chinese/traditional Chinese/English/ Japanese/Korean/ Russian/German/French/Italian/ Spanish/Portuguese/Thai
Time Format	YYYY/MM/DD MM/DD/YYYY DD/MM/YYYY
Time Set hour minute second
Date Set year month day
Format (Micro SD Card)Format/Cancel
Device Info Product model and version number
Factory Reset	Confirm/Cancel

Insert and format the memory card

A class 10 or higher speed memory card is recommended to normal use. 1. Insert the memory card into the memory card slot until you hear a "click".

32GB

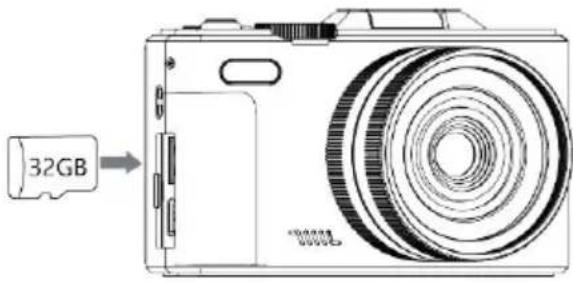

Insert the memory card in the direction shown in the diagram, paying attention to the edges and corners.

1. To remove the memory card: Push the memory card in and it will automatically pop out.

Format the memory card

It is recommended to format the memory card before the first use.

To format the memory card, press the menu button to open the menu system. Then press the left or right button to switch to system settings. Press Up or Down to find "Format" and press OK to get the sub-menu. Select Format to format the memory card.

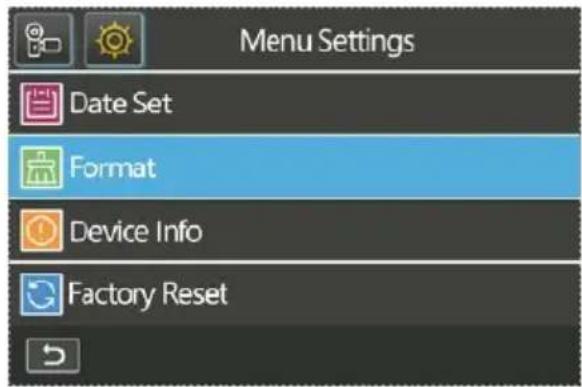

Menu Settings Date Set Format Device Info Factory Reset

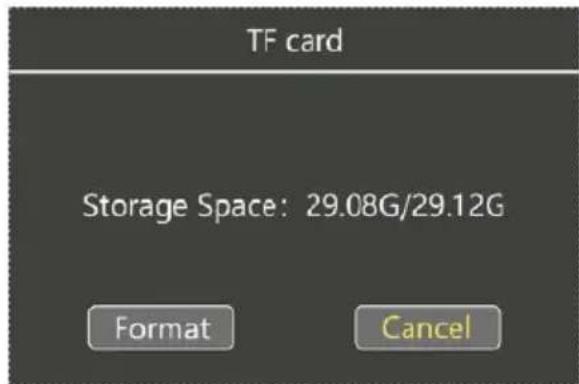

TF card Storage Space: 29.08G/29.12G Format Cancel

Note: If the memory card is not native format, the screen will pop-up a prompt: "Unsupported file system, do you want to format?" please format the memory card as above operation.

Formatting the memory card will earse all the data stored on it and the data will be irrecoverable. Save your important data on PC before formatting.

Using the camera

After the camera is turned on, it defaults to video shooting mode.

Circular diagram with abstract geometric patterns and radial lines, no text or symbols present

Rotate the mode dial to select the desired mode

icon Mode illustrate
	Photo Take a single photo normally
	Auto Automatically cycle take photos after a specified number of seconds
	Timed Take a single photo after a specified number of seconds
	Burst Take a specified number of photos in succession
	Video Normal recording mode
	Slowly Slow motion shooting
	lapse Compress time to record video
	Loop Recording infinite loop
	Video+Photo During the recording video, you can capture according to the set capture interval single photo

Note: The camera supports setting the corresponding mode menu in different modes. After selecting the desired mode, press the menu button to open the menu and select the desired setting if desired.

Press the photo button to take a photo, and the photo will be automatically saved to the memory card.

In video recording mode, press the photo button to start recording, and then press to end recording. You can also press the poser button to pause/continue recording while recording.

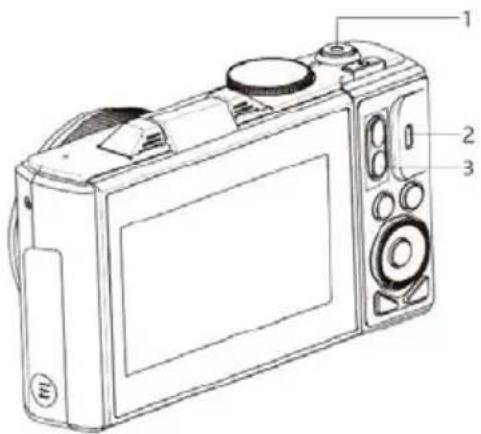

Technical diagram of a digital camera with numbered parts labeled 1, 2, and 3

1. Photo button (video start/end button)
   Press to start recording, then press to end recording
2. Indicator light
   the working indicator light flashes when recording
3. Digital zoom button
   T button digital zoom zoom in / W button digital zoom zoom out

Focus function

This function includes 3 focus modes: automatic focus/manual focus mode/fixed focus. Press menu button Open the menu, then press the left/right button to switch to system settings, press the up/down button to find "Video Focus Mode", press OK button to enter focus mode. Select the mode you need.

Fully automatic focus

In this mode, you only need to keep the camera steady when taking pictures or videos, and the camera will automatically focus. Once done, press the capture button.

Manual focus

In this mode, when taking a photo or recording a video, half-press the photo button and the focus frame will appear on the display until the camera focuses clearly.

Then press the photo button all the way down to take the clearest photo or start recording with the clearest image.

Fixed focus

In this mode, you need to press the shooting button halfway to focus when taking pictures or videos, and the screen will clearly show the image of the object being shot, and then press the shooting button to the end. If you release the capture button to take pictures or record videos, the pictures and videos will not be clear.

Fill light

In video mode, pressing the up button can quickly turn on or off the fill light. In photo mode, the fill light has three flaseh modes and pressing the up button can quickly switch between the three modes.

No flash

Auto flash

Mandatory flash

Note: When the fill light is in automatic flash mode, it will only flash when taking photos in a relatively dark environment. When switched to forced flash mode, the fill light will always be on.

Playback

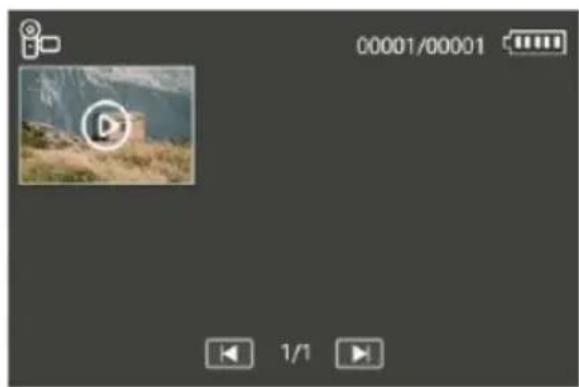

Press the playback button to enter the media library. Select the video or photo file you want to view, then press the OK button to enter the corresponding file to view the video and image stored in the camera memory card.

00001/00001 1/1

Figure 1: Video playback

Current/total number of images 00001/00001 1/1

Figure 2: Photo playback

Diagram of a digital camera with labeled parts including front panel, screen, and buttons

1. Press the down button to delete a photo/video Note: Once deleted, it cannot be removed.
2. Press the OK button to play/pause the video
3. Press the playback button to exit video/photo playback

Connect to computer

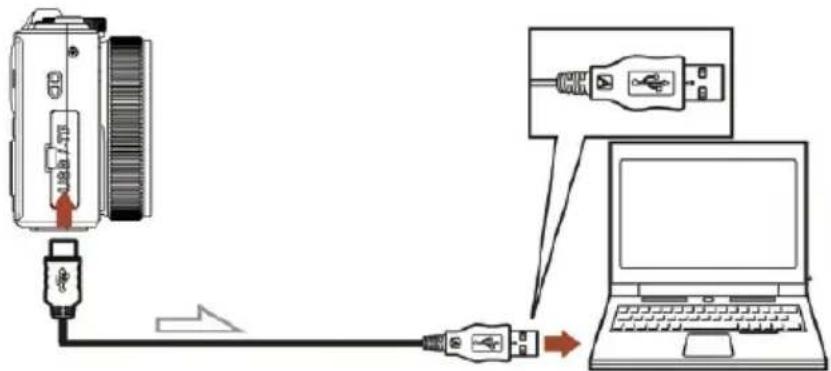

1. Connect the Type-C USB port of the camera and the USB port of the computer with supplied USB cable.

Diagram showing connection between a device and a laptop, with labeled ports and cable connections

1. The camera will turn on automatically and the screen will display the available options. Press the Up/Down button to select the desired option, then press the OK button to confirm the option.

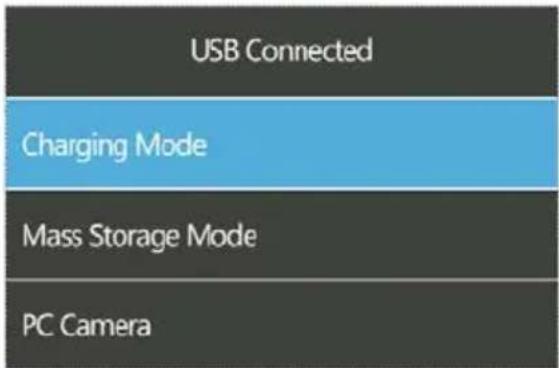

USB Connected Charging Mode Mass Storage Mode PC Camera

Charging Mode

Select the charging mode, the camera supports the function of recording normally. Power off the camera would be fully charged faster the keep powering on.

Mass Storage Mode

Select "Storage Mode" and the computer will display the camera's memory card drive. You can transfer files from the storage to the computer on the computer.

Connect to the Zero CAM app

Using the camera's built-in Wi-Fi allows you to operate the camera (take photos/videos) and easily download photos/videos from the camera to your smartphone.

Download the app and connect the camera's Wi-Fi network

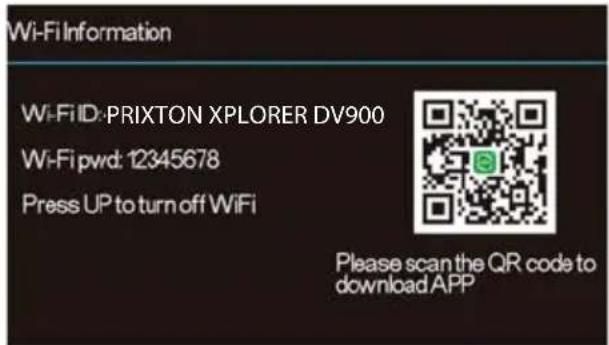

After the camera is turned on, press the menu button to enter the menu, then press the left/right button to switch to system settings, then press the up/down button to find the "Wireless Hotspot" submenu and press the M button to turn on Wi-Fi. Then. Wi-Fi. ID. and password The code will be displayed on the camera screen. Use your phone to scan the QR code on the camera screen to download the app.

Wi-Fi Information Wi-Fi ID: PRIXTON XPLORER DV900 Wi-Fi pwd: 12345678 Press UP to turn off WiFi Please scan the QR code to download APP

On your smartphone, go to Settings-WLAN-PRIXTON XPLORER DV900 and enter the password according to the camera screen. Note: The camera's Wi-Fi cannot access social networks, only for smartphones to access the camera.

System requirement (of smartphone):

Androis 6.0 or higher is required

iOS 8.0 or higher is required

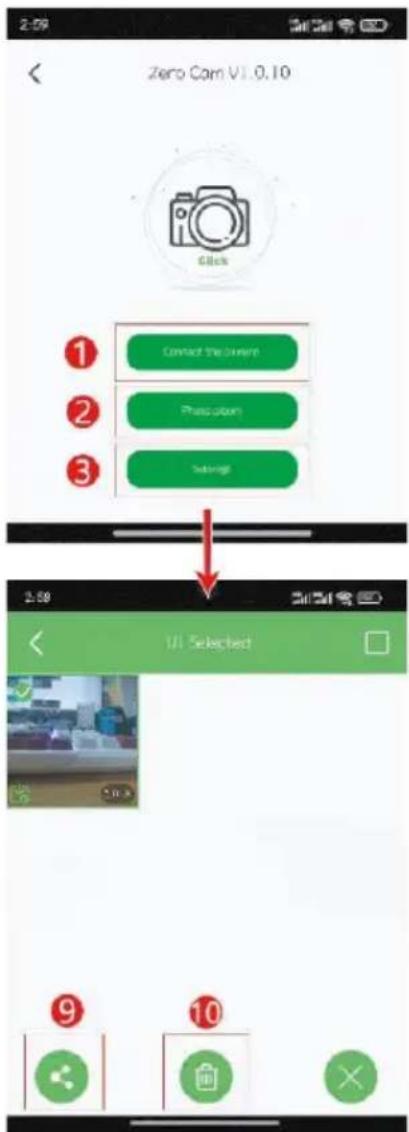

Zero Corn V1.0.10 Click ① Contact the driver ② Password ③ Settings 2:58 UI Selected ⑨ ⑩

Zero Cam 5 6 7 Take Press 8 Actions Settings 2-67 A4 Selected 11 12 X

1. Click through the APP to view the live view and operate the camera
2. View images/videos downloaded to your smartphone from the app
3. System settings
4. Camera settings
5. Current resolution
6. The remaining storage space of the memory card
7. Set the shooting mode of the camera
8. View images/videos saved on the camera
9. Share images/videos downloaded from the app to your smartphone to social software
10. Delete images/videos downloaded from the app to your smartphone
11. Download images/videos from the camera to your smartphone
12. Delete images/videos from the camera

Camera cleaning and maintenance

1-If you do not use the camera for a long time, take out the camera battery and place it in a dust-free, dry environment with a temperature no higher than 30^ C.

2-1 order to extend the service life of the battery, please discharge it completely before storage.
3-Please fully discharge the battery at least once every 3 months after it has been fully charged.
4-If there is dust or dirt on the lens or screen, gently wipe it with a clean, soft lens cleaning cloth.
5-As this machine is a precision instrument, please do not drop it or suffer from strong impact or vibration.

Troubleshooting:

If you encounter problems with the camera, please refer to this section.

1. The camera cannot be turned on after installing the battery

1-The battery power is insufficient, please replace the battery with a new one or charge the battery.
2-The battery is installed in reverse, please confirm that the battery is installed in the correct way.
3-The battery insulating paper is not removed.

2. The battery is not charging

1-If the red light of the charging indicator flashes, the battery is not in place or the contact is poor. Please re-install the battery until the indicator light is on (the indicator light goes out when the battery is fully charged)
2-The charging indicator light is off and the charger is not plugged in properly, Please check whether the charger is connected normally.
3-The ambient temperature is lower than 10^ C, which ,ay lead to slow charging or failure to charge.

3. Camera crashes

Quickly pressing each button of the camera mau cause the camera to freeze. After it crashes, unplug the battery ans reboot.

Tip: When the camera is recording or taking pictures, do not quickly press the camera button.

Under normal circumstances, the camera will display a waiting icon.

4. The memory card cannot be recognized:

1-Please check whether the memory card complies with Micro SD card (class 10), the maximum is not more than 128G.
2-Please check whether the memory card is inserted back wards.
3-When the memory card is used on the camera for the first time, it is recommended to format it first.

Additional notes

1-Do not insert any object into the slot except the memory card.
2-After the power is turned on, the camera may show an unstable image about for a few seconds, but this is not a fault.
3-Due to the optical properties of the lens, there may be color dispersion (magnification of chromatic aberration) at the edges of the image. This is not a camera fault.
4-It is normal for the memory card to get hot after a long period of use.
5-It is normal for the camera's screen to heat up after a long period of use.

Warranty policy

This product complies with the warranty law in force in the country of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified EU Declaration Of Conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION		CATEGORY
Prixton	XPLORERDV900	ACTION CAM 4K	Leisure

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL

AVERTISSEMENT

Technical line drawing of a mechanical component with a circular feature and a numbered label (4), no readable text or symbols present.

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a digital camera with a circular lens and attached clip labeled L-5C (no text or symbols on the device itself)

Diagram showing a digital camera connected to a USB cable, with no text or symbols present.

Line drawing of a digital camera with front panel and control buttons (no text or symbols)

Paramètres du Menu:

Menu Settings Rec Resolution 4K/30FPS > White Balance Auto > Filter none > Exposure Setting 0 >

TF card Storage Space: 29.08G/29.12G Format Cancel

Circular diagram with abstract geometric patterns and no visible text or symbols

Technical diagram of a digital camera with labeled parts including front, back, and screen views

Grayscale image showing a small house nestled in a mountainous landscape, with no visible text or symbols.

Figure 2: Lecture photo

Diagram of a digital camera with labeled parts including front panel, screen, and buttons

Diagram showing connection between a device and a laptop, with labeled ports and cable connections

USB Connected Charging Mode Mass Storage Mode PC Camera

Mode de charge

Wi-Fi Information Wi-FiID: PRIXTON XPLORER DV900 Wi-Fipwd: 12345678 Press UP to turn off WiFi Please scan the QR code to download APP

Zero Cam V1.0.10 ① ② ③ Connect To-Event Photo size Set-up ④ Take Press ⑤ ⑥ Zero Cam ⑦ 27:56:20.2/9 ⑧ Take Press ④ 2:50 Selecto 2:57 Selected ⑨ ⑩ ⑪ ⑫ ⑬

Technical line drawing of a mechanical component with a circular feature and a numbered label (4), no readable text or symbols present.

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a digital camera with a labeled part (L-5C), no text or symbols present.

Diagram showing a digital camera connected to an external resistor, with no text or symbols present.

Line drawing of a digital camera with front panel and control buttons (no text or symbols)

TF card Storage Space: 29.08G/29.12G Format Cancel

Diagram of a digital camera with labeled parts including front, back, and screen views

Grayscale image of a small house nestled in a mountainous landscape, with no visible text or symbols.

Diagram of a digital camera with labeled parts including front panel, screen, and buttons

Diagram showing connection between a device and a laptop, with labeled components and wiring connections.

USB Connected Charging Mode Mass Storage Mode PC Camera

Wi-FiInformation Wi-Fi D:PRIXTON XPLORER DV900 Wi-Fi pwd: 12345678 Press UP to turn off WiFi Please scan the QR code to download APP

Zero Cam V1.0.10 Click Connect the stream Press album Take off! 2:59 Zero Cam 5 35w 7 Take Photo 4 Alcam Settings 2:60 Selected 2/67 Selected 9 10 11 12

Technical line drawing of a mechanical component with a circular feature and a textured top (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a digital camera with a circular lens and attached clip (no text or symbols)

Diagram showing a digital camera connected to a USB port, with no text or symbols present.

Line drawing of a digital camera with labeled buttons and screen (no text or symbols beyond 'MENU' label)

Menüeinstellun

Menu Settings Rec Resolution 4K/30FPS > White Balance Auto > Filter none > Exposure Setting 0 >

TF card Storage Space: 29.08G/29.12G Format Cancel

Circular diagram with abstract icons arranged in a ring, no text or symbols present

Technical line drawing of a digital camera with labeled parts 1, 2, and 3

Black-and-white photo of a small house nestled in a mountainous valley, with no visible text or symbols.

Diagram of a digital camera with labeled parts including front panel, screen, and buttons

Diagram showing connection between a device and a laptop via USB cable, with an icon indicating the device's connector.

USB Connected Charging Mode Mass Storage Mode PC Camera

Lademodus

Wi-Fi Information Wi-FiID: PRIXTON XPLORER DV900 Wi-Fipwd: 12345678 Press UP to turnoff WiFi Please scan the QR code to download APP

Zero Cam V1.0.10 Click Connect the camera Photo camera Settings 2:59 Zero Cam 5 Sat 20:16/2029.2.6 7 Take Photo 4 Acam Settings 2:58 Selected 2:57 Selected 9 10 11 12

Technical line drawing of a mechanical component with labeled part 4 (no text or symbols beyond label)

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Line drawing of a digital camera with a visible lens and attached clip (no text or symbols)

Diagram showing a camera connected to a USB port, with no text or symbols present.

Line drawing of a digital camera with front panel and control buttons (no text or symbols)

TF card Storage Space: 29.08G/29.12G Format Cancel

Circular diagram with circular elements and icons, no text or symbols present

Technical diagram of a digital camera with labeled parts including front, back, and screen views

Diagram of a digital camera with labeled parts including front panel, screen, and buttons

Diagram showing connection between a device and a laptop, with labeled ports and cable connections

USB Connected Charging Mode Mass Storage Mode PC Camera

Modo de Carregamento

Wi-Fi Information Wi-Fi ID:PRIXTON XPLORER DV900 Wi-Fi pwd: 12345678 Press UP to turn off WiFi Please scan the QR code to download APP

2:59 Zero Cam V1.0.10 ① Connect the camera ② More album ③ Stop screen 2:58 Zero Cam ⑤ Save ⑥ Take Phone ▼ ⑦ Take Phone ▼ ⑧ Listen ⑨ Selected ⑩ Delete ⑪ Delete ⑫ Delete

Technical line drawing of a mechanical device with a circular component and textured top (no text or symbols)

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

1. Geheugenkaartslot
2. Type-C USB-interface
3. Batterijcompartiment

Line drawing of a digital camera with a labeled L-5C connector (no text or symbols on the device itself)

Diagram showing a camera connected to an external resistor, with no text or symbols present.

Line drawing of a digital camera with labeled buttons and screen (no text or symbols beyond 'MENU' label)

Menu-instellingen

Menu Settings Rec Resolution 4K/30FPS > White Balance Auto > Filter none > Exposure Setting 0 >

Insert the memory card in the direction shown in the diagram, paying attention to the edges and corners.

TF card Storage Space: 29.08G/29.12G Format Cancel

Circular diagram with circular elements and geometric symbols, no readable text or labels

Technical line drawing of a digital camera with labeled parts 1, 2, and 3

Foto-knop (video start/stop knop)

Video player interface with a play button and playback controls, no readable text or symbols in the scene itself.

Grayscale photo of a mountain village with a small house and greenery, displayed within a video player interface (no readable text or symbols on the image itself)

Diagram of a digital camera with labeled parts including front panel, screen, and buttons

Diagram showing connection between a device and a laptop, with labeled components and wiring connections.

USB Connected Charging Mode Mass Storage Mode PC Camera

Oplaadmodus

Wi-Fi Information Wi-Fi ID: PRIXTON XPLORER DV900 Wi-Fi pwd: 12345678 Press UP to turn off WiFi Please scan the QR code to download APP

Zero Cam V1.0.10 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑧ Selected 1/4 Selected

Camera Cleaning and Maintenance

3. De camera is vastgelopen
