Product type	Sports camera (Sportscam)
Brand	Prixton
Model	DV609
Dimensions	59.3 × 41.1 × 29.3 mm
Weight	Not specified (estimated: approximately 70 g with battery)
Power supply	Lithium-ion battery 750 mAh, charging via USB 5V/1A
Recording autonomy	Approximately 70 minutes
Charging time	Approximately 3 hours
Screen	2.0 inch LTPS LCD
Lens	90°+ HD wide angle
Maximum video resolution	1080p (1920×1080) at 30 fps
Other video resolutions	720p (1280×720) 30 fps, VGA (640×480) 30 fps
Video format	AVI (M-JPEG compressed)
Photo resolution	Not specified (estimated: 5 MP)
Storage	Micro SD memory card (Class 10 recommended, minimum 4 GB capacity)
Interface	USB 2.0
Available languages	English, German, French, Spanish, Italian, Portuguese, Dutch
Optical source frequency	50 Hz / 60 Hz
Waterproof housing	Included (depth not specified)
Warranty	2 years
Cleaning	Use a soft, dry, clean cloth. Blow to remove sand.
Usage precautions	Avoid exposure to direct sunlight, water, sand, dust, and high temperatures.

Frequently Asked Questions - DV609 Prixton

Which memory card should I use with the Prixton DV609?

It is recommended to use a Class 10 micro SD card with a minimum capacity of 4 GB to avoid read/write errors. Format it on your computer before first use.

How to turn the camera on and off?

Press the Power button for 3 to 5 seconds to turn the device on or off. You can also open or close the screen to turn it on/off automatically.

What is the battery life?

The 750 mAh battery provides approximately 70 minutes of continuous recording. Full charging time is about 3 hours.

How to switch between video, photo, and playback modes?

Press the Mode button to switch to photo mode, then again to access file playback. In video mode, press Ok to start/stop recording.

What video resolutions are available?

The camera offers three resolutions: 1080p (1920×1080) at 30 fps, 720p (1280×720) at 30 fps, and VGA (640×480) at 30 fps, all in AVI M-JPEG compressed format.

Is the camera waterproof?

Yes, the Prixton DV609 comes with a waterproof housing. The manual does not specify the maximum depth, but it is designed for light underwater use.

How to connect the camera to a computer?

Connect the camera via the supplied USB cable. Turn it on, it will appear as an external drive. Open the DCIM folder to access files on the micro SD card.

What to do if the camera shows a card error?

Ensure you are using a Class 10 micro SD card from a recognized brand. Format it on your computer (in FAT32) before inserting. If the error persists, try another card.

How to clean the lens and housing?

Use a soft, clean, dry cloth. For sand particles, gently blow before wiping. Do not use solvents and avoid touching the lens with fingers.

What is the warranty period?

The Prixton DV609 is warranted for 2 years from the date of purchase. For assistance, contact customer service via www.prixton.com.

USER MANUAL DV609 Prixton

Line drawing of a vintage camera with no text or symbols

MULTI SPORT ACTION CAM

Aviso:

High definition and high frame rate video capture devices, put a heavy strain on memory cards. Depending on your settings, it is recommended that a 4GB(or higher) CLASS 10 SD Card be used to avoid Read/Write complications, which will appear as an error message on the screen during use. If you are not sure, please test any lower class cards (Read/Write speed) in the device before use.

Functions

This user manual contains the most current information we obtained when this user manual was made. The screen display and illustrations are used in this user manual for the purpose of introducing details of this digital camera in a more specific and direct way. Difference may arise between these displays and illustrations and the digital camera actually available for you due to difference in technological development and production batch, under which case, the actual functions of this video camera will be the standard.

Precautions

Please read the precautions carefully before using this video camera for proper and safe operation, to optimize its performance and extend its life.

Do not expose the video camera to direct sunlight, nor point its lens to sunlight. Otherwise, the image sensor of the video camera may be damaged.
Take good care of the video camera and prevent water or sand particles from entering the video camera when it is used on the beach or water, because water, sand particles, dust or component containing salt may damage the video camera.
◆ Keep the video camera free of dust and chemical materials. Keep it in a cool, dry and well ventilated environment. Do not keep the video camera in a high temperature, moist or dusty environment.
◆ Please check if the video camera operates normally before use.
If dirt or stain is accumulated on the video camera or on its lens, use soft, clean and dry rag to wipe it away gently. If the video camera or its lens is stained with sand particles, blow them away gently. Do not use a cloth to wipe the surface. Otherwise, it may scratch the surface of video camera or its lens.

If it is required to clean camera surface, firstly blow away the sand dust accumulated on this surface, and then wipe the camera gently with rag or tissue applicable to optical equipments. Please use the cleaning agent of video camera for wiping if necessary. Do not use organic solvent to clean the video camera.
◆ Do not touch the lens surface with fingers.
◆ Please back up the data if the memory card inside this video camera is used for the first time.
◆ The externally installed memory cards are manufactured from precise electronic components. Data may be lost or damaged under the following circumstances:

1. Improper use of the memory card.
2. The memory card is bent, dropped or scratched.
3. Place it under high temperature or moist environment or expose to sunshine directly.
4. Electrostatic or electromagnetic field exists around the memory card.
5. This memory card is taken out or power supply is interrupted when this video camera or computer is connected to the memory card (i.e. during reading, writing and formatting).
6. Touch the metal contact surface of the memory card with fingers or metal materials.

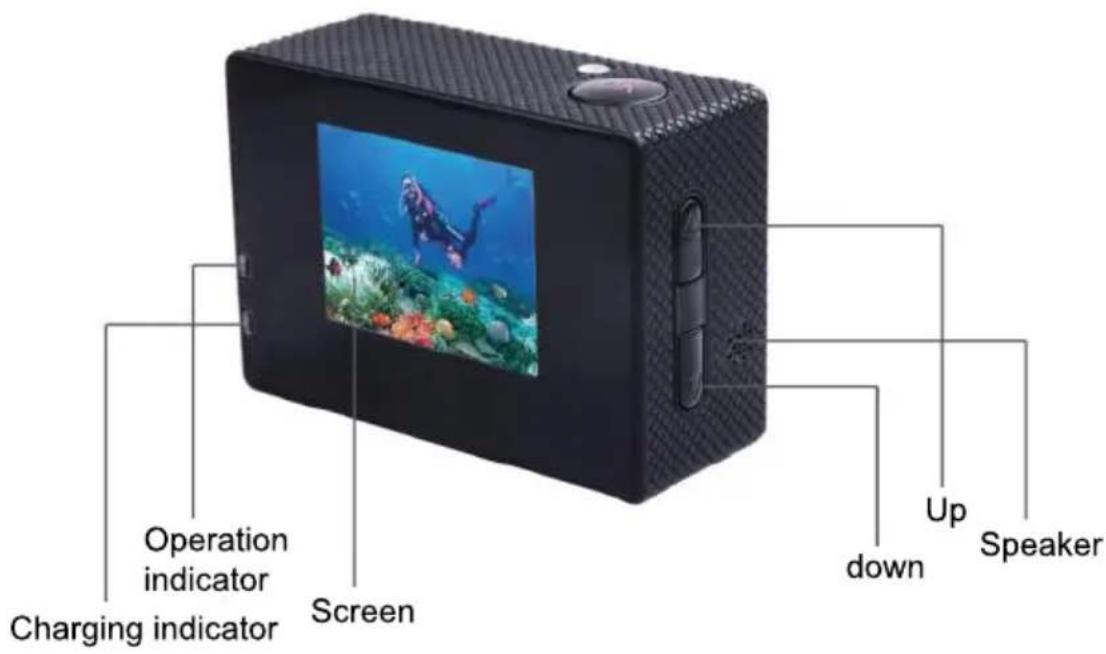

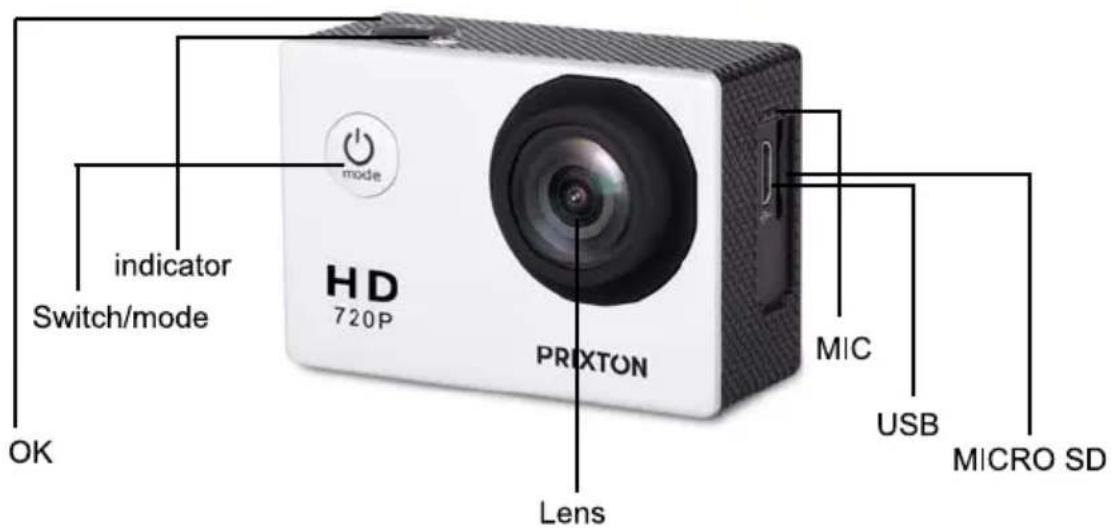

Picture of product

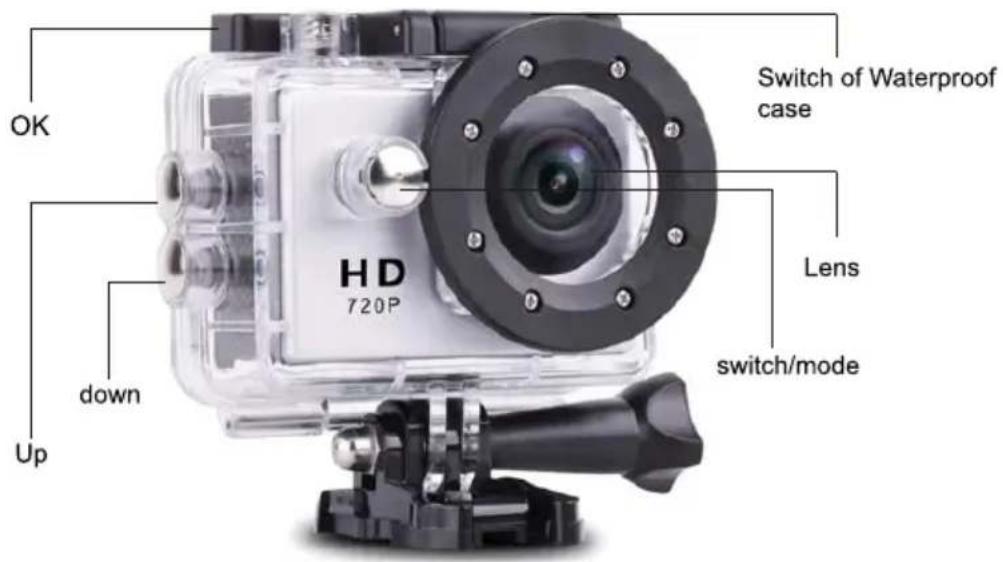

Picture of waterproof case

1. Inserting Micro SD Card

Note: Please choose branded Micro SD card and format it on computer before use. Neutral cards are not guaranteed to work normally.

2. Installing and removing batteries

Press on battery cap to open it.

Correctly install battery into camera as indicated by +/- symbols and direction of arrows marked on battery until it's in place.

Battery Indicator: Please refer to image.

Remove Battery: Open cap to take battery out.

3.Charging

Charging can be done by either connecting unit to computer or power adaptor.

Charge camera on vehicle by connecting it to car charger.

4.Switching camera on and off

Press and hold power switch for 3 to 5 seconds to turn it on / off.

Switch it on and off by turning display screen on and off.

5. Mode Switching

Switch between video recording / photo shooting / playback / menu by pressing "Power On - Of 1f" button.

1) Video mode:

recording mode, press ok to start to record the video and press ok again to stop the video. In normal video recording maximum recording time is 29 minutes for each video sequence.

2) Photo mode:

3)Replay mode

Press the mode button to change into the photo mode, press ok to take photo.

Press mode button to enter the replay screen, choose the video or photo to replay.

4)Setting

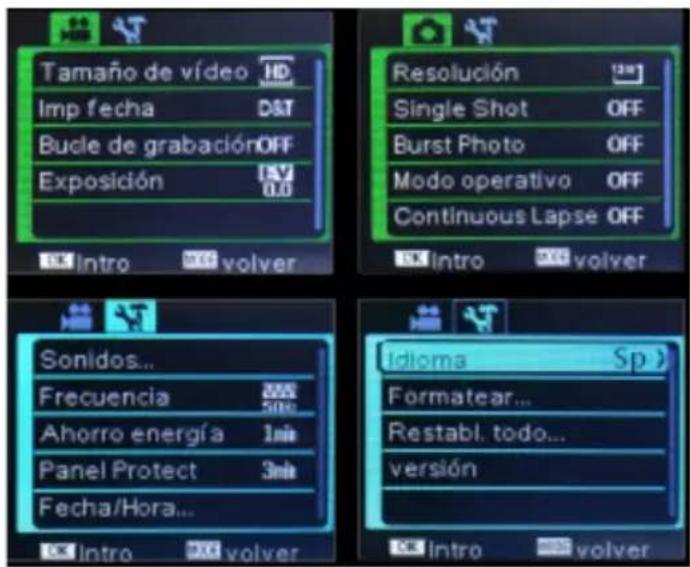

There are four pages available in the Setting mode, as shown above, you can customize these settings to your preference by changing the data.

6. Connecting to computer

The camera is provided with the plug and play function. Connect the device to the computer with USB cable. Open the unit, it will appear Disk Drive, "DR_DISK", open the file there is a folder named DCIM. Here you can view the content of the Micro SD card.

Liquid Crystal Display (LCD)	2.0LTPS
Lens	90°A+ HD wide-angle lens
Language Options	English / German / French / Spanish / Italian /Portuguese / Nederland
Resolution of Videos Recorded	1080P (1920*1080) 30FPS720P (1280*720) 30FPSVGA (640*480) 30FPS
Video Format	AVI
Compressed Format of Videos	M-JPG
Storage	Micro SD
Frequency of Optical Source	50Hz / 60Hz
USB Interface	USB2.0
Power Source Interface	5V1A
Battery Capacity	750MAH
Recording Time	About 70 minutes
Charging Time	About 3hours
Operating System (OS)	Windows XP/Vista or above/Win7/Mac os
Dimension	59.3*41.1*29.3mm

Note: Specifications could be subject to modification due to upgrading or updating. Please regard the actual product as the standard.

Warranty Policy

This product is guaranteed for 2 years from the date of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form. These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified EU Declaration of Conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL DESCRIPTION		CATEGORY
PRIXTON	DV609	MULTI SPORT ACTION CAM	LEISURE

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL
