USER MANUAL YT-83082 Yato


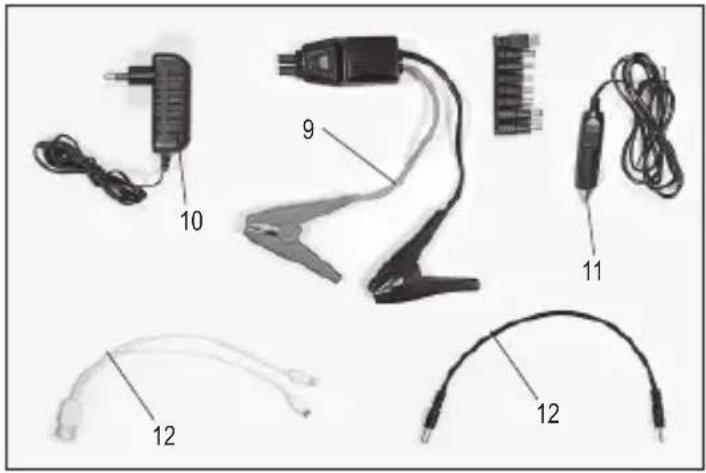

10 9 11 12 12PL
- housing
- switch
- display
- inlet socket
- USB output socket
- DC output socket
- jump start socket
- fl ashlight
- jump leads
- power charger
- vehicle charger
- charging cable for mobile devices
- fl ashlight start button
DE
Read the operating instruction
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
WYPOSAŻENIE PRODUKTU
PRODUCT CHARACTERISTICS
This multi-function jump starter is a portable battery-powered device, which enables an emergency start-up of a vehicle equipped with a 12V electric system. Thanks to using additional sockets, it also facilitates charging other types of equipment. The efficient and lightweight high-capacity batteries ensure high product mobility, as well as fast charging of other portable devices.
Before using the device for the first time, read the entire user manual and keep it for future reference.
The supplier shall not be liable for any damage resulting from failure to comply with the safety instructions and recommendations specified in this user manual.
PRODUCT EQUIPMENT
The product is supplied as a fully assembled device and does not require any further installation. The following accessories are supplied with the product: jump leads, a charging cable with replaceable plugs for portable devices, power charger, and a plug for charging the product via the electric system in a vehicle working with 12V voltage.
GENERAL SAFETY CONDITIONS
Safety instructions for use
Before each use, make sure that the product is not damaged. Any damage to the housing in the form of e.g. cracks, dents or broken elements disqualifies the product from further use. Pay particular attention to the condition of the cables and wires attached to the product. If the wires and cables show damaged insulation, the plugs will bear traces of any damage, cracks, bends, etc. they should not be used. If any damage is found, please contact the manufacturer's service.
Safety instructions for battery charging
Caution! Before starting charging, make sure that the charger's body, leads, and plug are not cracked or damaged. It is not allowed to use a damaged product.
The product is only suitable for charging using the supplied charger. It is not allowed to use any other charging method than charging via the supplied charger.
Charging can only be carried out indoors, in a dry room, protected against unauthorised access, especially children. Do not perform any charging, without constant supervision of an adult! If you need to leave the room where charging is taking place, stop the process by disconnecting the charger from the product and power supply network. If the product generates any smoke, strange odour, etc., immediately stop the charging process and disconnect the charger. The product may require charging before the first use. Li-ion (lithium-ion) batteries do not have the so-called “memory effect”, which means they can be recharged at any time. However, it is recommended to discharge the battery during normal operation and then charge it to full capacity. If, due to the nature of work, it is not possible to use the battery in such a manner every time, it should be done at least every several work cycles. Never discharge any batteries by shorting the battery plates, as this will cause irreparable damage! In addition, do not check the battery charge status, by shorting the plates and checking their sparking.
Use only the leads supplied with the product to perform jump start. It is not allowed to use other leads or modify the leads supplied with the product. During jump starting, a high current is transmitted through the leads. Incorrectly selected or modified leads can lead to an electric shock, fire, burns, or other injuries.
Connect the jump leads and other cables only for the duration of the product's use. Do not store the product with its the leads still connected. This can cause short circuit and damage to the product, an electric shock, fire, or even explosion.
Battery storage
Ensure the proper storage conditions to extend the battery's life. The battery can withstand approximately 500 charge-discharge cycles. Store the battery at the temperature ranging from 0^ to 30^ at the relative humidity of 50% . Charge the
EN
battery to approx. 70% of its total capacity to store it for a longer period of time. In case of prolonged storage, the battery should be periodically charged once a year. Do not over-discharge the battery as this will shorten its life and may cause irreparable damage. During storage, the battery will gradually discharge due to leakage. The self-discharge process depends on the storage temperature – the higher the temperature, the faster the discharge process. If the batteries are stored incorrectly, electrolyte may leak. In case of leakage, secure the leak with a neutralising agent. In the case of electrolyte contact with eyes, rinse eyes thoroughly with water, and immediately seek medical attention. It is not allowed to use the device with a damaged battery. If the battery is completely worn, return it to a specialist waste disposal centre. Transport of batteries
Lithium-ion batteries are treated as hazardous materials, according to legal regulations. The user of the device can transport the product together with the battery and the batteries alone, by land. In that case, no additional conditions have to be met. If you entrust transport to third parties (e.g. a courier company), follow the regulations regarding the transport of hazardous goods. Before shipping, please contact a properly qualified person. It is not allowed to transport damaged batteries. For the duration of transport, remove the disassembled batteries from the product, secure the exposed contacts, for example by covering them with insulation tape. Protect the batteries in the packaging in such a way that they do not move inside the packaging during transport. National regulations for the transport of hazardous materials must also be observed.
PRODUCT OPERATION
Preparing the device for operation
Unpack the product and completely remove all parts of the packaging. It is recommended to keep the packaging for the purpose of shipping the product in the future.
Press the switch and the display will show a percentage indication of the device's battery charge status. The product can come with a partially charged battery, but it is required to perform full charging, before the first use. To do this, connect the plug of the lead running from the charger supplied with the product into the socket marked as "15V INPUT (CHARGE)". Connect the charger to a power supply network. If the charge indicator shows 100%, it means that the product's battery is fully charged.
Disconnect the charger from the power supply socket and then unplug the charger lead from the socket in the product. The product is ready for use.
The product can also be charged by means of the electric system in a vehicle working with 12V voltage. To this end, use a vehicle charger equipped with a cable terminated with a plug to charge the product.
The process of charging the product using the electric system in a vehicle is done in the same manner as the afore-mentioned charging process involving a power charger. Read the documentation provided with the vehicle, before charging the product using the electric system in a vehicle.
Caution! It is not possible to use any other function of the product, while it is being charged.
Using the product to jump start vehicles
Warning! The starting socket operates independently of the device's main switch – this means the vehicle can be started without first switching on the device. When the starting socket is not in use, it should be protected with the rubber protective cap to shield the contacts from contamination and the risk of short-circuiting.
Prepare the product by charging it to full capacity. It is not allowed to use the starter device, if the battery charge indicator in the product shows 20% capacity or less.
The device has been designed to perform an emergency jump start and it should not be used in place of a regular starter.
Connect the terminals of the jump leads to the battery terminals. Pay attention to the correct polarity. The terminal marked as “+” must be connected to the battery terminal with the same symbol. The terminal marked as “-” must be connected to the battery terminal with the same symbol.
Connect the plug of the jump leads to the socket matching that plug. The shape of the plug allows its connecting only in one correct manner. Do not apply excessive force, when connecting the plug of the jump leads to the product.
EN
Start the vehicle. If the vehicle does not start within 2 seconds, wait at least 30 seconds before making another attempt. This delay is necessary for the product and the jump leads to cool down.
After starting the vehicle, do not stop the engine and immediately unplug the plug of the jump leads from the product, within no more than 30 seconds. Then, disconnect the terminals of the jump cables from the battery terminals.
Starting the vehicle with a deeply discharged battery
The device can also be used to start a vehicle with a deeply discharged battery, e.g. parked at a parking lot for several months.
Connect the terminals of the jump cables to the battery terminals, acting in the same manner as during a regular start-up.
The plug of the jump leads features two indicators: green and red. The lights should pulsating alternately.
Press and hold the button marked as "BOOST" located on the plug of the jump leads for approx. 4 s. Release the button, when the green indicator lights up, while the red light goes off.
Try starting the engine in the regular manner.
Warning! Pressing the “BOOST” button will deactivate spark protection, short circuit protection, and protection against incorrect connecting of the jump leads’ terminals. When using this operating mode, exercise extra care to prevent any shorting between the terminals of the device.
Messages communicated by the device to the user
The device communicates with the user, by means of indicator lamps and a buzzer signal.
| No. | Red indicator lamp Green indicator lamp Buzzer sound Description | |||
| 1 | alternating pulsation no signal Jump leads are connected. | |||
| 2 | inactive active no signal | The jump leads and the battery in the vehicle have been connected. The device is ready to start the engine. | ||
| 3 | active inactive no signal | Low battery in the device. | ||
| 4 | alternating pulsing, turns off after the time is exceeded | no signal | The vehicle has not been started within the specific period of time. Disconnect the jump leads from the battery terminals and reconnect them. | |
| 5 | active | inactive | long signal | The terminals of the jump leads are shorted. |
| 6 | active | inactive | fast signal | Reversed polarity of the connected terminals of the jump leads. |
| 7 | active inactive no signal | Engine has been started. | ||
| 8 | active inactive | very fast signal | Jump leads error. | |
Use of the product for charging portable devices
Before starting charging the device, see the documentation provided with the device to make sure that powerbanks can be used for charging it.
Connect one of the plugs to the charging socket in the portable device to be charged.
Plug the other plug of the lead into one of the USB sockets in the product marked as "OUTPUT" and designated with voltage rating.
Before connecting, check the value of voltage that can be supplied to the connected device.
The charging process will start.
The power supply efficiency of the socket has been defined in the technical data table.
Products featuring multiple sockets can be used to simultaneously charge many devices, using the sockets.
When charging is complete, disconnect the plug from the socket in the starter device and then from the charged device.
The product features a battery with a capacity specified in the technical data table, which means that it can fully charge only devices equipped with a battery the capacity of which is lower than the capacity of the battery in the product.
If the connected device features a battery with a capacity exceeding the capacity of the battery in the product, then the battery in that device cannot be fully charged.
When charging, some of the energy accumulated in the product's battery will be lost, resulting from heat generation.
This is a normal phenomenon, which means that we cannot assume that the product will fully charge a device with the same battery capacity as the capacity of the battery in the product.
EN
Using the fl ashlight provided in the product
The product is equipped with an LED, which can be used as a flashlight to provide additional lighting of a small area or as a signal lamp. To activate the LED, press and hold the button marked with the symbol of a flashlight for about 3 seconds. A single press of the button will change the lighting mode in the following sequence: continuous light, flashing, SOS signal encoded in Morse code.
To de-activate the flashlight, press and hold the button marked with the flashlight symbol for about 3 seconds.
Product maintenance
The product does not require any special maintenance. Clean the product casing with a soft, dry cloth. Never immerse the product in water or in any other liquid. Protect the product sockets against contamination. If the socket is dirty, try to clean it by blowing a jet of compressed air stream into it, at a pressure not exceeding 0.3 MPa. Do not use any hard objects to clean the sockets, as this can damage the socket or cause a short circuit.
Storage and transport of the product
The product should be stored indoors, in shaded places, where the temperature does not exceed the range specified in the table and the relative humidity is below 90%.
Transport the product taking into account the recommendations provided in the section: "Transport of batteries".
TECHNICAL DATA
| Parameter Unit Value | ||
| Catalogue No. YT-83082 | ||
| Rated start-up voltage [V DC] 12 | ||
| Rated start-up current [A] 300 | ||
| Peak start-up current [A] 500 | ||
| Start-up time [s] 2 | ||
| Interval (break time) [s] 30 | ||
| USB port output voltage [V DC] | 5 | |
| Max. output current of USB socket | [A] | 2.4 |
| DC port output voltage | [V DC] | 19 /12 |
| Max. output current of DC socket | [A] 3.5 / - | |
| Input voltage | [V DC] 15 | |
| Input current [A] | 1 | |
| Rated battery voltage | [V DC] | 3.7 |
| Battery capacity | [Ah] 12 | |
| Battery energy | [Wh] 44.4 | |
| Battery type | Li-lon | |
| Operating temperature | [°C] 0 – 35 | |
| Storage temperature | [°C] 0 – 50 | |
| Charging time | [h] | 4 |
| Weight | [kg] | 0.4 |
| Charger | ||
| Rated input voltage | [V~] | 100 – 240 |
| Rated frequency | [Hz] | 50/60 |
| Rated input current | [A] | 0.3 |
| Rated output voltage | [V DC] 15 | |
| Rated output current [A] | 1 |
