USER MANUAL Flux Isofix eXT Osann

Illustration showing how to adjust a car seatbelt using a device, with Chinese text indicating 'Click' and red arrows indicating adjustment.

Illustration of a robotic device with a hand pressing a red button, showing motion direction (no text or symbols)

Three illustrated scenarios showing a person wearing seatbelt with checkmarks and red/green symbols indicating incorrect or correct actions.

Isofi x-Konnektoren

Diagram illustrating seatbelt usage with checkmark and cross symbols indicating status or absence of seats

Illustration of a hand using a cable to lift a cable, with a red arrow indicating compression (no text or symbols)

Safety warning symbols for seatbelting, showing no text, red checkmark, and green checkmark with corresponding icons.

Two simple line drawings of animal head profiles: a rounded oval and a curved, symmetrical shape (no text or symbols)

Diagram of a biological structure with curved lines and a highlighted arrow, no text or symbols present

Two black car seats with green-labeled buttons and a close-up inset showing internal components (no text or symbols)

Diagram illustrating car seatbelt usage and safety rules, showing correct/incorrect matches for using a child's seatbelt.

Diagram illustrating car seatbelt usage with a child and a green belt, showing instructions for adjusting seatbelt standards.

Thank you for choosing our Flux Isofi x eXT child car seat. If you need help with this product, please contact our customer service.

USE

• This product is suitable for children of a height of 76 to 150~cm .
• Forward-facing installation from a height of 76 to 120 cm and a minimum age of 15 months using the Isofi x connectors and the top tether harness. The child is strapped in with the 5-point harness of the child car seat.
• Forward-facing installation for children 100 to 150 cm in height is carried out using the Isofix connectors. The top tether strap is not needed in this height range. The child is strapped in with the 3-point car seat belt Alternatively, the child car seat can also be fitted with the 3-point child car seat belt only for children 100–150 cm in height. Attaching the seat with the Isofix connectors is not absolutely essential but is recommended.

ATTENTION

USE ONLY FROM THE AGE OF 15 MONTHS.

PLEASE NOTE

NOTE (76-120 cm):

This is an i-Size child restraint system. It is approved under Regulation No. 129 for use on "i-Size compatible" vehicle seats as specified by the vehicle manufacturer in the vehicle manual. In cases of doubt, please contact the manufacturer of the child restraint system or your retailer.

The child restraint system can be used on all Isofi x seats as long as there is also an attachment hook for the top tether.

NOTE (100 - 150 cm):

This is an optimised i-Size children's booster seat. It is approved under Regulation No. 129 for use primarily on "i-Size vehicle seats" as specified by vehicle manufacturers in the vehicle manual. If in doubt, contact either the manufacturer of the extended child restraint system or the retailer.

The optimised i-Size booster seat can also be used on all seats in the “universal” category, as long as this does not conflict with the vehicle interior.

If in doubt, please contact the car seat manufacturer or the dealer.

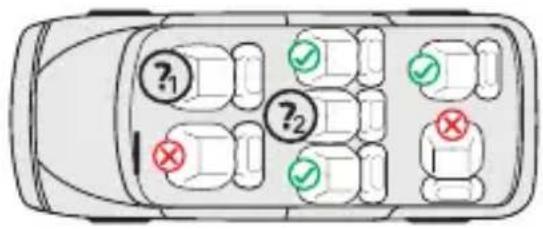

?₁ ?₂

1. & 2.:

76-120 cm: Only if Isofi x connectors and a fastening hook for the top tether are available.

100-150 cm: Only if at least a 3-point car seat belt that complies with ECE R16 is available. If Isofi x connectors are available, these can also be used. Securing the child only with a 2-point harness is not approved.

The following table provides information about the fastening devices and methods:

Height range	Installation direction	Installation Type Child safety device
76-120 cm	Forward-facing	Isofi x connectors & top tether	i-Size	5-point harness on the child seat
100-150 cm	Forward-facing	Isofi x connectors & 3-point car seat belt	i-Size booster seat	3-point car seat belt
100-150 cm	Forward-facing	3-point car seat belt	i-Size booster seat	3-point car seat belt

WARNING

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the instructions. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• The child car seat can only be used with its own 5-point belt system for children under a body weight of 23 kg and a height of up to 120 cm.
• The child car seat CANNOT be used with the 5-point harness system for children over 23 kg in weight and over 120 cm in height.
• The child seat can be installed forward-facing with the Isofix connectors and the top tether strap.
• For Isofi x installation: Be sure to read the car manufacturer's manual.
• Do not use load-bearing contact points other than those described in the instructions and indicated in the child restraint system.
• Do not use this child car seat at home. It has been designed exclusively for use in a car.
• Do not leave your child unsupervised in the seat at any time.
• The child seat must be replaced if it has been subject to severe mechanical stress in an accident.
• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.
• Always make sure that all belts that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fit the child's body. Ensure that the belts are not twisted.
• Items of luggage and other objects that could cause injury in the event of a collision must be properly secured.
• The rigid elements and plastic parts of a child restraint system must be positioned and installed so that they cannot become jammed by a movable seat or a vehicle door.
• It is important that belts that sit low hold the child's pelvis firmly in place. Your child should always be fastened in to stop them falling out.
• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system may also present risks to the safety of your child.
• This child seat is designed for children with a maximum height of 150 cm. Never overload the child seat by transporting more than one child or additional loads in it.
• The child restraint system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint system.

SEAT PARTS

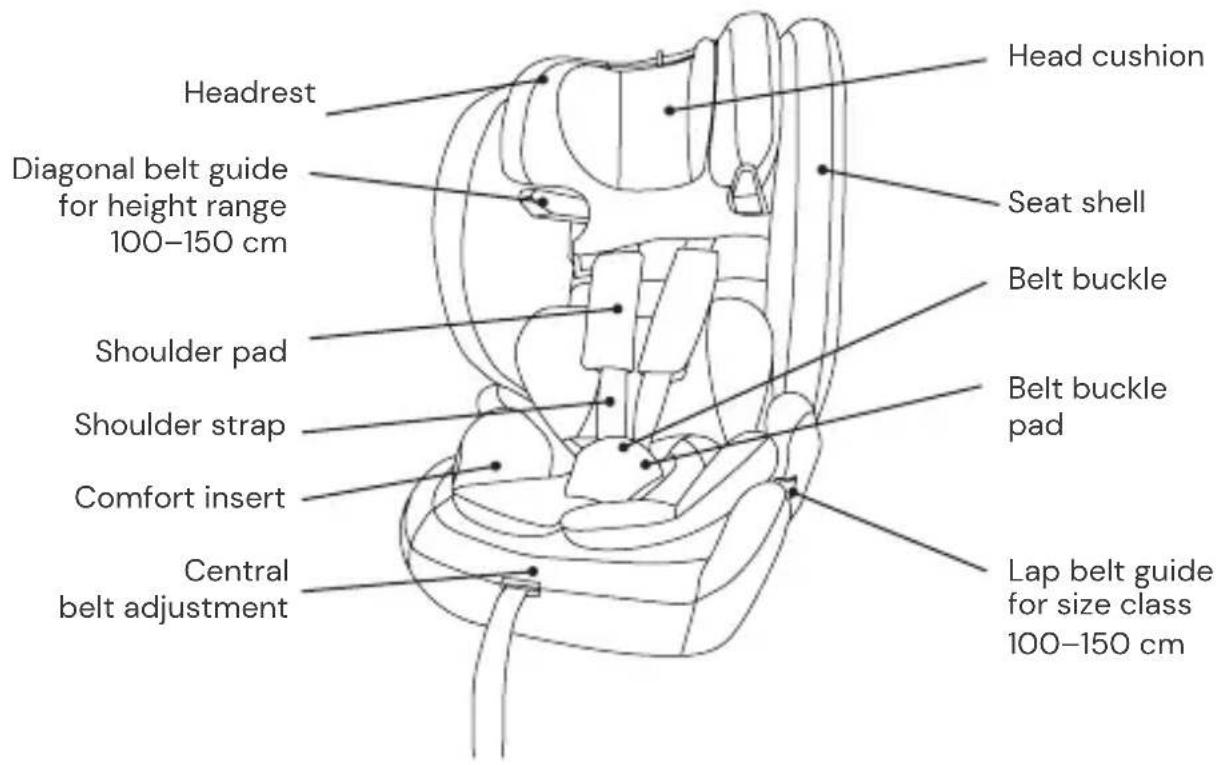

Front view

Headrest Diagonal belt guide for height range 100–150 cm Shoulder pad Shoulder strap Comfort insert Central belt adjustment Head cushion Seat shell Belt buckle Belt buckle pad Lap belt guide for size class 100–150 cm

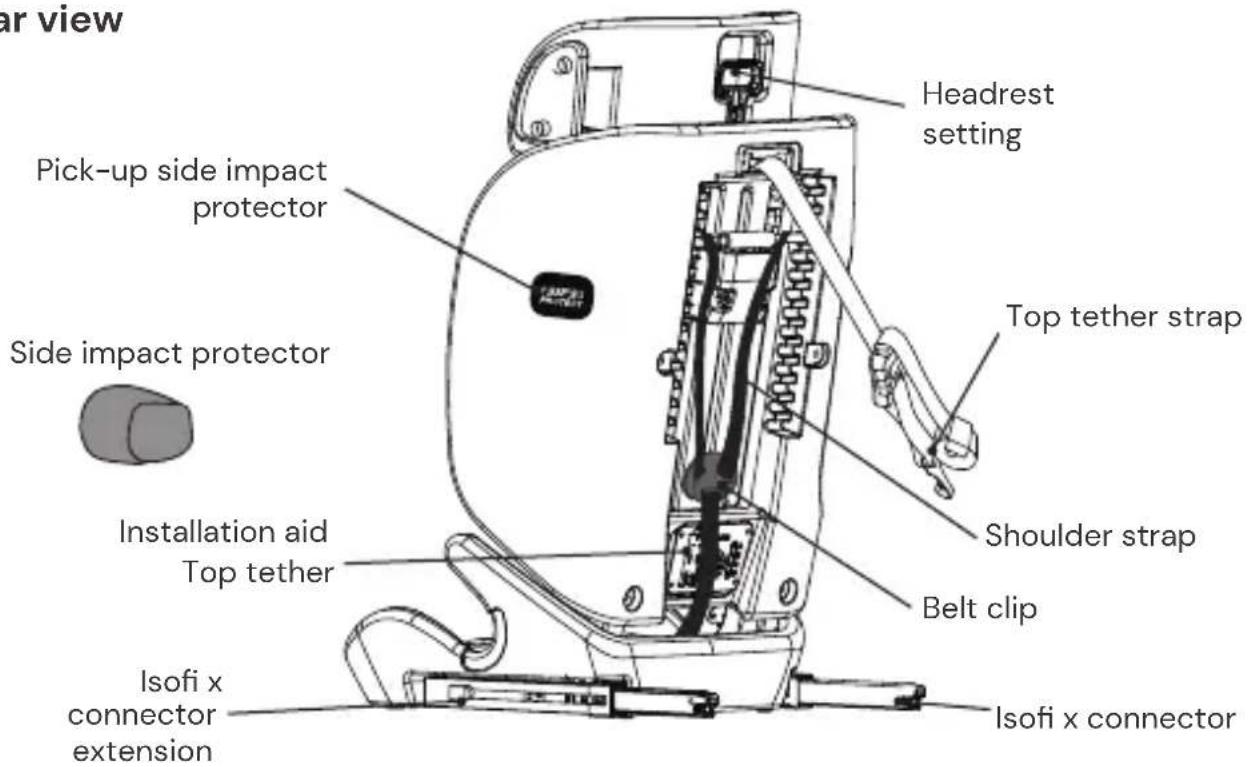

Rear view

ar view Pick-up side impact protector Side impact protector Installation aid Top tether Isofi x connector extension Headrest setting Top tether strap Shoulder strap Belt clip Isofi x connector

USING THE CHILD CAR SEAT

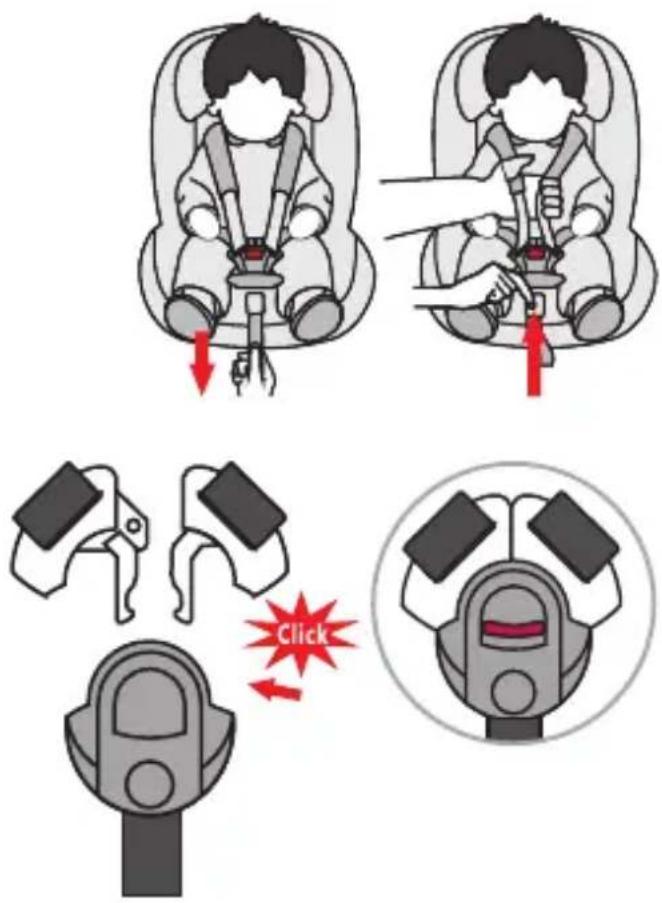

Adjusting the belt

• To loosen the belt, press the belt adjustment button in the seat area with one hand. Hold the belt buckle with the other hand and carefully loosen the attached belts.
• Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.

Illustration showing how to adjust a car seatbelt using a device, with Chinese text indicating 'Click' and red arrows indicating adjustment.

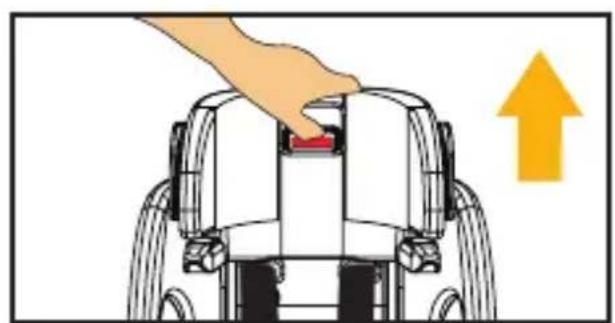

Opening/closing the belt

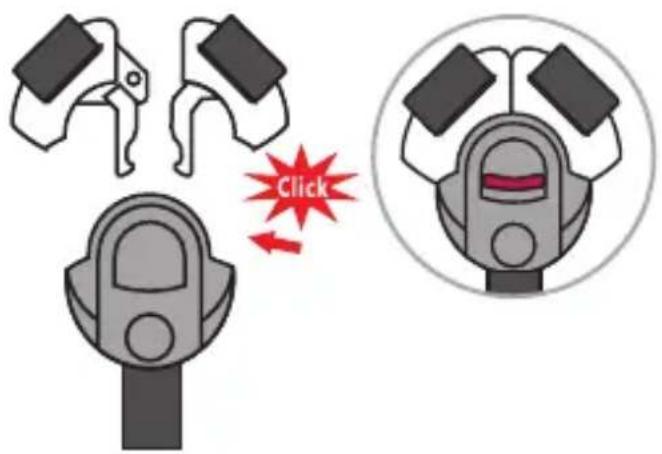

• To unlock the belt, press the button on the belt buckle, pull out the buckle tongues and separate them.
• To lock the belt, first connect both tongues of the buckle and then insert them together into the belt buckle.

Illustration of a robotic device with a hand pressing a red button, showing motion direction (no text or symbols)

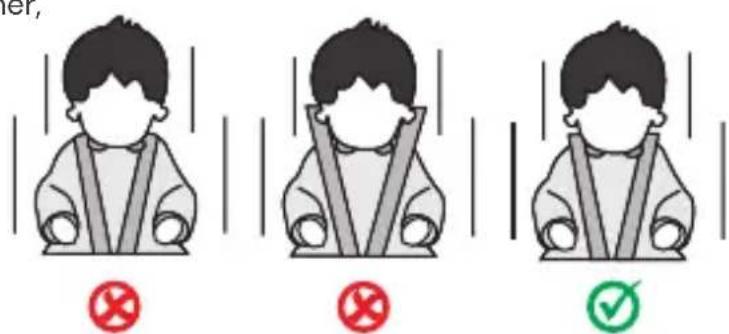

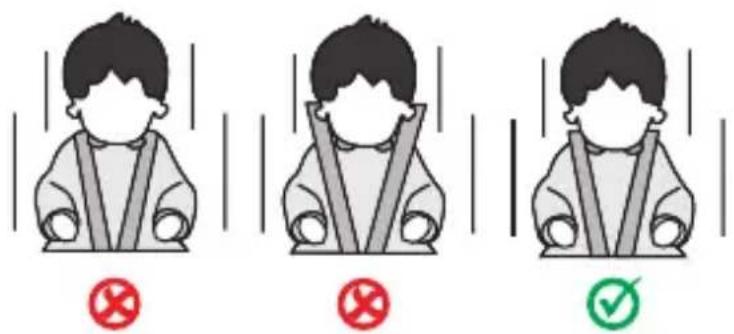

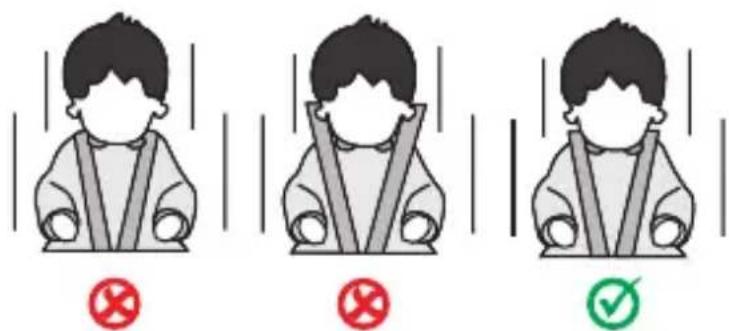

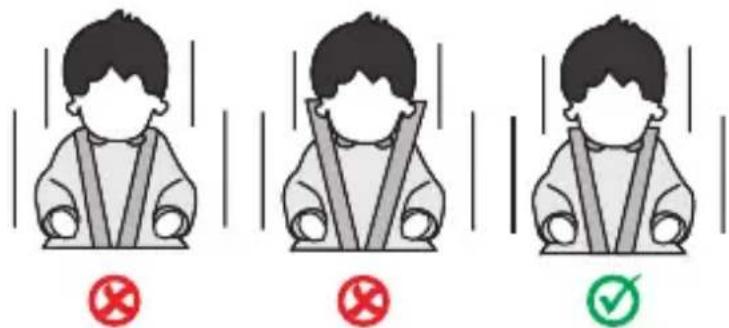

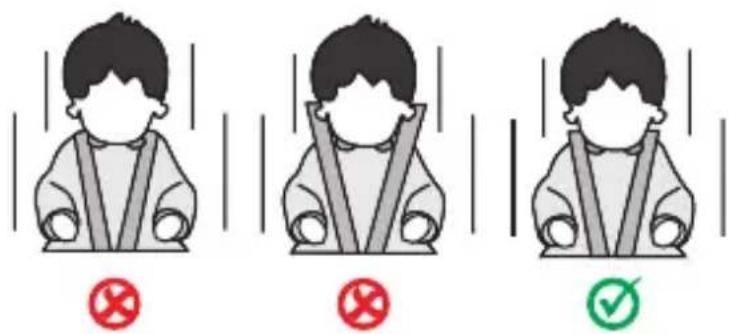

Adjusting the head support

• Release the belt and pull the lever to adjust the headrest on the back of the child car seat. Move the headrest until it engages at the correct height.
• Make sure the shoulder straps are positioned just above your child's shoulders when they come out of the child car seat.
• Release the lever and ensure that the headrest is engaged.

Three illustrated scenarios showing a person wearing a seatbelt with checkmarks indicating absence or compliance, each marked with a red X and green checkmark.

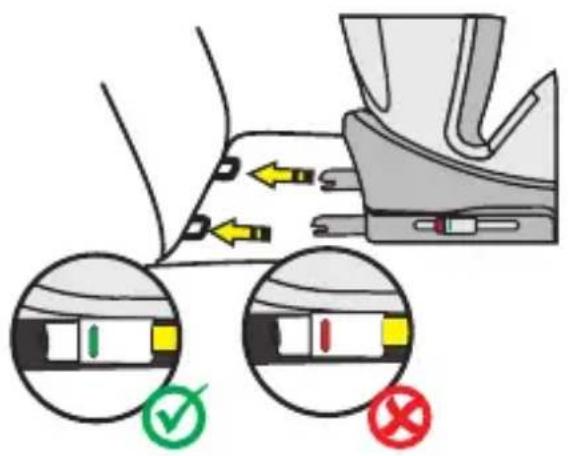

Isofi x connectors

• Press the two side Isofi x connector buttons to extend the length of the Isofi x connectors.
• Guide the Isofi x connectors to the Isofi x anchor points on the car seat and snap them into place.
• Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofix indicators are showing green.

Diagram illustrating seatbelt usage with checkmark and cross symbols indicating status or absence of seats

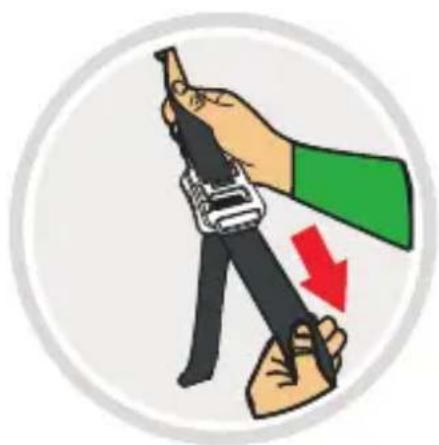

Top tether for size76-120 cm

• Remove the top tether from the storage bag at the back of the child car seat (storage bag depends on variant).
• To release the top tether, press the button with one hand and pull the side of the belt anchor to the required length with the other hand.

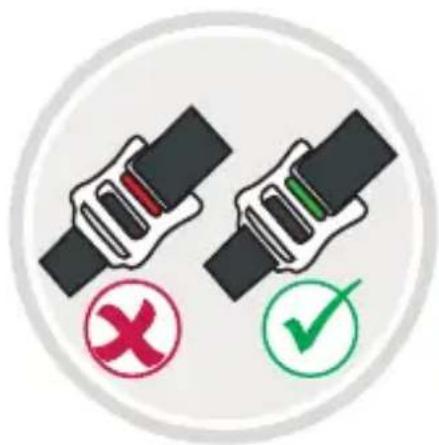

• To fix the top tether, clip the anchor to the fixing point on the car seat and pull it as tight as possible. The display does not turn green until the belt is tightened sufficiently.
• The top tether harness is only required for the 76–120 cm size category. In the 100–150 cm size class, the top tether strap is no longer needed. In the 100–120 cm size range, you can choose between the two installation variants.

Illustration of a hand using a cable to lift a cable, with a red arrow indicating compression (no text or symbols)

Safety warning symbols for seatbelting, showing no text, red checkmark, and green checkmark with corresponding icons.

USING THE CHILD CAR SEAT

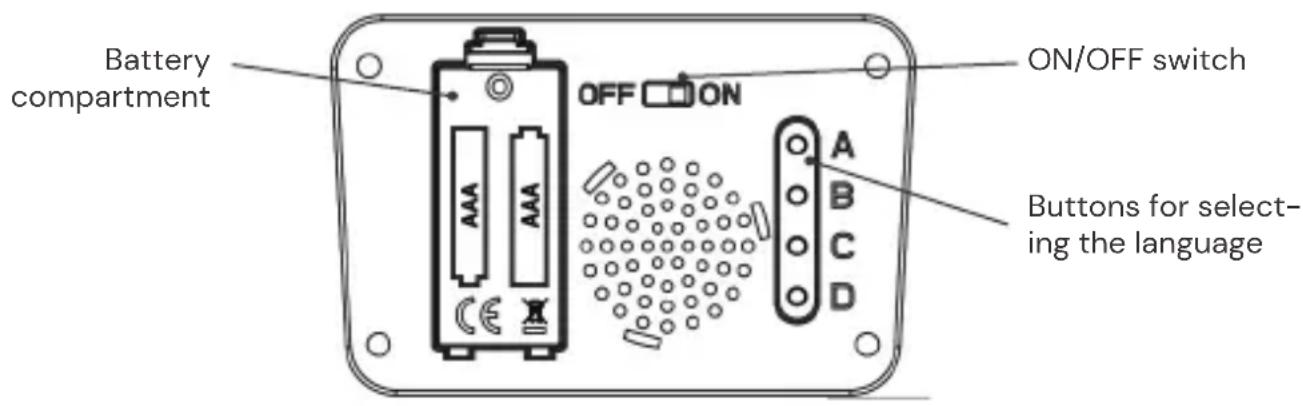

Installation aid top tether for size class 76-120 cm

• The acoustic installation aid for the top tether reminds you to install the top tether for the 76-120 cm size category.
• The installation aid is located on the back of the child car seat. First insert two AAA batteries (LRO3, 1.5 V) into the battery compartment and set the switch to ON. The batteries are not included in the scope of delivery.
• Each time the child gets into the car seat, pressure is applied to a special sensor on the seat surface. This activates the installation aid; you can recognise that the system is active by the welcome message. If insufficient pressure is registered on the sensor of the top tether, e.g. because it has not been installed or has become loose over time, the installation aid will alert you with a warning that repeats several times until you have tightened the top tether and sufficient pressure is applied to the sensor of the top tether.
• The language of the installation aid can be changed using the four buttons A/B/C/D. To do this, pressure must also be applied to the sensor on the seat. Several languages are set on each button. By pressing a button several times, the other languages located on the respective button can be selected. A list of which languages can be found on which button can be found below.
• In the 100-150 cm size category, in which the child is secured with the car's 3-point belt, you no longer need the acoustic installation aid, as the top tether is not used in this size category. Please set the switch to OFF accordingly.

Battery compartment OFF ON ON/OFF switch A B C D Buttons for select- ing the language

ABCD

German

Dutch

Slovakian

Danish

Croatian

English

Spanish

Portuguese

Greek

Hungarian

French

Czech

Finnish

Swedish

Estonian

Italian

Polish

Russian

Romanian

Bulgarian

Lithuanian

Chinese

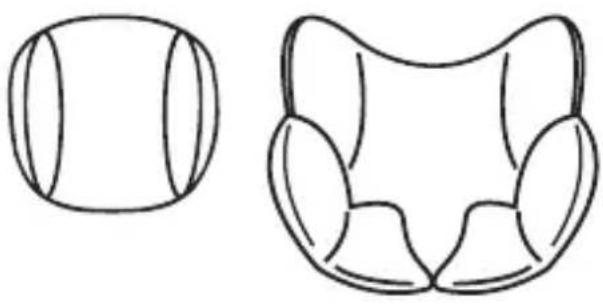

Head cushion & comfort insert

• The head cushion and comfort insert are designed for children between 76–87 cm in height.
• Please remove the inserts as soon as your child exceeds the specified heights.

Two simple line drawings of animal head profiles: a rounded oval and a curved, symmetrical shape (no text or symbols)

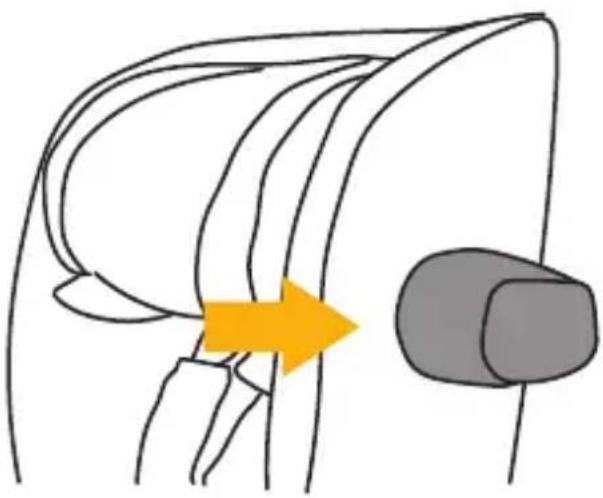

Side impact protector

• The side impact protector is inserted from the front to the rear of the child car seat on the side located on the car door.
• If the child car seat is located in the centre seat on the rear bench, e.g. because three child car seats are to be installed next to each other, the separate side impact protector can be dispensed with.
• To remove the side impact protector again, lift the release lever on the rear side of the protector and pull the protector forwards again.

Diagram of a biological structure with curved lines and a highlighted arrow, no text or symbols present

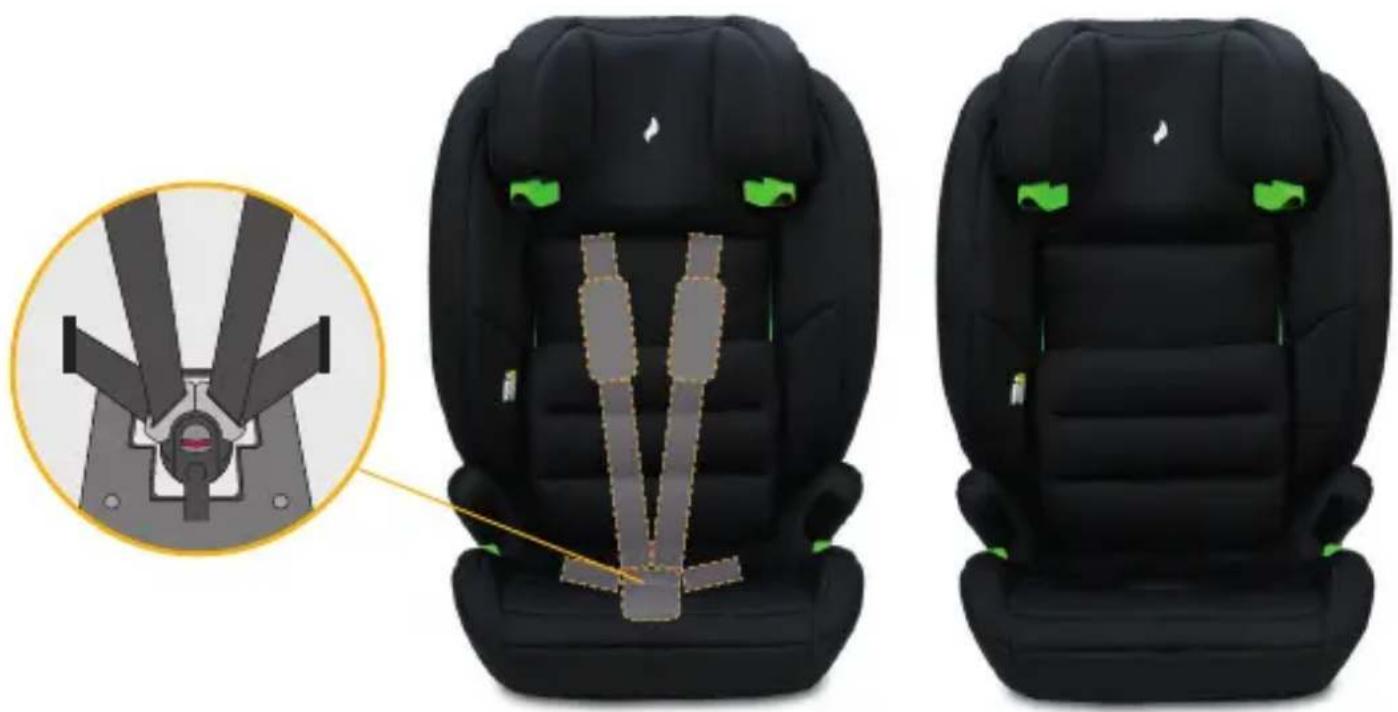

Stowage of the 5-point harness for size class 100–150 cm

• Loosen the harness system to the maximum length.
• Open the harness system and remove the belt buckle pad.
• Carefully pull off the cover in the seat area so that you can pass the seat belt buckle through the opening in the seat cover.
• Open the cover in the back area using the press studs and fold it away forwards.
• Insert the belt buckle tongues into the belt buckle and stow it in the recess in the seat area. To do this, fi rst remove the two pieces of fi lling material from the recess. Then place the thinner piece back on the belt buckle in the recess.
• Now stow the shoulder straps together with the shoulder pads behind the lower part of the headrest cover. The belt buckle pads can also be removed completely. To do this, unhook the retaining straps of the seat belt buckle pads; these are attached to the metal crossbar at the back of the child car seat. You can then pull the belt buckle pads forwards and remove them completely.
• Now fold back the cover of the back area and close the press studs.
• Ensure that you keep all the parts that are removed in a safe place.

Two black car seats with green accent tags, one showing a close-up of the seat assembly (no text or symbols visible)

(Sample illustrations)

CLEANING

To guarantee long-term use of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Use a damp cloth to clean the plastic body. Thoroughly dry the cleaned areas to ensure that no moisture can damage the electronics. Do not use chemicals or abrasive cleaning agents.

Wash at 30 °C, gentle cycle

DO NOT iron

DO NOT bleach

DO NOT dry clean

Tumble dry at low temperature

MAINTENANCE

Regularly check the condition of the product for any damage. In the event of damage, do not use the product and keep it out of the reach of children.

In case of any issues, please contact

Osann customer service on [phone].

INSTALLING THE CHILD CAR SEAT

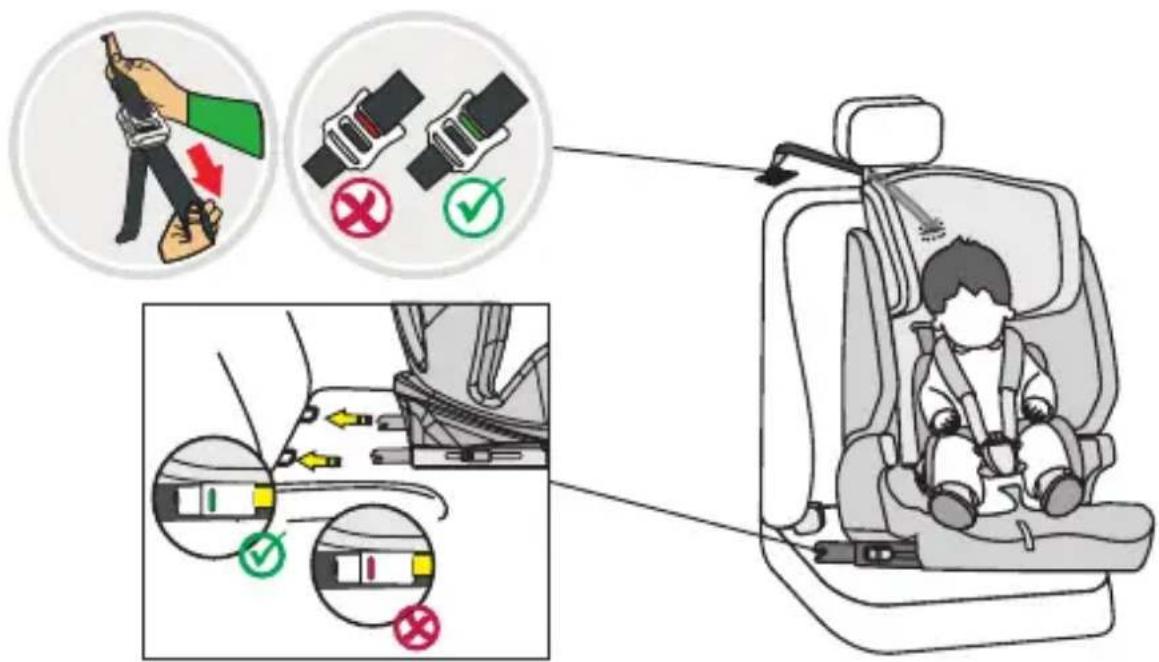

1) Height category 76-120 cm, min. 15 months, max. 23 kg, forward-facing

Diagram illustrating car seatbelt usage and safety rules, showing correct/incorrect matches for using a child's seatbelt.

ATTENTION: USE ONLY FROM THE AGE OF 15 MONTHS.

1. Place the child car seat facing forwards on your car seat and set the switch on the top tether installation aid to ON.
2. Press the two side Isofi x connector buttons to extend the length of the Isofi x connectors.
3. Guide the Isofi x connectors to the Isofi x anchor points on the car seat and snap them into place.
4. Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofi x indicators have turned green.
5. Take the top tether from its storage pocket and extend it to the maximum length.
6. Clip the top tether onto the hook provided in your car (e.g. on the back of the car seat or in the boot. Please consult your car manual for this).
7. Tighten the top tether until the display on the top tether turns green.
8. Unfasten the belt buckle on the child car seat and place the belts over the outside of the seat.
9. Put your child in the child car seat.
10. Adjust the height of the headrest as described above.
11. Fasten the belt buckle again until you hear a click.
12. Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.
13. Fit the side impact protector as described above.

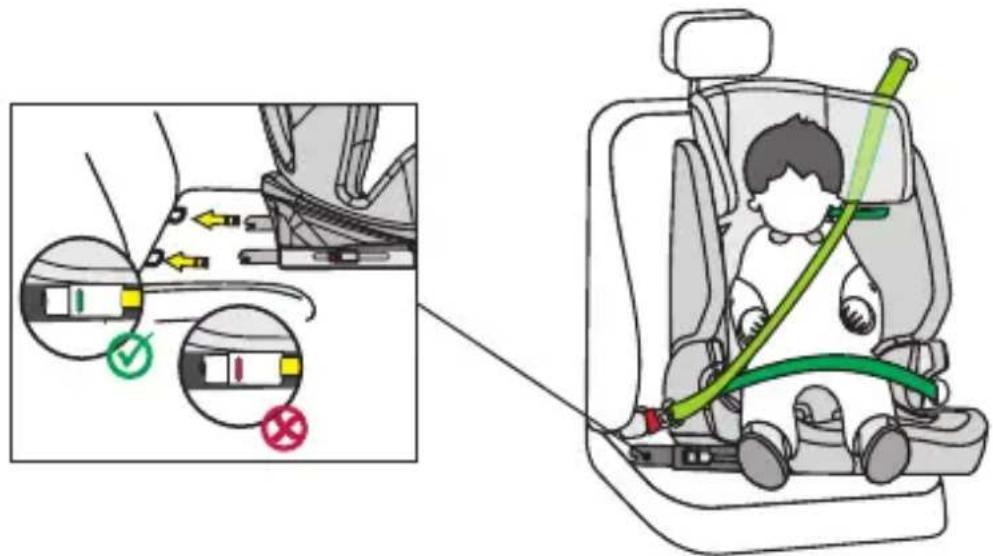

2) Size class 100–150 cm, forward-facing

Diagram illustrating car seatbelt usage with a child and a green belt, showing instructions for adjusting seatbelt standards.

1. The 5-point harness of the child car seat and the top tether strap must be stowed as previously described. These are not needed for children of this height. Please set the switch on the top tether installation aid to OFF.
2. Press the two side Isofi x connector buttons to extend the length of the Isofi x connectors.
3. Guide the Isofi x connectors to the Isofi x anchor points on the car seat and snap them into place.
4. Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofi x indicators have turned green.
5. Thread the diagonal belt of the 3-point seat belt in the car through the diagonal belt guide on the headrest of the child car seat.
6. Put your child in the child car seat.
7. Adjust the height of the headrest so that the child's head is fully in the headrest and the diagonal belt comes out through the belt guide at the level of the child's shoulders.
8. Fasten the belt buckle of the 3-point seat belt until you hear a click.
9. Make sure that both the diagonal belt and the lap belt run along the second lap belt guide (below the armrest) on the child car seat, which faces the car's seat belt buckle.
   10 . Pull on the diagonal strap to tighten it. Make sure that the straps are not twisted.
10. Fit the side impact protector as described above.

Installation without Isofi x:

Alternatively, the child car seat can also be fitted with the 3-point car seat belt only for children 100–150 cm in height. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.

DISPOSAL / ENVIRONMENT

Please recycle the child car seat and the packaging in an environmentally friendly manner.

Electrical appliances do not belong in household waste.

If you are no longer using the product, please dispose of it in an environmentally friendly manner and in accordance with local legislation. Information on waste collection points that accept discarded appliances free of charge can be obtained from your local or city council.

RoHS

In the course of product improvements, we reserve the right to make technical and optical changes to the article.

TROUBLESHOOTING

Fault Possible cause Suggested solution
	Switch is set to OFF Set switch to ON
The top tether installation aid	No batteries inserted Insert batteries
does not play any sound	Batteries empty Change batteries
	Loudspeaker defective Please contact customer service

Fault Possible cause Suggested solution

The top tether installation aid no longer speaks fl uently	Batteries will soon be empty Change batteries
The top tether installation aid re-peatedly issues the top tether warning even though a child is sitting in the child seat	Top tether belt not suffi - ciently tensioned	Tighten the top tether belt
	Fault in the pressure switch in the seat area or in the top tether belt	Please contact customer service
After a while, my child stands up or stands up briefl y, and the welcome greeting from the installation aid sounds again	Internal timer of the installation aid has expired	Explanation: If you stand up briefl y or move away from the seat and then sit back down (5 minutes af-ter the very fi rst welcome greeting), the greeting sounds again.

Illustration of a child in a car seat being lifted, showing two different states of the same seat (no text or symbols present)

Click

Illustration of a robotic device with a hand pressing a button, showing a yellow upward arrow (no text or symbols)

Three illustrated scenarios showing a person wearing a seatbelt, with red and green symbols indicating incorrect and correct safety measures.

Connecteurs Isofi x

Diagram illustrating seatbelt usage with checkmark and cross symbols indicating status or absence of seats

Illustration of a hand using a cable to lift a cable, with a red arrow indicating compression (no text or symbols)

Safety warning icon showing two belt buckle designs with red and green checkmarks indicating failure or compliance.

UTILISATION DU SIÈGE-AUTO

Two simple line drawings of animal head profiles: a rounded oval and a curved, symmetrical shape (no text or symbols)

Diagram of a biological structure with curved lines and a highlighted arrow, no text or symbols present

Two black car seats with green accent tags, one showing a close-up of the seat assembly (no text or symbols visible)

Diagram illustrating car seatbelt usage and safety rules, showing correct/incorrect matches for using a child's seatbelt.

ATTENTION : UTILISER UNIQUEMENT À PARTIR DE 15 MOIS.

Diagram illustrating car seatbelt usage with a child and a green belt, showing instructions for adjusting seatbelt standards.

Illustration of a child in a car seat being lifted, showing two different states of the same seat (no text or symbols present)

Click

Illustration of a robotic device with a hand pressing a red button, showing motion direction (no text or symbols)

Three illustrated scenarios showing a person wearing a seatbelt, with red and green symbols indicating incorrect and correct safety conditions.

Connettori Isofi x

Diagram illustrating seatbelt usage with checkmark and cross symbols indicating status or absence of seats

Illustration of a hand using a cable to lift a cable, with a red arrow indicating compression (no text or symbols)

Safety warning symbols for seatbelting, showing no text, red checkmark, and green checkmark with corresponding icons.

UTILIZZO DEL SEGGIOLINO PER AUTO

Two simple line drawings of animal head profiles: a rounded oval and a curved, symmetrical shape (no text or symbols)

Diagram of a biological structure with curved lines and a highlighted arrow, no text or symbols present

Diagram illustrating car seatbelt usage and safety rules, showing correct/incorrect matches for using a child's seatbelt.

ATTENZIONE: UTILIZZARE SOLO A PARTIRE DAI 15 MESI DI ETÀ.

Diagram illustrating car seatbelt usage, showing a child's seatbelt being adjusted for using a green cable to adjust its seatbelt.

Diagram of a car with numbered positions and checkmarks indicating status or failure points

1 en 2:

Illustration showing how to adjust a car seatbelt using a device, with Chinese text indicating 'Click' and red arrows indicating adjustment.

Illustration of a robotic device with a hand pressing a red button, showing motion direction (no text or symbols)

Three illustrated scenarios showing a person wearing a seatbelt, with red and green symbols indicating incorrect and correct safety measures.

Isofi x-connectoren

Diagram illustrating seatbelt usage with checkmark and cross symbols indicating status or absence of seats

Illustration of a hand using a cable to lift a cable, with a red arrow indicating compression (no text or symbols)

Safety warning symbols for seatbelting, showing no text, red checkmark, and green checkmark with corresponding icons.

Two simple line drawings of animal head profiles: a rounded oval and a curved, symmetrical shape (no text or symbols)

Diagram of a biological structure with curved lines and a highlighted arrow, no text or symbols present

Two black car seats with green accent labels, one showing a close-up of the seat assembly (no text or symbols visible)

(Voorbeelden)

REINIGING

Diagram illustrating car seatbelt usage and safety rules, showing correct/incorrect matches for using a child's seatbelt.

LET OP: PAS TE GEBRUIKEN VANAF EEN LEEFTIJD VAN 15 MAANDEN.

Diagram illustrating car seatbelt usage with a child and a green belt, showing instructions for adjusting seatbelt standards.

Illustration showing how to adjust a car seatbelt using a device, with Chinese text indicating 'Click' and red arrows indicating adjustment.

Illustration of a robotic device with a hand pressing a red button, showing a yellow upward arrow (no text or symbols)

Three illustrated scenarios showing a person wearing seatbelt with checkmarks and red/green symbols indicating absence or compliance.

Conectores Isofi x

Diagram showing seatbelt switch mechanism with checkmark and cross symbols indicating status or failure

Illustration of a hand using a cable to lift a cable, with a red arrow indicating compression (no text or symbols)

Safety warning symbols for seatbelting, showing no text, red checkmark, and green checkmark with corresponding icons.

USO DEL ASIENTO INFANTIL PARA AUTOMÓVIL

Two simple line drawings of animal head parts: a rounded oval and a cross-section (no text or symbols)

Protector contra impactos laterales

Diagram of a mechanical component with curved lines and a highlighted arrow, no text or symbols present

Two black car seats with green accent tags, one showing a close-up of the seat assembly (no text or symbols visible)

Diagram illustrating car seatbelt usage and safety rules, showing how to switch from a bottle to a child's seat.

Diagram illustrating car seatbelt usage, showing a child's seatbelt being adjusted for using a green cable to adjust its seatbelt.

Illustration showing how to adjust a car seatbelt using a lock mechanism, with Chinese text indicating 'Click' and red arrows indicating movement.

Illustration of a robotic device with a hand pressing a red component, showing an upward arrow (no text or symbols)

Three illustrated scenarios showing a person wearing a seatbelt with checkmarks and red prohibition symbols, likely indicating safety or compliance conditions.

Konektory Isofi x

Diagram showing seatbelt buckle assembly with checkmark and cross symbols indicating status or failure

Illustration of a hand using a cable to lift a cable, with a red arrow indicating compression (no text or symbols)

Safety warning symbols for seatbelting, showing red X and green checkmark with a red circle

POUŽITÍ DĚTSKÉ AUTOSEDAČKY

Two simple line drawings of animal head parts: a rounded oval and a cross-section (no text or symbols)

Diagram of a mechanical component with curved lines and a highlighted arrow, no text or symbols present

Two black car seats with green accent tags, one showing a close-up of the seat assembly (no text or symbols visible)

Diagram illustrating car seatbelt usage and safety rules, showing how to switch from a bottle to a child's seat.

POZOR: POUŽÍVEJTE POUZE PRO DĚTI VE VĚKU OD 15 MĚSÍCŮ.

Diagram illustrating car seatbelt usage with a child and a green cable, showing correct and incorrect states of using the seatbelt.

Illustration showing how to adjust a car seatbelt using a lock mechanism, with Chinese text indicating 'Click' and red arrows indicating movement.

Regulacja zagłówka

Illustration of a robotic device with a hand pressing a red button, showing motion direction (no text or symbols)

Three illustrated scenarios showing a person wearing a seatbelt, with red and green symbols indicating incorrect and correct safety measures.

Łączniki ISOFIX

Diagram showing car seatbelting process with checkmark and cross symbols indicating status or failure

Illustration of a hand using a cable to lift a cable, with a red arrow indicating compression (no text or symbols)

Safety warning symbols for seatbelting, showing no text, red checkmark, and green checkmark with corresponding icons.

UŻYTKOWANIE FOTELIKA SAMOCHODOWEGO

Two simple line drawings of animal head profiles: a rounded oval and a curved, symmetrical shape (no text or symbols)

Diagram of a biological structure with curved lines and a highlighted arrow, no text or symbols present

Two black car seats with green accent tags, one showing a close-up of the seat assembly (no text or symbols visible)

Diagram illustrating car seatbelt usage, showing safety icons and safety check signs for children in a car seat.

UWAGA: STOSOWAĆ WYŁĄCZNIE DLA DZIECI W WIEKU POWYŻEJ 15 MIESIĘCY.

Diagram illustrating car seatbelt usage, showing a child's seatbelt being adjusted for using a green cable to adjust its seatbelt.

Illustration showing how to adjust a car seatbelt using a device, with Chinese text indicating 'Click' and red arrows indicating adjustment.

Illustration of a robotic device with a hand pressing a red button, showing motion direction (no text or symbols)

Three illustrated scenarios showing a person wearing a seatbelt, with red and green symbols indicating incorrect and correct safety measures.

Konektory Isofi x

Diagram showing car seatbelting process with checkmark and no crossing symbols indicating status

Illustration of a hand using a cable to lift a cable, with a red arrow indicating compression (no text or symbols)

Safety warning symbols for seatbelting, showing no text, red checkmark, and green checkmark with corresponding icons.

POUŽITIE DETSKEJ AUTOSEDAČKY

Two line drawings of animal head profiles: a rounded oval and a stylized cat face (no text or symbols)

Diagram of a mechanical component with curved lines and a highlighted arrow, no text or symbols present

Two black car seats with green accent tags, one showing a close-up of the seat assembly (no text or symbols visible)

(názorné obrázky)

ČISTENIE

Diagram illustrating car seatbelt usage and safety rules, showing how to switch from a bottle to a child's seat.

POZOR: POUŽÍVAJTE AŽ OD VEKU DIEŤAŤA 15 MESIACOV.

Diagram illustrating car seatbelt usage with a child and a green belt, showing correct and incorrect states of using the seatbelt.
