Product type	Child car seat (i-Size booster)
Brand	Osann
Model	Volpo SP Isofix
Approval	Regulation No. 129 (i-Size)
Compatible child height	100 to 150 cm
Minimum age (forward-facing)	3 years old
Mounting direction	Forward-facing
Fixing system	Isofix connectors + 3-point seat belt
Alternative fixing	3-point seat belt only (recommended with Isofix)
Headrest adjustment	Yes, adjustable height
Side protection	Removable side impact protector
Seat angle adjustment	Yes, foldable
Cover cleaning	Wash at 30°C, delicate cycle
Cleaning forbidden	No bleach, no ironing, no dry cleaning
Drying	Tumble dryer at low temperature
Spare cover	Only recommended by the manufacturer
Use	Exclusively in a vehicle
After an accident	The seat must be replaced
Repairability	Not repairable, mandatory replacement in case of damage
Customer service	Osann, [phone]
Spare parts	Available on request from customer service
Box contents	Seat with backrest and base, side impact protector, Isofix connectors

Frequently Asked Questions - Volpo SP Isofix Osann

How to install the seat with Isofix?

Deploy the Isofix connectors by pressing the side buttons. Insert them into the vehicle's Isofix anchors until you hear a click. Push the seat firmly against the car seat back and check that both indicators are green.

How to adjust the headrest?

Pull the lever at the back of the seat upwards to adjust the headrest height. The diagonal belt must come out of the belt guide above the child's shoulder. Release the lever to lock.

Can I use the seat without Isofix?

Yes, for children from 100 to 150 cm, the seat can be secured with only the 3-point seat belt. However, using the Isofix connectors is recommended for enhanced safety.

How to clean the cover?

Remove the cover and wash it at 30°C on a delicate cycle. Do not use bleach, do not iron, do not dry clean. Drying in a tumble dryer is possible at low temperature.

Can my child use the seat forward-facing before 3 years?

No, it is strictly forbidden to use this seat in forward-facing position if the child has not reached the age of 3 years.

What to do in case of an accident?

The car seat must be replaced after an accident, even if no damage is visible. Severe stresses can compromise its safety.

How to attach the side impact protector?

Insert the side impact protector from top to bottom on the side of the child seat, at the designated support. To remove it, lift the unlocking lever and pull upwards.

Can I use the seat on the center seat of the rear bench?

Yes, if the seat is placed in the middle, the side impact protector can be omitted to facilitate the installation of three seats side by side.

How to adjust the seat belt for the child?

Seat the child, close the belt buckle until it clicks. Make sure the belts pass through the belt guides (one under the armrest, the other near the buckle). Pull the diagonal belt to tighten without leaving slack.

When to replace the seat?

Replace the seat after any accident or if damage is noticed (torn fabric, cracked plastic, etc.). The seat is not repairable and must be kept out of reach of children.

USER MANUAL Volpo SP Isofix Osann

Icon of an open book with an information symbol inside a yellow circle (no text or symbols)

ENFRITDE

ESCZPLNL

HRSIHUSK

Diagram showing a vehicle head assembly before and after, with a red arrow indicating the process (no text or symbols present)

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a red T-shaped object, with two red arrows indicating downward motion (no text or symbols)

Illustration showing three child safety measures: seatbelt, no longer, and checkmark, each with a red X and green checkmark.

Isofi x-Konnektoren

Diagram illustrating a medical procedure with red arrows indicating force or movement, showing hand positioning and tool placement.

Illustration of a hand holding a medical device with a red arrow indicating force direction (no text or symbols)

Diagram showing two battery terminal connections with checkmarks and a red 'X' indicating cancellation or error.

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Illustration of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

Diagram illustrating car seatbelt usage with instructions for adjusting seatbelt color and safety symbols

Thank you for choosing our child car seat. If you need help with this product, please contact our customer service.

HOW TO USE

• This product is suitable for children between 100 and 150cm in height.
- Forward-facing installation for children between 100 to 150 cm in height made possible thanks to the Isofi x connectors. The child is strapped in with the car's 3-point seat belt. Alternatively, the child car seat in the 100-150 cm size class can also be fitted using the 3-point seat belt only. Connection with the Isofi x connectors is not mandatory, but it is recommended.

NOTE

This is an optimised i-Size children's booster seat. It is approved under Regulation No. 129 for use primarily on "i-Size vehicle seats" as specified by vehicle manufacturers in the vehicle manual.

If in doubt, the manufacturer of the enhanced child restraint system or the retailer should be consulted.

IMPORTANT - DO NOT USE THE CHILD CAR SEAT IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 3.

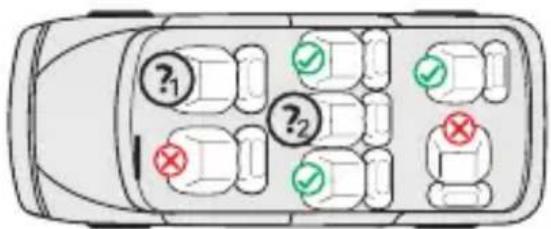

?1 ?2

1 & 2): When used with Isofi x: This only applies if Isofi x connectors are available and the seat is recognised as i-Size-compatible in the vehicle manual.

The following table provides information about the fastening devices and methods:

Height range	Installation direction	Installation Type		Child safety device
100–150 cm	Forward-facing	Isofi x connectors & 3-point car seat belt	i-Size booster seat	3-point car seat belt
100–150 cm	Forward-facing	3-point car seat belt	i-Size booster seat	3-point car seat belt

WARNING

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the instructions. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• For Isofi x installation: Be sure to read the car manufacturer's manual.
• Do not use load-bearing contact points other than those described in the instructions and indicated on the child restraint system.
• Do not use this child car seat at home. It has been designed exclusively for use in a car.
• Do not leave your child unsupervised in the seat at any time.
• The child seat must be replaced if it has been subject to severe mechanical stress in an accident.
• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.
• Always make sure that all straps that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fit the child's body. Ensure that the belts are not twisted.
• Items of luggage and other objects that could cause injury in the event of a collision must be properly secured.
• The rigid elements and plastic parts of a child restraint system must be positioned and installed so that they cannot become jammed by a movable seat or a vehicle door.
• It is important that belts that sit low hold the child's pelvis firmly in place. Your child should always be fastened in to stop them falling out.
• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system may also present risks to the safety of your child.
• This child seat is designed for children with a maximum height of 150 cm. Never overload the child seat by transporting more than one child or additional loads in it.
  • The child restraint system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint system.

SEAT PARTS

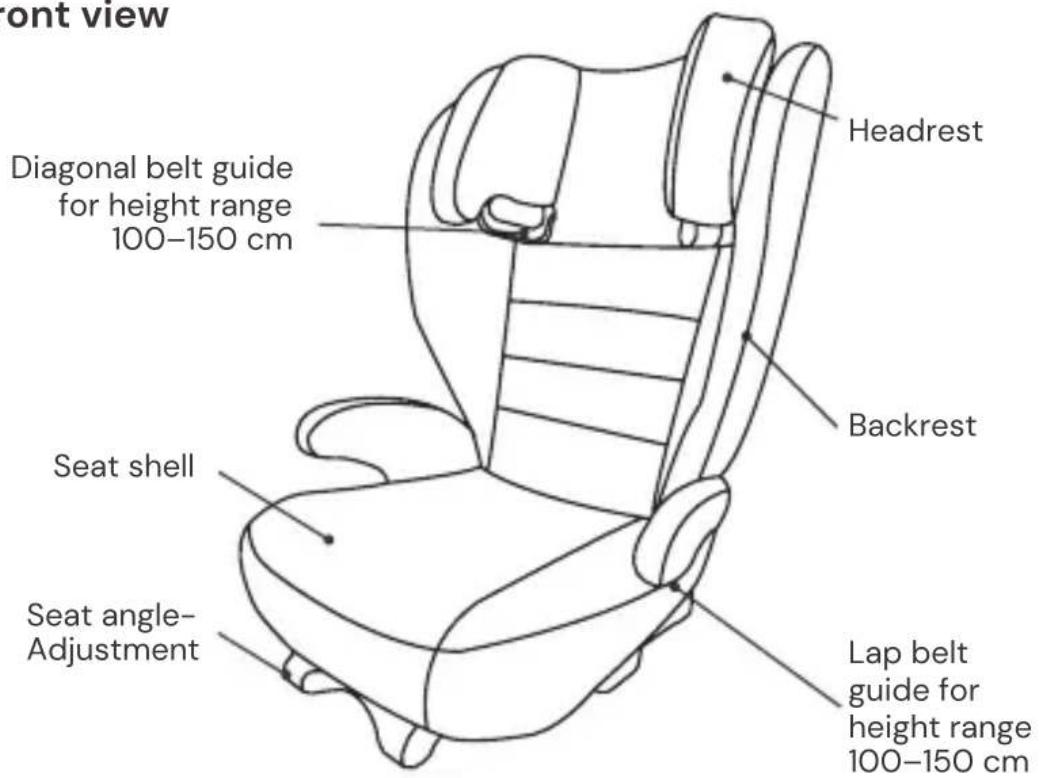

Front view

Front view Headrest Diagonal belt guide for height range 100–150 cm Backrest Seat shell Seat angle- Adjustment Lap belt guide for height range 100–150 cm

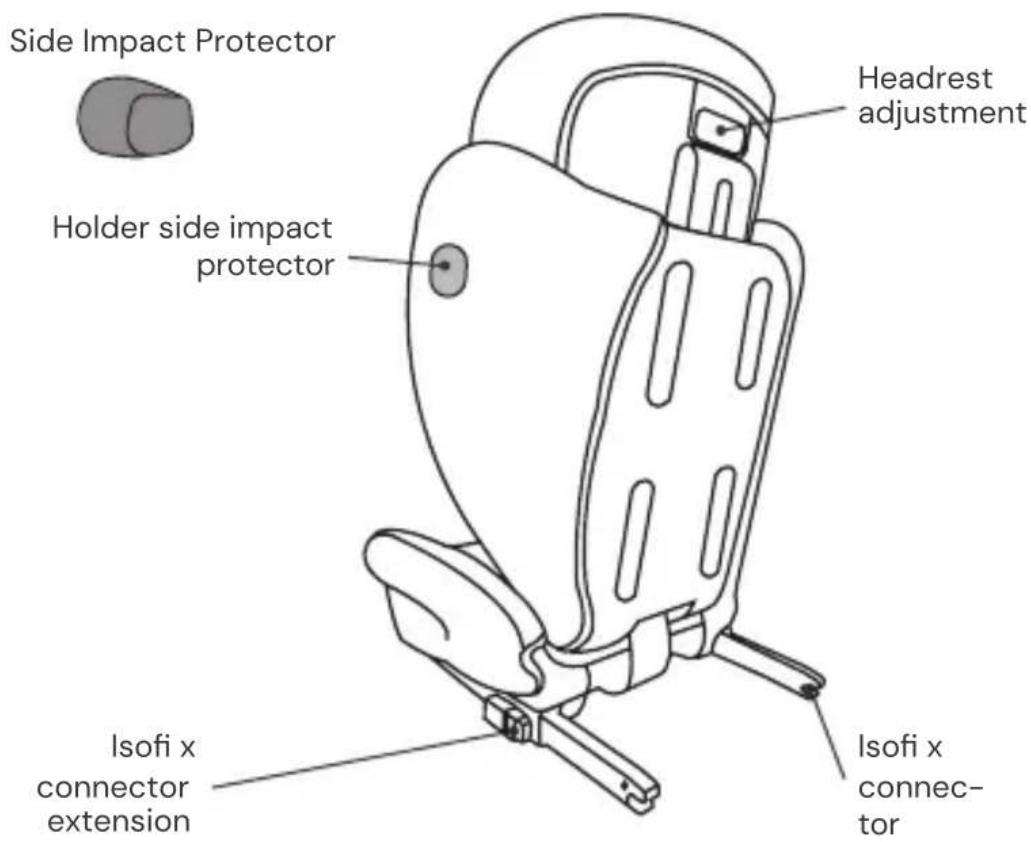

Rear view

Side Impact Protector Holder side impact protector Headrest adjustment Isofi x connector extension Isofi x connector

CLEANING

To guarantee long-term use of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Wash at 30°C, gentle wash cycle

DO NOT iron

DO NOT bleach

DO NOT dry clean

Tumble dry at low temperature

MAINTENANCE

Check the condition of the product for possible damage at regular intervals. In the event of damage, the child car seat must no longer be used and must be kept out of the reach of children.

In case of any issues, please contact

Osann customer service on [phone].

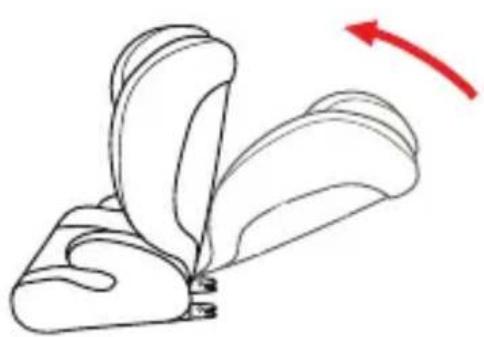

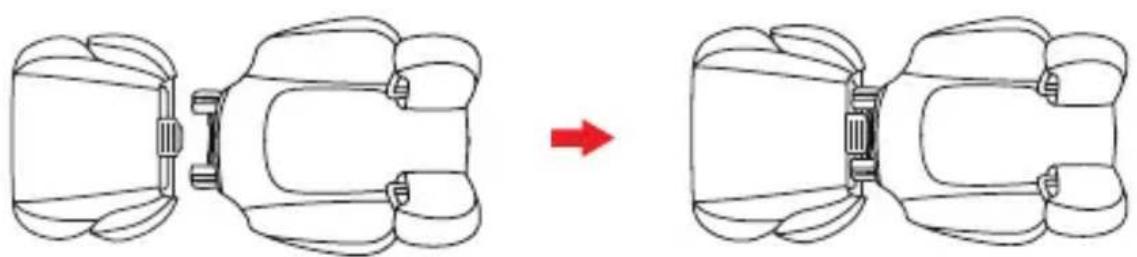

Assembling the backrest & seat shell (variant-dependent)

• The child car seat is delivered unassembled.

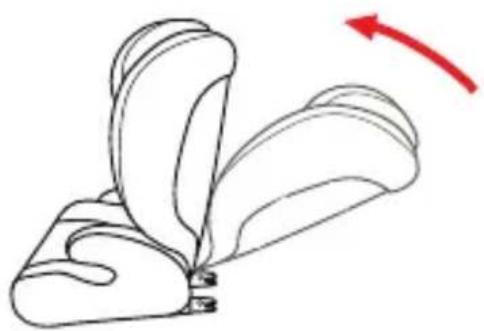

- Please take the backrest and hook it into the seat shell at a shallow angle.
- Hold the seat shell firmly and push the backrest upwards until it is fully engaged.
- Use of the child car seat without a backrest is not permitted.

Diagram showing a vehicle head assembly before and after transformation, with no text or symbols present.

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

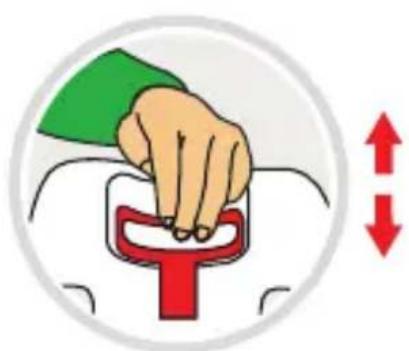

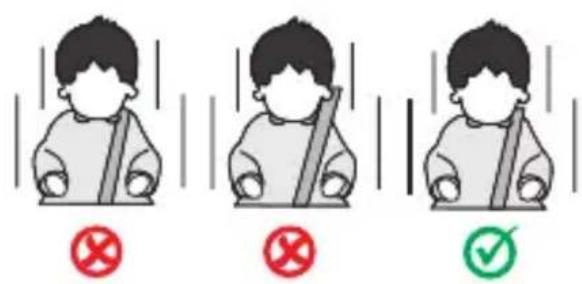

Adjusting the headrest

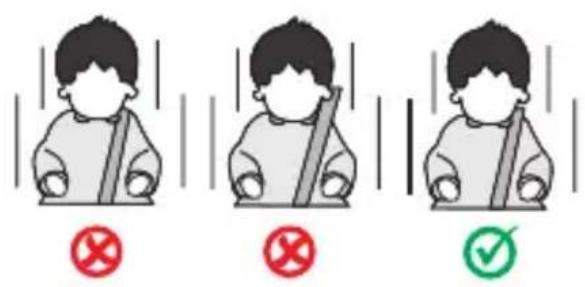

• Pull up the headrest adjustment lever on the back of the child car seat and adjust the height of the headrest.
• Thread the diagonal belt of the car's 3-point seat belt through the diagonal belt guide on the headrest.
• Make sure that the diagonal strap of the car's 3-point seat belt comes out of the diagonal strap guide on the headrest just above your child's shoulders.
• Release the lever and ensure that the headrest is engaged.

Illustration of a hand pressing down on a red T-shaped object, with two red arrows indicating downward motion (no text or symbols)

Illustration showing three child safety measures: seatbelt, crosshair, and checkmark, each with a red X and green checkmark.

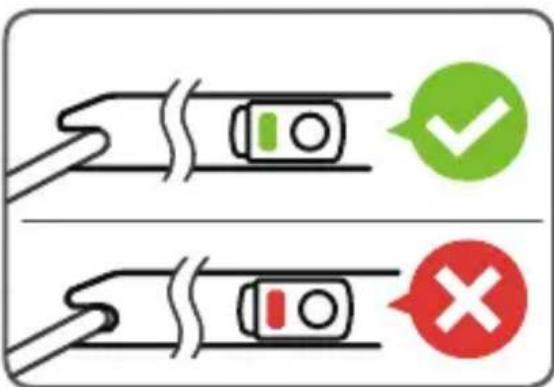

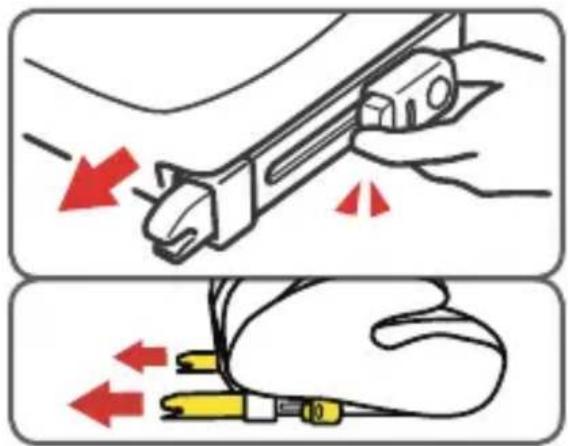

Isofi x connectors

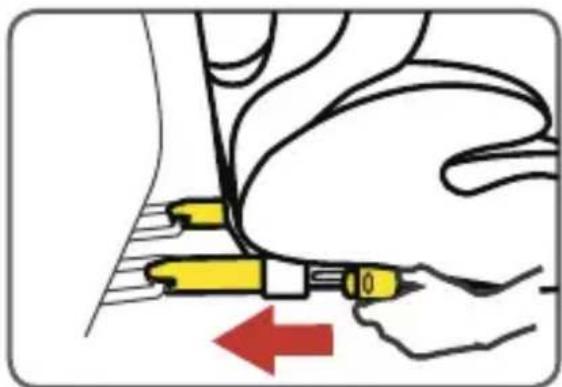

• Press the two lateral Isofi x connector buttons in order to extend the length of the Isofi x connectors.
• Guide the Isofi x connectors onto the Isofi x anchor points on the seat of the vehicle and ensure that they lock into position.

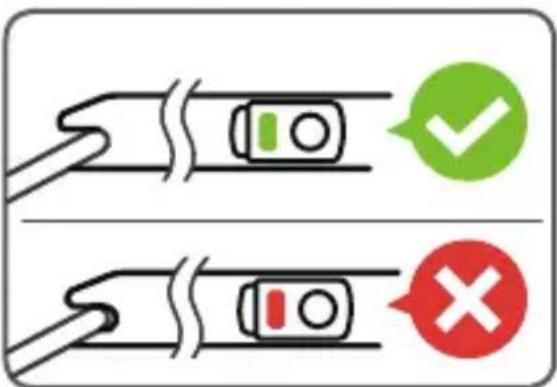

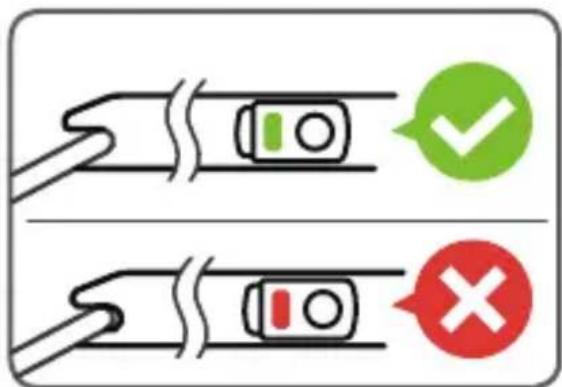

• Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Ensure that both Isofi x indicators are showing green.

Diagram illustrating a medical procedure with red arrows indicating force or movement, showing hand positioning and tool placement.

Illustration of a hand holding a medical device with a red arrow indicating force direction (no text or symbols)

Diagram showing two battery terminal connections with check and dislocation indicators, indicating status or failure.

Setting the rest position

• The backrest of the child car seat is fl exible in its angle of inclination so that it can adapt better to the backrest of the car seat.

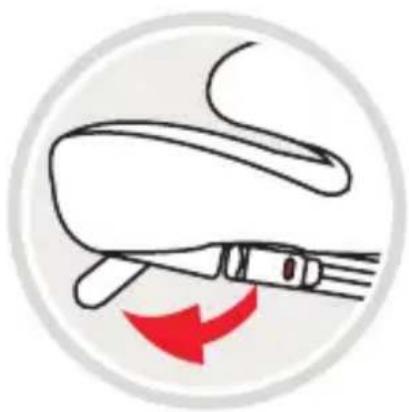

• The seat angle adjustment on the underside of the child car seat can be folded in or out as required.

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Side Impact Protector

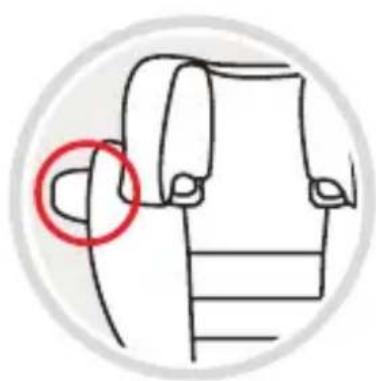

• The side impact protector is inserted from the top to the bottom on the side that is on the car door at the corresponding holder of the child car seat.
• If the child car seat is placed in the middle seat on the rear bench, for example, when three child car seats are to be mounted side by side, the separate side impact protector can be omitted.
• To remove the side impact protector, lift the release lever on the rear side of the protector and pull the protector upwards again.

Diagram of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

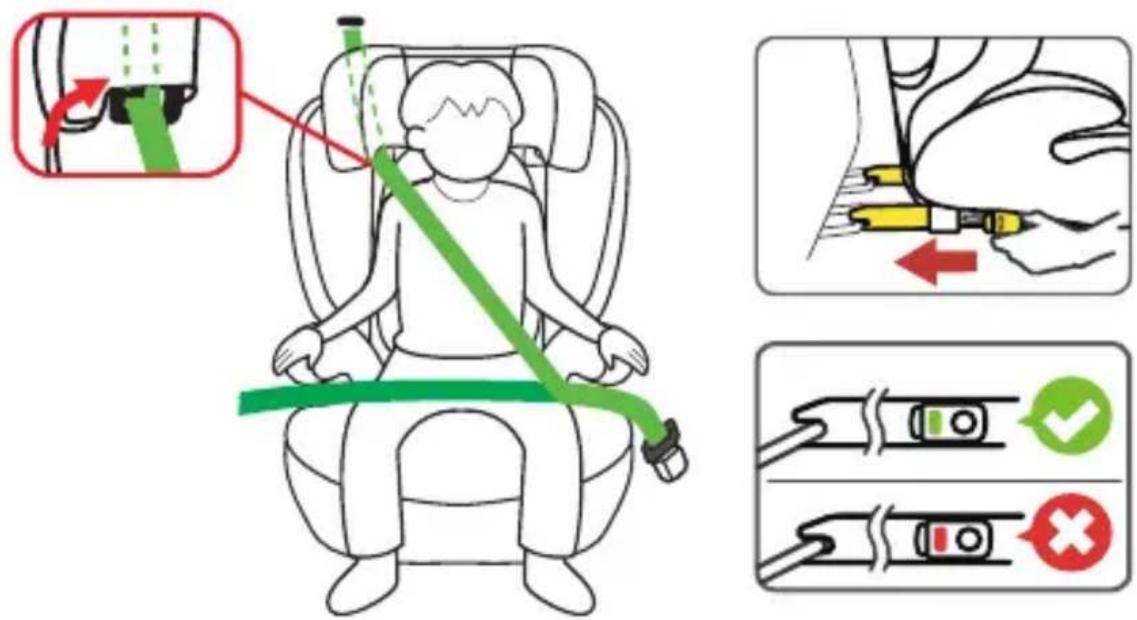

INSTALLATION OF THE CHILD CAR SEAT

Height range 100–150 cm, forward-facing

Diagram illustrating car seatbelt usage with instructions for adjusting seatbelt color and safety symbols

1. Press the two lateral Isofix connector buttons in order to extend the length of the Isofi x connectors.

2. Guide the Isofi x connectors to the Isofi x anchor points on the car seat and snap them into place.

3. Push the child car seat in until it rests securely against the backrest of the car seat. Ensure that both Isofi x indicators are switched to green.

4. Thread the diagonal belt of the 3-point car seat belt through the diagonal belt guide on the headrest of the child car seat.

5. Thread the lap belt of the car's 3-point belt through the first lap belt guide (below the armrest) in the seat area of the child car seat.

6. Put your child in the child car seat.

7. Adjust the height of the headrest so that the child's head is fully in the headrest and the diagonal belt comes out through the belt guide at the level of the child's shoulders.

8. Fasten the belt buckle of the 3-point seat belt until you hear a click.

9. Make sure that both the diagonal belt and the lap belt run through the second lap belt guide (below the armrest) on the child car seat, which faces the car's seat belt buckle.

10. Pull on the diagonal strap to tighten it. Make sure that the straps are not twisted.

11. Install the side impact protector as previously described.

Installation without Isofi x:

Alternatively, the child car seat in the 100-150 cm size class can also be fitted with the 3-point seat belt only. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.

Diagram showing a vehicle head assembly before and after, with a red arrow indicating the process (no text or symbols present)

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a red T-shaped object, with two red arrows indicating downward motion (no text or symbols)

Illustration showing three child safety measures: seatbelt, crosshair, and checkmark, each with a red X and green checkmark.

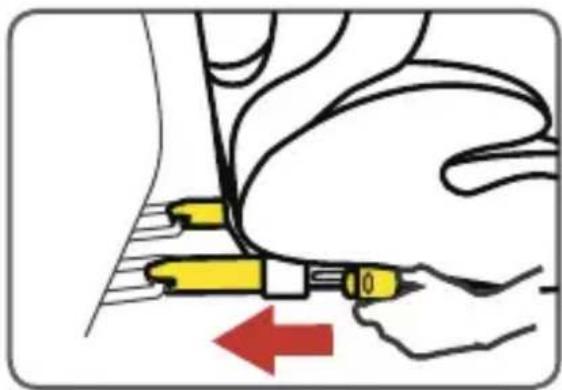

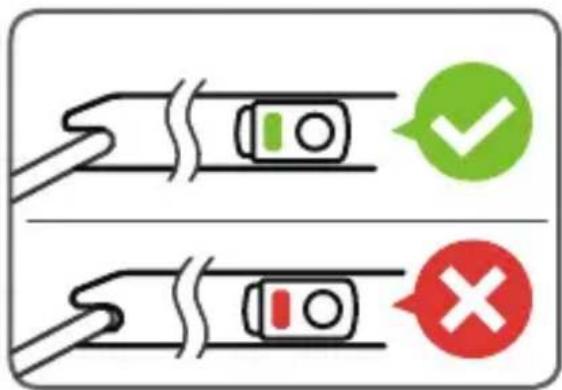

Connecteurs Isofi x

Diagram illustrating a medical procedure with red arrows indicating force or movement, showing hand positioning and tool placement.

Illustration of a hand holding a tool with a red arrow indicating direction (no text or symbols)

Diagram showing two battery charging scenarios with checkmarks and incorrect signs, indicating battery status or failure.

Réglage de la position de repos

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Diagram of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

INSTALLATION DU SIÈGE AUTO POUR ENFANT

Diagram illustrating car seatbelt usage with instructions for adjusting seatbelt color and safety symbols

Diagram showing a vehicle head assembly before and after transformation, with no text or symbols present.

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a red T-shaped object, with two red arrows indicating downward motion (no text or symbols)

Illustration showing three child safety measures: seatbelt, no longer, and checkmark, each with a red X and green checkmark.

Connettori Isofi x

Illustration showing two-step instructions for using a tool to adjust the grip of a device, with red arrows indicating motion direction (no text or symbols present)

Illustration of a hand holding a medical device with a red arrow indicating force or pressure (no text or symbols present)

Diagram showing two battery terminal connections with checkmarks and a red 'X' indicating cancellation or error.

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Illustration of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

MONTAGGIO DEL SEGGIOLINO AUTO PER BAMBINI

Diagram illustrating car seatbelt usage with instructions for adjusting seatbelt color and safety symbols

Diagram showing a vehicle head assembly before and after, with a red arrow indicating the process (no text or symbols present)

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

Safety instruction showing hand pressing a red T-shaped component with red directional arrows and three child safety symbols (red X, black X, green check) indicating different conditions.

Isofi x-connectoren

Diagram illustrating a medical procedure with red arrows indicating force or movement, showing hand positioning and tool placement.

Illustration of a hand holding a medical device with a red arrow indicating force direction (no text or symbols)

Diagram showing two battery terminal connections with checkmarks and a red 'X' indicating cancellation or error.

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Illustration of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

MONTAGE VAN HET AUTOSTOELTJE

Medical illustration showing car seatbelt usage with instructions for adjusting seatbelt color and safety symbols

Diagram of a car with labeled sections and checkmarks indicating unknown points, likely for inspection or status indicators.

Diagram showing a vehicle head assembly before and after, with a red arrow indicating the process (no text or symbols present)

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

Medical illustration showing a hand pressing a red T-shaped device with bidirectional arrows and three child safety check icons below.

Conectores Isofi x

Illustration showing two-step instructions for using a tool to adjust the grip of a wrist (no text or symbols present)

Illustration of a hand holding a medical device with a red arrow indicating force or pressure (no text or symbols present)

Diagram showing two battery charging scenarios with checkmarks and incorrect signs, indicating battery status or reliability.

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Protector de impacto lateral

Diagram of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

Diagram illustrating car seatbelt usage with instructions for adjusting seatbelt color and safety symbols

Diagram showing a vehicle head with a red arrow indicating transformation (no text or symbols present)

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a red T-shaped object, with two red arrows indicating downward motion (no text or symbols)

Three illustrated scenarios showing a person wearing a seatbelt, with red and green symbols indicating incorrect and correct safety measures.

Konektory Isofi x

Illustration showing two-step instructions for using a tool to adjust the grip of a wrist (no text or symbols present)

Illustration of a hand holding a medical device with a red arrow indicating force direction (no text or symbols)

Diagram showing two battery terminal connections with checkmarks and a red 'X' indicating cancellation or error.

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Diagram of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

MONTÁŽ DĚTSKÉ AUTOSEDAČKY

Diagram illustrating car seatbelt usage with instructions for adjusting seatbelt color and safety symbols

Diagram showing a vehicle head assembly before and after, with a red arrow indicating the process (no text or symbols present)

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

Regulacja zagłówka

Illustration of a hand pressing down on a red T-shaped object, with two red arrows indicating downward motion (no text or symbols)

Three illustrated scenarios showing a person wearing a seatbelt, with red and green symbols indicating incorrect and correct safety measures.

Łączniki ISOFIX

Illustration showing two-step instructions for using a tool to adjust the grip of a wrist (no text or symbols present)

Illustration of a hand holding a medical device with a red arrow indicating force or pressure (no text or symbols present)

Diagram showing two battery charging scenarios with checkmarks and incorrect signs, indicating battery status or reliability.

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Illustration of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

MONTAŻ FOTELIKA SAMOCHODOWEGO

Diagram illustrating car seatbelt usage with instructions for adjusting seatbelt color and safety symbols

Diagram showing a vehicle head assembly before and after, with a red arrow indicating the process (no text or symbols present)

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a red T-shaped object, with two red arrows indicating downward motion (no text or symbols)

Illustration showing three child safety measures: seatbelt, crosshair, and checkmark, each with a red X and green checkmark.

Konektory Isofi x

Illustration showing two-step instructions for using a tool to lift a piece of material, with red arrows indicating motion (no text or symbols present)

Illustration of a hand holding a medical device with a red arrow indicating force direction (no text or symbols)

Diagram showing two battery charging scenarios with checkmarks and incorrect signs, indicating battery status or reliability.

Nastavenie polohy odpočinku

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Diagram of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

MONTÁŽ DETSKEJ AUTOSEDAČKY

Diagram illustrating car seatbelt usage with instructions for adjusting seatbelt color and safety symbols

Diagram showing a vehicle head with a red arrow indicating transformation (no text or symbols present)

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

Podešavanje naslona za glavu

Illustration of a hand pressing down on a red T-shaped object, with two red arrows indicating downward motion (no text or symbols)

Illustration showing three child safety measures: seatbelt, crosshair, and checkmark, each with a red X and green checkmark.

Isofi x konektori

Illustration showing two-step instructions for using a tool to lift a piece of material, with red arrows indicating motion (no text or symbols present)

Illustration of a hand holding a medical device with a red arrow indicating force direction (no text or symbols)

Diagram showing two battery terminal connections with checkmarks and a red 'X' indicating cancellation or error.

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Illustration of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

UGRADNJA DJEČJE AUTOSJEDALICE

Medical illustration showing car seatbelt usage with instructions for adjusting seatbelt color and safety symbols

Diagram showing a vehicle head assembly before and after, with a red arrow indicating the process (no text or symbols present)

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a red T-shaped object, with two red arrows indicating downward motion (no text or symbols)

Illustration showing three child safety measures: seatbelt, no longer, and checkmark, each with a red X and green checkmark.

Priključki Isofi x

Diagram illustrating a medical procedure with red arrows indicating force or movement, showing hand positioning and tool placement.

Illustration of a hand holding a medical device with a red arrow indicating force direction (no text or symbols)

Diagram showing two battery terminal connections with checkmarks and a red 'X' indicating cancellation or error.

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Illustration of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

NAMESTITEV OTROŠKEGA AVTOSEDEŽA

Medical illustration showing car seatbelt usage with instructions for adjusting seatbelt color and safety symbols

Diagram showing a vehicle head assembly before and after transformation, with no text or symbols present.

Simple line drawing of a banana peel with a red curved arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a red T-shaped object, with two red arrows indicating downward motion (no text or symbols)

Three illustrated scenarios showing a person wearing a seatbelt, with red and green symbols indicating incorrect and correct safety measures.

Isofi x-csatlakozók

Illustration showing two-step instructions for using a tool to lift a piece of material, with red arrows indicating motion (no text or symbols present)

Illustration of a hand holding a medical device with a red arrow indicating force direction (no text or symbols)

Diagram showing two battery charging scenarios with checkmarks and incorrect signs, indicating battery status or reliability.

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

Diagram of a cable or connector with a red arrow indicating direction (no text or symbols)

Diagram of a seated car seat with a red arrow indicating downward motion (no text or symbols)

Abstract diagram with a red oval shape inside a white circle, no text or symbols present.

Line drawing of a car seatbelt with a red circle highlighting the seat area (no text or symbols)

Diagram illustrating car seatbelt usage with instructions for adjusting seatbelt color and safety symbols
