Thank you for choosing our child car seat. If you need help with this product, please contact our customer service.

HOW TO USE

• This product is suitable for children between 100 and 150cm in height.
• It must be installed in a forward-facing direction only. The child and the car seat are both strapped in using the vehicle's 3-point safety belt.

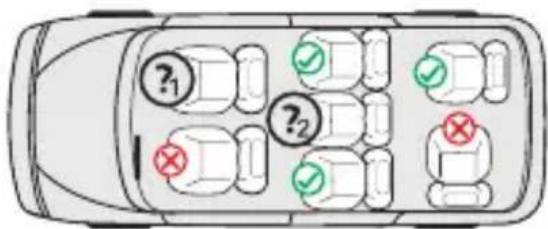

NOTE

This is an optimised i-Size children's booster seat. It is approved under Regulation No. 129 for use primarily on "i-Size vehicle seats" as specified by vehicle manufacturers in the vehicle manual.

If in doubt, the manufacturer of the enhanced child restraint system or the retailer should be consulted.

IMPORTANT - DO NOT USE THE CHILD CAR SEAT IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 3.

?1 ?2

1. & 2.: Only if there is at least a 3-point car seat belt.

The following table provides information about the fastening devices and methods:

Height range	Installation direction	Installation Type		Child safety device
100–150 cm	Forward-facing	3-point car seat belt	i-Size booster seat	3-point car seat belt

WARNING

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the instructions. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• Do not use load-bearing contact points other than those described in the instructions and indicated on the child restraint system.
• Do not use this child car seat at home. It has been designed exclusively for use in a car.
• Do not leave your child unsupervised in the seat at any time.
• The child seat must be replaced if it has been subject to severe mechanical stress in an accident.
• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.
• Always make sure that all straps that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fit the child's body. Ensure that the belts are not twisted.
• Items of luggage and other objects that could cause injury in the event of a collision must be properly secured.
• The rigid elements and plastic parts of a child restraint system must be positioned and installed so that they cannot become jammed by a movable seat or a vehicle door.
• It is important that belts that sit low hold the child's pelvis firmly in place. Your child should always be fastened in to stop them falling out.
• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system may also present risks to the safety of your child.
• This child seat is designed for children with a maximum height of 150 cm. Never overload the child seat by transporting more than one child or additional loads in it.
• The child restraint system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint system.

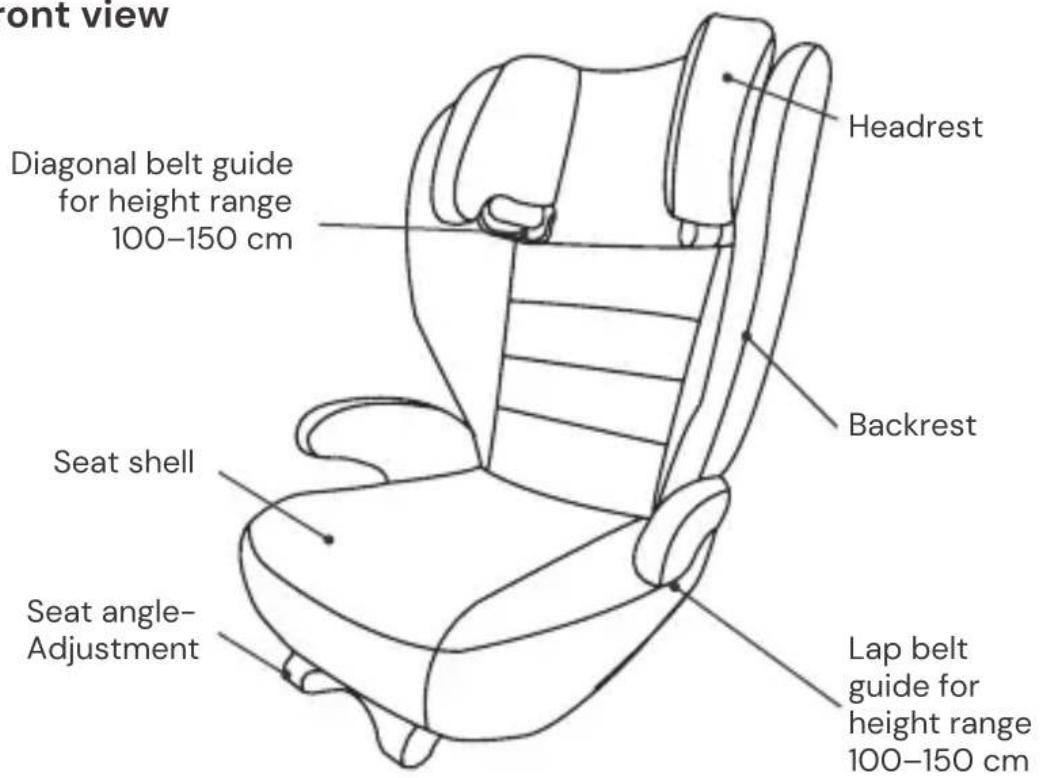

SEAT PARTS

Front view

Front view Headrest Diagonal belt guide for height range 100–150 cm Backrest Seat shell Seat angle- Adjustment Lap belt guide for height range 100–150 cm

Rear view

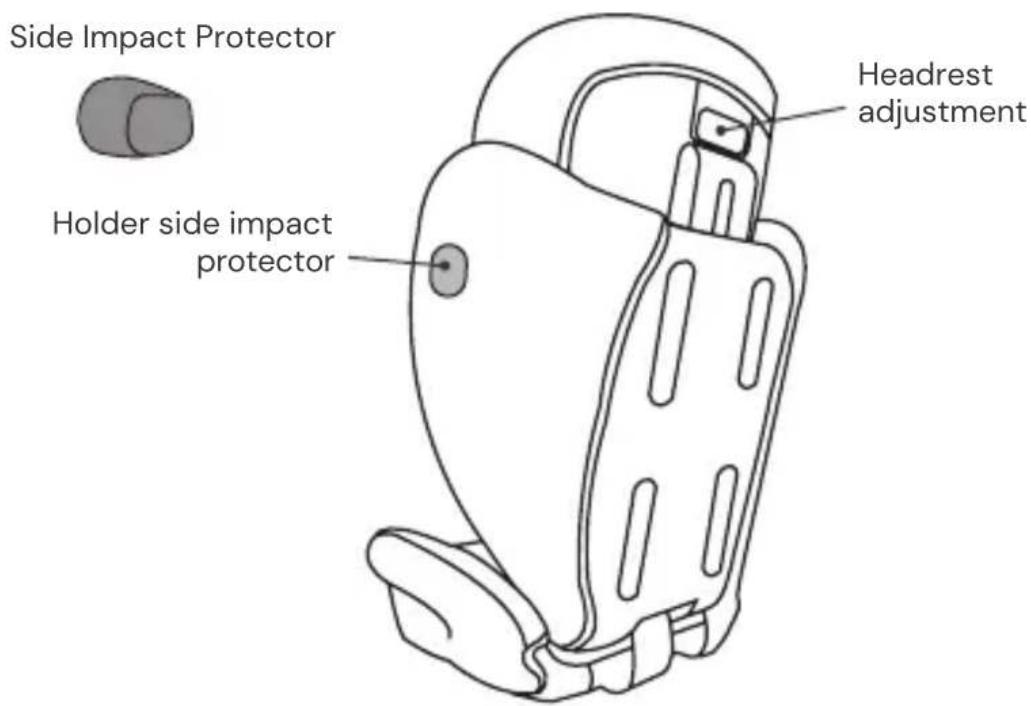

Side Impact Protector Holder side impact protector Headrest adjustment

CLEANING

To guarantee long-term use of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Wash at 30^ C , gentle wash cycle

DO NOT iron

DO NOT bleach

DO NOT dry clean

Tumble dry at low temperature

MAINTENANCE

Check the condition of the product for possible damage at regular intervals. In the event of damage, the child car seat must no longer be used and must be kept out of the reach of children.

In case of any issues, please contact

Osann customer service on [phone].

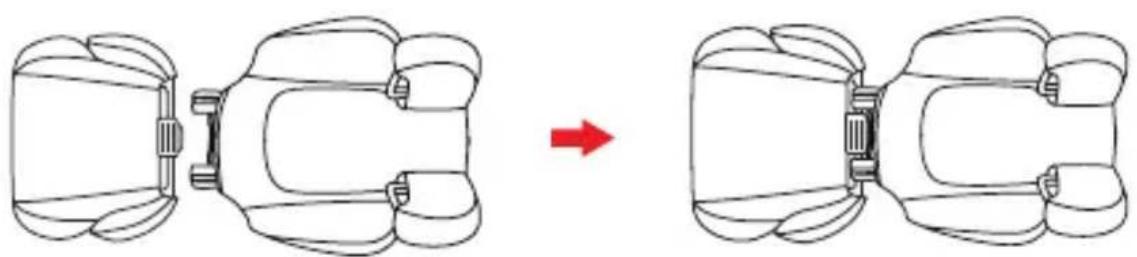

Assembling the backrest & seat shell (variant-dependent)

• The child car seat is delivered unassembled.

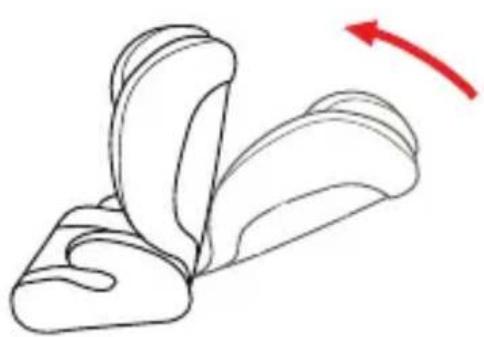

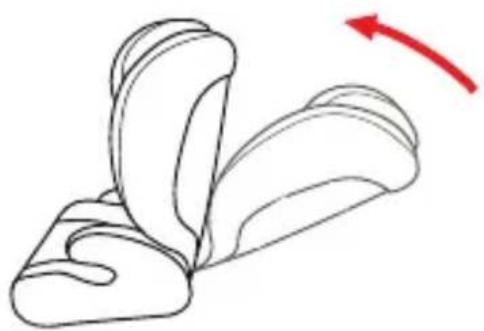

- Please take the backrest and hook it into the seat shell at a shallow angle.
- Hold the seat shell firmly and push the backrest upwards until it is fully engaged.
- Use of the child car seat without a backrest is not permitted.

Diagram showing a vehicle head assembly before and after, with a red arrow indicating the process (no text or symbols present)

Simple line drawing of a banana-shaped object with a red curved arrow indicating rotation (no text or symbols)

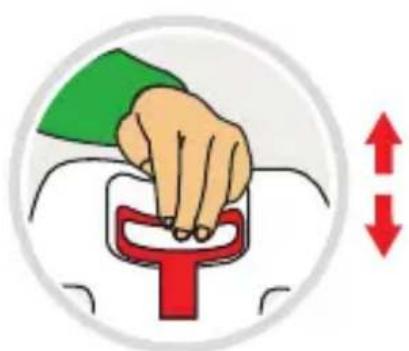

Adjusting the headrest

• Pull up the headrest adjustment lever on the back of the child car seat and adjust the height of the headrest.
• Thread the diagonal belt of the car's 3-point seat belt through the diagonal belt guide on the headrest.

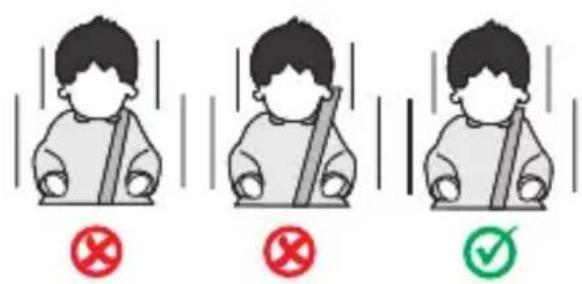

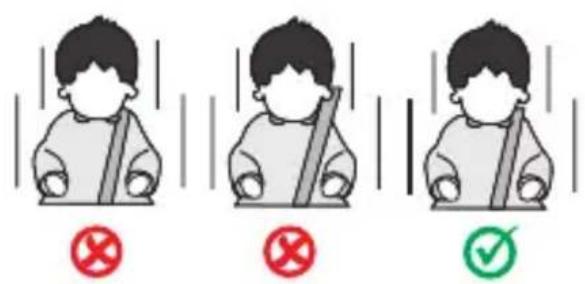

• Make sure that the diagonal strap of the car's 3-point seat belt comes out of the diagonal strap guide on the headrest just above your child's shoulders.
• Release the lever and ensure that the headrest is engaged.

Illustration of a hand pressing down on a red T-shaped object, with two red arrows indicating downward motion (no text or symbols)

Three illustrated scenarios showing a person wearing a seatbelt, with red and green symbols indicating incorrect and correct responses.

Setting the rest position

• The backrest of the child car seat is fl exible in its angle of inclination so that it can adapt better to the backrest of the car seat.
• The seat angle adjustment on the underside of the child car seat can be folded in or out as required.

Line drawing of a chair seat with no text or symbols

Simple line drawing of a curved object with a red arrow below, enclosed in a circular frame (no text or symbols)

Side Impact Protector

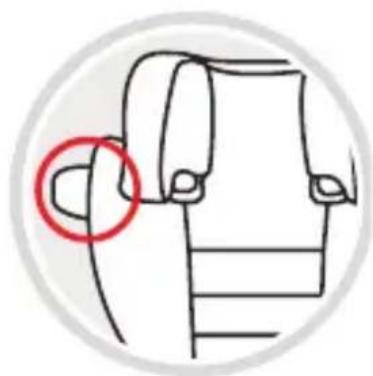

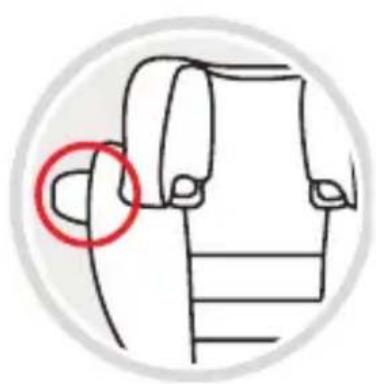

• The side impact protector is inserted from the top to the bottom on the side that is on the car door at the corresponding holder of the child car seat.
• If the child car seat is placed in the middle seat on the rear bench, for example, when three child car seats are to be mounted side by side, the separate side impact protector can be omitted.
• To remove the side impact protector, lift the release lever on the rear side of the protector and pull the protector upwards again.

Illustration of a seated arm with a red object and a downward arrow indicating motion (no text or symbols)

Abstract diagram with a red oval shape inside concentric white and gray curved lines, no text or symbols present.

Line drawing of a car seat with a red circle highlighting the seat area (no text or symbols)

INSTALLATION OF THE CHILD CAR SEAT

Height range 100–150 cm, forward-facing

Diagram illustrating car seatbelt usage with a person seated and a magnified inset showing the device's seatbelt placement.

1. Push the child car seat in until it rests securely against the backrest of the vehicle seat.

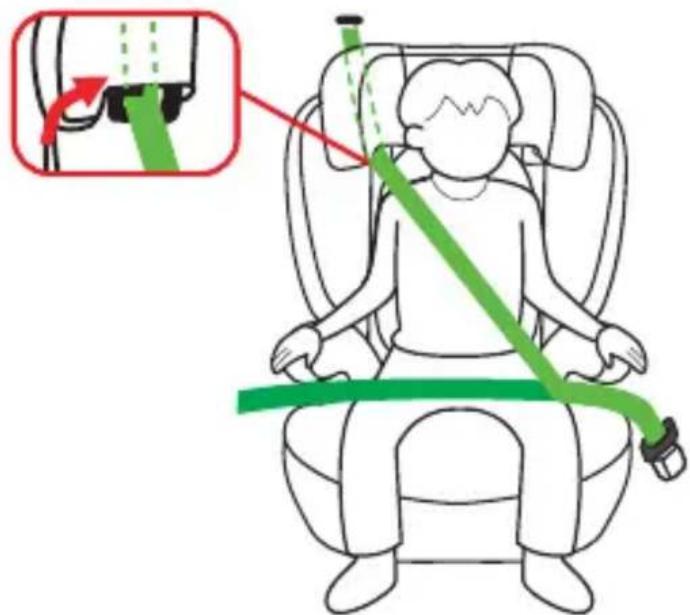

2. Thread the diagonal belt of the 3-point car seat belt through the diagonal belt guide on the headrest of the child car seat.
3. Thread the lap belt of the car's 3-point belt through the first lap belt guide (below the armrest) in the seat area of the child car seat.
4. Put your child in the child car seat.
5. Adjust the height of the headrest so that the child's head is fully in the headrest and the diagonal belt comes out through the belt guide at the level of the child's shoulders.
   6.Fasten the belt buckle of the 3-point seat belt until you hear a click.
6. Make sure that both the diagonal belt and the lap belt run through the second lap belt guide (below the armrest) on the child car seat, which faces the car's seat belt buckle.
7. Pull on the diagonal strap to tighten it. Make sure that the straps are not twisted.
8. Install the side impact protector as previously described.
