Thank you for choosing our child car seat. If you need help with this product, please contact our customer service.

USE

• This product is suitable for children of a height of 76 to 150 cm.
• Forward-facing installation for children 76 to 105cm in height and a minimum age of 15 months is carried out using the Isofix connectors and the top tether strap. The child is strapped in with the 5-point harness of the child car seat.
• Forward-facing installation for children 100 to 150 cm in height is carried out using the Isofix connectors. The top tether strap is not needed in this height range. The child is strapped in with the 3-point car seat belt Alternatively, the child car seat can also be fitted with the 3-point car seat belt only for children 100–150 cm in height. Attaching the seat with the Isofix connectors is not absolutely essential but is recommended.

ATTENTION

USE ONLY FROM THE AGE OF 15 MONTHS.

PLEASE NOTE

NOTE (76–105 cm):

This is an i-Size child restraint system. It is approved under Regulation No. 129 for use on "i-Size compatible" vehicle seats as specified by the vehicle manufacturer in the vehicle manual. In cases of doubt, please contact the manufacturer of the child restraint system or your retailer.

The child restraint system can be used on all Isofi x seats as long as there is also an attachment hook for the top tether.

NOTE (100 - 150 cm):

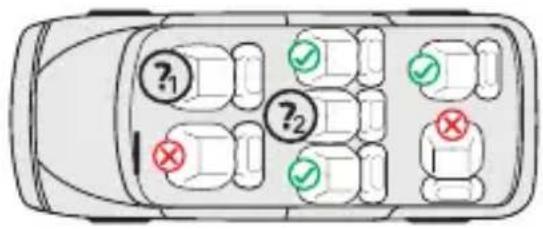

This is an optimised i-Size children's booster seat. It is approved under Regulation No. 129 for use primarily on "i-Size vehicle seats" as specified by vehicle manufacturers in the vehicle manual. If in doubt, contact either the manufacturer of the extended child restraint system or the retailer.

The optimised i-Size booster seat can also be used on all seats in the "universal" category, as long as this does not conflict with the vehicle interior.

If in doubt, please contact the car seat manufacturer or the retailer.

?₁ ?₂

1. & 2.:

76-105 cm: Only if Isofi x connectors and a fastening hook for the top tether are available.

100-150 cm: Only if at least a 3-point car seat belt that complies with ECE R16 is available. If Isofi x connectors are available, these can also be used. Securing the child only with a 2-point harness is not approved.

The following table provides information about the fastening devices and methods:

Height range	Installation direction	Installation Type Child safety device
76–105 cm	Forward-facing	Isofi x connectors & top tether	i-Size	5-point harness on the child seat
100–150 cm	Forward-facing	Isofi x connectors & 3-point car seat belt	i-Size booster seat	3-point car seat belt
100–150 cm	Forward-facing	3-point car seat belt	i-Size booster seat	3-point car seat belt

WARNING

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the instructions. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• The child seat can only be used with its own 5-point harness system for children under a body weight of 20 kg and a height of up to 105 cm.
• The child seat can NOT be used with the 5-point harness system for children over a body weight of 20 kg and a height of over 105 cm.
• The child seat can be installed forward-facing with the Isofix connectors and the top tether strap.
• For Isofi x installation: Be sure to read the car manufacturer's manual.
• Do not use load-bearing contact points other than those described in the instructions and indicated in the child restraint system.
• Do not use this child car seat at home. It has been designed exclusively for use in a car.
• Do not leave your child unsupervised in the seat at any time.
• The child seat must be replaced if it has been subject to severe mechanical stress in an accident.
• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.
• Always make sure that all belts that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fit the child's body. Ensure that the belts are not twisted.
• Items of luggage and other objects that could cause injury in the event of a collision must be properly secured.
• The rigid elements and plastic parts of a child restraint system must be positioned and installed so that they cannot become jammed by a movable seat or a vehicle door.
• It is important that belts that sit low hold the child's pelvis firmly in place. Your child should always be fastened in to stop them falling out.
• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system may also present risks to the safety of your child.
• This child seat is designed for children with a maximum height of 150 cm. Never overload the child seat by transporting more than one child or additional loads in it.
• The child restraint system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint system.

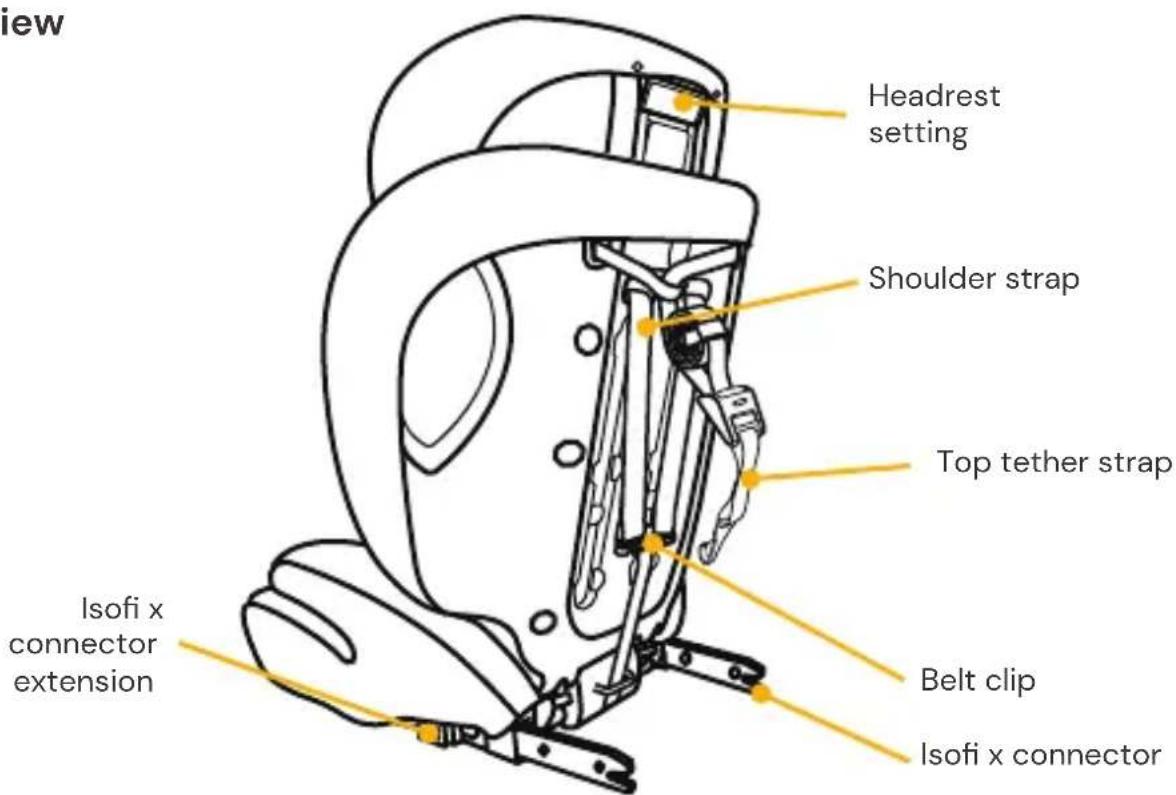

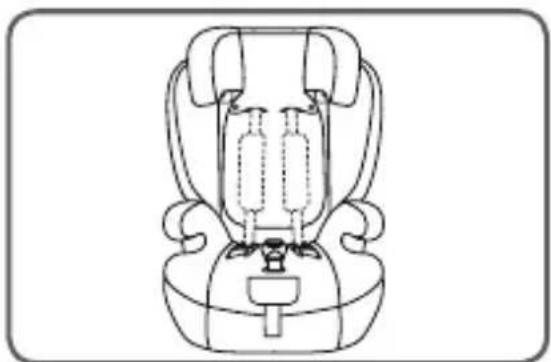

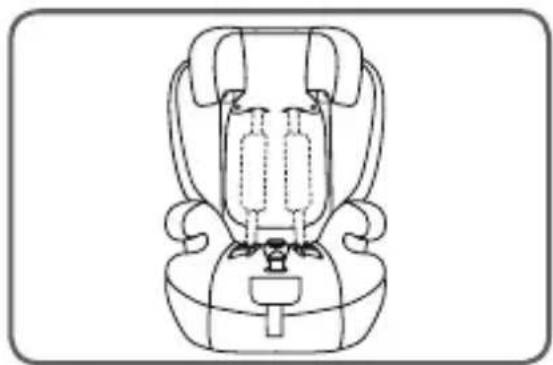

SEAT PARTS

Front view

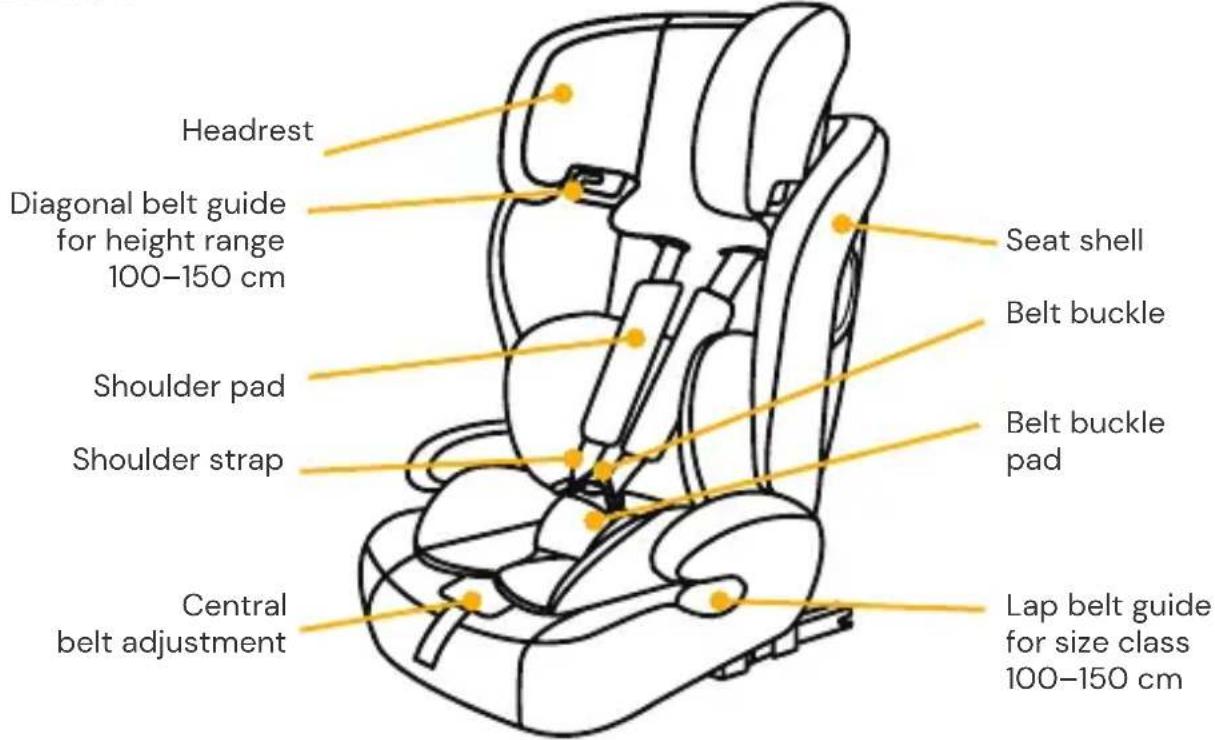

Headrest Diagonal belt guide for height range 100–150 cm Shoulder pad Shoulder strap Central belt adjustment Seat shell Belt buckle Belt buckle pad Lap belt guide for size class 100–150 cm

Rear view

view Headrest setting Shoulder strap Top tether strap Isofi x connector extension Belt clip Isofi x connector

USING THE CHILD CAR SEAT

Adjusting the belt

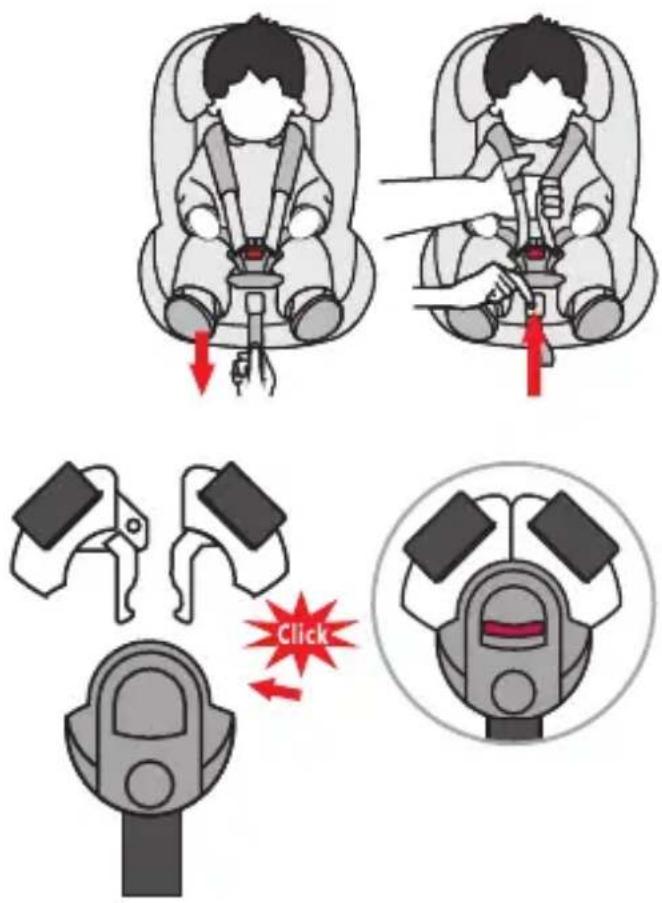

• To loosen the belt, press the belt adjustment button in the seat area with one hand. Hold the belt buckle with the other hand and carefully loosen the attached belts.

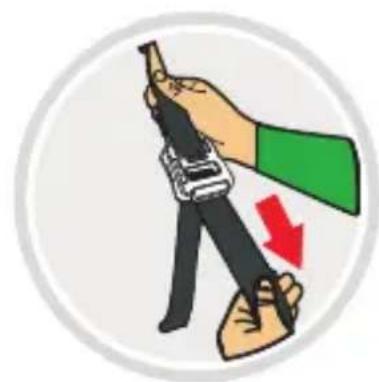

• Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.

Illustration showing how to adjust a car seatbelt using a device, with Chinese text indicating 'Click' and red arrows indicating adjustment.

Opening/closing the belt

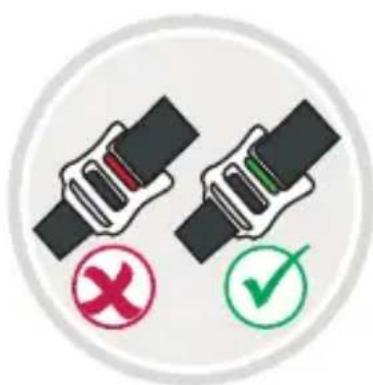

• To unlock the belt, press the button on the belt buckle, pull out the buckle tongues and separate them.

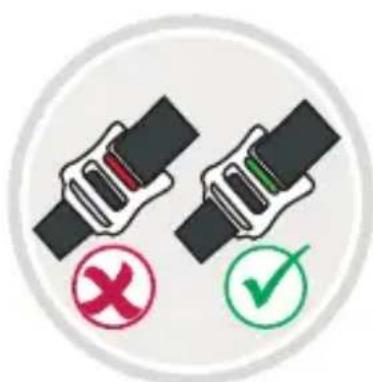

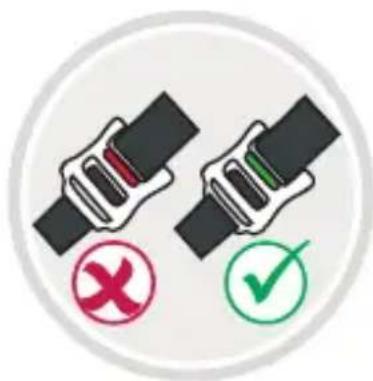

• To lock the belt, first connect both tongues of the buckle and then insert them together into the belt buckle.

Diagram of a hand pressing a red button on a device with an upward arrow (no text or symbols)

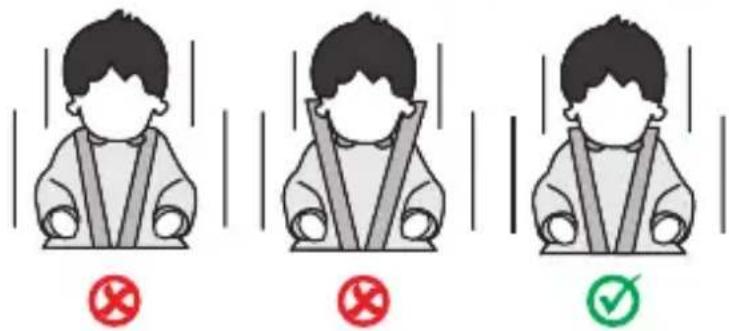

Adjusting the head support

• Release the belt and pull the lever to adjust the headrest on the back of the child car seat. Move the headrest until it engages at the correct height.

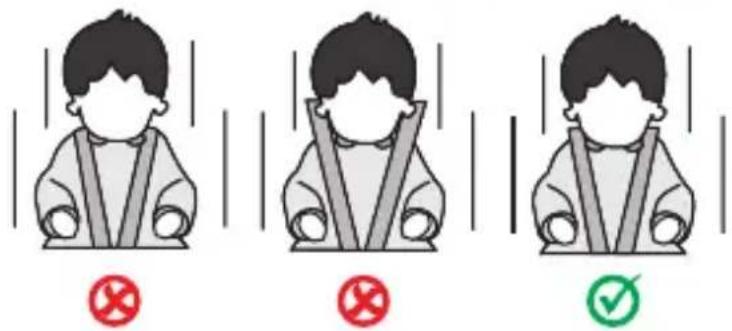

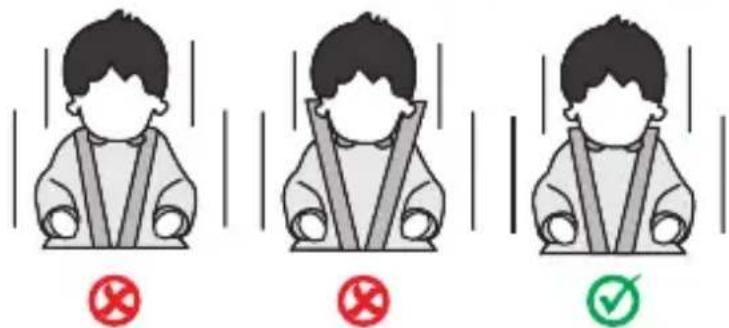

  • Make sure the shoulder straps are positioned just above your child's shoulders when they come out of the child car seat.
• Release the lever and ensure that the headrest is engaged.

Three illustrated scenarios showing a person wearing seatbelt with checkmarks indicating absence or compliance, each marked with a red X and green checkmark.

Isofi x connectors

• Press the two side Isofi x connector buttons to extend the length of the Isofi x connectors.
• Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
• Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Press again individually on the left and right side of the child car seat and make sure that the connectors are fully engaged and that the child seat does not wobble. Ensure that both Isofi x indicators are showing green.

Top tether for height range 76–105 cm

• Remove the top tether from the storage bag at the back of the child car seat (storage bag depends on variant).

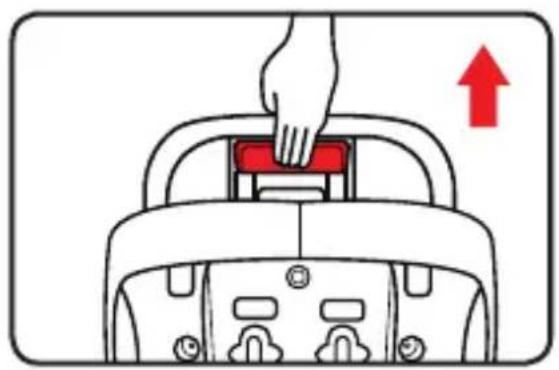

• To release the top tether, press the button with one hand and pull the side of the belt anchor to the required length with the other hand.
• To fix the top tether, clip the anchor to the fixing point on the car seat and pull it as tight as possible. The display does not turn green until the belt is tightened sufficiently.
• The top tether strap is only necessary for the children 76–105 cm in height. In the 100–150 cm size class, the top tether strap is no longer needed.

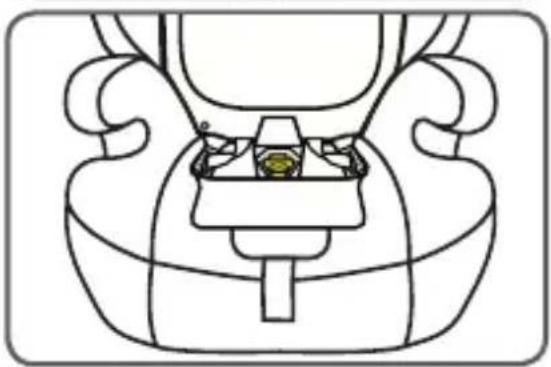

Comfort insert

• The comfort insert is intended for children with a body height of 76–87 cm.
• Please remove the insert as soon as your child exceeds the specified height.

Click

Illustration of a hand adjusting a black belt buckle with a red downward arrow (no text or symbols)

Safety warning symbols for two belt buckle designs, one marked with red X and green checkmark, the other with green checkmark.

Simple line drawing of a symmetrical abstract shape resembling a stylized face or mask (no text or symbols)

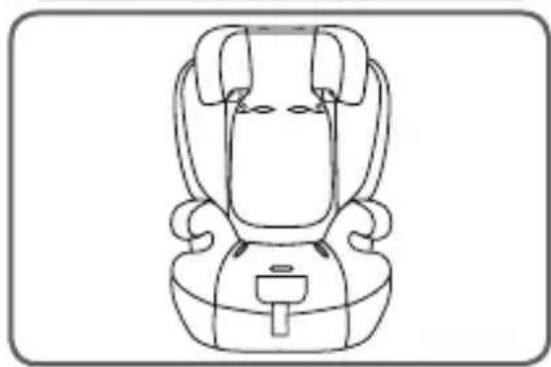

Stowage of the 5-point belt for size class 100-150 cm

• Loosen the belt system to the maximum length.

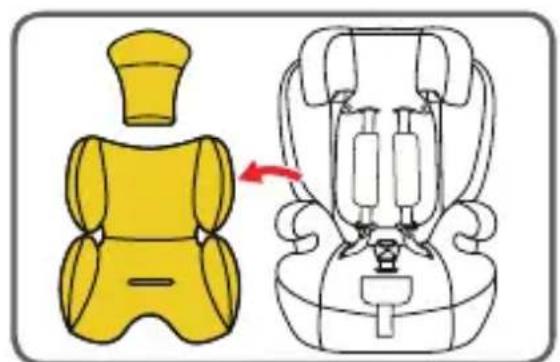

• Open the belt system and remove the comfort insert and the belt buckle pad.

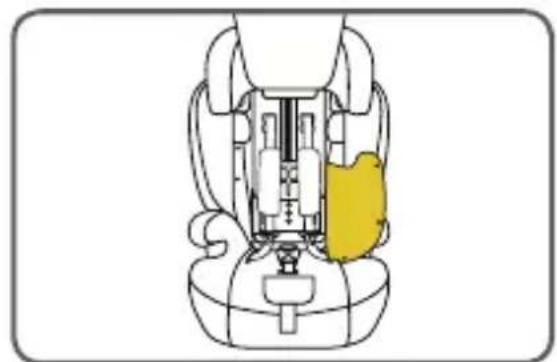

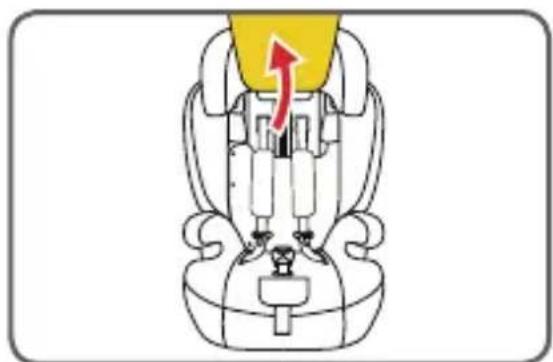

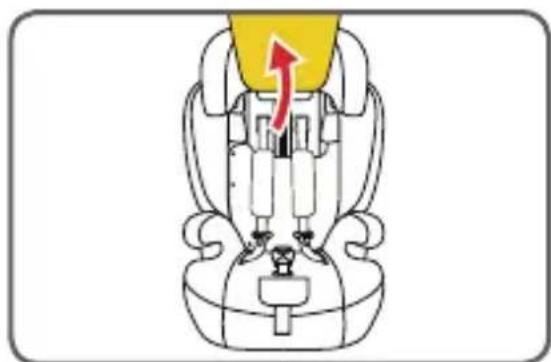

• Open the press buttons on the lower part of the headrest cover and fold the cover away upwards.

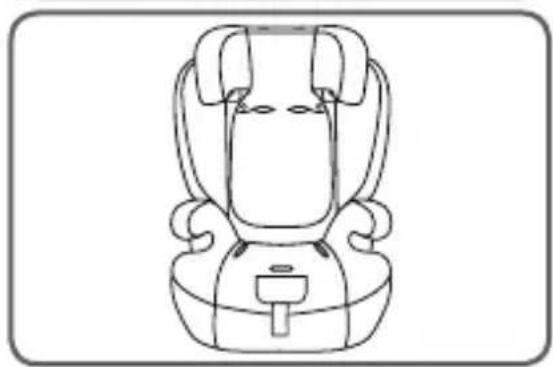

• Open the press studs on the backrest cover and fold the cover to the side.

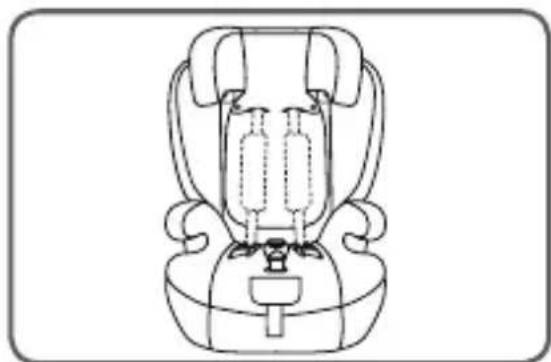

• Stow the shoulder straps together with the shoulder padding in the backrest area and close the backrest cover again at the press studs. Now fold down the lower part of the headrest cover and close the press studs here too.
• Carefully pull off the cover in the seat area so that you can insert the seat belt buckle through the opening in the seat cover.
• Stow the seat belt buckle in the recess in the seat area below the foam padding.
• Stow the seat belt buckle tongues in the two smaller hollows at the side of the seat.
• Now put the cover back over the seat area.
• Keep all the removed parts in a safe place.

Illustration of a yellow baby car seat with a red arrow indicating the seat structure (no text or symbols)

Line drawing of a car seat assembly with a yellow top component and red arrow indicating direction (no text or symbols)

Diagram of a car seatbelt device with highlighted yellow component (no text or symbols)

Line drawing of a car seat with two side seats and a double bass (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a car seat with neck and frontrest (no text or symbols)

CLEANING

To guarantee long-term use of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Wash at 30^ C, gentle wash cycle

DO NOT iron

DO NOT bleach

DO NOT dry clean

Tumble dry at low temperature

MAINTENANCE

Check the condition of the product for possible damage at regular intervals. In the event of damage, the child car seat must no longer be used and must be stored out of the reach of children.

In case of any issues, please contact

Osann customer service on [phone].

INSTALLING THE CHILD CAR SEAT

1) Size class 76–105 cm, min. 15 months, max. 20 kg, forward facing

Diagram illustrating car seatbelt usage and safety instructions, showing correct/incorrect actions with icons for lifting, adjusting, and locking.

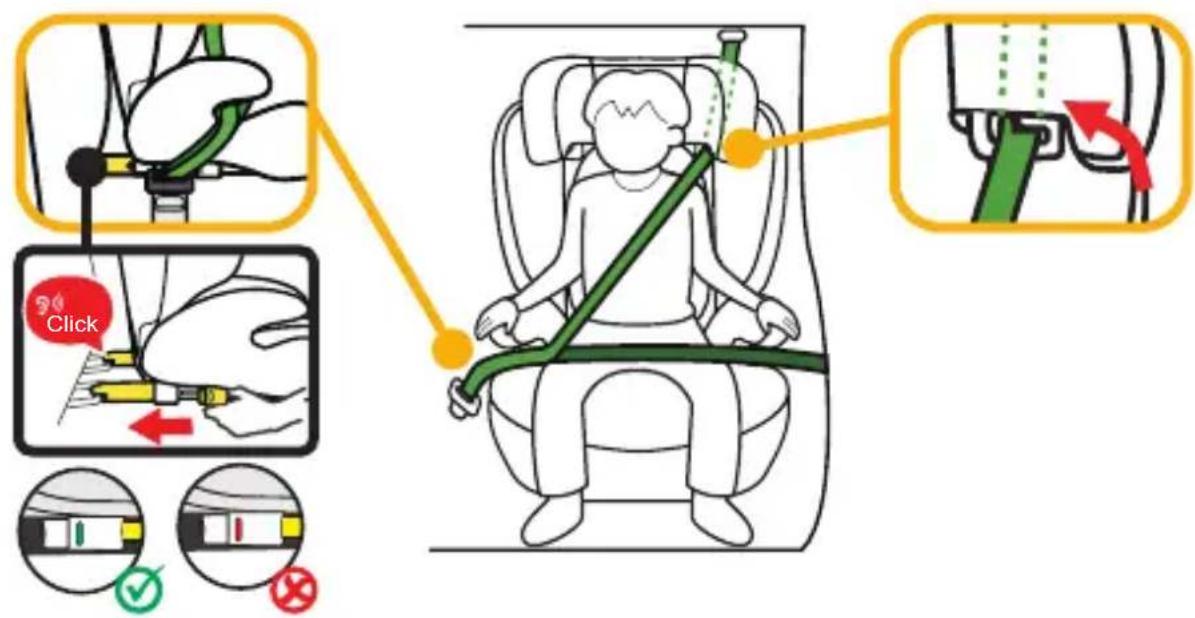

ATTENTION: USE ONLY FROM THE AGE OF 15 MONTHS.

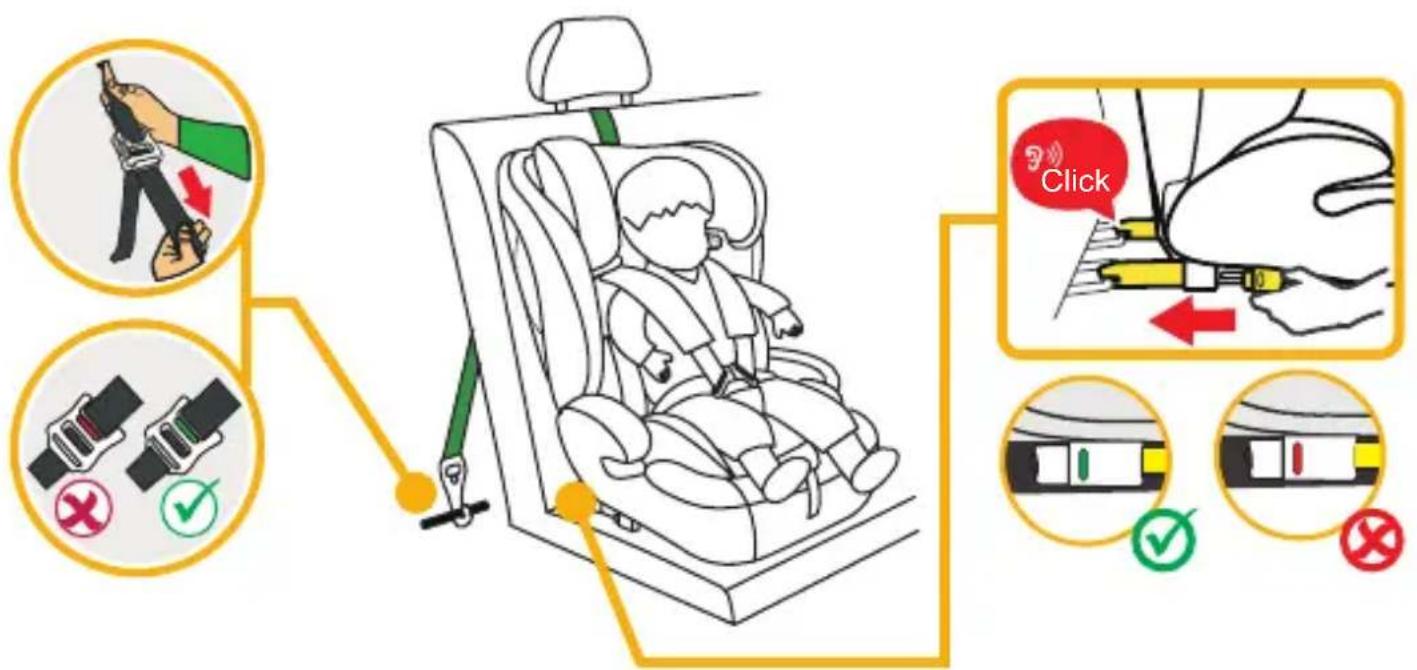

1. Place the child car seat forward facing on your car seat.
2. Press the two side Isofix connector buttons to extend the length of the Isofix connectors.
3. Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
4. Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Press again individually on the left and right side of the child car seat and make sure that the connectors are fully engaged and that the child seat does not wobble. Ensure that both Isofi x indicators are showing green.
5. Take the top tether from its storage pocket and extend it to the maximum length.
6. Clip the top tether onto the hook provided in your car (e.g. on the back of the car seat or in the boot. Please consult your car manual for this).
7. Tighten the top tether until the display on the top tether turns green.
8. Unfasten the belt buckle on the child car seat and place the belts over the outside of the seat.
9. Put your child in the child car seat.
10. Adjust the height of the headrest as described above.
11. Fasten the belt buckle again until you hear a click.
12. Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.

2) Size class 100–150 cm, forward-facing

Diagram illustrating car seatbelt usage and safety instructions, showing steps from lifting to adjusting the seatbelt.

1. The 5-point harness of the child car seat and the top-tether strap must be stowed as previously described. These are not needed for children of this height.
2. Press the two side Isofix connector buttons to extend the length of the Isofix connectors.
3. Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
4. Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Press again individually on the left and right side of the child car seat and make sure that the connectors are fully engaged and that the child seat does not wobble. Ensure that both Isofi x indicators are showing green.
5. Thread the diagonal belt of the 3-point seat belt in the car through the diagonal belt guide on the headrest of the child car seat.
6. Put your child in the child car seat.
7. Adjust the height of the headrest so that the child's head is fully in the headrest and the diagonal belt comes out through the belt guide at the level of the child's shoulders.
   8.Fasten the belt buckle of the 3-point seat belt until you hear a click.
8. Make sure that both the diagonal belt and the lap belt run along the second lap belt guide (below the armrest) on the child car seat, which faces the car's seat belt buckle.
   10.Pull on the diagonal strap to tighten it. Make sure that the straps are not twisted.

Installation without Isofi x:

Alternatively, the child car seat can also be fitted with the 3-point car seat belt only for children 100–150 cm in height. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.

Illustration of a child in a car seat being lifted, showing two different states of the same seat (no text or symbols present)

Diagram of a hand pressing a red button on a device with an upward arrow (no text or symbols)

Three illustrated scenarios showing a person wearing seatbelt with checkmarks indicating absence or compliance, each marked with a red X and green checkmark.

Connecteurs Isofi x

9 Click ✓ ×

Illustration of a hand holding a black belt buckle with a red downward arrow indicating compression (no text or symbols)

Safety warning symbol for two belt buckle designs, one marked with red X and green checkmark, the other with green checkmark.

Simple line drawing of a symmetrical abstract shape resembling a stylized animal head or mask (no text or symbols)

Illustration of a yellow baby car seat with a red arrow indicating the seat structure (no text or symbols)

Diagram of a car seat assembly with a yellow top component and red arrow indicating direction (no text or symbols)

Diagram of a car seat assembly with highlighted yellow component (no text or labels)

Line drawing of a car seat with two side seats and a double bass (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a car seat with neck and seatbelt (no text or symbols)

NETTOYAGE

Diagram illustrating car seatbelt usage and safety instructions, showing correct/incorrect actions with icons for lifting, adjusting, and locking.

ATTENTION : UTILISER UNIQUEMENT À PARTIR DE 15 MOIS.

Diagram illustrating car seatbelt usage and safety instructions, showing steps from lifting to adjusting seatbelt.

Illustration of a child in a car seat being lifted, showing two different states of the same seat (no text or symbols present)

Click

Diagram of a hand pressing a red button on a device with an upward arrow (no text or symbols)

Three illustrated scenarios showing a person wearing seatbelt with checkmarks indicating absence or compliance, each marked with a red X and green checkmark.

Connettori Isofi x

Illustration of a hand adjusting a black belt buckle with a red downward arrow (no text or symbols)

Safety warning symbols for two belt buckle designs, one marked with red prohibition and green checkmark, the other with green checkmark.

Simple line drawing of a symmetrical abstract shape resembling a stylized face or mask (no text or symbols)

Illustration of a yellow baby car seat with a red arrow indicating the seat structure (no text or symbols)

Diagram of a car seat assembly with a yellow top component and red arrow indicating direction (no text or symbols)

Diagram of a car seat assembly with highlighted yellow component (no text or labels)

Line drawing of a car seat with two seats and a double bass (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a car seat with neck and frontrest (no text or symbols)

PULIZIA

Diagram illustrating car seatbelt usage and safety instructions, showing correct/incorrect actions with icons for lifting, adjusting, and locking.

ATTENZIONE: UTILIZZARE SOLO A PARTIRE DAI 15 MESI DI ETÀ.

Diagram illustrating car seatbelt usage and safety instructions, showing steps from lifting to adjusting the seatbelt.

Illustration showing car seatbelt usage instructions with arrows and a 'Click' button, including a close-up of the device.

Illustration of a hand pressing a red button on a device with an upward arrow (no text or symbols)

Three illustrated scenarios showing a person wearing seatbelt with checkmarks and red/green symbols indicating absence or compliance.

Isofi x-connectoren

Illustration of a hand holding a black belt buckle with a red downward arrow indicating compression (no text or symbols)

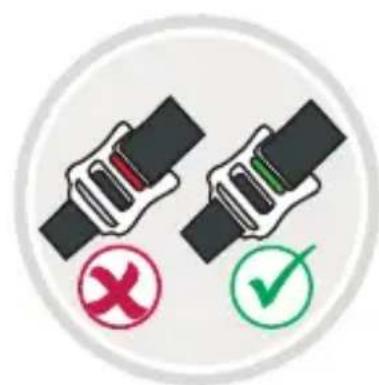

Safety warning symbols for two belt buckle designs, one marked with red X and green checkmark, the other with green checkmark.

Simple line drawing of a symmetrical abstract shape resembling a stylized animal head or mask (no text or symbols)

Illustration of a yellow baby car seat with a red arrow indicating the seat structure (no text or symbols)

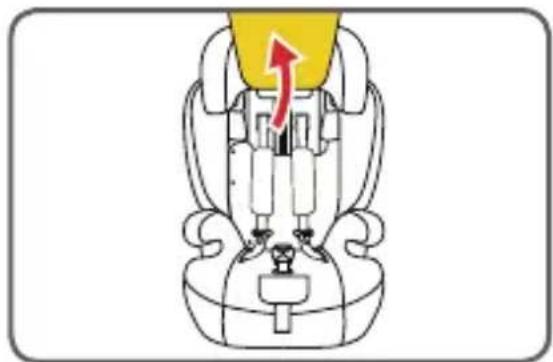

Diagram of a car seat assembly with a yellow top component and red arrow indicating direction (no text or labels)

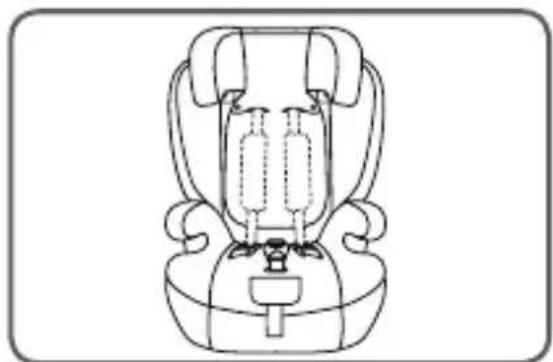

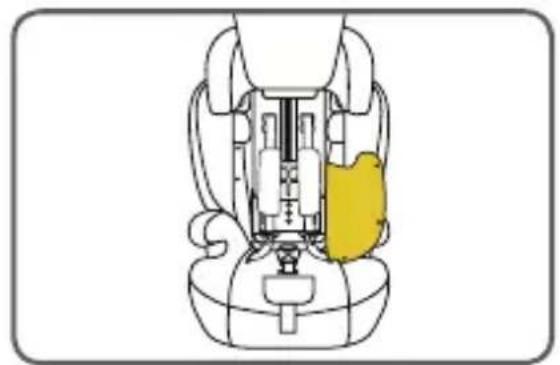

Diagram of a car seat assembly with highlighted yellow component (no text or labels)

Line drawing of a car seat with two seats and a double bass (no text or symbols)

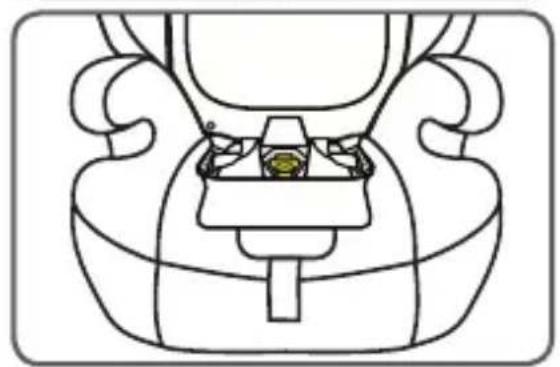

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a car seat with neck and frontrest (no text or symbols)

REINIGING

Diagram illustrating car seatbelt usage and safety instructions, showing correct/incorrect actions with icons for lifting, adjusting, and locking.

LET OP: PAS TE GEBRUIKEN VANAF EEN LEEFTIJD VAN 15 MAANDEN.

Diagram illustrating car seatbelt usage and safety instructions, showing steps from lifting to adjusting the seatbelt.

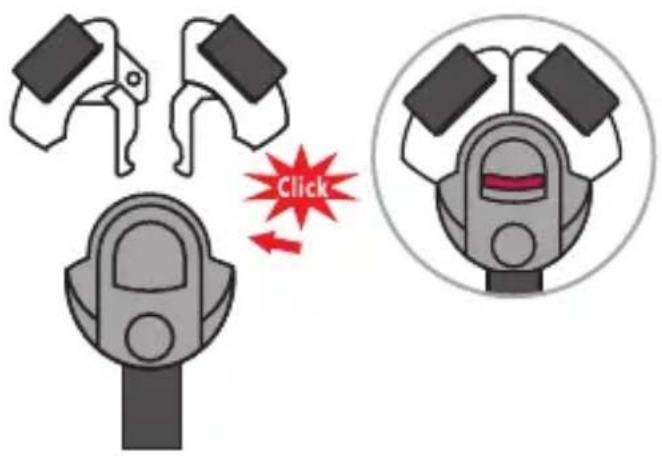

Illustration showing how to adjust a car seatbelt using a device, with Chinese text indicating 'Click' and red arrows indicating adjustment.

Diagram of a hand pressing a red button on a device with an upward arrow (no text or symbols)

Three illustrated scenarios showing a person wearing a seatbelt with checkmarks indicating absence or compliance, each marked with a red X and green checkmark.

Conectores Isofi x

Illustration of a hand adjusting a black belt buckle with a red downward arrow (no text or symbols)

Safety warning symbols for two belt buckle designs, one marked with red prohibition and green checkmark, the other with green checkmark.

Simple line drawing of a symmetrical abstract shape resembling a stylized face or mask (no text or symbols)

Illustration of a yellow baby car seat with a red arrow indicating the seat structure (no text or symbols)

Diagram of a car seat assembly with a yellow top and red arrow indicating direction (no text or labels)

Diagram of a car seat assembly with highlighted yellow component (no text or labels)

Line drawing of a car seat with two seats and a double bass (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a car seat with neck and frontrest (no text or symbols)

LIMPIEZA

Diagram illustrating car seatbelt usage and safety instructions, showing correct/incorrect matches and check/cancel icons.

Medical diagram illustrating car seatbelt usage and safety instructions with labeled diagrams and actions

Simple black-and-white cartoon illustration of two overlapping circles (no text or symbols)

FR NOTICE BAC DE TRI

Stylized text logo composed of cartoon eyes and dots, resembling a logo or decorative design.
